Old 02-24-2012, 01:58 PM   #201
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

eBay radiator is holding up just fine. Again- I'll wait until the first hot day on this setup to confirm- but on my stock bottom end and factory radiator the car would overheat. After installing the radiator my overheating went away.

Spring rates are 392/280.

Last edited by miatauser123; 02-24-2012 at 03:30 PM.
miatauser123 is offline   Reply With Quote
Old 02-25-2012, 02:13 PM
Alameda
This message has been deleted by curly.
Old 02-26-2012, 02:12 AM   #202
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Check here for IM flange:
http://www.weir-tech.com/

Mazda 1.8L BP intake head flange 3/8" mild steel <<<< Mild steel?

You can't weld aluminum to steel. We need an aluminum flange for BP4W heads. And others.
2manyhobyz is offline   Reply With Quote
Old 02-26-2012, 02:29 AM   #203
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

ouch. I hope that's a type-o lol
18psi is offline   Reply With Quote
Old 02-27-2012, 10:24 AM   #204
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by 18psi View Post
ouch. I hope that's a type-o lol
Are you referencing the spring rates?
miatauser123 is offline   Reply With Quote
Old 02-27-2012, 12:58 PM   #205
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

He's talking about the useless mild steel intake manifold flange on Weir-tech.
vehicular is offline   Reply With Quote
Old 02-27-2012, 02:50 PM   #206
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

correct

the spring rates don't sound bad at all. I remember the guys saying 400/250 is a great combo for a street car. yours are right around that area
18psi is offline   Reply With Quote
Old 02-27-2012, 04:08 PM   #207
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by 18psi View Post
correct

the spring rates don't sound bad at all. I remember the guys saying 400/250 is a great combo for a street car. yours are right around that area
I'm getting a bit of bounce though. Might be a bad shock.

I get a knock in the rear of the car if I push on the truck lid.... Sounds like a metal on metal thing.
miatauser123 is offline   Reply With Quote
Old 02-27-2012, 06:22 PM   #208
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Could be a blown shock, but i would guess something was left loose, first.
vehicular is offline   Reply With Quote
Old 02-28-2012, 11:00 AM   #209
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Still toying with WOT shifting:

This is still boost by gear 10PSI - 13PSI and then 19 on up.
miatauser123 is offline   Reply With Quote
Old 02-28-2012, 12:16 PM   #210
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Quote:
Originally Posted by Dem768 View Post
Still toying with WOT shifting:

This is still boost by gear 10PSI - 13PSI and then 19 on up.
GOD. IN. HEAVEN.
JoeTheZoe is offline   Reply With Quote
Old 02-28-2012, 12:45 PM   #211
Junior Member

Join Date: Aug 2010
Posts: 250
Total Cats: 0
Default

Glorious build thread. Giving me ideas on the new miata. Good thing I'm starting a new higher paying job.
GTRicky is offline   Reply With Quote
Old 02-28-2012, 12:48 PM   #212
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Check your engine.
curly is offline   Reply With Quote
Old 02-28-2012, 03:43 PM   #213
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

So I came home yesterday and this is what I found. I intentionally park way off to the side of my parking lot to avoid other cars parking next to me..

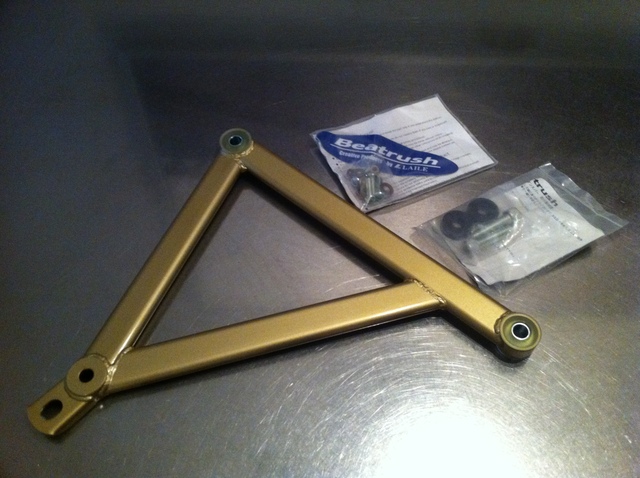

But MMmmm... Look what showed up in the mail today...
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-82107778.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-br2aw.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3555b.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3556j.jpg

Last edited by miatauser123; 02-29-2012 at 12:33 PM.
miatauser123 is offline   Reply With Quote
Old 02-29-2012, 11:17 AM   #214
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Can you give a ride report after installing that. Just want to know what you find now in NHV and stiffness both cruising and under load.
Thanks
Landrew is offline   Reply With Quote
Old 03-01-2012, 10:52 AM   #215
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Landrew View Post
Can you give a ride report after installing that. Just want to know what you find now in NHV and stiffness both cruising and under load.
Thanks

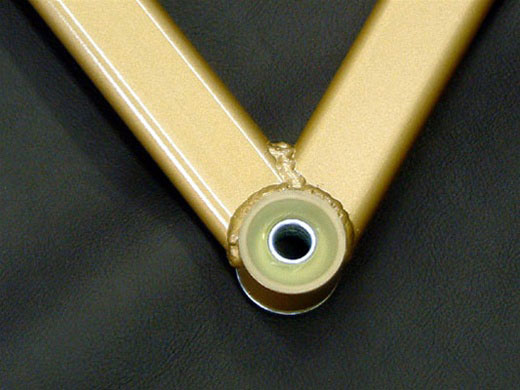

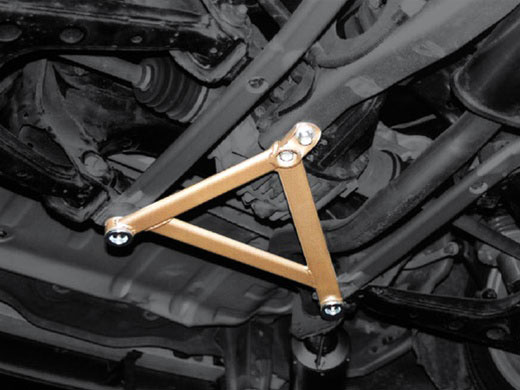

PFF brace is great. I was getting some pretty significant slop in the shifter and what felt like wheel hop but wasn't really. It used to be my diff bouncing around. Now it's solid. My shifts are more precise. I do hear gear noise from the diff but it's actually a pretty nice note and makes me feel like I'm driving a rally car.

I would however recommend using the brace with replacement poly diff mounts - I have poly mounts but they are not installed and the thought of the top of the diff being able to slop around and this brace being the only somewhat solid link, does not sit well with me. This is the same theory as using one solid engine mount on an engine.. Not a good idea.
miatauser123 is offline   Reply With Quote
Old 03-01-2012, 11:16 AM   #216
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Where did you buy your PPF brace? GoMiata? Oh, and Imma PM you about those lights in a few mins.
JoeTheZoe is offline   Reply With Quote
Old 03-02-2012, 02:25 AM   #217
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Quote:
Originally Posted by Dem768 View Post
PFF brace is great. I was getting some pretty significant slop in the shifter and what felt like wheel hop but wasn't really. It used to be my diff bouncing around. Now it's solid. My shifts are more precise. I do hear gear noise from the diff but it's actually a pretty nice note and makes me feel like I'm driving a rally car.

I would however recommend using the brace with replacement poly diff mounts - I have poly mounts but they are not installed and the thought of the top of the diff being able to slop around and this brace being the only somewhat solid link, does not sit well with me. This is the same theory as using one solid engine mount on an engine.. Not a good idea.
My car had 240000kms on it and some associated drive train slop so I put in the poly diff mounts. (get a air chisel and you don't even have to drop the diff). That helped a good amount with shifting feel as well. I also notice some additional drive train noise but I don't mind it and really its not too intrusive.

I wonder if that triangle design could be a DIY piece?
Landrew is offline   Reply With Quote
Old 03-02-2012, 10:25 AM   #218
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Landrew View Post
My car had 240000kms on it and some associated drive train slop so I put in the poly diff mounts. (get a air chisel and you don't even have to drop the diff). That helped a good amount with shifting feel as well. I also notice some additional drive train noise but I don't mind it and really its not too intrusive.

I wonder if that triangle design could be a DIY piece?
It could be but most people don't notice that the brace from Beatrush has poly mounts in the design. I purchased steel to make my own brace first and decided against it.


So after reading about the life expectancy of the BEGI s4 Stainless Steel manifold I noticed that they offer a brace to go from the extra hole on the downpipe to the motor mount bolt.

The BEGi mount has an awesome design- looks like a really nice piece. But I decided to make my own.

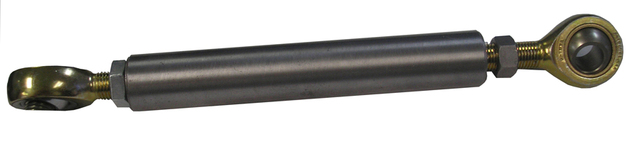

This is the BEGi:

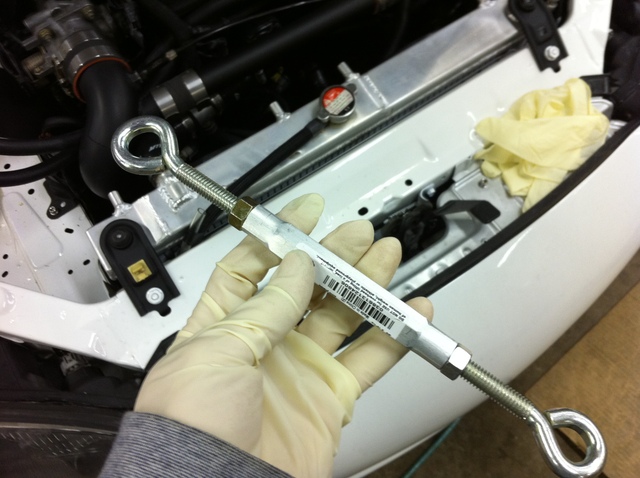

So I went to the hardware store and picked up this guy:

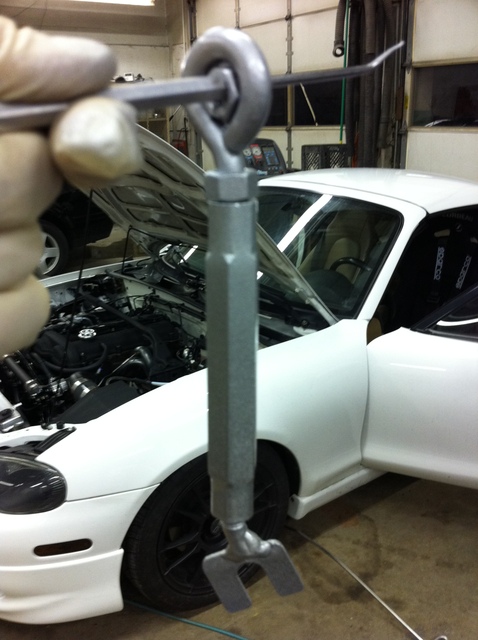

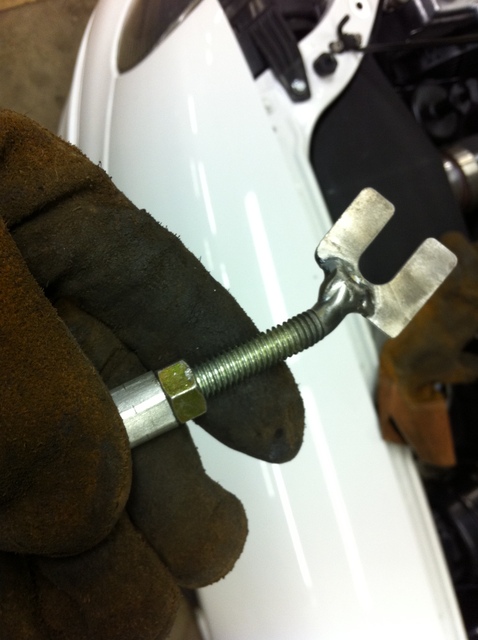

Obviously this doesn't work so well as is but with a little modification it can be made to offer the same type of support. I welded a nut into one end and a flat shim into the other. This design allows me to just un-thread the motor mount bolt a little bit and slide the brace on.


Painted it with some high temp paint and slapped it in. Should do the trick.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-011udi.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3567g.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3572o.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3573q.jpg
miatauser123 is offline   Reply With Quote
Old 03-02-2012, 11:07 AM   #219
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

The Ace I go to sells those heim joints for $10-$15 each, even in left hand threads. In case those welds fail. BEGI's price is beyond ridiculous.
curly is offline   Reply With Quote
Old 03-02-2012, 11:14 AM   #220
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by curly View Post
The Ace I go to sells those heim joints for $10-$15 each, even in left hand threads. In case those welds fail. BEGI's price is beyond ridiculous.
Total cost of this one was 12 bucks.
miatauser123 is offline   Reply With Quote
