Old 01-02-2012, 10:30 PM   #101
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

So everything seems to be going well. Break in is complete with an uneventful 600 miles so I started to boost her. Ran 14PSI flawlessly and once the Adaptronic Rapid Learn had dialed in my fuel I cranked it to 17PSI and I cant keep the tires on the car

Happened to park next to this pig. I could have saved on the meter and parked under him.


I noticed some oil on the bottom of the engine when I was changing out the Break-in oil. Seems to be coming from the oil feed line where it attaches to the block.

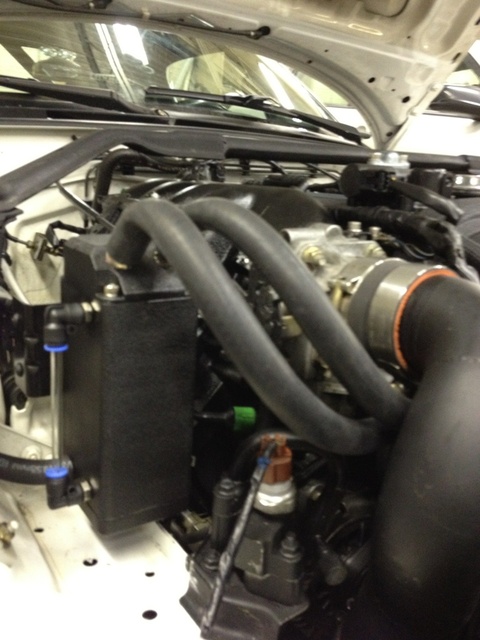

After tightening that up I decided I'd paint and install my catch can.


I went with this can from flebay so that it could be opened and modified to act as a real catch can. This requires a removable top and a nylon shower luffa. You cut the rope off of the nylon material and shove it inside the can to act as a baffle. Then I sealed it back up and painted it the usual wrinkle black.

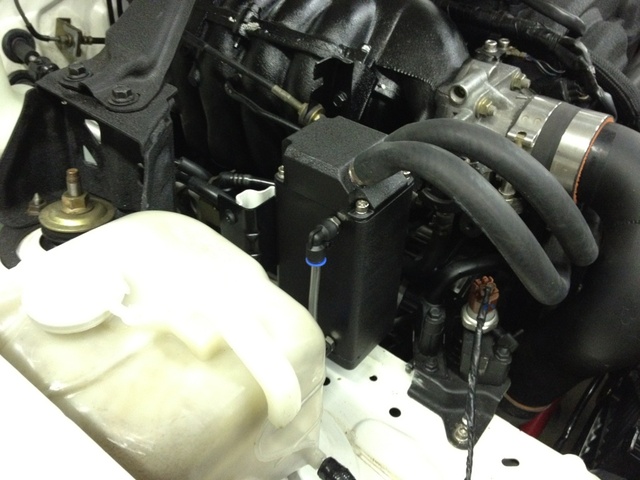

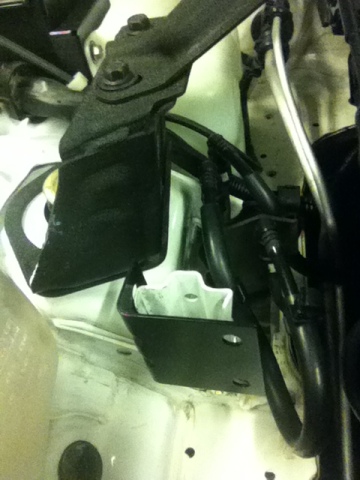

I mounted it using the factory emissions canister location with some modification to the bracket.

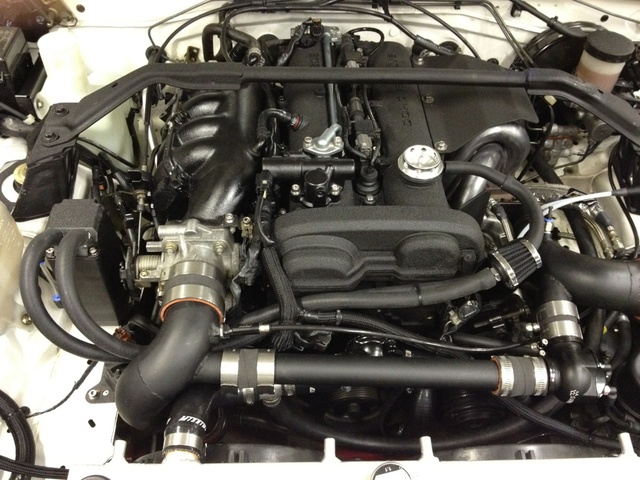

Overall- I think it came out very clean.


The car is hauling ***. There shouldn't be too many street cars that can hang this summer.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3044g.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3068o.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3066t.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3069tl.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3067t.jpg

miatauser123 is offline   Reply With Quote
Old 01-02-2012, 11:07 PM   #102
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

in for vids
18psi is offline   Reply With Quote
Old 01-02-2012, 11:42 PM   #103
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by Dem768 View Post
I noticed some oil on the bottom of the engine when I was changing out the Break-in oil. Seems to be coming from the oil feed line where it attaches to the block.
I had this problem with hose barbs and hose clamps.

NPT-AN adapters and a home made SS line fixed any potential oil leaks. Didn't have to cut it off every time I wanted to remove it either.
curly is offline   Reply With Quote
Old 01-03-2012, 01:37 PM   #104
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Sexy, sexy build thread.

Subscribed for vids.
Fireindc is offline   Reply With Quote
Old 01-04-2012, 06:59 PM   #105
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 252
Total Cats: 16
Default

This is an awesome build. I respect your attention to detail--the car looks great!

I met a guy named Max the other day and I assume he's a friend of yours because he was telling me about somebody in the area who has a white turbo Miata with Adaptronic. Given your location, I'm sure I'll run into you on Woodward some time once cruising season starts again.
573 is offline   Reply With Quote
Old 01-04-2012, 09:59 PM   #106
Junior Member
iTrader: (4)

Join Date: Jun 2008
Location: Colorado
Posts: 345
Total Cats: 8
Default

^ Wow, I remember cruising Woodward in high school in my friend's 67 Camaro (I may be old, but I'm not that old - it was a classic in the early 80's, lol). Now miatas are cruising Woodward - who would have thought. Wish I could do that with my MSM, but I live in CO now, :sigh:
05pearl is offline   Reply With Quote
Old 01-05-2012, 06:09 AM   #107
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

How have i missed this until now? I'm going to be putting rods in mine shortly, expect thread views to raise sharply.

If somebody told me to imagine an engine bay that had a black wrinkle can explode I would have thought they were nuts but that thing is pure sex.
Golferluke is offline   Reply With Quote
Old 01-05-2012, 01:52 PM   #108
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

So my oil leak is annoying. I went to the shop last night and tossed it up and it looks like the Stainless turbo oil feed line coming from the drivers side oil location is a bit chewed up in some places. It's also leaking from the fitting on the block.

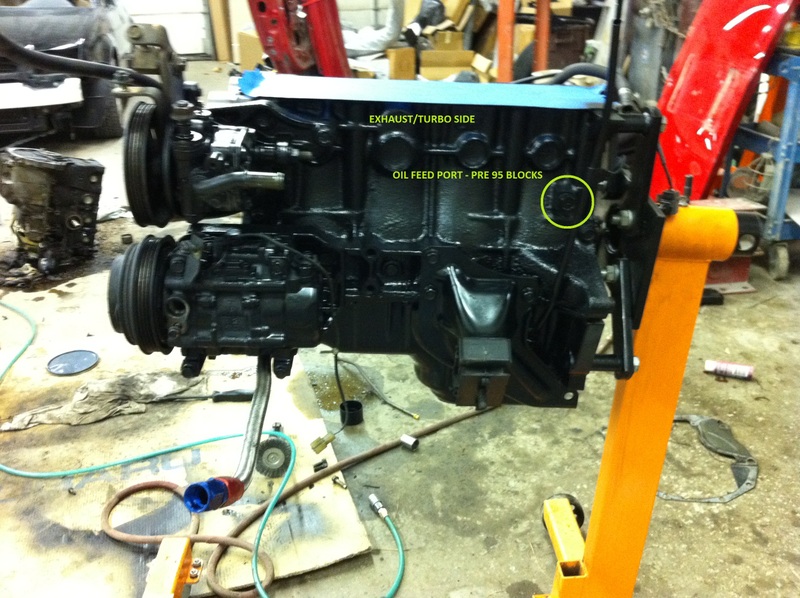

After reviewing some pictures I remembered that the 94 and earlier blocks have a turbo oil feed location on the correct side of the block. No need for the 47 inch stainless line running under my engine



I'll go after work and pick up the fittings and likely use what's left of my huge stainless line to make the connection. It's good when things work themselves out like this.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-oilfeed.jpg
miatauser123 is offline   Reply With Quote
Old 01-05-2012, 02:55 PM   #109
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

My god this thread is sex. Has me so motivated to go and work on my car! What is your mechanical background? You make this all look so easy...
jbrown7815 is offline   Reply With Quote
Old 01-05-2012, 04:08 PM   #110
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by jbrown7815 View Post
My god this thread is sex. Has me so motivated to go and work on my car! What is your mechanical background? You make this all look so easy...
Thank you. I'm just an enthusiast. I worked at a speed shop for awhile to explore a hobby of mine and it turned out I was actually very good at it. Automotive paint, mechanical (when the mechanic was confused) and electrical install/fabrication were my focuses.

But for the most part it's attention to detail and a resourceful personality that produce this type of work.

The way I've always looked at it is "If someone will charge me to do something that doesn't require the use of special equipment or machinery, then why not tech myself to do it and add it to the arsenal of things that I'm good at" That's why I like giving back to this site- There are other people in the situation I was once in and it had helped me so I try to make most of my posts resourceful and to my knowledge valuable.
miatauser123 is offline   Reply With Quote
Old 01-05-2012, 04:17 PM   #111
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

A few casts variations/years don't have that hole drilled/tapped, so make sure you see a bolt there before diving into that oil feed project. They'll actually be two bolts there, one for coolant and one for oil, make sure you're looking at the right one.
curly is offline   Reply With Quote
Old 01-05-2012, 04:31 PM   #112
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

On the hi-res version of the image I can see two bolts threaded into these holes...?
miatauser123 is offline   Reply With Quote
Old 01-05-2012, 05:12 PM   #113
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Oh is that your engine? Thought it was just a random image.
curly is offline   Reply With Quote
Old 01-05-2012, 06:30 PM   #114
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

That's mine.
miatauser123 is offline   Reply With Quote
Old 01-05-2012, 06:35 PM   #115
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

What are the exact specs to your cams?
jbrown7815 is offline   Reply With Quote
Old 01-05-2012, 09:05 PM   #116
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by jbrown7815 View Post
What are the exact specs to your cams?
Exactly stock right now.
miatauser123 is offline   Reply With Quote
Old 01-05-2012, 09:13 PM   #117
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

But much better than stock
jbrown7815 is offline   Reply With Quote
Old 01-16-2012, 05:44 PM   #118
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Sorry guys- It's been cold so I stopped driving it but I found this video:

http://www.youtube.com/watch?v=0V2GQ...ature=youtu.be
miatauser123 is offline   Reply With Quote
Old 01-17-2012, 02:48 PM   #119
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

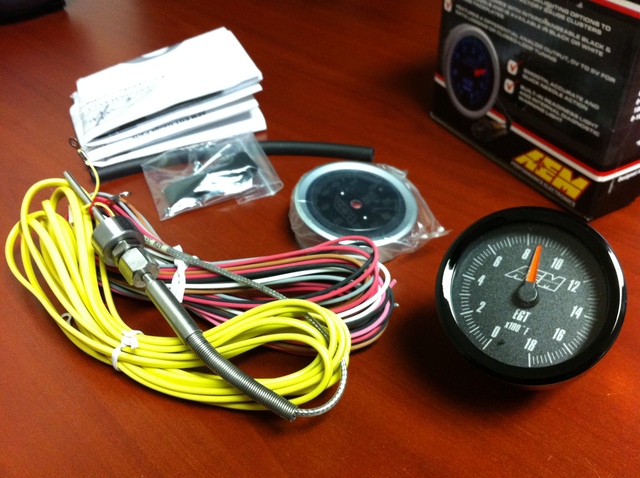

So in prep for some Dyno tuning I've picked up an EGT system. I went with AEM to keep a theme in the car and because I should be able to run the 0-5v output to my Adaptronic for datalogging.

My methanol is now operating at 275-300cc progressively starting at 3PSI. I'll leave the AEM flow meter gauge to do some logging and then I'll create an input for that on the Adaptronic too.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3129jy.jpg
miatauser123 is offline   Reply With Quote
Old 01-19-2012, 12:39 PM   #120
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

After putting about 1500 miles on the car I decided to check the general health of the motor. I have not exactly been easy on the poor thing and it was not built by an engine builder (because I built it on my kitchen table!).

I ran a compression test and I couldn't be happier.

Dry Test:
Cylinder: (1) = 150.00 (2) = 149.5 (3) = 150.5 (4) = 150.5



I gave myself a pat on the back. I'm glad my cocky attitude about not paying anyone to do something that I can teach myself how to do, paid off.

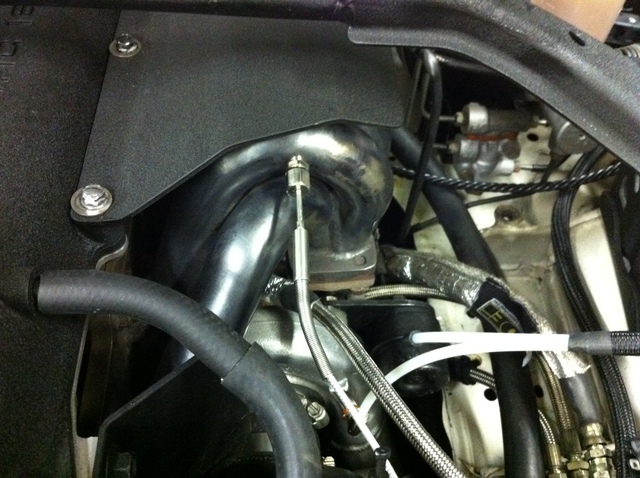

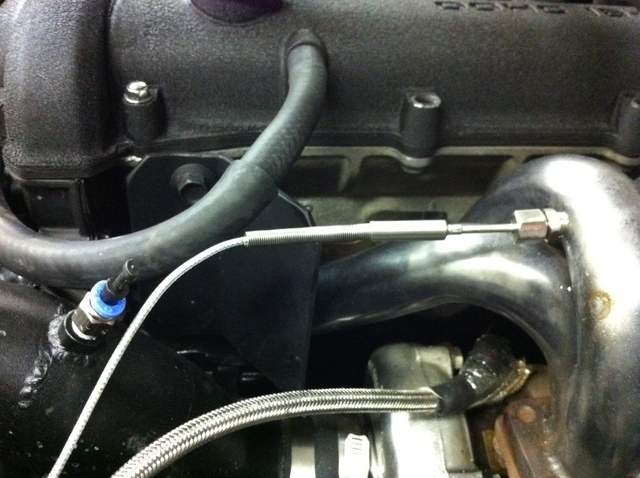

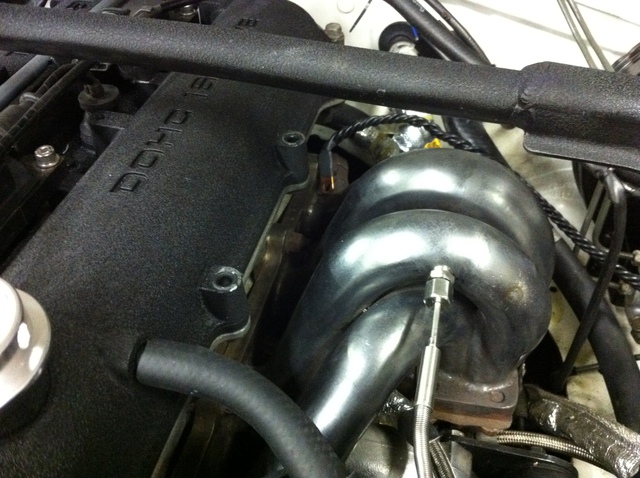

Now to finishing that EGT Pyrometer installation. I picked this location for a number of reasons- because it was accessible with the header installed, it was easy to check for leaks, it was free from interfering with other items in the engine bay and it's about the perfect distance from the exhaust outlet.




I did my usual, sleeving and heat shrink overkill deal. The wire supplied with the kit starts out with this braided wire for heat and then turns into this god awful YELLOW! So I covered it and ran it into the cab along with the methanol feed line.

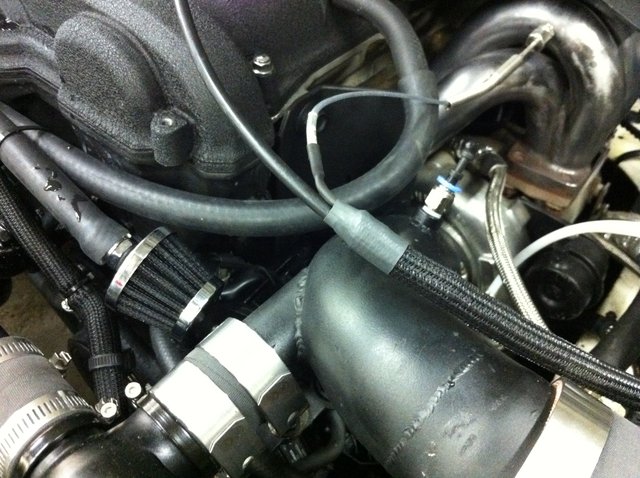

Came out clean if you ask me...

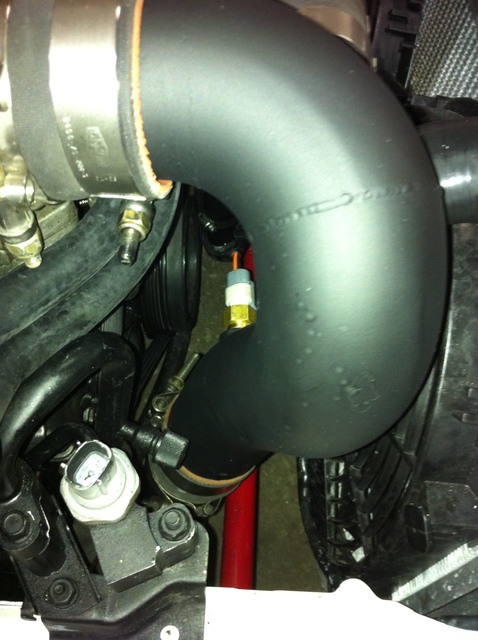

Then as a lastish step before getting into some serious tuning I needed to install and wire up my intake air temp sensor. I ordered the GM open element sensor from DIYAUTOTUNE. Found HERE.

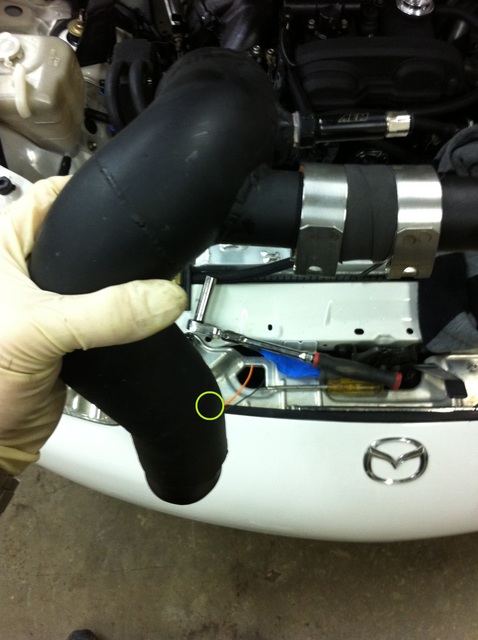

I wanted it to be near the throttle body for accuracy but not after the Meth because I'm not sure how long that would last and it might cause false low temp signals.

So I picked here. It's maybe 14 inches from the TB and after the intercooler.

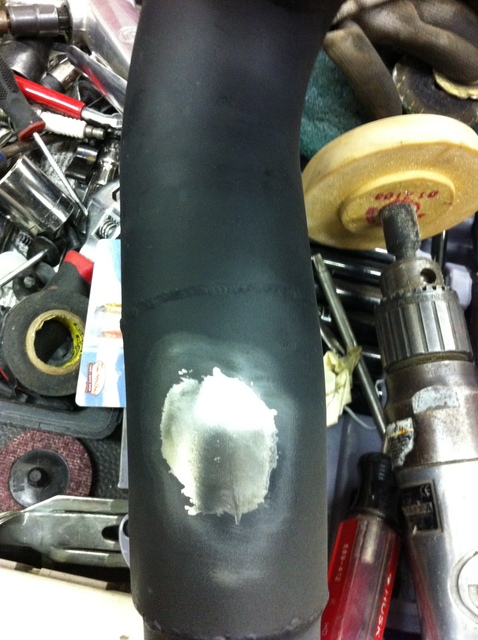

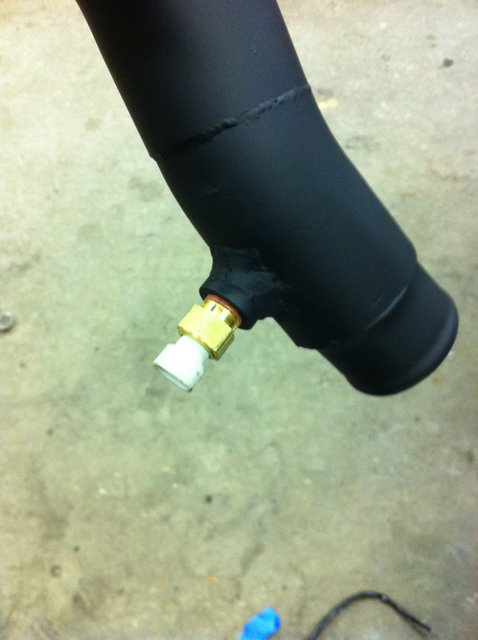

Welding the bung on started with removing the powder coating.

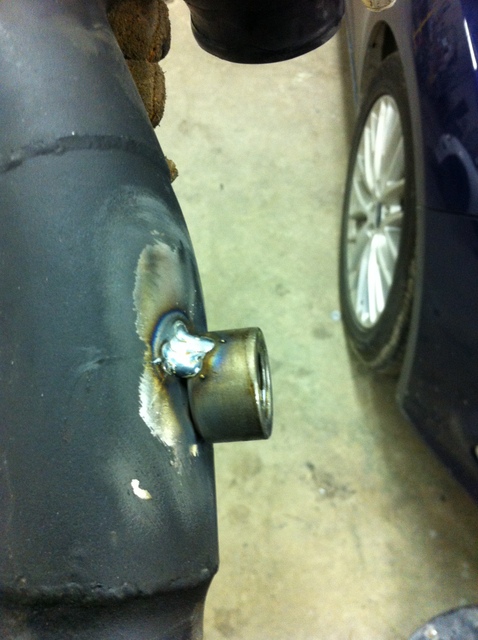

I clamped it in place and tacked it to make sure everything was where I wanted it to be.


Everything looked good so I finished up the weld and spayed it with some durable flat black paint.


Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3140rc.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3141q.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3142q.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3143fv.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3144circle.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3147n.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3149y.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3151p.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3153h.jpg
miatauser123 is offline   Reply With Quote
