Old 01-28-2014, 02:06 PM   #921
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by alik View Post
Dude, this is so ******* good!
I like where you've taken this, yet I still can't help but wonder. Does it make sense to replace Miata's unibody with spaceframe, while retaining the carpet, body panels (perhaps going fiberglass), and all interior trimmings just for the nostalgia sake? What would a car like that be like? Would it be worth it?
As awesome as Catfish is, seems like most of the Miata-based endeavors apply the following formula: take Miata drivetrain, add space frame, and forge on from there, creating something new and cool. I still kinda like the way my car looks...

Btw, subscribed for the sheer boner factor!
Short answer, no.

My intention was never to build the "ultimate Miata". I feel like we've taken the best parts of the Miata for our build, but that with custom a-arms and a new engine and drivetrain (easily possible), there would be very little "Miata" left in this car. It's a completely custom vehicle that happens to use the engine, suspension and drivetrain from the most raced vehicle on the planet. Go figure.
cordycord is offline   Reply With Quote
Old 01-28-2014, 02:12 PM   #922
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Braineack View Post
I'll wait for the model with insulation and a 5x11x22" maganflow
You do the insulation. Magnaflow is right up the street...the owner's kids go to our school.
cordycord is offline   Reply With Quote
Old 03-07-2014, 11:19 PM   #923
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default New Catfish update

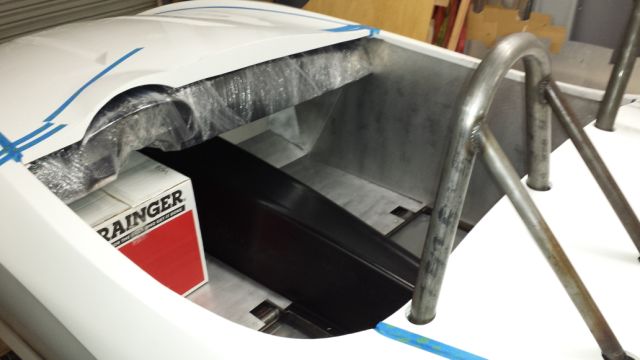

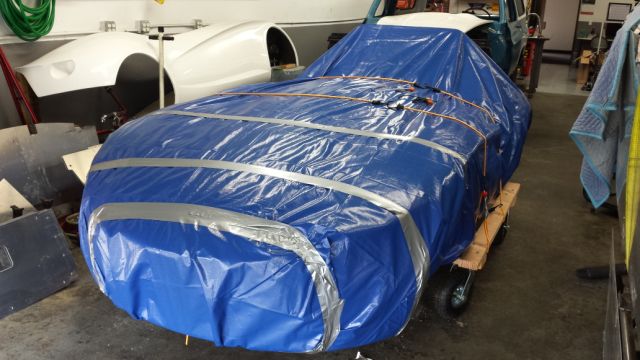

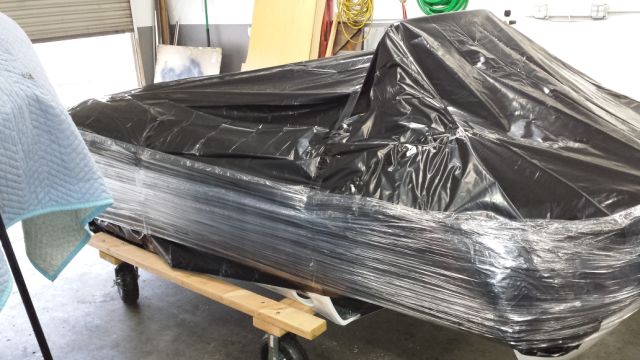

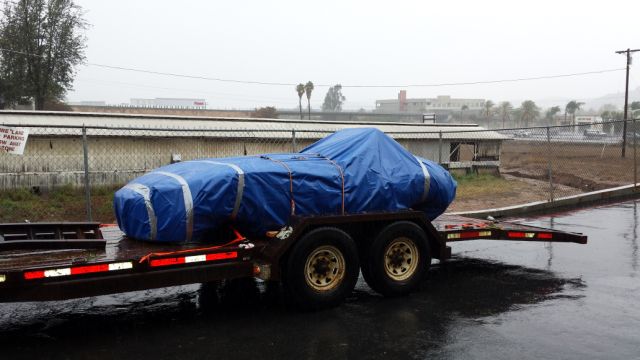

We got out a Catfish last week to the capable hands of Bill Cardell and Keith Tanner at Flyin' Miata. They're going to try and turn around a kit by the time the Mitty happens at Road Atlanta on April 25-27. Tall order, but they've got a helluva parts stash.

Keith did something we haven't done in a LONG time...weigh the frame. Without body or flat panels the production frame weighs in at 235lbs. Not bad. It's about as heavy as our -pre-production units, even with the extra triangulation.

The best part--this will be the first TURBO Catfish.

Check out their build on the Flyin' Miata facebook page, with LOTS of photos.

https://www.facebook.com/flyinmiata
Attached Thumbnails
Cordycord's epic tube frame build-20140227_213535.jpg   Cordycord's epic tube frame build-20140228_114701.jpg   Cordycord's epic tube frame build-20140228_102139.jpg   Cordycord's epic tube frame build-20140228_105629.jpg
cordycord is offline   Reply With Quote
Old 03-08-2014, 01:35 AM   #924
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Maaang it needs a full roll cage. Looks weird with just the rear hump on there.
triple88a is offline   Reply With Quote
Old 03-08-2014, 03:41 AM   #925
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by triple88a View Post
Maaang it needs a full roll cage. Looks weird with just the rear hump on there.

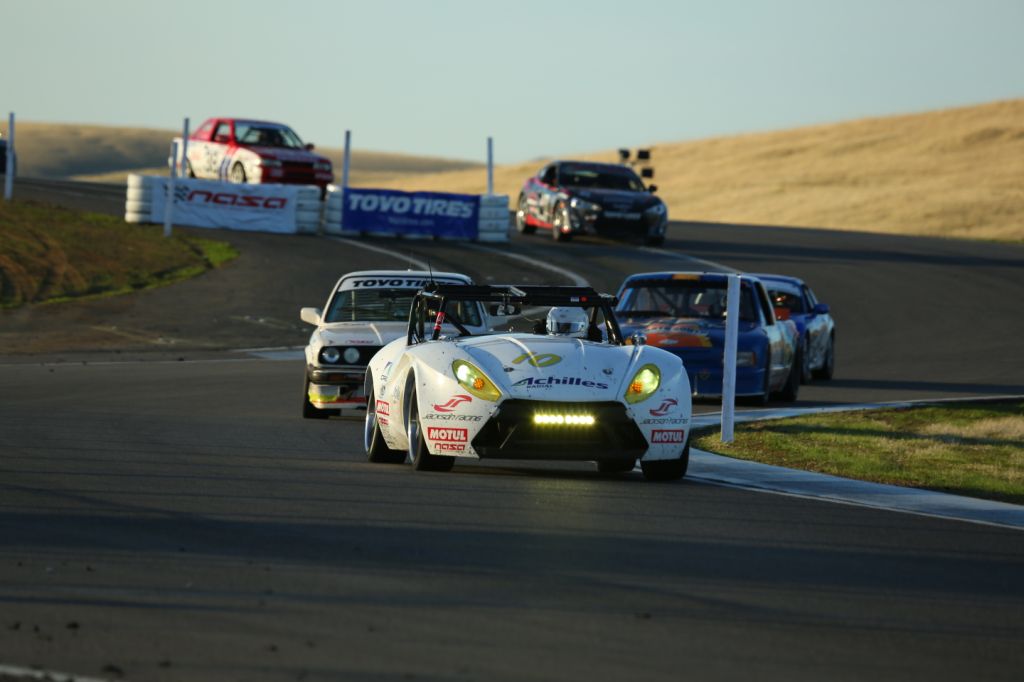

Feel better?
Attached Thumbnails
Cordycord's epic tube frame build-na259696.jpg
cordycord is offline   Reply With Quote
Old 03-08-2014, 12:05 PM   #926
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Unf.

I will come back to the Mitty if that will be there.
sixshooter is offline   Reply With Quote
Old 03-08-2014, 12:48 PM   #927
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by cordycord View Post
Feel better?
Indeed that settles my stomach well
triple88a is offline   Reply With Quote
Old 03-08-2014, 04:59 PM   #928
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by triple88a View Post
Indeed that settles my stomach well
The roll hoops are actually four points each and would be fine for track days, street driving, etceteras. For racing you'd naturally want moar.

What's nice is that you are surrounded by a bunch of very stout triangulated bars.
cordycord is offline   Reply With Quote
Old 03-08-2014, 05:28 PM   #929
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Once you have a nice cage, the Hardtop is next I guess

But that would make it look even more like a Z4...
NiklasFalk is offline   Reply With Quote
Old 03-08-2014, 10:14 PM   #930
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by NiklasFalk View Post
Once you have a nice cage, the Hardtop is next I guess

But that would make it look even more like a Z4...
Nope and nope. The first focus is to get to some semblance of regular production and iterate based on customer feedback. Roll cages are planned, but only as requested by our customers. There are customers who will simply take the car to their local "cage guy" so they can have something made that they like. We've already designed the twin roll hoops with Petty bars, but anything else will sit on the sidelines until someone asks for it and then pulls out a credit card.

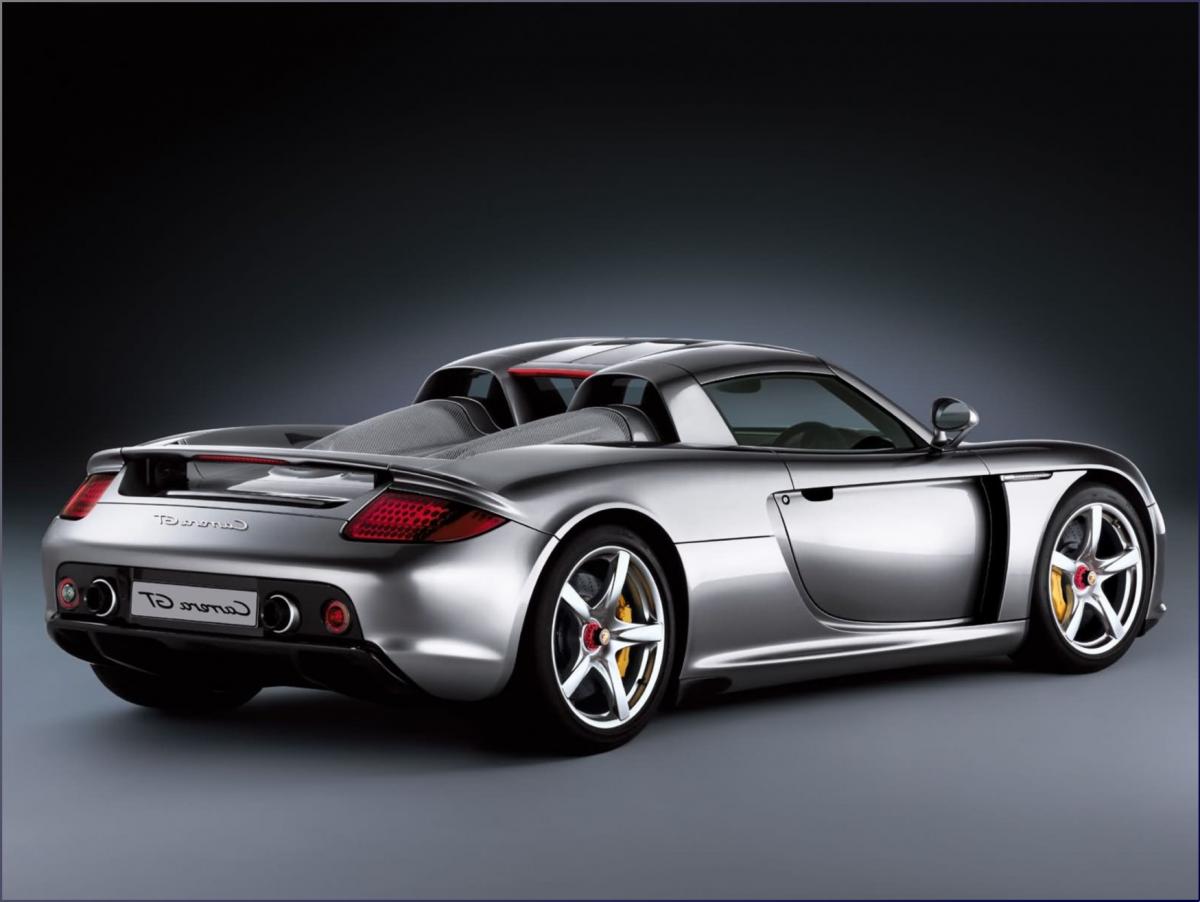

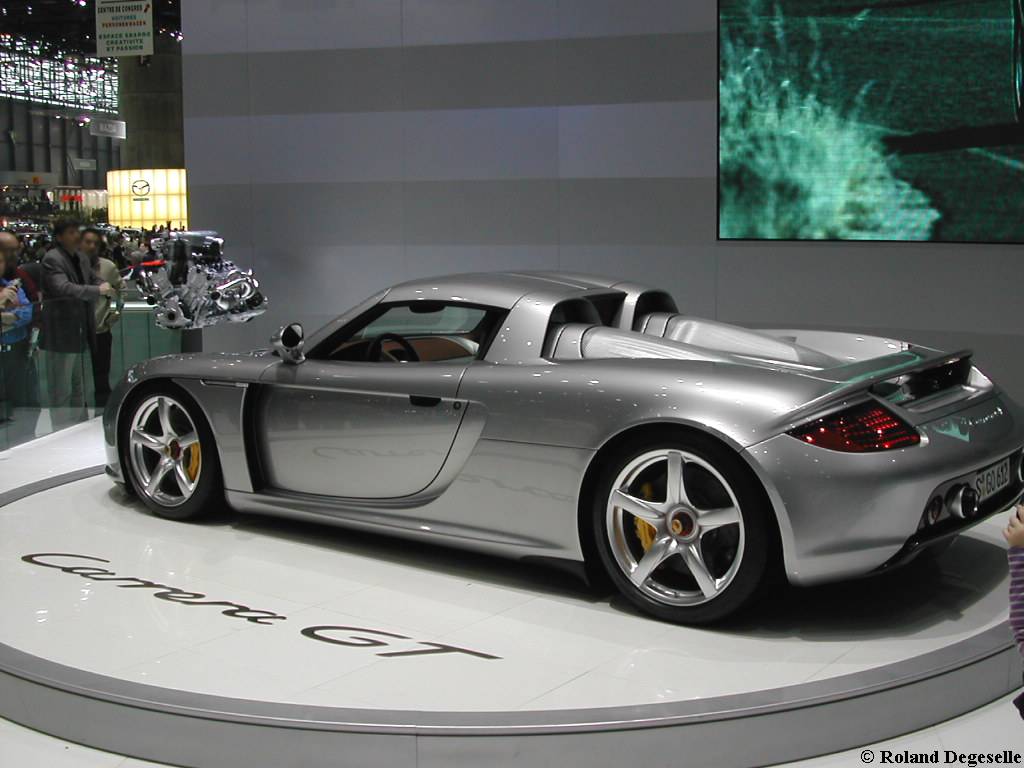

A proper windscreen would be made before a top. AND, when the top is made it will more closely resemble the Porsche Carrera GT top than anything else. Actually the first top will be the Project G "G-string", which is a minimal style just like the car.
Attached Thumbnails
Cordycord's epic tube frame build-carreragt-2.jpg   Cordycord's epic tube frame build-luxury-porsche-carrera-gt-sb.jpg
cordycord is offline   Reply With Quote
Old 03-08-2014, 11:17 PM   #931
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by cordycord View Post
A proper windscreen would be made before a top. AND, when the top is made it will more closely resemble the Porsche Carrera GT top than anything else. Actually the first top will be the Project G "G-string", which is a minimal style just like the car.
Project G? Are these the same folks that sell them on the c rice forum for 400 a pop?
triple88a is offline   Reply With Quote
Old 03-09-2014, 12:18 AM   #932
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by triple88a View Post
Project G? Are these the same folks that sell them on the c rice forum for 400 a pop?
Project-G G-String Bikini Top (Miata) - Project-G Online Store
cordycord is offline   Reply With Quote
Old 03-09-2014, 09:02 AM   #933
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Quote:
Originally Posted by triple88a View Post
Project G? Are these the same folks that sell them on the c rice forum for 400 a pop?
Yeah. Tops with no window or rain rail, selling for more that actual tops with both.
rleete is offline   Reply With Quote
Old 03-09-2014, 10:24 AM   #934
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Quote:
Originally Posted by rleete View Post

Yeah. Tops with no window or rain rail, selling for more that actual tops with both.
I've made bikini tops for Jeeps and they shouldn't cost that much. Cord can find an upholstery shop to make whatever he needs.
sixshooter is offline   Reply With Quote
Old 03-13-2014, 11:19 AM   #935
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Cord, how close is the Catfish dash to Miata dimensions? Could it be used in a Miata race car? Or a stripped Miata street car?
vehicular is offline   Reply With Quote
Old 03-13-2014, 11:48 AM   #936
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by vehicular View Post
Cord, how close is the Catfish dash to Miata dimensions? Could it be used in a Miata race car? Or a stripped Miata street car?
Good question. Have any edge to edge measurements from your car? Otherwise it will simply take dropping the dash in a stripped car and adapting it.
cordycord is offline   Reply With Quote
Old 03-13-2014, 12:27 PM   #937
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

I need to visit this section more. Didn't realize you had a build thread here, Cord.

There goes my morning.
revlimiter is offline   Reply With Quote
Old 03-13-2014, 05:06 PM   #938
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Quote:
Originally Posted by cordycord View Post
Good question. Have any edge to edge measurements from your car? Otherwise it will simply take dropping the dash in a stripped car and adapting it.
I could try to measure some tomorrow. Or you could send me one, and I can stick it in there
vehicular is offline   Reply With Quote
Old 03-28-2014, 02:38 AM   #939
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by revlimiter View Post
I need to visit this section more. Didn't realize you had a build thread here, Cord.

There goes my morning.
I'm taking an MT-break from putting your gauge faces on, Adam.
cordycord is offline   Reply With Quote
Old 03-28-2014, 02:40 AM   #940
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default Catfish sighting in Los Angeles

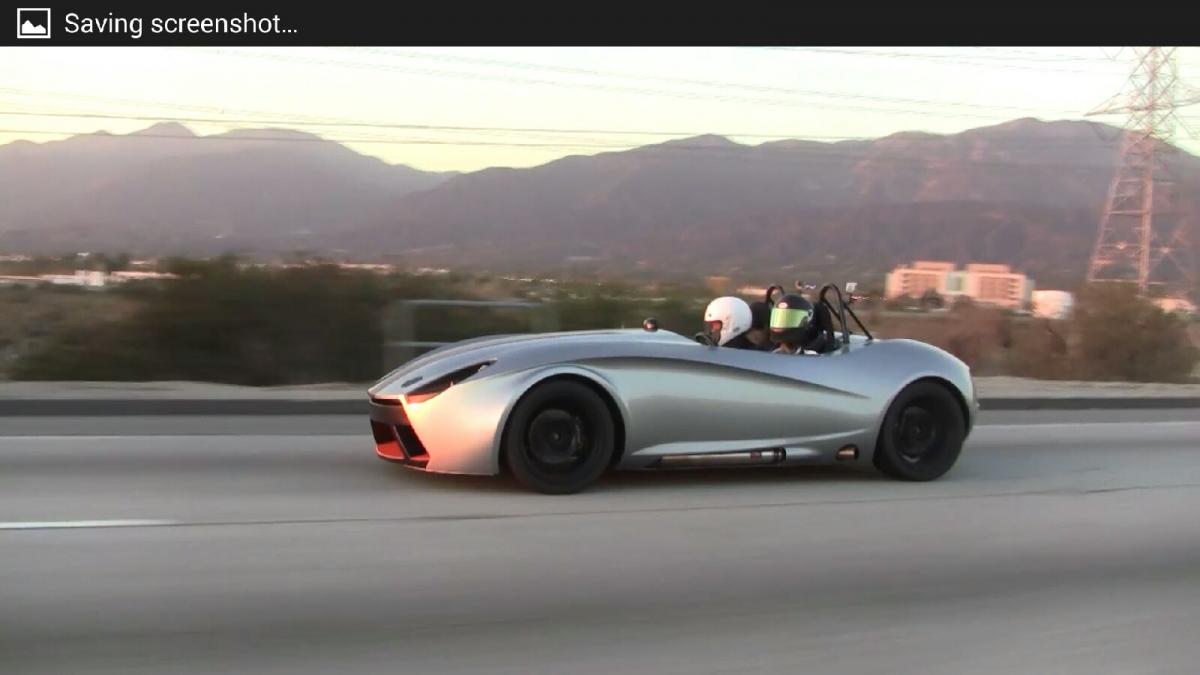

Roman stole my car for a couple of days and took some video footage, which he's editing now. Here's a snapshot from a dash on the 605.
Attached Thumbnails
Cordycord's epic tube frame build-screenshot_2014-03-27-06-51-04.jpg
cordycord is offline   Reply With Quote
