So how high is that door sill after all?
triple88a is offline   Reply With Quote
Old 07-18-2014, 11:53 AM   #1042
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by triple88a View Post
So how high is that door sill after all?
You just made me go out in the garage and measure. 30"

edit--in my underwear.

My octogenarian dad has no problems getting in and out of the car.

Last edited by cordycord; 07-18-2014 at 03:11 PM.
cordycord is offline   Reply With Quote
Old 07-21-2014, 07:13 AM   #1043
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by cordycord View Post
Yep, RHD has been researched and can be done easily. BTW, the next issue of Kit Car UK will have a feature on the Catfish.

Oooof, cheers for the heads up!
richyvrlimited is offline   Reply With Quote
Old 07-21-2014, 11:38 AM   #1044
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Finally saw the catfish in person at Cars and Coffee. It looks amazing in person. Makes me want to start saving up for one even more now.
cyotani is offline   Reply With Quote
Old 07-28-2014, 02:51 PM   #1045
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default Streets of Willow

Here's a video from Saturday's Streets of Willow twilight session. It was 100 when I arrived, and about 82 when I left at 11pm. Hawt.

So I guess I don't need to tell you guys that an oil breather is required on the valve cover when using a turbo. We were also getting some fuel starvation with over half a tank of gas. More work ahead...

cordycord is offline   Reply With Quote
Old 07-28-2014, 06:11 PM   #1046
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

No heel & toe?

Also please hold the wheel properly on track.

Car looks great tho!
richyvrlimited is offline   Reply With Quote
Old 07-29-2014, 12:46 AM   #1047
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by richyvrlimited View Post
No heel & toe?

Also please hold the wheel properly on track.

Car looks great tho!
Noted. In my defense, it's a small diameter wheel and I tend to grab it wherever I can get the best leverage. I've got a Momo Mod88 on order.

As for heel and toe, I should have something to help me with that by the time Laguna Seca rolls around. BTW, my name ain't Emilio...I design better than I drive.
cordycord is offline   Reply With Quote
Old 07-29-2014, 05:46 AM   #1048
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by cordycord View Post
Noted. In my defense, it's a small diameter wheel and I tend to grab it wherever I can get the best leverage. I've got a Momo Mod88 on order.

As for heel and toe, I should have something to help me with that by the time Laguna Seca rolls around. BTW, my name ain't Emilio...I design better than I drive.
I'm no driving god, don't get me wrong on that count. You're quite...abrupt, with your steering inputs, smooth is best, make each corner flow.

I do love your designing
richyvrlimited is offline   Reply With Quote
Old 07-29-2014, 09:51 AM   #1049
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

You shouldn't be seeing fuel starvation with a half tank. Be sure your fuel sock isn't 180* out. I had a similar issue on track with hair pin left turns and that's what it was.
That is, of course, assuming you're using the oem tank
GeneSplicer is offline   Reply With Quote
Old 07-29-2014, 10:30 AM   #1050
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

certain its starvation and not the tune?
Braineack is offline   Reply With Quote
Old 07-29-2014, 11:23 AM   #1051
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by GeneSplicer View Post
You shouldn't be seeing fuel starvation with a half tank. Be sure your fuel sock isn't 180* out. I had a similar issue on track with hair pin left turns and that's what it was.
That is, of course, assuming you're using the oem tank
Ahhh, now I have a place to start. I was surprised that there was starvation with the OEM tank as it was reading over a 1/2 tank, but as the sessions progressed, the hiccup at the top of the straightaway (sharp left) and bowl (sharp left) turned into a hiccup in a few more of the corners. Mostly lefts, though.
cordycord is offline   Reply With Quote
Old 07-29-2014, 11:36 AM   #1052
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

One more point that became clear this weekend...we were seeing black smoke during the dyno session and I put it down to a rich prior tune. It now seems that the pressurized valve cover was pushing the blow-by oil through the PCV valve and back into the engine. We should be fine when a new breather tank is installed, but that's one mystery solved.

Hopefully the fuel sock is the other part of the mystery. I'm still running the stock 1.6 fuel pump, and it seems like I might want to upgrade that as long as I'm in there.
cordycord is offline   Reply With Quote
Old 07-31-2014, 03:12 PM   #1053
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Braineack View Post
certain its starvation and not the tune?
I'm guessing he didnt go to TDR so he should be ok
triple88a is offline   Reply With Quote
Old 07-31-2014, 03:26 PM   #1054
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Long story short: Emilio said that the NB tank with NA pickup unit (franken-tank) was causing our problems. He said that if the sock is not in its original position (usually you can see a smooth area from rubbing) it can cause starvation. If you have a pinhole in the boot, starvation. If the return line plastic hose isn't pointed back to the sock, starvation. We were missing our return line hose...

To back up our bad tank/pickup situation, we had an NA fuel regulator (approx. 41lbs pressure) and the same vintage fuel pump. We're replacing that with an NB pressure regulator (55-ish lbs pressure) along with a new 255LPB HP Walbro, picked up at 949Racing. They were hungry and ready to go to a late lunch. He essentially dropped the stuff in my hands and said, "Go away. I'll send you a bill later." Worth it.

Last edited by cordycord; 07-31-2014 at 08:38 PM.
cordycord is offline   Reply With Quote
Old 08-01-2014, 10:03 AM   #1055
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

That wasn't that bad... on another note, when I was screwing around with my sock issue, I added a poly tube inside the sock (connected to pump) to get me maybe 2" more in tank depth. Did it work? Maybe, maybe just a waste of my time.
GeneSplicer is offline   Reply With Quote
Old 08-01-2014, 07:22 PM   #1056
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Order some fuel cell foam while you are at it and add it in there while it is open!
bcrx7 is offline   Reply With Quote
Old 08-23-2014, 05:45 PM   #1057
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

https://www.flickr.com/photos/iamted...n/photostream/


I've got a freshened 1.8 engine waiting for me in San Diego. Now I just need a new Catfish to put it in. The question now is, what style should I build? Time Attack or classic roadster?
cordycord is offline   Reply With Quote
Old 08-23-2014, 09:19 PM   #1058
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,687
Total Cats: 560
Default

When are you gonna get a top for that thing? I can't be the only one waiting to pull the trigger once the car can be brought out in less then perfect conditions.
rleete is offline   Reply With Quote
Old 08-23-2014, 10:19 PM   #1059
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by rleete View Post
When are you gonna get a top for that thing? I can't be the only one waiting to pull the trigger once the car can be brought out in less then perfect conditions.

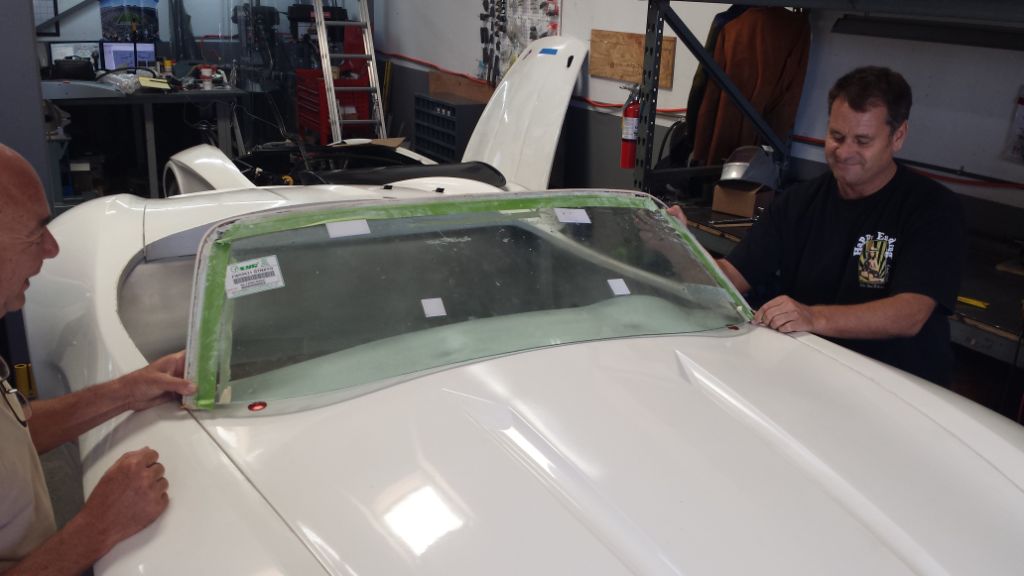

Well in order to have a top, you first need a windscreen. We already have customers who have ordered the windscreens, and we're actually working on the first cars now. Right now it's a 14" tall screen that will have the frame almost entirely behind the glass. This will give the front a really clean and uncluttered look.

The first step after the screen is a bikini-style top. Then hard top. Essentially we had a customer that said "Yes, I want to be a guinea pig for the first windscreen and since you'll be charging me a fraction of the retail cost to be first, I'm a happy camper."

Now who is going to be first to order an LS-based Catfish?
Attached Thumbnails
Cordycord's epic tube frame build-20140806_132125.jpg   Cordycord's epic tube frame build-20140806_132534.jpg
cordycord is offline   Reply With Quote
Old 08-27-2014, 11:59 AM   #1060
WMP
Junior Member
iTrader: (1)

Join Date: Aug 2014
Location: Louisville, KY
Posts: 78
Total Cats: 3
Default

Quote:
Originally Posted by cordycord View Post
Now who is going to be first to order an LS-based Catfish?
Would a Catfish V8 swap be any cheaper than a normal V8 swap? ie are of the same components required (all of the stuff FM sells)?

I'm much more interested in the full windscreen and bikini top though for the record. Those are necessary items to convince the boss that it's still a "practical" car.
