Old 06-26-2014, 05:50 PM   #981
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

I was just pointing out that the water pump on the lower front of the engine is the inlet and not the outlet. The water goes into the block there and out at the back of the head.
sixshooter is offline   Reply With Quote
Old 06-26-2014, 05:58 PM   #982
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

:btu:
Braineack is offline   Reply With Quote
Old 06-26-2014, 05:59 PM   #983
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by sixshooter View Post
I was just pointing out that the water pump on the lower front of the engine is the inlet and not the outlet. The water goes into the block there and out at the back of the head.
No I get it...front to back. We're splitting off some of the incoming cool water for the turbo. Theoretically the coolest water will be available right after the radiator and before entering the block.

Our turbo exit line meets up with the rest of the hot water after it's exited the block in the back, so hot turbo water doesn't have to go through the block before first going through the radiator.
cordycord is offline   Reply With Quote
Old 06-26-2014, 06:00 PM   #984
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by cordycord View Post
No I get it...front to back. We're splitting off some of the incoming cool water for the turbo. Theoretically the coolest water will be available right after the radiator and before entering the block.

Our turbo exit line meets up with the rest of the hot water after it's exited the block in the back, so hot turbo water doesn't have to go through the block before first going through the radiator.
The fact that you posted this makes me terrified that you've actually made a driving tube frame car.
Leafy is offline   Reply With Quote
Old 06-26-2014, 08:13 PM   #985
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Yup, you'd be reversing the flow you think you're going, feeding the hottest water to your turbo. Think water pump, then think pressure differential.
Now if you have an external pump before the coolant enters the block, and feed coolant to churbo right after it, then cool.
Edit to add: my track car was plumbed the exact way you're describing, but I used my heater core in-line before the turbo acting as a radiator. Yes it got hot in the cab... but I never had fogging issues

Last edited by GeneSplicer; 06-27-2014 at 12:29 AM.
GeneSplicer is offline   Reply With Quote
Old 06-26-2014, 09:22 PM   #986
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Where is the thermostat?
olderguy is online now   Reply With Quote
Old 06-27-2014, 10:36 AM   #987
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 598
Default

Quote:
Originally Posted by cordycord View Post
No I get it...front to back. We're splitting off some of the incoming cool water for the turbo. Theoretically the coolest water will be available right after the radiator and before entering the block.

Our turbo exit line meets up with the rest of the hot water after it's exited the block in the back, so hot turbo water doesn't have to go through the block before first going through the radiator.
Correct but theres no water pressure where you connected your inlet. You want that inlet to be on the other side of the water pump.
triple88a is offline   Reply With Quote
Old 06-27-2014, 01:47 PM   #988
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

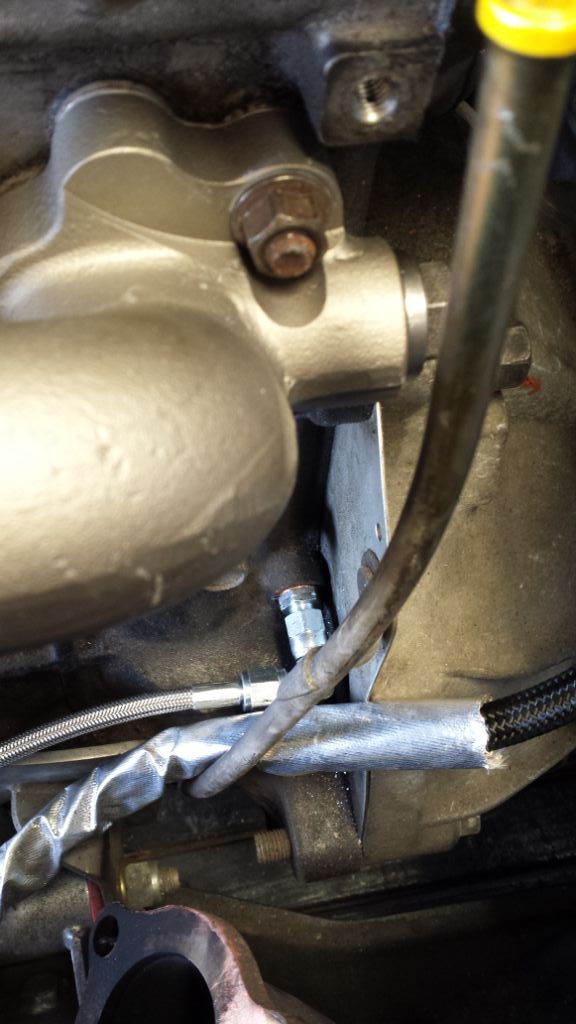

If I see correctly you have the best source for cool water right next to your oil feed (MSM/94/GTX block).


(Water feed is the one without the red circle )

Tap in there and you have the best routing for your turbo water lines. Feed from the block and return after the thermostat to the KIA cover/upper hose.
Vuti is offline   Reply With Quote
Old 06-27-2014, 04:03 PM   #989
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by olderguy View Post
Where is the thermostat?
The thermostat is at the back of the block.

Here's my thinking: it's a closed system. The pump keeps the water flowing in a circular motion, even to the point where the water is seeing pressure at all points.
cordycord is offline   Reply With Quote
Old 06-27-2014, 04:07 PM   #990
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

Quote:
Originally Posted by cordycord View Post
The thermostat is at the back of the block.

Here's my thinking: it's a closed system. The pump keeps the water flowing in a circular motion, even to the point where the water is seeing pressure at all points.
If you have a closed pipe with two identical (low) pressure points at each end, does the water flow through the pipe?
Vuti is offline   Reply With Quote
Old 06-27-2014, 04:08 PM   #991
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Vuti View Post
If you have a closed pipe with two identical (low) pressure points at each end, does the water flow through the pipe?
Good point. I was just picturing "flow".
cordycord is offline   Reply With Quote
Old 06-27-2014, 04:11 PM   #992
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

Just change the pickup for the block port and your system is golden...
Vuti is offline   Reply With Quote
Old 06-27-2014, 04:16 PM   #993
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

No, if you were seeing equal pressure at all points, the water would not be moving. The pressure before the pump will be lower than the pressure after the pump, otherwise the pump wouldn't be working.
thenuge26 is offline   Reply With Quote
Old 06-27-2014, 04:28 PM   #994
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Leafy View Post
The fact that you posted this makes me terrified that you've actually made a driving tube frame car.
I made this car in collaboration with some of the best builders in their field. I listened to what they had to say and then incorporated their knowledge into the design, which is what I'm trying to do here. Most posts here have been helpful...
cordycord is offline   Reply With Quote
Old 06-27-2014, 04:52 PM   #995
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by GeneSplicer View Post
Edit to add: my track car was plumbed the exact way you're describing, but I used my heater core in-line before the turbo acting as a radiator. Yes it got hot in the cab... but I never had fogging issues
Same here, with the heater core supply being before the thermostat of course.

Cordy is just having a brain fart, it happens to us all. 'tis friday, afterall.
TurboTim is offline   Reply With Quote
Old 06-27-2014, 05:17 PM   #996
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by TurboTim View Post
Same here, with the heater core supply being before the thermostat of course.

Cordy is just having a brain fart, it happens to us all. 'tis friday, afterall.
Thanks Tim. Happy to have given you your 100th prop.

One thing that's been pounded into me with this build is that "failure" equals progress, if you know how to react to it. It's the application of the scientific method where you're supposed to test a theory, have it fail, learn from your mistakes, and then adjust the theory with the lessons you've learned. That to me is a huge part of the satisfaction of the build process.

But getting to watch some members of the peanut gallery uphold the reputation of MT.net, not so much.
cordycord is offline   Reply With Quote
Old 06-27-2014, 05:48 PM   #997
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,929
Total Cats: 526
Default

Hey, what would we be without our reputation?

Looking forward to seeing this project completed, and seeing the car in person in September.
turbofan is online now   Reply With Quote
Old 06-27-2014, 05:58 PM   #998
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

Quote:
Originally Posted by cordycord View Post

But getting to watch some members of the peanut gallery uphold the reputation of MT.net, not so much.
you clearly have not seen this thread:
https://www.miataturbo.net/insert-bs...d-75269/page5/
golftdibrad is offline   Reply With Quote
Old 06-27-2014, 07:39 PM   #999
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Quote:
Originally Posted by golftdibrad View Post
you clearly have not seen this thread:
https://www.miataturbo.net/insert-bs...d-75269/page5/
lol, the only thing I contribute to MT is gayness
GeneSplicer is offline   Reply With Quote
Old 06-27-2014, 07:55 PM   #1000
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by GeneSplicer View Post
lol, the only thing I contribute to MT is gayness
Not true.

You also disassembled the best looking car on the forum creating much sadness.
sixshooter is offline   Reply With Quote
