Old 04-18-2014, 02:26 PM   #961
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,275
Total Cats: 53
Default

Quote:
Originally Posted by cordycord View Post
We just finished the drawing for a safety cage for NASA use, and can't wait to get a fully prepped car into the NASA ST class.

If you look closely you can see a custom K-member for a V-8 on this rendering...

There should be at least 2-3 Turbo Catfish at the September Miata's at MRLS in September, and rides will be given. You'll get to see if mere turbo power is sufficient to scoot you around a race track.
I think the cage makes the car look even more bad ***. Even though I don't plan on doing competition, that cage makes me want to.
Midtenn is offline   Reply With Quote
Old 04-19-2014, 02:04 AM   #962
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default hard tonneau

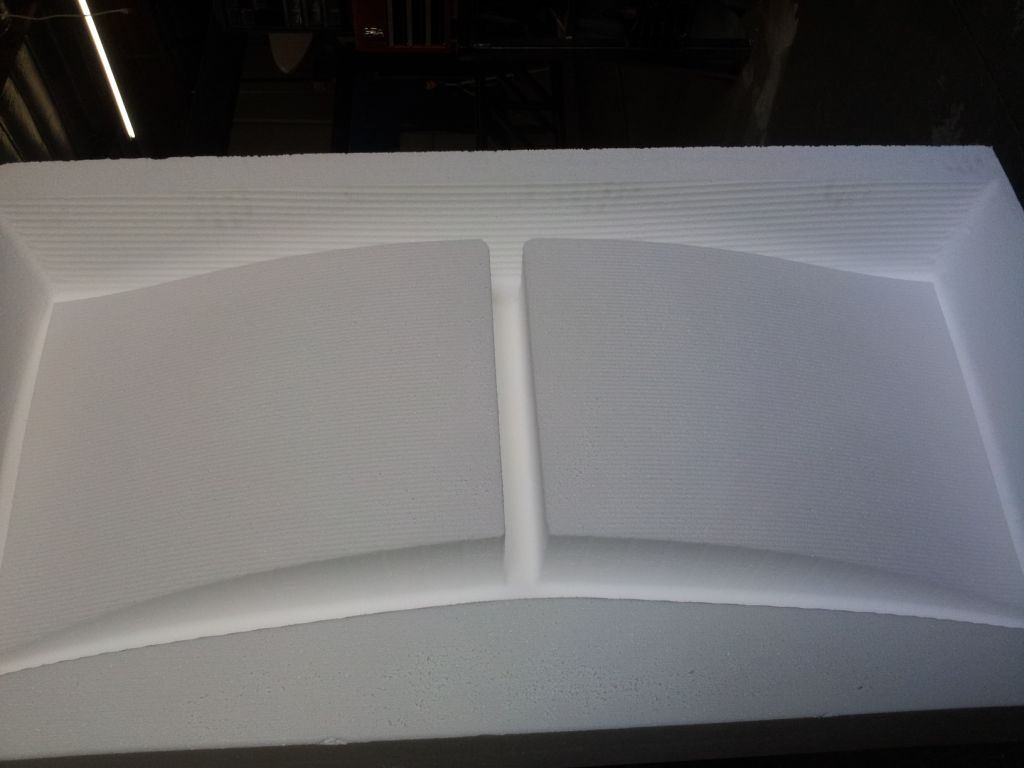

We're chipping away at some of the other parts for the car, and two that people keep asking about are roll hoop covers and the passenger tonneau hard cover. The tonneau is really made for the guy who is going to set this car up as a solo speedster. With the tonneau, single screen and single roll hoop, the car will have very, very good aerodynamics.

Since we've shortened the hood and extended the cabin behind the seats by hand, these measurements aren't in any CAD files. In order to make the tonneau we're using new and old tech. First, a styrofoam buck has been cnc machined in the exact shape of the car. We can then cut this shape down to the shape of the tonneau and work with it from there, or make a female of the shape, and then a male part, and then make a mold from that male part.

Even with technology, these parts are all very labor intensive and the thousands of dollars in tooling usually ends up in the dumpster at the end.
Attached Thumbnails
Cordycord's epic tube frame build-ton-small.jpg   Cordycord's epic tube frame build-catfish_004.jpg
cordycord is offline   Reply With Quote
Old 04-19-2014, 09:48 AM   #963
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Yep, that's sexy.

sixshooter is offline   Reply With Quote
Old 04-19-2014, 10:51 AM   #964
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

And for rain all you would need is a F-16ish plastic bubble that you snap on over yourself with 360 visibility!

OK that would probably look stupid, but it would be sweet.
Jeffbucc is offline   Reply With Quote
Old 04-19-2014, 01:30 PM   #965
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

I like that idea.
rleete is offline   Reply With Quote
Old 04-19-2014, 02:51 PM   #966
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default new stuff

We're about to open a mold for that custom rear view mirror next, and a full-width plexi screen should be ready to fit next week.
cordycord is offline   Reply With Quote
Old 05-07-2014, 02:37 AM   #967
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default new diffuser, and trubo parts coming

Okay, I've been on this forum long enough. I guess it's time to actually TURBO the Catfish. I went back and forth as to whether I should swap the 1.6 for a 1.8, build up the 1.8 prior to the turbo, etc. BUT, I'm working mule #1...the car that started with an $800 donor Miata. It's great fun with the stock 1.6 now, and will be even more fun with twice the horsepower. We'll make the next one a beast...

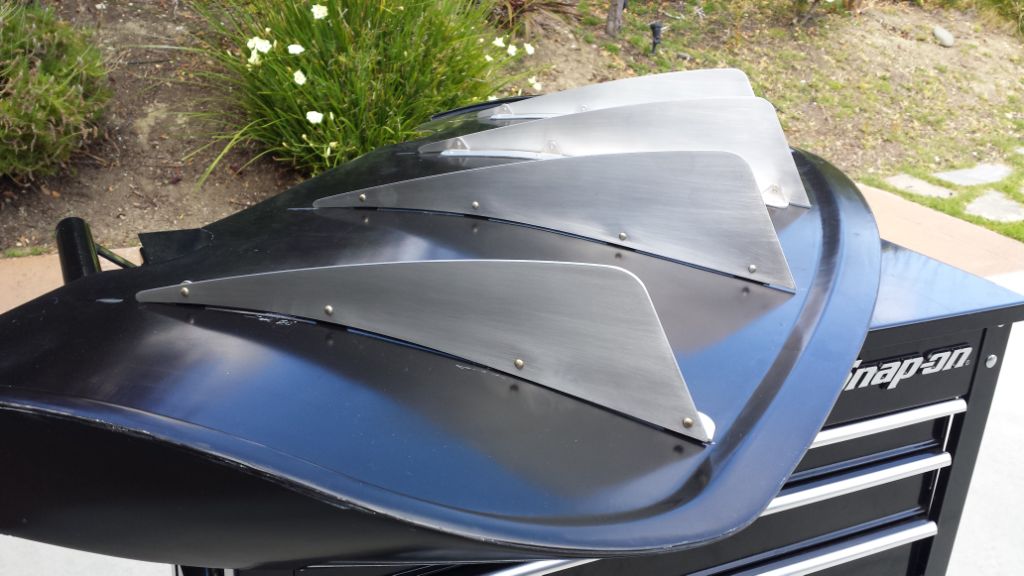

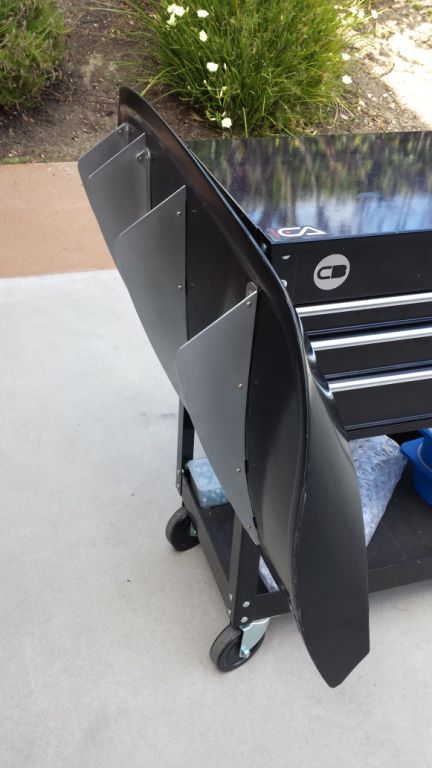

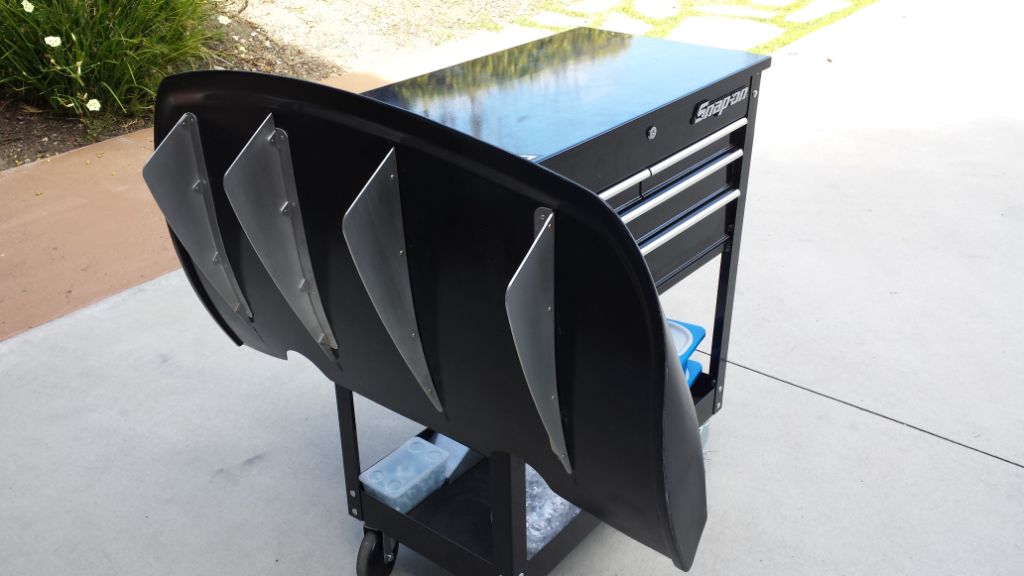

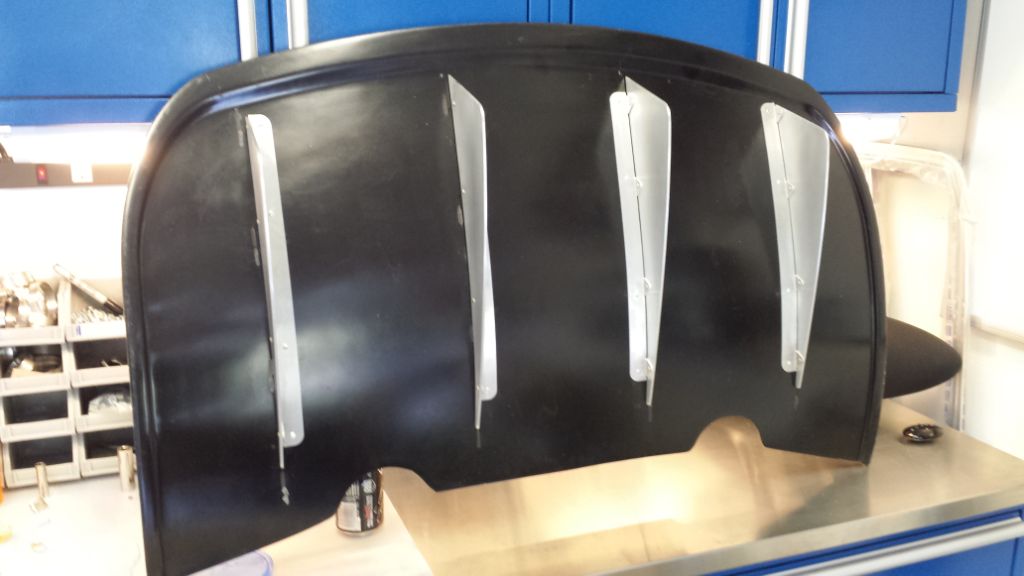

While we wait for Flyin' Miata to deliver our package o' fun, I put some new aluminum strakes on the diffuser. They cut right through the wind. And cheese. And bologna. And assorted woodland critters that wander in our path.
Attached Thumbnails
Cordycord's epic tube frame build-20140506_160133.jpg   Cordycord's epic tube frame build-20140506_160253.jpg   Cordycord's epic tube frame build-20140506_160304.jpg   Cordycord's epic tube frame build-20140506_160332.jpg
cordycord is offline   Reply With Quote
Old 05-07-2014, 02:51 AM   #968
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Nice work as usual...! Props!
Zaphod is offline   Reply With Quote
Old 05-08-2014, 12:00 AM   #969
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by cordycord View Post
I guess it's time to actually TURBO the Catfish..
Finally the monster has awakened.
triple88a is offline   Reply With Quote
Old 05-08-2014, 12:30 AM   #970
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by triple88a View Post
Finally the monster has awakened.
Sooo, even with a 1.6 we're probably talking between 7:1 and 8:1 horsepower to weight ratio. That's better than a 2014 Cayman S (9:1) or 911 Carrera.
cordycord is offline   Reply With Quote
Old 05-08-2014, 12:36 AM   #971
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Eh go for the 1.8 if you want to build it. Search except for the 1 or 2 members that turboed a 1.6 and defend it, everyone else will confirm building a 1.8 is money better spent.

A 300whp isnt hard to achieve from a built motor.

The cat fish will fly.

Attached Thumbnails
Cordycord's epic tube frame build-flying-catfish-76186.jpg
triple88a is offline   Reply With Quote
Old 05-08-2014, 01:11 AM   #972
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by triple88a View Post
Eh go for the 1.8 if you want to build it. Search except for the 1 or 2 members that turboed a 1.6 and defend it, everyone else will confirm building a 1.8 is money better spent.

A 300whp isnt hard to achieve from a built motor.

The cat fish will fly.

GOOD LORD WHAT IS THAT?!

This is Catfish #1....the one that's been to two SEMA shows and started with an $800 NA donor. The next car will have a built 1.8, but this one is supposed to show what's possible even with the teeniest engine. No, this is it. I need to stop tweaking on this car and move on to the next car.
cordycord is offline   Reply With Quote
Old 05-29-2014, 04:20 AM   #973
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default pimped out

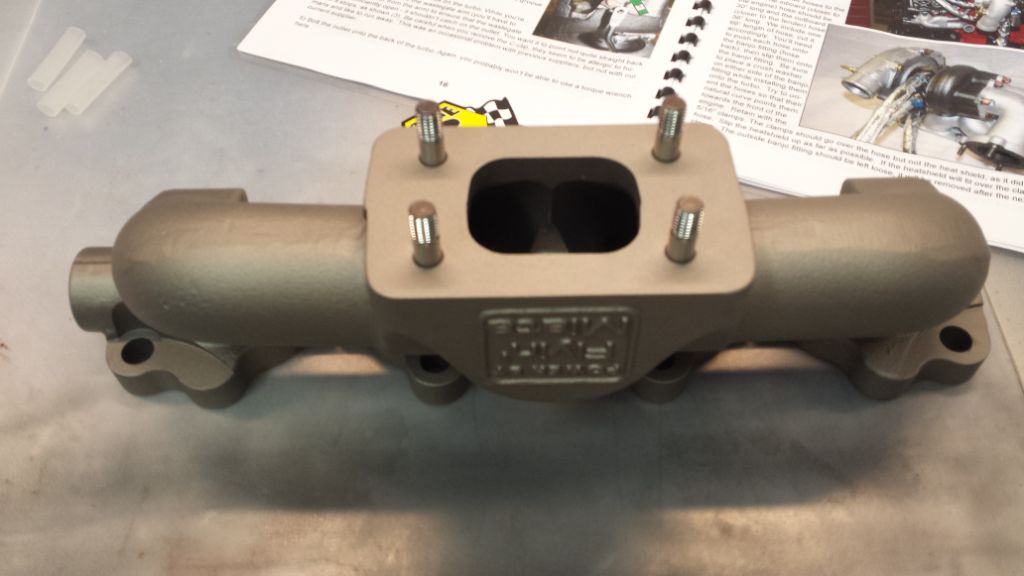

The Catfish has been pimped out to a high end car and home audio show in Newport Beach this weekend. Check out T.H.E. Show Newport Beach May 31 - June 2, 2013 Entrance for more information.

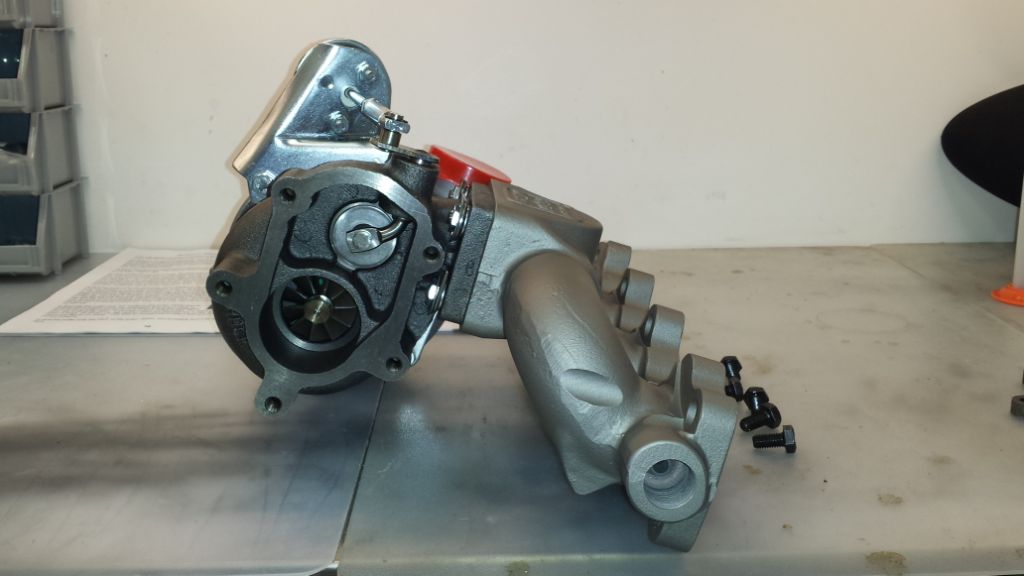

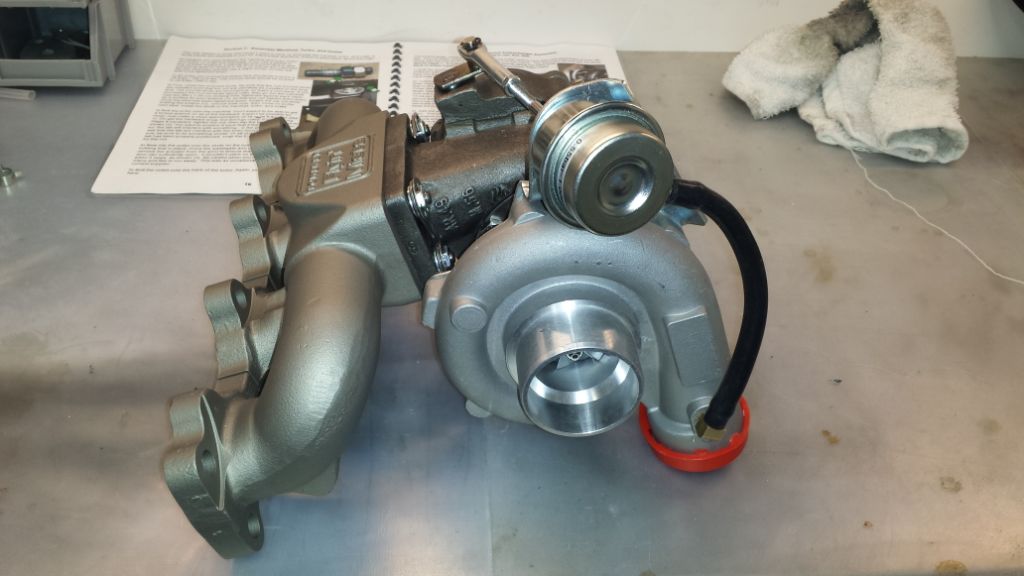

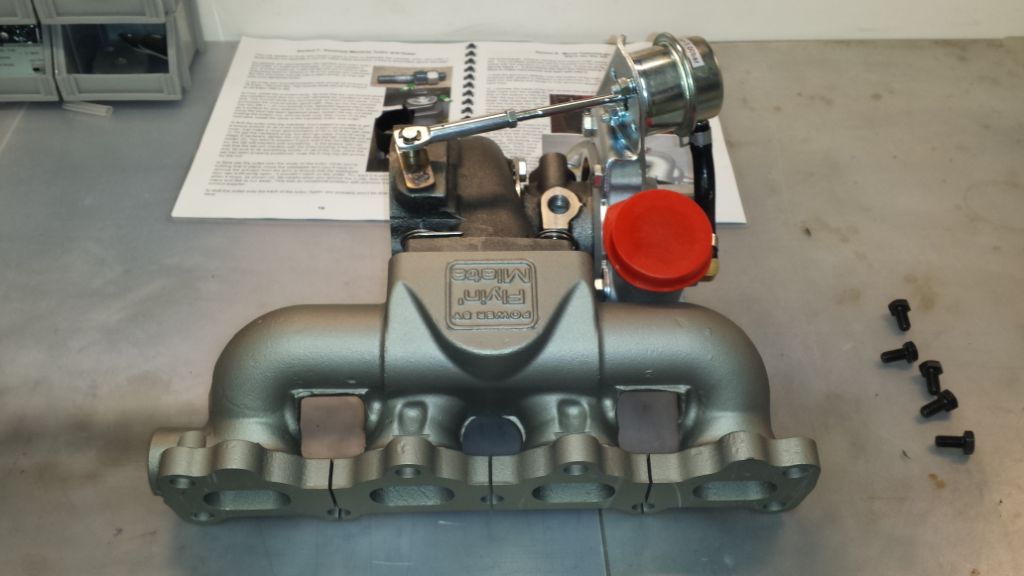

While it means I won't be wrenching on the car this weekend, I did start working on the turbo setup. The Flyin' Miata cast manifold was ceramic coated in titanium silver and the inconel studs were installed. I then added the Churbo and clocked the snail so it pointed the right way.

Since the car has a water bypass setup it means that I'll need to make some custom water lines for the turbo. The oil should be reasonably easy. There's plenty of room for the IC, so hopefully the install will be nice and smooth. Now if I can only find the time.
Attached Thumbnails
Cordycord's epic tube frame build-20140528_202424.jpg   Cordycord's epic tube frame build-20140528_214024.jpg   Cordycord's epic tube frame build-20140528_214101.jpg   Cordycord's epic tube frame build-20140528_221659.jpg   Cordycord's epic tube frame build-20140528_221719.jpg

cordycord is offline   Reply With Quote
Old 05-29-2014, 02:24 PM   #974
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

So, when are you bringing Catfish body and frame kits to the market?
sixshooter is offline   Reply With Quote
Old 05-31-2014, 02:04 PM   #975
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by sixshooter View Post
So, when are you bringing Catfish body and frame kits to the market?
On sale now. We just made frame 10, which is our first all TIG welded frame. Flyin' Miata is almost done with their car.
cordycord is offline   Reply With Quote
Old 06-25-2014, 10:52 PM   #976
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default Catfish Turbo Install

After all this time posting on MT I finally went out and put a turbo in the Catfish.

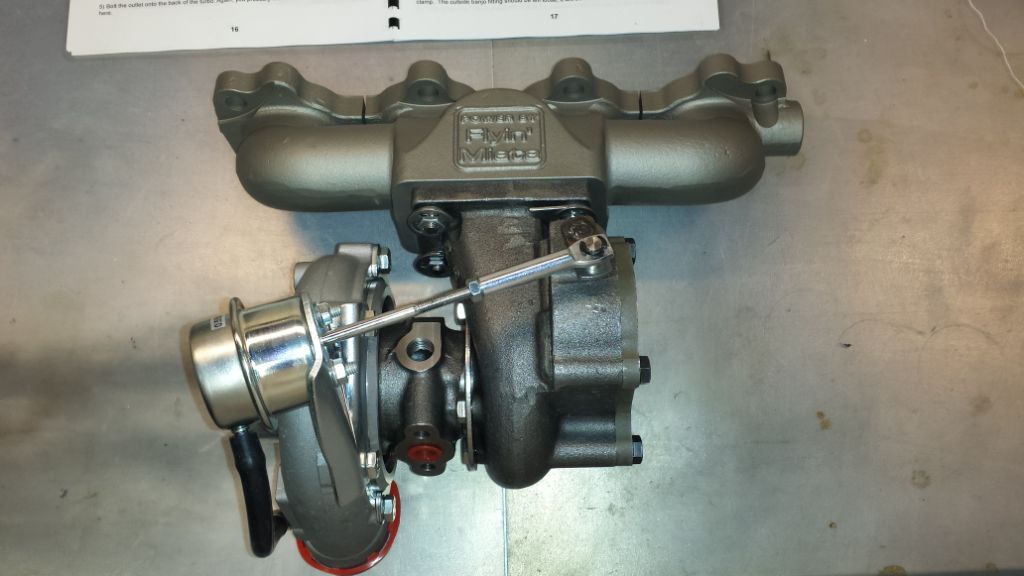

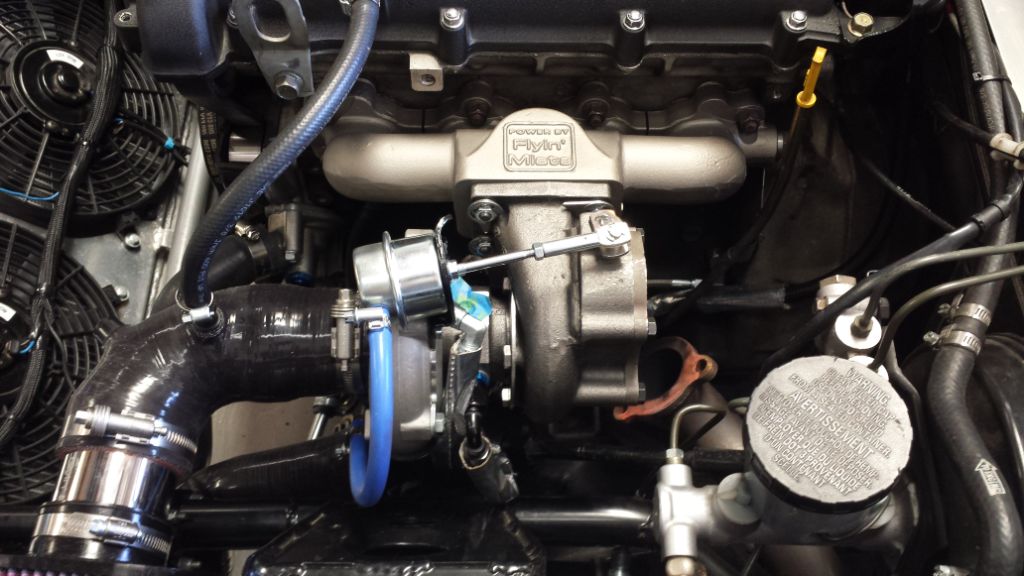

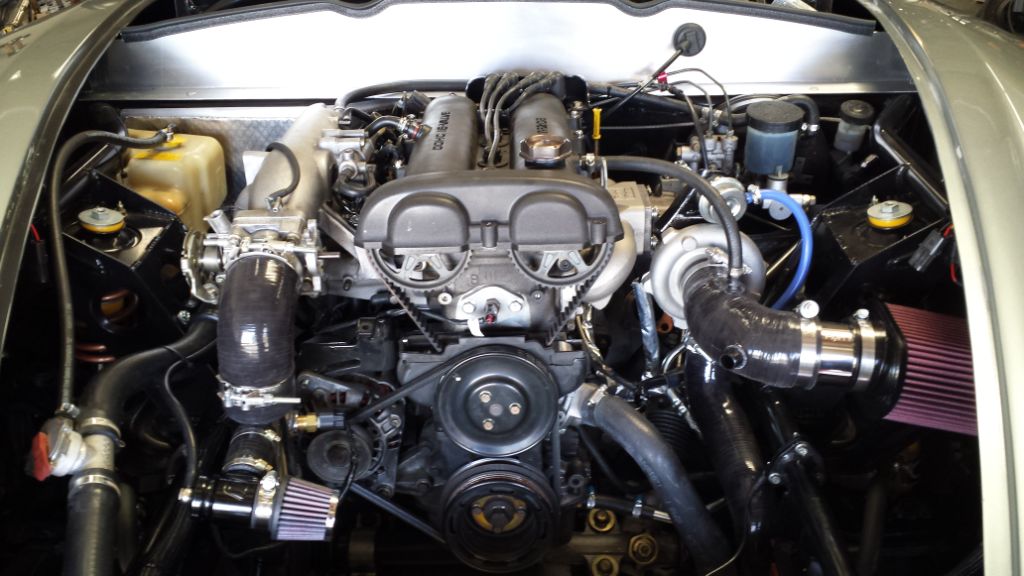

I took the time to ceramic coat the FM exhaust log and to clean up the stock 1.6 intake manifold, and even clean up the wiring a bit.

It's a 2560 chinacharger with an exhaust that unfortunately didn't fit the FM outlet. Custom it is.

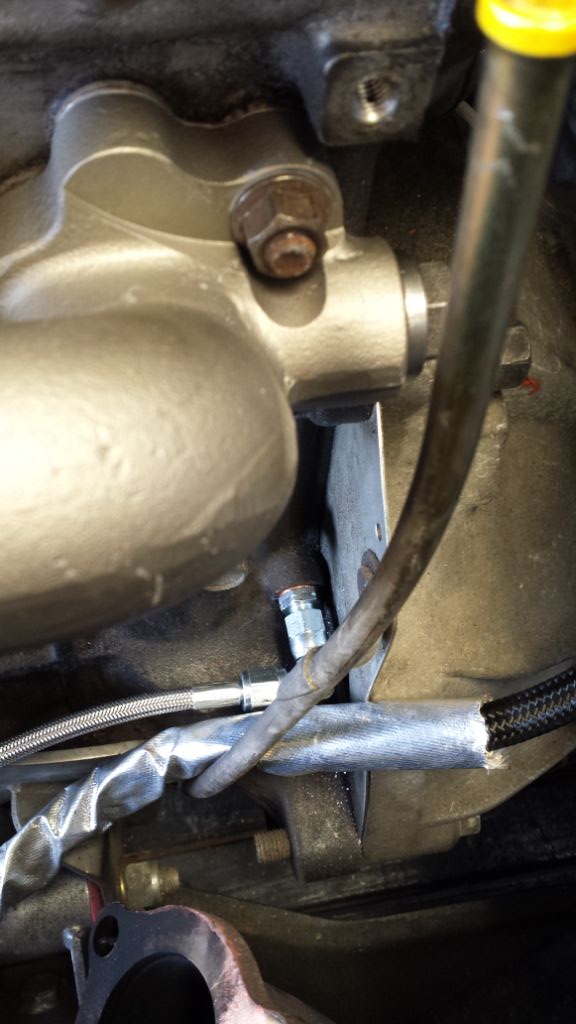

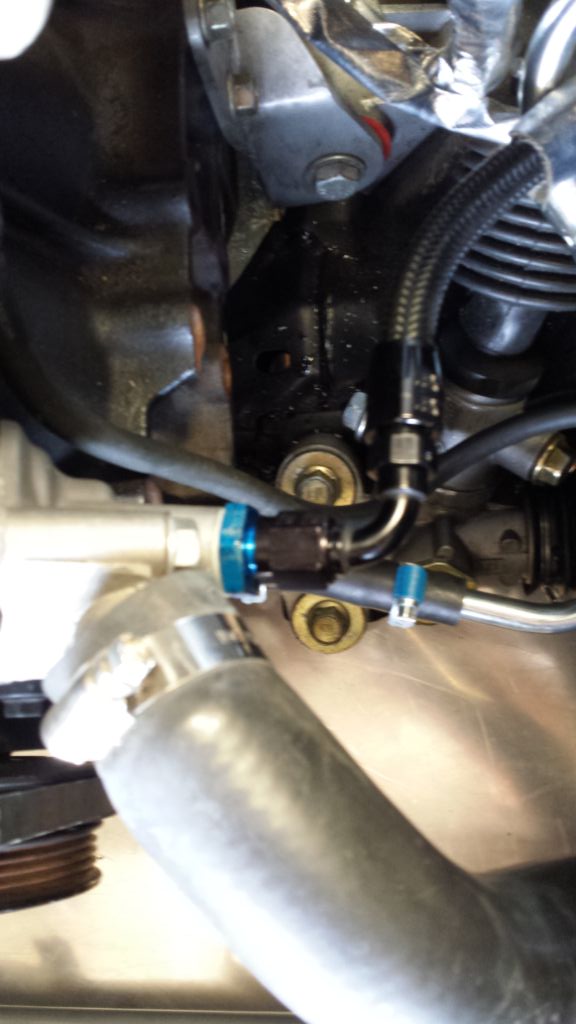

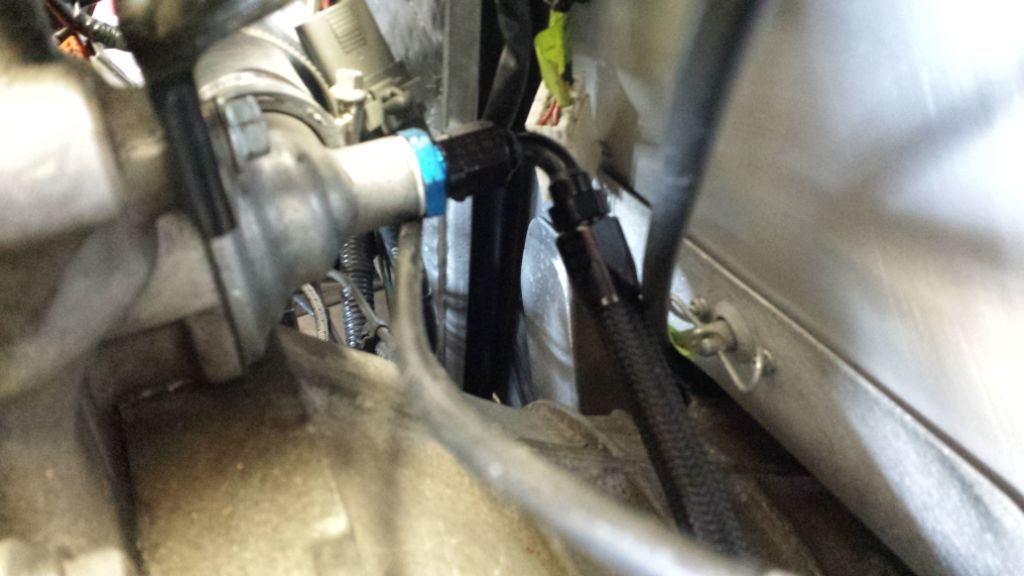

The turbo water lines are incorporated into the existing DIY water bypass. It worked out well because the Kia water inlet has a threaded boss that allows us to grab the cool water from the radiator. The hot stuff is dumped back into the mix at the back of the engine so the turbo coolant never goes through the block. The oil coolant routing is standard.

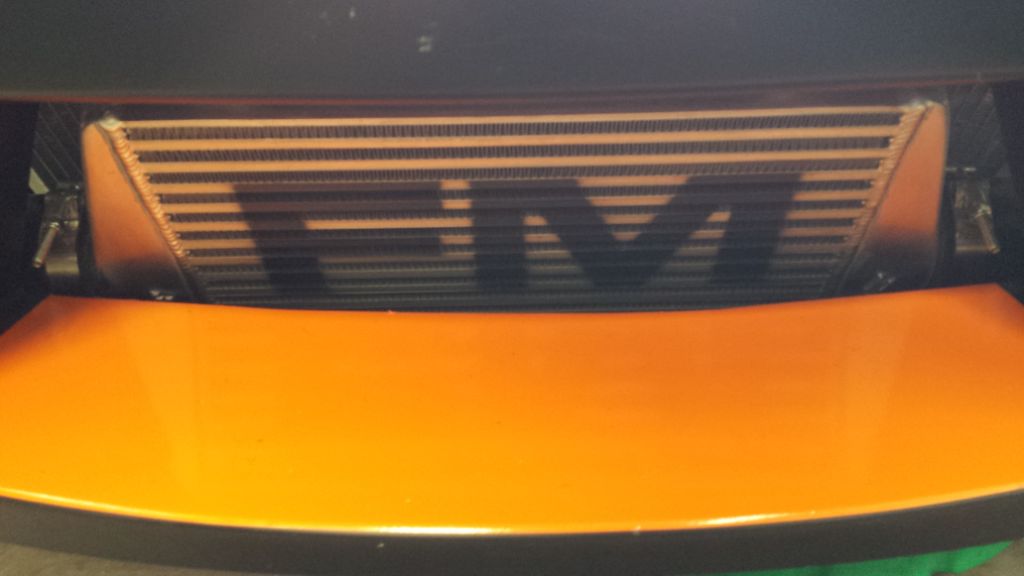

The IC fits really well and went on without having to relocate the radiator. There's a bit of clean-up of sharp edges and potential items that may rub, but it's all small stuff.

The only big thing left is the mid-pipe from the turbo. Once that's done we're in business.
Attached Thumbnails
Cordycord's epic tube frame build-20140625_141255.jpg   Cordycord's epic tube frame build-20140625_141305.jpg   Cordycord's epic tube frame build-20140625_162252.jpg   Cordycord's epic tube frame build-20140625_162338.jpg   Cordycord's epic tube frame build-20140625_162305.jpg

Cordycord's epic tube frame build-20140625_162357.jpg
cordycord is offline   Reply With Quote
Old 06-25-2014, 11:58 PM   #977
Senior Member
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I have nothing constructive to say other then your last post made me so happy. I can't wait to see video's of this thing with a turbo!
gorillazfan1023 is offline   Reply With Quote
Old 06-26-2014, 02:21 PM   #978
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

I hate to trifle but it appears the hot water is coming from the back of the head to the turbo and then that hotter water goes into the inlet of the mixing manifold and then into the water pump and engine. That is unless you are running an external aftermarket water pump and a reverse flow cooling system with a gutted stock water pump (like Miata2Fast).
sixshooter is offline   Reply With Quote
Old 06-26-2014, 02:23 PM   #979
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by sixshooter View Post
I hate to trifle but it appears the hot water is coming from the back of the head to the turbo and then that hotter water goes into the inlet of the mixing manifold and then into the water pump and engine. That is unless you are running an external aftermarket water pump and a reverse flow cooling system with a gutted stock water pump (like Miata2Fast).
Thats the direction it travels when the car is running. It should, in theory, travel the other way when the car is hot and off. I did mine that way, because it was easy.
Leafy is offline   Reply With Quote
Old 06-26-2014, 04:02 PM   #980
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by sixshooter View Post
I hate to trifle but it appears the hot water is coming from the back of the head to the turbo and then that hotter water goes into the inlet of the mixing manifold and then into the water pump and engine. That is unless you are running an external aftermarket water pump and a reverse flow cooling system with a gutted stock water pump (like Miata2Fast).
Trifle, trifle! This is my first turbo install and I'm learning as I go. Of course it helps to start with the FM kit, but we're always trying to fit the solutions to the car.

The water coolant lines aren't yet bolted down as we are waiting for a couple of adapters, but the intention is to push cold water up to the turbo and then dump it out after the block. It seemed the cleanest and most efficient way, especially since we'd already done the coolant reroute.

The car is at RPM now (Richard's Performance Muffler) for a custom dump pipe, which is the last main piece of the puzzle.
cordycord is offline   Reply With Quote
