Old 03-13-2012, 06:28 PM   #61
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Can the VVT fuel rail work on the 99 plenum with a 1994 fuel pressure regulator? I thought I had a 99 rail, but it turns out it from my 1.6 for whatever reason.

I just used this to get an idea of injector size and if I want 150whp is says I'll need a 310cc injector...is that right? That seems like a ton of fuel for a low output number.

Last edited by hustler; 03-13-2012 at 06:39 PM.
hustler is offline   Reply With Quote
Old 03-13-2012, 06:43 PM   #62
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,109
Total Cats: 127
Default

Hustler, I remember several threads where people switched to COPs on the factory ECU with no resistors or anything and ran fine YMMV.
jacob300zx is offline   Reply With Quote
Old 03-13-2012, 06:49 PM   #63
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by jacob300zx View Post
Hustler, I remember several threads where people switched to COPs on the factory ECU with no resistors or anything and ran fine YMMV.
The VVT valve cover will not let us use Toyota COPs.
hustler is offline   Reply With Quote
Old 03-13-2012, 09:35 PM   #64
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
Can the VVT fuel rail work on the 99 plenum with a 1994 fuel pressure regulator? I thought I had a 99 rail, but it turns out it from my 1.6 for whatever reason.

I just used this to get an idea of injector size and if I want 150whp is says I'll need a 310cc injector...is that right? That seems like a ton of fuel for a low output number.

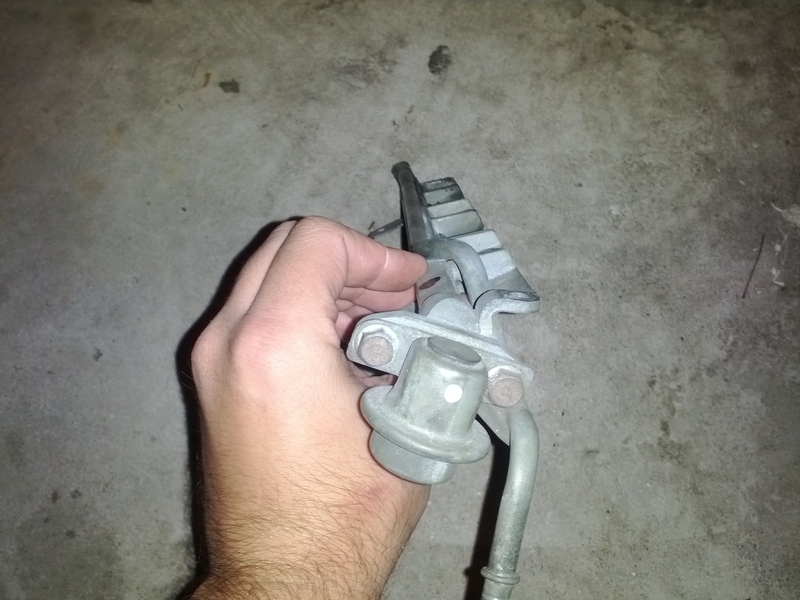

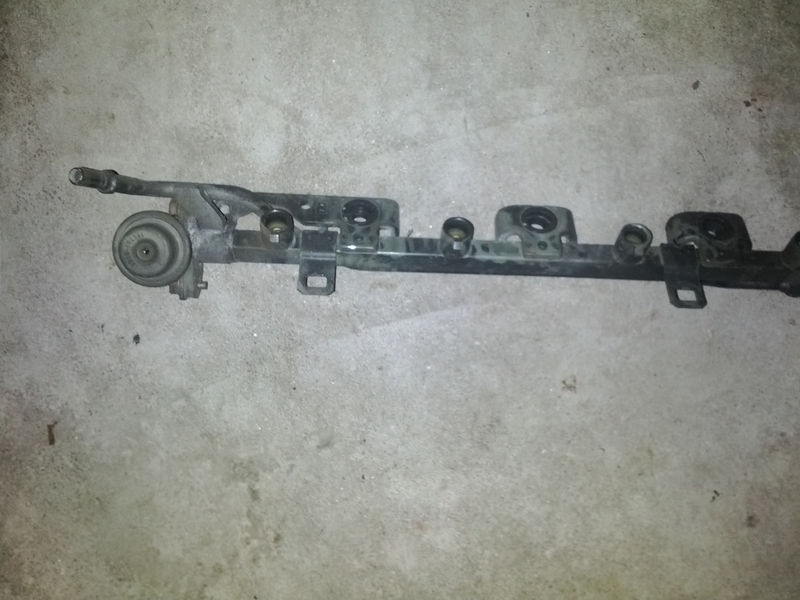

The 01+ fuel rail will not work. It has the flange for the FPR on the bottom and with an NA FPR installed it hits ---- somewhere. I forget what exactly hits and where, as it has been 2+ years since I tried. Below are pictures of a 99 fuel rail with the flange on the end. It still currently has the stock 99 FPR installed. You just unbolt it and install the other FPR and it will work. I will try to get pictures of how mine looks on my car tomorrow if I get home while it is still light out.

Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-img_20120313_195938.jpg   My awesome daily project 35mpg/150whp highway donut-img_20120313_195928.jpg
shuiend is offline   Reply With Quote
Old 03-13-2012, 10:15 PM   #65
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by hustler View Post
Update:
MS2+ is paid for.

Question:
I have a VVT engine...What should I do about intake plenums and throttle bodies?
I have a 2001 plenum with IAC and t-body
I have a 1999 plenum with no IAC and no t-body
I have a1994 IAC and t-body that does not work.

Right now I'm hoping I can use the 1999 plenum, 2001 T-body, and 2001 IAC valve. Tell me this is possible.

Also, what is the best route to go for a fuel rail on my 1995 car? I have a 99 fuel rail, 2001 fuel rail, and I think the best option will be to buy a dual feed. This way it will be easier to use a real fuel pressure regulator instead of jacking with that fuel damper ----.
Of those choices, I would use the 01 setup with VTCS butterflies removed. Clean it up a bit with a die grinder if you have one or a dremel if you don't.

Quote:
Originally Posted by hustler View Post
Has anyone ever run a VVT engine on a factory computer off a CAS? I may swap engines as early as this weekend and I do not have a computer yet.
Works, but the VVT cam will stay at full retard. Idle and high end will be ok, but it will feel like a dog down low.

Quote:
Originally Posted by hustler View Post
The VVT valve cover will not let us use Toyota COPs.
It will with minimal effort.
Ben is offline   Reply With Quote
Old 03-13-2012, 10:17 PM   #66
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

What exactly is your plan for 150whp, IE what are you planning on doing to pick up 40whp?
Ben is offline   Reply With Quote
Old 03-13-2012, 10:23 PM   #67
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Ben View Post
What exactly is your plan for 150whp, IE what are you planning on doing to pick up 40whp?
He is hustler, I am pretty sure that is worth 40whp right there.
shuiend is offline   Reply With Quote
Old 03-14-2012, 12:14 AM   #68
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

AST stickers
karter74 is offline   Reply With Quote
Old 03-14-2012, 12:21 AM   #69
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Turbo kitty stickers tooo.
Miater is offline   Reply With Quote
Old 03-14-2012, 12:38 AM   #70
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 261
Default

The NB2 injectors are good to 180ish. You don't need 315's for 150whp. Plenty of headroom with the NB 265's at 150.
Mobius is offline   Reply With Quote
Old 03-14-2012, 12:41 AM   #71
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
What exactly is your plan for 150whp, IE what are you planning on doing to pick up 40whp?
93 octane, 99 plenum, RB header, air filter in front of the radiator possibly. As long as it makes 125whp on the Mustang, I'll be happy. I've gotten 122whp on a Mustang with a 9:1 and NB head. I don't think it's unreasonable to expect an increase over that number with a tick more compression. I'm most interested in the fuel economy and will possibly run the car on 87-octane for daily driving. I don't really know what to expect since I've never tuned an engine like this on the dyno. The main reason I'm doing this is because my car needs an engine and I think it will teach me something.

Unfortunately there are no injectors in this engine so I have to buy something. Anyone want to sell some stock injectors on the cheap?
hustler is offline   Reply With Quote
Old 03-14-2012, 01:17 AM   #72
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

I have a whole box of stock Honda B-series EV1 injectors if you can use them. I also have a couple of these in the shop:

http://www.extremepsi.com/store/prod...roductid=17652

that I can put a set of calipers on later this week if you can measure the o-ring bore on the rail you have. From a quick glance I think a 1G reg has the same mounting provisions as the Miata reg, meaning $24 gets you out of the rail to a good regulator. I may also have an extra Fuel Lab or Aeromotive reg I can sell you for cheapish.
vehicular is offline   Reply With Quote
Old 03-14-2012, 01:24 AM   #73
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by vehicular View Post
I have a whole box of stock Honda B-series EV1 injectors if you can use them. I also have a couple of these in the shop:

http://www.extremepsi.com/store/prod...roductid=17652

that I can put a set of calipers on later this week if you can measure the o-ring bore on the rail you have. From a quick glance I think a 1G reg has the same mounting provisions as the Miata reg, meaning $24 gets you out of the rail to a good regulator. I may also have an extra Fuel Lab or Aeromotive reg I can sell you for cheapish.
I'm interested in the injectors, but I'm going to search for some OEMs first. I have the fuel rail situation figured out and it will work with what I have.

This wouldn't be such a big deal if I weren't dreadfully out of money. Thank you very much for helping out.
hustler is offline   Reply With Quote
Old 03-14-2012, 01:46 AM   #74
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,068
Total Cats: 253
Default

I have some stock injectors that you can have for cheap. PM me for info.
viperormiata is offline   Reply With Quote
Old 03-14-2012, 01:54 AM   #75
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Same, stock 1.8 injectors, $10 shipped? Will go out Thursday with a couple other packages.
curly is offline   Reply With Quote
Old 03-14-2012, 02:32 AM   #76
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I've got a set of NB2 purples pulled from a running 04 no more than 2 years ago. I don't think I paid more than $20 for them. I've had this swap on my brain for a while and I'd give them up just to watch this project move forward and get documented. Visiting the post office tomorrow AM, let me know.
EO2K is offline   Reply With Quote
Old 03-14-2012, 08:50 AM   #77
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by EO2K View Post
I've got a set of NB2 purples pulled from a running 04 no more than 2 years ago. I don't think I paid more than $20 for them. I've had this swap on my brain for a while and I'd give them up just to watch this project move forward and get documented. Visiting the post office tomorrow AM, let me know.
PM'd.

I love this forum. Thanks so much.
hustler is offline   Reply With Quote
Old 03-14-2012, 09:47 AM   #78
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I got lazy and never looked up the 01 coil wiring. Maybe tonight I will do it for you.
shuiend is offline   Reply With Quote
Old 03-14-2012, 09:54 AM   #79
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
I got lazy and never looked up the 01 coil wiring. Maybe tonight I will do it for you.
Thanks.

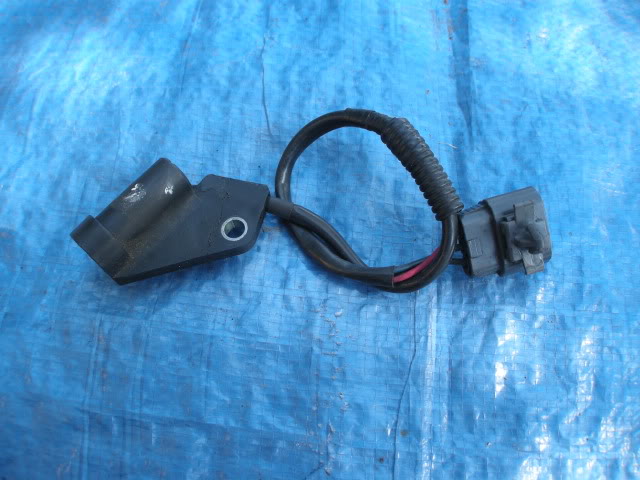

Does anyone have a picture of what the 2001 CKP sensor and bracket should look like mounted-up? I scoured the interweb and can't seem to find a pic of it mounted, Mazdaspeed doesn't show a bracket for it. I have the sensor, but using "lego-theory" I can't figure out what it bolts to.

My sensor:
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-dscn6799.jpg
hustler is offline   Reply With Quote
Old 03-14-2012, 09:57 AM   #80
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
Thanks.

Does anyone have a picture of what the 2001 CKP sensor and bracket should look like mounted-up? I scoured the interweb and can't seem to find a pic of it mounted, Mazdaspeed doesn't show a bracket for it. I have the sensor, but using "lego-theory" I can't figure out what it bolts to.

My sensor:
I will get a picture of mine mounted tonight along with how my fuel rail is.

There is no actual "bracket". Basically you put a bolt through that whole on the sensor into a hole somewhere on the oil pump.
shuiend is offline   Reply With Quote
