Old 03-14-2012, 10:08 AM   #81
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
I will get a picture of mine mounted tonight along with how my fuel rail is.

There is no actual "bracket". Basically you put a bolt through that whole on the sensor into a hole somewhere on the oil pump.
I have the fuel rail worked out, but I need help on the CKP.

I'm about to make a $500 order from Mazdaspeed, lol.
hustler is offline   Reply With Quote
Old 03-14-2012, 10:23 AM   #82
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
I have the fuel rail worked out, but I need help on the CKP.

I'm about to make a $500 order from Mazdaspeed, lol.
I really need to submit my results from my last autox weekend so I can get into Mazdaspeed. Also Visa is your friend. You need to spend spend spend to stimulate this economy.
shuiend is offline   Reply With Quote
Old 03-14-2012, 10:26 AM   #83
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
I really need to submit my results from my last autox weekend so I can get into Mazdaspeed. Also Visa is your friend. You need to spend spend spend to stimulate this economy.
I have only paid cash since 2004, I don't plan to change that now.
hustler is offline   Reply With Quote
Old 03-14-2012, 11:02 AM   #84
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

There is a threaded hole on the oil pump, on the lower right. Don't look for a threaded hole on the 90-95 oil pumps if you have a spare, it doesn't exist.
Reverant is offline   Reply With Quote
Old 03-14-2012, 11:39 AM   #85
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Is there any reason why the CLT sensor from my 1994 won't fit in the 2001 bung?

Demitris,
Will this eliminate the CLT issue with the 1994-2001 compatibility?
hustler is offline   Reply With Quote
Old 03-14-2012, 12:12 PM   #86
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I don't remember if it will fit, however it does have a different (triangular) connector with 3 pins, as it is also the sensor for the gauge cluster (the 94 has a separate sensor for that).

And yes, that will solve the compatibility issue.
Reverant is offline   Reply With Quote
Old 03-14-2012, 01:02 PM   #87
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
Is there any reason why the CLT sensor from my 1994 won't fit in the 2001 bung?

Demitris,
Will this eliminate the CLT issue with the 1994-2001 compatibility?
Are you doing a coolant reroute? I am almost positive that the threads are the same between a 94 coolant sensor and a 01 coolant sensor. Just make sure you use the 94 coolant sensor so you don't have to change the pigtail.
shuiend is offline   Reply With Quote
Old 03-14-2012, 01:05 PM   #88
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
Are you doing a coolant reroute? I am almost positive that the threads are the same between a 94 coolant sensor and a 01 coolant sensor. Just make sure you use the 94 coolant sensor so you don't have to change the pigtail.
No reroute since it has the baller 2001 head gasket. I suppose that if it doesn't fit I can use the rear water-neck/cap thing from the 1994 in it's place.
hustler is offline   Reply With Quote
Old 03-14-2012, 01:06 PM   #89
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by hustler View Post
No reroute since it has the baller 2001 head gasket. I suppose that if it doesn't fit I can use the rear water-neck/cap thing from the 1994 in it's place.
It looks like this is solved...next issue?
hustler is offline   Reply With Quote
Old 03-14-2012, 01:09 PM   #90
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Why not run HHO in it too? As much as i'm joking i'm serious lol.
triple88a is offline   Reply With Quote
Old 03-14-2012, 01:15 PM   #91
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by triple88a View Post
Why not run HHO in it too? As much as i'm joking i'm serious lol.
Hot House Onions? Its been a while since I've roasted an onion in oil.
hustler is offline   Reply With Quote
Old 03-14-2012, 01:27 PM   #92
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

HHO fuel cells.. hydrogen from water.

triple88a is offline   Reply With Quote
Old 03-14-2012, 01:28 PM   #93
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by triple88a View Post
HHO fuel cells.. hydrogen from water.

Get that ---- out of my thread, lol.
hustler is offline   Reply With Quote
Old 03-14-2012, 02:06 PM   #94
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Fuelified njektificators has been mailificated!

Godspeed you Hustler!
EO2K is offline   Reply With Quote
Old 03-14-2012, 09:33 PM   #95
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

I come bearing pics.

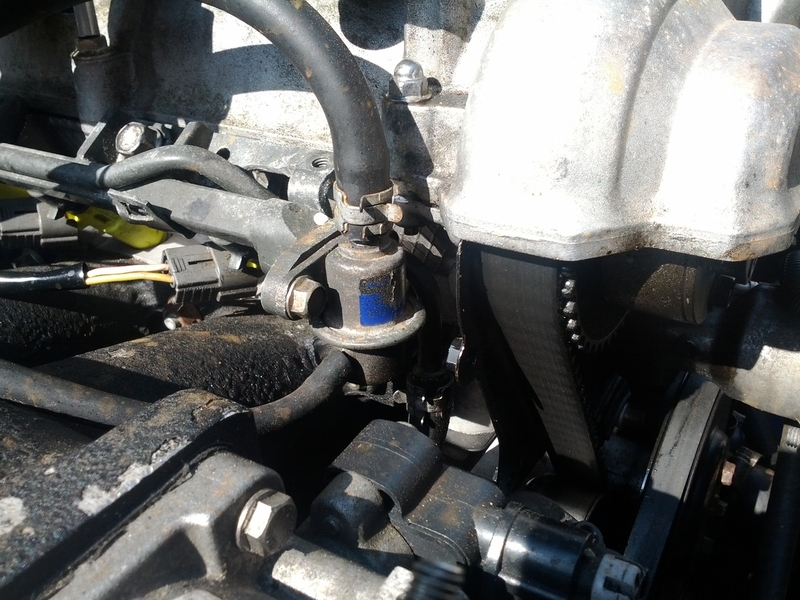

99 fuel rail with early FPR.

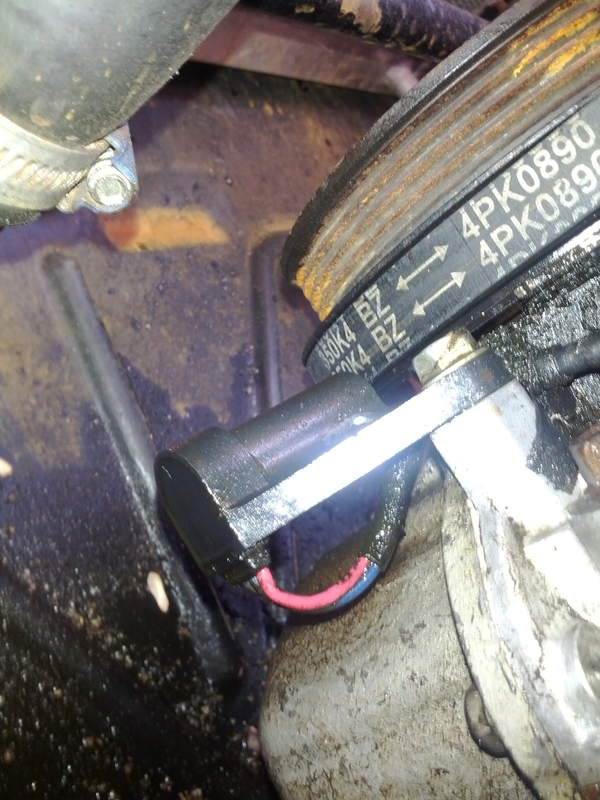

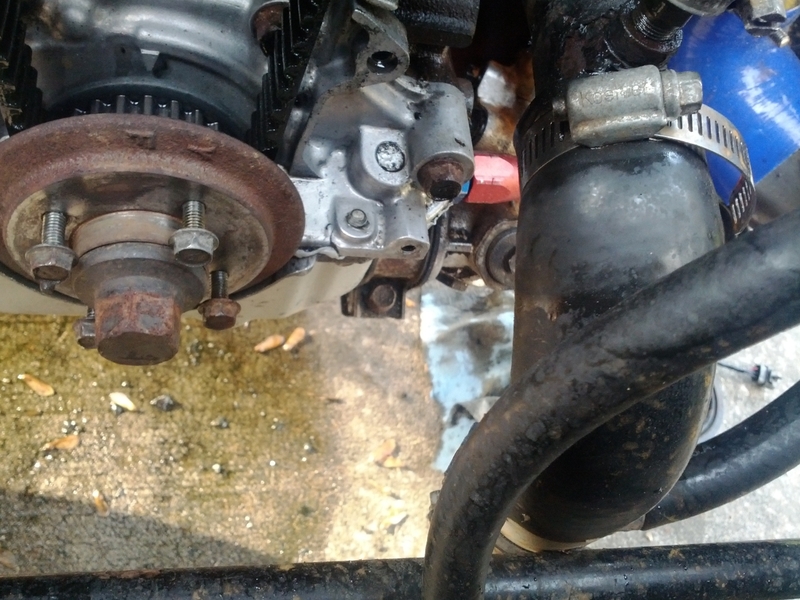

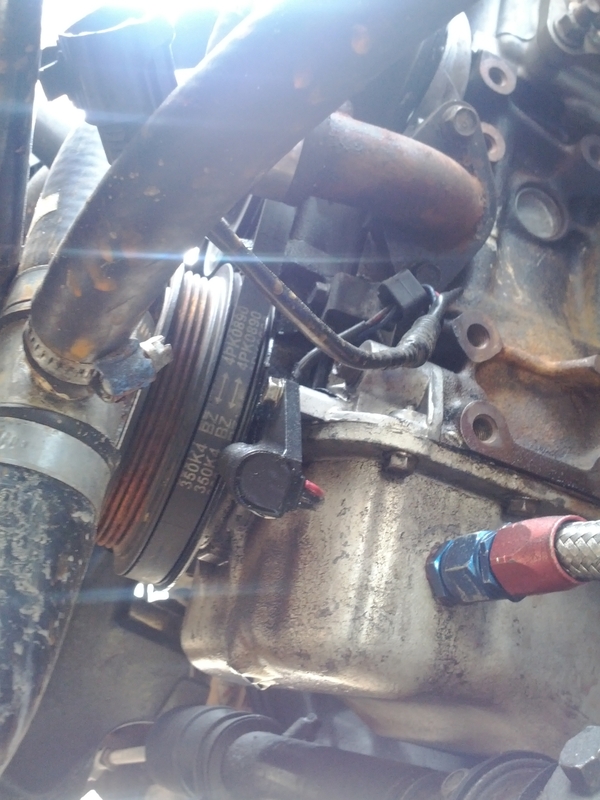

Pictures of the crank sensor mounted.


Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-fuelrail.jpg   My awesome daily project 35mpg/150whp highway donut-crank1.jpg   My awesome daily project 35mpg/150whp highway donut-crank2.jpg   My awesome daily project 35mpg/150whp highway donut-crankhole1.jpg
shuiend is offline   Reply With Quote
Old 03-18-2012, 01:22 PM   #96
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Injectors should have been there today or yesterday or day before.... car running yet?
EO2K is offline   Reply With Quote
Old 03-19-2012, 12:24 AM   #97
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Looks like your cam seals have leaked all over the front of your engine, unless you know it came from somewheres else?
Mobius is offline   Reply With Quote
Old 03-19-2012, 12:41 AM   #98
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by Mobius View Post
Looks like your cam seals have leaked all over the front of your engine, unless you know it came from somewheres else?
Are you talking about the pictures I posted? If so I know and am working on fixing those leaks.
shuiend is offline   Reply With Quote
Old 03-20-2012, 10:36 AM   #99
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks, bros.

I have not yet checked the mail but I will tonight. The car is back on the road with a temporary header-sheetmetal wrap/hose clamp fix. I should get the swap don't one week next month. I want to get MS2 in the car on the 1994 engine first, on the 1999 IAC, so I will have less things to deal with after swapping. I'm doing this swap alone in my 1-car garage so I'm going to be pretty fussy after putting the engine in the car. I'm going to probably take-off a Thursday and Friday so I have a four-day to do the work.

BTW, I'm talking to Dimitris in email now about how to handle the tach wiring. I think it's a good idea to wire-in the tach output so the harness he's making will be ultimately clean. What wires should I cut from the factory coils to the tach? Do those wires go from the factory computer or from the coils to the tach.

I need to learn to read a wire diagram, any tips other than googling "how to read a wire diagram"?
hustler is offline   Reply With Quote
Old 03-20-2012, 10:37 AM   #100
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by EO2K View Post
Fuelified njektificators has been mailificated!

Godspeed you Hustler!
Its been a while since I malificated.
hustler is offline   Reply With Quote
