Old 04-12-2012, 07:16 AM   #181
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by hustler View Post
I could not get TPSdot working on free rev. Any thoughts? This might be a scenario where there are two schools of thought that get the job done...I hope because I don't care to chase this down anymore.

How does my log look? Can it get better? My turbo car is not like this at all. I set it and forget it and the car drives great.
This is MSII isn't it? you can blend MapDot and TPSDot. might help you get the best of both worlds.

Or just tune EAE and forget about MapDot/TPSDot.
richyvrlimited is offline   Reply With Quote
Old 04-12-2012, 08:53 AM   #182
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by richyvrlimited View Post
This is MSII isn't it? you can blend MapDot and TPSDot. might help you get the best of both worlds.

Or just tune EAE and forget about MapDot/TPSDot.

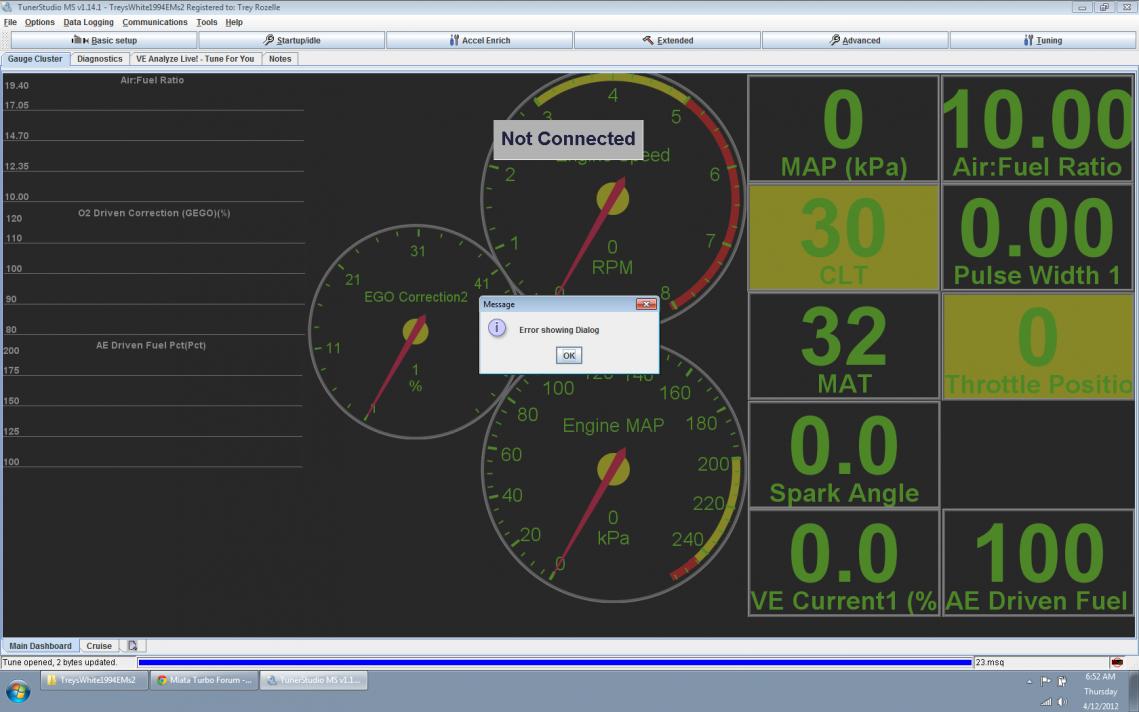

I'm running both MAP and TPSdot. When I go to EAE, I get this:
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-eae.jpg
hustler is offline   Reply With Quote
Old 04-12-2012, 01:32 PM   #183
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

EAE is disabled on the Enhanced ECU to make room for more features. I have yet to find a Miata where TPSdot doesn't work well.
Reverant is offline   Reply With Quote
Old 04-12-2012, 08:42 PM   #184
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
EAE is disabled on the Enhanced ECU to make room for more features. I have yet to find a Miata where TPSdot doesn't work well.
Thanks. I work on it again when I have the will to jack with cars again. I'm trying to pace myself for the VVT swap next month.
hustler is offline   Reply With Quote
Old 04-13-2012, 04:18 PM   #185
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

99 T-body and IAC are working for the first time in years). TPS is acting strange though after calibration. If there is something wrong with this TPS, I'm going to cut a bitch. It randomly oscillates between 0-3% without touching it.

Any tips before I start reading on closed-loop idle control for the AC cycling on and off?
hustler is offline   Reply With Quote
Old 04-13-2012, 04:39 PM   #186
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

0-3% is too much. On my car it oscillates between 0.-3 to 0.2 or so. I've actually never seen it play so much on any of the cars I've tuned.

Any issues with the AC?
Reverant is offline   Reply With Quote
Old 04-13-2012, 05:05 PM   #187
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
0-3% is too much. On my car it oscillates between 0.-3 to 0.2 or so. I've actually never seen it play so much on any of the cars I've tuned.

Any issues with the AC?
Y ah, the car dies when the AC cycles. I need to read more.
hustler is offline   Reply With Quote
Old 04-13-2012, 07:10 PM   #188
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Idle advanced helped a little, but now I'm in a mood where I need to go to the gun range.
hustler is offline   Reply With Quote
Old 04-13-2012, 07:15 PM   #189
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Does your IAC actually work? If so, there is a table which you can manipulate to add more duty cycle to the IAC valve when you switch the AC on.
Reverant is offline   Reply With Quote
Old 04-13-2012, 07:40 PM   #190
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
Does your IAC actually work? If so, there is a table which you can manipulate to add more duty cycle to the IAC valve when you switch the AC on.
Well, it hums and seems to work. I've been adjusting the idle-advance table/curve and it's better but still not great. I think it's livable now so I can tolerate it.

Can some of you guys get stock-like AC engagement and cycling? Part of the problem is that I don't know how good it can get.
Attached Files
File Type: msq 32.msq (84.6 KB, 76 views)
hustler is offline   Reply With Quote
Old 04-13-2012, 10:20 PM   #191
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

i have stock like idle with a/c.

this is an old log. it's a little better now.

Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-ms3_ac_idle_pre11.png
y8s is offline   Reply With Quote
Old 04-13-2012, 11:21 PM   #192
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm pretty jelly, mine chugs and dies. The biggest problem I'm enduring is that one adjustment in the idle settings makes no change in the idle of the car. No matter what I set the PID delay to, no even with 20* of spark advance, no matter how low the PID interval, or how high the PID controller gain, the idle drops to ~250rpm, chugs, and sometimes dies as the AC cycles. I'll figure it out eventually, but there seems to not be much discussion on this so I'm going to have to figure it out myself.

I just gave up on the AC idle sittuation and had to go back inside because I was really losing my temper. I just went back to what Demitris sent me and I'll start from scratch tomorrow., again.
hustler is offline   Reply With Quote
Old 04-14-2012, 04:24 AM   #193
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by hustler View Post
I'm pretty jelly, mine chugs and dies. The biggest problem I'm enduring is that one adjustment in the idle settings makes no change in the idle of the car. No matter what I set the PID delay to, no even with 20* of spark advance, no matter how low the PID interval, or how high the PID controller gain, the idle drops to ~250rpm, chugs, and sometimes dies as the AC cycles. I'll figure it out eventually, but there seems to not be much discussion on this so I'm going to have to figure it out myself.

I just gave up on the AC idle sittuation and had to go back inside because I was really losing my temper. I just went back to what Demitris sent me and I'll start from scratch tomorrow., again.
Send me your current map to have a look at.
Reverant is offline   Reply With Quote
Old 04-14-2012, 05:39 PM   #194
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

No matter what I change, the idle is still ---- when the AC engages.
hustler is offline   Reply With Quote
Old 04-14-2012, 06:25 PM   #195
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

This ---- about to come the ---- out of my god damned car. I'm pretty much over wasting hour after hour after hour trying to make the god damn car idle with the ------- AC.
hustler is offline   Reply With Quote
Old 04-14-2012, 06:40 PM   #196
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

What happens to the afr? How about electric loads?
triple88a is offline   Reply With Quote
Old 04-14-2012, 08:06 PM   #197
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Give me a few days to get back, I'm away until Monday (orthodox Easter).
Reverant is offline   Reply With Quote
Old 04-14-2012, 08:14 PM   #198
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by triple88a View Post
What happens to the afr? How about electric loads?



Quote:
Originally Posted by Reverant View Post
Give me a few days to get back, I'm away until Monday (orthodox Easter).
I'll live, I'm just venturing into unfamiliar territorry and irritated because I'm enduring one of the worst allergy "attacks" of my life and throwing a temper tantrum. I just pulled abscessed skin from my eyeball, lol.

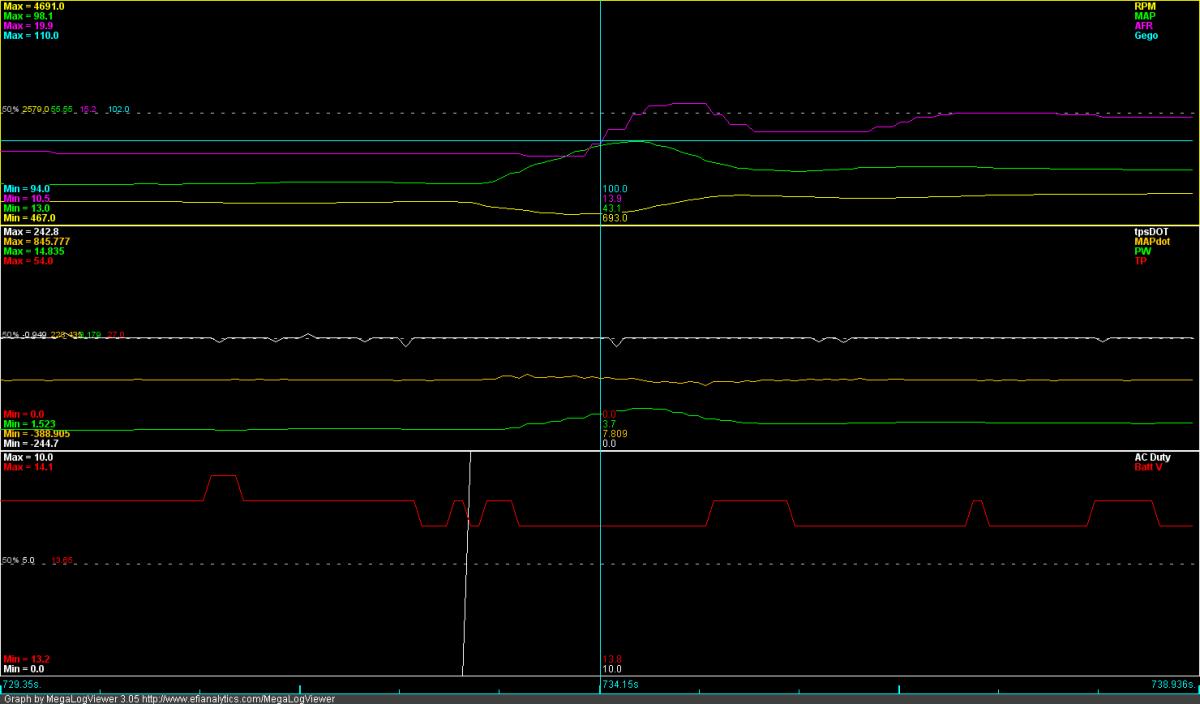

What does the "AC Idle up" duty table do? First of all, it says its in C* but the cursor/following green dot makes me think its in F*. I adjusted that table, trying to figure out what it does, and nothing seems to change. I know there is a correct formulaa here, I'm just don't sure what it is.
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-acfail.jpg
hustler is offline   Reply With Quote
Old 04-15-2012, 04:54 AM   #199
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

The AC idle up duty table is what the ECU uses to open the idle valve more when you switch on the AC. Try increasing the values there, say from 10 (from what I can see in the log) to 13 or 14.
Reverant is offline   Reply With Quote
Old 04-15-2012, 11:43 AM   #200
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

its getting leaner when you switch it on too...i realize the rpms dropped, but maybe add more fuel in higher MAP ac/idle areas
Braineack is offline   Reply With Quote
