Old 04-08-2015, 11:44 PM   #1061
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

Quote:
Originally Posted by aidandj View Post
I have literally never touched a (running) 1.8 so spoon feed me.
one day you'll touch one, and your ***** will drop, and you will be a man

18psi is offline   Reply With Quote
Old 04-09-2015, 12:17 AM   #1062
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

Well I tore the head off Ed's built msm motor, closest I got
aidandj is offline   Reply With Quote
Old 04-09-2015, 07:22 AM   #1063
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,002
Total Cats: 12
Default

Quote:
Originally Posted by 18psi View Post
for all you guys that are threading in like that, are you not concerned about vibrations causing leaks in the future?
I have been running a similar 3/8" blockoff plate threaded for 1/4" NPT fitting and threaded tee. In the 5 years that I have been running the 1.8 like this in my 91 I have never had a leak. My hoses that connect to the tee are well supported and there really is not a lott of mass to vibrate and rotate the fittings to make them loosen up and leak.

I was worried about leaks at first, but so far it has been nice and dry.
Rallas is offline   Reply With Quote
Old 04-09-2015, 07:44 AM   #1064
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 693
Total Cats: 47
Default

Quote:
Originally Posted by aidandj View Post
Is there really no water port on the 1.8? How does the oil cooler/warmer get water and the throttle body.

I have literally never touched a (running) 1.8 so spoon feed me.
Early 1.8's (97 & earlier I think) had the handy water and oil ports on the block, just like the 1.6's. After that, Mazda - in their infinite wisdom - closed them off. The water port could be drilled and tapped, but I'm not that adventurous - I've got a 97 block in my car, so I have the luxury of the water port to feed the turbo.
rwyatt365 is offline   Reply With Quote
Old 04-09-2015, 10:45 AM   #1065
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,885
Total Cats: 566
Default

Quote:
Originally Posted by rwyatt365 View Post
Early 1.8's (97 & earlier I think) had the handy water and oil ports on the block, just like the 1.6's. After that, Mazda - in their infinite wisdom - closed them off. The water port could be drilled and tapped, but I'm not that adventurous - I've got a 97 block in my car, so I have the luxury of the water port to feed the turbo.
Pretty sure the change happened mid-95. The block in my red car has them.
hornetball is offline   Reply With Quote
Old 04-09-2015, 03:18 PM   #1066
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,243
Total Cats: 861
Default

Yeah, the changeover for the oil/water ports on the 1.8 block was mid 95. I tried to find a 94/95 block to use as a base for my build but it didn't happen.
EO2K is offline   Reply With Quote
Old 04-09-2015, 03:35 PM   #1067
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I fall in the late year 95 block shafted category. 95 block and I searched hard thinking I missed it and then discovered it was really early 95 blocks that only got them.

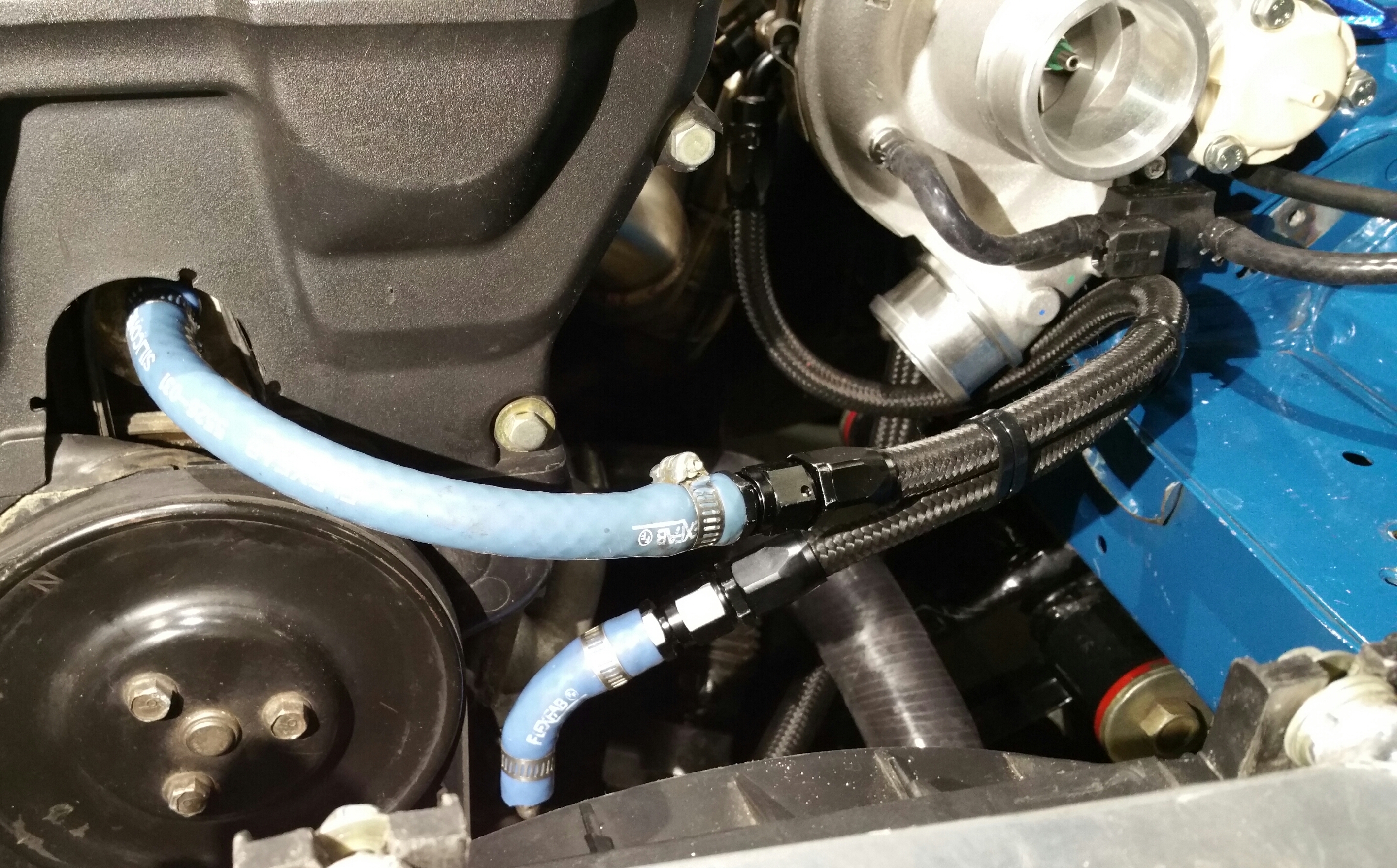

G you can make the coolant off the front look really clean like I did by running a hose to a push lock 3/8 barb off the front like mine is.

Jeffbucc is offline   Reply With Quote
Old 04-09-2015, 03:38 PM   #1068
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Also when I ran the Mocal sandwich plate I deleted the front T which runs the coolant line to the OEM sandwich plate to the rear of the head. Really helps clean it up.
Jeffbucc is offline   Reply With Quote
Old 04-09-2015, 04:14 PM   #1069
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,243
Total Cats: 861
Default

Quote:
Originally Posted by codrus View Post
After losing one of those stupid little hoses at Laguna a few years ago (which precipitated my original engine build) I left them off.
You should look into a low pressure sender for the cooling system, and a warning light.

Quote:
Originally Posted by codrus View Post
I like feeding the turbo through between the thermostat neck area and the mixing manifold because that seems like the way to get the most pressure/flow through the turbo, going pretty much straight from the outlet of the water pump to the inlet.
This is my thought process as well. I actually have a fitting so I can source coolant from the back of the head, but that's literally the hottest place I can think of to get coolant from. The front water neck location just seems better all around.
Quote:
Originally Posted by Jeffbucc View Post
G you can make the coolant off the front look really clean like I did by running a hose to a push lock 3/8 barb off the front like mine is.
I saw your setup and I'm thinking thats where I'll end up, except I probably won't have the barb fittings in the middle. I need to see if I can fit my M14x1.5 adapter plus an -6AN 90 in there with the wastegate mounting bracket. For teh return I'll probably rip the factory nipple out of the mixing manifold and tap it for 1/8"NPT and do the same at the water neck, then run -6 to the turbo. Where your setup goes from the blue LOL hose to AN scares me a bit, it seems like its a lot of unsupported weight hanging out there in space. If it works it works though, no need to latch on to my paranoia
EO2K is offline   Reply With Quote
Old 04-09-2015, 05:02 PM   #1070
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,383
Total Cats: 182
Default

Quote:
Originally Posted by EO2K View Post
You should look into a low pressure sender for the cooling system, and a warning light.

...
Yeap, I'm doing that on my build. If anyone needs a link to a good sensor, I can post one I found for around 25 bucks that has 3 wires (GND, +5VREF, Out) so it's easy to hook up and it has a linear output for Volts to PSI.
patsmx5 is offline   Reply With Quote
Old 04-09-2015, 05:46 PM   #1071
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,243
Total Cats: 861
Default

That sounds complicated.

A 2 pole 7psi switch and giant blinking warning light and/or buzzer somewhere on the dash is more than enough. Unless you are logging coolant pressure, but I'm not sure thats going to be amazingly useful for much.
EO2K is offline   Reply With Quote
Old 04-09-2015, 05:48 PM   #1072
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,383
Total Cats: 182
Default

Yes I'm logging coolant pressure, thus why I have a pressure sensor.
patsmx5 is offline   Reply With Quote
Old 04-09-2015, 06:35 PM   #1073
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,885
Total Cats: 566
Default

I really hate to see German engineering going into a fine Japanese car.

If you want reliability . . . KISS.
hornetball is offline   Reply With Quote
Old 04-09-2015, 06:38 PM   #1074
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,383
Total Cats: 182
Default

Quote:
Originally Posted by hornetball View Post
I really hate to see German engineering going into a fine Japanese car.

If you want reliability . . . KISS.
Haha, I'm hoping my coolant pressure sensor doesn't kill the reliability, that would suck. So far it hasn't hurt anything.

/sarcasm.
patsmx5 is offline   Reply With Quote
Old 04-24-2015, 12:21 AM   #1075
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,243
Total Cats: 861
Default

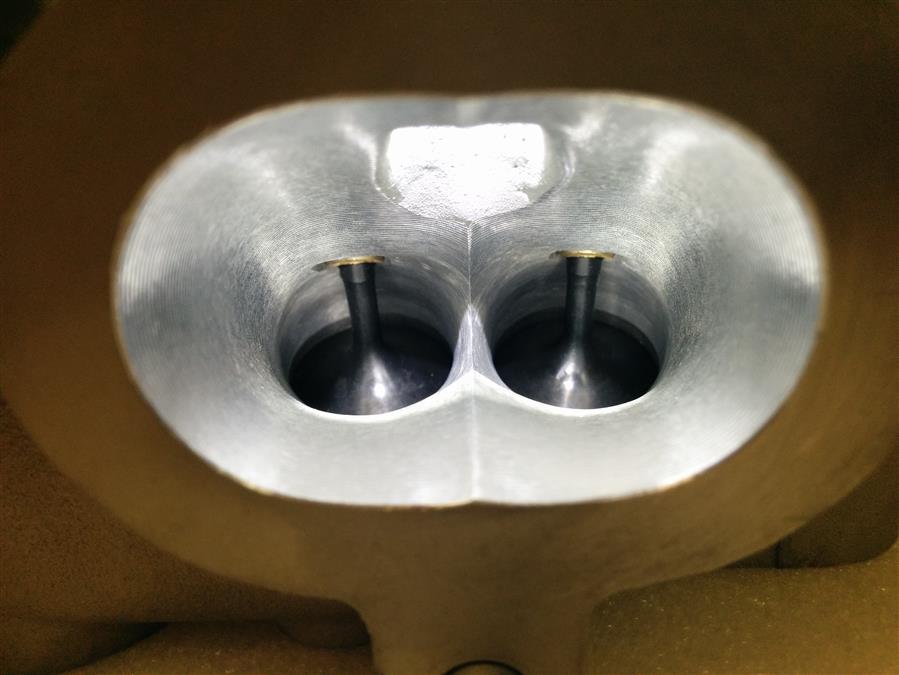

Look at my ports


My ports are amazing!

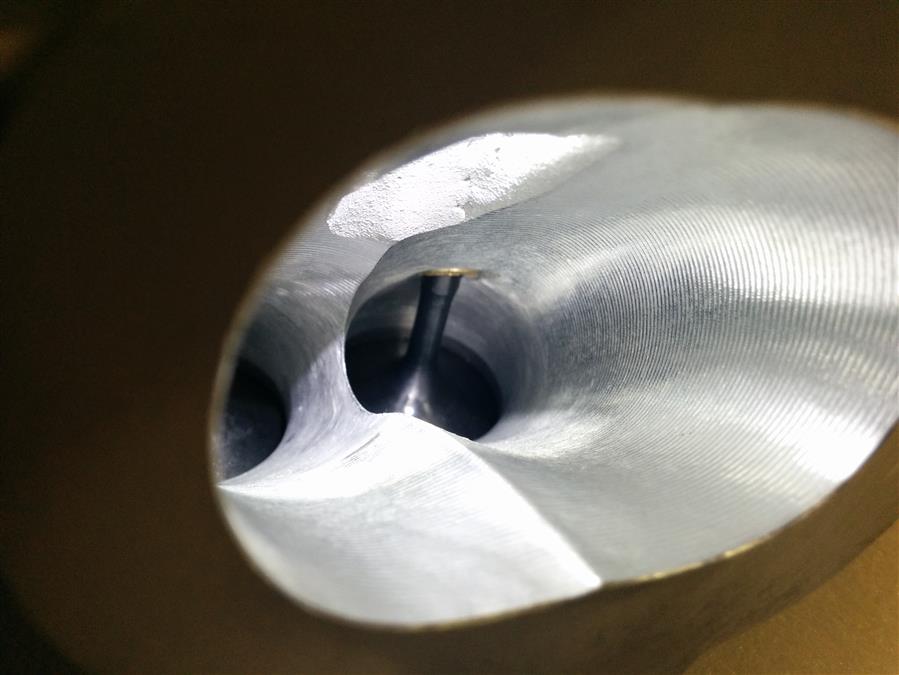

Also visible are the back cuts on the ss intake valves and the correct length valve guides. No giant bronze valve guides hanging out in my ports blocking the flows. The divider between the cylinders has a pretty solid knife edge to it as well.

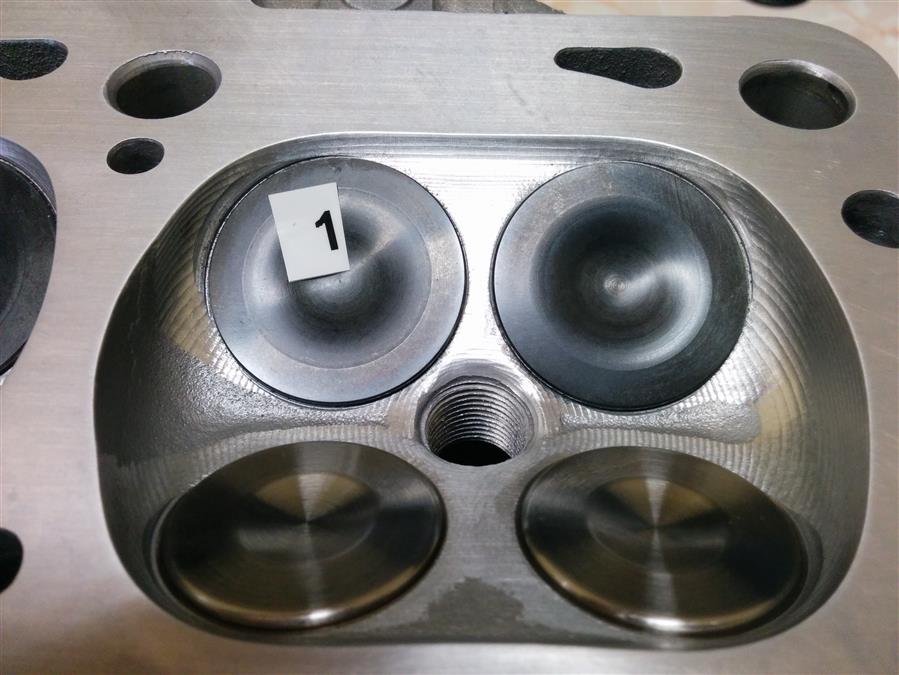

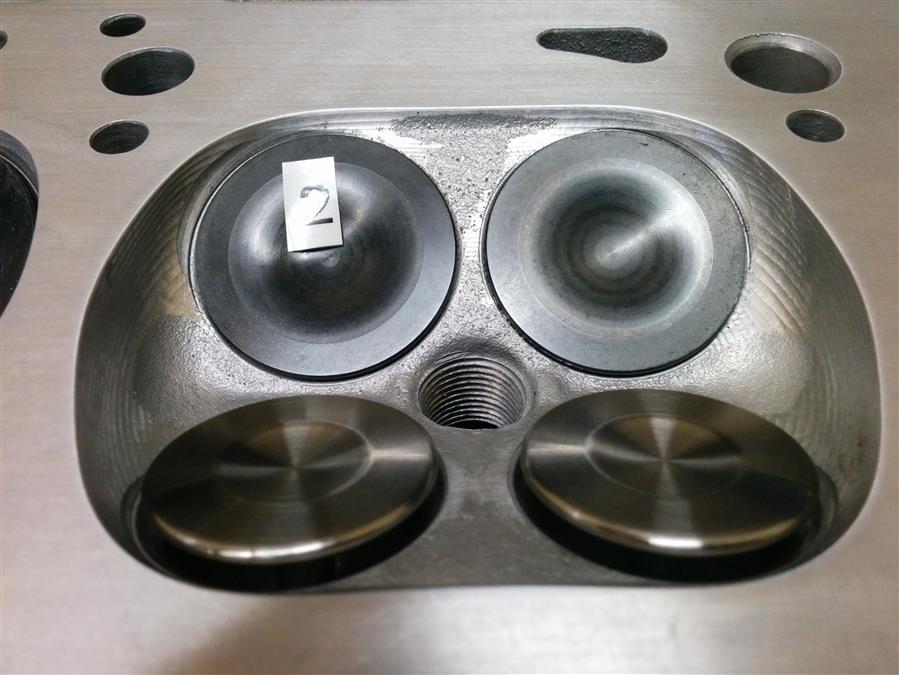

Here you can see when the chamber is deshrouded around the intake valves. Contours are perfect, as expected. Very tasty!

Having working on a project like this some years ago it confirmed a lot of things I had come to suspect about OEM production processes. For example, things like core shift in the castings. I'm not completely surprising to see stuff like this:



At a cursory glance one would think "Well, that's certainly fucked up. They didn't finish machining the combustion chamber!" The point is not to hog out the chambers, the point is to deshroud the valves, take out the high spots and remove only enough material to make all the chambers consistent with each other. If anything, this shows exactly how inconsistent the factory castings are to begin with! In this shot you can also see how much meat there is in the edge of the silver colored inconel exhaust valves. Good thing too because they are probably going to see some abuse.

The deck is also seriously perfect. Everything in the chambers are as consistent as they need to be and the edges on the quench pads are all perfectly uniform. No high spots, no ridges, no nothing. Glorious.

Unexpected bonus:

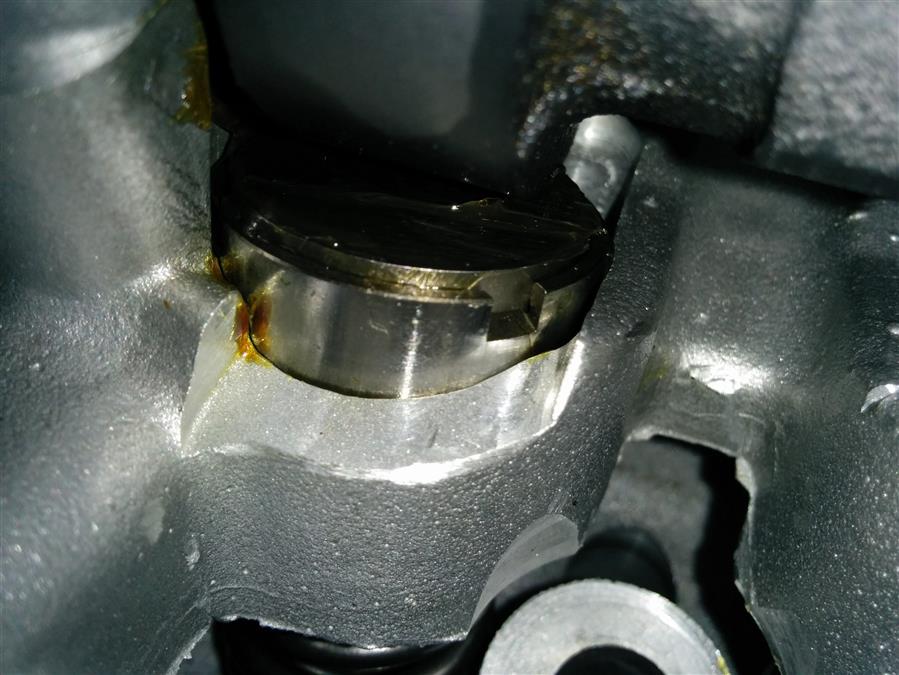

Lifter bores and head are very clearanced for higher lift cams. That's probably a temptation I don't need

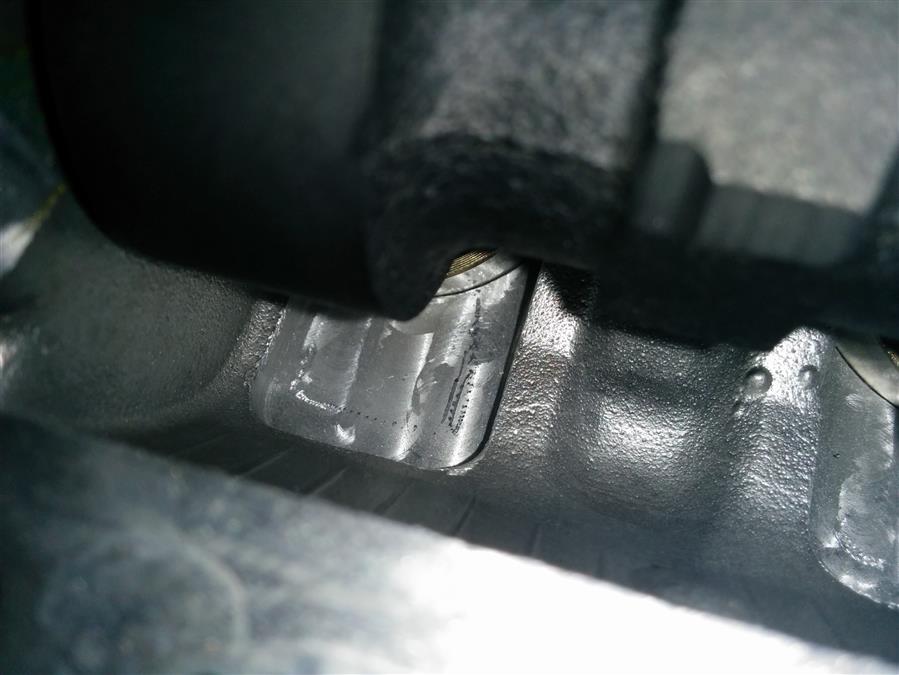

A small note: When the head showed up weeks ago I unpacked it to give it a once over and noticed some damaged on the head gasket surface that made the head pretty much unusable. I documented it, contacted the vendor and got an immediate response. We worked through some options and it was decided I would send it back to have it worked over and corrected. I was sent a prepaid return shipping label and got the head back in the mail the next day. The problem was corrected in a timely and professional manner and then the head was shipped back, once again, free of charge. (Are you paying attention Kraftwerks?!) THAT is how you do customer service. Bravo once again to the boys and girls at 949 for going out of their way and making it right.

I'm seriously jonesing to get this thing bolted to my shortblock
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-fyl8ld6.jpg   Nothing to see here, just project Sisyphus, move along-yupslwo.jpg   Nothing to see here, just project Sisyphus, move along-sc7ktis.jpg   Nothing to see here, just project Sisyphus, move along-3x6b1zo.jpg   Nothing to see here, just project Sisyphus, move along-2fvfb5f.jpg

Nothing to see here, just project Sisyphus, move along-wvvlyrt.jpg
EO2K is offline   Reply With Quote
Old 04-24-2015, 12:29 AM   #1076
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 662
Total Cats: 111
Default

I suppose we should actually deal with your oil pan now
gesso is offline   Reply With Quote
Old 04-24-2015, 12:37 AM   #1077
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,243
Total Cats: 861
Default

I'm honestly in no giant rush and I know you have stuff planned. I've got a bunch of projects that need to get done before I can even dream of swapping the motor. If I was worried about it I would have gotten off my *** and mailed you the weld bung already
EO2K is offline   Reply With Quote
Old 04-24-2015, 12:43 AM   #1078
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

hngggggggggggggg dat head
18psi is offline   Reply With Quote
Old 04-24-2015, 12:51 AM   #1079
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

Gooood lord that looks nice.
FAB is online now   Reply With Quote
Old 04-24-2015, 02:22 AM   #1080
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 589
Total Cats: 28
Default

This makes me want to post pics of my head tooooooo!

Love how this is all coming together. Do you have an ETA for it? By MMRLS perhaps?
SchmoozerJoe is offline   Reply With Quote
