Old 04-26-2015, 11:28 PM   #1121
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Quote:
Originally Posted by EO2K View Post
Yeah, the spring is loose in there, its the silver band with the kink in it at about 10 o'clock.
The photo doesn't seem to be working.

--Ian
codrus is offline   Reply With Quote
Old 04-26-2015, 11:52 PM   #1122
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 683
Total Cats: 130
Default

Your past few image links are bad and you should feel bad /zoidberg/.

Also I can't tell how far off center it's drilled (see above comment) but we could chuck it up in the mill and make the hole/thread centered?
gesso is online now   Reply With Quote
Old 04-26-2015, 11:55 PM   #1123
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Quote:
Originally Posted by gesso View Post
Your past few image links are bad and you should feel bad /zoidberg/.
Its because I hosted them on MT rather than imgur like I usually do.

Did the valve cover image work? Trying to figure out how far to go back.

Quote:
Originally Posted by gesso View Post
Also I can't tell how far off center it's drilled (see above comment) but we could chuck it up in the mill and make the hole/thread centered?
Possibruu but it should be OK with the 10.5mm drill. I can bring it by and we can give it a shot.
EO2K is offline   Reply With Quote
Old 04-26-2015, 11:58 PM   #1124
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 683
Total Cats: 130
Default

Quote:
Originally Posted by EO2K View Post
Did the valve cover image work? Trying to figure out how far to go back.
I only see two broken image links (the most recent two).
gesso is online now   Reply With Quote
Old 04-27-2015, 12:03 AM   #1125
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Rehosted on imgur. Better?
EO2K is offline   Reply With Quote
Old 04-27-2015, 12:25 AM   #1126
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 591
Total Cats: 28
Default

Absolutely.
SchmoozerJoe is offline   Reply With Quote
Old 04-27-2015, 12:53 AM   #1127
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Yeah, photos work now.

You could also drill to 7/16 and thread it for 1/4 NPT, adapters from that to -6 are common.

--Ian
codrus is offline   Reply With Quote
Old 04-27-2015, 11:50 AM   #1128
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

I thought about that, but I have a pretty vicious hate for NPT and I don't own a 1/4"NPT tap. Either way I'm buying a drill and a tap so I figured I'd go for metric and expand my meager collection. The fittings are going to come from Summit either way so I'm also trying to stick to just a couple brands of fittings. So far its all Bat-Inc and Fragola, and maybe 1 fitting from Russell.
EO2K is offline   Reply With Quote
Old 04-27-2015, 11:57 AM   #1129
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

In other news, the great big bastard coolant fitting on the back of the head, the one that feeds water to the oil preheater/cooler I'm eliminating, is way larger than 3/8" NPT. I don't want to create a "cursed water plug" esque situation back there but I do want to block it off. Anyone have a clever idea?

I'd prefer to avoid things like Curly's "bolt and hose clamp" plug
EO2K is offline   Reply With Quote
Old 04-27-2015, 12:50 PM   #1130
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Quote:
Originally Posted by EO2K View Post
I thought about that, but I have a pretty vicious hate for NPT and I don't own a 1/4"NPT tap. Either way I'm buying a drill and a tap so I figured I'd go for metric and expand my meager collection. The fittings are going to come from Summit either way so I'm also trying to stick to just a couple brands of fittings. So far its all Bat-Inc and Fragola, and maybe 1 fitting from Russell.
The metric threads are straight/parallel, right? If so you're going to need some external way of sealing them -- a rubber washer?

--Ian
codrus is offline   Reply With Quote
Old 04-27-2015, 01:00 PM   #1131
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Yes sir, requires a seal in the form of an aluminum crush washer


http://www.summitracing.com/parts/fra-491953-bl
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-fra-491953-bl_ml.jpg
EO2K is offline   Reply With Quote
Old 04-27-2015, 01:14 PM   #1132
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

Quote:
Originally Posted by EO2K View Post
In other news, the great big bastard coolant fitting on the back of the head, the one that feeds water to the oil preheater/cooler I'm eliminating, is way larger than 3/8" NPT. I don't want to create a "cursed water plug" esque situation back there but I do want to block it off. Anyone have a clever idea?

I'd prefer to avoid things like Curly's "bolt and hose clamp" plug
I got a set screw that was just a bit bigger than the outlet ID, ran a tap into the outlet and JB welded the set screw in. Has held up to a year of tracking with no issues.
hornetball is online now   Reply With Quote
Old 04-28-2015, 09:25 AM   #1133
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 722
Total Cats: 47
Default

Quote:
Originally Posted by EO2K View Post
In other news, the great big bastard coolant fitting on the back of the head, the one that feeds water to the oil preheater/cooler I'm eliminating, is way larger than 3/8" NPT. I don't want to create a "cursed water plug" esque situation back there but I do want to block it off. Anyone have a clever idea?

I'd prefer to avoid things like Curly's "bolt and hose clamp" plug
I cut it off flush to the head, tapped it with a 3/8 NPT and plugged it with a brass plug. The ID of the fitting is almost perfect for the 3/8 NPT tap. My engine hasn't been run that much (still finishing the car) but so far no leaks.
rwyatt365 is offline   Reply With Quote
Old 04-28-2015, 11:09 AM   #1134
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Quote:
Originally Posted by rwyatt365 View Post
I cut it off flush to the head, tapped it with a 3/8 NPT and plugged it with a brass plug. The ID of the fitting is almost perfect for the 3/8 NPT tap. My engine hasn't been run that much (still finishing the car) but so far no leaks.
Interesting... you literally just tapped it into the remnants of the steel fitting?
EO2K is offline   Reply With Quote
Old 04-28-2015, 11:57 AM   #1135
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 722
Total Cats: 47
Default

Quote:
Originally Posted by EO2K View Post
Interesting... you literally just tapped it into the remnants of the steel fitting?
Yep - I did that, exactly.
rwyatt365 is offline   Reply With Quote
Old 04-28-2015, 03:42 PM   #1136
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Humm... are there pics somewhere I'm not seeing? That bastard must be pretty thick.
EO2K is offline   Reply With Quote
Old 04-29-2015, 10:52 AM   #1137
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 722
Total Cats: 47
Default

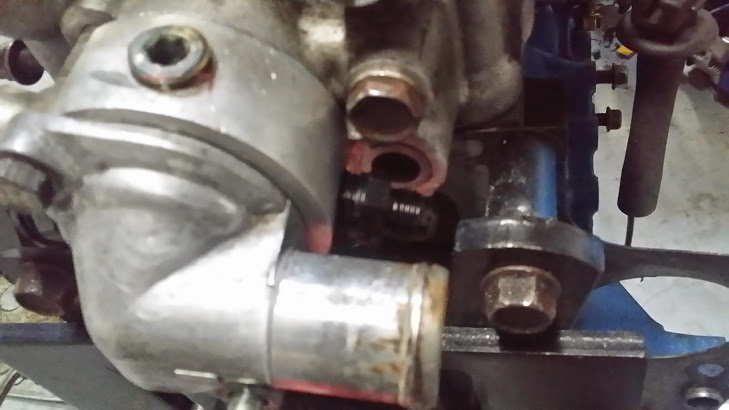

Hard to see in ths fuzzy pic, but it's right behind the black -AN fitting sticking out from the reroute spacer (behind the water outlet). IIRC, the outlet is pretty thick.

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-20141031_174944.jpg
rwyatt365 is offline   Reply With Quote
Old 04-29-2015, 11:32 AM   #1138
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Daymn, no kidding. That steel is much thicker than I thought it would be. I browsed through your build thread and didn't it so I do appreciate the pic

I'm still on the fence though. I know removing the whole thing and tapping the aluminum would be "better" in the long run, but I'm lazy and I already have the 3/8NPT tap


On a completely semi unrelated tangent, I drove the Miata to work this morning for the first time in probably 2 months. Lolz were had and I got revved on by an SRT4 at a light. I hope beating a stock Miata off the line makes him feel better about his day job
EO2K is offline   Reply With Quote
Old 04-29-2015, 01:00 PM   #1139
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 722
Total Cats: 47
Default

Glad the pic helped (I probably didn't post it 'cause it was such a lousy picture).

I thought about trying to remove the whole thing, but it wouldn't budge when I tried with a channel-lock. So I just cut the b**ch off and tapped it.
rwyatt365 is offline   Reply With Quote
Old 04-29-2015, 01:04 PM   #1140
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

Nothing wrong with putting pipe threads into steel. In fact, most pipes used in industry are steel and pipe threads were specifically designed for that material.
hornetball is online now   Reply With Quote
