Old 04-24-2015, 09:05 AM   #1081
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

Re: the knife edges . . . .

Having a couple of AE degrees, I know that in subsonic flow, sharp leading edges are not desirable from a drag standpoint. Once you go supersonic, they are, but that doesn't apply to our engines. Look at a P-51 compared to an F-104 for instance.

So, I was just curious why we see knife edges on ported heads. I assume they've been shown to work better on a flow bench. Or maybe it's just a normal artifact of the porting process and no one has tried blunting the knife edge just a bit to see what it does. Or . . . ?? I dunno'.

Inquiring minds . . . .
hornetball is online now   Reply With Quote
Old 04-24-2015, 11:27 AM   #1082
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Quote:
Originally Posted by 18psi View Post
hngggggggggggggg dat head
ALLTHEFLOWS! I'm actually getting more and more disappointed that all I have access to is CA91

Now you people might understand why I keep pushing all the boost control and dual port EWG actuator threads. This ***** going to be nuts.

Quote:
Originally Posted by FAB View Post
Gooood lord that looks nice.
I really ties the room together, man

Quote:
Originally Posted by SchmoozerJoe View Post
This makes me want to post pics of my head tooooooo!
Dooo eeet! ( In your build thread )

Quote:
Originally Posted by SchmoozerJoe View Post
Love how this is all coming together. Do you have an ETA for it? By MMRLS perhaps?
God damn well better! That ***** in October. OCTOBER! If my car is not running by October there is going to be a serious shitstorm up in here.

TBH I can't even walk right yet, I need to get that sorted before I can sign up for track days or seriously wrench on a car. I ahve some other more domestic automotive chores I need to handle as well that need to take priority. The wifes Escape needs new front pads, rotors and complete brake system flush and my DD Subaru needs a new clutch because wife can't handle the engagement on the Stage 2 thats in the car now. That's made things a bit hectic seeing as I can't drive a stick at the moment.

Quote:
Originally Posted by hornetball View Post
Re: the knife edges . . . .

Having a couple of AE degrees, I know that in subsonic flow, sharp leading edges are not desirable from a drag standpoint. Once you go supersonic, they are, but that doesn't apply to our engines. Look at a P-51 compared to an F-104 for instance.

So, I was just curious why we see knife edges on ported heads. I assume they've been shown to work better on a flow bench. Or maybe it's just a normal artifact of the porting process and no one has tried blunting the knife edge just a bit to see what it does. Or . . . ?? I dunno'.

Inquiring minds . . . .
That's exactly why I made that comment and posted that pic, to start some dialog. We've all discussed this in the past and while I'm no ME/AE I have the same questions as well. Of course I trust that its done right and done that way for a reason, but dammed if I know why
EO2K is offline   Reply With Quote
Old 04-24-2015, 11:36 AM   #1083
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,436
Default

Quote:
Originally Posted by EO2K View Post
ALLTHEFLOWS! I'm actually getting more and more disappointed that all I have access to is CA91
Why no E85?
aidandj is offline   Reply With Quote
Old 04-24-2015, 11:36 AM   #1084
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,234
Total Cats: 737
Default

It's for weight reduction.
concealer404 is online now   Reply With Quote
Old 04-24-2015, 11:50 AM   #1085
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Quote:
Originally Posted by aidandj View Post
Why no E85?
Because the closest station with E85 is 56 miles away. Sacramento and San Jose are lousy with E85, even ******* Modesto has E85, but nothing in Monterey/Santa Cruz/San Benito counties

When you see me post up that I bought a set of ID1000's you'll know I have E85 in the area.

Quote:
Originally Posted by concealer404 View Post
It's for weight reduction.
I need weight reduction more than the car needs weight reduction
EO2K is offline   Reply With Quote
Old 04-24-2015, 01:50 PM   #1086
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,590
Total Cats: 252
Default

Quote:
Originally Posted by hornetball View Post
Re: the knife edges . . . .

Having a couple of AE degrees, I know that in subsonic flow, sharp leading edges are not desirable from a drag standpoint. Once you go supersonic, they are, but that doesn't apply to our engines. Look at a P-51 compared to an F-104 for instance.

So, I was just curious why we see knife edges on ported heads. I assume they've been shown to work better on a flow bench. Or maybe it's just a normal artifact of the porting process and no one has tried blunting the knife edge just a bit to see what it does. Or . . . ?? I dunno'.

Inquiring minds . . . .
Has to do with Spec Miata rule that is OK to plunge cut to remove casting core mismatch, but not OK to P&P. Google for "miata compliant head". I'd attach a link, but when I try, phone crashes.
DNMakinson is offline   Reply With Quote
Old 04-24-2015, 01:54 PM   #1087
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Quote:
Originally Posted by DNMakinson View Post
Has to do with Spec Miata rule that is OK to plunge cut to remove casting core mismatch, but not OK to P&P. Google for "compliant head" or "Molested head". I'd attach a link, but when I try, phone crashes.
This had has absolutely nothing to do with Spec Miata. Did I miss something from Ricks comment?
EO2K is offline   Reply With Quote
Old 04-24-2015, 04:20 PM   #1088
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,590
Total Cats: 252
Default

Quote:
Originally Posted by EO2K View Post
This had has absolutely nothing to do with Spec Miata. Did I miss something from Ricks comment?
Sorry, I misunderstood the subject.
DNMakinson is offline   Reply With Quote
Old 04-24-2015, 04:47 PM   #1089
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

No worries! I was really confused there for a bit.
EO2K is offline   Reply With Quote
Old 04-25-2015, 06:09 PM   #1090
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Anyone know of a good reason why I should NOT use the OEM head bolt washers with the ARP head studs?

Also, lol @ 80ft/lbs torque spec
EO2K is offline   Reply With Quote
Old 04-25-2015, 06:12 PM   #1091
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,436
Default

Do they list 80 on the installation manual? That needs to be fixed. I wonder how many people have unknowingly cracked their heads.
aidandj is offline   Reply With Quote
Old 04-25-2015, 06:14 PM   #1092
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,752
Total Cats: 2,491
Default

Did your arp's not come with their own washers?
And anyone that has enough brains to go on MT knows better than 80lbs
18psi is offline   Reply With Quote
Old 04-25-2015, 06:21 PM   #1093
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

FM has pics of destroyed heads on their site and we have 2-3 threads about ARP torque specs being insane.

Yes, the ARPs come with washers but factory washers are larger in OD than the ARP ones. I figure spreading out the clamping load at the washer cannot be a bad thing.
EO2K is offline   Reply With Quote
Old 04-25-2015, 06:23 PM   #1094
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,752
Total Cats: 2,491
Default

but is it the same strength/quality steel as the arp? (I'm guessing it's weaker, but that's just a guess)
18psi is offline   Reply With Quote
Old 04-25-2015, 06:51 PM   #1095
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

My train wreck of thought is that the factory designed the washer and seat area of the head with that sized washer in mind, to distribute the clamp load over that part of the pad. The ARP washer is much smaller in diameter and thus will put the load in a smaller space. We already know the ARP torque spec is bubkis so why trust the washers?

We've all collectively discussed this in the head stud thread, but I don't know of anyone who actually did it. I was just looking for someone to talk me out of it
EO2K is offline   Reply With Quote
Old 04-25-2015, 06:54 PM   #1096
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,436
Default

Do it. If anyone can break it, it will be you. Then we will know not to do it
aidandj is offline   Reply With Quote
Old 04-25-2015, 06:59 PM   #1097
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,752
Total Cats: 2,491
Default

do it
....for science
18psi is offline   Reply With Quote
Old 04-25-2015, 07:08 PM   #1098
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Thats the spirit!

***** done, torqued to 58ft/lbs like a bauce
EO2K is offline   Reply With Quote
Old 04-25-2015, 10:10 PM   #1099
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

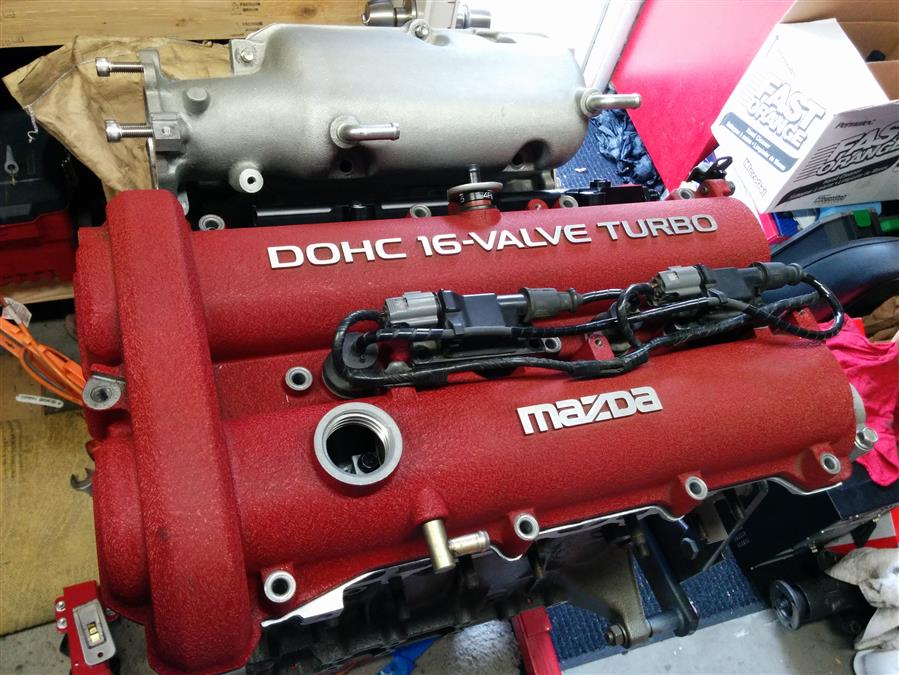

It feels soooooooooo gooooooooood to get that head on the block its just silly. I didn't take many pics because I was "in the zone" working and getting **** done. For the record I liberally wiped down the cylinders with some 30wt dino juice before bolting up the head so hopefully that keeps the rings happy. I also bolted up the intake manifold with the Hondata thermo insulator gasket that I think I bought literally 4 years ago. The nuts on the stupid manifold are pretty much impossible to get to once the engine is in the car, so now was the optimal time to get it done. They were installed with blue loctite. In fact, I went back through and pulled out the bolts for the oil pump and the water pump (one at a time) and reinstalled/retorqued them with a bit of blue loctite. I don't want this bastard coming apart unless I tell it to. I also installed the Denso IK16 plugs that were sitting in my tool box so now I can't drop things into the cylinders. They are gapped at 0.040 IIRC.

I don't often succumb to vanity but every once in a while...



The NB2/MSM COPs are supposed to be good for what, 20psi? I need to order connectors to cleanup and rebuild that harness, its a mess.

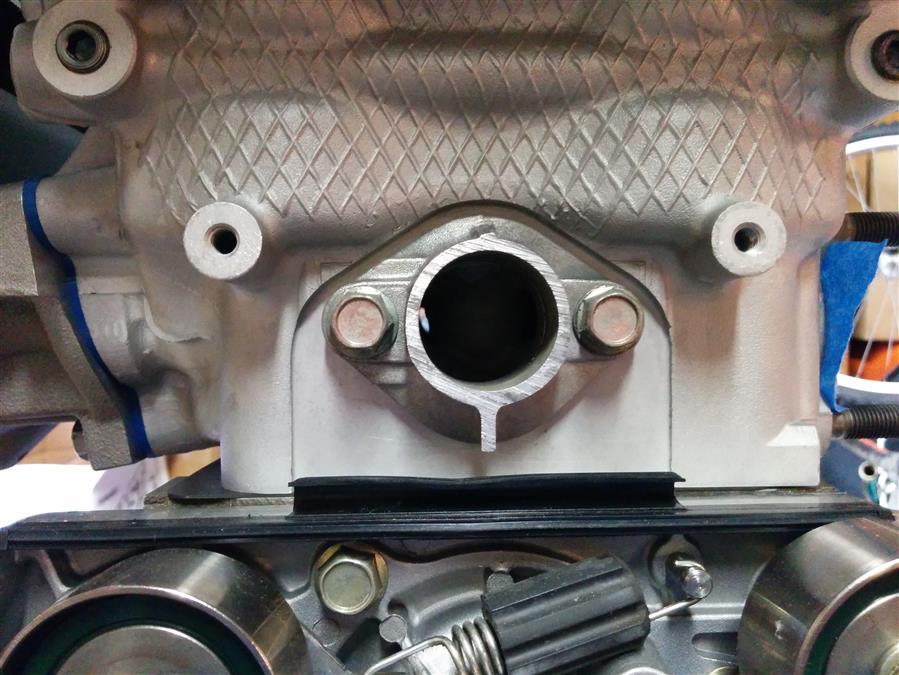

I also started working on the revised neck to feed coolant to the turbo



This will need a blockoff plate fabricated, welded and then drilled/tapped for whatever fitting I end up using. Speaking of fittings, I also wanted to pull the return nipple off the mixing manifold and tap the hole for either M14x1.5 or 1/8"NPT and then adapt it to -6AN. I really like the Fragola M14x1.5 fittings I used on the turbo coolant ports and NPT is just "meh." I like the idea of using a minimal number of different fittings as well.

Anyone ever pulled one of these water nipple fittings out before? I'd like to do it without damaging the mixing manifold.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-phone-pics-002-custom-.jpg   Nothing to see here, just project Sisyphus, move along-phone-pics-003-custom-.jpg
EO2K is offline   Reply With Quote
Old 04-25-2015, 10:47 PM   #1100
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

Quote:
Originally Posted by EO2K View Post
Anyone ever pulled one of these water nipple fittings out before? I'd like to do it without damaging the mixing manifold.
Yes. They come out pretty easily with a pair of pliers. I usually drill/tap for an NPT plug, but what you want to do would be pretty much the same.
hornetball is online now   Reply With Quote
