Old 06-01-2013, 09:38 PM   #61
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

figured out the leak was partially the egr block off plate, and partially cyl 4's injector seal not seating correctly. got that fixed and the new map reverent sent me on, forgot to save the old one for when i switch to the gm iat so i will have to get that from rev again. had it idling fine have a leak around the bung i poorly installed into the exhaust, may go get a new welding mask tomorrow morning and fix it. but did a quick around the block running super rich, felt fairly good.
redturbomiata is offline   Reply With Quote
Old 06-05-2013, 10:02 PM   #62
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

so i put off finding the welding mask till this morning, got it re-welded sorta. never again will i weld laying on my back with no room to work. looks horrible, has a small leak. luckily its getting replaced when the turbo goes on so idgaf.
drove it around and got some tuning done, pissed the neighbors off and made allot of noise. all in a good days work if i do say so myself. driving it tomorrow to do some more tuning and get some more of that wonderful E85.
also planing to add in some more timing a do a virtual dyno run to see if i gained anything just swapping to E85, MS3, and bigger injectors. if i didnt
redturbomiata is offline   Reply With Quote
Old 06-06-2013, 11:40 PM   #63
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

well 1 Launch Control rev blew the temp fix i had on the wideband bung though adding about 18% across the board on the fuel map got it really close, and VE got it the rest of the way. guess the plan is to cut out crappy pipe, go get new pipe and bung and profit.
redturbomiata is offline   Reply With Quote
Old 06-07-2013, 11:30 PM   #64
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

changed plans after a horrible day fixing exhaust, some new shinny stuff on the way and thats all im going to say for now. looking forward to next weekend.
redturbomiata is offline   Reply With Quote
Old 06-12-2013, 12:39 PM   #65
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

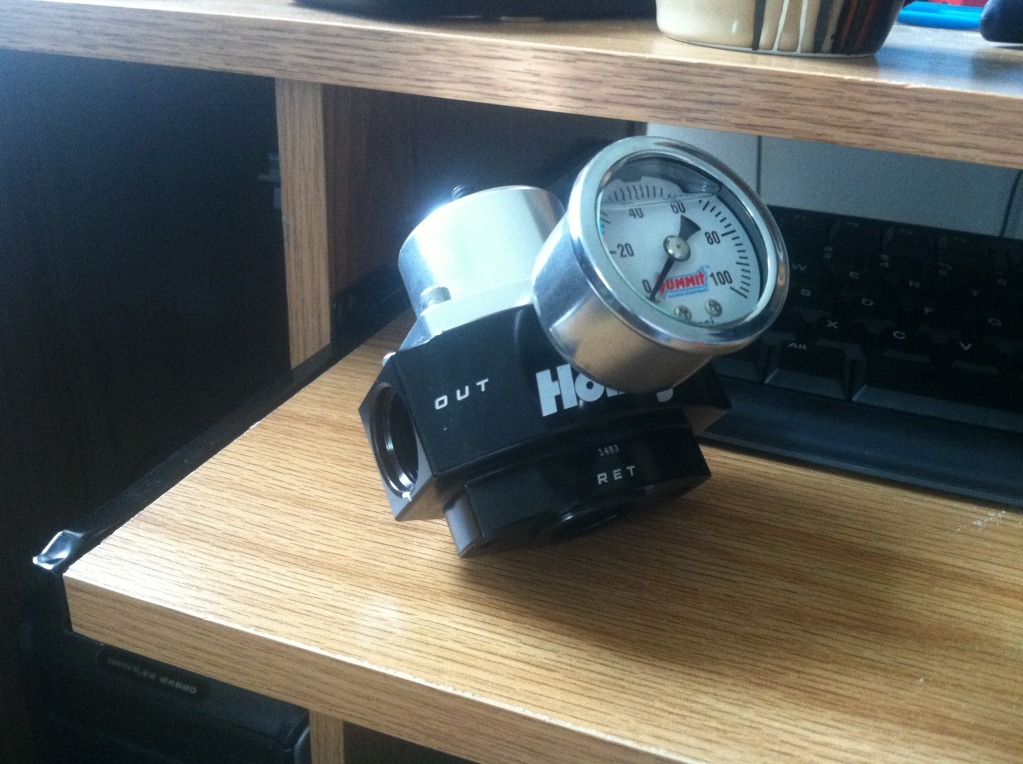

Adjustable FPR came in
Attached Thumbnails
RedTurbo's not red and not Turbo'd (yet) build-null_zpsca60b946.jpg
redturbomiata is offline   Reply With Quote
Old 06-12-2013, 01:24 PM   #66
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

why the FPR?
Braineack is offline   Reply With Quote
Old 06-12-2013, 02:06 PM   #67
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
why the FPR?
Because race car. But seriously I forget who told me but someone said the 255 could over power the stock fpr.
redturbomiata is offline   Reply With Quote
Old 06-12-2013, 02:07 PM   #68
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

dont you have a MS?
Braineack is offline   Reply With Quote
Old 06-12-2013, 02:07 PM   #69
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Quote:
Originally Posted by redturbomiata View Post
changed plans after a horrible day fixing exhaust, some new shinny stuff on the way and thats all im going to say for now. looking forward to next weekend.
stop being a tease and spill it
18psi is offline   Reply With Quote
Old 06-12-2013, 02:13 PM   #70
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
dont you have a MS?
Yes. Rev built basic MS3
redturbomiata is offline   Reply With Quote
Old 06-12-2013, 02:16 PM   #71
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by 18psi View Post

stop being a tease and spill it

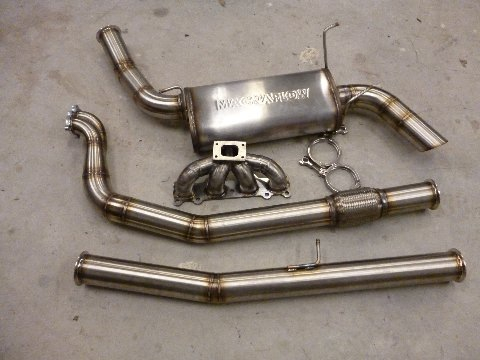

Since you asked so nicely Fowlermotorsports gently used artech setup.

RedTurbo's not red and not Turbo'd (yet) build-image-1916938070.jpg
redturbomiata is offline   Reply With Quote
Old 06-12-2013, 02:18 PM   #72
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

that is an awesome setup 'grats
18psi is offline   Reply With Quote
Old 06-12-2013, 02:28 PM   #73
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I too have always heard a 255 will overpower the stock FPR. We should clear this up right now in your thread, do you need a adjustable FPR if going with a 255 pump using MS?
Fireindc is offline   Reply With Quote
Old 06-12-2013, 02:36 PM   #74
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

Only if you cant reduce the pulse widths enough to achieve a stoich idle. The 255 will jack the base fuel pressure up about 10psi over that what the stock would.

So where the stock would be pumping fuel at about 35psi at idle, with the addition of the 255, it might be closer to 45psi at idle.

The FPR is only nessecary to reduce the base fuel pressure back to oem specs, but that doesn't really matter if you can control the injectors and tell them to inject less...
Braineack is offline   Reply With Quote
Old 06-12-2013, 02:46 PM   #75
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
Only if you cant reduce the pulse widths enough to achieve a stoich idle. The 255 will jack the base fuel pressure up about 10psi over that what the stock would.

So where the stock would be pumping fuel at about 35psi at idle, with the addition of the 255, it might be closer to 45psi at idle.

The FPR is only nessecary to reduce the base fuel pressure back to oem specs, but that doesn't really matter if you can control the injectors and tell them to inject less...
Oh well I have one already so might as well use it and remove a weak link from the system.
redturbomiata is offline   Reply With Quote
Old 06-12-2013, 07:46 PM   #76
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by Braineack View Post
Only if you cant reduce the pulse widths enough to achieve a stoich idle. The 255 will jack the base fuel pressure up about 10psi over that what the stock would.

So where the stock would be pumping fuel at about 35psi at idle, with the addition of the 255, it might be closer to 45psi at idle.

The FPR is only nessecary to reduce the base fuel pressure back to oem specs, but that doesn't really matter if you can control the injectors and tell them to inject less...
Wohoo, thanks for the tip. 1 less thing to buy when I go e85..
Fireindc is offline   Reply With Quote
Old 06-12-2013, 08:40 PM   #77
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I'm pissed I let my exhaust go, but glad it is going to someone who will use it and appreciate it knowing the quality of the parts. You're going to make sweet, sweet love to the manifold and downpipe.... don't ask how I know (sorry for the mess)

Looking forward to your progress! Subscribed since you spilled the beans, was going to wait til you received it. Should be friday still, so have fun this weekend
FowlerMotorsports is offline   Reply With Quote
Old 06-12-2013, 08:52 PM   #78
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by FowlerMotorsports View Post
I'm pissed I let my exhaust go, but glad it is going to someone who will use it and appreciate it knowing the quality of the parts. You're going to make sweet, sweet love to the manifold and downpipe.... don't ask how I know (sorry for the mess)

Looking forward to your progress! Subscribed since you spilled the beans, was going to wait til you received it. Should be friday still, so have fun this weekend
lol it wont be the first or the last mess on it

im too damn excited to keep it a secret lol i work all weekend so next week im going to be busting *** to get it installed.
redturbomiata is offline   Reply With Quote
Old 06-12-2013, 08:56 PM   #79
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I expect many photos! Do not disappoint or I will haunt you
FowlerMotorsports is offline   Reply With Quote
Old 06-12-2013, 09:01 PM   #80
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by FowlerMotorsports View Post
I expect many photos! Do not disappoint or I will haunt you
im putting the actual camera on charge now, this deserves a good quality pictures not iphone photos.
redturbomiata is offline   Reply With Quote
