Old 06-27-2013, 12:47 AM   #141
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by awdracer View Post
nice build. anything good coming out of removing the timing belt covers?
no, maybe a finger loose hazard. mine have wear marks so they got ditched for now.
redturbomiata is offline   Reply With Quote
Old 06-27-2013, 12:58 AM   #142
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

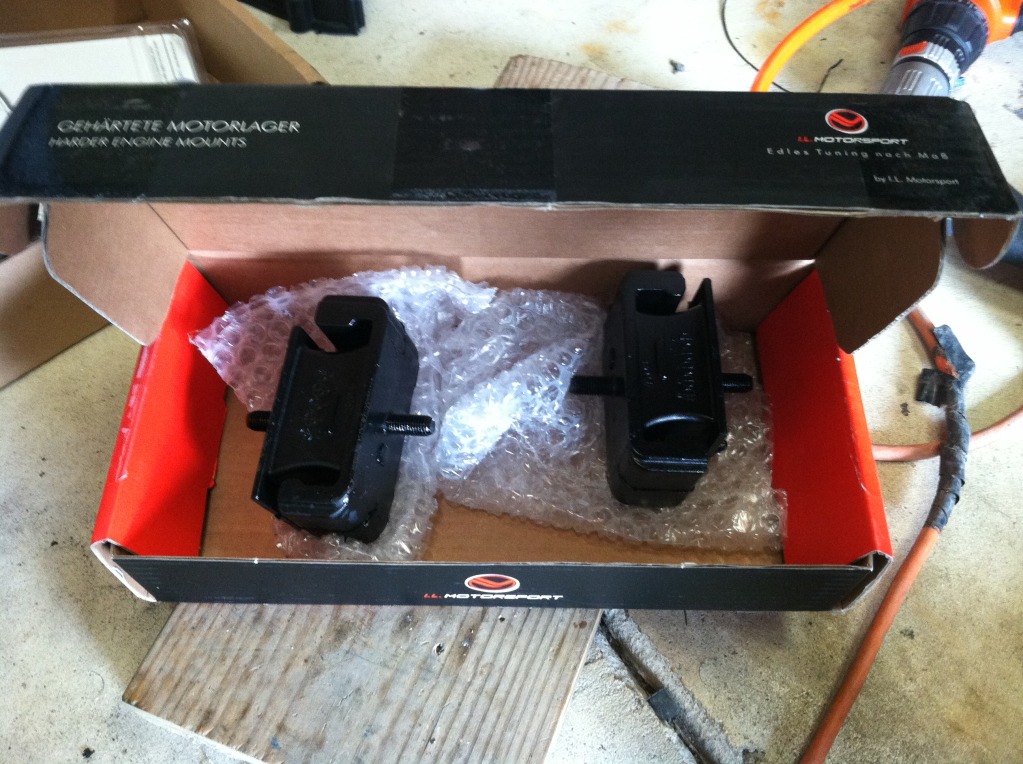

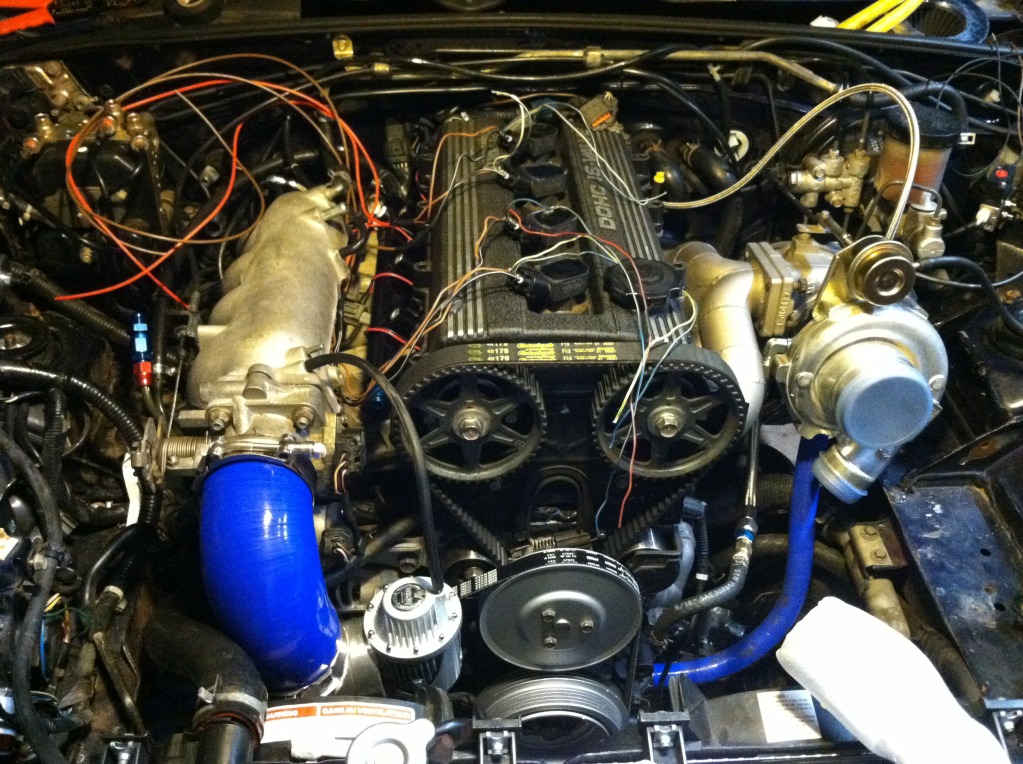

Got these mounts in the mail, and how i left it for the night. should finish up the coil on plug wiring tomorrow.
Final Checklist
  • Finish Cops
  • Finish AN Fuel Lines
  • Finish Intercooler pipework
  • Reinstall Front Bumper
  • Have Erat weld Sensor bung for IAT
  • Check Fluid Levels
  • tighten all hose connections
  • New map for IAT equipped car
  • Prime oil system and fire

Attached Thumbnails
RedTurbo's not red and not Turbo'd (yet) build-null_zps79277532.jpg   RedTurbo's not red and not Turbo'd (yet) build-null_zps9412493b.jpg
redturbomiata is offline   Reply With Quote
Old 06-27-2013, 12:47 PM   #143
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Hey brain according to your cop write up you need a 10000uf capacitor, RadioShack didn't have one that large. Will 2 4700uf's work?
redturbomiata is offline   Reply With Quote
Old 06-27-2013, 12:48 PM   #144
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

yes, but not using one at all is easier.
Braineack is offline   Reply With Quote
Old 06-27-2013, 12:57 PM   #145
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
yes, but not using one at all is easier.
Ah, don't need them anymore or something? I like that option better.
redturbomiata is offline   Reply With Quote
Old 06-27-2013, 01:04 PM   #146
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Another question on the wiring diagram the tach signal for the 95.5+ cars doesn't show what is done with the tach signal. What do you do with it and where does the signal come from?
redturbomiata is offline   Reply With Quote
Old 06-27-2013, 01:47 PM   #147
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

the ECU.
Braineack is offline   Reply With Quote
Old 06-29-2013, 03:52 PM   #148
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Alright in stuck right now, trying to get it started, its getting stuck popping and backfiring and won't run. Messed with the timing table but can't seem to make it any better. Getting plenty of spark and I believe enough fuel. I don't think it's possible to get the timing belt 180degrees off. Any ideas?
redturbomiata is offline   Reply With Quote
Old 06-29-2013, 05:07 PM   #149
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Nevermind I must have rolled the motor over. Timing is 180degrees out. [email protected]&$
redturbomiata is offline   Reply With Quote
Old 06-29-2013, 06:01 PM   #150
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Hey, send me a text i lost your number because i got a new phone.
I didn't end up getting a tank today Baker closed at noon, and Wyandotte isn't even open on weekends. I'll get one as soon as i can though.
Erat is offline   Reply With Quote
Old 07-01-2013, 12:33 PM   #151
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

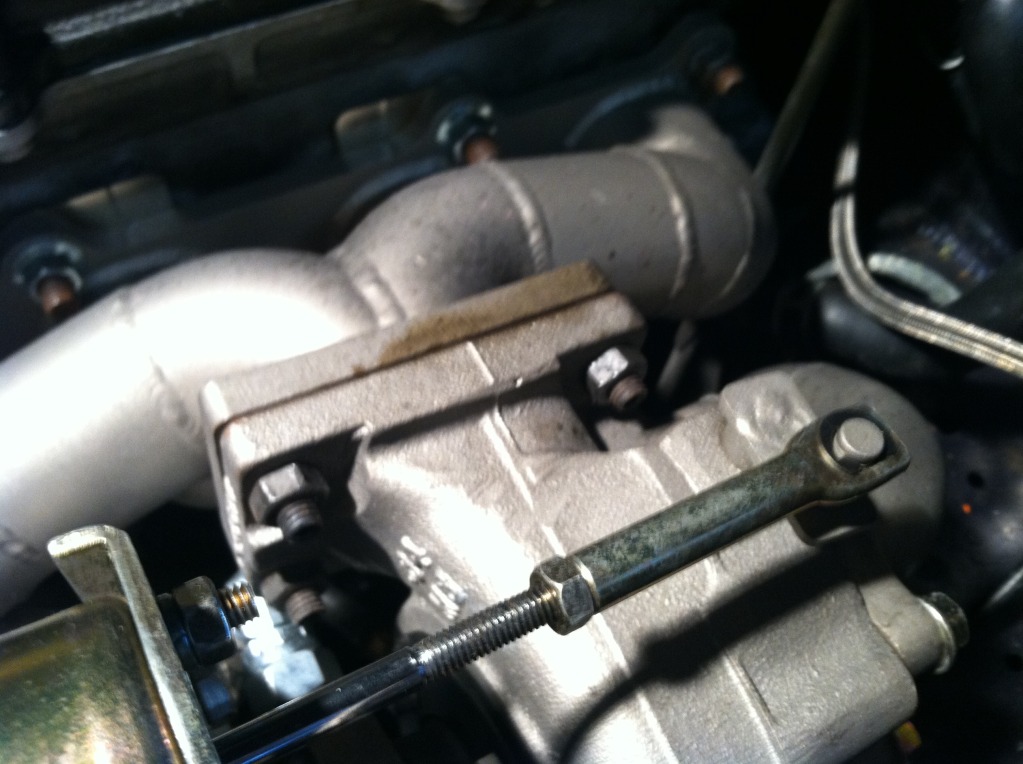

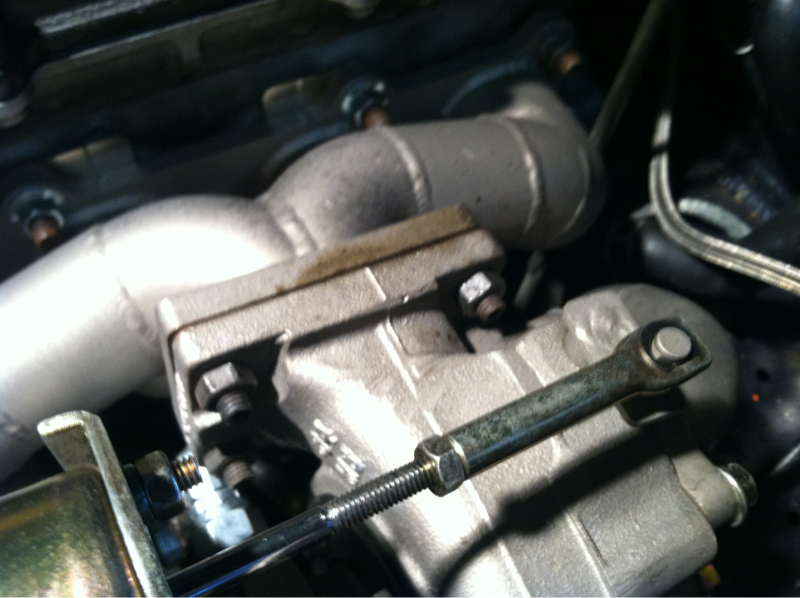

Got it started today, didn't run particularly well. I think my problem is this leak. Any ideas how to fix this? Studs are wrenched down.
Attached Thumbnails
RedTurbo's not red and not Turbo'd (yet) build-image-3086337324.jpg   RedTurbo's not red and not Turbo'd (yet) build-null_zpse3f3ac8b.jpg
redturbomiata is offline   Reply With Quote
Old 07-01-2013, 12:37 PM   #152
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

machine it flat
18psi is offline   Reply With Quote
Old 07-01-2013, 01:18 PM   #153
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

The ceramic coat may be uneven. Also do a light film of high temp rtv
FowlerMotorsports is offline   Reply With Quote
Old 07-01-2013, 01:36 PM   #154
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Quote:
Originally Posted by FowlerMotorsports View Post
The ceramic coat may be uneven. Also do a light film of high temp rtv
may work... but ive had bad experiences with this on my manifold. it would always burn up, dry up, crack, then start leaking again... i used high temp, just maybe not high-ENOUGH temp... it was that copper colored stuff.

personally, i would try to do 18's suggestion first if at all possible... i mean, either way, you have to remove the turbo to do it, may as well try to have it machined while its off
supercooper is offline   Reply With Quote
Old 07-01-2013, 01:46 PM   #155
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I'm stating machine it like 18psi said, also to add a thin film of rtv. I never had any problems
FowlerMotorsports is offline   Reply With Quote
Old 07-01-2013, 02:36 PM   #156
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

block sanded it flat, didnt take much effort. The ceramic coating was uneven and used a very small amount of the high temp rtv. now on to why it wont start. log attached.
Attached Files
File Type: msl 2013-07-01_13.31.04.msl (545.7 KB, 57 views)
redturbomiata is offline   Reply With Quote
Old 07-01-2013, 04:52 PM   #157
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Dug in a bit I'm getting fuel and plenty of spark from all 4 cops in full sequential mode. I will verify the timing is correct again tonight but Im pretty sure it's right. So what does that leave that I'm probably overlooking. Also there is a single wire on a riveted flange near the coolant spacer, is that for the gauge? It fell off how do I fix it?
redturbomiata is offline   Reply With Quote
Old 07-01-2013, 05:58 PM   #158
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

If you're not even getting an occasional cough from trying to ignite, my guess would be that your not igniting the right cylinders at the right time. 2, 3 and 1, 4 may be swapped.
stefanst is offline   Reply With Quote
Old 07-01-2013, 06:06 PM   #159
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by stefanst View Post
If you're not even getting an occasional cough from trying to ignite, my guess would be that your not igniting the right cylinders at the right time. 2, 3 and 1, 4 may be swapped.
It does cough. I'm 90% sure it's in the correct firing order
redturbomiata is offline   Reply With Quote
Old 07-01-2013, 06:56 PM   #160
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Then retard the timing some more (5-10* BTDC). You can try and run on fixed timing.
And run more fuel (+10 to 20%). Play with throttle. Win.
stefanst is offline   Reply With Quote
