Old 07-01-2013, 08:34 PM   #161
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by stefanst View Post
Then retard the timing some more (5-10* BTDC). You can try and run on fixed timing.
And run more fuel (+10 to 20%). Play with throttle. Win.
I've added 20% already for the e85 compensation, and tried various timing between 0-14. No dice.
redturbomiata is offline   Reply With Quote
Old 07-01-2013, 10:10 PM   #162
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

If it was mine, I'd add even more fuel.
stefanst is offline   Reply With Quote
Old 07-02-2013, 04:38 PM   #163
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

it runs sorta...
i can get it started but it acts as if its running on 2cyl. i have to hold the throttle to keep it running. im going to try wiring the cops in wasted spark to see if it will run correctly. heres a data log of it running horribly any advice would be apreciated.
Attached Files
File Type: msl 2013-07-02_14.49.17.msl (1.62 MB, 46 views)
redturbomiata is offline   Reply With Quote
Old 07-02-2013, 05:07 PM   #164
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Your RPM curve is not smooth. Looks like you are having some sensor problems (crank I assume).
One thing looks odd to me. Your log shows a 'timing error'. And it's usually an actual number other than 0. My logs don't show that. They only have 'timing error %' and it's usually 0.
But I never ran sequential spark and I'm running MS3X, so this may explain the difference. Anyway- you may want to post your ignition setup for some of the smarter guys to look at.
stefanst is offline   Reply With Quote
Old 07-02-2013, 05:27 PM   #165
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Paging brain
redturbomiata is offline   Reply With Quote
Old 07-02-2013, 06:07 PM   #166
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

what? fix your ****.
Braineack is offline   Reply With Quote
Old 07-02-2013, 06:13 PM   #167
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

The question was I'm getting spark across all 4cyl but it acts like its running on 2? Any ideas where to start?
redturbomiata is offline   Reply With Quote
Old 07-02-2013, 06:46 PM   #168
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

are all injectors firing then?
Braineack is offline   Reply With Quote
Old 07-03-2013, 01:12 AM   #169
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
are all injectors firing then?
I don't know of a good way to test them but they were working just fine when I drove it into the garage last week. Holding good fuel pressure 50-60psi. Wideband is reading a steady 13.6 while cranking.
redturbomiata is offline   Reply With Quote
Old 07-03-2013, 09:16 AM   #170
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Injector test mode!!!!

Megasquirt MS3 Output Testing
Braineack is offline   Reply With Quote
Old 07-03-2013, 09:18 AM
Braineack
This message has been deleted by Braineack.
Old 07-03-2013, 11:21 PM   #171
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
Injector test mode!!!!

Megasquirt MS3 Output Testing
That was extremely helpful thanks brain
redturbomiata is offline   Reply With Quote
Old 07-03-2013, 11:34 PM   #172
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Update it now runs without forcing it to
Revrant told me to change the required fuel to 3.6 since i am running e85, fixed a faulty pin on the connector i assembled for the coil on plug harness, i also fixed the intake cam ( it was 1 tooth advanced). and then it ran.
quick question, Fowler did you have problems with the downpipe contacting the steering shaft? on my car it is vibrating against it.
Now it is time to go through and get the clutch broken in and then tune it.

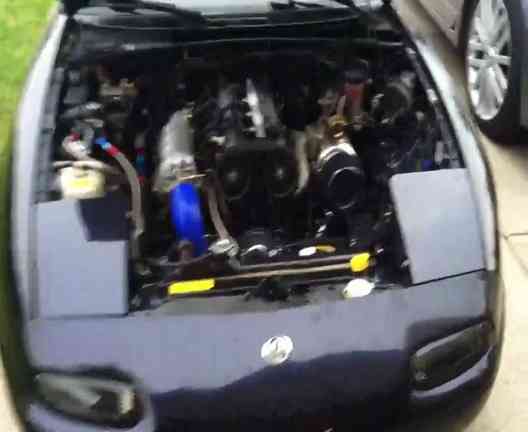

quick walkaround teaser video
Attached Thumbnails
RedTurbo's not red and not Turbo'd (yet) build-th_b7ff247d-178d-4420-9f3b-692bd83242d2-7380-00000a0b94219968_zpsa96ea1f2.jpg
redturbomiata is offline   Reply With Quote
Old 07-04-2013, 01:37 AM   #173
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

No sir I did not. My car was a 93 but aren't the 94-97s similar? I am pretty positive it was not making contact, didn't you have it undone at one point? Not sure if it can be bolted up wrong or not lol
FowlerMotorsports is offline   Reply With Quote
Old 07-04-2013, 01:41 AM   #174
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

i dont think there as any adjustment that way though, weird. may send abe a pm and see what he says.
other sidenote it feels like there is a something pulling the motor down hard, it wouldnt build over 3psi on a super rich light pull. not sure whats up with that. maybe timing table stuff?
redturbomiata is offline   Reply With Quote
Old 07-04-2013, 01:44 AM   #175
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

My stuff pretty much bolted on no problems, I'm positive our cars were identical so I don't know what's going on.

You may be bogging the motor with all that fuel, ve analyze live!
FowlerMotorsports is offline   Reply With Quote
Old 07-04-2013, 01:52 AM   #176
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by FowlerMotorsports View Post
My stuff pretty much bolted on no problems, I'm positive our cars were identical so I don't know what's going on.

You may be bogging the motor with all that fuel, ve analyze live!
the sub frames are slightly different between 90-93 and 94+ but i think they just added some bracing, not changed the whole thing. im going to look at the mounts and make sure i don't have them too low. tunned a bit before the pull but nothing anywhere close to what i need to do, doing that in the am, not a big fan of tuning in the dark.
redturbomiata is offline   Reply With Quote
Old 07-04-2013, 12:56 PM   #177
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Part of the problem is an exhaust leak, manifold to block I believe. Fowler were you running a exhaust manifold gasket?
redturbomiata is offline   Reply With Quote
Old 07-04-2013, 02:07 PM   #178
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you better have a factory metal gasket between the manifold and block...
Braineack is offline   Reply With Quote
Old 07-04-2013, 02:20 PM   #179
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

What brain said. Factory mls gasket. Please don't be runnng it without that?
FowlerMotorsports is offline   Reply With Quote
Old 07-04-2013, 02:30 PM   #180
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

I do have the MLS gasket on there, so I must be leaking elsewhere.
redturbomiata is offline   Reply With Quote
