Old 02-19-2013, 06:27 AM   #301
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Dan, just something that i read and filed away for future reference.

Pretty sure Emilio started out with a splitter but ended up with none due to balance.

As such it wouldn't surprise me that you sawzall'd yourself down to a minimal or no splitter yourself.....ps - I agree re the comments, you need a v2 air dam to keep with your quality build so far....

ALso, not sure if I missed this but the air intake behind the rad is for a reason....? It certainly looks like you have room over behind the passenger headlight area...as mine and most (?) others are....naca duct headlight feeding cold air direct to the pod.

My little tidbit to add to your request for knowledge is that the race car i bought my running gear off runs a 50mm alloy Rx7 radiator. This 1600 (with t28 @10-12 psi - 240whp) temp does not budge at all despite full thrashing all day at 28-30 deg centigrade (not as hot as you get but sort of close...). This is without a reroute, although I am tempted to fit my M-Tuned re route simply to tidy up the engine bay....now thats some RICE!!

Keep posting , loving it!
mx5-kiwi is offline   Reply With Quote
Old 02-19-2013, 07:35 AM   #302
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by mx5-kiwi View Post
Dan, just something that i read and filed away for future reference.

Pretty sure Emilio started out with a splitter but ended up with none due to balance.

As such it wouldn't surprise me that you sawzall'd yourself down to a minimal or no splitter yourself.....ps - I agree re the comments, you need a v2 air dam to keep with your quality build so far....

You could be right, thats why I started as big as possible, so I have it covered.

ALso, not sure if I missed this but the air intake behind the rad is for a reason....? It certainly looks like you have room over behind the passenger headlight area...as mine and most (?) others are....naca duct headlight feeding cold air direct to the pod.

The entire engine bay gets its airflow from ONLY through the radiator, so unless you have a SEPERATE duct it makes no difference where in the bay the pod sits (except right next to the manifold) There isnt really space for a pod behind the headlight and the car has a huge FMIC anyway, could be wrong the dyno will tell.

My little tidbit to add to your request for knowledge is that the race car i bought my running gear off runs a 50mm alloy Rx7 radiator. This 1600 (with t28 @10-12 psi - 240whp) temp does not budge at all despite full thrashing all day at 28-30 deg centigrade (not as hot as you get but sort of close...). This is without a reroute, although I am tempted to fit my M-Tuned re route simply to tidy up the engine bay....now thats some RICE!!

Many mistakes were on this car in terms of cooling, I think it will be fine now, 100%.

Keep posting , loving it!
Thanks mate, appreciate the support.

Dann
nitrodann is offline   Reply With Quote
Old 02-19-2013, 07:39 AM   #303
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

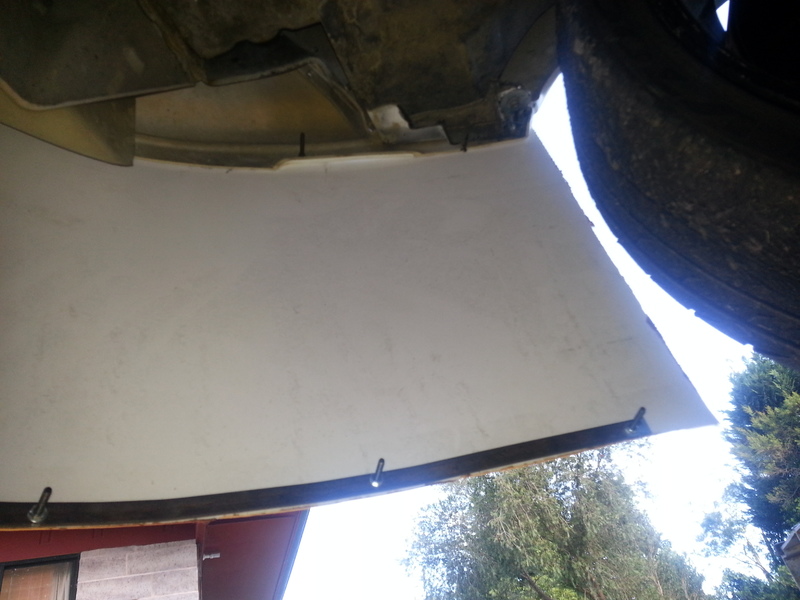

Bolted on the bottom support flatbar. Urethane it on after the photos held in place with the bolts.

Will run a small brace from the front splitter bracket to this flatbar to brace the lip.

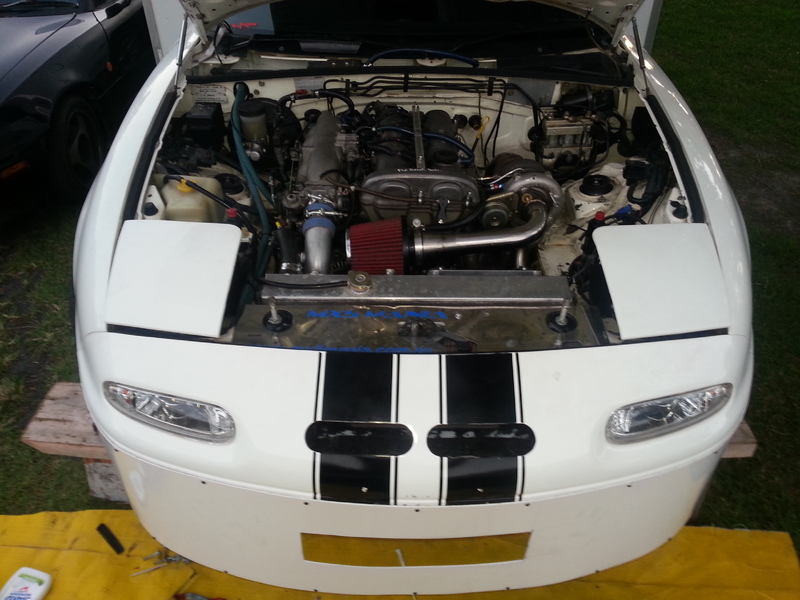

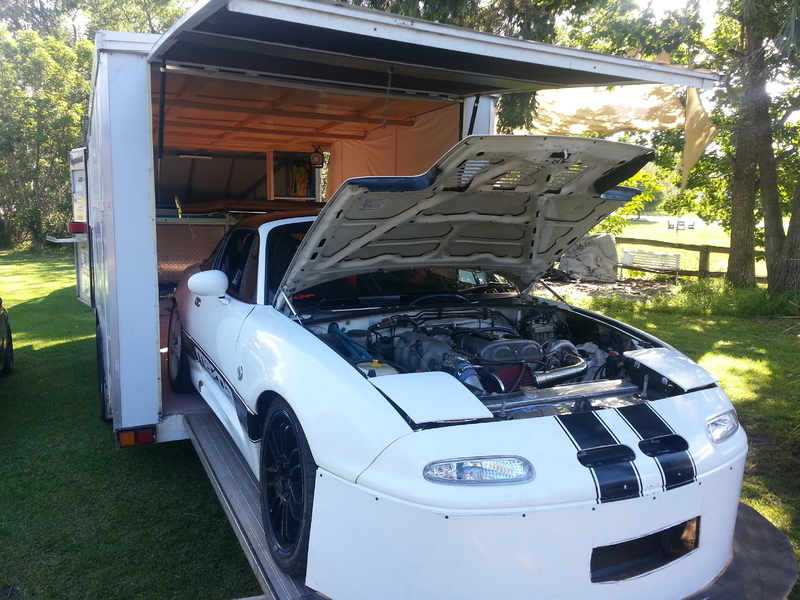

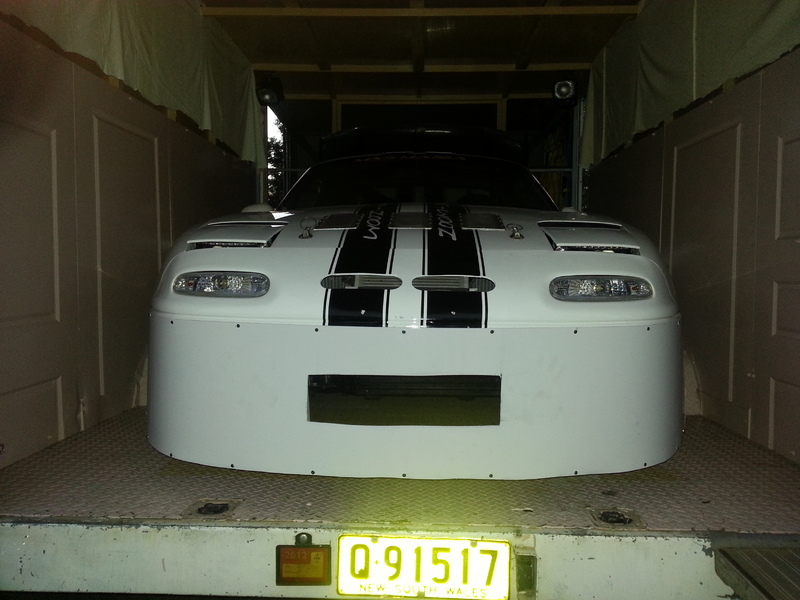

Tidied up the mouth, it aint perfect yet, IT WILL END UP CUT AGAIN SO GIVE IT TIME.










Hopefully dyno thursday or friday.

Dann
Attached Thumbnails
1.6L 2560r record attempt-20130219_170032.jpg   1.6L 2560r record attempt-20130219_171120.jpg   1.6L 2560r record attempt-20130219_175313.jpg   1.6L 2560r record attempt-20130219_193623.jpg   1.6L 2560r record attempt-20130219_194942.jpg

nitrodann is offline   Reply With Quote
Old 02-19-2013, 08:16 AM   #304
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Quote:
Originally Posted by mx5-kiwi View Post

My little tidbit to add to your request for knowledge is that the race car i bought my running gear off runs a 50mm alloy Rx7 radiator. This 1600 (with t28 @10-12 psi - 240whp) temp does not budge at all despite full thrashing all day at 28-30 deg centigrade (not as hot as you get but sort of close...). This is without a reroute, although I am tempted to fit my M-Tuned re route simply to tidy up the engine bay....now thats some RICE!!

Keep posting , loving it!
A quick note: the problem with the standard no-reroute system will not really show up on your coolant temp gauge. Your coolant may not be getting overly hot but chances are, cylinder #4 is. The only way you'll know is when it fails. Reroute should be done immediately and not just for looks!
turbofan is offline   Reply With Quote
Old 02-19-2013, 08:23 AM   #305
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Quote:
Originally Posted by nitrodann View Post

Hopefully dyno thursday or friday.

Dann
Do it or ban.
turbofan is offline   Reply With Quote
Old 02-19-2013, 08:36 AM   #306
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Bloody engine has had a sound I noticed on first start and idle.

I had had the timing belt off, thought id double check I didnt leave anything loose or drop a chunk of broken timing cover inside, today I pulled it apart and found the squeel was the alt belt and the sound i first heard sounds like a cracked piston.

No idea how.

I want a second opinion cos Im not an engine internals guy but I might have to pull the pistons out before we go ahead.

Dann
nitrodann is offline   Reply With Quote
Old 02-19-2013, 09:33 AM   #307
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Nitro,

While we always want to barrack a fellow battler, what you have right now looks quite dag crook. I'm gobsmacked that a Drongo like yourself produced such.

Now I'm just a Larrikin lairing it up, but what's with the knock back on the dynos? This thread had me wet, now I'm as dry as a Nun's nasty.

Rage on,
Brain
Braineack is online now   Reply With Quote
Old 02-19-2013, 09:36 AM   #308
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

What?

if you mean "please apologise for the wait" then yes, Im sorry.

But I really think I should pull the pistons out and have a look to be sure before big damage is done.

Dann
nitrodann is offline   Reply With Quote
Old 02-19-2013, 09:38 AM   #309
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

why would a cracked piston make a squeal noise?
Braineack is online now   Reply With Quote
Old 02-19-2013, 09:39 AM   #310
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

The sound is coming from the front of the motor (why I immediately pulled the timing cover and redid everything). The squeel along with the mechanical sound confused me, I thought it could be a bearing or something that was dry.

Doesnt sound like an exhaust leak. Its a bit slappy, and seems to change as the car warms up. sort of seems to come and go.

I know it has a slightly dodgy exhaust gasket on that cylider so Ill check that first.

dann
nitrodann is offline   Reply With Quote
Old 02-19-2013, 09:42 AM   #311
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Stop being a Whacka Whacker and get 'er done.
Braineack is online now   Reply With Quote
Old 02-19-2013, 09:45 AM   #312
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Its 12.45am, let me sleep first.
nitrodann is offline   Reply With Quote
Old 02-19-2013, 09:56 AM   #313
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

Quote:
Originally Posted by Braineack View Post
Nitro,

While we always want to barrack a fellow battler, what you have right now looks quite dag crook. I'm gobsmacked that a Drongo like yourself produced such.

Now I'm just a Larrikin lairing it up, but what's with the knock back on the dynos? This thread had me wet, now I'm as dry as a Nun's nasty.

Rage on,
Brain
18psi is offline   Reply With Quote
Old 02-19-2013, 10:04 AM   #314
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

Mine was apart for two months for a bad oil pump and it took ~30 minutes for a couple of the lifters to pump up. It sounded a lot like a wrist pin/piston problem and not like lifters in the way I was used to hearing them. It sounded much worse than the lifter noise I am used to hearing. Let it idle a long time and see if it goes away. You'll be wanting to get it good and hot to check for leaks anyway.
sixshooter is offline   Reply With Quote
Old 02-19-2013, 10:59 AM   #315
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Did you machine the manifold flat after welding it?
curly is online now   Reply With Quote
Old 02-19-2013, 11:12 AM   #316
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Yep absolutely but it has a cracked gasket that I goo'd up. I'll check that first.

Dann
nitrodann is offline   Reply With Quote
Old 02-19-2013, 11:17 AM   #317
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

cracked gasket? and you still proceeded to put it on? lol
change it stat. we're all holding our breath for this record breaking dyno.

if it did 295 with all those terrible parts, should do 500 on the new setup.....right?

lol I'm messin with you
18psi is offline   Reply With Quote
Old 02-19-2013, 11:49 AM   #318
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

297 mate.

Yeh could be a few things but if I cannot find it easily I dot want to risk it at 25psi.

Dann
nitrodann is offline   Reply With Quote
Old 02-19-2013, 01:40 PM   #319
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Welcome to exploration of the limits. It is a treacherous place, and pain is imminent. You will pay dearly.
miata2fast is offline   Reply With Quote
Old 02-19-2013, 05:13 PM   #320
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Dyno for what? I thought this was an aero thread. I mean I thought this was a thread about the aussie miata culture. I mean I thought this thread was about different types of turbo mani's dan can make.... errrr.
krissetsfire is offline   Reply With Quote
