What I need to do is record a pull in a gear say, 3rd from 2000rpm to red line at 90% and full throttle back to back. To test if the TB is a restriction yet.

Maybe just a data log and compare the time from 3000rpm to 7000rpm.


Dann
nitrodann is offline   Reply With Quote
Old 03-03-2013, 01:03 PM   #462
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

Hey Dan. Could you clean out your PM box? I've been trying to message you for weeks
slmhofy is offline   Reply With Quote
Old 03-03-2013, 01:18 PM   #463
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Im not sure what size the 1.6 throttle is, but I bet a 62mm Honda TB would work really well at this power level. Dont think Id go any bigger.

Last edited by Full_Tilt_Boogie; 03-03-2013 at 05:05 PM.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-03-2013, 04:28 PM   #464
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Good work Dan. That's a nice of amount of power from 1.6 measly liters of fury.

Quote:
Originally Posted by Braineack View Post

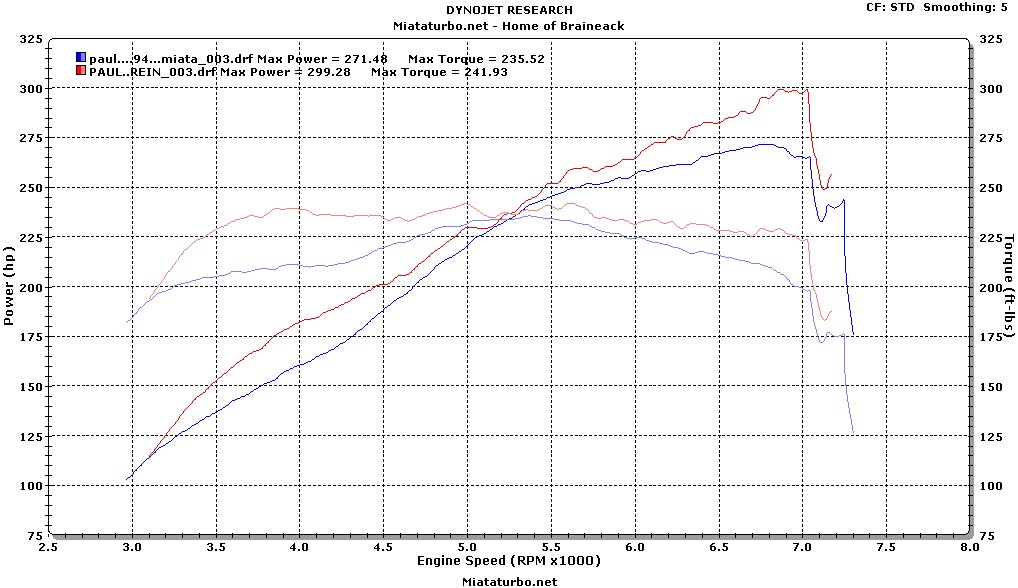

2560 IM before after:



same boost.


From FM during development:




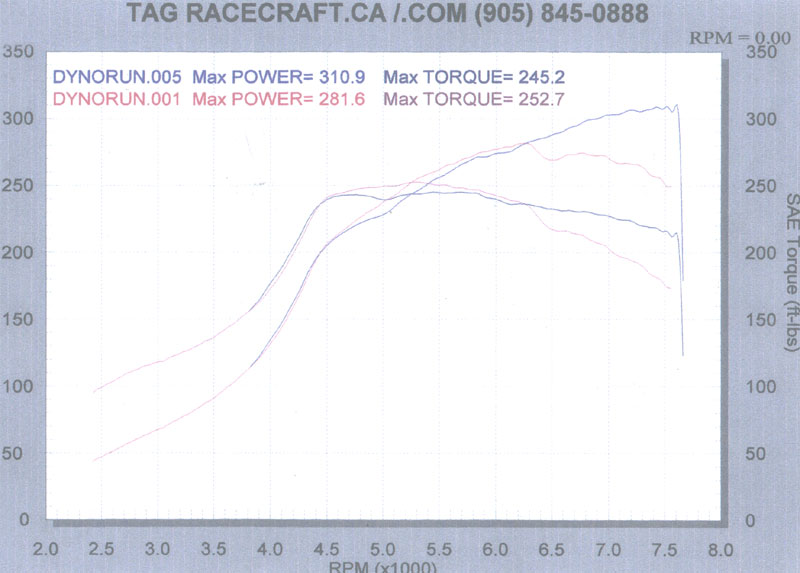

a 1.6L with an IM:

Brain, which manifolds were used for those comparisons?
matthewdesigns is offline   Reply With Quote
Old 03-03-2013, 04:36 PM   #465
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

the first two were the same BEGI IM.

the 1.6L was a custom made one using a 70mm TB.
Braineack is offline   Reply With Quote
Old 03-03-2013, 06:46 PM   #466
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Quote:
Originally Posted by slmhofy View Post
Hey Dan. Could you clean out your PM box? I've been trying to message you for weeks
Done.

Dann
nitrodann is offline   Reply With Quote
Old 03-03-2013, 09:23 PM   #467
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

this is sick, subbing
Alejo_NIN is offline   Reply With Quote
Old 03-05-2013, 02:27 AM   #468
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

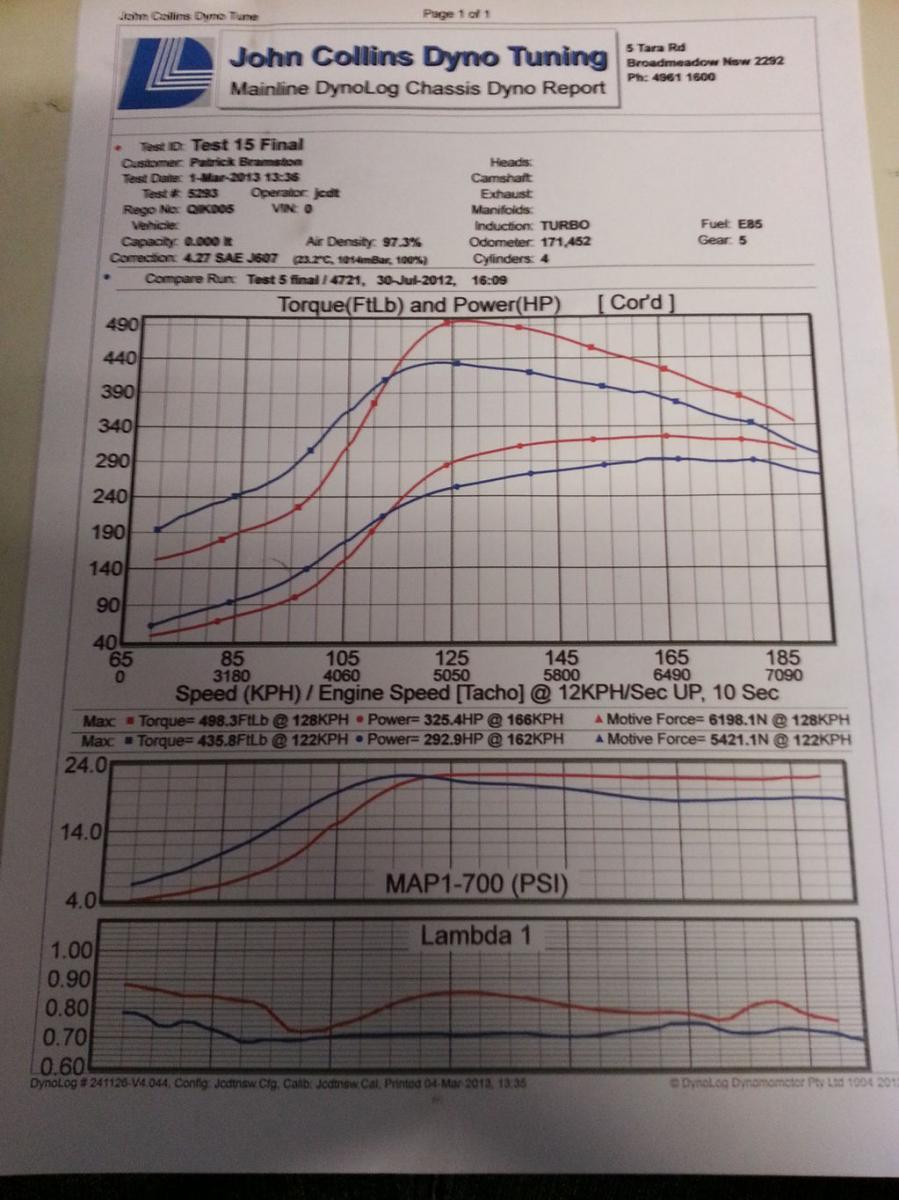

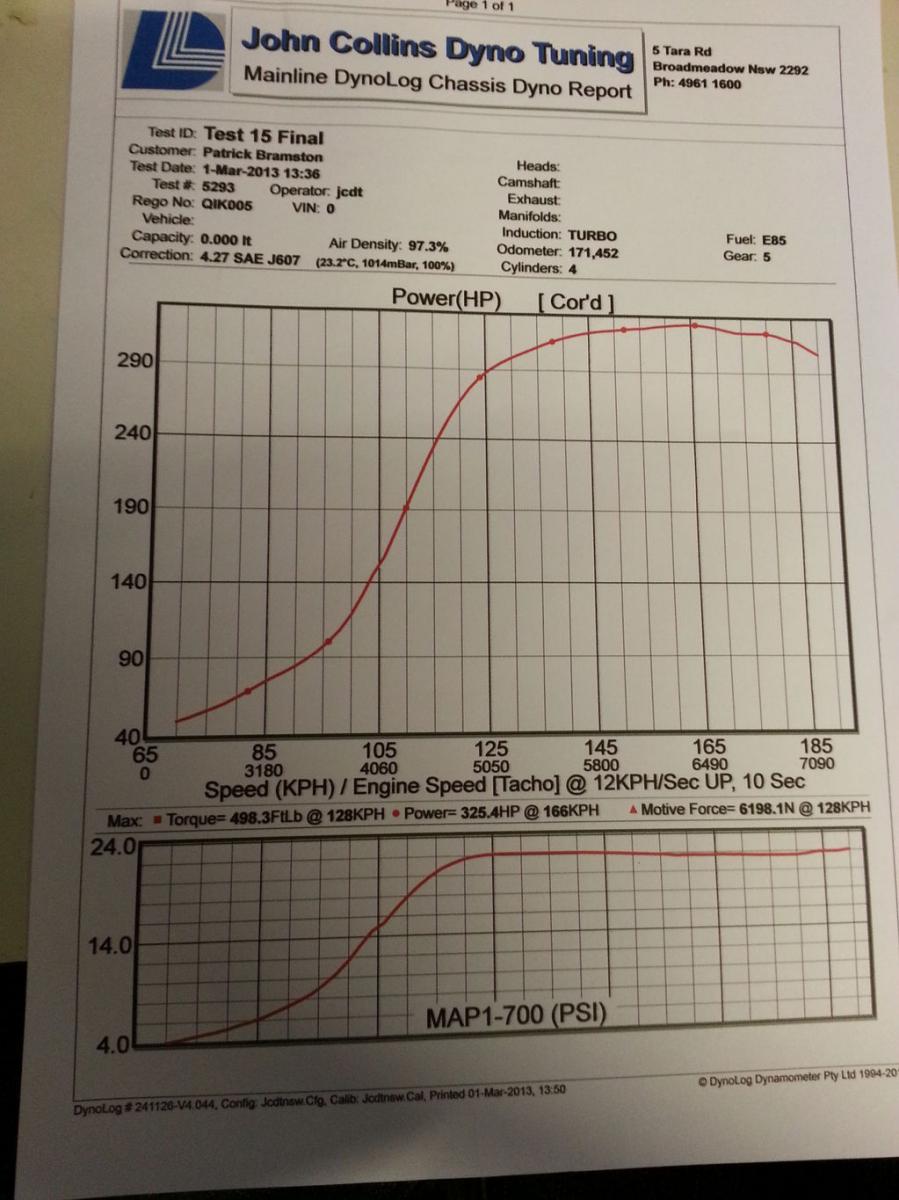

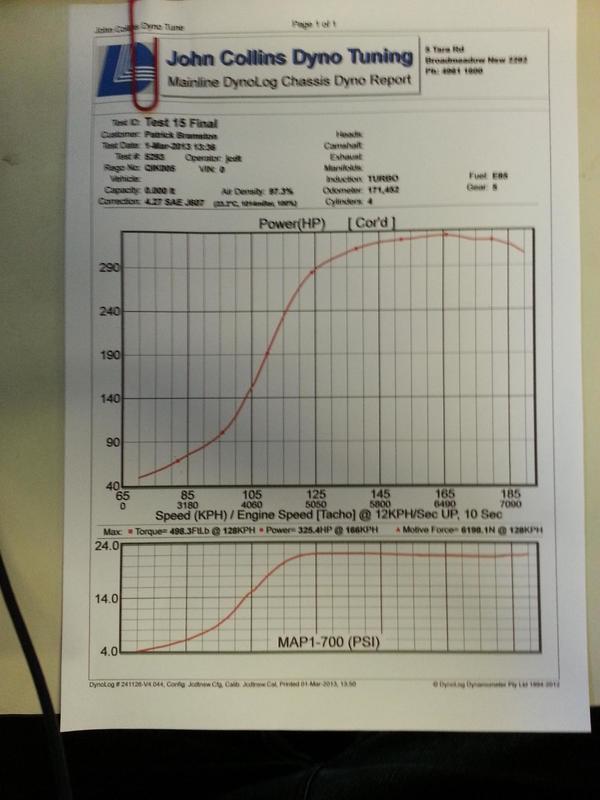

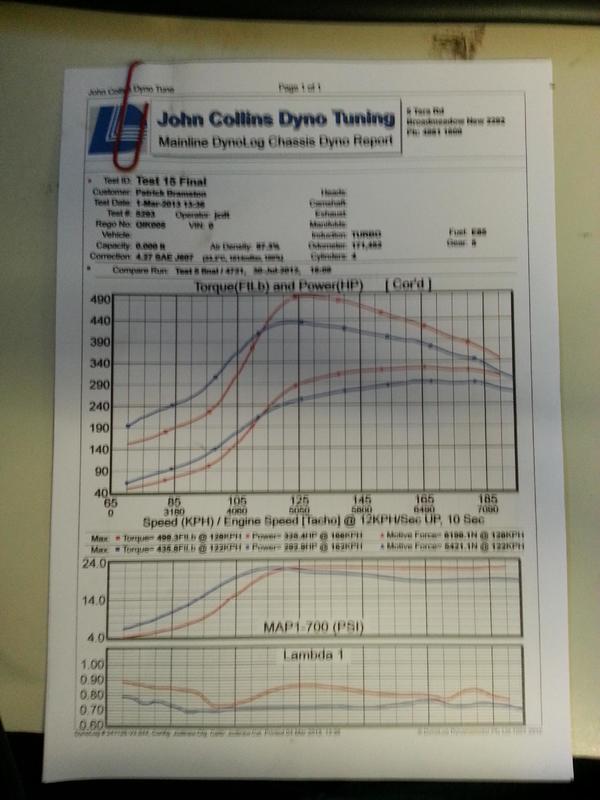

Well, here they are, will ceramic coat the manifold and wrap the whole thing in fibreglass and see how it changes the spool up.






You can see my attachments I took a few photos and uploaded them a few times, I couldnt get a clearer one up but you can still read it all.


Let the arguments commence. And the backpedaling, that too.


Dann

NOTE, the AFRs were cleaned up a little before it left the shop, however its not a straight line, it made the most torque with most of the swings you see there.
Attached Thumbnails
1.6L 2560r record attempt-20130305_171839.jpg   1.6L 2560r record attempt-20130305_171851.jpg   1.6L 2560r record attempt-20130305_172829.jpg   1.6L 2560r record attempt-20130305_172841.jpg   1.6L 2560r record attempt-20130305_173626.jpg

1.6L 2560r record attempt-20130305_173634.jpg

Last edited by nitrodann; 03-05-2013 at 03:02 AM.
nitrodann is offline   Reply With Quote
Old 03-05-2013, 03:08 AM   #469
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

So by "cleaning up" the AFRs, you mean "go pig rich to 10:1 and lose lots of power"

mkay...
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-05-2013, 03:09 AM   #470
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Nope not at all. Look at the damned sheet, it made max power at 11.8:1 AFR, it was already a safe tune.

Not even close.

Good try though.

The tidying up fixed the slight dip at the very top where it goes rich for a second and subsequently lost 4 or 5 odd hp.

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 03:22 AM   #471
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Edit:
Nevermind

So yeah, a tubular manifold spools slower and makes more power with shitty AFRs than a log manifold with even shittier AFRs.
Some real groundbreaking **** here.

Last edited by Full_Tilt_Boogie; 03-05-2013 at 03:43 AM.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-05-2013, 03:27 AM   #472
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

All blue lines are the original dyno on the log manifold and 2.5 exhaust.

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 03:51 AM   #473
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,132
Total Cats: 598
Default

Quote:
Originally Posted by nitrodann View Post
Nope not at all. Look at the damned sheet, it made max power at 11.8:1 AFR, it was already a safe tune.
Dann

So it goes from 10afr at 4k rpm to 12.5afr at 5k rpm down to 10afr at 6.5k rpm and then back up to 12.5 by 6.75k rpm, sup with that?
triple88a is online now   Reply With Quote
Old 03-05-2013, 05:33 AM   #474
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

No idea. I don t really know enough about it.

The bit at the end you talk about where it goes up and down a little is the bit we fixed up.

We did a couple more runs afterwards but no luck breaking 325, got a few 322 and 324hp runs.

I'm just following the trace adding and removing fuel and following what the dyno tells me and the operators experience when he thinks I'm making a mistake.

It was hard to get it on boost at the bottom and that odd fuel curve reflects it.

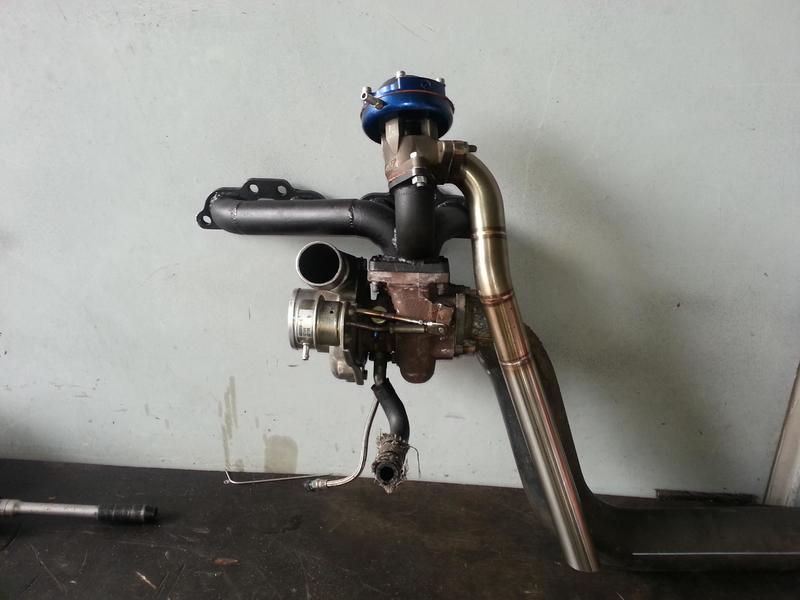

Heres some SR20 love to help bump the thread



Dann
Attached Thumbnails
1.6L 2560r record attempt-20130304_171026.jpg

Last edited by nitrodann; 03-05-2013 at 06:36 AM.
nitrodann is offline   Reply With Quote
Old 03-05-2013, 09:25 AM   #475
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

You understand we I can only take your dynos with half a grain of salt right?

Last edited by Braineack; 03-05-2013 at 09:41 AM.
Braineack is offline   Reply With Quote
Old 03-05-2013, 09:32 AM   #476
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

why is that dyno showing 500 ftlbs of torque?
Ryan_G is offline   Reply With Quote
Old 03-05-2013, 09:43 AM   #477
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Ryan_G View Post
why is that dyno showing 500 ftlbs of torque?
That is what I am trying to figure out also.
shuiend is offline   Reply With Quote
Old 03-05-2013, 09:43 AM   #478
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Ryan_G View Post
why is that dyno showing 500 ftlbs of torque?
because apparently ftlb in AUS isn't standardized. But I'm just going to assume they are NM or KW or whatever. But that still doesnt added up since 498Nm in Ftlb = 367.26. The dyno shows peak at ~5100, if you go by the HP figures it's showing, then peak ftlb would only be around 312, not 367... dun dun dun.

the dyno is also showing 427% correction.

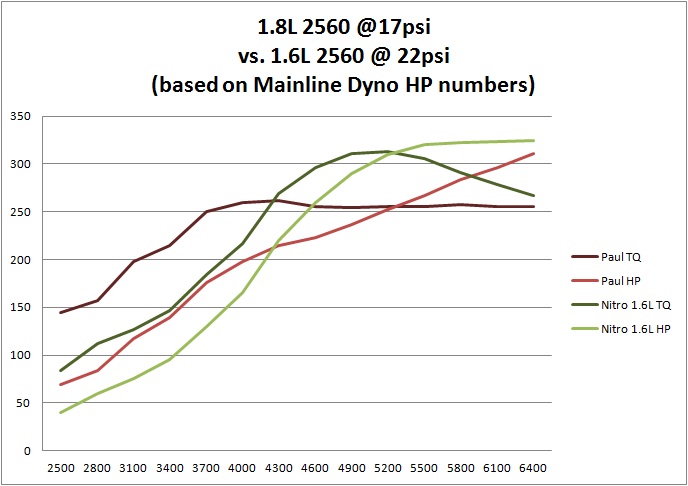

Attached Thumbnails
1.6L 2560r record attempt-1.8l2560v16l2560.jpg

Last edited by Braineack; 03-05-2013 at 10:05 AM.
Braineack is offline   Reply With Quote
Old 03-05-2013, 10:13 AM   #479
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,132
Total Cats: 598
Default

And if its really ftlb and hp they should cross at 5252rpm. I have the feeling someone imputed the wrong crap on the dyno.
triple88a is online now   Reply With Quote
Old 03-05-2013, 10:43 AM   #480
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

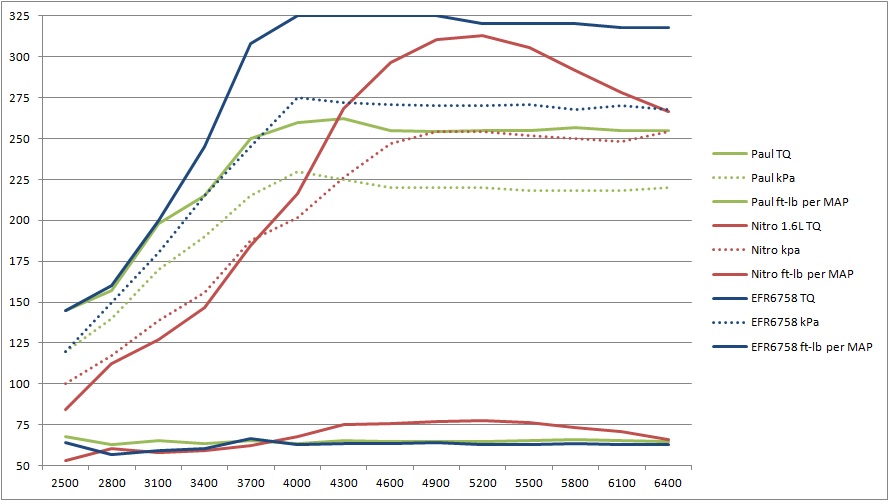

notice the ft-lb per MAP. He's hitting 80 ft-lb per MAP in some places, compared to Paul and Soviet's setups (both averaging 65 ft-lb per MAP, which is typical on these motors).

Basically Nitro is blowing them out of the water in terms of how much power he's making per liter of displacement. And far supassing the "magic number."




one hell of an efficient 1.6L you got there!
Attached Thumbnails
1.6L 2560r record attempt-maplitercompare.jpg
Braineack is offline   Reply With Quote
