Old 02-24-2013, 05:47 AM   #381
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

It runs 17x8 and 17x9" wheels to clear the brakes.

It has Ex V8 supercar brakes.

yes I hope it could be the quickest mx5 in the country. (there are rotary powered half chassis 'mx5s' but I hardly think they count).

Dann
nitrodann is offline   Reply With Quote
Old 02-24-2013, 09:50 AM   #382
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Looking much better. The stripes are growing on me, in an ironic way - kind of like a Hello Kitty sticker on a fast Miata.
Scrappy Jack is offline   Reply With Quote
Old 02-24-2013, 11:45 AM   #383
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Now all you need to do for aero is adjust those headlights so your radiator is more effective and you make more downforce with less drag.
Leafy is offline   Reply With Quote
Old 02-24-2013, 01:20 PM   #384
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Quote:
Originally Posted by Leafy View Post
Now all you need to do for aero is adjust those headlights so your radiator is more effective and you make more downforce with less drag.
Agreed.

Please tell the owner to stop running the headlights like that. It's asinine
Efini~FC3S is offline   Reply With Quote
Old 02-24-2013, 01:24 PM   #385
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Headlights look broken. Fix.
turbofan is offline   Reply With Quote
Old 02-24-2013, 04:42 PM   #386
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

When it's not posing for photos headlights down. Got it.

Dann
nitrodann is offline   Reply With Quote
Old 02-28-2013, 11:44 PM   #387
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Ok, its time.

Went to the dyno today.

Its a mainline AWD1000.

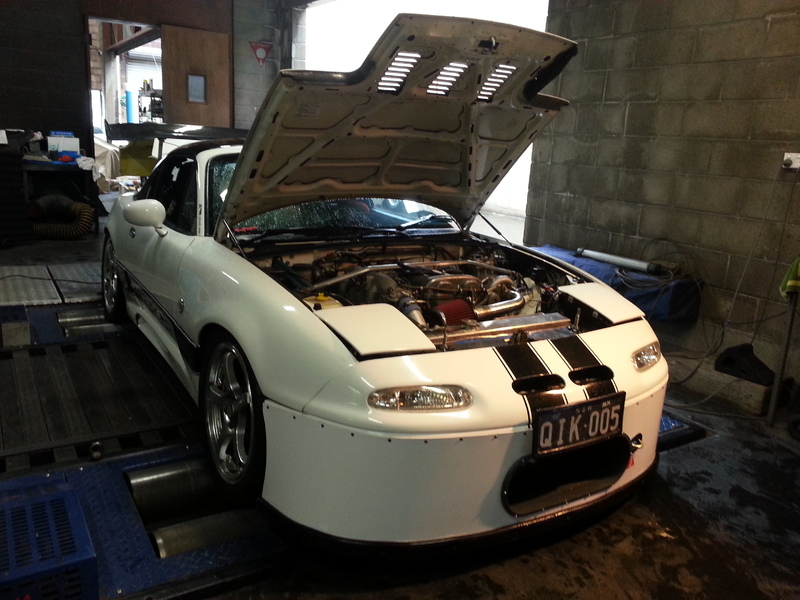

Strapped it down.

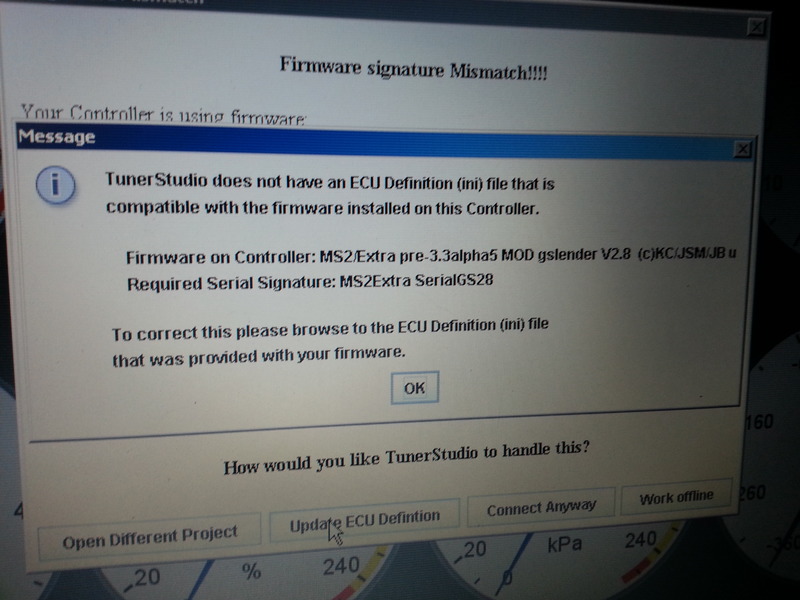

Couldnt use my laptop for various reasons so Had to shuffle through the shops laptops.
Encountered a bit of this..




Then started some pulls from 10psi.
It made 240rwhp at 10psi.

Started winding it up, working our way up the rows by setting the MBC to the centre of each row and pulling across that row and tuning.

Ended up running all of it like last time.

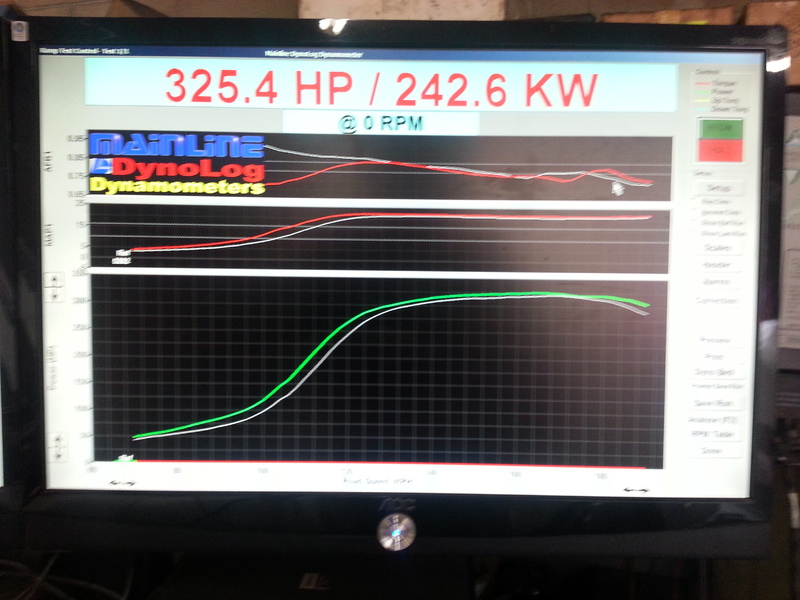

Here is the number.
Ill give you all a proper printout start of next week so you can see all the info, I had to run off as soon as it was done.

-
-
-
-
-
- SUSPENSE..
-
-
-
-
-
-



But.. But its a 1.6L you all said.



Thanks for everyones input.

It makes 300rwhp at 5000rpm the spread of power is huge, just massive area under.
Tested no intake, made 25hp less, tested no filter only, made 20hp less. The nice bellmouth on the inside of the filter seems to make all of the distance.
These runs were done on 17x9's and toyota COPS.

Dann
Attached Thumbnails
1.6L 2560r record attempt-20130301_093550.jpg   1.6L 2560r record attempt-20130301_103642.jpg   1.6L 2560r record attempt-20130301_133322.jpg

Last edited by nitrodann; 03-01-2013 at 12:16 AM.
nitrodann is offline   Reply With Quote
Old 02-28-2013, 11:51 PM   #388
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

+1 on the dyno
-1 on the still broken headlights
Cheers.
triple88a is offline   Reply With Quote
Old 02-28-2013, 11:56 PM   #389
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

OP delivers with a dyno plot! Nice work Dann, looking forward to you supplying details and fending off disbelief until it runs a 1/4 mile.
petrolmed is offline   Reply With Quote
Old 02-28-2013, 11:57 PM   #390
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

That dyno is unpossible 325hp @0rpm.

When will we have a normal looking dyno plot not one of your upside down jobbies.
Leafy is offline   Reply With Quote
Old 02-28-2013, 11:58 PM   #391
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

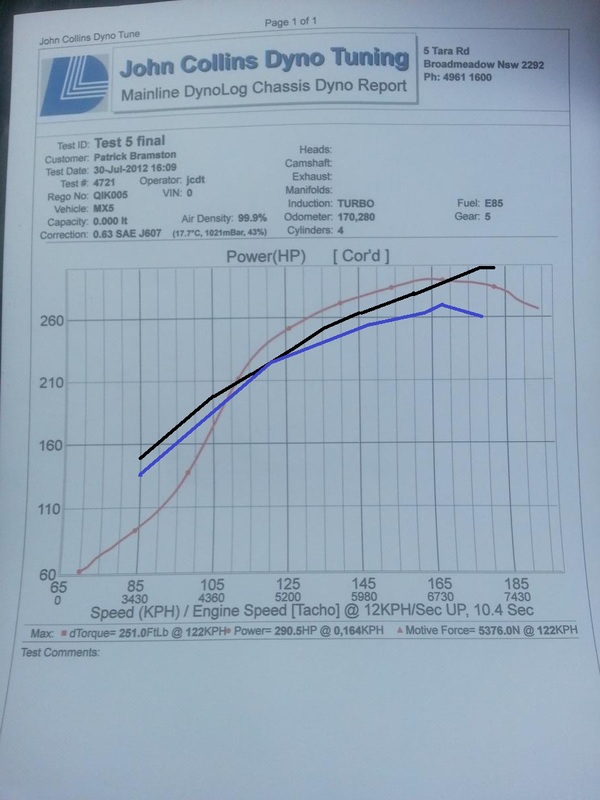

Look at the old dyno and imagine 300whp around the 5100rpm mark to se ethe torque improvements.



Ill get a sheet like this printed monday.

Dann
nitrodann is offline   Reply With Quote
Old 03-01-2013, 12:01 AM   #392
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by Braineack View Post
FWIW, im pretty certain that 310rwhp (dynojet) on a 2560 is the record here in the states for a well sorted 1.8L.

By all means try to do it. But I just love to hate on the 1.**** liter.
Quote:
Originally Posted by triple88a View Post
+1 on the dyno
-1 on the still broken headlights
Cheers.
Thanks, just give me a plus one dammit haha.


Quote:
Originally Posted by petrolmed View Post
OP delivers with a dyno plot! Nice work Dann, looking forward to you supplying details and fending off disbelief until it runs a 1/4 mile.
Owner is keen to head to the drags.


Quote:
Originally Posted by Leafy View Post
That dyno is unpossible 325hp @0rpm.

When will we have a normal looking dyno plot not one of your upside down jobbies.
Real sheet like above monday/tuesday depending how busy I am.

Just wait until 18psi shows up here haha

Dann
nitrodann is offline   Reply With Quote
Old 03-01-2013, 12:28 AM   #393
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Nice work dan. I commend you on the follow up but as per the discussion before. You can't defy the laws of physics. The 1.6 is no doubt not as good as the 1.8 but the turbo can still only flow as much as it can flow. Once it maxes out that's it.
krissetsfire is offline   Reply With Quote
Old 03-01-2013, 12:32 AM   #394
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Very nice work Dann!! Congratulations!
dwink is offline   Reply With Quote
Old 03-01-2013, 12:43 AM   #395
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 485
Total Cats: 44
Default

Quote:
Originally Posted by krissetsfire View Post
Nice work dan. I commend you on the follow up but as per the discussion before. You can't defy the laws of physics. The 1.6 is no doubt not as good as the 1.8 but the turbo can still only flow as much as it can flow. Once it maxes out that's it.


- but he did on so many episodes???
Attached Thumbnails
1.6L 2560r record attempt-scotty.jpg
Lokiel is offline   Reply With Quote
Old 03-01-2013, 12:53 AM   #396
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Are you comparing Dan to Scotty?! Scotty is offended! (no offense dan but you're not chief engineer of the starship enterprise)
krissetsfire is offline   Reply With Quote
Old 03-01-2013, 01:00 AM   #397
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default



In good mood don't care :-)

Dann
nitrodann is offline   Reply With Quote
Old 03-01-2013, 01:27 AM   #398
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Props for upside down dyno plot because Australia.
turbofan is offline   Reply With Quote
Old 03-01-2013, 01:33 AM   #399
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Awesome 1.6 bulid. What octane fuel and how much boost were you running?
Fireindc is offline   Reply With Quote
Old 03-01-2013, 01:35 AM   #400
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Read the thread brother, only 20 pages haha.

E85 (105-110 octane)

Waste gate never opened. Ran everything the turbo had. On this setup that was 22psi.

Dann

Last edited by nitrodann; 03-01-2013 at 02:23 AM.
nitrodann is offline   Reply With Quote
