Old 03-05-2013, 04:51 PM   #541
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Im going to call the dyno manufacturer and ask what number have to be input to get an accurate torque figure, thats a start, then ill go and see if they can be input post run.

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 04:56 PM   #542
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

I'm not so caught up in the right or wrong on this... I am caught up on why a dyno operator wouldn't care about tq. Did he win it @ a county fair?
krissetsfire is offline   Reply With Quote
Old 03-05-2013, 05:00 PM   #543
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

Quote:
Originally Posted by nitrodann View Post

Im loving how worked up everyone is, the dyno took a week cos the local guy was busy, and the sheet took from friday arvo to monday cos I had to run a family member to hospital (mother in law just started chemo and she isnt coping well) and so I went and got it first day i was free this week.

Dann
You literally asked this on yourself. In the name of "learning new things" remember?
18psi is offline   Reply With Quote
Old 03-05-2013, 05:01 PM   #544
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

its a shitty dyno
1.6 is slow to spool an ancient Garrett

/thread

in4 efr
soviet is offline   Reply With Quote
Old 03-05-2013, 05:02 PM   #545
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

because it can be back calculated by HP if you care about it?

Torque doesnt accelerate the car, torque is a static measurement that doesnt do any mork and doesnt make the car perform, the HP that the torque helps produce along with the RPM does all of those things we build cars for.

Thats how I feel about it, Im assuming the dyno op feels the same?

18
Its excellent, Im thoroughly enjoying it, hopefully we all learn a little about dyno's.

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 05:04 PM   #546
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

Quote:
Originally Posted by nitrodann View Post
because it can be back calculated by HP if you care about it?

Torque doesnt accelerate the car, torque is a static measurement that doesnt do any mork and doesnt make the car perform, the HP that the torque helps produce along with the RPM does all of those things we build cars for.

Thats how I feel about it, Im assuming the dyno op feels the same?

18
Its excellent, Im thoroughly enjoying it, hopefully we all learn a little about dyno's.

Dann
that is the exact opposite of the truth.
18psi is offline   Reply With Quote
Old 03-05-2013, 05:06 PM   #547
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by nitrodann View Post
because it can be back calculated by HP if you care about it?

Torque doesnt accelerate the car, torque is a static measurement that doesnt do any mork and doesnt make the car perform, the HP that the torque helps produce along with the RPM does all of those things we build cars for.

Thats how I feel about it, Im assuming the dyno op feels the same?

18
Its excellent, Im thoroughly enjoying it, hopefully we all learn a little about dyno's.

Dann

Attached Thumbnails
1.6L 2560r record attempt-963-lol-wut-pink.jpg
concealer404 is offline   Reply With Quote
Old 03-05-2013, 05:06 PM   #548
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

After all of that power goes through the drivetrain it is, but not at the flywheel.

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 05:09 PM   #549
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by nitrodann View Post
After all of that power goes through the drivetrain it is, but not at the flywheel.

Dann
I was unaware that your dyno was measuring power at the flywheel, somehow.
concealer404 is offline   Reply With Quote
Old 03-05-2013, 05:10 PM   #550
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

Quote:
Originally Posted by nitrodann View Post
After all of that power goes through the drivetrain it is, but not at the flywheel.

Dann
Drink a cup of coffee.

Then come back to this thread.
18psi is offline   Reply With Quote
Old 03-05-2013, 05:12 PM   #551
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Quote:
Originally Posted by nitrodann View Post
Lol, First off, I sure didnt fake anything.
I wasn't accusing you of faking anything.

However, the record you are quasi trying for is definitely fake. You said it yourself that you don't actually care about the record, only that you made the title that way to draw attention to your thread (if I remember correctly).

I'm also not blaming you for the shitty dyno logs, as far as I can tell it wasn't your fault, just the lazy dyno operator/owner.

I do blame you for not liking my cookie comments...

Bottom line - is the thing faster around the track and is the owner happy with it?
Efini~FC3S is offline   Reply With Quote
Old 03-05-2013, 05:13 PM   #552
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Lol.
Horsepower does the work, if it didnt then we would all be driving cars that made 1000ftlb at 100 rpm instead of 200ftlb at 6000rpm.

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 05:15 PM   #553
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Quote:
Originally Posted by Efini~FC3S View Post
I wasn't accusing you of faking anything.

However, the record you are quasi trying for is definitely fake. You said it yourself that you don't actually care about the record, only that you made the title that way to draw attention to your thread (if I remember correctly).

I'm also not blaming you for the shitty dyno logs, as far as I can tell it wasn't your fault, just the lazy dyno operator/owner.

I do blame you for not liking my cookie comments...

Bottom line - is the thing faster around the track and is the owner happy with it?
The owner is stoked, he drove it yesterday for the first time.
He says it is tamer at street RPM and is much quicker through the mid and top.

Hasnt been to the road course yet.

And the record is BS anyway of course, however Id like to find an accurate way to measure performance for the sake of being sure its as efficient as I hope it is.

Otherwise how do you learn?

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 05:20 PM   #554
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

Quote:
Originally Posted by nitrodann View Post
Lol.
Horsepower does the work, if it didnt then we would all be driving cars that made 1000ftlb at 100 rpm instead of 200ftlb at 6000rpm.

Dann
we do

they're called diesels
18psi is offline   Reply With Quote
Old 03-05-2013, 05:23 PM   #555
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

[Edit: Ignore this. I opened the post, got busy, hit send but 100 people had posted in the meantime.]

Dear 8 pounds 6 ounces... new born infant jesus. jimj is just saying there is probably an error on the output / display of the torque.

Sheesh.

Dann - Get a proper output. You are making life harder for everyone involved.

Last edited by Scrappy Jack; 03-05-2013 at 05:45 PM.
Scrappy Jack is offline   Reply With Quote
Old 03-05-2013, 05:28 PM   #556
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

OR go do a dynojet.
TurboTim is offline   Reply With Quote
Old 03-05-2013, 05:34 PM   #557
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Torque at the dyno drum.

US dynos calculate torque from power

Aussie measure torque in the dyno, called roller torque and power calculated from roller rpm and torque.

Tractive effort=motive force


Those were my basic notes while on the phone to the guy who runs mainline dyno's just now, lucky he was there its only 8:30am here.
he was actually logged into my local operators dyno when i called performing an update. he can access and print the sheets from there, he will email me, and have the local shops machine print a sheet waiting for me when I get there.

Basically the torque is the torque at the drum, engine torque multiplied by the diff ratio divided by the tire size.

He will email me, and I will get printed a sheet that shows engine torque, which apparently is just done by clicking a check box and thats it.

Apparently US dynos like dyno jets often calculate torque from power, where as this dyno and most common aussie setups measure torque at the drum, and speed of the drum to calculate power.
With a tach signal, clicking that box allows the dyno to output in the torque you guys are expecting to see.

Easy.

Ill have it up by this arvo.

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 05:57 PM   #558
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

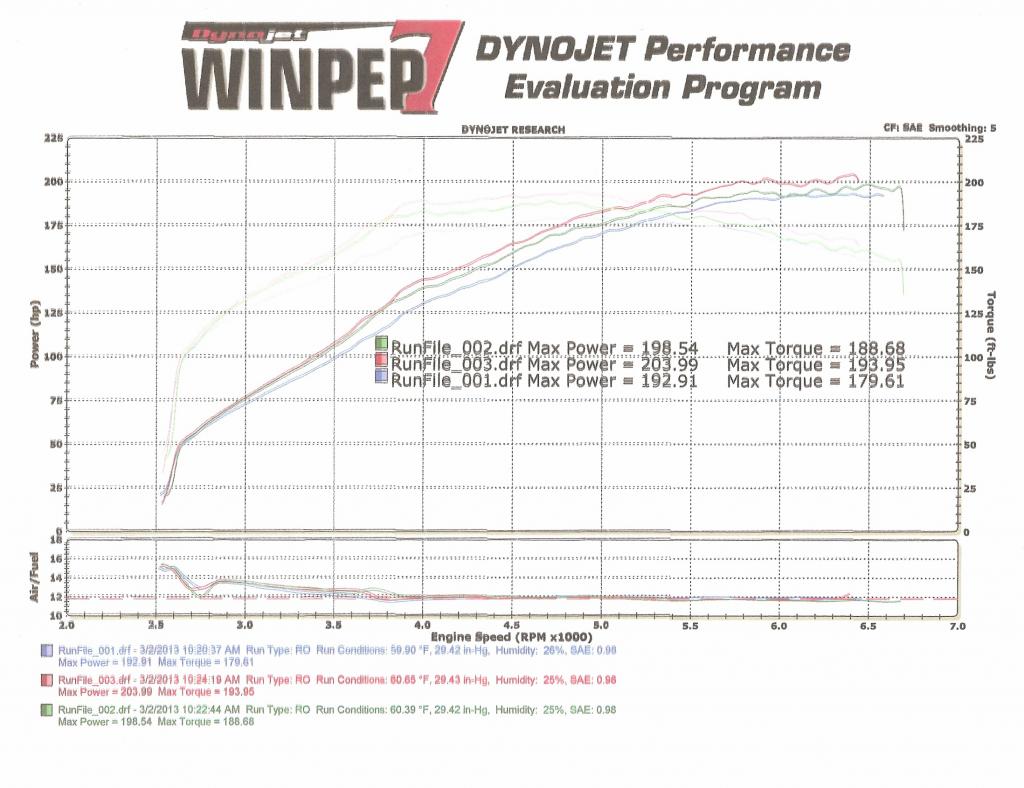

HP and TQ always cross at 5252 RPM because:

...if you multiply torque (in pound-feet) by engine speed (in RPM) and divide the product by 5,252, RPM is converted to "radians per second" and you can get from torque to horsepower...

From: HowStuffWorks "How do you convert engine torque to horsepower?"
Attached Thumbnails
1.6L 2560r record attempt-dynojet_zpsac1d9e72.jpg
sixshooter is offline   Reply With Quote
Old 03-05-2013, 06:20 PM   #559
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

We dont measure torque from power in the US, thats just the way the cheaper dynojets do it, and its total ****. Its also why they are useless for tuning. I shudder to imagine how many engines have blown up as the result of tuning for power on dynojets.
Also, inertia dynoes (like a dynojet) typically make HIGHER numbers, not lower.
Making more power on a proper, load-holding, dyno than on an inertia dyno means that you have some crazy optimistic dyno, or youve fucked with the numbers.

I already take dynojet numbers with a grain of salt. More optimistic than that is just insane.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-05-2013, 06:45 PM   #560
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

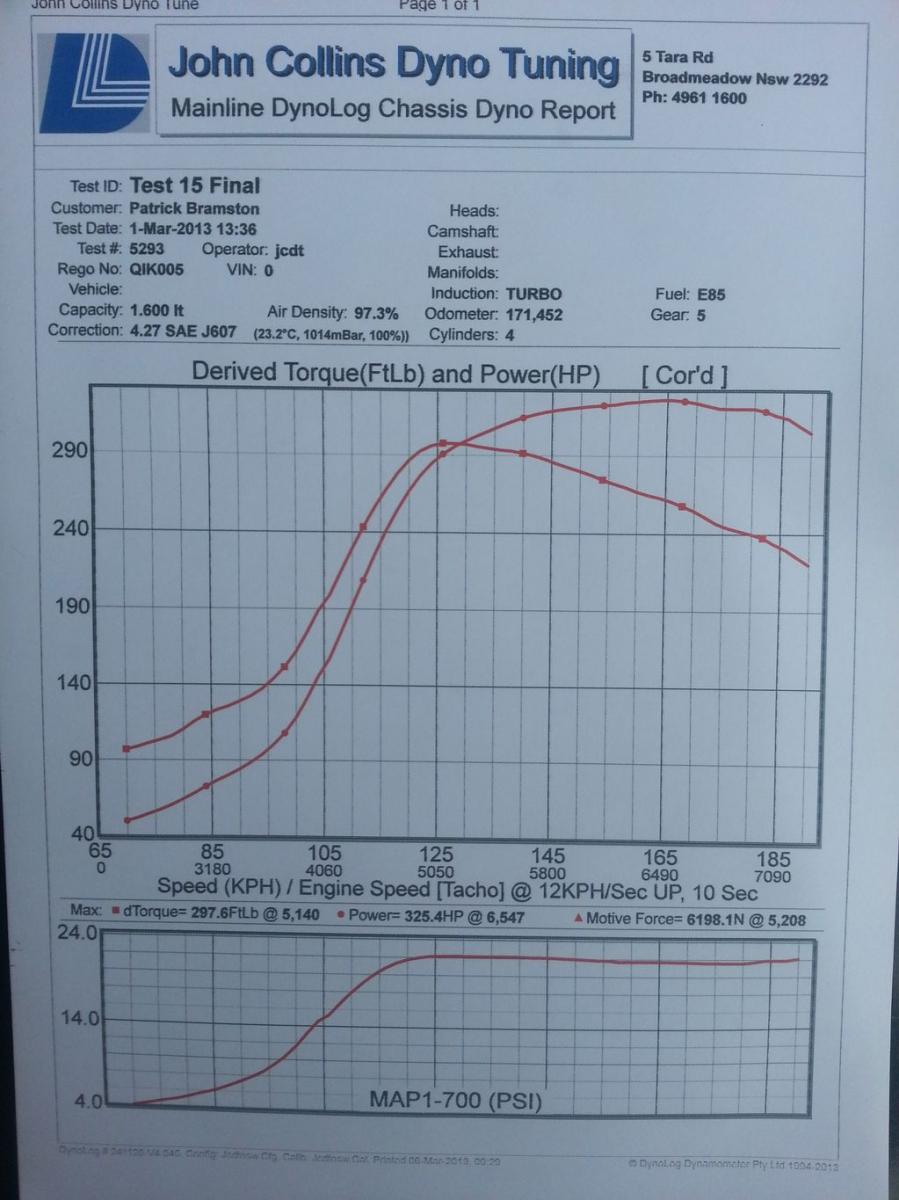

Here you go.

Whinge about this one. So did I win or what?

someone please post detailed ibstructiona on how to use ms2 to data log the right info for VD. Please.

Dann
Attached Thumbnails
1.6L 2560r record attempt-img_20130306_093359.jpg
nitrodann is offline   Reply With Quote
