1.6L 2560r record attempt - Page 29 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 03-05-2013, 06:50 PM   #561
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

The torque curve actually makes sense now. 'Congrats.

What about the .63 vs 4.27 CF?
18psi is offline   Reply With Quote
Old 03-05-2013, 07:10 PM   #562
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

just take a log of a 4th gear pull from 2K to redline. upload it.


man, that low-end sucks, reminds me of when I had a poorly tuned FMU/Bipes setup and I was dumping pig rich from using the wrong disc.




currently, my T3 journal bearing on *gasp* a log manifold makes better power down low than yours... Unsure about up top, considering we cannot still compare dynos

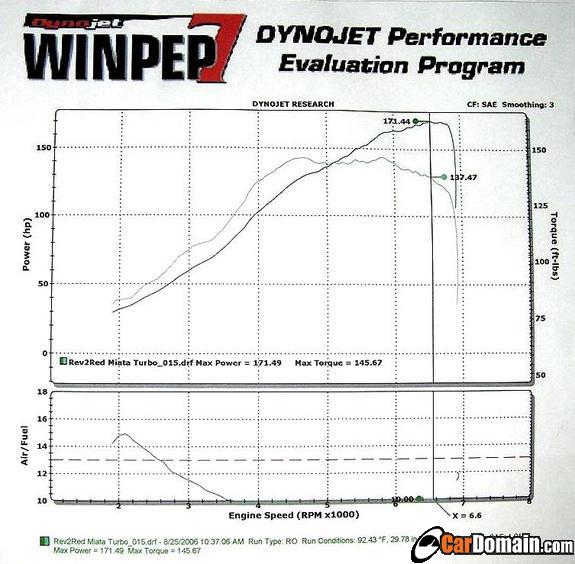

Attached Thumbnails
1.6L 2560r record attempt-2467397_21_full.jpg
Braineack is offline   Reply With Quote
Old 03-05-2013, 07:30 PM   #563
I'm Miserable!

Join Date: Apr 2010
Location: Alberta, Canada
Posts: 135
Total Cats: -23
Default

Quote:
Originally Posted by Braineack View Post
just take a log of a 4th gear pull from 2K to redline. upload it.


man, that low-end sucks, reminds me of when I had a poorly tuned FMU/Bipes setup and I was dumping pig rich from using the wrong disc.




currently, my T3 journal bearing on *gasp* a log manifold makes better power down low than yours... Unsure about up top, considering we cannot still compare dynos
Is this the old pig rich dyno or a current one? Comparing your posted dyno to Dann's new post they compare like this;

Dann 90 lb/ft @ 2200 rpm Brain 50lb/ft @ 2200 rpm
Dann 140 lb/ft @ 3500 rpm. Brain 80 lb/ft @ 3500
Dann190 lb/ft @ 4000. Brain 130lb/ft @4000 rpm

How exactly is he making less power down low than you?

Jim J
jimj64 is offline   Reply With Quote
Old 03-05-2013, 07:31 PM   #564
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

thats old one
18psi is offline   Reply With Quote
Old 03-05-2013, 08:44 PM   #565
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Why was it dyno'ed in 5th gear?
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-05-2013, 09:42 PM   #566
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Enable logging, shift to 3rd or 4th gear and floor it from 2k rpm up to redline. Then post the log here.
triple88a is offline   Reply With Quote
Old 03-05-2013, 10:23 PM   #567
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Quote:
Originally Posted by nitrodann View Post
Whinge about this one. So did I win or what?

someone please post detailed ibstructiona on how to use ms2 to data log the right info for VD. Please.

Dann
Dann,

I give you credit sir.

You've gotten a lot of chit and hate in this thread but you keep coming back and, well, sort of deliver the goods.

Thanks for not running off with your tail between your legs just because we are a bunch of second guessing grumpy emm effers.

It does seem like the turbo is taking abnormally long to spool though.

Keep at it

Efini~FC3S is offline   Reply With Quote
Old 03-05-2013, 10:41 PM   #568
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

I'd love to improve the spool. No reason that cannot be achieved street tuning. I'll get some data logs done and post Em and we can all speculate.

Dann
nitrodann is offline   Reply With Quote
Old 03-05-2013, 10:42 PM   #569
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Why was it dyno'ed in 5th gear?
It has a 6 speed.

Dann
nitrodann is offline   Reply With Quote
Old 03-06-2013, 12:24 AM   #570
I'm Miserable!

Join Date: Apr 2010
Location: Alberta, Canada
Posts: 135
Total Cats: -23
Default

Quote:
Originally Posted by sixshooter View Post
I just object to the possible restriction of flow on the vacuum side of the compressor.

Try to eliminate tight bends first, eliminate open bends second, and eliminate excess pipe length third, was how I believe I heard it years ago.
From post #84, rereading the early parts of the thread I'm wondering how much that long intake tube and heat from the rad (full of approx 200* f coolant, less dense air, flow restriction) will affect spool, maybe not at all, I honestly don't know, I'm just spitballing. Looking at the pics of the old log setup you had the air intake on the passenger side back by the cowl, sure it's still getting hot under hood air, but maybe its enough to affect spool? Have you considered

I only mention it because it appears that despite going from a log and more restrictive exhaust to a tubular manifold and full 3" exhaust with no cat, all mandrel bends etc you lost spool over the old setup when you should have gained at least a little in spool.

Jim J
jimj64 is offline   Reply With Quote
Old 03-06-2013, 12:45 AM   #571
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Did a 3rd gear 2000 onwards pull and a run from a dig but it was badly scrubbing. Anyway I'll get them up tonight.

Dann
nitrodann is offline   Reply With Quote
Old 03-06-2013, 02:49 AM   #572
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

If you're ripping up tires then add a gear.. pull on 4th.
triple88a is offline   Reply With Quote
Old 03-06-2013, 03:49 AM   #573
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

No whats happenning is because it has the wrong shocks and the biggest of the big huge tyres (17 semi slicks with like a 50 profile tyre) the tyres are pulling themselves forwards and into the guard, at the front not the top.

Its got about an inch static space.

Anyways, im trying to figure out how to upload these files and then we can all bag me out for being a noob

Dann
nitrodann is offline   Reply With Quote
Old 03-06-2013, 03:53 AM   #574
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Ok uploaded them, I havnt even viewed these yet, one is a 3rd gear pull from 2000ish, needs work on the tune down this low (not tuned at all down here since the last setup).

One is a run through a few gears from a dig and the other is the MSQ.



Dann
Attached Files
File Type: msl 3rd gear.msl (114.1 KB, 57 views)
File Type: msl dig.msl (217.5 KB, 72 views)
File Type: msq pats car start 06032013.msq (89.3 KB, 60 views)
nitrodann is offline   Reply With Quote
Old 03-06-2013, 04:04 AM   #575
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

To help, its an NA6 with full dashboard weight but no speakers or radio, 2 seats, 200kg of passengers, 17x9s with 50 profile tyres, rollbar and front leg on the rollbar, half tank of fuel, carpet and windows etc intact.

No AC or PS.

Dann
nitrodann is offline   Reply With Quote
Old 03-06-2013, 04:12 AM   #576
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

So what weight does that add up to?
triple88a is offline   Reply With Quote
Old 03-06-2013, 04:17 AM   #577
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

No idea haha.

1150-1200 kg, ... google dont fail me...... Plus fluids

2650 lb + fluids.

Dann
nitrodann is offline   Reply With Quote
Old 03-06-2013, 09:15 AM   #578
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by jimj64 View Post
How exactly is he making less power down low than you?

Jim J
well that's a really old dyno from 2006, but it's done on a dynojet so you know it was accurate and not bloated.


Dann, what injectors is it running?

Last edited by Braineack; 03-06-2013 at 09:27 AM.
Braineack is offline   Reply With Quote
Old 03-06-2013, 09:26 AM   #579
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Not sure I understand what you are insinuating.

Dann
nitrodann is offline   Reply With Quote
Old 03-06-2013, 09:32 AM   #580
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by nitrodann View Post
Not sure I understand what you are insinuating.

Dann
Just saying that dyno jets are a known commodity. If the dyno has the weather station on and isnt at a super high altitude all dynojets will read pretty much the same independent of the weather.
Leafy is offline   Reply With Quote
