thanks for the intput guys, i removed all of the resin, not hard, just tedious...
i used a variety grinding stones and a drill, ill post pics later the computer im behind feels like 56K
but it was successful
lazzer-reason im keeping the factory harness is to be able to go back at any given time in case of anything happening and not having to cut any wires, etc.

one thing-could we get a list of good part numbers started, kinda like the PnP injector list from Scott? I think that could save everyone (including me) some time...
-'of to the junk yard'
Zabac is offline   Reply With Quote
Old 12-31-2007, 04:43 PM   #842
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by lazzer408 View Post
Why are you guys trying to save the original plugs/connectors?
Plug and play > you.

I don't chop up wiring in a car. Instead I find a plug or another harness that I can use to splice in. Plus not everyone wants to hassle with trying to splice into their factory shizzle. Ease of installation is very big in my book.
elesjuan is offline   Reply With Quote
Old 12-31-2007, 05:43 PM   #843
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

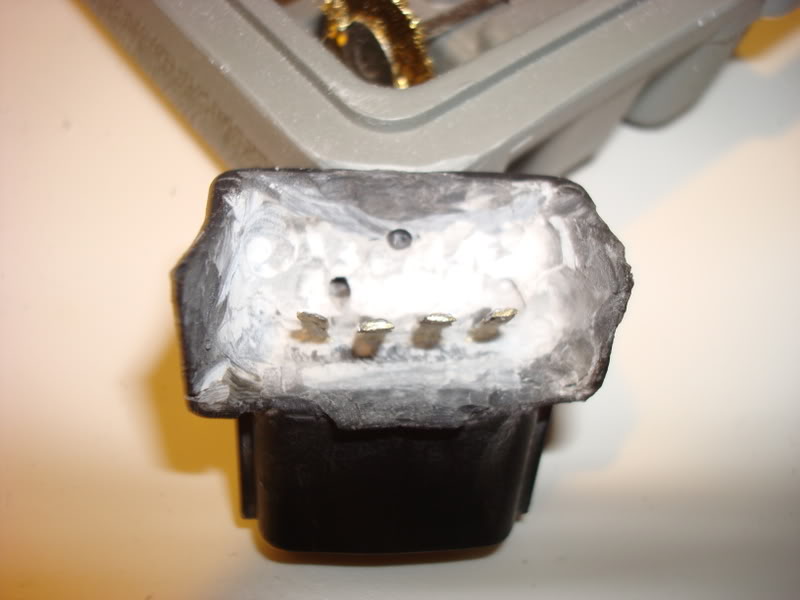

ok, here are those pics, now i just need to solder wires to the pins and then solder those wires to the toyota coils plugs thingys and call it a day...
BTW- i had absolutely no luck finding those coils anywhere today at any of the local junk yards, so i suppsoe car-partdotcom it is...
Name:  COPs001.jpg
Views: 4
Size:  48.8 KB
and more here
http://i134.photobucket.com/albums/q...k3/COPs002.jpg
http://i134.photobucket.com/albums/q...k3/COPs003.jpg
hope this helps can help someone...
Zabac is offline   Reply With Quote
Old 12-31-2007, 07:23 PM   #844
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by whaaamx5 View Post
ok, here are those pics, now i just need to solder wires to the pins and then solder those wires to the toyota coils plugs thingys and call it a day...
BTW- i had absolutely no luck finding those coils anywhere today at any of the local junk yards, so i suppsoe car-partdotcom it is...

and more here
http://i134.photobucket.com/albums/q...k3/COPs002.jpg
http://i134.photobucket.com/albums/q...k3/COPs003.jpg
hope this helps can help someone...

Hey you know what, it'll work! Just make sure you clean the terminals before soldering the wires onto them, then obviously some heatshrink. I bet if you solder it well you'll have zero failure.
elesjuan is offline   Reply With Quote
Old 01-01-2008, 02:55 AM   #845
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by elesjuan View Post
Plug and play > you.

I don't chop up wiring in a car. Instead I find a plug or another harness that I can use to splice in. Plus not everyone wants to hassle with trying to splice into their factory shizzle. Ease of installation is very big in my book.
So ease of install and easy to undo I take it. I -was- trying to go that route but after having so many wiring mods done I gave up trying to keep track of it all. Under the hood you wouldn't be able to tell. I hard wire when I can to eliminate the chance of a bad connection.

I'm impressed with everything people have come up with to get it working.
lazzer408 is offline   Reply With Quote
Old 01-02-2008, 01:08 AM   #846
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

shameless ego boost

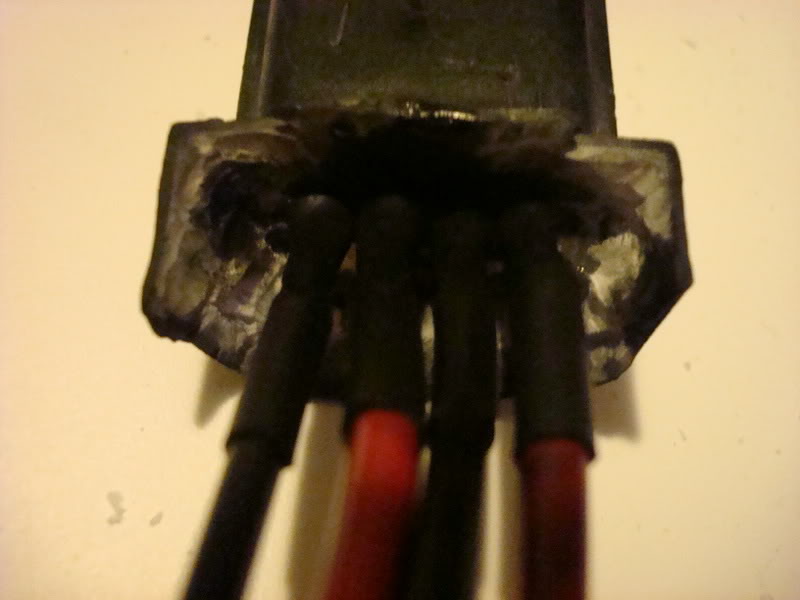

Name:  COPsharnesswires002.jpg
Views: 4
Size:  48.9 KB
-this is for the 94-95 only, other years are similar but not the same-
i cleaned the terminals since they had some lead/tin on them
in my process, in case anyone wants to do the same, here is what i did
1. cut off the plug of the dead coils i had (thanks Paul) and remove all the epoxy around the terminals like this

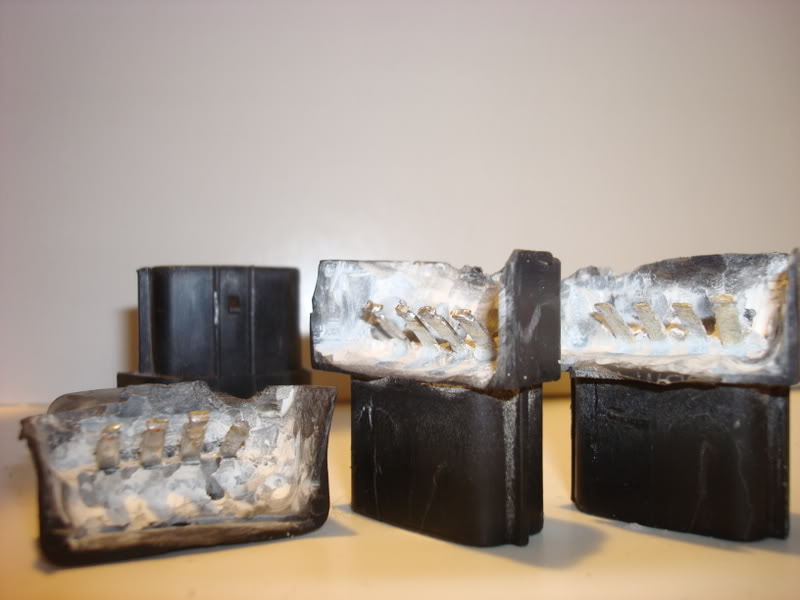

Name:  COPs002.jpg
Views: 4
Size:  54.5 KB
2. clean the terminals, and covered them with a light layer of soldering wire
3. got some 12 gauge wire for power and ground and some 14 gauge for tach and trigger
4. cover the exposed wire with light layer of soldering wire
5. solder it all together (you have to be very careful when doing this and make sure you have a good safe connection)
6. wrap it all with heat shrink

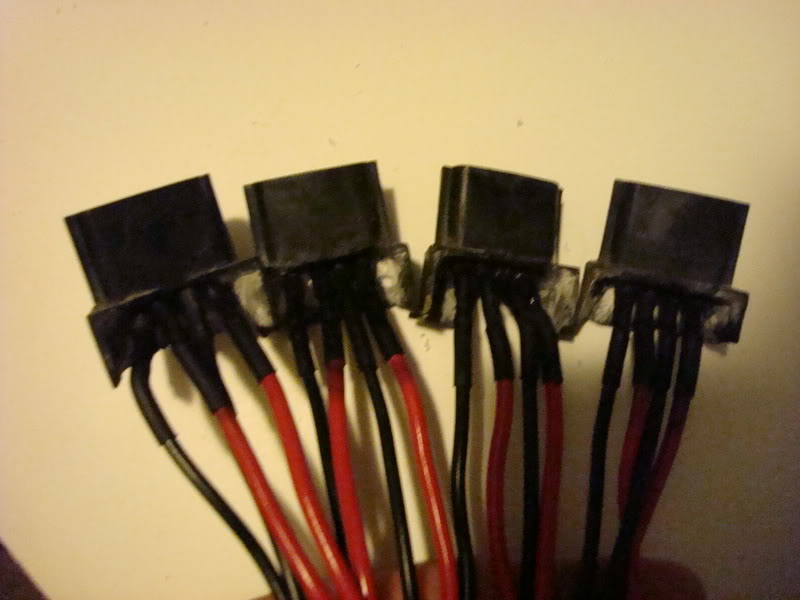

Name:  COPsharnesswires001.jpg
Views: 4
Size:  59.8 KB

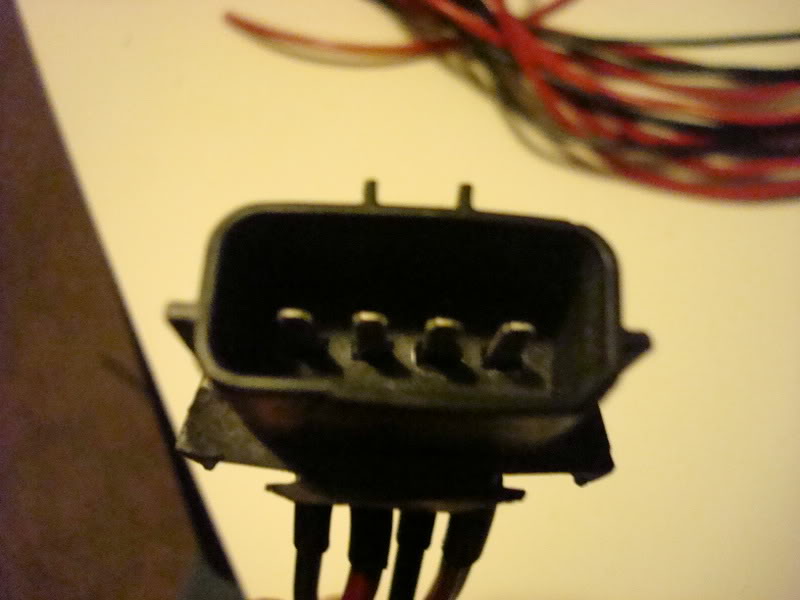

the order of the pins looking at below pic left to right is
-trigger-ground-tach-power
Name:  COPsharnesswires003.jpg
Views: 4
Size:  53.2 KB
any questions or critique, please dont hesitate
next, i plan on scoring some COPs with their respective harenesses with wires cut and just solder it in to the wires pairing 1&4 and 2&3 and then make it look pretty with black spiral wrap thingy...
hope everyone likes
Zabac is offline   Reply With Quote
Old 01-02-2008, 01:21 AM   #847
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Excellent!
elesjuan is offline   Reply With Quote
Old 01-02-2008, 01:23 AM   #848
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

thank you thank you
can we get a 'brush your shoulder of' smiley? lol
Zabac is offline   Reply With Quote
Old 01-02-2008, 03:32 AM   #849
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Even with my horrendous headache after killing my car, I got Brad's cops up and running. Idle is much smoother and random misses in boost are gone.
Braineack is offline   Reply With Quote
Old 01-02-2008, 03:48 AM   #850
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I'm still waiting for my connector shells to arrive, then I should be golden. Have to build the harness, but wanted them to come first. Hopefully they'll be here this week, I'm anxious to get some cold start settings tweeked on my car.
elesjuan is offline   Reply With Quote
Old 01-02-2008, 11:16 PM   #851
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

I've been in comunication with Rustin over at Boomslang and we've been discussing what would be involved to make a production PnP harness for the cop conversion. I'll be sending them the schematics and connector samples and possibly a mock-up harness so the length will be correct. He feels it shouldn't be too involved. It isn't. =)

Before I do, does anyone have any suggestions or recomendations to the design? Should there be extra slack? Just enough? Which way is easiest for the coils to be facing? Connector towards exhaust or towards intake? Should they bother putting the harness in a split-loom or leave that to the installer?

Let me know.
Thanks
lazzer408 is offline   Reply With Quote
Old 01-02-2008, 11:46 PM   #852
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

Might want to leave slack since some of the COPS used have angled plugs and some have straight plugs.
soflarick is offline   Reply With Quote
Old 01-03-2008, 02:26 AM   #853
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Should the individual coil leads be long enough to tuck the bulk of the harness down by the injectors with the 4 wires running up to the coils or just lay over the valvecover with the rest of it?
lazzer408 is offline   Reply With Quote
Old 01-03-2008, 08:10 AM   #854
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by lazzer408 View Post
Should the individual coil leads be long enough to tuck the bulk of the harness down by the injectors with the 4 wires running up to the coils or just lay over the valvecover with the rest of it?
I saw one with the harness down by the injectors (I don't know who's I think it was Paul's) and it looked fantastic!

Happy 2008 lazzer and once again many thanks!
Rafa is offline   Reply With Quote
Old 01-03-2008, 09:13 AM   #855
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by whaaamx5 View Post
1. cut off the plug of the dead coils i had (thanks Paul) and remove all the epoxy around the terminals like this
Thank you Mr. Acavano!



Quote:
Originally Posted by Spaniard View Post
I saw one with the harness down by the injectors (I don't know who's I think it was Paul's) and it looked fantastic!

Happy 2008 lazzer and once again many thanks!
Paul's looked like this:

I hardwired them in because like everyone else I couldn't find the connectors and I didn't have any bad coil packs to gut. At first i tested by just using pins(modified male spades to fit) inserted into the factory plugs to make sure it worked before the point of no return. This is also on a car that is far from stock and will never be returned to anything near stock.
paul is offline   Reply With Quote
Old 01-03-2008, 11:43 AM   #856
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

No, No, No ! Thank YOU, Mr Acavano! lols
wise guys

still looks good paul, im still trying to hunt down some COPs
Zabac is offline   Reply With Quote
Old 01-03-2008, 12:06 PM   #857
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

i am using 90919-02234. **** IT'S COLD OUT!

just a heads-up. i have a set of 90919-02244 that I first bought and they have 2 raised rings on them that prevent them from going down into the spark plug well. at least on my 99 heads. I believe I can just modify them by dremeling off that ring and they should fit fine. didn't want to attempt that for the first install though so I picked up the 34's from a fellow member.

other part numbers used(i think):

90080-19015
90919-02239
90080-19023

I know someone asked about a list of part #'s that work. is there one yet? if not we should have a sticky just for that or Scott can do like the injector PNP page. I can confirm that 90919-02234 work with no modifications and dwell settings of 3.5 cranking/2.5 running. the connectors #90980-11885 from Toyota fit as do the pins scott sells with the modifications he prescribes.

this page is definitely a daunting read so I think a summary would be AWESOME for those wanting to attempt. The typical "go search" response doesn't help much when you are facing a 45 page thread
paul is offline   Reply With Quote
Old 01-03-2008, 12:24 PM   #858
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

agreed, i was the one to suggest that lol
it can save lots of peoples time...maybe it can get done and everyone running COPs can add their set up so people know what is already being used and ask those users questions about dwell settings etc.
Zabac is offline   Reply With Quote
Old 01-03-2008, 12:31 PM   #859
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

there's already a how-to page....in the archives.


https://www.miataturbo.net/forum/sho...d.php?p=152397
Braineack is offline   Reply With Quote
Old 01-03-2008, 12:47 PM   #860
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

oops. well add my part number to the list of known working coils 90919-02234

and how bout dwell settings too?

Last edited by paul; 01-03-2008 at 12:58 PM.
paul is offline   Reply With Quote
