Old 02-28-2008, 02:43 PM   #1001
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

that does look like it will simplify it a bit, im not doing it though, ill stick with what i have already
this, i would say, is a very good alternative to the guy who doesnt have a bunch of dead coils like i did to make a harness out of
Zabac is offline   Reply With Quote
Old 02-28-2008, 03:46 PM   #1002
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by orion4096 View Post
I bought a spare 96/97 engine harness to see what it would take to make a plug and play COPs setup from the square 4 pin connector. After removing the tape to separate it from the injector harness it looks like it'll work real well. The only minor thing is that it sources ground after the connector.

Interesting. I thought blue was hot only in ACC and RUN, not Crank.
Saml01 is offline   Reply With Quote
Old 02-28-2008, 05:57 PM   #1003
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Quote:
Originally Posted by Saml01 View Post
Interesting. I thought blue was hot only in ACC and RUN, not Crank.
Ya. I was expecting white/black for power given what's in the 97 wiring diagrams. The other end of the 4 pin connector in my car has a white/black wire.
orion4096 is offline   Reply With Quote
Old 02-28-2008, 09:17 PM   #1004
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

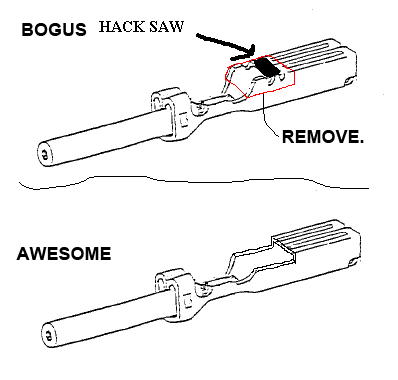

FYI Guys. Since I dont have a dremel I couldnt do the mod to the contacts that Braineack recommends in the archive. Chad recommended I just hack saw the end and bend the contacts down. It was simpler then that, I hack sawed and the contact just crumbled away. Hacking away just what is pictured made a perfect fit in the factory connectors.
Attached Thumbnails
COP Thread-cop_pin_mod.gif
Saml01 is offline   Reply With Quote
Old 02-29-2008, 12:21 AM   #1005
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

Quote:
Originally Posted by orion4096 View Post
I bought a spare 96/97 engine harness to see what it would take to make a plug and play COPs setup from the square 4 pin connector. After removing the tape to separate it from the injector harness it looks like it'll work real well. The only minor thing is that it sources ground after the connector.

http://i154.photobucket.com/albums/s264/orion4096/IMG_0696.jpg[/img]
What's the part number on the connector to the coil pack?
iWeasel410 is offline   Reply With Quote
Old 02-29-2008, 10:32 AM   #1006
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default 4k update

Have almost 4k on the coils now. Interesting update.
Lately it's also not really had the pull I expected at 10+ psi, but mentally I attributed it to the shitty gas blend we got this winter, and my subsequent reduction of timing in boost. Yesterday I entered an illegal contest of speed, and got some misfires at higher boost. Ignition break up at high load is almost always spark plugs, so I picked up a new set on my way home.

Went to intall the new plugs after dinner. Pulled the old ones out, and the business end of them looked perfect, great color, square and straight electrodes. But the top end that meets the coil was fouled with black deposits. I pulled them out and cleaned them with a wire brush on a cordless and put them back in. Car takes off like a rocket again through 15 psi.

A co-worker of mine said he's noticed the same thing with his Toyo coils, and cleans the tops of his plugs periodically.
Ben is offline   Reply With Quote
Old 02-29-2008, 10:39 AM   #1007
Senior Member
iTrader: (14)

Join Date: Aug 2007
Location: Buffalo, NY
Posts: 734
Total Cats: 1
Default

Quote:
Originally Posted by Ben View Post

A co-worker of mine said he's noticed the same thing with his Toyo coils, and cleans the tops of his plugs periodically.
Are you using dielectric grease?
deliverator is offline   Reply With Quote
Old 02-29-2008, 10:50 AM   #1008
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Not previously, but from now on.
Ben is offline   Reply With Quote
Old 02-29-2008, 11:02 AM   #1009
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

great update Ben, safe to say its a must from now on for everyone...i never used it before, but sure will now
Zabac is offline   Reply With Quote
Old 03-01-2008, 09:21 AM   #1010
Junior Member
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Jason, any updates on your project to correct the dwell?
jrmotorsports55 is offline   Reply With Quote
Old 03-01-2008, 09:50 AM   #1011
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Ben View Post
...the top end that meets the coil was fouled with black deposits. I pulled them out and cleaned them with a wire brush on a cordless and put them back in. Car takes off like a rocket again through 15 psi.

A co-worker of mine said he's noticed the same thing with his Toyo coils, and cleans the tops of his plugs periodically.
Is it arking to the top of the plug? You don't suppose one of the springs in the cop is missing or squished do you? I forgot if I ever mentioned that I filed the edges of the round plastic area of the cop just above the rubber seal. It was touching the 'cam humps' of my valve cover. Do you have a caliper to measure the plug depth and verify it's making contact?
lazzer408 is offline   Reply With Quote
Old 03-01-2008, 11:33 AM   #1012
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by jrmotorsports55 View Post
Jason, any updates on your project to correct the dwell?
https://www.miataturbo.net/forum/sho...t=toyota+dwell

bam.
y8s is offline   Reply With Quote
Old 03-02-2008, 09:48 AM   #1013
Junior Member
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Quote:
Originally Posted by y8s View Post
I was actually looking for updates on a circuit he is building for those running stock ECUs that cannot adjust dwell times. I have a 99, and don't want to burn out the Toyota COPs.

Thanks,

Jason
jrmotorsports55 is offline   Reply With Quote
Old 03-02-2008, 01:20 PM   #1014
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

oh my bad i missed the "correct the" in you request. i blame beers.
y8s is offline   Reply With Quote
Old 03-02-2008, 01:29 PM   #1015
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

This is bullshit. I put in my coils yesterday, wired them up as per the archive thread. Try to fire it up and nothing. Just floods. I started with my working MSQ and only changed the dwell and it didnt start. Then I tried fiddling with the dwell settings, crank settings, ASE settings and nothing helps. It sounds like its about to finally start and doesnt. I get spark on all four coils as well. At this point I am waiting to get my other set of weatherpacks to wire the factory coils back in and see what happens. This is really upsetting me and I have no idea what else to try.
Saml01 is offline   Reply With Quote
Old 03-02-2008, 02:28 PM   #1016
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Triggers reversed?
lazzer408 is offline   Reply With Quote
Old 03-02-2008, 06:45 PM   #1017
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by lazzer408 View Post
Triggers reversed?
Cranking PW's too high.

I started the car flawlessly with new spark plugs and the old coils, let the engine warm up to operating temperature, swapped the toyota COPS back in and it started on the first shot.

I think it has to do with the fact that the COP's require much lower cranking PW's then the factory coils.

Its funny, but I would think with their more powerful spark the car would start even faster with the additional fuel required for the factory coils.

Anyway, I cut down all the PW's by 2ms in the 80-60-40 range and ill see tomorrow what happens.

Edit: Arkmage experienced the same starting problems I did when he switched over to COP's. I just remembered. I gotta see what cranking PW's he settled on.

Oh and the dwell settings def play a big role in the warmth of the coils. running 4.0 vs 2.5 was a big difference to the touch, ON A HOT ENGINE.

edit 2: I did learn something great from this whole ordeal. I changed my spark plugs for the first time ever,I was scared shitless the whole time but Chad was holding my hand.
Saml01 is offline   Reply With Quote
Old 03-02-2008, 10:46 PM   #1018
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

What do you guys do with your wire coming off the COP's?

I wrapped mine in electrical tape, and its ok, but I wish it looked a little bit better.
Saml01 is offline   Reply With Quote
Old 03-02-2008, 11:03 PM   #1019
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Oh, and did you guys wind up changing your Cranking PW's after changing over to COP's?
Saml01 is offline   Reply With Quote
Old 03-02-2008, 11:54 PM   #1020
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

I don't know wtf a cranking PW is. lol. Is that a MS thing? Is PW pulse width? What is the pulse width when the engine is running? Set it to that. I would imagine it's the same as your dwell. I don't think I have that in the ems.

I wrapped my wires in electrical tape. It almost looks oem. You could toss some split loom tubing over it. Maybe you could cut notches in the mounting plate and hide the harness under it. =)
lazzer408 is offline   Reply With Quote
