Old 02-26-2008, 12:08 PM   #981
Junior Member
iTrader: (1)

Join Date: Dec 2007
Location: Los Angeles
Posts: 143
Total Cats: 2
Default

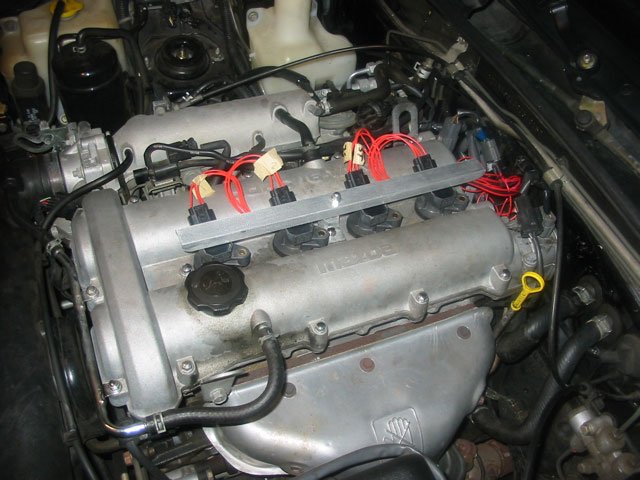

I just fired up my COP conversion for the first time. OE ECU, 01 Celica GT coils, new Toyota connectors, and harness connectors hacked off the back of my dead OE coils. Started immediately, good tach signal, nice even idle.

I did the mounting a little differently. I used some aluminum U-channel we had lying around, plus a bracket made from .125" aluminum flat stock. The bracket bolts to the center valve cover bolt, then the U-channel is held onto the the bracket using a 10mm nut and bolt. There's nothing to keep the packs from rotating, other than the pressure from the U-channel, which is enough that they can't be moved by hand when snugged down.

Great writeup, thanks all!
Attached Thumbnails
COP Thread-cop.jpg
thebeerbaron is offline   Reply With Quote
Old 02-26-2008, 01:19 PM   #982
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Nice, I like the bar - I almost did something like that myself. Heck, you could use wing nuts to keep the coilpacks "hand removable", like in a normal car. :-)

No, I tapped the plate with a $2 tap from my FLAPS. I was worried it would be too thin, but it worked out. It's only a thread or two deep, but it works better than I would have expected. So my plate is flat on bottom up to my ability to cut my bolts to the right length.
AbeFM is offline   Reply With Quote
Old 02-26-2008, 02:13 PM   #983
Newb

Join Date: Oct 2007
Posts: 14
Total Cats: 0
Default

looks good, this thread has helped out a lot.
Stig is offline   Reply With Quote
Old 02-26-2008, 03:14 PM   #984
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by AbeFM View Post
Nice, I like the bar - I almost did something like that myself. Heck, you could use wing nuts to keep the coilpacks "hand removable", like in a normal car. :-)

No, I tapped the plate with a $2 tap from my FLAPS. I was worried it would be too thin, but it worked out. It's only a thread or two deep, but it works better than I would have expected. So my plate is flat on bottom up to my ability to cut my bolts to the right length.
Thats pretty smart.

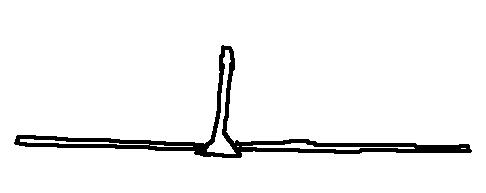

Mine sits flush as well, I just used a drill bit almost the same diameter as my flat head bolts and they tucked into the bracket.
Attached Thumbnails
COP Thread-untitled.jpg
Saml01 is offline   Reply With Quote
Old 02-26-2008, 03:31 PM   #985
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Uh huh, that was Braineak's claim as well. I'm sure it's fine, too, since there IS a gap down there. But what I don't like about it is that (it seems? Correct me if I'm wrong) to get the coils off you have to pull the plate, since there's nothing to keep the flatheads from turning.

Anyway, for all the care I put into making it, I did it upside down so my plate sticks past the back of the engine and has a gap at the front. I would concider doing a bar on the top next time, though I'm happy with what I got.

Actually, maybe I'll look at just tapping the valve cover itself next time. It's thicker, clean, and already there. I wonder if it would leak?
AbeFM is offline   Reply With Quote
Old 02-26-2008, 03:38 PM   #986
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
Actually, maybe I'll look at just tapping the valve cover itself next time. It's thicker, clean, and already there. I wonder if it would leak?
That is what I plan to do.. Probably just put a little loctite blue on the threads to act as a sealant.
M-Tuned is offline   Reply With Quote
Old 02-26-2008, 03:42 PM   #987
Junior Member
iTrader: (1)

Join Date: Dec 2007
Location: Los Angeles
Posts: 143
Total Cats: 2
Default

you wouldn't have to drill all the way through the valve cover - you could in fact drill part way down, tap, and thread a stud. that would leave you the opportunity to use a wing-nut on top of the coil for that easy-to-remove juicy goodness.
thebeerbaron is offline   Reply With Quote
Old 02-26-2008, 03:48 PM   #988
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Quote:
Originally Posted by thebeerbaron View Post
you wouldn't have to drill all the way through the valve cover - you could in fact drill part way down, tap, and thread a stud. that would leave you the opportunity to use a wing-nut on top of the coil for that easy-to-remove juicy goodness.
It's thick, but not THAT thick. You'd be lucky to get two threads in. Still, I like the idea. The easiest thing to do would be to put a nut on the outside to lock it on, but if you have big nuts (pardon the pun) you could put a nut on the backside to hold it in.

Or a partially threaded rod. Ooooooo.... I need a lathe. Then it would go in like a bolt, and you could put a wingnut on top.

But practically, my 10mm nut driver works great.
AbeFM is offline   Reply With Quote
Old 02-26-2008, 04:07 PM   #989
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by AbeFM View Post
Uh huh, that was Braineak's claim as well. I'm sure it's fine, too, since there IS a gap down there. But what I don't like about it is that (it seems? Correct me if I'm wrong) to get the coils off you have to pull the plate, since there's nothing to keep the flatheads from turning.

Anyway, for all the care I put into making it, I did it upside down so my plate sticks past the back of the engine and has a gap at the front. I would concider doing a bar on the top next time, though I'm happy with what I got.

Actually, maybe I'll look at just tapping the valve cover itself next time. It's thicker, clean, and already there. I wonder if it would leak?
Interesting enough you're idea is probably simpler then mocking up a bracket. Just mark the holes for the studs with a hammer and a nail, drill and tap. Granted, that is if you don't have to pull the valve cover to get the shavings.

Slick idea, but I don't think id go that route. I prefer reversibility.

I don't have to pull the plate to get my cops off and my studs dont turn either. I used a nut to secure the bolt(stud) to the plate. Put some loctite on it too, its never going to turn.

http://x024.uploaderx.net/x/172_1203896833.jpg

Last edited by Saml01; 02-26-2008 at 04:19 PM.
Saml01 is offline   Reply With Quote
Old 02-26-2008, 05:01 PM   #990
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I drilled and tapped an 1/8" aluminum plate. Used JB Weld on the threads and the backside of the plate.

some of you people over thing this **** too much.
jayc72 is offline   Reply With Quote
Old 02-26-2008, 10:05 PM   #991
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

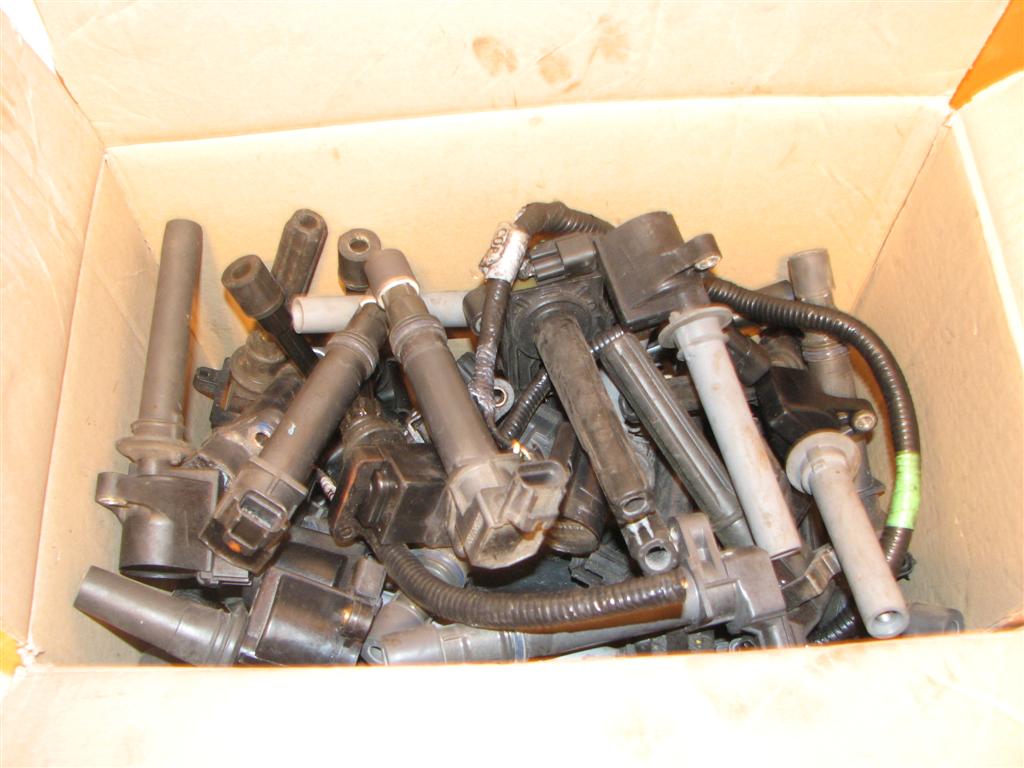

My cops bring all the boys to the yard.

Btw. Watch for a thread in the next few days for an interesting announcement if all goes as I plan.
Attached Thumbnails
COP Thread-img_3017-large-.jpg

Last edited by Saml01; 02-26-2008 at 10:26 PM.
Saml01 is offline   Reply With Quote
Old 02-26-2008, 10:30 PM   #992
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

I see a few that'll work. Have a good day at the junkyard?
lazzer408 is offline   Reply With Quote
Old 02-26-2008, 10:32 PM   #993
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Curious to see that one. I know at least a few of those are high current switched, not 'triggered' ones like everyone is so fond of....
AbeFM is offline   Reply With Quote
Old 02-26-2008, 10:34 PM   #994
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,040
Total Cats: 407
Default

converting your dual plug 16 cylinder to COP?
y8s is offline   Reply With Quote
Old 02-26-2008, 10:54 PM   #995
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by lazzer408 View Post
I see a few that'll work. Have a good day at the junkyard?
Nooooooooooo
Saml01 is offline   Reply With Quote
Old 02-26-2008, 11:42 PM   #996
Junior Member

Join Date: Mar 2006
Location: Sydney Australia
Posts: 138
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
It's thick, but not THAT thick. You'd be lucky to get two threads in. Still, I like the idea. The easiest thing to do would be to put a nut on the outside to lock it on, but if you have big nuts (pardon the pun) you could put a nut on the backside to hold it in.

Or a partially threaded rod. Ooooooo.... I need a lathe. Then it would go in like a bolt, and you could put a wingnut on top.

But practically, my 10mm nut driver works great.
I used threaded rod tapped into a spare valve cover. a nut on the topside locks the rod in place. Topped off with some dome capped nuts, makes it look like the rest of the valve cover ones.

Pics to follow soon.

Cheers
Nuno
ampz is offline   Reply With Quote
Old 02-28-2008, 01:10 AM   #997
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

I bought a spare 96/97 engine harness to see what it would take to make a plug and play COPs setup from the square 4 pin connector. After removing the tape to separate it from the injector harness it looks like it'll work real well. The only minor thing is that it sources ground after the connector.

orion4096 is offline   Reply With Quote
Old 02-28-2008, 01:57 AM   #998
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

Orion, I didn't realize that the square plug was actually the other end of the 2 coilplugs. This really simplifies the COP harness in my mind. Thanks.
jasonrobo02 is offline   Reply With Quote
Old 02-28-2008, 02:06 AM   #999
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Well there goes all the engine harnesses for Miatas. lol
lazzer408 is offline   Reply With Quote
Old 02-28-2008, 02:32 PM   #1000
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Quote:
Originally Posted by ampz View Post
I used threaded rod tapped into a spare valve cover. a nut on the topside locks the rod in place. Topped off with some dome capped nuts, makes it look like the rest of the valve cover ones.

Pics to follow soon.

Cheers
Nuno
yeah, I want to see this!!
AbeFM is offline   Reply With Quote
