Old 06-03-2008, 06:06 PM   #1101
Newb
iTrader: (2)

Join Date: Nov 2007
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post

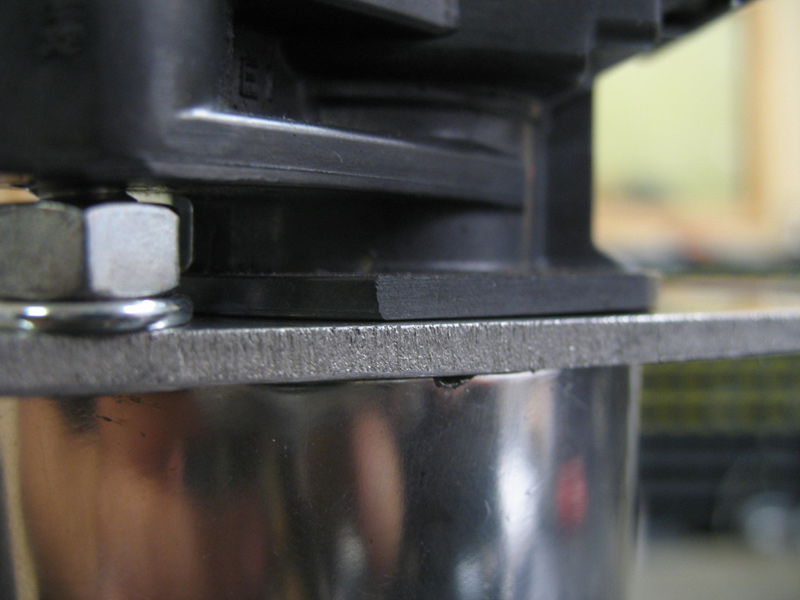

That is not at all un-nice. Do you have any pics of the bottom of the plate (i.e. how far down does the screw head protrude)? What's the material, how thick?

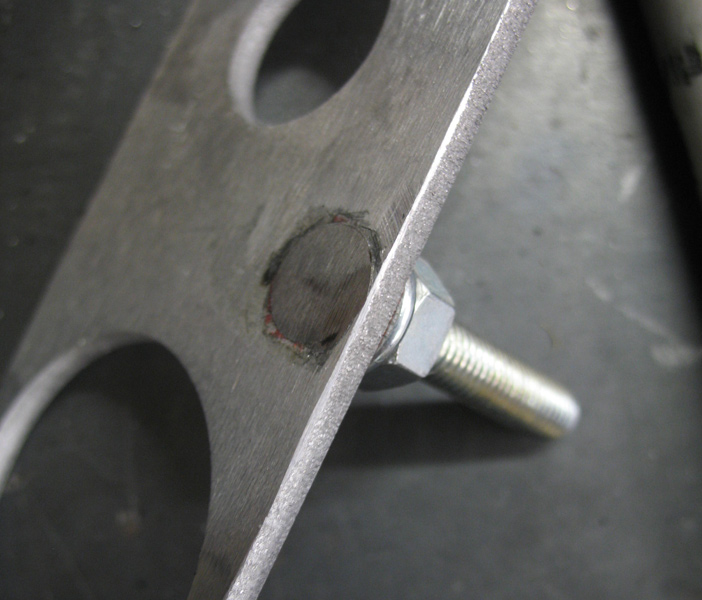

The plate was cut on a waterjet out of 1/8th" Aluminum then polished. The plate lies in the recess below the center three valve cover bolts to allow the COPs to drop as far into the head as possible. The “studs” are made from bolts that are held with a nut, lock washer and red Loctite. Once in place the head of the bolts are sanded flat.
Attached Thumbnails
COP Thread-bbb.jpg   COP Thread-aaa.jpg
spestis is offline   Reply With Quote
Old 06-03-2008, 06:20 PM   #1102
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Very, very nice. :-) Why bolts and not panheads? Guess it doens't matter, anyway.
AbeFM is offline   Reply With Quote
Old 06-03-2008, 08:22 PM   #1103
Newb
iTrader: (2)

Join Date: Nov 2007
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
Very, very nice. :-) Why bolts and not panheads? Guess it doens't matter, anyway.
Yeap, I just had the bolts in a bin at my shop.
spestis is offline   Reply With Quote
Old 06-04-2008, 02:27 PM   #1104
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

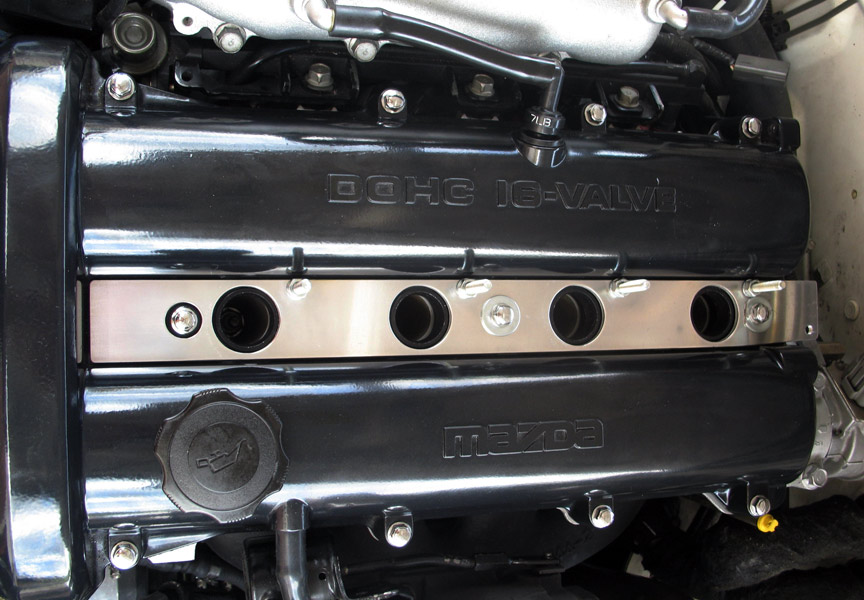

Do you have one more pic, showing how the end of the plate clears the cam belt cover/bulge?
AbeFM is offline   Reply With Quote
Old 06-04-2008, 02:34 PM   #1105
Newb
iTrader: (2)

Join Date: Nov 2007
Posts: 32
Total Cats: 0
Default

Sure.
Attached Thumbnails
COP Thread-ccc.jpg
spestis is offline   Reply With Quote
Old 06-04-2008, 02:39 PM   #1106
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Why is there no washer on the front bolt? Would you like to join my international brotherhood of morning for all the broken miata dipsticks in the world?

I need coffee... Anyway, thanks for the pic.
AbeFM is offline   Reply With Quote
Old 06-04-2008, 05:55 PM   #1107
Newb
iTrader: (2)

Join Date: Nov 2007
Posts: 32
Total Cats: 0
Default

The images were taken during construction. I have all three washers in place now. That is my third and last dipstick!
spestis is offline   Reply With Quote
Old 06-04-2008, 06:00 PM   #1108
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I lived with a broken one forever, maybe two years. Finally, I bought one. Then two days later, a friend broke that one. I lived with that for another year or two.

Now I bought another one, and I only have it on when the turbo heat sheild is in place, and I swap it for a broken one any time I'm working in the engine bay.

A friend has a metal one which I'm quite a fan of.....
-Abe.
AbeFM is offline   Reply With Quote
Old 06-11-2008, 06:38 PM   #1109
Junior Member

Join Date: Sep 2007
Location: Brisbane, Australia
Posts: 58
Total Cats: 0
Default

spestis,

Are those plates available for sale. I'm pretty sure I saw someone doing a kit but can't find it now...

Yep, I searched...
Fra66L is offline   Reply With Quote
Old 06-11-2008, 06:39 PM   #1110
Junior Member

Join Date: Sep 2007
Location: Brisbane, Australia
Posts: 58
Total Cats: 0
Default

Ooops.. If, how much?
Fra66L is offline   Reply With Quote
Old 06-15-2008, 09:25 PM   #1111
Newb
iTrader: (2)

Join Date: Nov 2007
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by Fra66L View Post
Ooops.. If, how much?
The plates are $25 shipped within the US. It will be raw: un-polished un-tapped. You can paint it, brush it with a scotchbite pad (for a brushed look), or polish it with Mothers Mag & Aluminum Polish.
spestis is offline   Reply With Quote
Old 06-16-2008, 04:30 AM   #1112
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Hey I'd like to make some of those from electro-deburred and electropolished stainless. It would be a mirror finish if someone wants to send over some plans. Maybe we can work together on it.
TravisR is offline   Reply With Quote
Old 06-16-2008, 03:19 PM   #1113
Newb
iTrader: (2)

Join Date: Nov 2007
Posts: 32
Total Cats: 0
Default

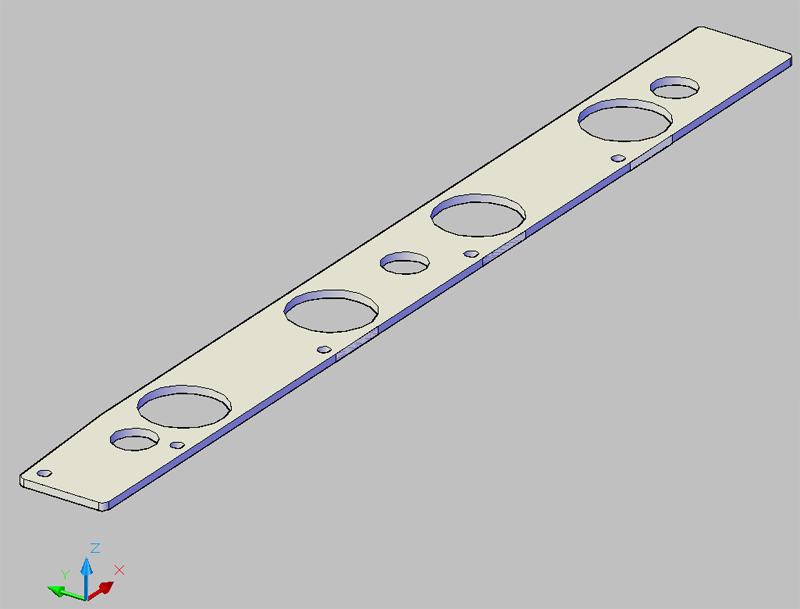

Here is an image in CAD.
Attached Thumbnails
COP Thread-3d.jpg
spestis is offline   Reply With Quote
Old 06-16-2008, 04:47 PM   #1114
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

What a tease!

Haha, I don't have the COP kit, so I don't know any of the diminsions. If you make them I'll polish them and then people can get something really sexy. 14 gauge stainless would probably work. I can electropolish aluminum too, but the chemicals are nastier.

Travis
TravisR is offline   Reply With Quote
Old 06-16-2008, 06:04 PM   #1115
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

My thoughts on the plate I got, pics to follow upon request

It doesn't seem to fit a 99 (technically, a 2000 LS) head real well. It fits nice against the cam and belt bumps, and centers on the cover bolts well - but on my spark plug holes it seems the spacing is off. It's at the extreme end of the holes on cyl 1 and 4.

I gave it a quick polish, and it would take more to get it looking nice. There was something rust-like on part.

Lastly, I found the plate bent pretty easy - I had to tweak it with my hands a fair amount to get it straight, and then when I tightened down my coils, the plate bent from that.

All that said, the coils are held well in place, with some work it would shine up well. With the coils over it,you probably wouldn't notice they are actually in the wrong place - and the few mm they are off will be made up for by tilt in the coil.

If it were me, I'd likely make it out of steel, or thicker still. The edges are quite thin where the holes are punched. Tapping it went well, alum is a joy to work with.

It seems from your pics (more top-down-no-coil pics would help!) that the plate fits better in your car, though the spark plugs should be in the same spot across the NA/NB?

I probably shouldn't have used bolts, but studs as you did, but I don't like having those sticking up.

All in all it's nice, and the water cutting leaves a neat, 'sand blasted' looking finish on the sides.
AbeFM is offline   Reply With Quote
Old 06-17-2008, 11:13 AM   #1116
Newb
iTrader: (2)

Join Date: Nov 2007
Posts: 32
Total Cats: 0
Default

The spark plugs should be in the same spot across the NA/NB as I have a 99 head and 94 valve cover.
spestis is offline   Reply With Quote
Old 06-17-2008, 02:34 PM   #1117
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Yeah! That had me really confused.

Here's some pics:

THIS is why you water jet. Can you tell which one I hacked out?




Ok, my first inkling that things aren't lining up right. It's hard to tell since my holes are pretty random, but on the motor they work fine.

Also, my COP mount points are vertical, not offset, so there's an obvious difference there. This is with 3 minutes with a die grinder and a buffing wheel in it. I'm sure with steel wool it would clean up just fine.


Here you can see my head seems to have shrunk in the wash. With the plate centered, the outer holes aren't quite in the right spot. Not sure why!


Lastly, with the #1 hole lined up, you can see the offset increasing with each hole. I have no idea how this looks on other heads, only mine.


Right now I have it mounted, it works when you split the difference and center it. It might be standing up on the lips, but not too bad. The forward facing plugs looks good.

I like that I can retain the rubber bumpers under the COPs, though I can do it on my set up too. For reference, here's my rough one:







Maybe later, I'll try putting the "forward facing" COPs on there, just to see how it looks.
AbeFM is offline   Reply With Quote
Old 09-11-2008, 02:28 AM   #1118
Junior Member
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

What gauge wire should I use? I'm redoing mine right now and need to know.
Dhaark is offline   Reply With Quote
Old 09-11-2008, 02:33 AM   #1119
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

For the triggers and tach, pretty much anything is fine as they're pretty low-current circuits. I think I used 20ga, since I had some lying around at the time. For power and GND, the beefier the better. I'd advise at least 18ga, preferably 16.
Joe Perez is offline   Reply With Quote
Old 09-11-2008, 02:38 AM   #1120
Junior Member
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

Thanks. I had mine done in 20 and 18 for ground but I want to clean it up a bit so I figured I'd ask and while doing it, do it the right way.
Dhaark is offline   Reply With Quote
