Old 08-23-2010, 06:19 PM   #1301
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

I made an aluminum plate to attach my coils to but I guess my coils are too short or something because the coils will sit flush against the valve cover but they won't "snap" onto the plugs when I have the plate between the coils and the vc. How'd you guys get around that? Longer plugs?
Golferluke is offline   Reply With Quote
Old 08-23-2010, 06:23 PM   #1302
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I think that's why we make the brackets, because COPs don't click into the spark plug. Make sure to countersink your bolt holes, and trim any plastic that may be keeping your COPs from sitting as low as possible.
curly is offline   Reply With Quote
Old 08-23-2010, 06:39 PM   #1303
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

You are correct sir. ^
Sokool is offline   Reply With Quote
Old 08-23-2010, 07:24 PM   #1304
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Ya I trimmed the sides of the COPs so they fit without touching the sides and they do click right now but not when the plate is on, like they don't reach down far enough or something. So when I do get the plate on and the screw holes drilled will it still make good contact to the plugs even though they don't "click"?
Golferluke is offline   Reply With Quote
Old 08-23-2010, 08:56 PM   #1305
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

instead of a plate, make two L shaped pieces of metal with holes at the top above the coilpacks, run a small piece of metal between them to hold the cops in tight.
Techsalvager is offline   Reply With Quote
Old 08-23-2010, 10:42 PM   #1306
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Techsalvager View Post
instead of a plate, make two L shaped pieces of metal with holes at the top above the coilpacks, run a small piece of metal between them to hold the cops in tight.
Do you do anything simple?

Golferluke, they'll be fine. Trim the plastic, as you said, put them through a 1/8" aluminum bracket, bolt them to said bracket, and bolt the bracket to the 3 valve cover screw holes. This is exactly like the other COP thread tells you too. It'll be fine.
curly is offline   Reply With Quote
Old 08-24-2010, 04:19 AM   #1307
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by curly View Post
Do you do anything simple?

Golferluke, they'll be fine. Trim the plastic, as you said, put them through a 1/8" aluminum bracket, bolt them to said bracket, and bolt the bracket to the 3 valve cover screw holes. This is exactly like the other COP thread tells you too. It'll be fine.


"This month's DIY Stud of the Month (SOTM) is Publio Morera for his cheap and easy solution to holding down individual coils on his NA Miata. Early Miata guys often convert to COPs, particularly the turbo Miata guys who need to improve their ignition system to fire off those boosted intake charges once they approach 14psi or so and start to blow out what the stock system can provide. If you've got aluminum welding skills of course you can weld hold down studs, or take it somewhere and have it done. Or, you can be a DIY Stud like Publio here and use a couple aluminum brackets held down by the center valve cover bolts, with a rod threaded through and a bit of padding/rubber above each coil to dampen vibration. The rubber cap (a vacuum cap) on the end prevents the bar from sliding out of the bracket from vibration."
Techsalvager is offline   Reply With Quote
Old 08-24-2010, 05:34 PM   #1308
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Ha that's sweet but I think I'll just use my plate. What's the best way to countersink it?
Golferluke is offline   Reply With Quote
Old 08-24-2010, 05:42 PM   #1309
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Make the holes large enough so that the coils go through the plate and rest on the valve cover. You need the plate there to hold the coils down, and it will do just that. That way the coils will not be too high to jeopardize the connection between the tip and the spark plug.
Godless Commie is offline   Reply With Quote
Old 08-24-2010, 06:13 PM   #1310
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Cool thanks. I've got my plate all made and ready to go, just haven't made the holes for the bolts that hold the coils down.
Golferluke is offline   Reply With Quote
Old 08-24-2010, 06:52 PM   #1311
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by Golferluke View Post
Ha that's sweet but I think I'll just use my plate. What's the best way to countersink it?
Use flat head machine screws (as opposed to pan head) for your "posts" and after you drill the holes for them, just countersink them with a countersink drill bit. The angle on the screw heads should approximately match the angle on the countersink bit. It doesn't have to be beautiful because it will be on the underside of the bracket, so nobody will see it. The posts are held in place with one nut, then there's another series of nuts/washers holding the COP at the proper height. I used cap nuts at the top for a more a finished look.

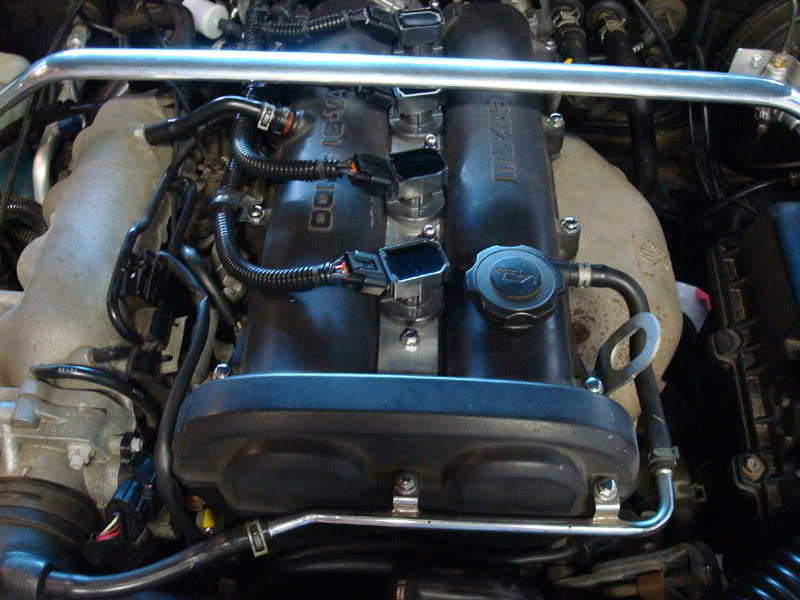

Name:  DSC01582.jpg
Views: 12
Size:  83.0 KB

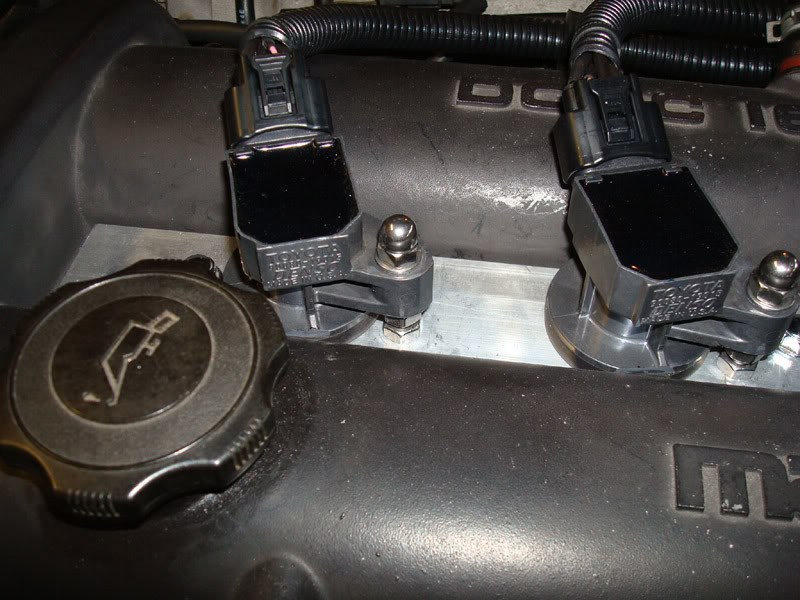

Name:  DSC01583.jpg
Views: 16
Size:  91.4 KB
ScottFW is offline   Reply With Quote
Old 08-27-2010, 07:34 PM   #1312
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Techsalvager View Post

"This month's DIY Stud of the Month (SOTM) is...."
Hey I dom't remember getting SOTM for coming up with this conversion.
lazzer408 is offline   Reply With Quote
Old 08-28-2010, 02:20 PM   #1313
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Or you guys could get the slightly longer ones and it makes for an easy bottom mount plate.

I picked up a set.... or dozen....
Splitime is offline   Reply With Quote
Old 08-28-2010, 03:21 PM   #1314
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

how long did it take you to arrange your swastika?
Braineack is offline   Reply With Quote
Old 08-29-2010, 04:40 PM   #1315
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Ok so here's a question. I'm not running a cap on mine. And recentley I've been having mis-fire issues. This is on a MS1 running 2.5ms dwell.

Would adding a 10000 cap possibly help?

Also, is there any way to check they are still in factory spec?
falcon is offline   Reply With Quote
Old 09-02-2010, 10:34 AM   #1316
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Quote:
Originally Posted by Splitime View Post
Or you guys could get the slightly longer ones and it makes for an easy bottom mount plate.

I picked up a set.... or dozen....
Are you selling any of them?
I am interested in a set of cops and connectors.

-Raj
redrider706 is offline   Reply With Quote
Old 09-02-2010, 10:36 AM   #1317
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by redrider706 View Post
Are you selling any of them?
I am interested in a set of cops and connectors.

-Raj
I will be selling them, but as kits with weatherpacks and wiring all done. Capacitors also included.

I'll post once they are ready.
Splitime is offline   Reply With Quote
Old 09-02-2010, 11:22 AM   #1318
Junior Member
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

Quote:
Originally Posted by Splitime View Post
I will be selling them, but as kits with weatherpacks and wiring all done. Capacitors also included.

I'll post once they are ready.
put me on the list lol
longuyen88 is offline   Reply With Quote
Old 09-03-2010, 11:31 AM   #1319
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

So at this point my plan is to work on getting bottom mount plates made up for 1.6 and 1.8s. I'm also doing at least one PnP (igniter hollowed out) 1.6l set. The rest I'm intending to do as DIY/PnP... 7 wire... with weatherpack for easy removal and pigtail out of weatherpack for wiring in. This would allow for sequential installs and then by just joining 4 into 2 (cylinder triggers) you get normal wasted spark.

How does that sound for people wanting a basic solution?

Thoughts?

Mind you... i will not do a waiting list. As they get built, I'll post them up. I'm not a business, just a guy making these on the side. Please don't ask for dibs :P (that includes those already saying 'dibs' :P )
Splitime is offline   Reply With Quote
Old 09-03-2010, 12:25 PM   #1320
Junior Member
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

No dibs, but I'll send you a deposit.

lol
longuyen88 is offline   Reply With Quote
