2jz Miata build thread
#725
I traced out everything I was keeping with a green marker and everything I was going to remove with red. Thing that is the best about having the full wiring diagram is when you have a connector that hasn't been used for years you can look at the number of wires/colors and figure out wtf you are looking at.
#728
Elite Member
iTrader: (12)
Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,516
Total Cats: 20
Yea I really only want to run 12"s or just under I feel this will be more than fast enough. The plan is to run somewhere around a 12.0 at 130 or 140mph so I do not have to launch the car I will make up all my time on the back half of the track. Also I do not plan on drag racing this car all the time it would just be a nice number to hit.
#730
Trying to find traction the first 1/8 mile with be the hard part seriously we just need to mini tub the car and stick a huge tire on the back because the 225s on the car arn't cutting it.... Even the DR 275s on my own car get blown away I have to have at least two people sit in my trunk on the dyno or else its just wheel spin heaven.
#731
Yea I really only want to run 12"s or just under I feel this will be more than fast enough. The plan is to run somewhere around a 12.0 at 130 or 140mph so I do not have to launch the car I will make up all my time on the back half of the track. Also I do not plan on drag racing this car all the time it would just be a nice number to hit.
As far as thinning the harness goes, the airbag stuff comes right out. I wasn't able to find a good diagram so I just traced back all the wire that connected to the engine and pulled them out. It will be a little different for you since you are using a couple of sensor wires.
#734
Elite Member
iTrader: (12)
Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,516
Total Cats: 20

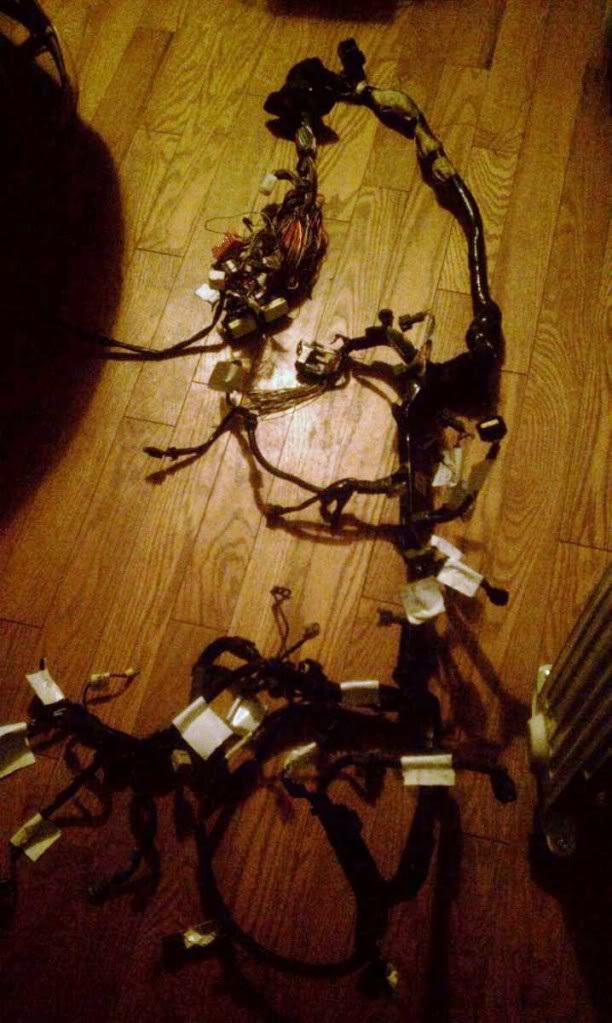

So I finally got to my dads and yanked out the wiring harness for the engine. Now its time to start taking all the extra stuff out. I hope when I put it back in it still runs.lol Here is a pic of the harness how it sits as of right now. I will post up pics later when I am done modifying it and you guys can tell me what you think. On a side note it only take wiring in 13 wires to make a 2jz run in any car if anyone was wondering.
Last edited by curly; 02-10-2011 at 12:00 AM.
#736
Elite Member
iTrader: (12)
Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,516
Total Cats: 20
I am off of work today so let the games begin. I will see how much work I can actually get done. I am going to try and move some things around in the harness to make them fit my car better but we will see how it goes. I see a lot of razor blades, electrical tape, and wire loom in my future
