Old 06-19-2011, 09:57 PM   #881
Newb

Join Date: Mar 2011
Location: El Paso, TX
Posts: 16
Total Cats: 0
Default

Quote:
Originally Posted by Faeflora View Post

Guillo you are flat out wrong about having to run 100pct meth if no intercooler.

If sprayed, Meth will cool the charge below ambient.
I know you can, but that is just my way on keeping the temps down without an intercooler with the amount of boost he'll be running. Lets face it, the turbo is huge and 15 psi on it, its quite a bit. I guess is just my way of doing it.
guillo is offline   Reply With Quote
Old 06-20-2011, 11:04 AM   #882
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I think I am going to just make my inter cooler work. Even if I have to get a new one and remake my intake manifold to be front facing I know it is really the right way. I will have to make some serious adapter or have some serious welding on my intake manifold and get a standard style inter cooler with inlet and outlet on opposite side. I will keep you all updated.

18 psi. You are 100% right no matter how hard I try to "fix" it I will end up spending more money than it would take to get the intercooler fixed correctly. So I will suck it up and make it work.
Sean is offline   Reply With Quote
Old 06-20-2011, 02:29 PM   #883
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

So I took your guy's advise and to do it right I just purchased a 2jzGTE upper intake manifold so I can have a front facing manifold. It is gonna take some fabrication and some time but I am sure it will work out for the better. I will let you guys know how it works out and post pics as I go.
Sean is offline   Reply With Quote
Old 06-20-2011, 02:46 PM   #884
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Good stuff man. Glad you're not half assing it.

Going to be badass.
18psi is offline   Reply With Quote
Old 06-20-2011, 03:16 PM   #885
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Should you expect any power gains with the new intake manifold? I know it's another stock unit, but I would guess that it would let you free up some power over the old one due to the better design.
viperormiata is offline   Reply With Quote
Old 06-20-2011, 05:11 PM   #886
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Yes the new intake design will fee up some more hp and allow for easier repairs on the car once it is on. I was avoiding this before due to the cost but at this point I don't care as long as it works. I am still very cheap considering I would rather make this one work than buy the $750 one that bolts on but I don't have that kind of green to throw down.

On a side note talking about HP numbers. I think I was a little confused on what I should expect. I found a car with the same turbo putting down 439 whp at 15psi. I thought this was kinda low but went with it. Now I know hp numbers are just numbers but everyone always wants to put down a good one.lol If you take into consideration the other car has a full 3" exhaust and a turbo 350 trans his numbers will be way way different than mine. From what I have learned the trans alone will steal somewhere around 150 hp and the exhaust compared to mine will be around 40hp so I can hope to put down just over 600whp. I would be happy with close to 500 but anything more will be icing on the cake.

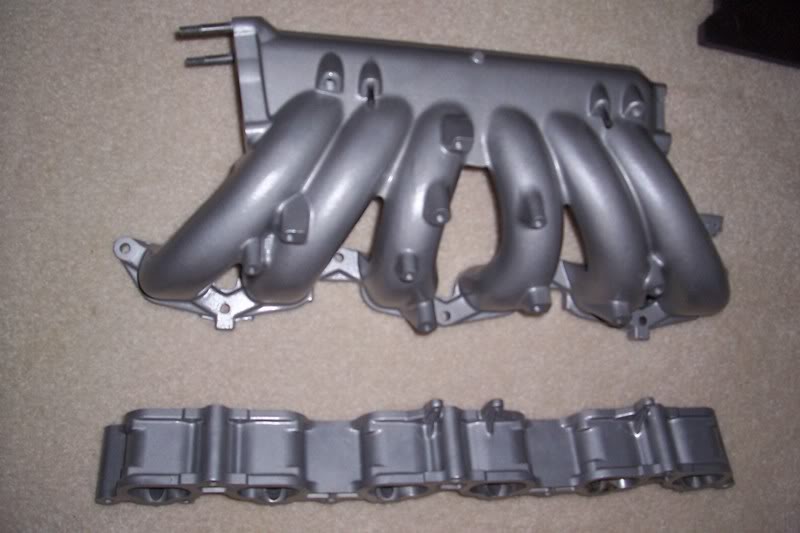

Here is a pic of the top half of the mani I just bought I will have to make it fit to my needs witch should not be that bad and its cool that it will keep the factory look. The only other major thing I will need to figure out is what throttle body to run. I can run an aftermarket one and get rid of my IAC witch is not a big deal or I can run a factory one and make it work. As far as the IAC I have no problems getting rid of that but I will have to rewire my TPS for what ever throttle body I run and make sure it is working the right way.

Name:  1jzintakemanifold2.jpg
Views: 8
Size:  46.6 KB



You can see in this picture compared to the first picture in the post below how much different the lower half of the 1jz manifold looks it is much shorter and obviously oval ports. But from what I can see other than port shape the bolt pattern looks close so if I have to do some porting to make them match at the junction that will be fine with me. I am not going for max power here just enough power to laugh like crazy every time I drive the car.

Last edited by Sean; 06-29-2011 at 01:45 PM.
Sean is offline   Reply With Quote
Old 06-20-2011, 05:14 PM   #887
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Now here are some more pics of the 1j intake manifold and there is a lower half of a 2j manifold where I will have to do some porting to make them work but all in all I do not think it will be that bad. I just need to figure out the throttle body thing.

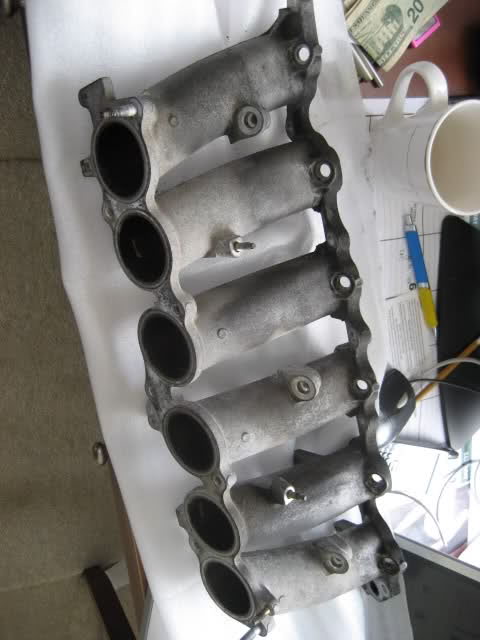

2jzge lower manifold
Name:  2jzgelowerintake.jpg
Views: 6
Size:  35.3 KB

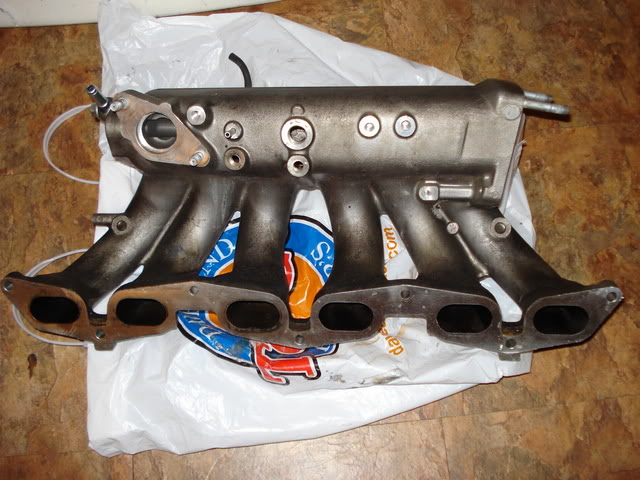

1jz upper manifold this is the two flanges I will have to make fit......
Name:  1jzintakerunners.jpg
Views: 6
Size:  69.4 KB

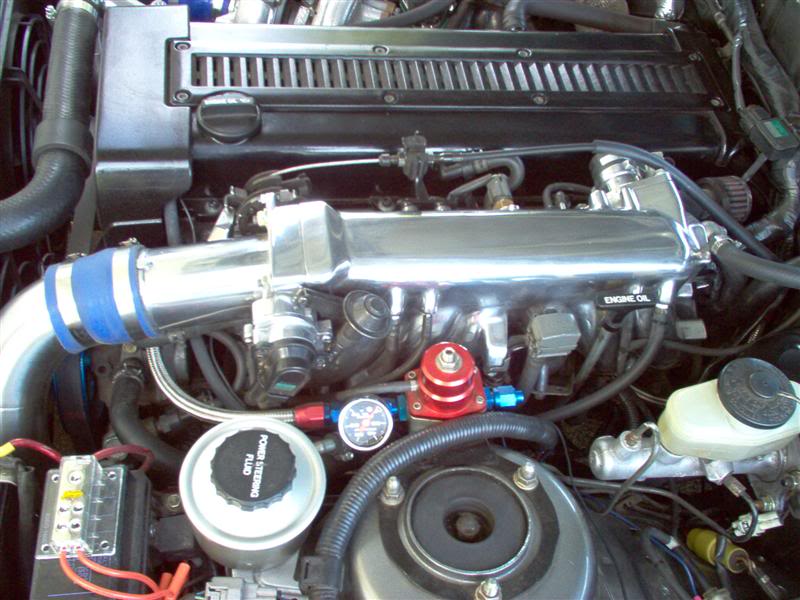

1jz manifold on a 1jz engine just to show how awesome it looks lol

Name:  1jzintakemanifold3.jpg
Views: 6
Size:  80.2 KB

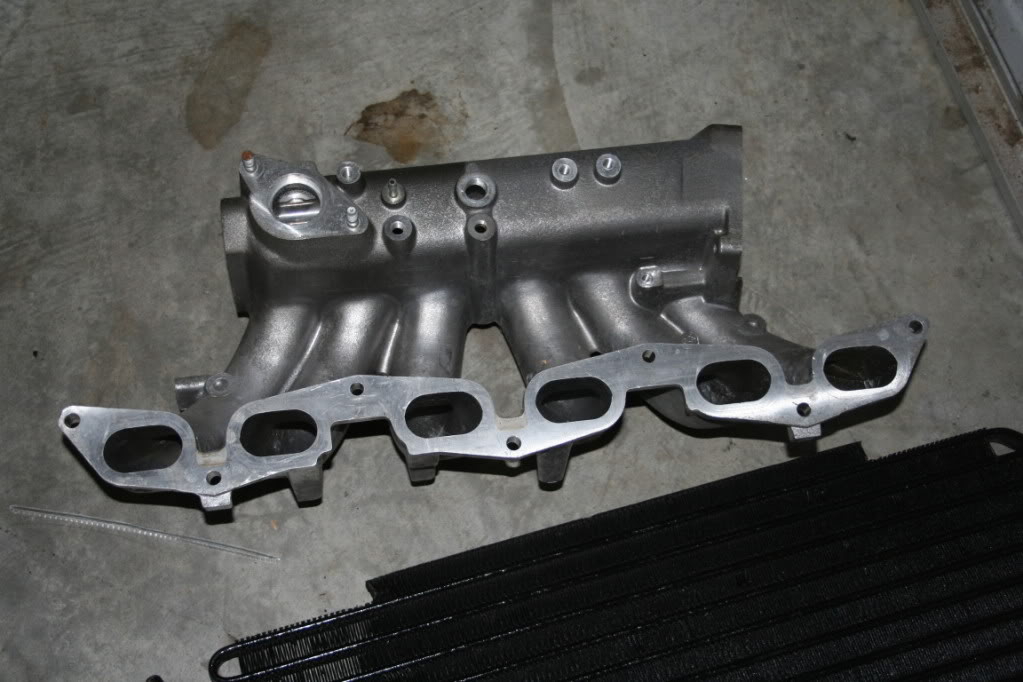

another pic of a 1jz runners
Name:  1jzintakemanifold.jpg
Views: 7
Size:  93.3 KB

Last edited by Sean; 06-29-2011 at 01:45 PM.
Sean is offline   Reply With Quote
Old 06-21-2011, 02:08 PM   #888
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Ok so what I have found out so far is that the easiest way to make all this work is to make an adapter for my IAC off my 2j manifold and make it work on my 1j mani. I will also have to look into getting a throttle body plate welded on or running another throttle body of some sort and converting the tps. I think it will not be that bad.
Sean is offline   Reply With Quote
Old 06-24-2011, 01:00 PM   #889
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

OK so good news. I went to court yesterday for my accident in my civic where some guy pulled out in front of me on the highway from the shoulder and I rear ended him. I was worried because of the way the laws are in MD I would not be able to win the case, but it was my lucky day. I went to court all ready with all my paperwork and a little display I made to show what happened and to my luck the cop did not show. So now I am not guilty and my paperwork says I did not contribute to an accident. So my insurance company can go kick some ***.

On another note I just ordered my throttle body for my car and have been looking to get a new intercooler. The only thing that sucks about that is I will also need a new BOV because mine currently has a flange welded to the intercooler. I did not really like that BOV to begin with so I am gonna order a knock off tial and mount it in my charge pipes somewhere. I am still waiting on all my stuff to come in so as soon as it does I will get to work on getting the car running.
Sean is offline   Reply With Quote
Old 06-24-2011, 04:43 PM   #890
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Badass dude. Glad to see your still going at it despite the setbacks. I don't know how you plan on getting the full benefit of 600hp but it should be fun
astroboy is offline   Reply With Quote
Old 06-24-2011, 04:52 PM   #891
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

He has much better gearing than your typical miata. Eliminator was saying his car hooked without any issues at high 500's with properly setup suspension and good tires, so I don't see why this won't work with the right combo. His gears are like a third longer each or something IIRC
18psi is offline   Reply With Quote
Old 06-24-2011, 04:59 PM   #892
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

18 psi. Is right the final drive ratio is better with the RX-7 rear and supra trans. I wish I could have even less gear in the back and go from a 3.90 to something like a 3.73 or even a 3.30 but it will have to work for now. I am glad I have kept going threw all of it even though at some points it has really sucked should be able to make one more big push then deal with all the little **** but you never know. Also the way it is set up right now it seemed to hook pretty good with street tires at 12psi. on the old turbo so with the good springs in the back and a set of home made traction bars down the road it will be fine.
Sean is offline   Reply With Quote
Old 06-27-2011, 11:21 PM   #893
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

So today my 1jz mani came in and I also ordered a 2jzgte upper manifold because I scored it for $45 bucks with a throttle body. When I get more stuff in the mail I will have more updates I am determinded to get this thing running.
Sean is offline   Reply With Quote
Old 06-28-2011, 01:54 PM   #894
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Just got a call from my GF my new turbo just got to my house along with something else I dont know what but will find out. I will post comparison pics of the turbo when I get home to see how big it really is. I am now contemplating running a 50 - 75 shot of nitrous to help spool the turbo at lower rpms for when I really need to beat someones *** on the street.
Sean is offline   Reply With Quote
Old 06-28-2011, 02:19 PM   #895
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Not running 9s still?

buffon01 is offline   Reply With Quote
Old 06-28-2011, 02:22 PM   #896
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

One of these days it will but is it necessary to ask every other day?
Sean is offline   Reply With Quote
Old 06-28-2011, 02:33 PM   #897
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

2jz miata build thread: new post. Oh its just Buffon posting again
mx5autoxer is offline   Reply With Quote
Old 06-29-2011, 11:51 AM   #898
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

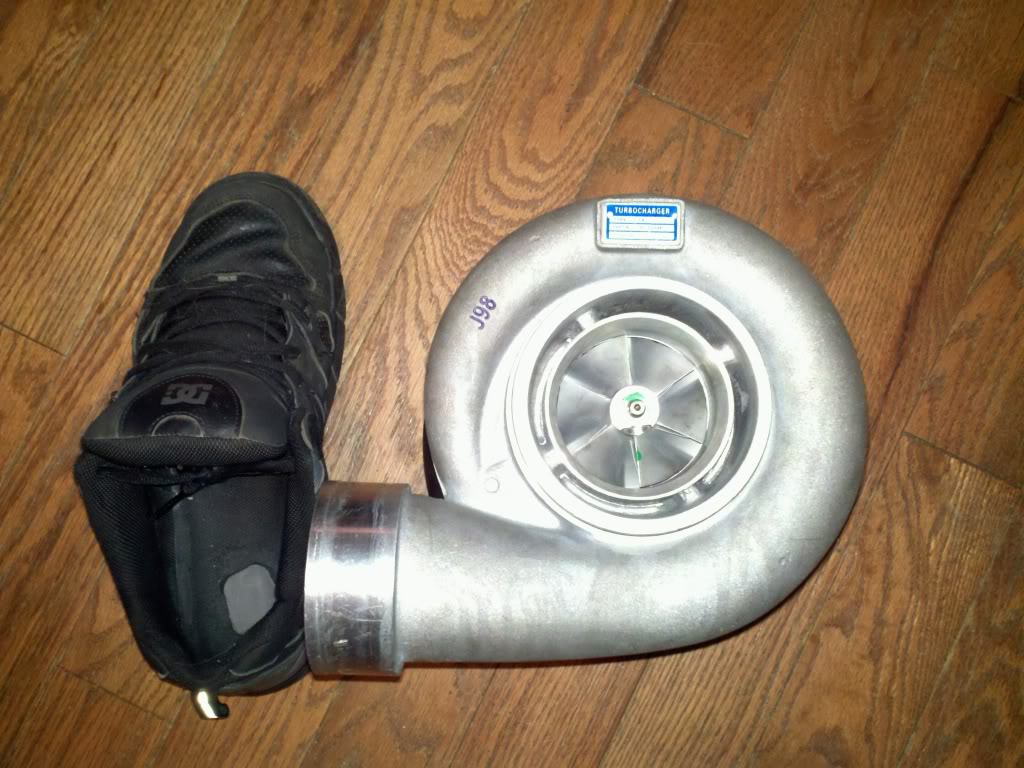

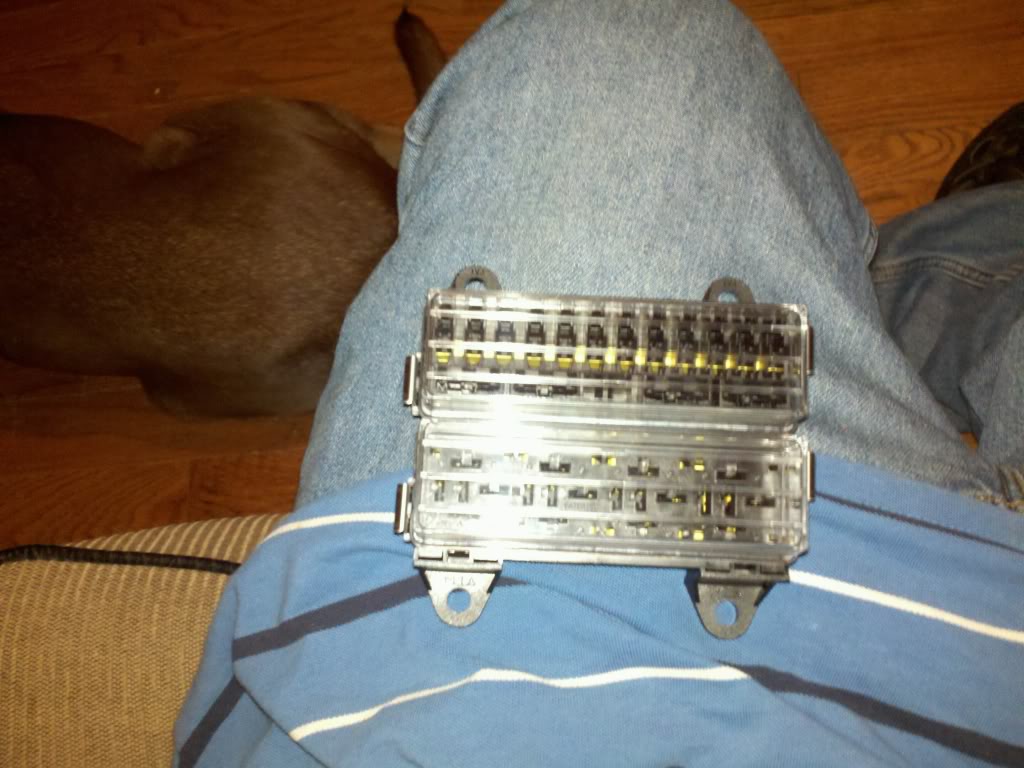

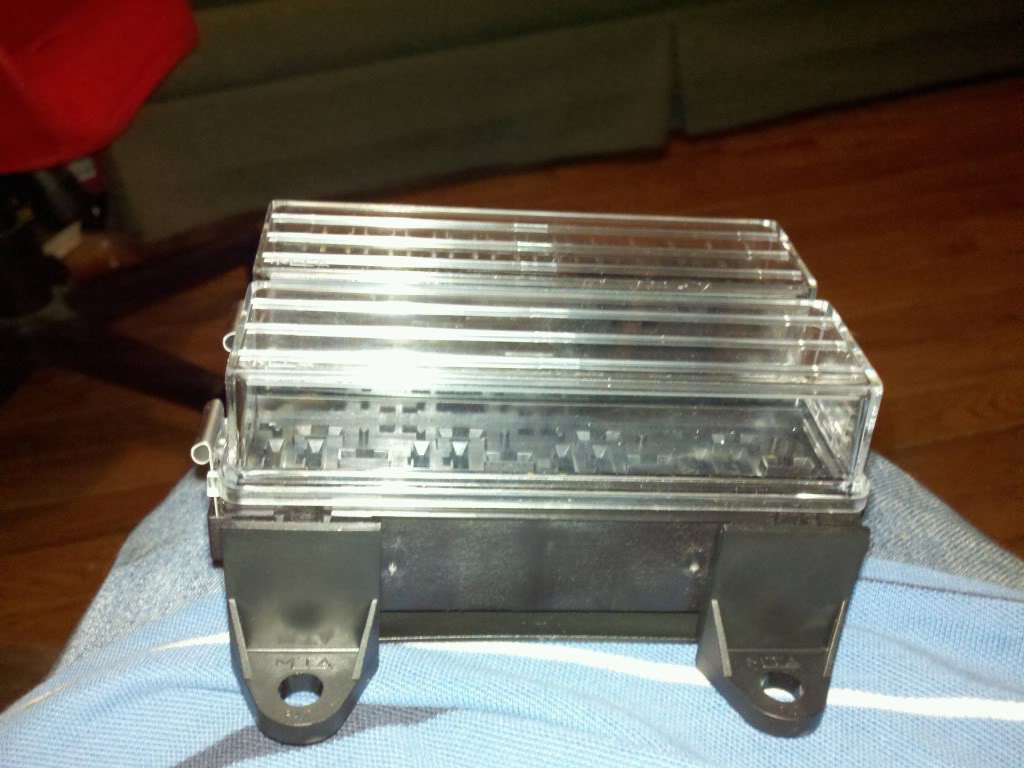

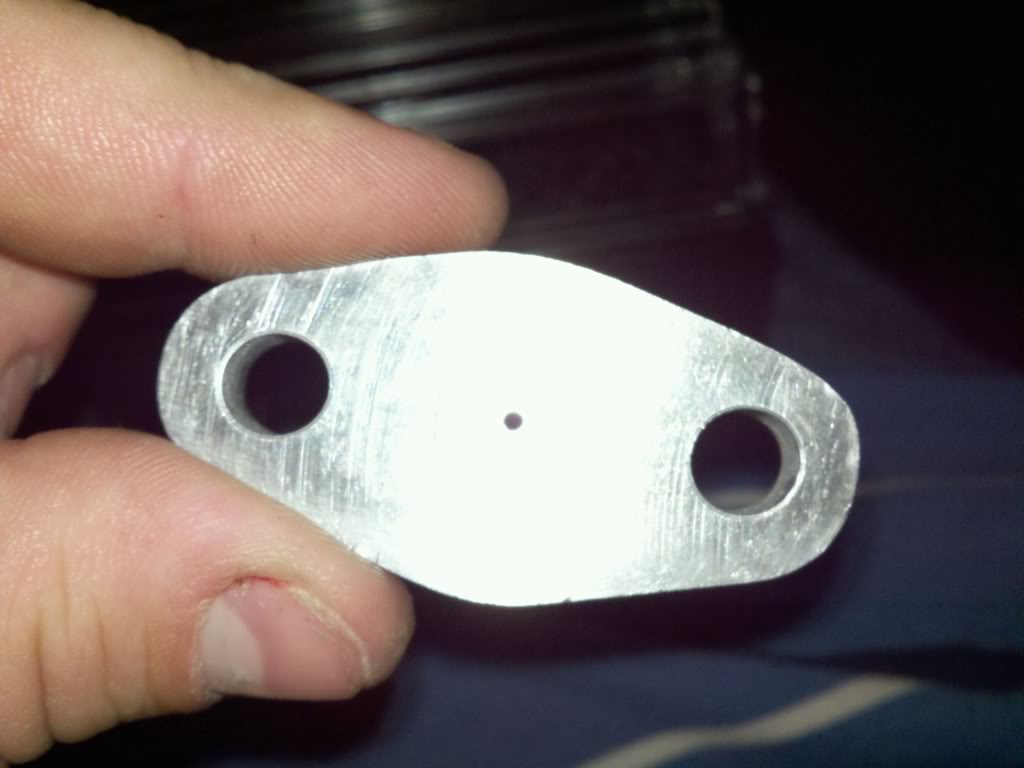

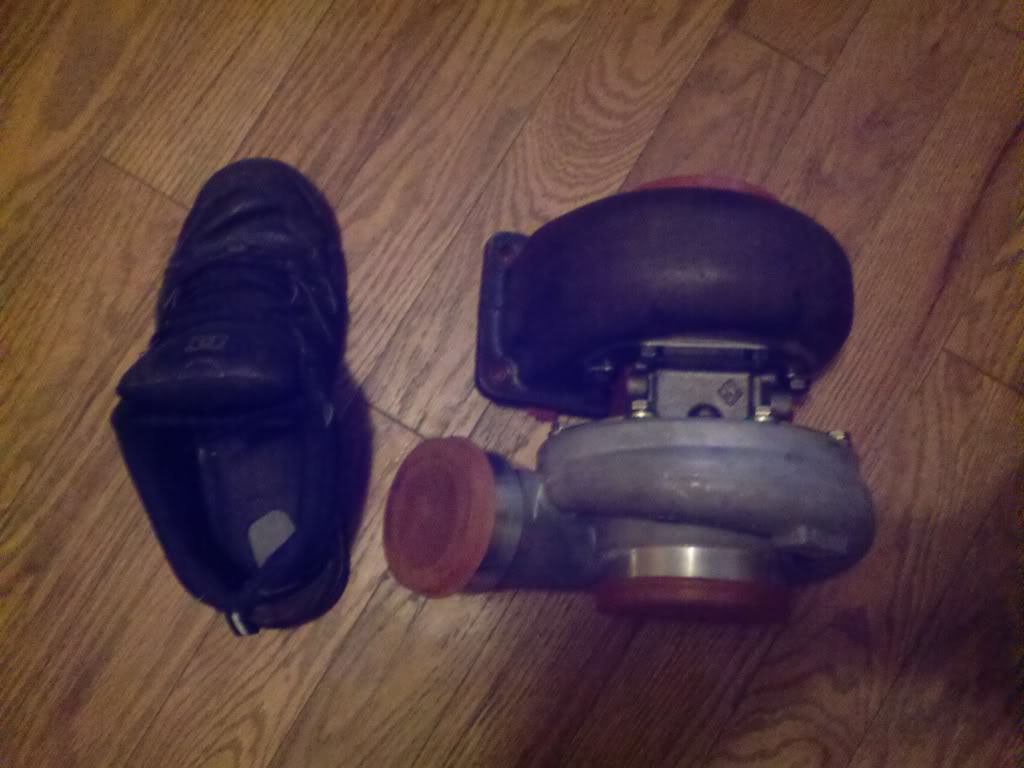

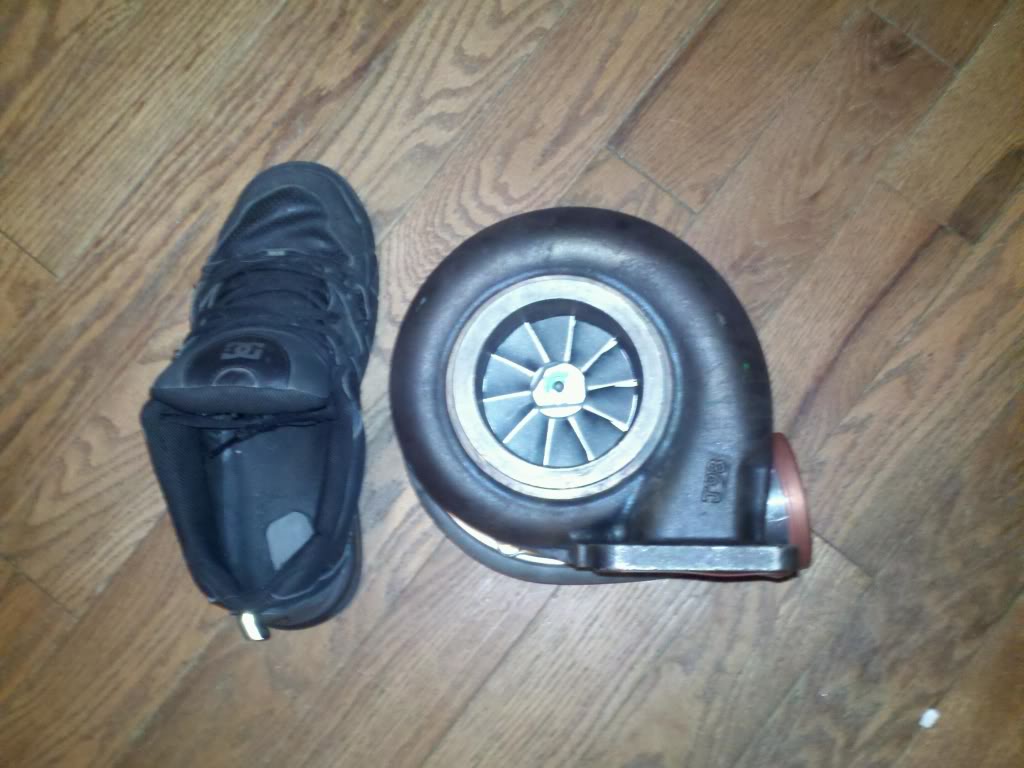

Ok here you guys go only because I know you are all picture ******. Below are the pics of my new turbo next to my size 12 shoe, as well as my new fuse box relay box combination, and my new oil feed fitting witch I will be drilling out all the way today so my new turbo does not see the same fate as my old one.


Name:  miatagt452.jpg
Views: 7
Size:  83.3 KB

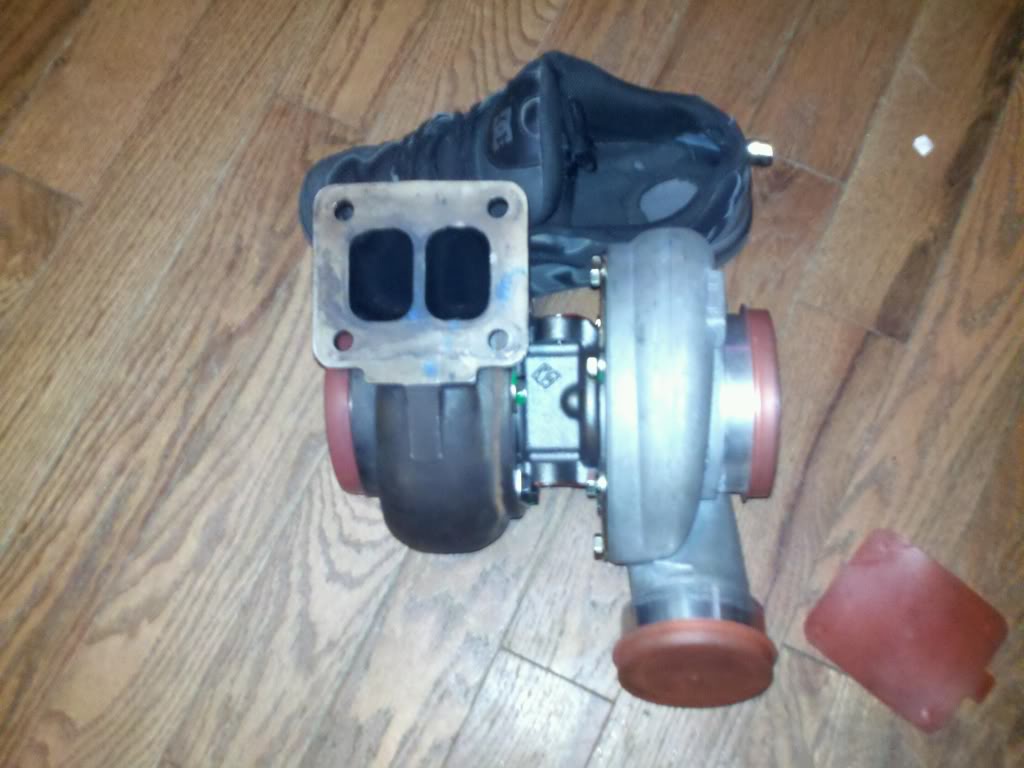

Name:  miatagt45.jpg
Views: 6
Size:  72.8 KB

Name:  miatagt453.jpg
Views: 7
Size:  119.1 KB

Name:  miatagt454.jpg
Views: 6
Size:  73.2 KB

Name:  miatafuseboxrelayboxcombo2.jpg
Views: 7
Size:  100.5 KB

Name:  miatafuseboxrelaycombo3.jpg
Views: 6
Size:  88.8 KB



Name:  miatafeedfitting3.jpg
Views: 6
Size:  49.5 KB

Last edited by Sean; 06-29-2011 at 01:48 PM.
Sean is offline   Reply With Quote
Old 06-29-2011, 11:52 AM   #899
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

The fuse box is awesome it has a o-ring seal and all I need to do is wire it up.
Sean is offline   Reply With Quote
Old 06-29-2011, 11:59 AM   #900
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by Sean View Post
One of these days it will but is it necessary to ask every other day?
Maybe if I keep giving you **** while wishing upon a star it will magically happen from one day to another
buffon01 is offline   Reply With Quote
