Old 08-13-2015, 11:06 PM   #241
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

<p>[size=&quot;1&quot;]I run HIDs in hella housings...please don't ban me[/size]</p>
aidandj is offline   Reply With Quote
Old 08-13-2015, 11:10 PM   #242
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default



I'm super paranoid about the law, otherwise I might run like that. I'd be far from the only one doing that around here, just less purple
deezums is offline   Reply With Quote
Old 08-14-2015, 02:33 AM   #243
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,383
Total Cats: 182
Default

Quote:
Originally Posted by deezums View Post


I'm super paranoid about the law, otherwise I might run like that. I'd be far from the only one doing that around here, just less purple
Good for you on using legit housing. I hate people that run HID bulbs in halogen housings. I wish the cops would ticket drivers that do that blinding the **** out of everybody. It's horrible in TX, every kid thinks he needs HID bulbs in his halogen headlights and fog lights too.
patsmx5 is online now   Reply With Quote
Old 08-14-2015, 02:49 AM   #244
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

My lights are so bouncy now I may as well have halogen housings, the little rubber stoppers that hold the lights open and closed are so old and brittle they aren't doing much good. I need to do something about that.

I imagine they were always bouncy, I just couldn't tell before lol
deezums is offline   Reply With Quote
Old 08-14-2015, 02:49 AM   #245
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

I'm gonna put some projects in the turn signals at some point.
aidandj is offline   Reply With Quote
Old 08-14-2015, 02:59 AM   #246
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

I plotted that out a bit, you could stick the 2" china projector inside a 3" PVC tube, then use end caps to seal it all up, glass lens on one end...

I think it's hella who makes a nice sealed projector, but it's only low beam pattern. You could mount one of those directly behind the pockets, on the bumper core.

There's a few cheap supposedly sealed and waterproof projectors on alibaba, can't find them on ebay yet. Two sets of those in a low profile conversion would look cool and be bright as hell.

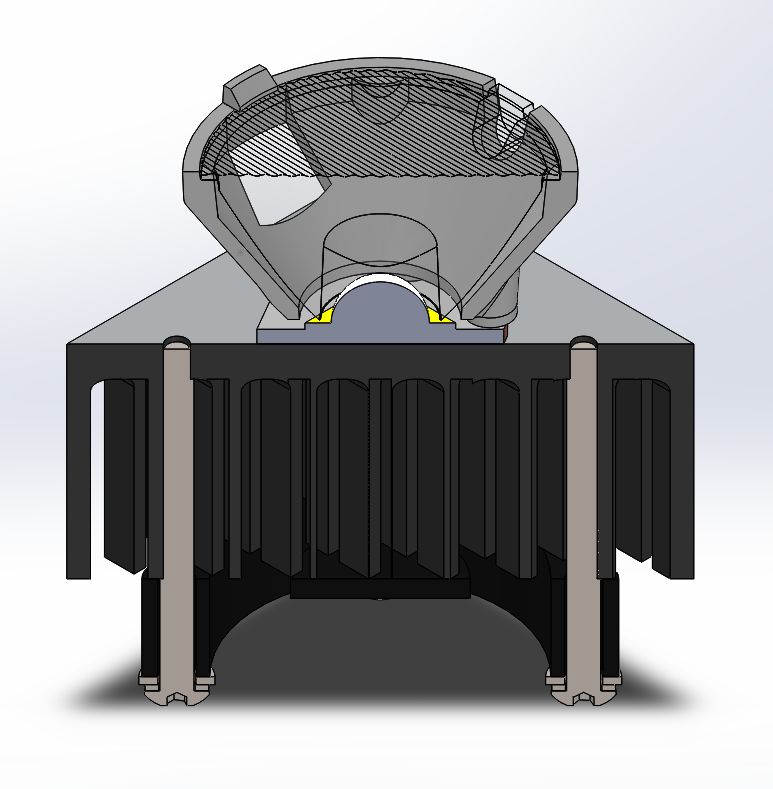

I'm making LED's for the turn signals, like this guy here. I'm hoping they're clean enough to use as fog lights through the city, no barn doors at all.
Superbright LED headlights - MX-5 Miata Forum

Attached Thumbnails
&quot;After failed abortion, deezums sees the 1.8 light&quot; Build-sinjayr.png
deezums is offline   Reply With Quote
Old 08-27-2015, 04:47 PM   #247
Junior Member

Join Date: Oct 2011
Location: New Hampshire
Posts: 318
Total Cats: 53
Default

Been following this build for a while since it's so similar to what I have planned. A couple questions on your oil feed:

Earlier in the thread you mentioned revising your oil feel to include a swivel by the block fitting. How's that working out? Where'd you buy the fittings from? What are you doing for a restrictor on that turbo?
adamiata is offline   Reply With Quote
Old 08-27-2015, 05:03 PM   #248
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

My oil lines were redone too many times, never ever use e-bay swivel AN fittings.

Right now my setup goes like this, this is working fantastic thus far.

m10x1.5 to 4an adapter, this fits in the block.

Male 4 An 4AN 4AN AN4 Flare to M10x1 5 Metric Straight Fitting Black | eBay

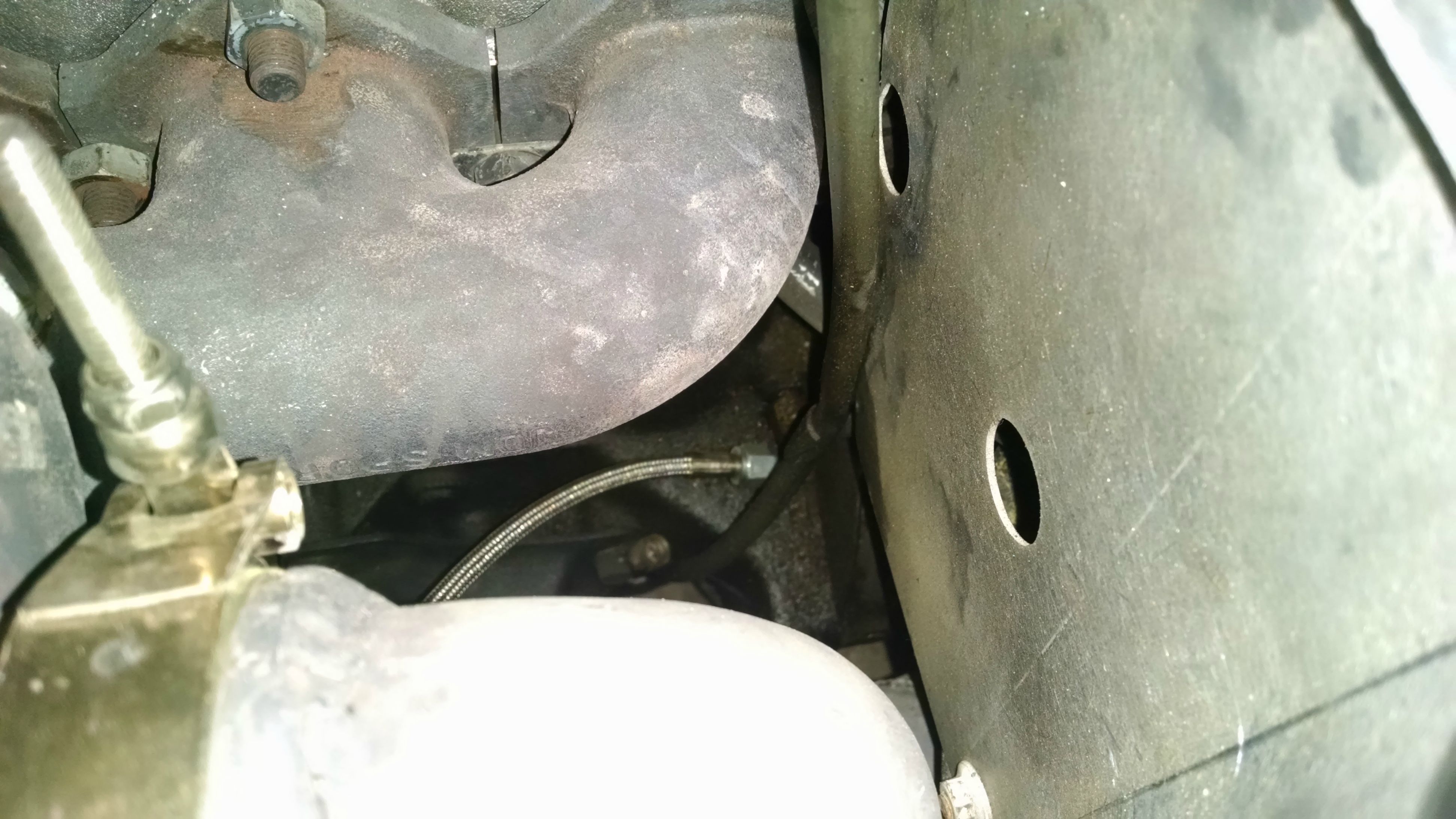

Then a 4AN swivel, this lets me point the line towards the front of the block and free and clear of the downpipe. I went out of my way to find a one piece block, that is one solid piece holds both sealing flares, no leaks ever.

Amazon.com: Earl's 966304 Steel 90-Degree -4AN Swivel Female to -4AN Male Adapter: Automotive Amazon.com: Earl's 966304 Steel 90-Degree -4AN Swivel Female to -4AN Male Adapter: Automotive

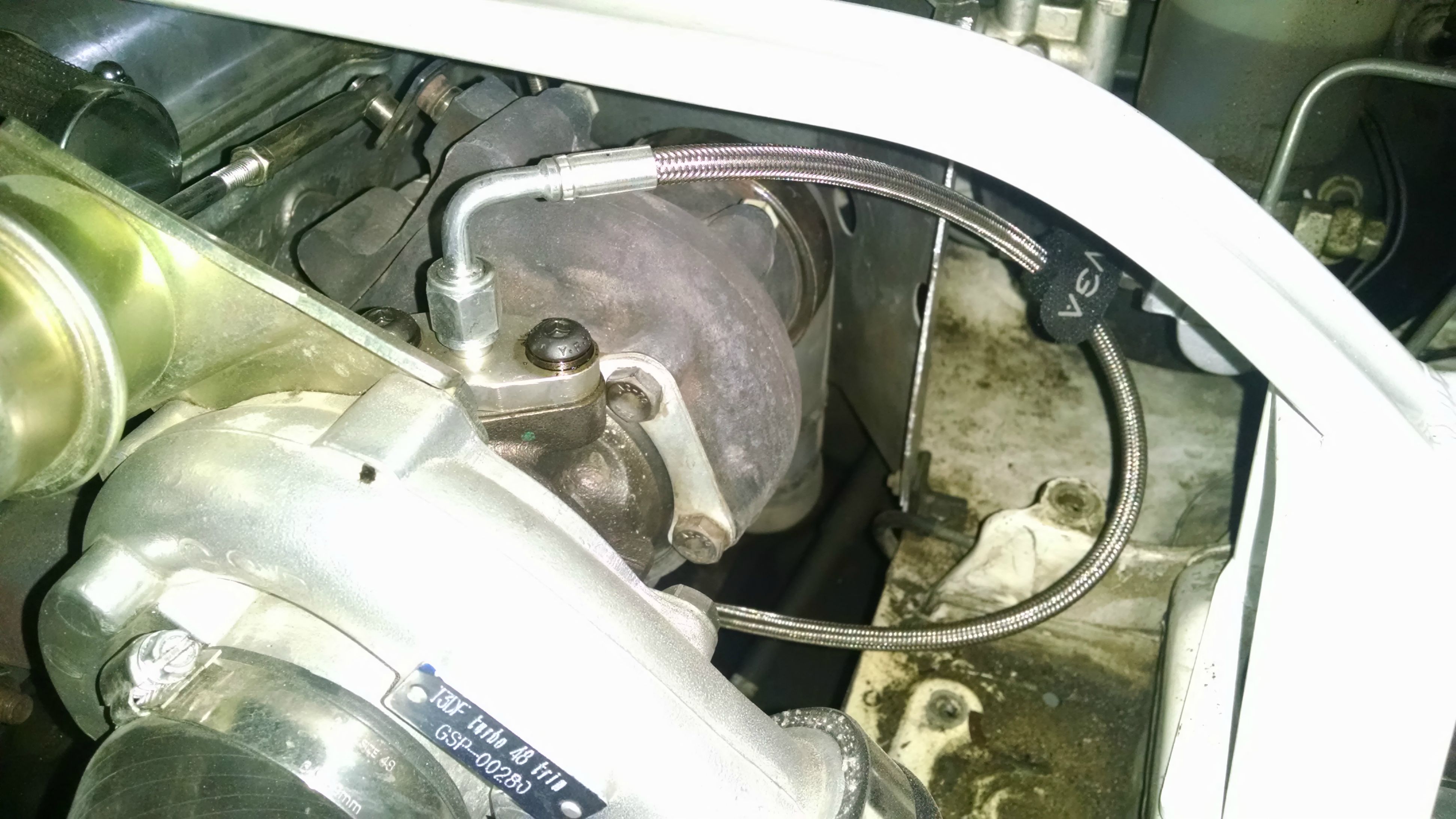

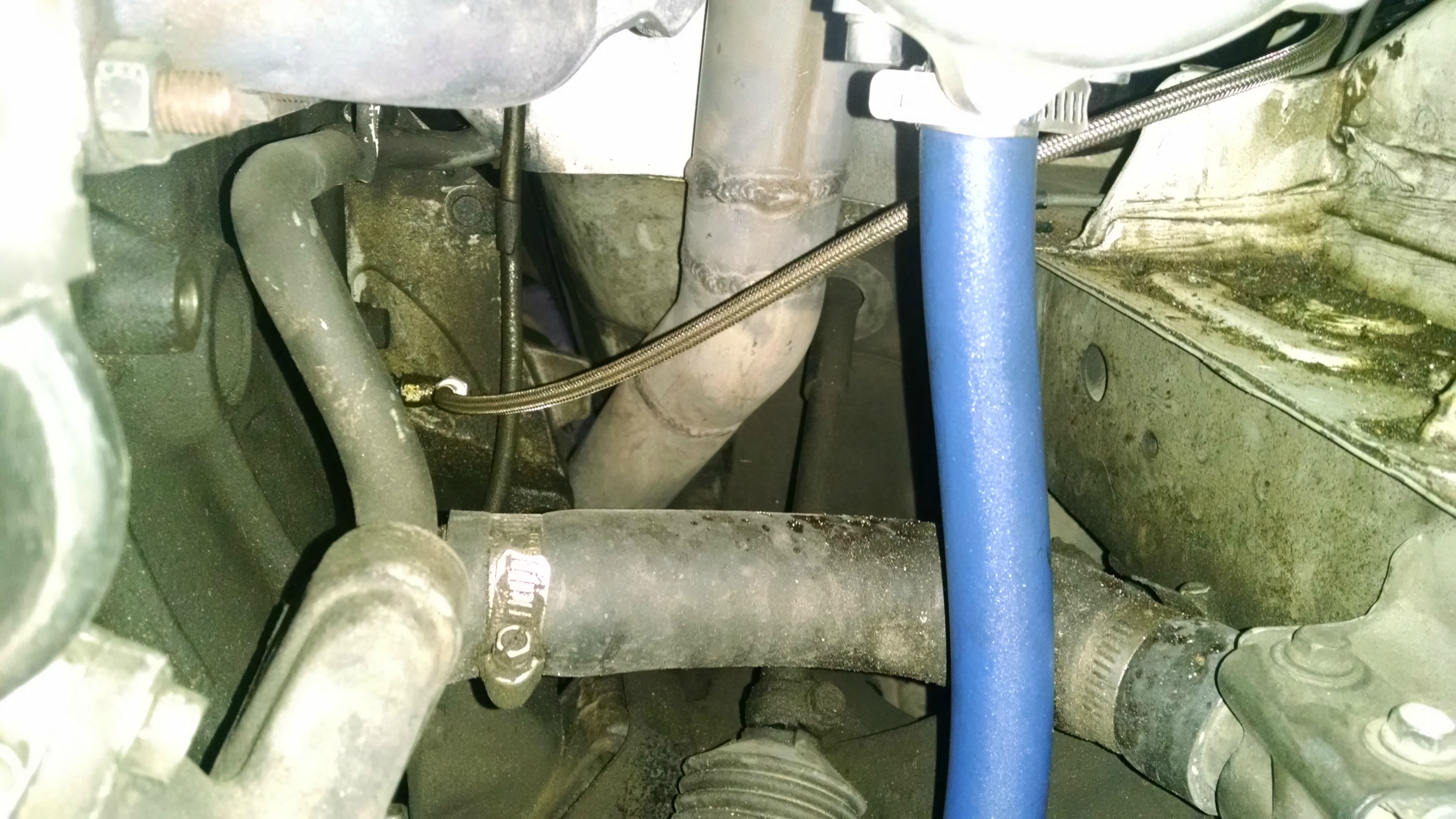

Turbo oil line is a 24" 4AN brake line.

24" Braided Steel Brake Line 4AN Line with 4 An Staight 90 Ends ALL46402 24 | eBay

It goes to a T3 .060 restriction flange, like this.

Turbo Oil Feed Inlet Flange Gasket Adapter Kit 4AN 4 An Fitting T3 T3 T4 T04 | eBay

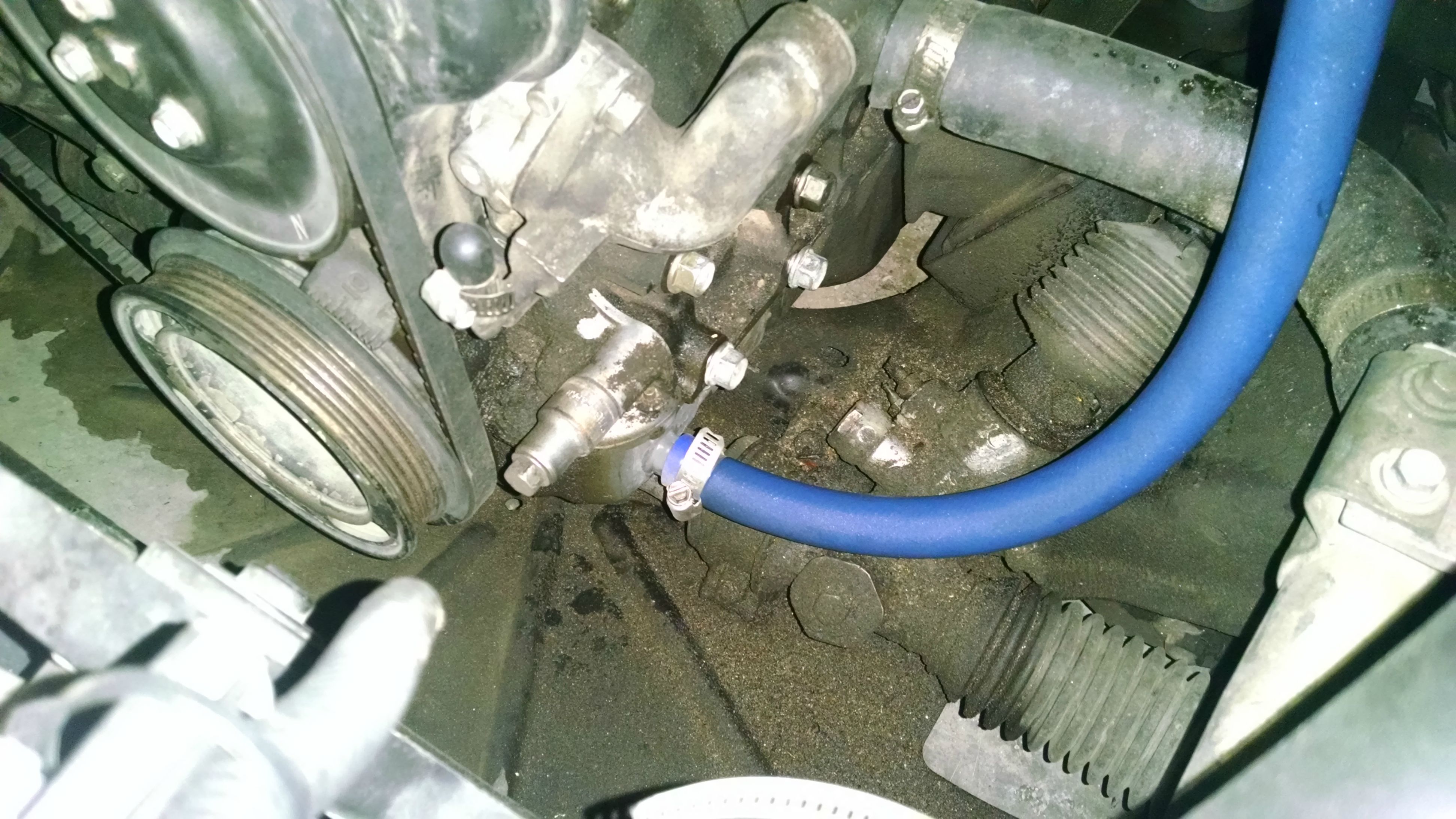

The oil drain, I ditched the ebay AN fittings and use this instead .

Turbo Oil Drain Outlet Flange Gasket Adapter Kit 5 8" Barb 10 An T3 T4 | eBay

The rest is easy, 5/8 to 3/8NPT barb fitting and 5/8ID hose.







Attached Thumbnails
&quot;After failed abortion, deezums sees the 1.8 light&quot; Build-jk883yw.jpg   &quot;After failed abortion, deezums sees the 1.8 light&quot; Build-au7mzv6.jpg   &quot;After failed abortion, deezums sees the 1.8 light&quot; Build-xyaxapm.jpg   &quot;After failed abortion, deezums sees the 1.8 light&quot; Build-qb0piwl.jpg
deezums is offline   Reply With Quote
Old 08-27-2015, 07:09 PM   #249
Junior Member

Join Date: Oct 2011
Location: New Hampshire
Posts: 318
Total Cats: 53
Default

Awesome. Thank, man,
adamiata is offline   Reply With Quote
Old 08-31-2015, 07:38 PM   #250
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

<p>Deezums which catch can did you get. Did you get one that you linked? or did you find the original non-rebranded one.</p>
aidandj is offline   Reply With Quote
Old 08-31-2015, 08:01 PM   #251
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

<p>Nvm, think I found it.</p><p>Mini Air Line Filter</p><p>That right?</p>
aidandj is offline   Reply With Quote
Old 08-31-2015, 09:10 PM   #252
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Yes, I like the catch can a lot. It fills about halfway inside 1K miles, and so far I haven't found much residue inside the plastic fittings past the filter.

I bought a home depot filter because Harbor freight is 30 minutes from me. It was still only $13 or so though.

This is like the one I bought, it has holes for a mounting braket. The same part number on Home depot shows a different picture now...

Husky Air Tool Air Line Filter Range 0 150 PSI 1 4"NPT Ports New No Box | eBay

Same part number, different filter
Husky 1/4 in. Air Compressor Filter-HDA70403AV - The Home Depot

The harbor freight one has mounting holes like I like, but the drain on the bowl is different, so you'll have to modify it on your own.
deezums is offline   Reply With Quote
Old 08-31-2015, 09:12 PM   #253
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

<p>**** yes, goes up to 150psi!</p><p>Ordered.</p><p>Didn't see $6 dollar shipping. brb going to home depot. Wonder if its the same.</p>
aidandj is offline   Reply With Quote
Old 08-31-2015, 09:13 PM   #254
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default



You should run compound catch cans, then you can have 300psi, right?

I bet they are phasing out the old model, you might get lucky and find the good one on the shelf.
deezums is offline   Reply With Quote
Old 08-31-2015, 09:14 PM   #255
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

<p>Do you think the part actually changed? Or they have a wrong picture.</p>
aidandj is offline   Reply With Quote
Old 08-31-2015, 09:17 PM   #256
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

It might be a wrong picture, but with home depot it's hard to say. Walmart of the hardware stores, they make their suppliers do all sorts of bullshit and that's a house brand.
deezums is offline   Reply With Quote
Old 08-31-2015, 10:17 PM   #257
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

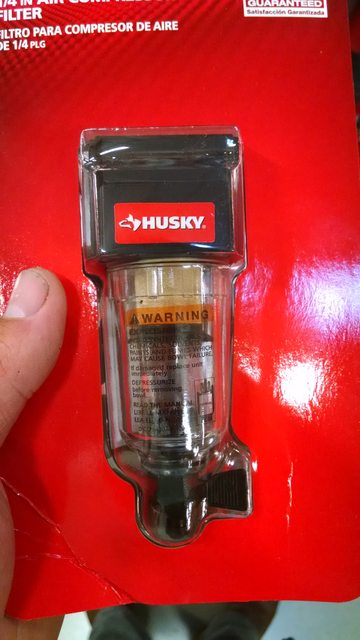

<p></p><p>BAM</p>
Attached Thumbnails
&quot;After failed abortion, deezums sees the 1.8 light&quot; Build-ckfkmezl.jpg
aidandj is offline   Reply With Quote
Old 08-31-2015, 11:08 PM   #258
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

<p>What thread are the holes on this thing.</p>
aidandj is offline   Reply With Quote
Old 09-01-2015, 12:14 AM   #259
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Uh, I think it's metric 4mm? I took it to the hardware store to check fit, they are pretty short and stubby.
deezums is offline   Reply With Quote
Old 09-01-2015, 12:52 AM   #260
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,798
Total Cats: 1,249
Default

Hmm alright. And sheet metal screws to the firewall?
aidandj is offline   Reply With Quote
