"After failed abortion, deezums sees the 1.8 light" Build
#401
Elite Member
Thread Starter
iTrader: (3)
Join Date: May 2014
Location: Kansas
Posts: 3,146
Total Cats: 201
Stock is 1:1 against manifold pressure, so extra pound of fuel for every pound of boost against the seat of the injector. It would take 30 pounds of boost for a stock regulator to ever see that. At that point I bet the stock rail is too small anyway.
I have heard of stock regulators ripping diaphragms and leaking fuel, but old aids cars would run 90 pounds of injector pressure which means the diaphragm will hold it, but for how long? A RRFPR car would only load the stock diaphragm so hard momentarily, and while there's lots of fuel flow and not much actual flow through the return... If I try and run 70 psi at idle, it has to shunt nearly everything the pump makes.
I still think I'll try this regulator with the stock one in place, then if I can hold low enough injector pulsewidth to idle not rich I'll order that adapter and remove the stock one, it's kinda redundant anyway and just an extra failure point. Plus data on the adapter, too!
I have heard of stock regulators ripping diaphragms and leaking fuel, but old aids cars would run 90 pounds of injector pressure which means the diaphragm will hold it, but for how long? A RRFPR car would only load the stock diaphragm so hard momentarily, and while there's lots of fuel flow and not much actual flow through the return... If I try and run 70 psi at idle, it has to shunt nearly everything the pump makes.
I still think I'll try this regulator with the stock one in place, then if I can hold low enough injector pulsewidth to idle not rich I'll order that adapter and remove the stock one, it's kinda redundant anyway and just an extra failure point. Plus data on the adapter, too!
#403
Elite Member
Thread Starter
iTrader: (3)
Join Date: May 2014
Location: Kansas
Posts: 3,146
Total Cats: 201
So i installed the billies last night, I trimmed the bumpstops they came with down a bit, from 60mm to 35mm or so. At 5.25"f 5.5"r heights I only have 3/4" of compression out back and probably 1.5" at most up front, till I'm on the stops. I wonder if this is why Ben thought they were blown? Trying to go this low or near it with the stock length speedthane bumpstops wouldn't work for sure.
I was running more like 4.5/5.0 pinch weld height, so I am still higher than I'd like to be. I'd also like to find some tender or helper springs to take up the droop I've lost, need around 2" or so. I was hoping I could use the riceland coils, they are around 100-150# and would be perfect if they were 2.5 instead of 2.25"...
It's oversteer city at the moment, I think nearly resting on the rear stops is probably doing that, hopefully. I installed 550/300 rates for now, more rear springrate means more oversteer, right? Still have stock 1990 miata rear sway installed too.
Ricelands are blown, no big surprise. The shafts never do the same thing twice, push it in and it will jump back out 1/2" real quick before actually doing any damping...
I was running more like 4.5/5.0 pinch weld height, so I am still higher than I'd like to be. I'd also like to find some tender or helper springs to take up the droop I've lost, need around 2" or so. I was hoping I could use the riceland coils, they are around 100-150# and would be perfect if they were 2.5 instead of 2.25"...
It's oversteer city at the moment, I think nearly resting on the rear stops is probably doing that, hopefully. I installed 550/300 rates for now, more rear springrate means more oversteer, right? Still have stock 1990 miata rear sway installed too.
Ricelands are blown, no big surprise. The shafts never do the same thing twice, push it in and it will jump back out 1/2" real quick before actually doing any damping...
#406
With my car when I went to the big RB front bar (HD mounts and metal spacer mounts) and removed the rear bar, it felt great on the autocross course. On the street I liked having the stock rear bar in the car.
I am on a similar setup as you with Ground Control 440 in/lbs front and 300 in/lbs rear on Bilstein HDs. I am at about 4" and 4.25" ride height and a bit above 1900lbs.
I am on a similar setup as you with Ground Control 440 in/lbs front and 300 in/lbs rear on Bilstein HDs. I am at about 4" and 4.25" ride height and a bit above 1900lbs.
#407
Elite Member
Thread Starter
iTrader: (3)
Join Date: May 2014
Location: Kansas
Posts: 3,146
Total Cats: 201
Are you running NB top hats, or any drop hats? I don't see how I can go any lower without that or shorter shocks. Bilstein HDs are NA length, right?
Lots of the droop travel of my suspension and shocks are wasted by the short springs. I wonder if the extra compression would be worth the trouble.
Lots of the droop travel of my suspension and shocks are wasted by the short springs. I wonder if the extra compression would be worth the trouble.
#408
Are you running NB top hats, or any drop hats? I don't see how I can go any lower without that or shorter shocks. Bilstein HDs are NA length, right?
Lots of the droop travel of my suspension and shocks are wasted by the short springs. I wonder if the extra compression would be worth the trouble.
Lots of the droop travel of my suspension and shocks are wasted by the short springs. I wonder if the extra compression would be worth the trouble.
#409
Elite Member
Thread Starter
iTrader: (3)
Join Date: May 2014
Location: Kansas
Posts: 3,146
Total Cats: 201
I get a loud bang that sounds like my muffler wanting to come through the trunk floor, I think it's from hitting the rear stops hard. There's a bump coming out of a right hand corner I can hit them on pretty regularly.
Must mean I'm riding on them regularly, I think I might try and make some tophats too.
Must mean I'm riding on them regularly, I think I might try and make some tophats too.
#411
Elite Member
Thread Starter
iTrader: (3)
Join Date: May 2014
Location: Kansas
Posts: 3,146
Total Cats: 201
Did some things this afternoon.

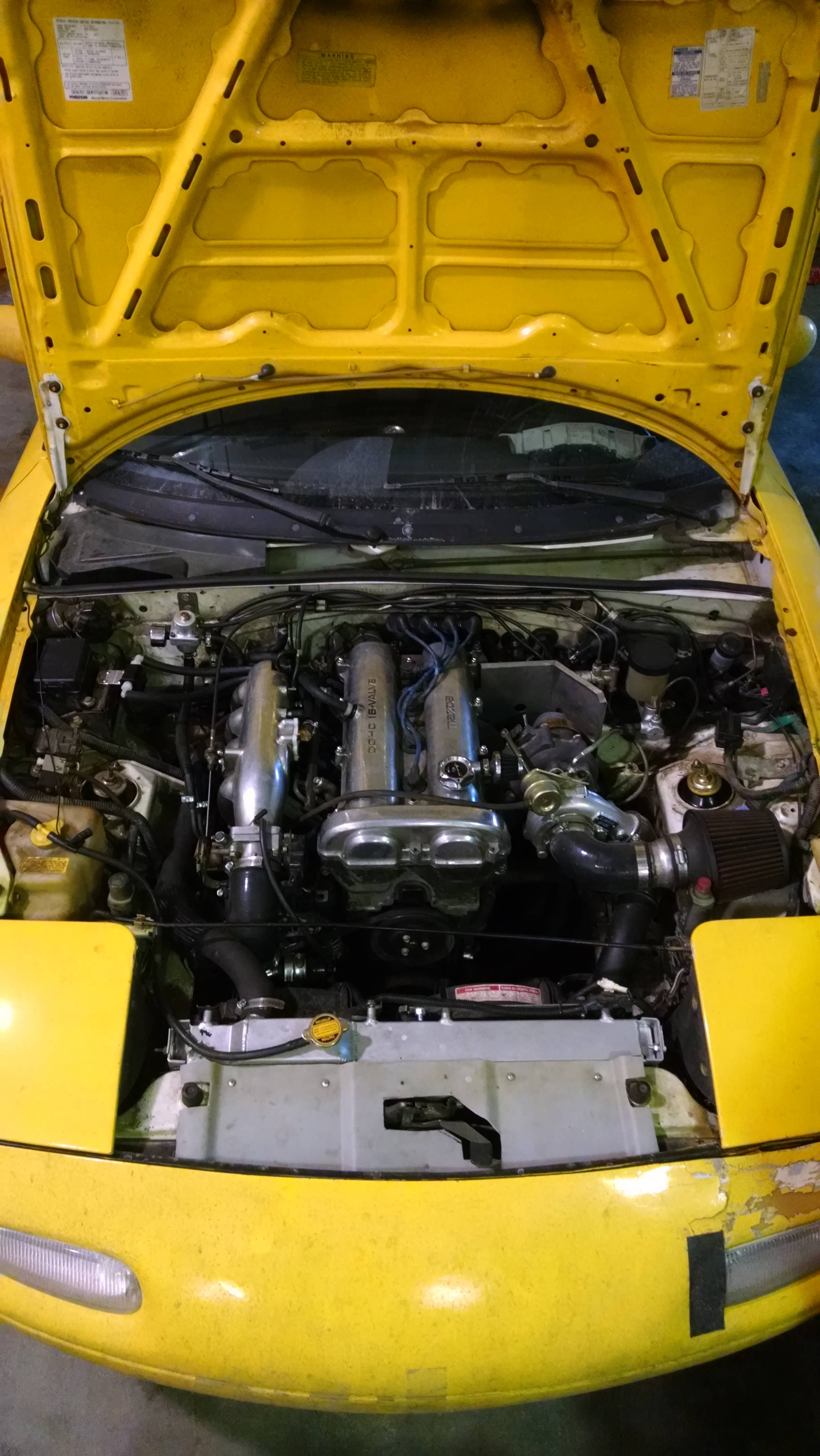

Took my hood off and bent the lock tabs out of the way, now I can do this.

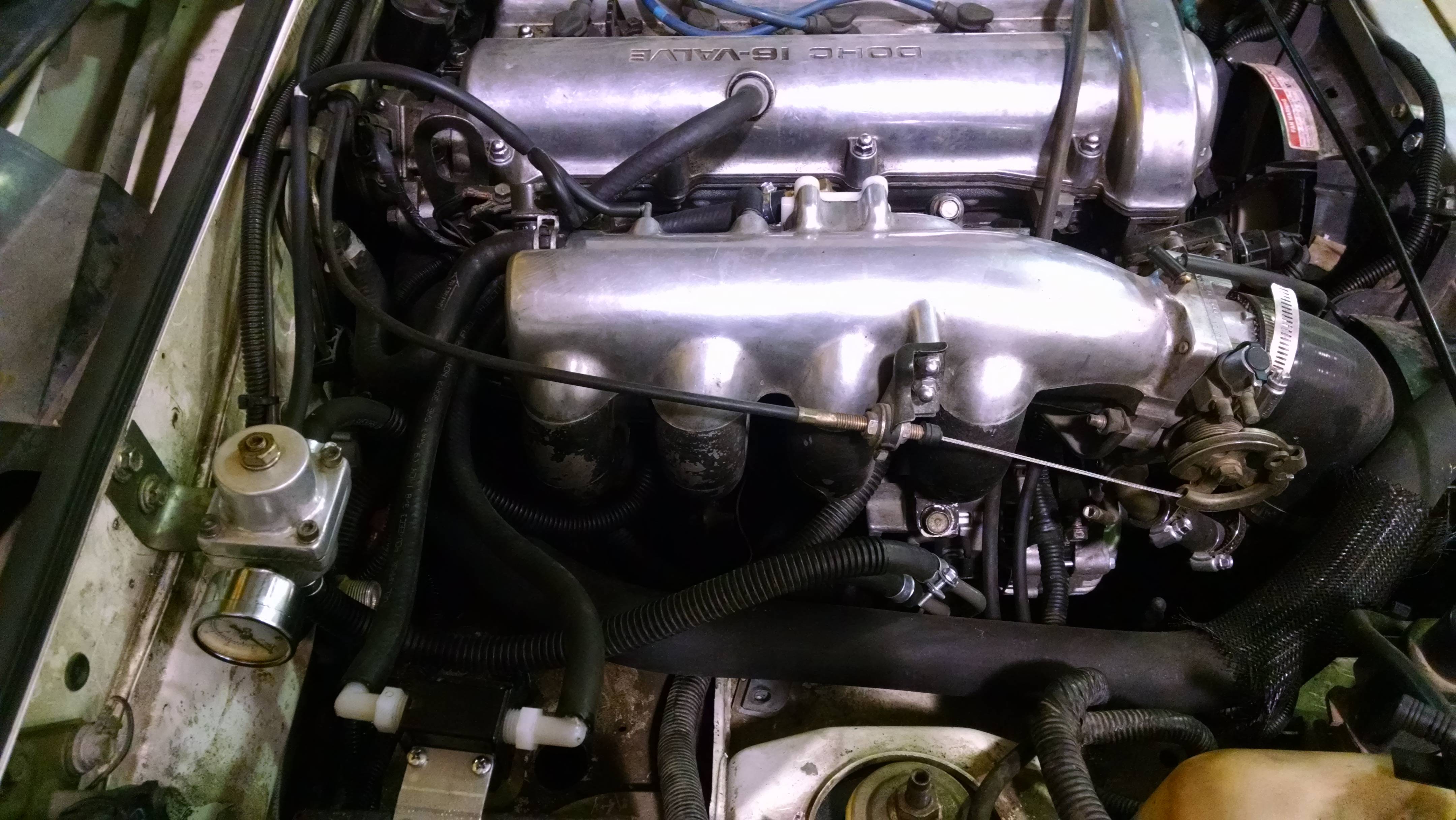

Removed the washer fluid bottle, moved the catch can, and installed AFPR. Set to 70 PSI with vac, think I might back it off to 70 pounds at atmospheric. Garage smells like corn from idling, good times.
Going to try and change reqfuel and see what autotune does for the rest.
Thanks Aidan!
Took my hood off and bent the lock tabs out of the way, now I can do this.
Removed the washer fluid bottle, moved the catch can, and installed AFPR. Set to 70 PSI with vac, think I might back it off to 70 pounds at atmospheric. Garage smells like corn from idling, good times.
Going to try and change reqfuel and see what autotune does for the rest.
Thanks Aidan!
#412
Elite Member
Thread Starter
iTrader: (3)
Join Date: May 2014
Location: Kansas
Posts: 3,146
Total Cats: 201
Late night tuning...
GT500 injectors are 727cc at 58psi/4.0bar base pressure, what I have set now. That should put me somewhere around 85% duty at rod bending levels. Still not sure why I get VE values so high, so I tried something new. 727cc and 9.7AFR for e85 gives 5.5 for a reqfuel value.
Anyway, that's higher than the 4.4 I was using previously, so all my VE values are down. If I use 14.7afr and 727cc I get 3.7 as reqfuel from the calculator. Using that I was getting values up above 230 before peak torque even, so that's no good.
These injectors seem to love more pressure though, and it doesn't seem to phase the deadtime as I haven't even changed that yet. All this messing around with reqfuel values had me idling all over the place, if anything this has made the injectors more linear down low and I can idle ridiculous values like 17.0 rather smooth.
So I might bump the pressure again 5.0 bar, it might just make things even smoother since I can still idle lean apparently. ~800cc of flow should make for nearly 350whp on corn at 80% lol, I'd never have to change anything fuel related again. So, I don't really want to waste time tuning this pressure, I think I'll rough tune pig rich and put a camera on the fuel pressure gauge, see if my fuel pump can keep up as is...
GT500 injectors are 727cc at 58psi/4.0bar base pressure, what I have set now. That should put me somewhere around 85% duty at rod bending levels. Still not sure why I get VE values so high, so I tried something new. 727cc and 9.7AFR for e85 gives 5.5 for a reqfuel value.
Anyway, that's higher than the 4.4 I was using previously, so all my VE values are down. If I use 14.7afr and 727cc I get 3.7 as reqfuel from the calculator. Using that I was getting values up above 230 before peak torque even, so that's no good.
These injectors seem to love more pressure though, and it doesn't seem to phase the deadtime as I haven't even changed that yet. All this messing around with reqfuel values had me idling all over the place, if anything this has made the injectors more linear down low and I can idle ridiculous values like 17.0 rather smooth.
So I might bump the pressure again 5.0 bar, it might just make things even smoother since I can still idle lean apparently. ~800cc of flow should make for nearly 350whp on corn at 80% lol, I'd never have to change anything fuel related again. So, I don't really want to waste time tuning this pressure, I think I'll rough tune pig rich and put a camera on the fuel pressure gauge, see if my fuel pump can keep up as is...
#415
SADFab Destructive Testing Engineer
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Sensors outputs in lamda. So the sensor controller already does that conversion from lamda to AFR as is 14.7 is stoic for both fuels.
Last edited by aidandj; 01-29-2016 at 10:17 AM.
#417
SADFab Destructive Testing Engineer
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Late night tuning...
GT500 injectors are 727cc at 58psi/4.0bar base pressure, what I have set now. That should put me somewhere around 85% duty at rod bending levels. Still not sure why I get VE values so high, so I tried something new. 727cc and 9.7AFR for e85 gives 5.5 for a reqfuel value.
Anyway, that's higher than the 4.4 I was using previously, so all my VE values are down. If I use 14.7afr and 727cc I get 3.7 as reqfuel from the calculator. Using that I was getting values up above 230 before peak torque even, so that's no good.
These injectors seem to love more pressure though, and it doesn't seem to phase the deadtime as I haven't even changed that yet. All this messing around with reqfuel values had me idling all over the place, if anything this has made the injectors more linear down low and I can idle ridiculous values like 17.0 rather smooth.
So I might bump the pressure again 5.0 bar, it might just make things even smoother since I can still idle lean apparently. ~800cc of flow should make for nearly 350whp on corn at 80% lol, I'd never have to change anything fuel related again. So, I don't really want to waste time tuning this pressure, I think I'll rough tune pig rich and put a camera on the fuel pressure gauge, see if my fuel pump can keep up as is...
GT500 injectors are 727cc at 58psi/4.0bar base pressure, what I have set now. That should put me somewhere around 85% duty at rod bending levels. Still not sure why I get VE values so high, so I tried something new. 727cc and 9.7AFR for e85 gives 5.5 for a reqfuel value.
Anyway, that's higher than the 4.4 I was using previously, so all my VE values are down. If I use 14.7afr and 727cc I get 3.7 as reqfuel from the calculator. Using that I was getting values up above 230 before peak torque even, so that's no good.
These injectors seem to love more pressure though, and it doesn't seem to phase the deadtime as I haven't even changed that yet. All this messing around with reqfuel values had me idling all over the place, if anything this has made the injectors more linear down low and I can idle ridiculous values like 17.0 rather smooth.
So I might bump the pressure again 5.0 bar, it might just make things even smoother since I can still idle lean apparently. ~800cc of flow should make for nearly 350whp on corn at 80% lol, I'd never have to change anything fuel related again. So, I don't really want to waste time tuning this pressure, I think I'll rough tune pig rich and put a camera on the fuel pressure gauge, see if my fuel pump can keep up as is...
#420
Elite Member
Thread Starter
iTrader: (3)
Join Date: May 2014
Location: Kansas
Posts: 3,146
Total Cats: 201
I don't need or care for real data, though i guess I can at least install a NPT sensor easy enough. You underestimate the cheapness, though.
I have no idea how I'd install the cheap flex sensor on NA fuel junk, cheaply, so I didn't.
Like I said, only reason I used E85 stoic in the reqfuel calculator is to get my VE values down. Although, if I'm not mistaken I should be able to redo reqfuel at 14.7 and run the map as is tuned for gasoline...
All my AFR targets are still the same in megasquirt, shifted little bits for e85. There's no wacky conversion going on, just in the reqfuel calculator.
Shouldn't have brought it up, still for the life of me can't figure why it confuses everyone so.
I have no idea how I'd install the cheap flex sensor on NA fuel junk, cheaply, so I didn't.
Like I said, only reason I used E85 stoic in the reqfuel calculator is to get my VE values down. Although, if I'm not mistaken I should be able to redo reqfuel at 14.7 and run the map as is tuned for gasoline...
All my AFR targets are still the same in megasquirt, shifted little bits for e85. There's no wacky conversion going on, just in the reqfuel calculator.
Shouldn't have brought it up, still for the life of me can't figure why it confuses everyone so.
