#6502
Either that or a pair of mechanics gloves or pliers for turning the ****. It works fine, it's just intended for small spaces so it's less ergonomic than the normal one.
You run the same tires street and track right? That'll probably work OK. I run dedicated tires for each, and > 3 degrees of camber means the street tires wear the inside edges about twice as fast as the outsides.
I find that ~ half a degree works well for balancing front/rear camber, but it depends on the general balance of the car, spring rates, sway bars, etc.
--Ian
You run the same tires street and track right? That'll probably work OK. I run dedicated tires for each, and > 3 degrees of camber means the street tires wear the inside edges about twice as fast as the outsides.
I find that ~ half a degree works well for balancing front/rear camber, but it depends on the general balance of the car, spring rates, sway bars, etc.
--Ian
#6507
Not sure for the track but auto-x would have the same advice. Front camber, run ALLOFIT. I know at least with maxed out front camber and 1/4" total toe out in the front daily driving to work and auto-xing on skeet tirers you end up with basically even wear maybe a little extra on the outer shoulder.
#6509
SadFab CEO
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
With the ratio of track to street you do, I would not exceed 3 F, 2.5-2.7 R.
From my online research, 0.3-0.6 less rear camber than front seems to be the norm. That is if you ignore all of m.net. and whatever that stupid icebird bullshit alignment is.
From my online research, 0.3-0.6 less rear camber than front seems to be the norm. That is if you ignore all of m.net. and whatever that stupid icebird bullshit alignment is.
#6514
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866

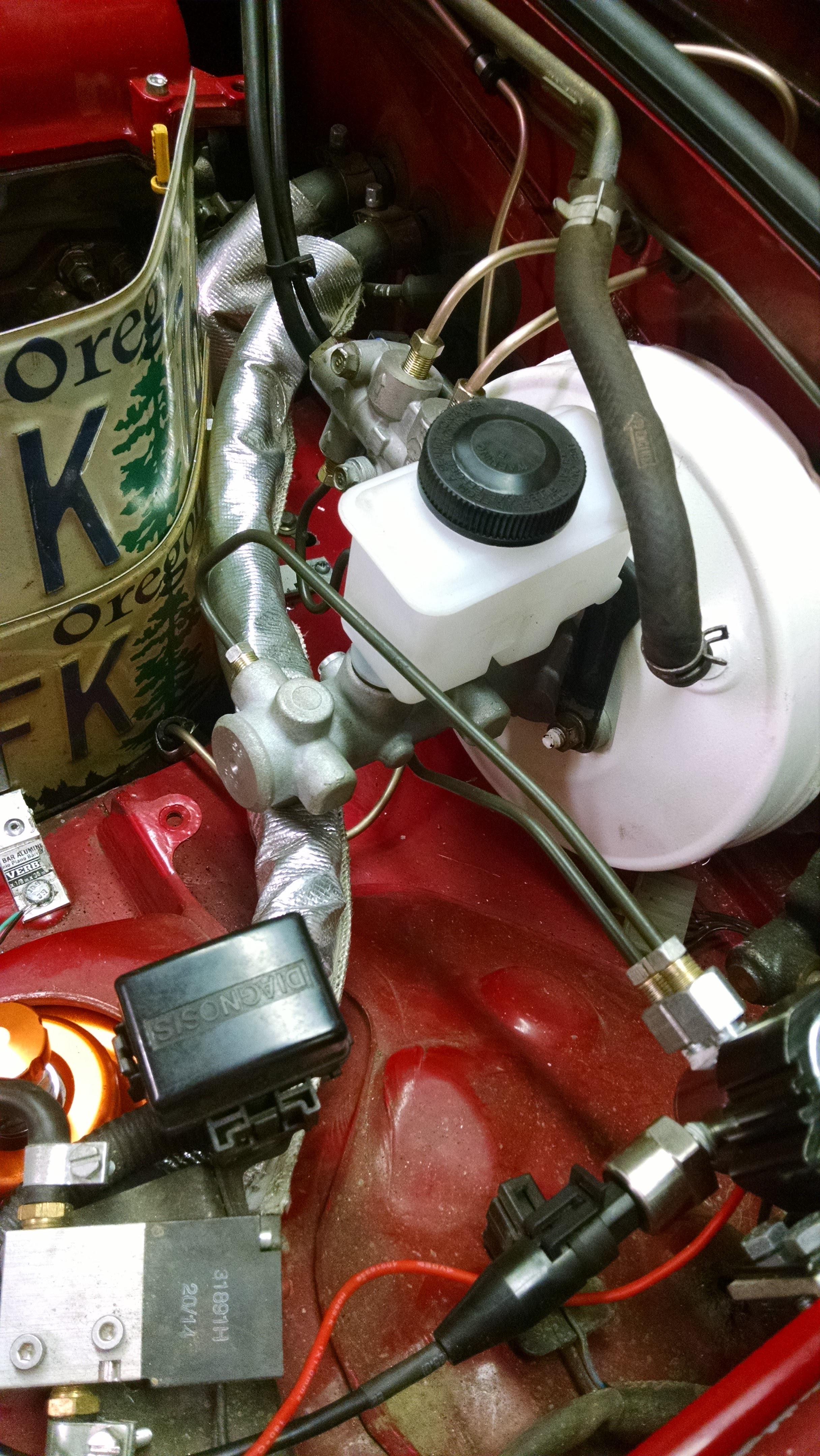

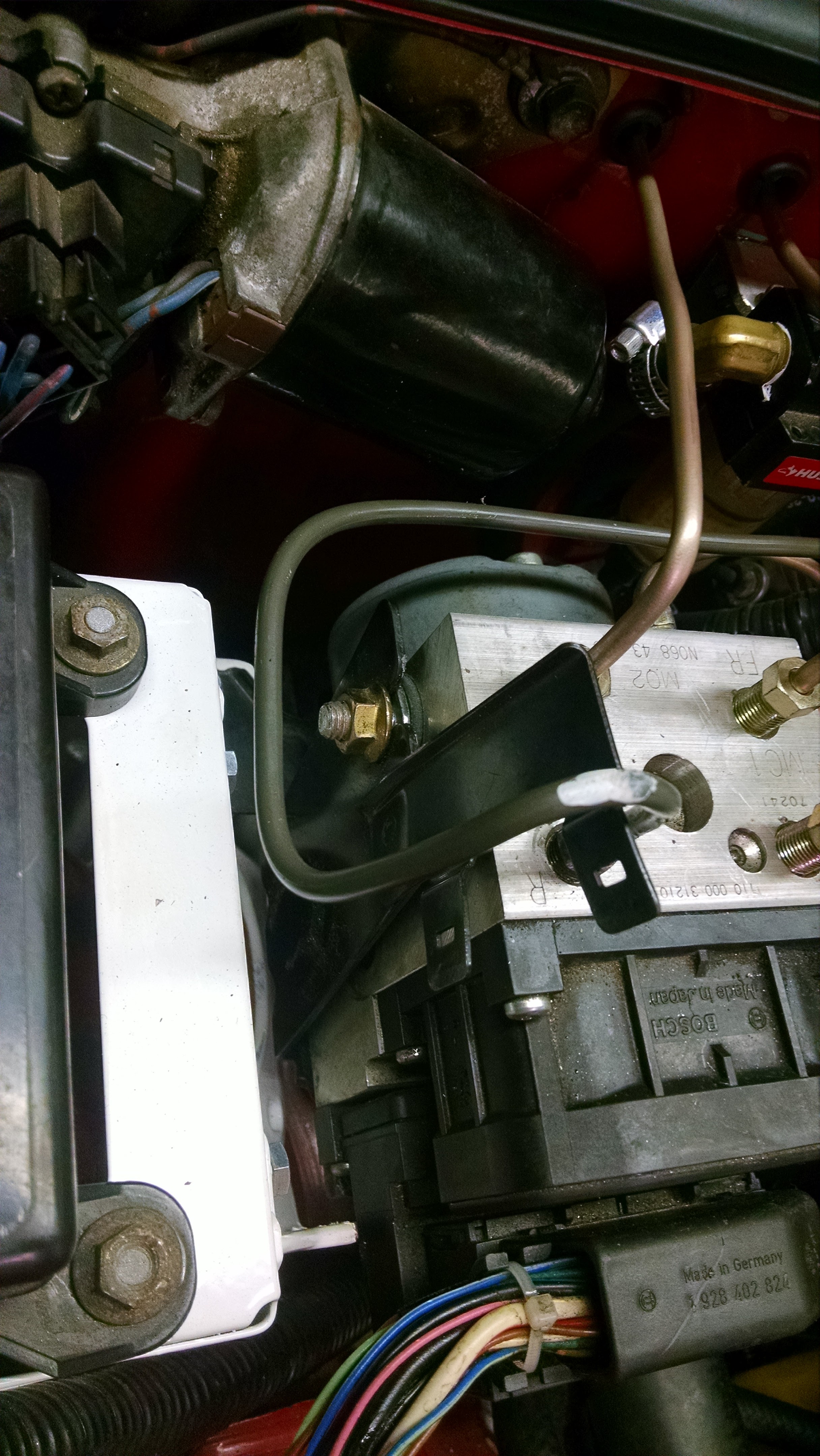

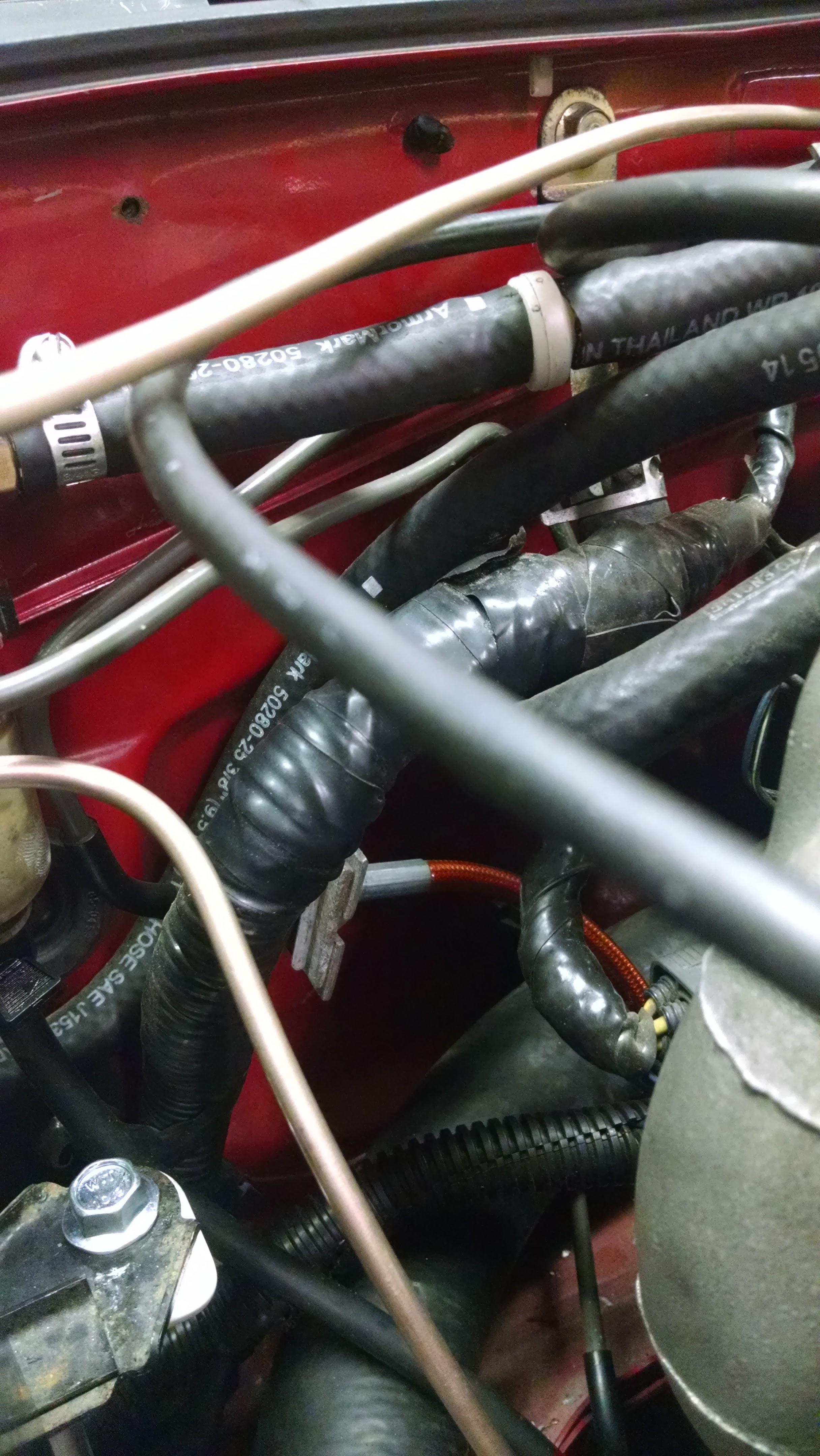

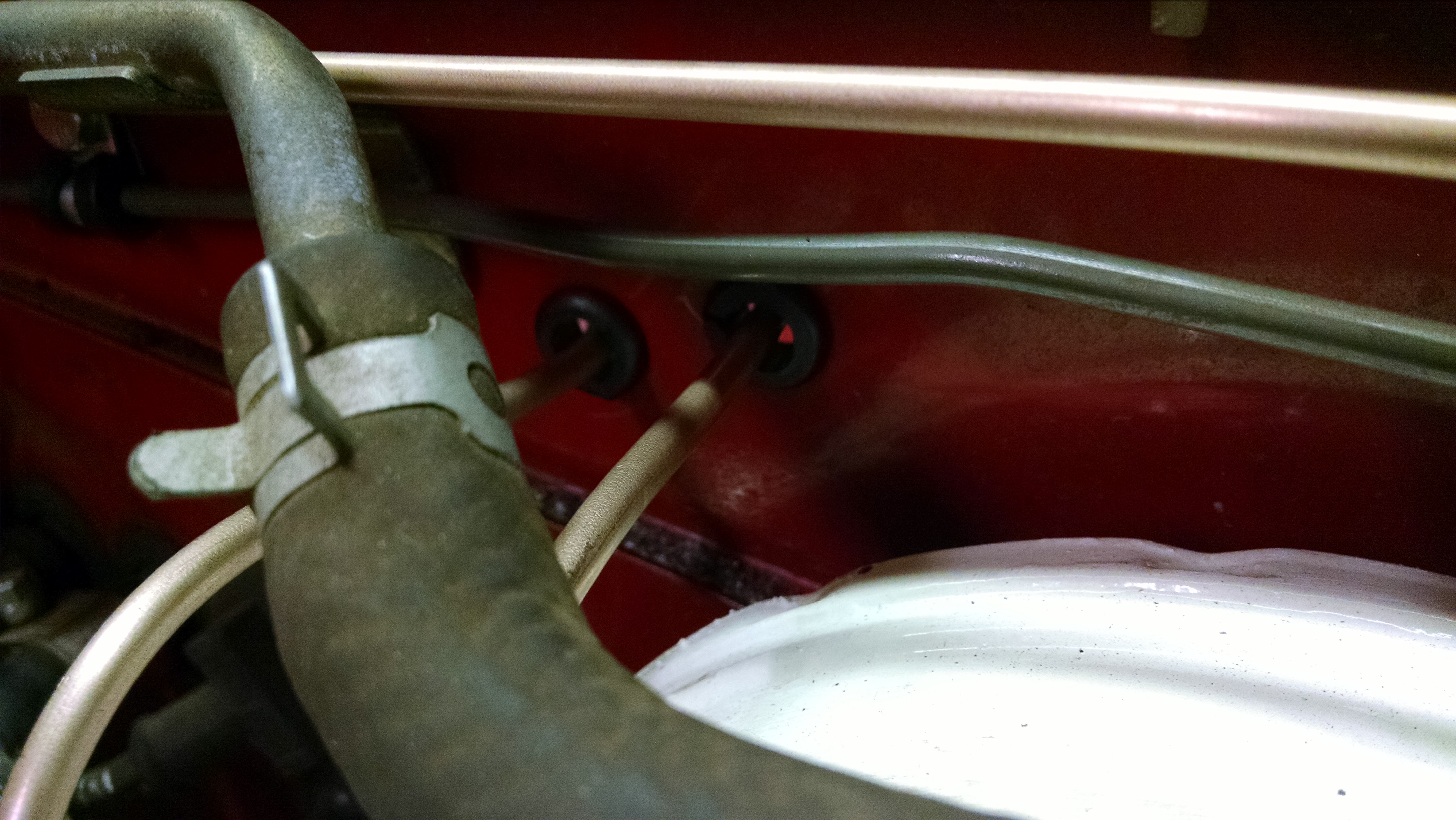

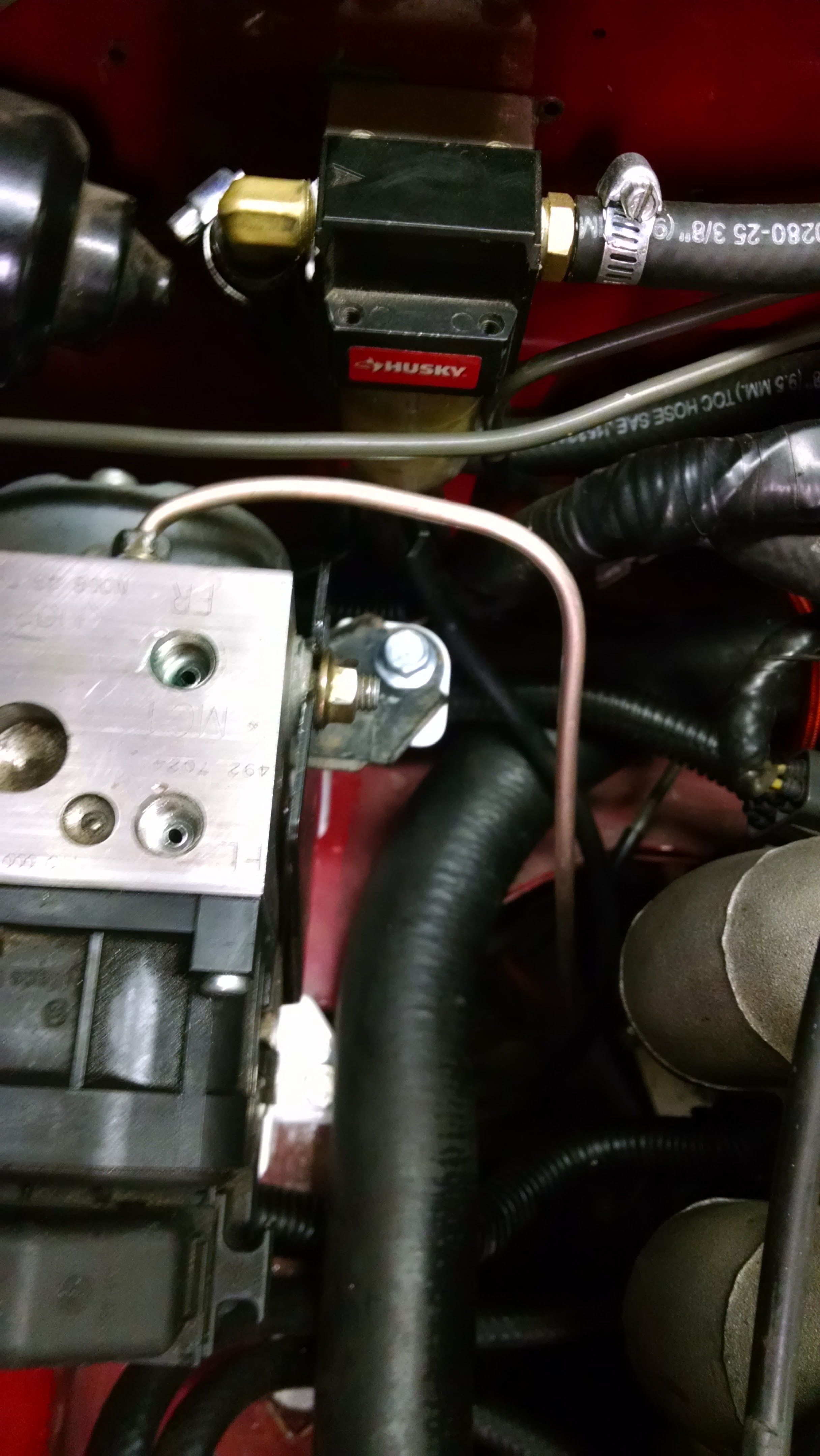

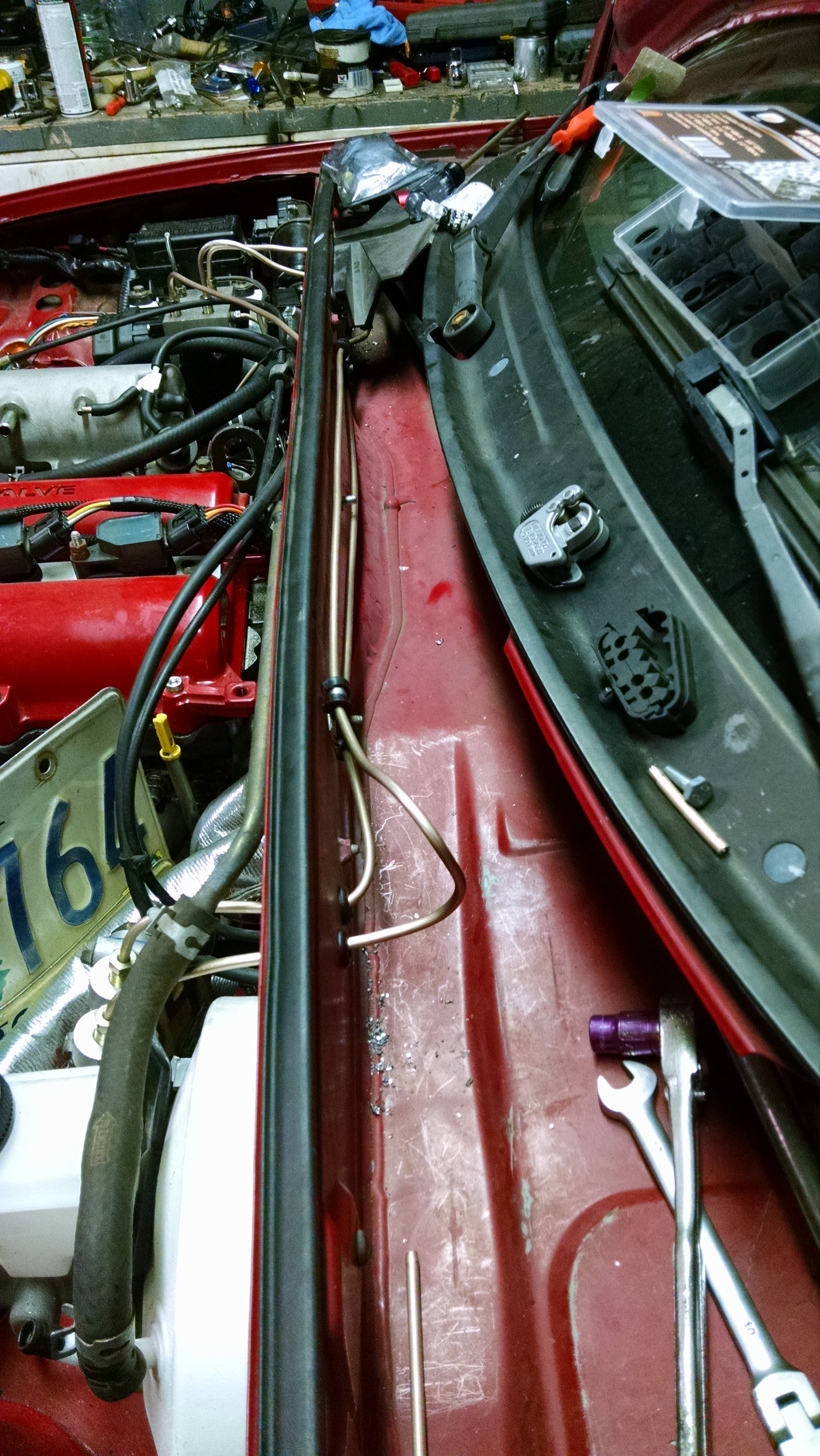

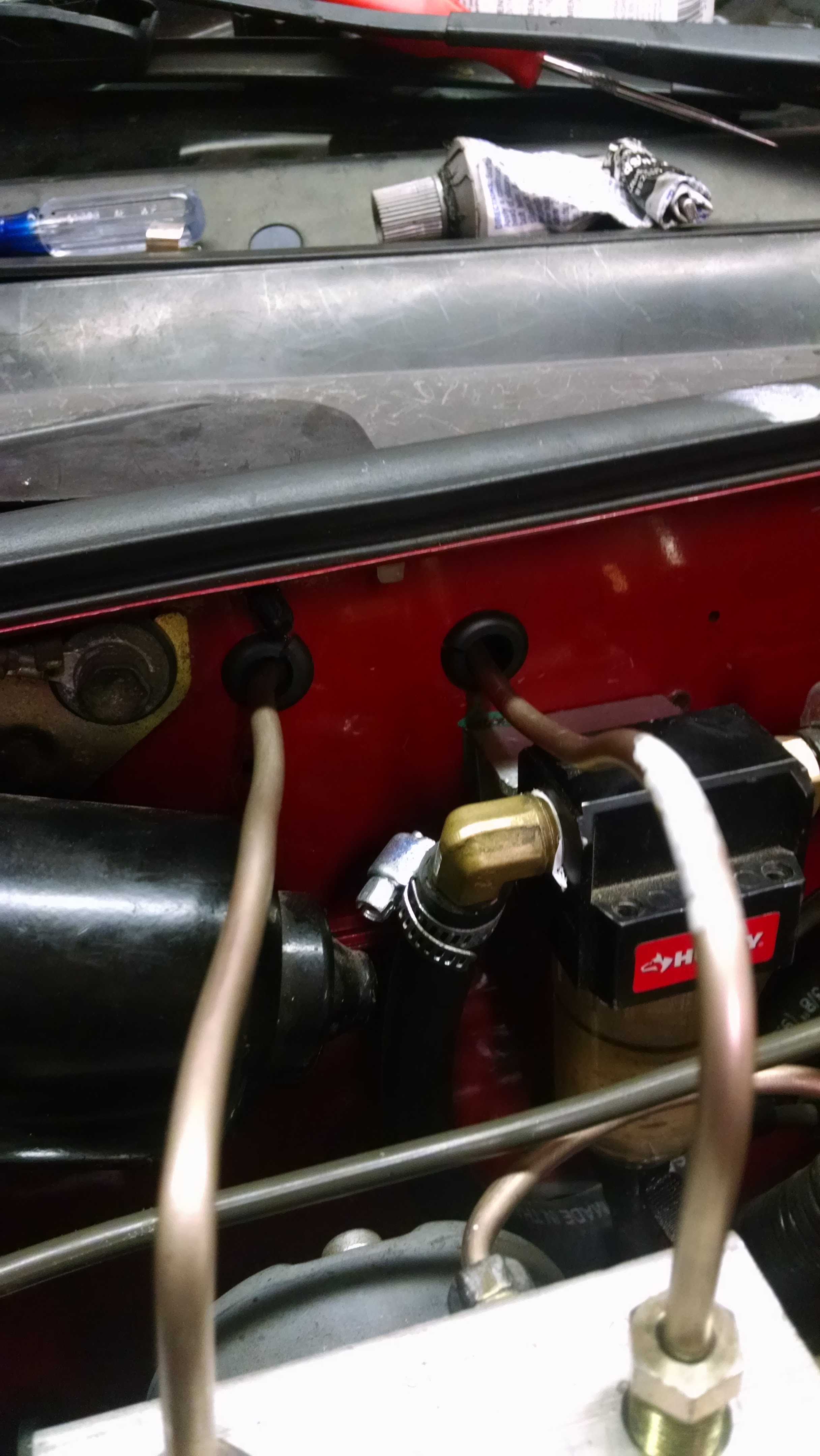

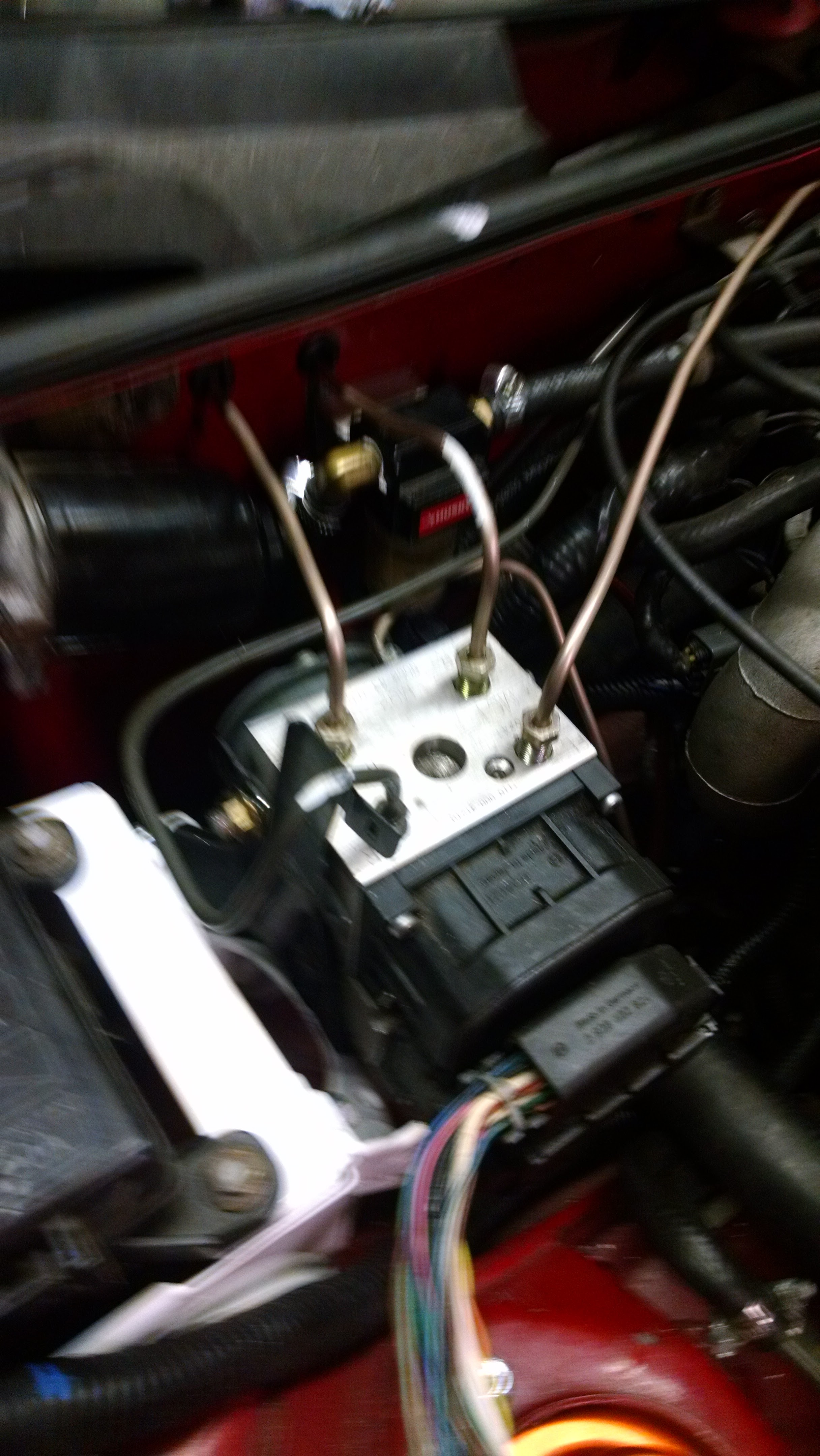

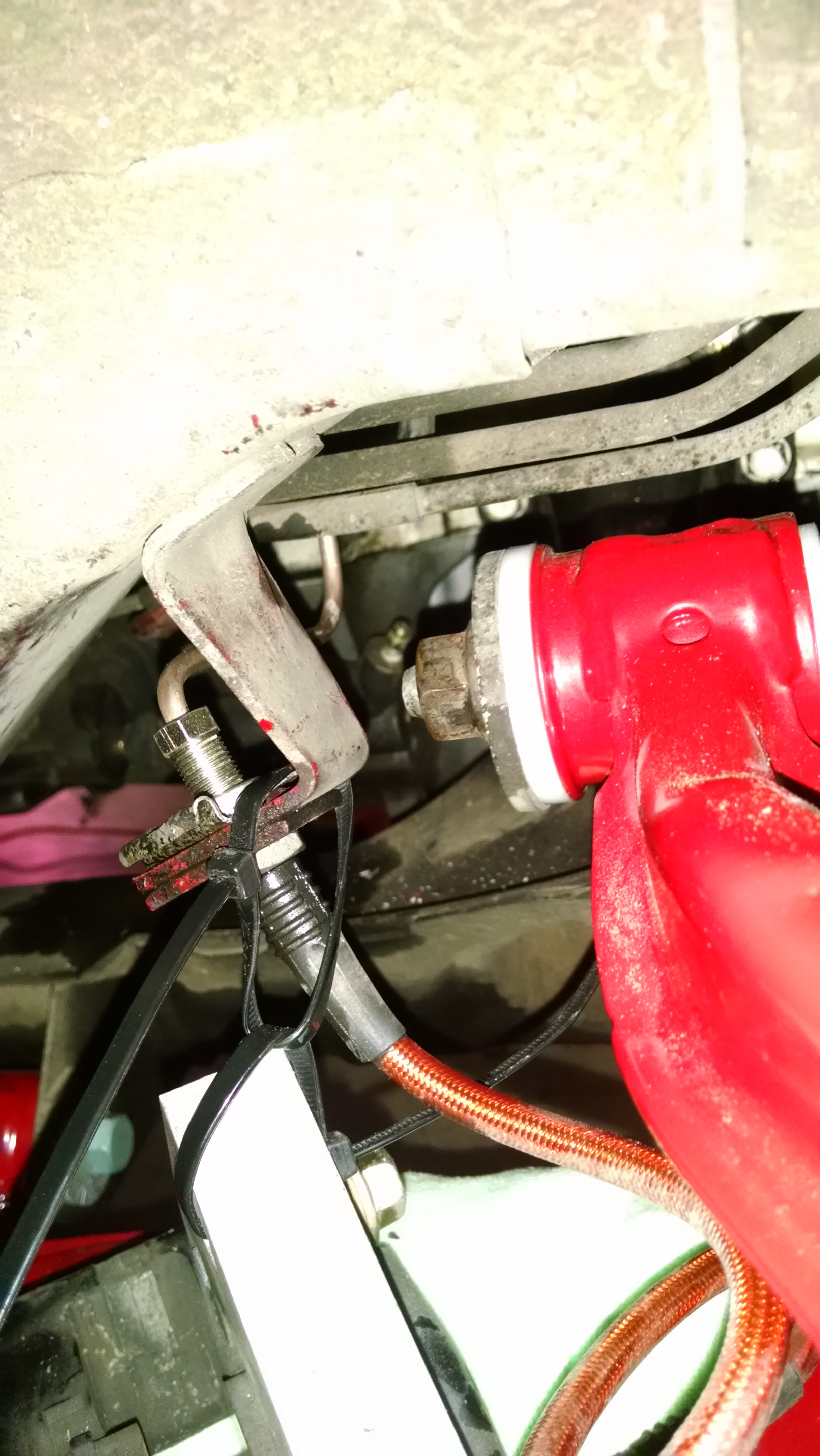

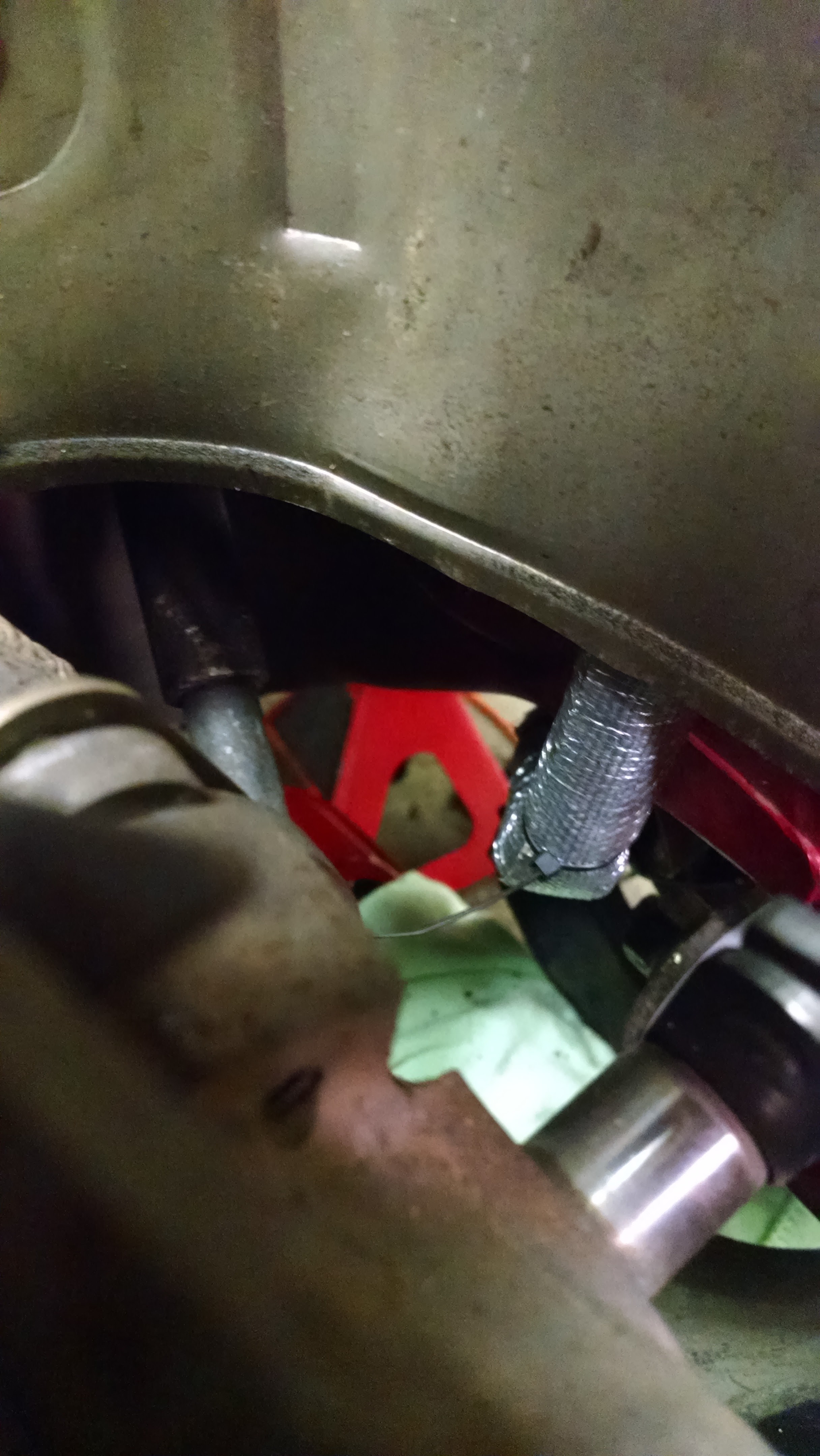

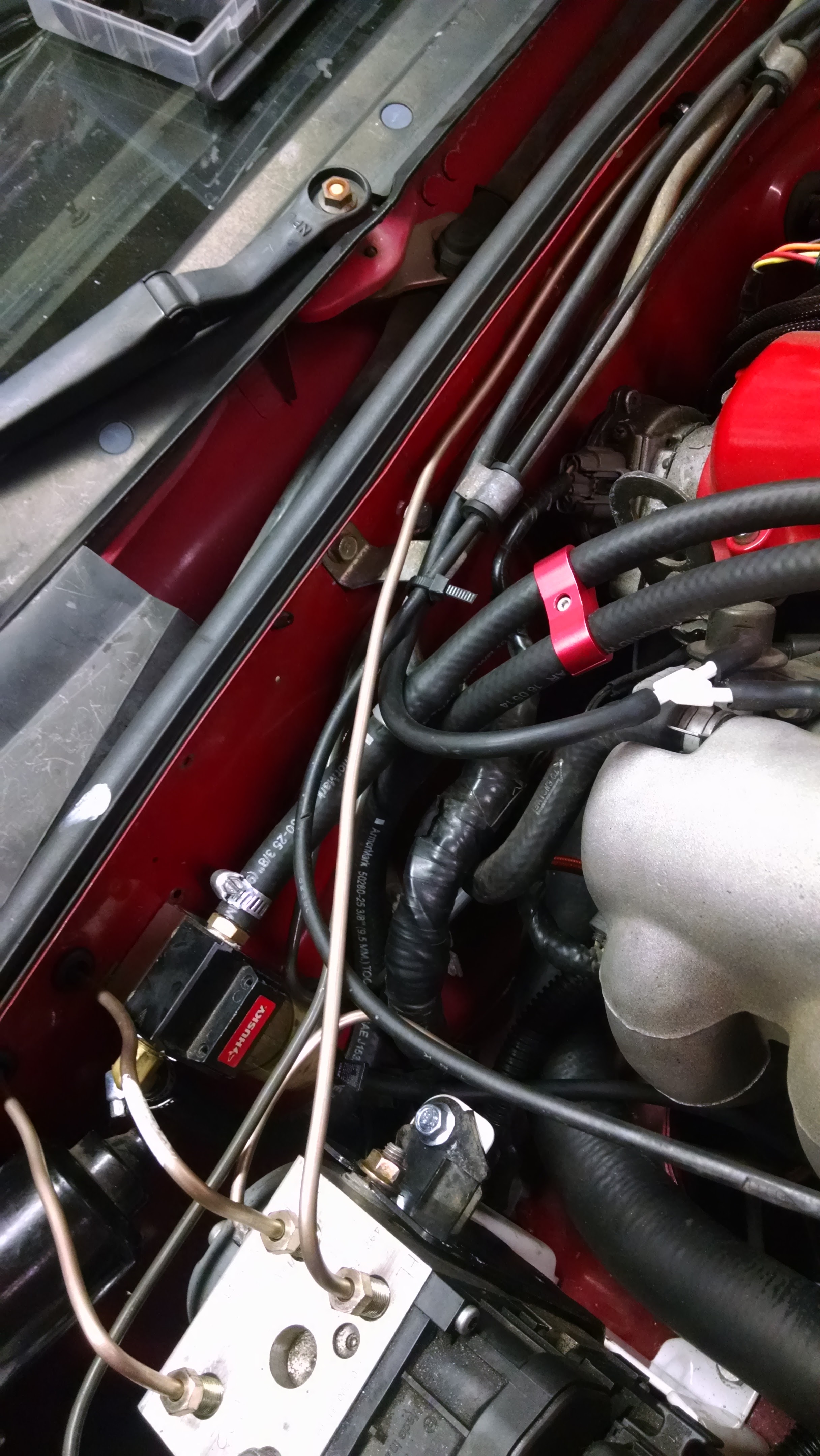

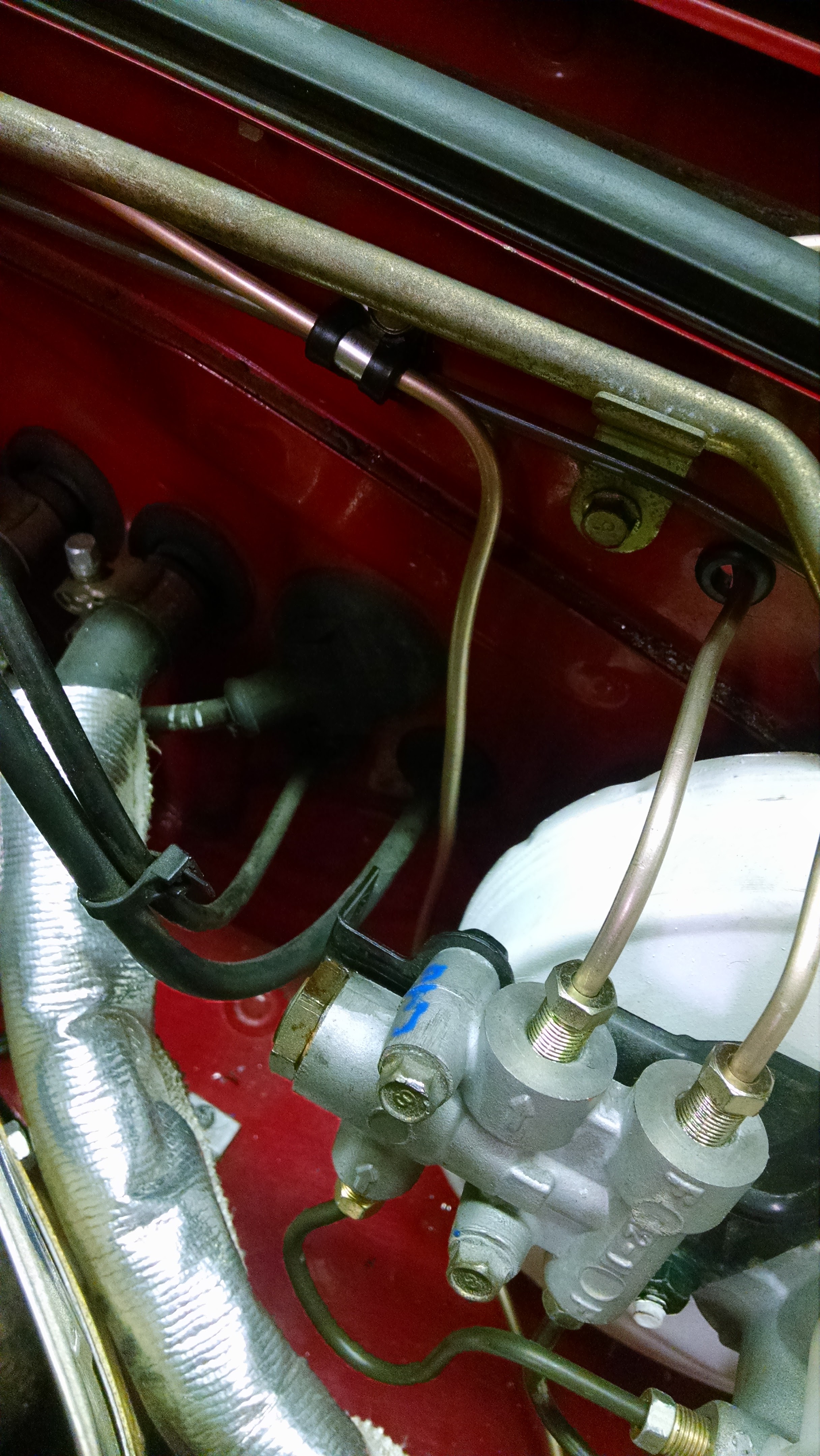

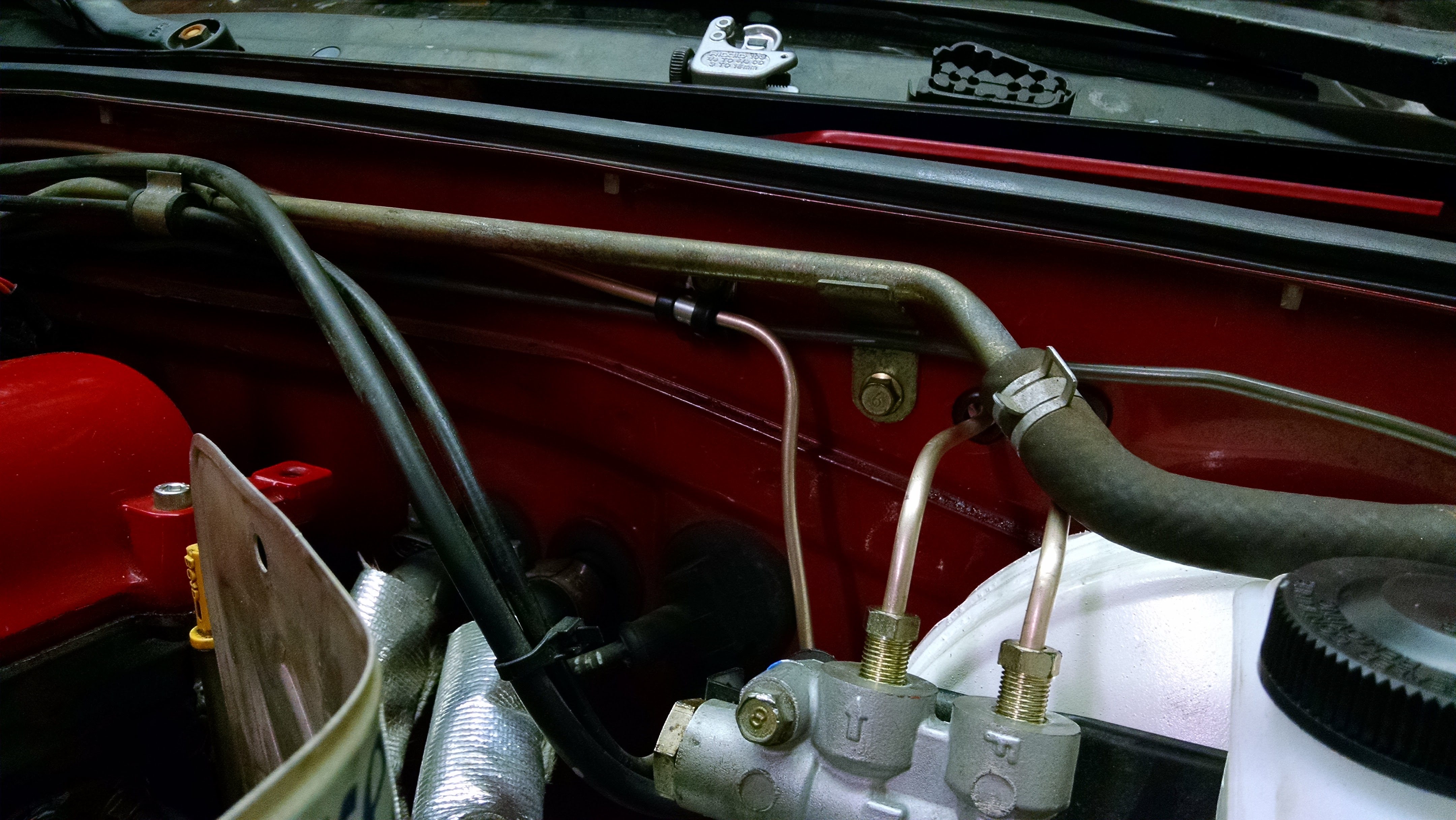

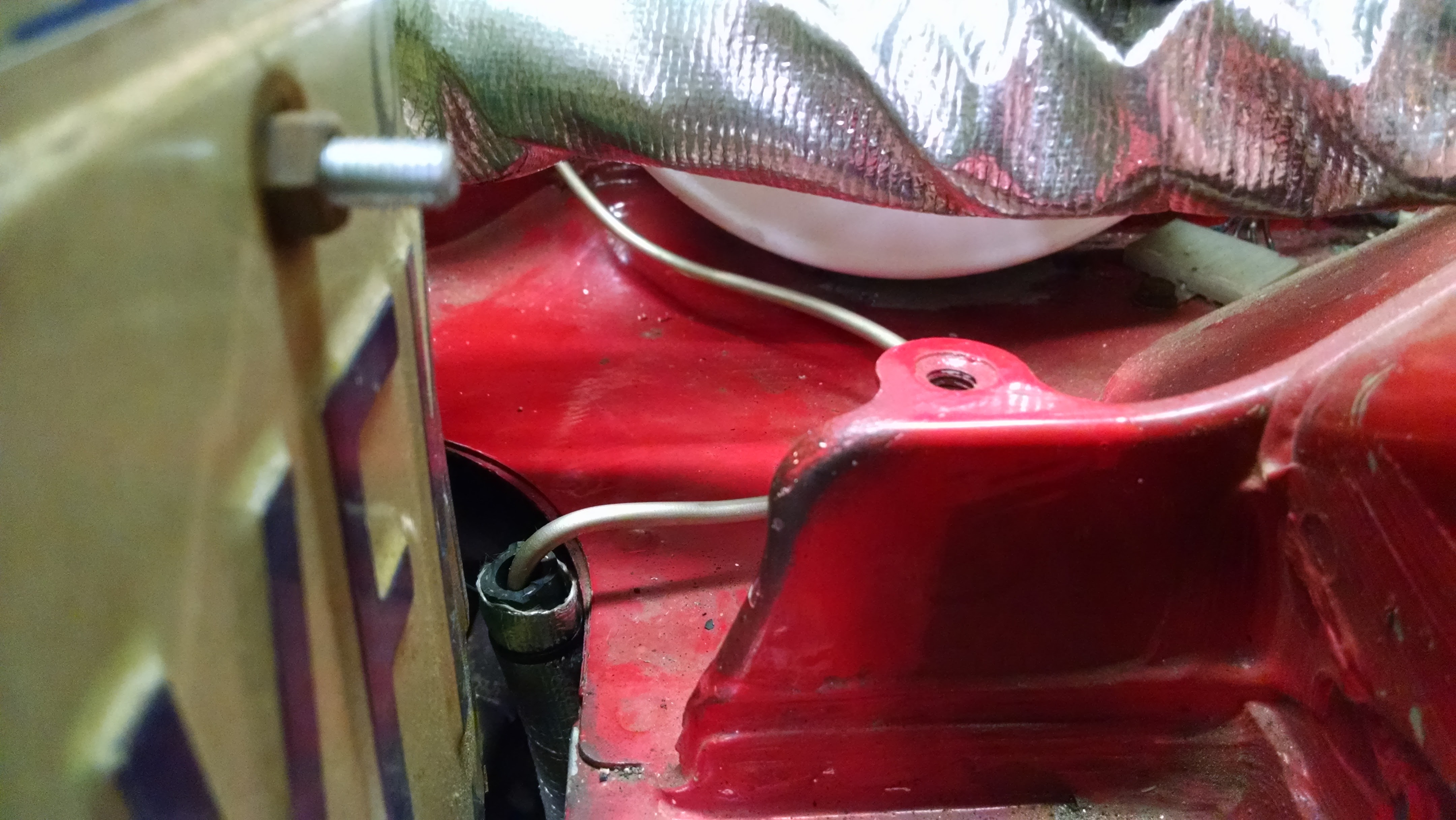

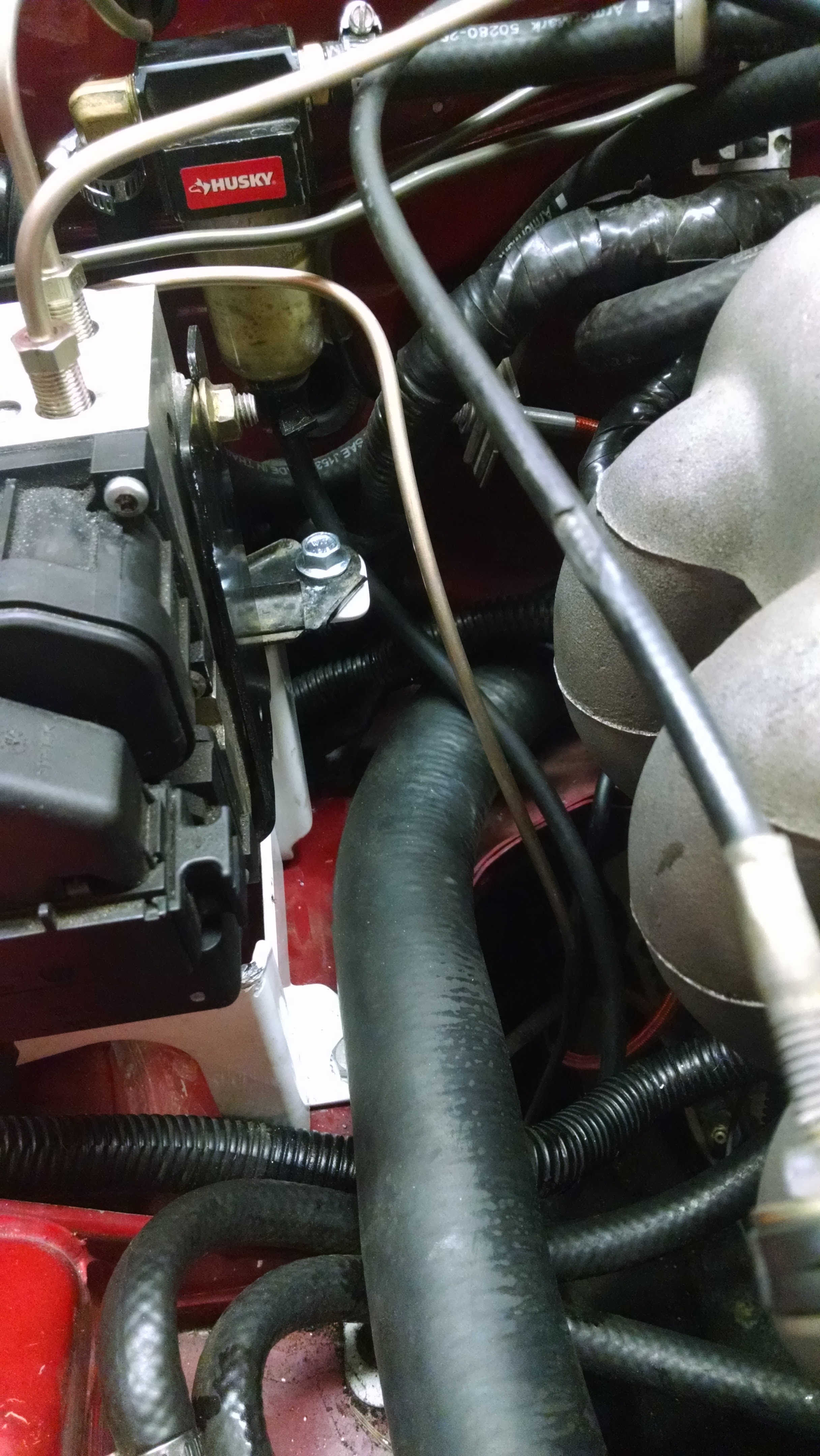

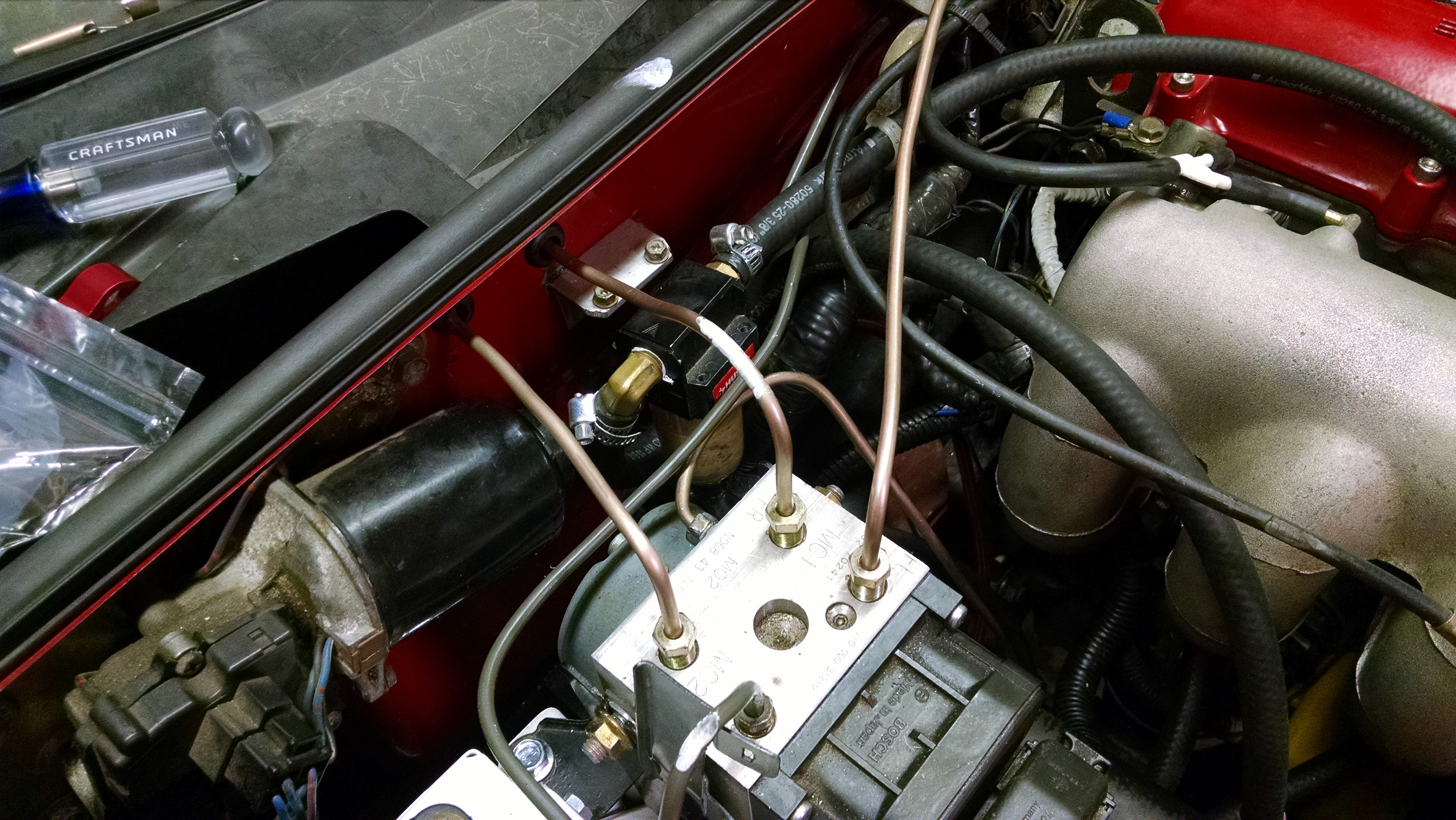

Got everything plumbed, need to rebuild my rear calipers before I can bleed it and find all the leaks I probably have.

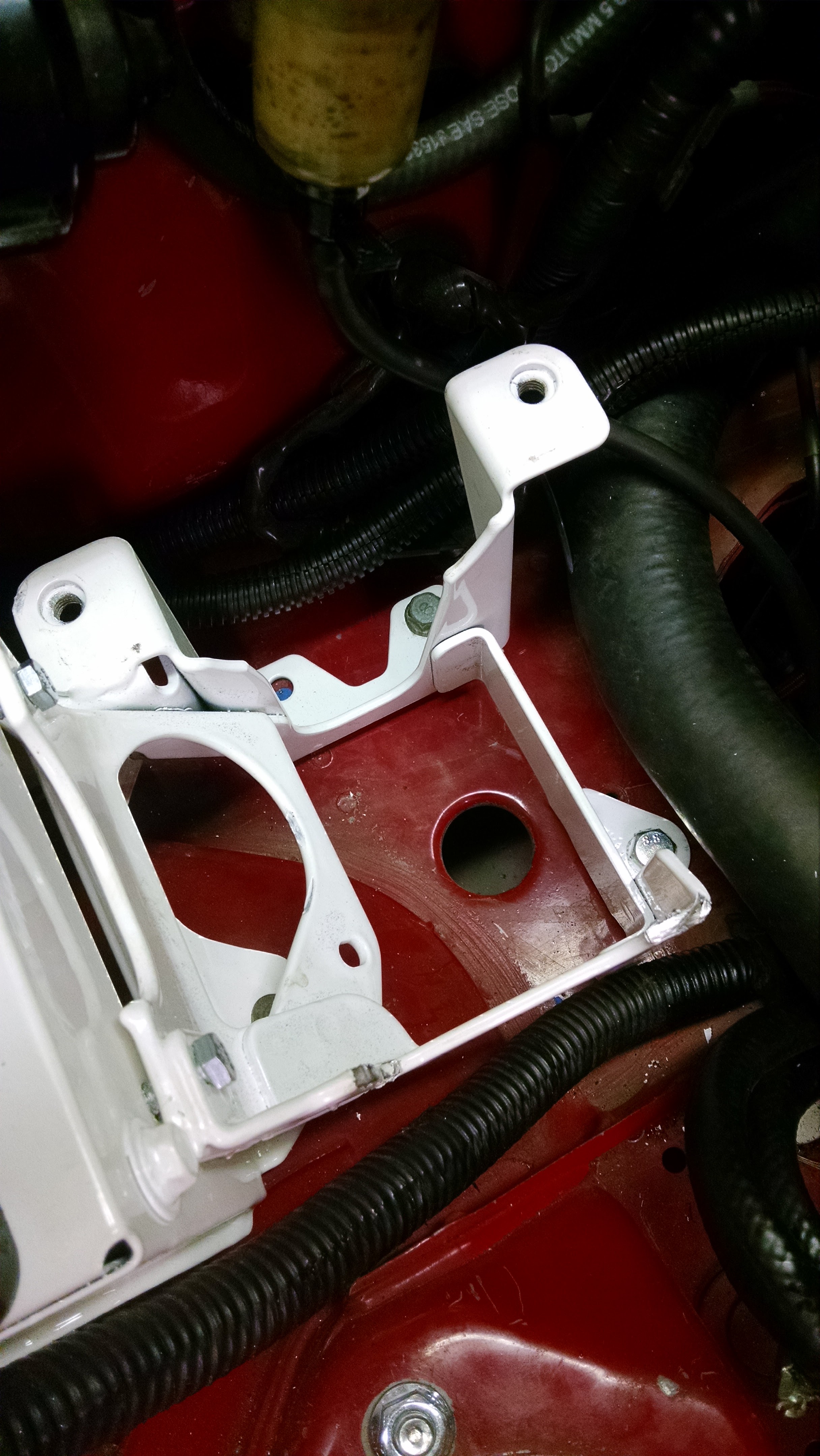

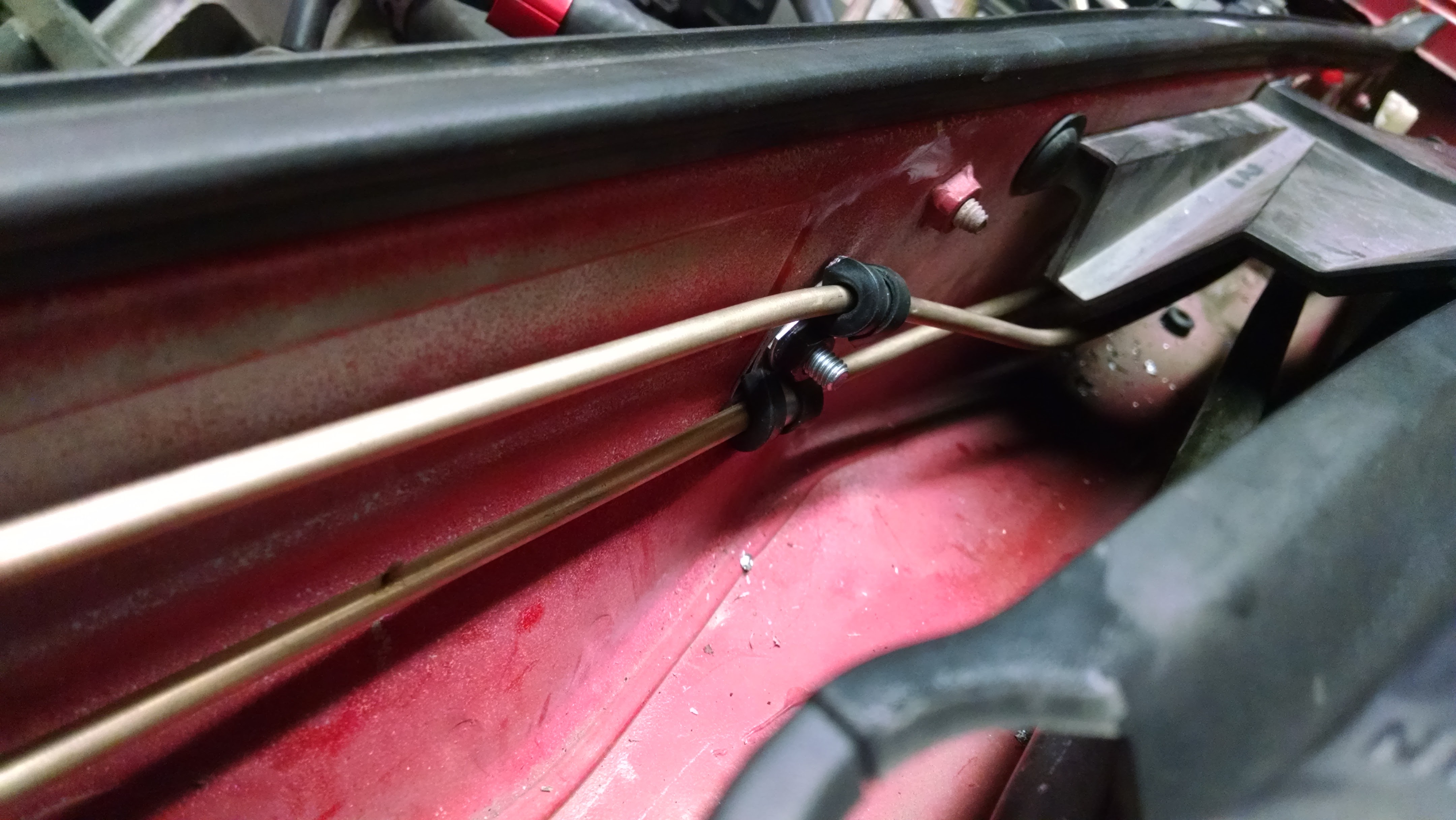

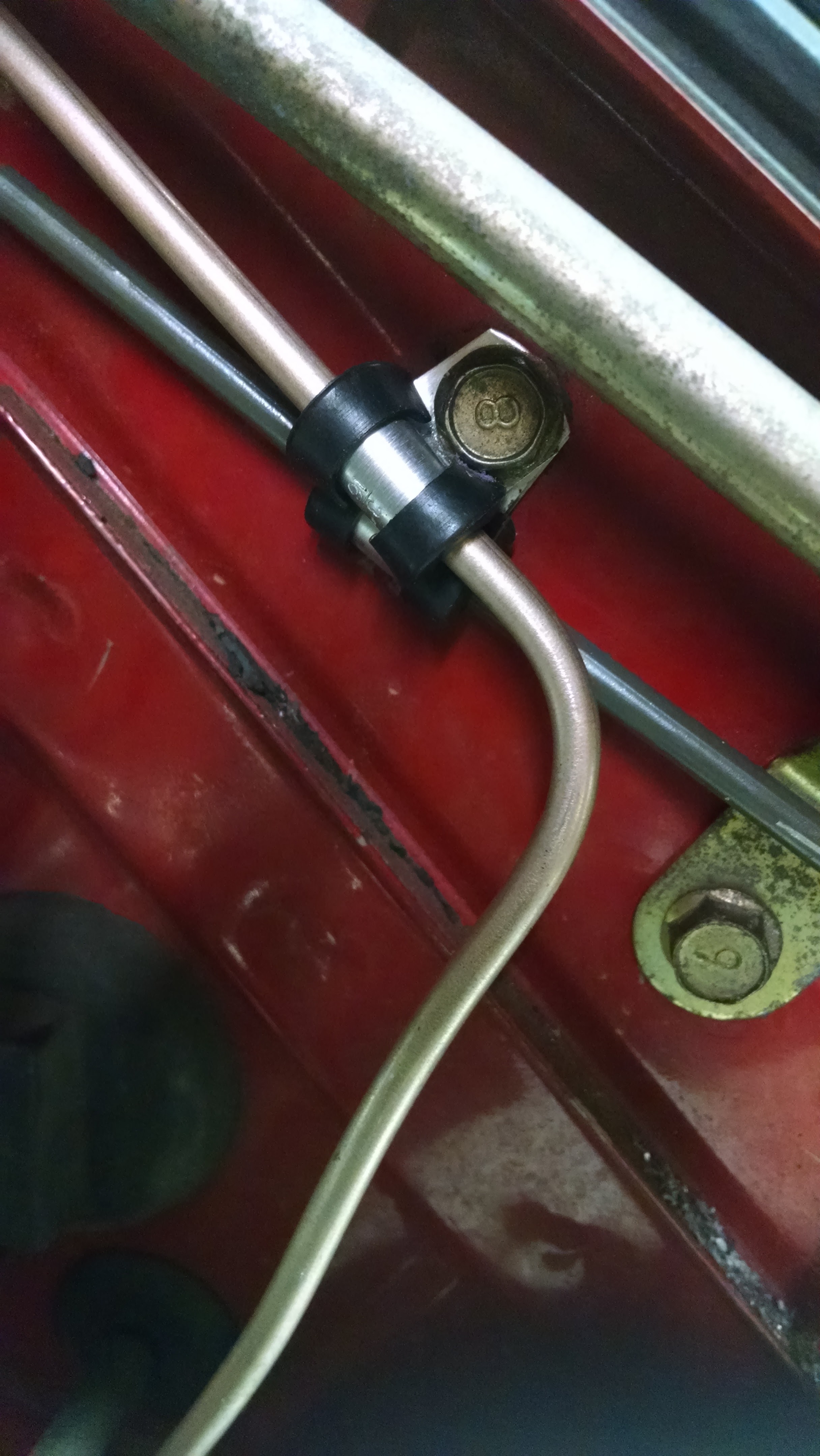

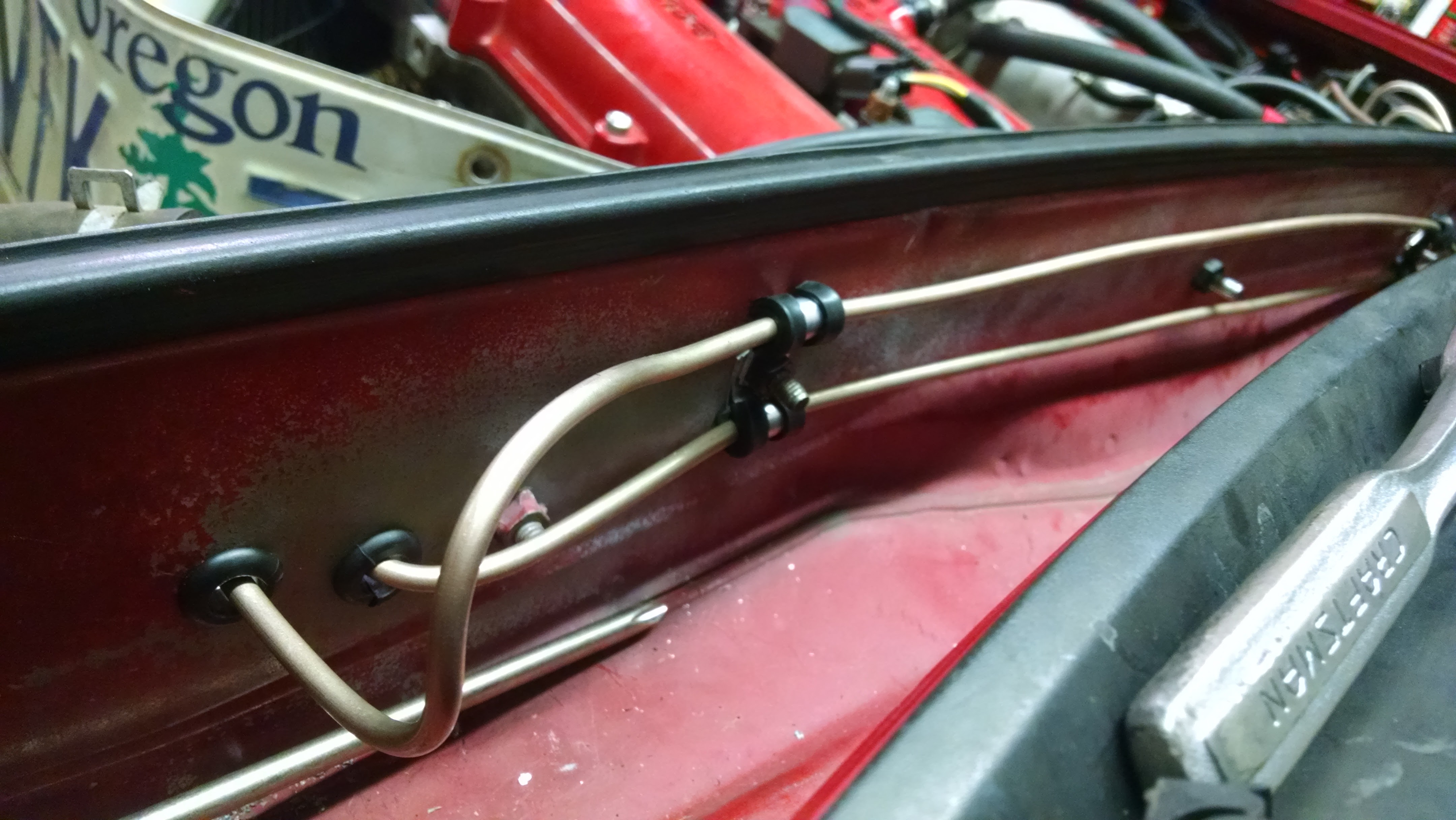

The cunifer/copper nickle stuff is freaking amazing. It flares easy, bends easily, I couldn't have done everything I did with steel brake line, I would have torn my hair out. I'll get some more detailed pics of how everything is mounted soon.

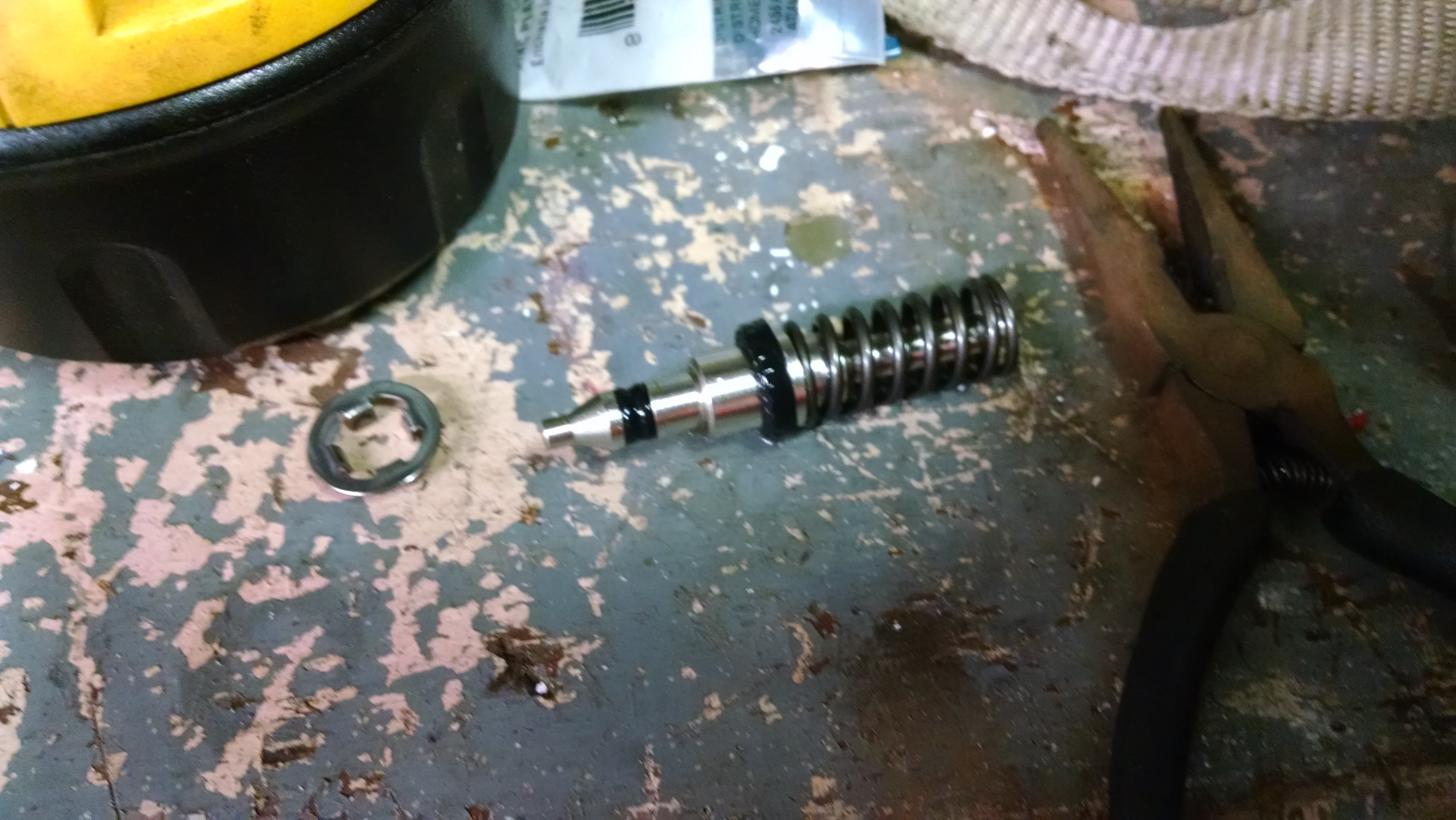

Also gutted the prop valve to match what the 01+ prop valve is.
The cunifer/copper nickle stuff is freaking amazing. It flares easy, bends easily, I couldn't have done everything I did with steel brake line, I would have torn my hair out. I'll get some more detailed pics of how everything is mounted soon.
Also gutted the prop valve to match what the 01+ prop valve is.
#6516
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
And questions for @codrus and @Leafy

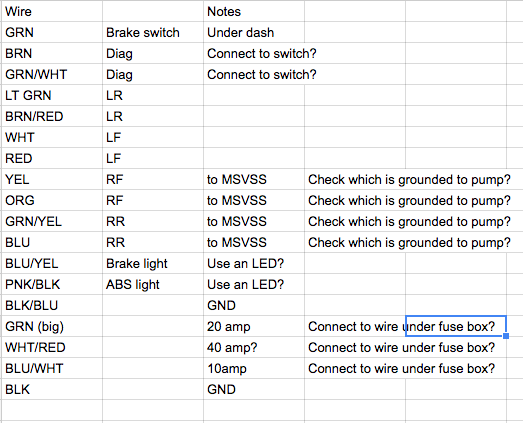

Here is my wiring spreadsheet
Questions:
Diagnostic wires: Should I just leave these accessible for later when I need to ground them?
Power wires: Can I run all of these to the always hot terminal under the fusebox? Or is that too much power for that wire to carry? Run something from the battery?
Lights: Don't really want to deal with my cluster, so I plan on running wires for a couple LEDs. with an inline resistor to make it seem like a bulb.
I remember Ian talking about one of the sensor wires being a "ground side"? Need to see which one of the wires I need to connect to my VSS input on the megasquirt.
Otherwise this wiring doesn't look to bad really. Some power wires, 3 wires over to the drivers side for lights and brake switch, and the sensors.
Anyone want to take bets on how many leaks I have? First time flaring brake line and I have a total of 9 new flares.
I'm guessing 3, Yank says 2.
Here is my wiring spreadsheet
Questions:
Diagnostic wires: Should I just leave these accessible for later when I need to ground them?
Power wires: Can I run all of these to the always hot terminal under the fusebox? Or is that too much power for that wire to carry? Run something from the battery?
Lights: Don't really want to deal with my cluster, so I plan on running wires for a couple LEDs. with an inline resistor to make it seem like a bulb.
I remember Ian talking about one of the sensor wires being a "ground side"? Need to see which one of the wires I need to connect to my VSS input on the megasquirt.
Otherwise this wiring doesn't look to bad really. Some power wires, 3 wires over to the drivers side for lights and brake switch, and the sensors.
Anyone want to take bets on how many leaks I have? First time flaring brake line and I have a total of 9 new flares.
I'm guessing 3, Yank says 2.
#6517
AIUI, the sensors themselves are non-directional. Both wires run all the way back to the ABS unit, and one side is grounded inside it.
Why are you running all 4 right-side wires to the MSVSS and none of the left-side ones?
I assume you're going to fuse the three power wires separately, right? I powered mine off the fusebox (well, the 50A and 20A ones), but then my fusebox was designed to have an ABS pump run off it. Dunno on yours.

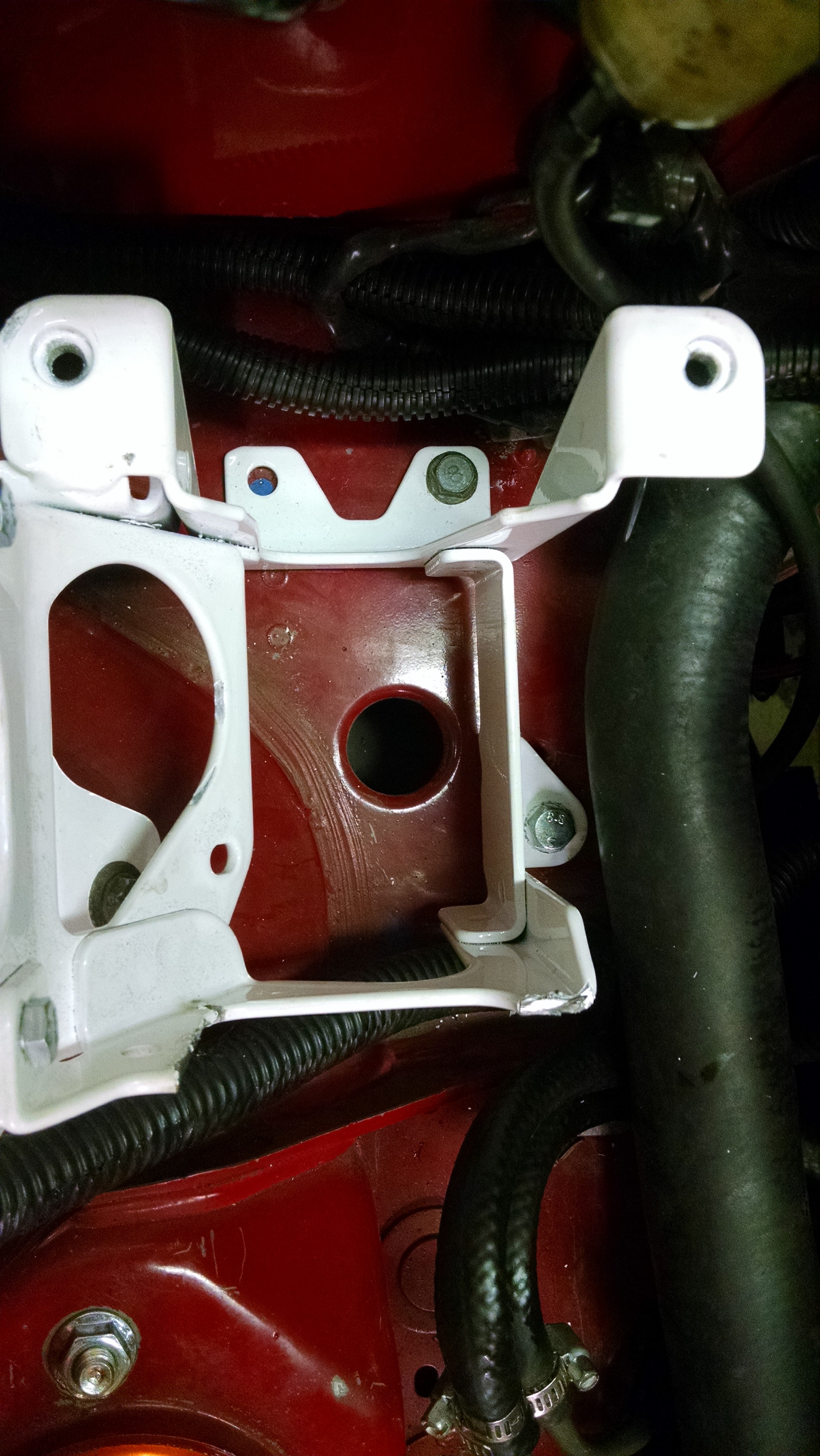

I ran the power grounds to the bolt that holds the ABS bracket down.
Don't forget to put a switch on the power line to the electronics so you can power cycle it easily. It's useful when diagnosing it, plus a nice thing to have so that if it starts to misbehave you can shut it off.
I'm betting you have 9 leaks. The first time you put the cunifer flares on you need to crank the flare nuts down a lot harder than you'd think.
Does the car have a 929 1" master yet?
--Ian
Why are you running all 4 right-side wires to the MSVSS and none of the left-side ones?
I assume you're going to fuse the three power wires separately, right? I powered mine off the fusebox (well, the 50A and 20A ones), but then my fusebox was designed to have an ABS pump run off it. Dunno on yours.
I ran the power grounds to the bolt that holds the ABS bracket down.
Don't forget to put a switch on the power line to the electronics so you can power cycle it easily. It's useful when diagnosing it, plus a nice thing to have so that if it starts to misbehave you can shut it off.
I'm betting you have 9 leaks. The first time you put the cunifer flares on you need to crank the flare nuts down a lot harder than you'd think.
Does the car have a 929 1" master yet?
--Ian
#6518
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Only 2 are going to the VSS. Just front and rear VSS. I wrote down all 4 because i wasnt sure if there were specific ones.
Yes 3 separate fuses. I'll wait for leafy to respond about powering them all from the fuse box.
Which powerline should I switch?
I haven't tightened any of the lines yet. I'll remember to crank them down.
Yes, 929 master is part of this installation.
Yes 3 separate fuses. I'll wait for leafy to respond about powering them all from the fuse box.
Which powerline should I switch?
I haven't tightened any of the lines yet. I'll remember to crank them down.
Yes, 929 master is part of this installation.
#6519
Only 2 are going to the VSS. Just front and rear VSS. I wrote down all 4 because i wasnt sure if there were specific ones.
Yes 3 separate fuses. I'll wait for leafy to respond about powering them all from the fuse box.
Which powerline should I switch?
I haven't tightened any of the lines yet. I'll remember to crank them down.
Yes, 929 master is part of this installation.
Yes 3 separate fuses. I'll wait for leafy to respond about powering them all from the fuse box.
Which powerline should I switch?
I haven't tightened any of the lines yet. I'll remember to crank them down.
Yes, 929 master is part of this installation.
I switched the ABS computer -- 10A switch is easier than 20 or 50, plus it seems safer to switch off the controller rather than leaving it running with either the pump or the solenoids but not the other.
--Ian
