Aidan's loose oily bunghole actually runs a track lap

Thread Tools

Search this Thread

Old Jun 20, 2015 | 01:50 PM
  #1601
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

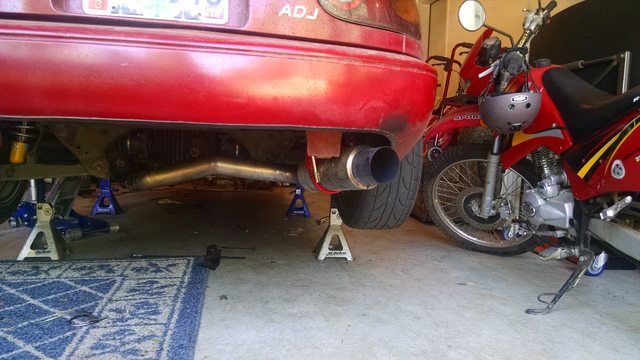

<p>I am the king of ghetto fabulous.</p><p><br /></p><p>My $30 dollar exhaust is still kicking ***.</p>
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-s743c3jl.jpg   Aidan's loose oily bunghole actually runs a track lap-wqexml9l.jpg
Old Jun 20, 2015 | 01:54 PM
  #1602
EO2K's Avatar
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Kickin' *** and taking names. Apparently.

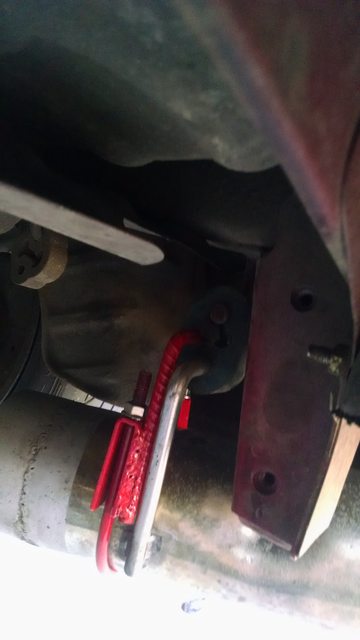

No seriously, about the only thing I see failing in that setup is the rubber hanger. Maybe time for a poly one or a hose clamp?
Old Jun 20, 2015 | 01:56 PM
  #1603
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>It is a poly hangar, I'll probably add a hose clamp too just to be safe. I should go check out the baxters auto part store thats like 2 minutes away now.</p>
Old Jun 20, 2015 | 01:58 PM
  #1604
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>&nbsp;</p><p><span>@Jeffbucc how do I get rid of the black exhaust on the bumper? Without a steam cleaner. </span></p>
Old Jun 20, 2015 | 02:08 PM
  #1605
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Its looking like my next track day will be a track night July 3rd. This gives me some time to figure a couple things out. And make sure the car is good for thunderhill. Current to-do list.<br /><br /><br /><br />1. Pull manifold, relief cuts, and surface.<br /><br />2. Brakes. Start with pulling the pads. If they are tapered buy cobalt pads. If they aren't try bleeding the system. If that doesn't work replace master. I should add some sort of ducting. I just don't think I'm going that fast compared to other miatas.<br /><br />3. Ducting. Need to seal my bottom ducting and build side ducting. Otherwise I'm happy with my cooling so far. I think I'm done with this. I added a vent, and the last track day I wasn't breaking 185 when running hard. If I find extra time I will add side ducting though.<br /><br />4. Rebuild rear axles, find spare ABS 2 piece axle. And lots of axle nuts. No luck so far. And still not quite sure how to rebuild the axles. I've seen some mentions of it but nothing concrete. If I do figure it out I will write some how-to for dummies, because I wish I had one.<br /><br />5. Make GoPro not suck. Still not sure on this one.<br /><br />6. Install new front coilover sleeves and get an alignment with 949 half and half alignment. Ugh, too much stuff not enough time.<br /><br />7. Install adjustable endlinks up front. Easy, I'm just lazy</p><p>8. Support Muffler Ghetto but good.<br /><br />9. Drive the **** out of it.&nbsp;always do.</p><p>10. Get vent windows. Thunderhill in July is going to suck.</p>
Old Jun 20, 2015 | 02:12 PM
  #1606
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Would it be a good idea to figure out how to bring some large amount of Oregon gas when we go to thunderhill? Is california gas really that bad? I have a 5 gallon tank, but if I could find more that would be good.</p><p>&nbsp;</p>
Old Jun 20, 2015 | 02:15 PM
  #1607
curly's Avatar
Cpt. Slow
iTrader: (25)

Joined: Oct 2005
Posts: 15,197
Total Cats: 1,398
From: Oregon City, OR
Default

Yes you want oregon premium, you'll need about 5 gallons per session, maybe a little less
Old Jun 20, 2015 | 02:17 PM
  #1608
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>**** thats like 70 gallons. Not sure how I'm going to make that work.</p><p><span>@codrus don't you mix stuff to get higher? Can I add ethanol boost or something?</span></p>
Old Jun 20, 2015 | 02:20 PM
  #1609
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Talking to jmann about his thunderhill trip, and one reason they melted a piston was that they were playing with the combustion chamber size and stuff. They went back to stock.</p>
Old Jun 20, 2015 | 02:54 PM
  #1610
codrus's Avatar
Elite Member

Joined: Mar 2007
Posts: 5,298
Total Cats: 884
From: Santa Clara, CA
Default

Originally Posted by aidandj
<p>**** thats like 70 gallons. Not sure how I'm going to make that work.</p><p><span>@codrus don't you mix stuff to get higher? Can I add ethanol boost or something?</span></p>
If you mix different grades of gas, you basically just average the octane according to the ratio. Thunderhill sells 100 octane, typically for $9/gallon. So if you put 4 gallons of 100 in with 8 gallons of 91, you get 12 gallons of (100*4+91*8)/12 or 94 octane. 6 of each gives you 95.5. IMHO that's cheap insurance when running at the track.

The octane boost in a can stuff is useless.

How many days at Thunderhill are you doing? 70 gallons is like three track days! Or are you budgeting to use it for the trip to/from as well? IMHO you're better off turning the boost down and just running regular pump gas for freeway trip.

--Ian
Old Jun 20, 2015 | 02:59 PM
  #1611
EO2K's Avatar
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

The last time Gesso and I were at THill with his turbo NA we found that the fuel nozzles on the race gas pumps would not work with the stock filler neck. I believe he had to borrow a fuel bottle from someone to fill up. I'm not sure if its still set up that way, but just a heads up.
Old Jun 20, 2015 | 03:11 PM
  #1612
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Its 2 days. 7 sessions per day. So maybe bring a 5 gallon can. And get 5 gallons from the gas station in willows. then 5 of the 100 octane?</p>
Old Jun 20, 2015 | 03:31 PM
  #1613
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

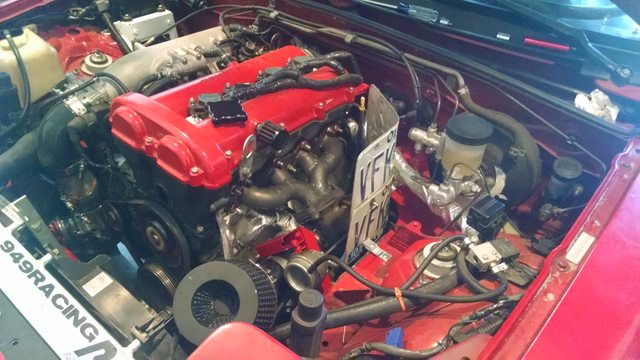

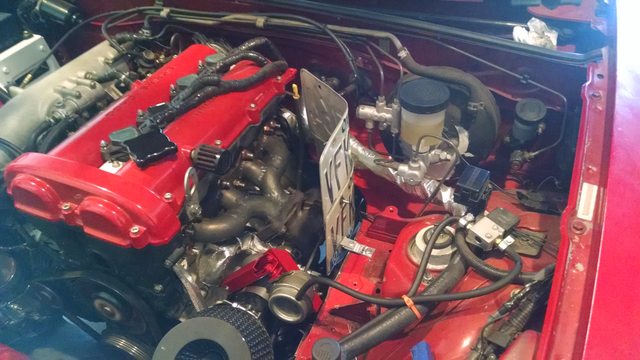

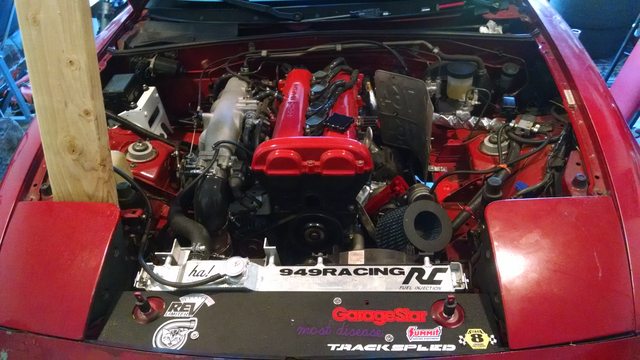

<p>See, I do have a turbo.</p><p><br /><br /></p>
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-awjsmtal.jpg   Aidan's loose oily bunghole actually runs a track lap-4g8gyjcl.jpg   Aidan's loose oily bunghole actually runs a track lap-b5kwiazl.jpg
Old Jun 20, 2015 | 03:34 PM
  #1614
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

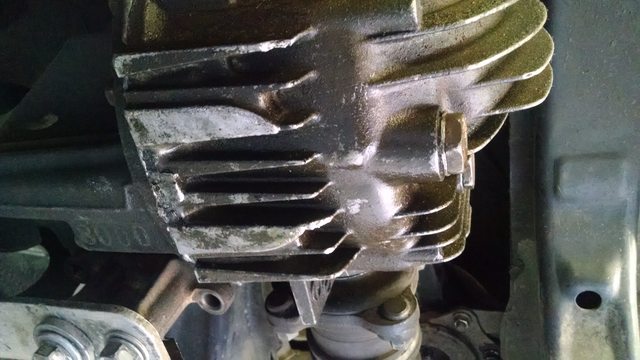

<p>Also, not sure if you can tell from this picture but the diff is slightly moist, not enough to drip on the floor but its coming from somewhere. Wonder if I fucked up the seal.</p><p></p>
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-spq3mfql.jpg
Old Jun 20, 2015 | 03:41 PM
  #1615
EO2K's Avatar
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

In my experience if you screwed it up it'll leave a vertical ring of terribleness all over the underside of the car on that side. At least, that is what mine did.

How many miles since seal install?
Old Jun 20, 2015 | 03:45 PM
  #1616
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Not axle seal. Diff to carrier seal.</p>
Old Jun 20, 2015 | 03:53 PM
  #1617
deezums's Avatar
Elite Member
iTrader: (3)

Joined: May 2014
Posts: 3,146
Total Cats: 206
From: Kansas
Default

You mean silicon, or is there an actual seal I didn't buy?
Old Jun 20, 2015 | 03:58 PM
  #1618
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>I used permatex black.</p>
Old Jun 20, 2015 | 03:59 PM
  #1619
rleete's Avatar
Elite Member
iTrader: (21)

Joined: Jun 2007
Posts: 6,794
Total Cats: 1,342
From: Rochester, NY
Default

It's just two mating surfaces, right? I don't even see any kind of gasket in the diagram.
Old Jun 20, 2015 | 03:59 PM
  #1620
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Yes, that.</p>
