Old 08-10-2012, 12:14 PM   #621
Junior Member

Join Date: Aug 2012
Posts: 417
Total Cats: 53
Default

Quote:
Originally Posted by skidude View Post
That took a surprisingly long time for somebody to point out the attractive female in the pictures.
well, it IS a miata forum...


But awesome build man. I just finished reading it and I LOVE your attention to detail and how motivated you are.
G3ML1NGZ is offline   Reply With Quote
Old 08-10-2012, 12:43 PM   #622
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

MOVED FROM PREVIOUS PAGE:

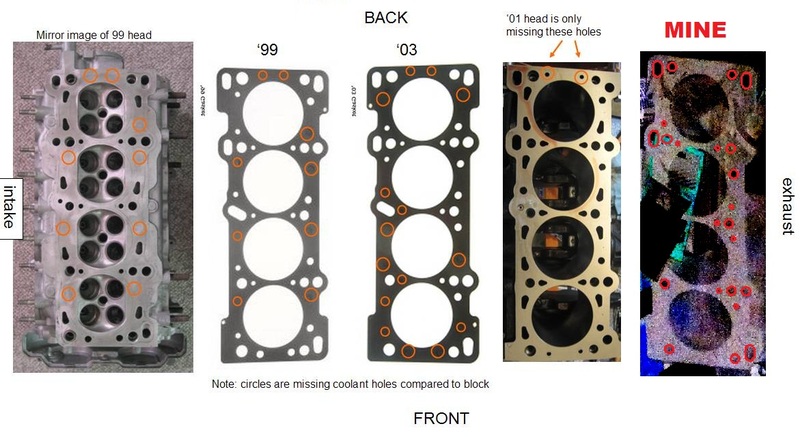

On the topic of head gaskets - Looks like mine is the 01+ version. From what I'm reading the only disastrous combination is when you use an 01+ gasket on a 99 or older head. I think the re-route still offers a benefit of cooling in all areas, just uneven when used with my gasket. Correct me if I'm wrong.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-headgasketcomparisonwmi.jpg
miatauser123 is offline   Reply With Quote
Old 08-10-2012, 12:51 PM   #623
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Basically. I'm sure you saw my thread discussing this in detail when you searched about the issue. General conclusion is 01+ gasket with re-route is counter productive to what the gasket is trying to accomplish vs what the re-route is trying to accomplish and shouldnt' be used together. Which is why I said I hope you have a 94-00 gasket.

Why not drop a new hg in there while the engine is out though? Its really not much more work and you'll have peace of mind.
18psi is offline   Reply With Quote
Old 08-10-2012, 01:14 PM   #624
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by 18psi View Post
Basically. I'm sure you saw my thread discussing this in detail when you searched about the issue. General conclusion is 01+ gasket with re-route is counter productive to what the gasket is trying to accomplish vs what the re-route is trying to accomplish and shouldnt' be used together. Which is why I said I hope you have a 94-00 gasket.

Why not drop a new hg in there while the engine is out though? Its really not much more work and you'll have peace of mind.
From what I understand it's not counter productive, it's just not as beneficial as having the 94-00 gasket. It will still improve cooling in all areas, just not evenly.

I have the engine in now and really don't feel like messing with the timing belt and all that is involved.

Quote from 949:
"Attention 01-05 owners: Mazda changed the head gasket design for these years to restrict flow to the #1 cylinder. Not a real fix but it does allow the 01-05 to run a tiny bit cooler than the previous years. Because of this change however, the reroute could cause uneven cylinder head temps, even while improving overall cooling. For this reason, M-Tuned recommends using the 94-00 head gasket (BP26-10-271)if installing the reroute on an 01-05 USDM Miata."
miatauser123 is offline   Reply With Quote
Old 08-10-2012, 05:54 PM   #625
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Dem - you are wrong. You should not run a reroute with the 01+ head gasket. The #1 cylinder will be starved and will overheat. Especially since you are running ALLOFIT.

Part # BP26-10-271. This is the only head gasket that should be used with a reroute on a 1.8.

reference m.net thread here, see specifically post 104 for making the 94-00 gasket mate optimally to 01+ vvt head coolant passages.
Mobius is offline   Reply With Quote
Old 08-10-2012, 06:11 PM   #626
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Yeah I wouldnt' risk it. But do what you want.
18psi is offline   Reply With Quote
Old 08-14-2012, 12:55 PM   #627
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Purchased the head gasket - I'll have it today.

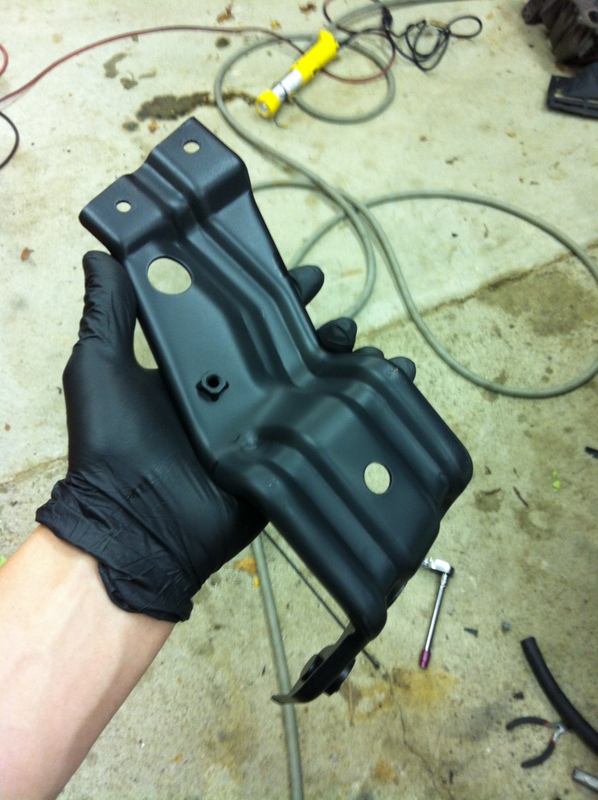

Saturday I spent some time working on some of the little details. I did some under body paint and took care of some of the small things like the Radiator/condenser brackets.

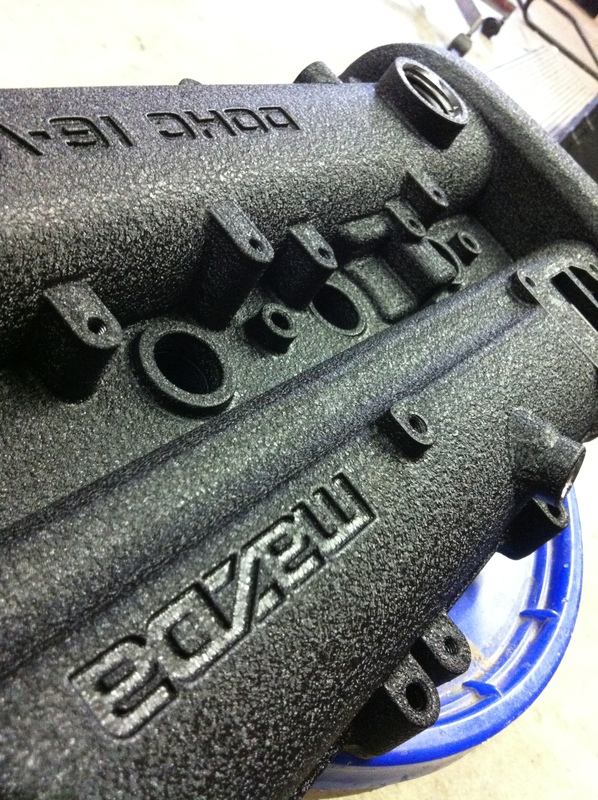

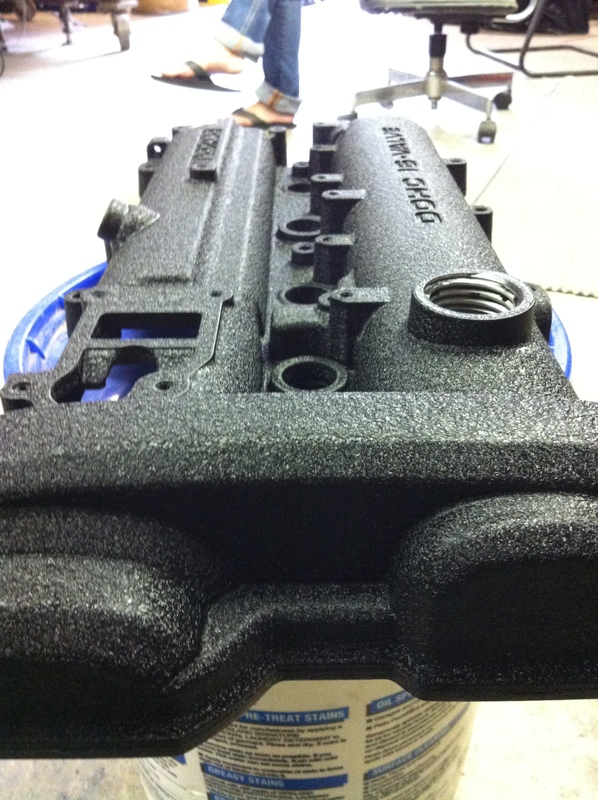

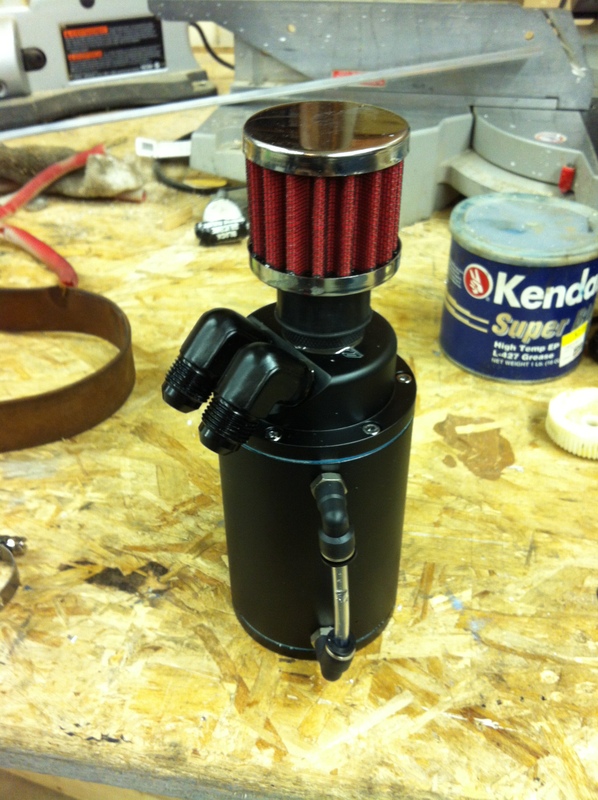

Welded my AN bung onto my valve cover and repainted it - Wrinkle black





Finished modifying my catch can - Breather mounted, AN fittings ready.

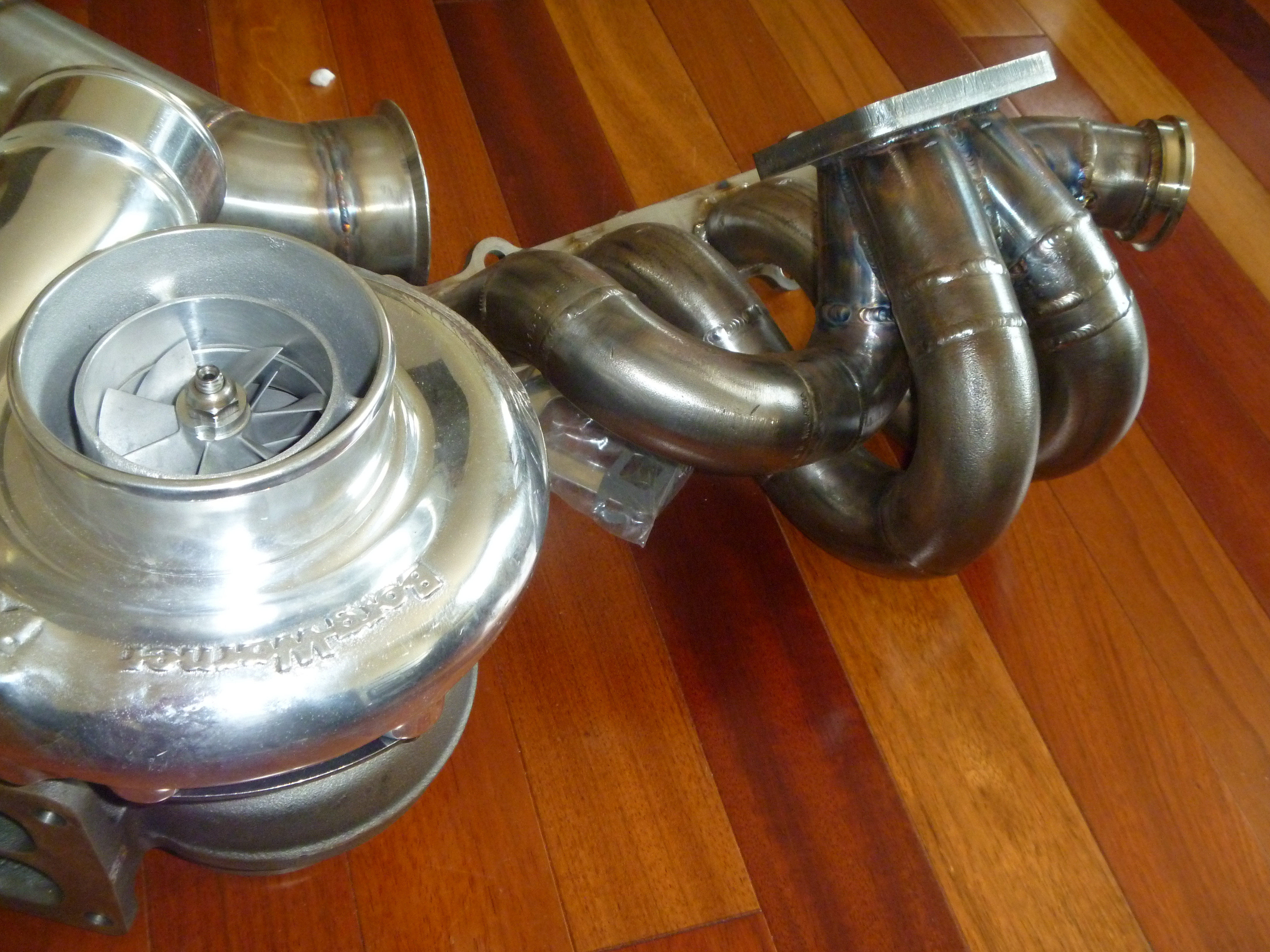

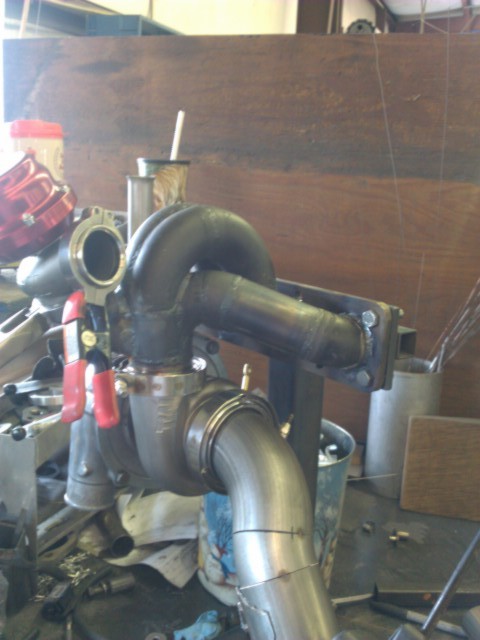

The manifold is about done - Stephanie sent me some update pictures with my turbo and WG mounted up.



Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1494ye.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1508ue.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1510wh.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1496h.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1516dc.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1517no.jpg
miatauser123 is offline   Reply With Quote
Old 08-14-2012, 12:59 PM   #628
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Damn you. That's simply beautiful
18psi is offline   Reply With Quote
Old 08-14-2012, 01:15 PM   #629
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

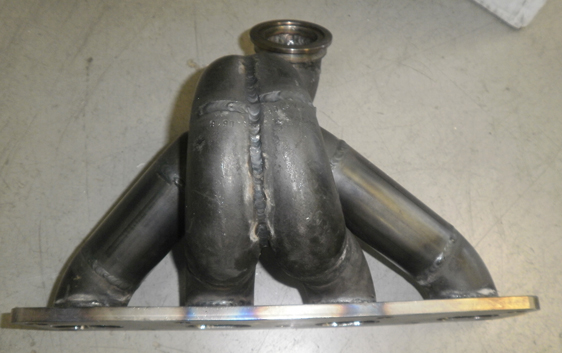

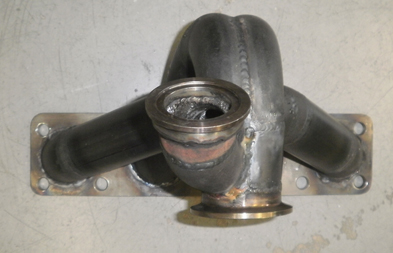

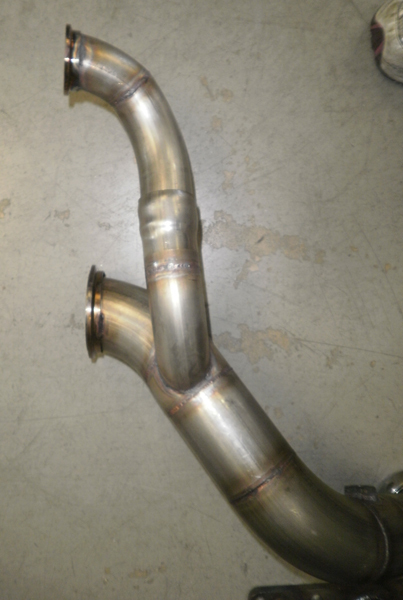

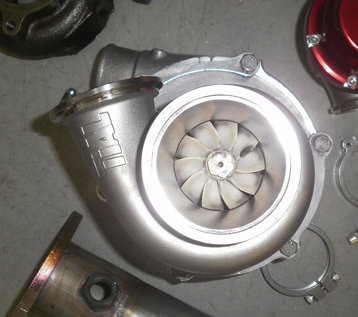

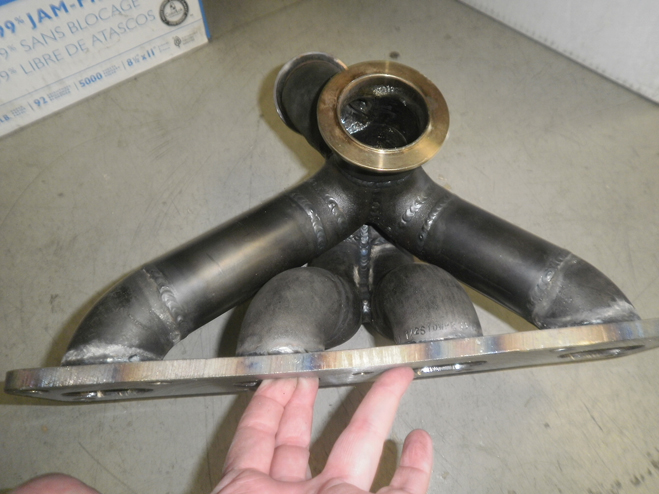

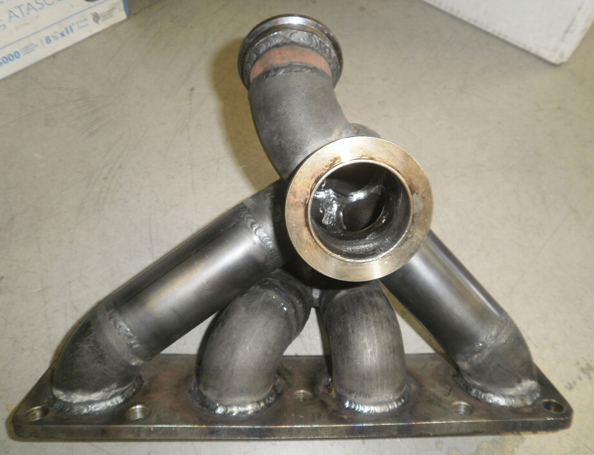

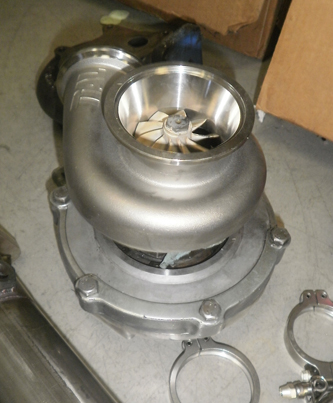

Just got some updated photos from Stephanie Looks delicious without the coating:













Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p8140089.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p8140088.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p8140086.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p8140084.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p8140082.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p8140079.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p8140078.jpg
miatauser123 is offline   Reply With Quote
Old 08-14-2012, 01:22 PM   #630
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

The new S6 looks TONS better than the old one.
viperormiata is offline   Reply With Quote
Old 08-14-2012, 04:28 PM   #631
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

No, that merge angle is crap. Exactly what I expect from BEGI.
Faeflora is offline   Reply With Quote
Old 08-14-2012, 05:17 PM   #632
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Faeflora View Post
No, that merge angle is crap. Exactly what I expect from BEGI.
Are you referencing the Merge Collector? By "Merge Angle", I'm not sure what you're trying to call out. If you are talking about the angle of the merge pipes that create the collector, they look great to me.. Not too aggressive, smooth inside and plenty stout looking.

Care to explain?

Last edited by miatauser123; 08-14-2012 at 05:32 PM.
miatauser123 is offline   Reply With Quote
Old 08-14-2012, 05:44 PM   #633
Junior Member

Join Date: Sep 2009
Location: Bergen, Norway
Posts: 129
Total Cats: 12
Default

Quote:
Originally Posted by Dem768 View Post
Are you referencing the Merge Collector? By "Merge Angle", I'm not sure what you're trying to call out. If you are talking about the angle of the merge pipes that create the collector, they look great to me.. Not too aggressive, smooth inside and plenty stout looking.

Care to explain?
He is probably referring to the wg pipe into dp merge.
lassi is offline   Reply With Quote
Old 08-14-2012, 06:13 PM   #634
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Yeah I think so too actually. its entering at almost 90* angle.
18psi is offline   Reply With Quote
Old 08-14-2012, 10:17 PM   #635
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

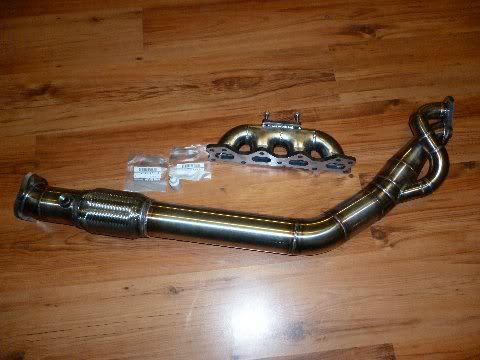

Abe's work for reference:

Much more better.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p1020286.jpg
curly is offline   Reply With Quote
Old 08-15-2012, 01:54 AM   #636
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by curly View Post
Abe's work for reference:

Much more better.
Thanks curly, for posting that retarded piece of shiz FM/BEGI replacement that someone asked for.

Abe's quality work:



By merge angle, I mean that runners 1 and 4 face each other nearly directly. I bet the collector also looks like shiz.

This is more like what a manifold should look like. All runners pointed into the collector at about the same angle.



But. Who cares. You will probably make 100hp more than me at 25psi less. Shrug. I made 350 or so hp on a crappy begi log and this looks a little better. Still. I have seen DIY shiz here that is much better.
Faeflora is offline   Reply With Quote
Old 08-15-2012, 06:00 AM   #637
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Ah, i thought you were referring to the merge angle of the wastegate. Hence the reason i posted a picture of my setup. Tone down the disrespect yo.
curly is offline   Reply With Quote
Old 08-15-2012, 10:37 AM   #638
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I see what you mean. The two inner 90 elbows look a bit aggressive but I'll wait to see it in person. Looks like it might just be the picture. Either way you look at it, it's a very stout piece and reliability is a huge concern for me. I WILL be beating the **** out of this car on a track.

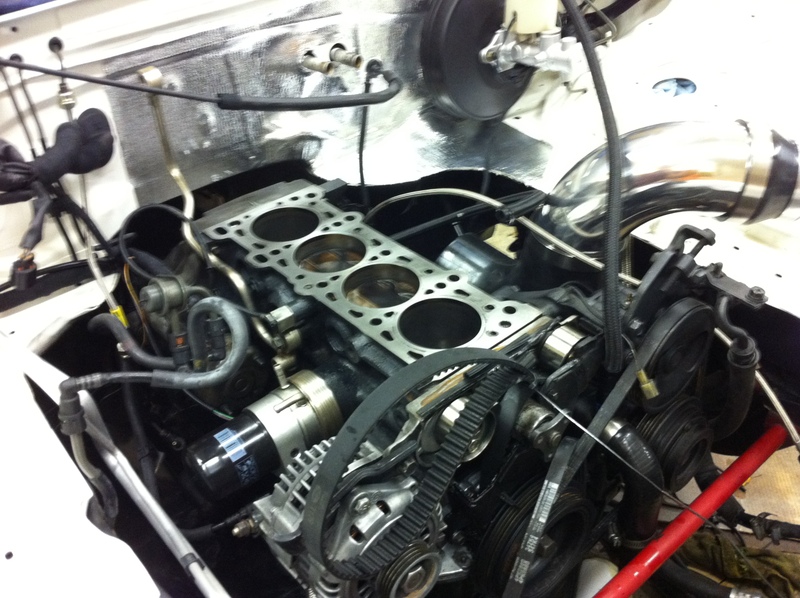

So last night I picked up my new head gasket and got it installed with my new coolant reroute.

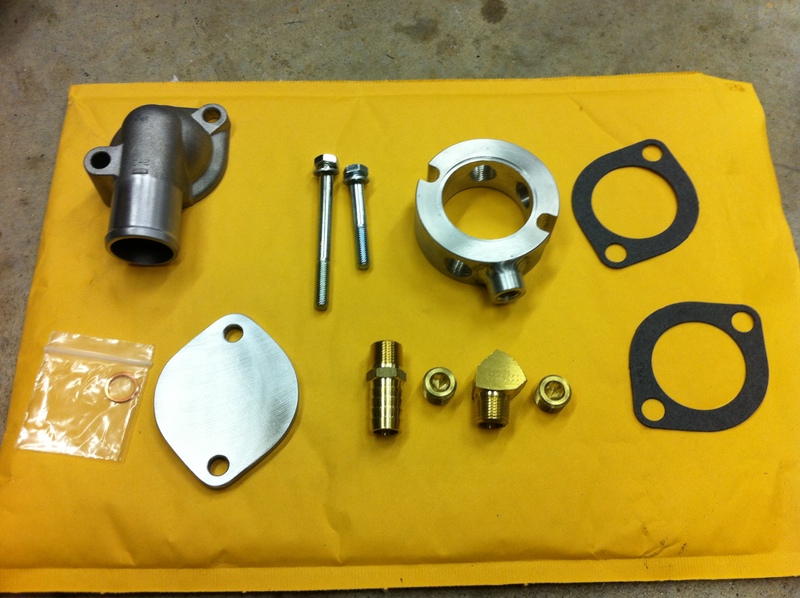

The newest coolant re-route parts below. The kit now includes a 45 degree adapter piece to leave the heater core lines in a more natural position.



I started by popping off the back sensor housing.



Cleaned up the mating surface.

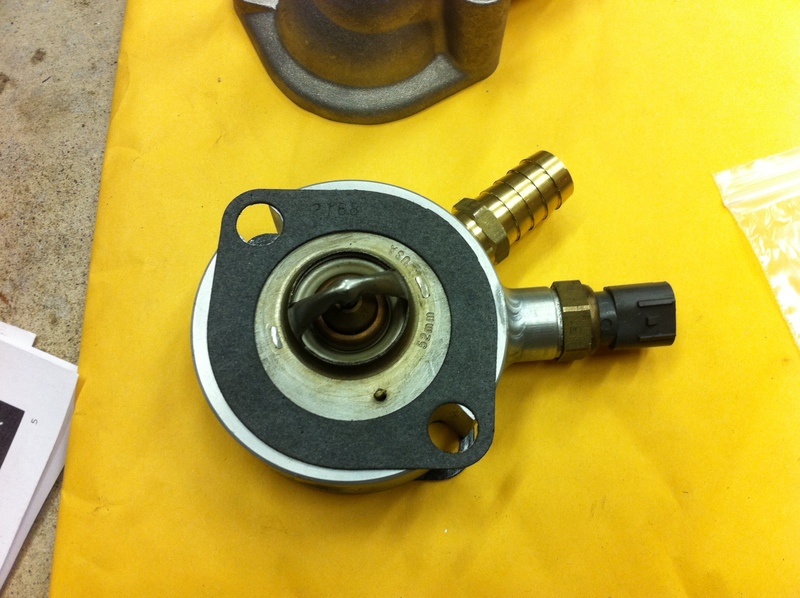

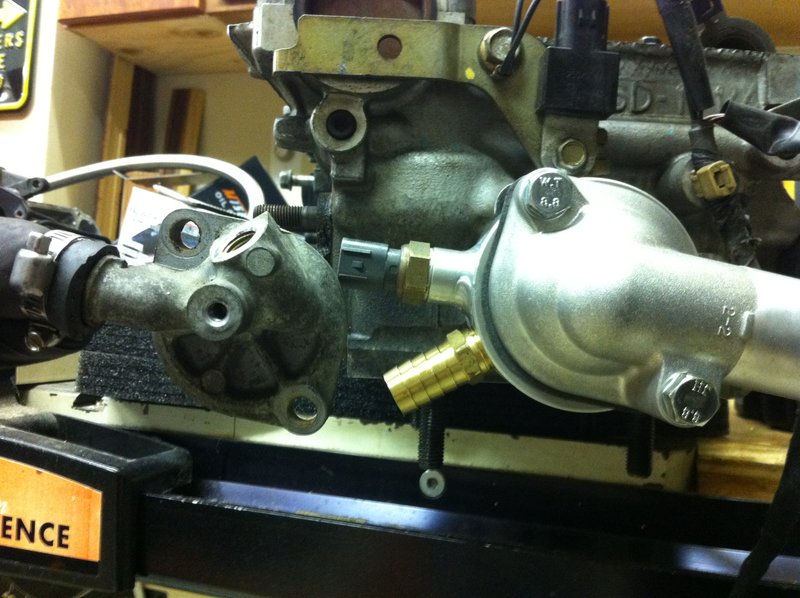

Installed my thermostat, sensor and hose barb without the sensor just to take a photo to demonstrate why BEGi has included the 45 degree elbow adapter.

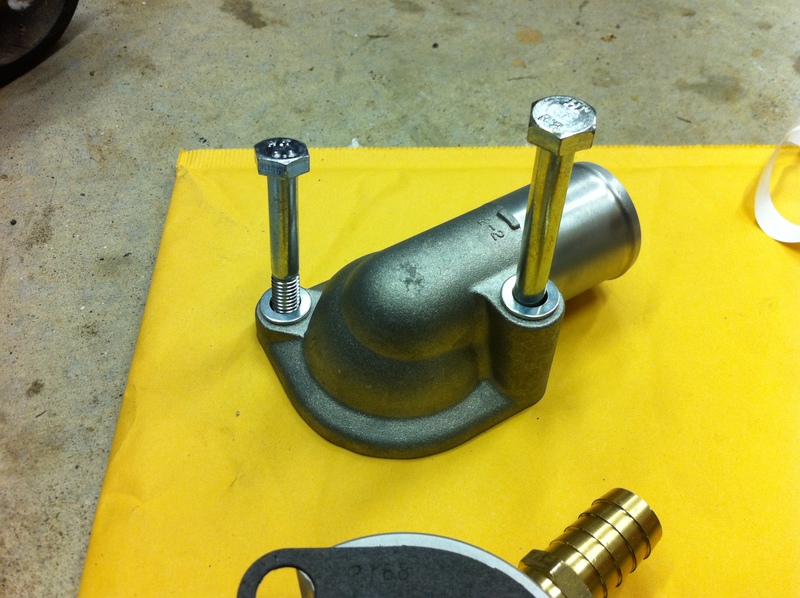

The KIA housing that's included in the kit is coupled with new hardware. The old stud must be removed from the head.

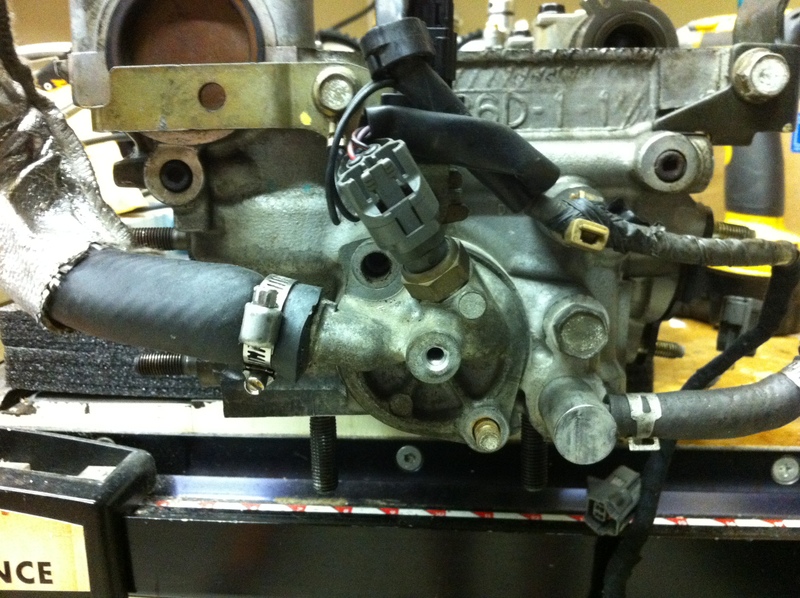

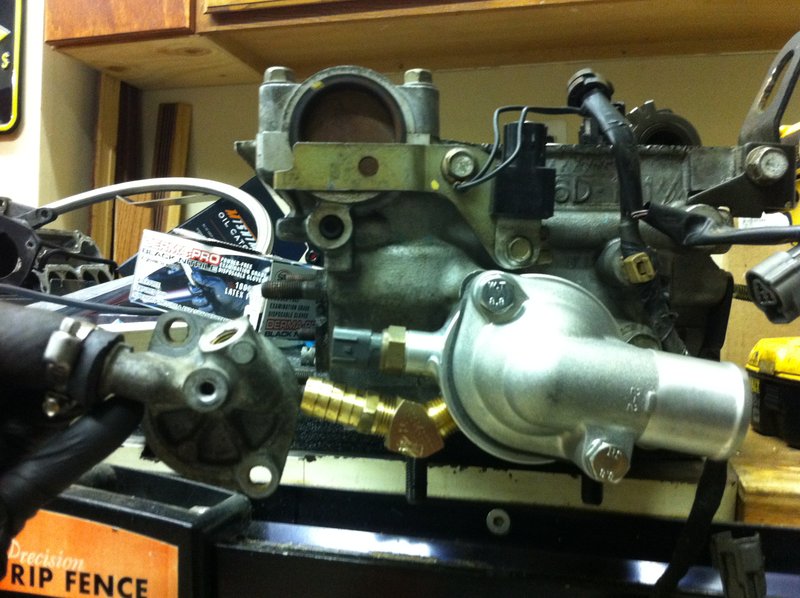

You can see that while it's mocked up without the 45 degree adapter the heater core hose is pointed in a slightly different direction than the factory setup.



With the adapter it's in the perfect position. It's close to the sensor but with a slight rotation of the hose barb assembly I was able to regain my clearance.

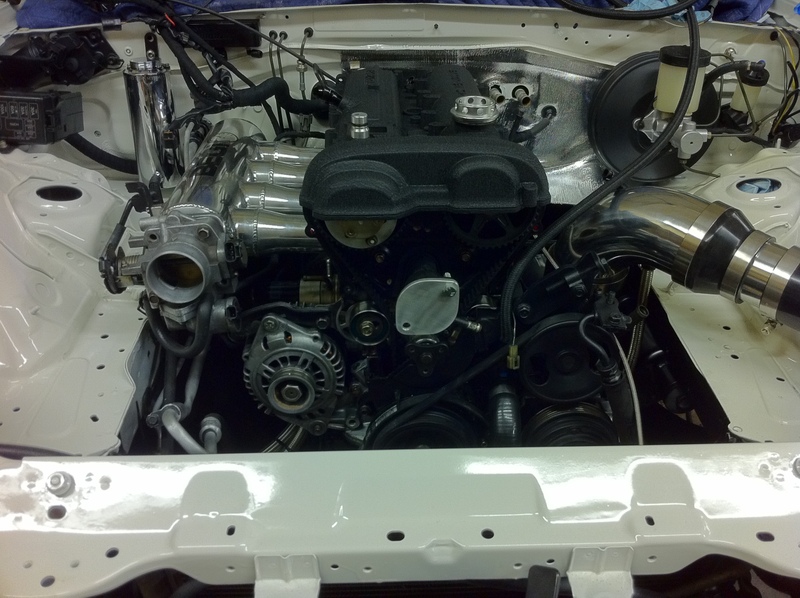

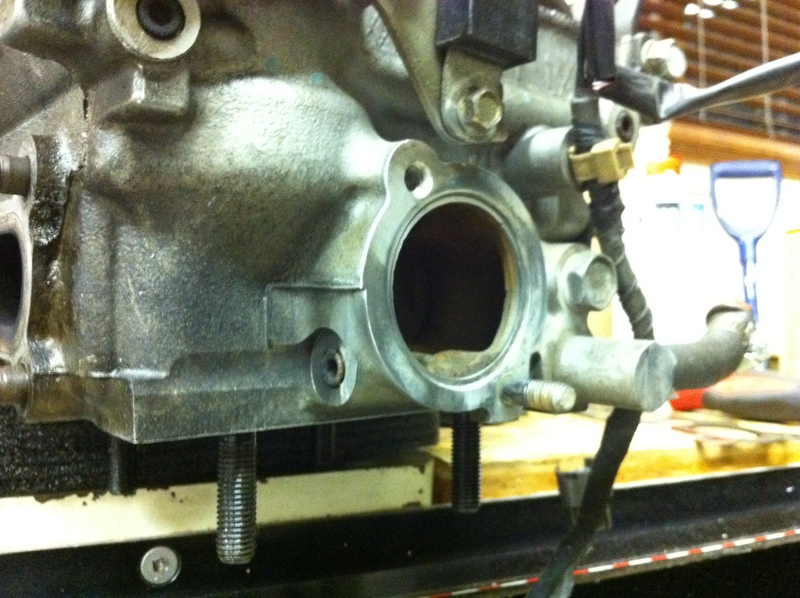

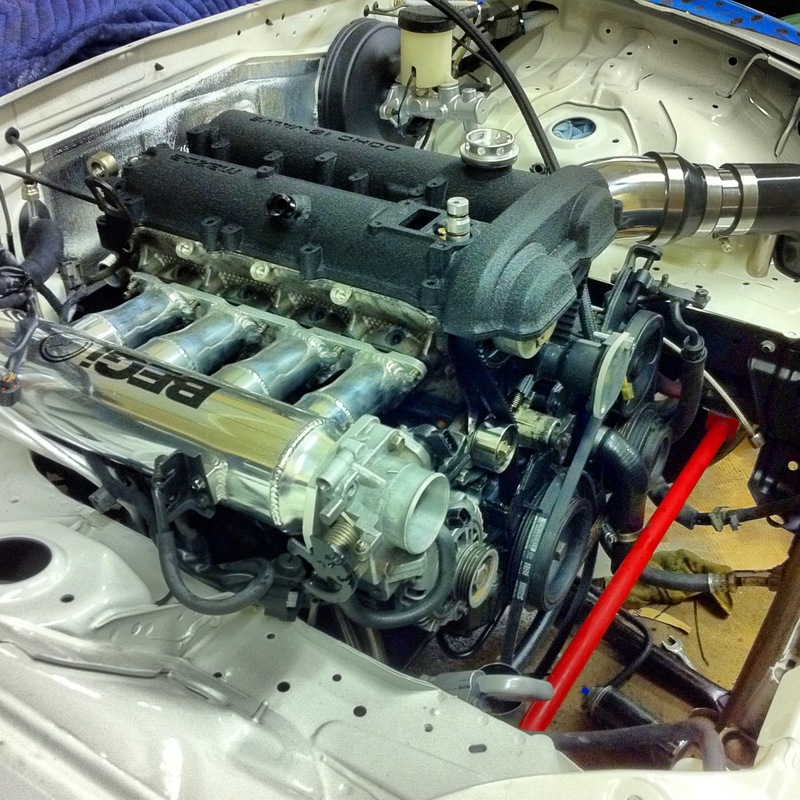

Mocked up the block off plate. The valve cover is just sitting on top to cover it from dust for now, but you get the idea. This bish is gonna look nice!





For my fuel system I've got something a bit special in store for you kids
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4531m.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4533h.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4532pd.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4534in.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4535gj.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4536ej.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4539q.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4540w.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4550ep.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4548e.jpg

miatauser123 is offline   Reply With Quote
Old 08-15-2012, 11:25 AM   #639
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

win ****
viperormiata is offline   Reply With Quote
Old 08-15-2012, 01:47 PM   #640
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Take off the front neck and bolt the block off plate directly to the head.
Faeflora is offline   Reply With Quote
