Old 07-18-2012, 11:13 AM   #521
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

just curious: are you still on stock fpr, and are you planning to stay with it on the dw300? because iirc the wally 255hp is about the most the stocker can handle.

If anything I'd love for you to at least try it with the stock fpr and get some results so the rest of us know for sure.
18psi is offline   Reply With Quote
Old 07-18-2012, 11:39 AM   #522
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I'm on the stock FPR. After discussion with DW they recommend that I go with a return setup and a regulator.

But following that, Stephanie said I shouldn't have a problem. If I do - So be it, I build a return system.
miatauser123 is offline   Reply With Quote
Old 07-18-2012, 02:11 PM   #523
Junior Member
iTrader: (1)

Join Date: Jun 2012
Posts: 93
Total Cats: 1
Default

Love this car. Awesome build.
mghtymouse380 is offline   Reply With Quote
Old 07-18-2012, 03:23 PM   #524
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Quote:
Originally Posted by Dem768 View Post
I'm on the stock FPR. After discussion with DW they recommend that I go with a return setup and a regulator.

But following that, Stephanie said I shouldn't have a problem. If I do - So be it, I build a return system.
I'm in the same boat....going to need to convert to returned and get aftermarket fpr. What you gonna do for the return line? Retro fit NA or just make your own?

I don't like the idea of running 25psi boost and end result only have 35psi effective fuel pressure....my ID1000s surely won't flow enough.
aaronc7 is offline   Reply With Quote
Old 07-18-2012, 04:07 PM   #525
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by aaronc7 View Post
I'm in the same boat....going to need to convert to returned and get aftermarket fpr. What you gonna do for the return line? Retro fit NA or just make your own?

I don't like the idea of running 25psi boost and end result only have 35psi effective fuel pressure....my ID1000s surely won't flow enough.
Where did you get the 35psi number?
miatauser123 is offline   Reply With Quote
Old 07-18-2012, 04:09 PM   #526
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

subtracting rail pressure from boost pressue or something like that
18psi is offline   Reply With Quote
Old 07-18-2012, 04:10 PM   #527
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

60-25=35
Bryce is offline   Reply With Quote
Old 07-18-2012, 04:20 PM   #528
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Right - I just assumed my regulator would not be holding 60 with the big boy pump. I was making 330 at the wheels on 550cc injectors so I assumed that even my Walbro was running higher rail pressure than the stock regulator could deal with.
miatauser123 is offline   Reply With Quote
Old 07-18-2012, 05:25 PM   #529
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

in for epic fuel system build.
-8an feed/return, dual feed rail, baller regulator, fuel cooler - DO IT FAGGОT
soviet is offline   Reply With Quote
Old 07-18-2012, 07:37 PM   #530
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Never measured fuel pressure with my Walbro 255. I've always read the 255 overwhelmed the NA stock fpr. Not sure about the NB- its completely different obviously.

I'm not going to convert right away... I'll run stock fuel system at least for engine break-in etc and go from there. I guess it would be a good time for me to hook up a gauge and see what kinda pressure I'm actually seeing in the rail as well and determine if I actually need to upgrade.

I'd also be down for some sort of direct replacement in tank regulator and not add a return line. Say one that's for 70 or 80psi... but I have not seen any info on such a piece. I've heard of guys crushing the stock one, but......... I'll pass lol.
aaronc7 is offline   Reply With Quote
Old 07-18-2012, 08:53 PM   #531
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

I got to 307 on e85 with headroom. I don't see why you couldn't hit 350 with stock fpr. past that, probably on very thin ice.
18psi is offline   Reply With Quote
Old 07-18-2012, 09:10 PM   #532
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

I run a DW300 on a stock NA regulator with 99 fuel rail
soviet is offline   Reply With Quote
Old 07-18-2012, 10:22 PM   #533
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 5
Default

If Faefae could just get 0.1% of Dem768's initiative, motivation, know-how, resourcefulness, etc. etc. we'd have a god [email protected] dyno plot from him by now...

Beautiful build, makes me want a white NB so hard.
Efini~FC3S is offline   Reply With Quote
Old 07-18-2012, 10:47 PM   #534
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Quote:
Originally Posted by Dem768 View Post
Right - I just assumed my regulator would not be holding 60 with the big boy pump. I was making 330 at the wheels on 550cc injectors so I assumed that even my Walbro was running higher rail pressure than the stock regulator could deal with.
that's pretty good. with my Walbro 255 HP and 550s, at 275whp, i was somewhere around 70 ish duty cycle... which based on some ballpark calcs, made me think it was still running 60psi rail the whole time..

IDK, I'd like to keep the stock fuel system if I can, I guess I'll (we'll) just have to see what it can do.
aaronc7 is offline   Reply With Quote
Old 07-19-2012, 01:01 AM   #535
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

Quote:
Originally Posted by soviet View Post
I run a DW300 on a stock NA regulator with 99 fuel rail
o rly

and it runs fine? not overwhelmed?

I'm pleasantly surprised
18psi is offline   Reply With Quote
Old 07-19-2012, 01:13 AM   #536
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

Quote:
Originally Posted by 18psi View Post
o rly

and it runs fine? not overwhelmed?

I'm pleasantly surprised
Dunno what you mean by overwhelmed. i hit like 70% duty cycle at man-boost. The system is definitely at it's limits but runs great.
soviet is offline   Reply With Quote
Old 07-19-2012, 01:15 AM   #537
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

fpr overhwelmed = can't hold back the pressure = u run rich
18psi is offline   Reply With Quote
Old 07-19-2012, 01:18 AM   #538
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

no, never happened. afr is souper noice.
soviet is offline   Reply With Quote
Old 07-19-2012, 11:11 AM   #539
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I think the problem is not the overwhelming aspect - It's the fact that it will be overwhelmed or not overwhelmed, consistently. You can't tune with fluctuating fuel pressure. I'd rather have a consistent setup and the car remains tuned.
miatauser123 is offline   Reply With Quote
Old 07-20-2012, 10:57 AM   #540
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

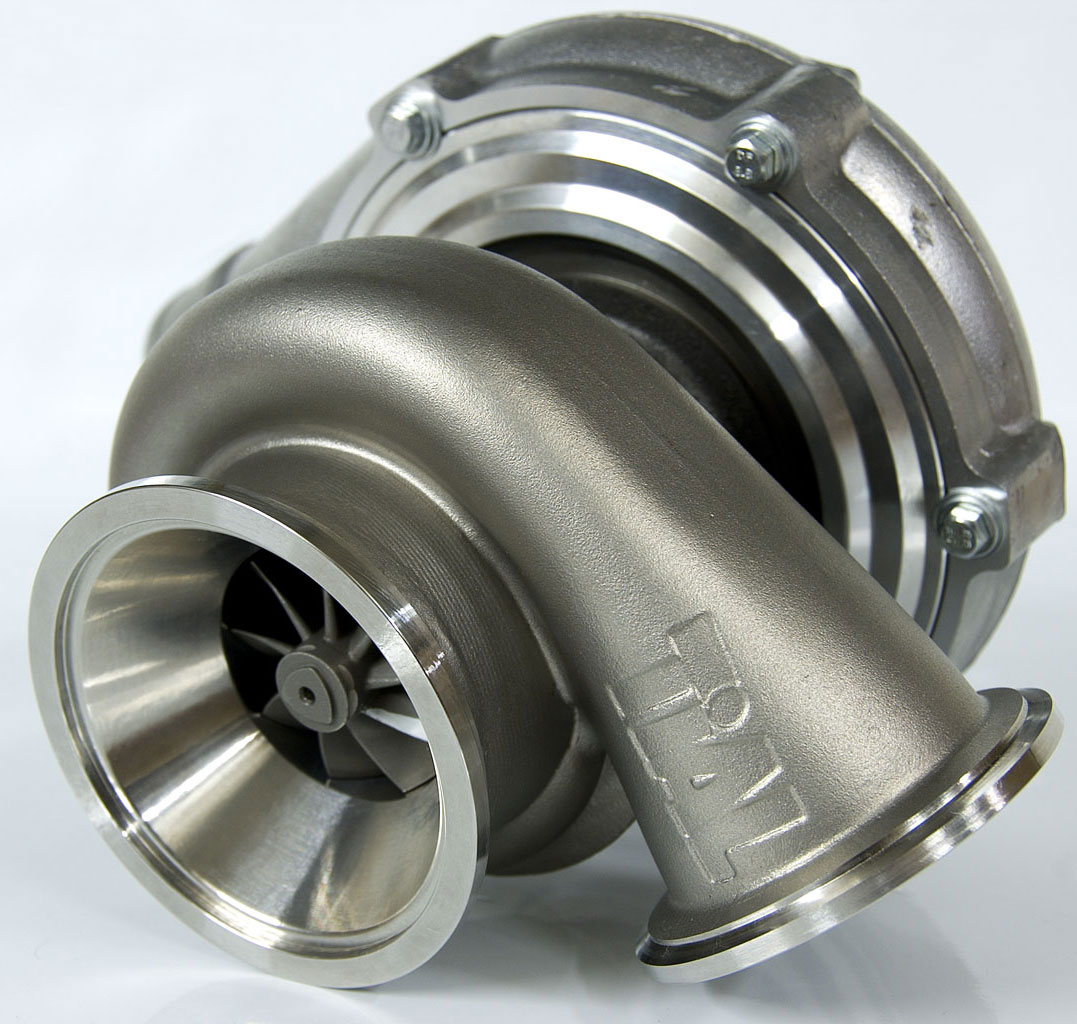

Guys- Talk me into ordering this Tial V-Band housing... Easy to work on, clean looking, no gaskets...
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-turbine_housings_stainless_steel_lrg.jpg
miatauser123 is offline   Reply With Quote
