Old 12-25-2012, 06:48 AM   #761
Oni
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

Cover the whole lot with clear shrink wrap, would that help?
Oni is offline   Reply With Quote
Old 12-25-2012, 07:50 PM   #762
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Heat is heat.
Mobius is offline   Reply With Quote
Old 12-26-2012, 10:28 AM   #763
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Slid this guy out of the garage just long enough for it to snow on it.



Progress on the harness front. I’ve come to the conclusion that I don’t care if the labels turn black. I only need them once. Maybe I’ll dump some cash into a heat shrink printer but it’s doubtful.

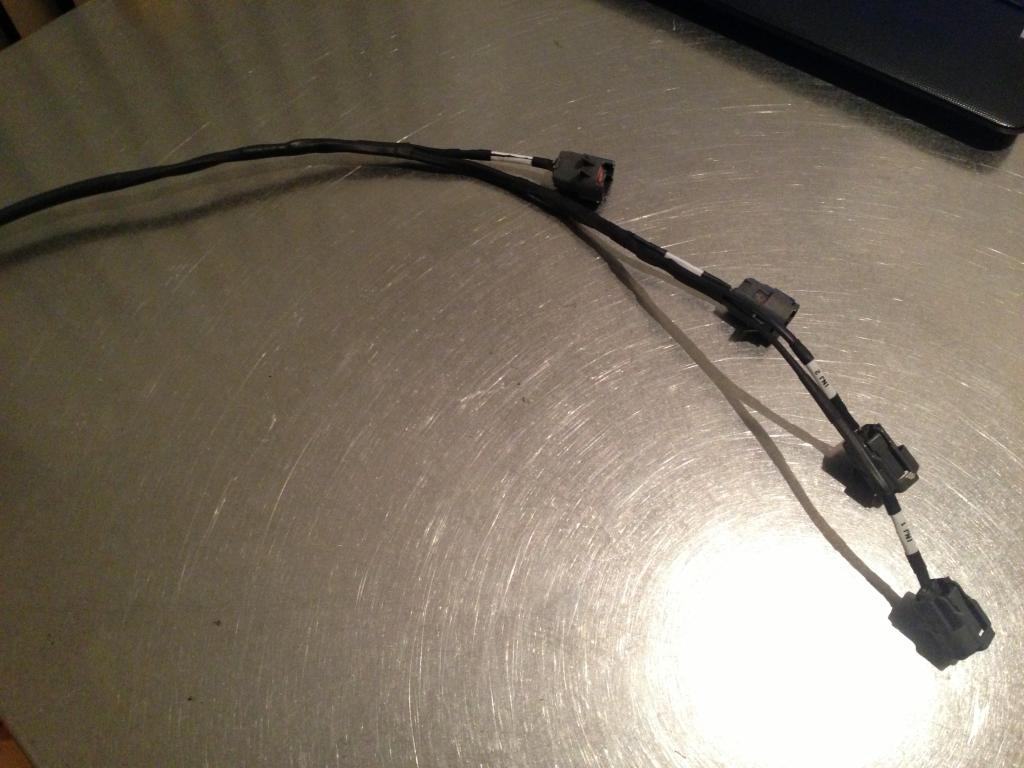

Injector harness complete, TPS, IAT, IDLE also complete.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture018_zps7bddeb06.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture019_zpsb3e4668e.jpg
miatauser123 is offline   Reply With Quote
Old 12-26-2012, 12:59 PM   #764
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

You're more than welcome to rewire my car if you'd like. I'll bring beer and a fancy heat shrink labler thingy. Win win situation
FowlerMotorsports is offline   Reply With Quote
Old 12-26-2012, 01:52 PM   #765
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I actually wouldn’t mind making someone a harness if they wanted to remove their engine harness and send it to me.
miatauser123 is offline   Reply With Quote
Old 12-26-2012, 02:07 PM   #766
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

Print on laser (non-thermal) and/or chemical-resistant labels (Avery L6011), then apply clear heat-shrink tubing over it:

Crystal Clearô Heat Shrink Tubing
Reverant is offline   Reply With Quote
Old 12-26-2012, 02:39 PM   #767
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Yours is run through your fenders to clean the engine bay correct?
FowlerMotorsports is offline   Reply With Quote
Old 12-26-2012, 03:12 PM   #768
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

The engine harness is not running through my fenders, only the body harness (headlights, turn signal, horn). The engine harness comes out of the firewall and directly to the engine.
miatauser123 is offline   Reply With Quote
Old 12-26-2012, 04:38 PM   #769
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

But you did redue the body harness correct? Or was there slack to route it differently
FowlerMotorsports is offline   Reply With Quote
Old 12-26-2012, 07:04 PM   #770
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Cover then in clear heat shrink
Braineack is offline   Reply With Quote
Old 12-26-2012, 09:06 PM   #771
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

Quote:
Originally Posted by Dem768 View Post
I actually wouldn’t mind making someone a harness if they wanted to remove their engine harness and send it to me.
I'm in on this, I might even have 2 of them to do here come spring / summer. But one for sure. If anything, i'd put that heat shrink printer thingie to use.
Erat is offline   Reply With Quote
Old 01-02-2013, 12:50 PM   #772
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Progress on the harness has lead me to the Ignition Coils. Iíve decided to ditch the Wasted Spark setup for the Coil On Plug conversion. The Wasted Spark was not giving me any problems that I was aware of but Iíd rather cover my bases while Iím building this new harness. I knew it would eventually happen so it might as well be now.

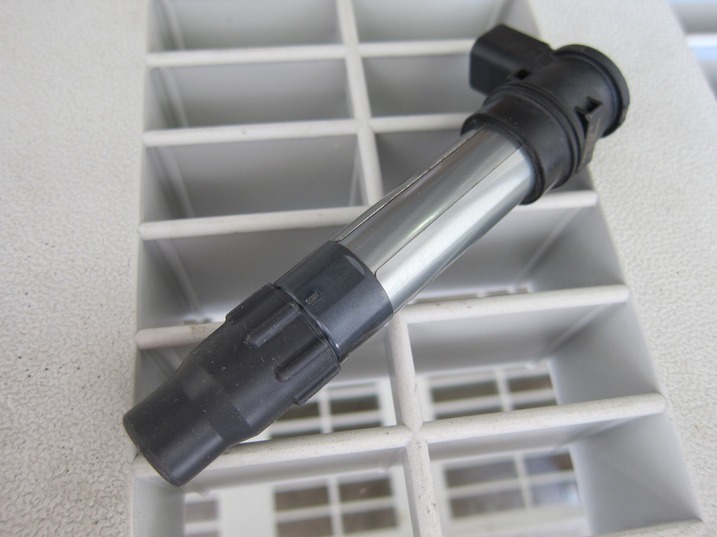

First step was to find a coil on plug that would fit. I didnít want to go the route of the Toyota COP, although popular and Iím sure it will perform quite well I just wanted something cleaner. The CBR 1000RR coils have been popular in some very high horsepower builds on other vehicles and I can get a set of them very affordably.

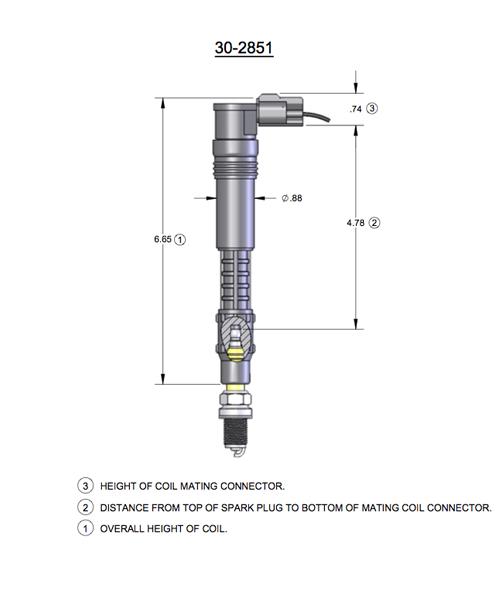

You can get the CBR 1000RR coils or AEM actually has a very similar setup with their Long Pencil Style Coil PN: 30-2851

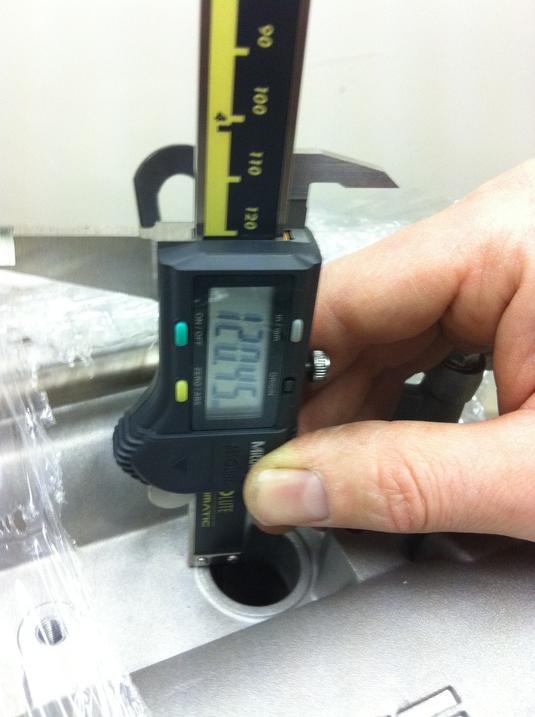

This coil from the seat to the plug measures about 122mm and the CBR setup measures the same. From the valve cover to the top of the plug measures 120mm so this should be a perfect fit.

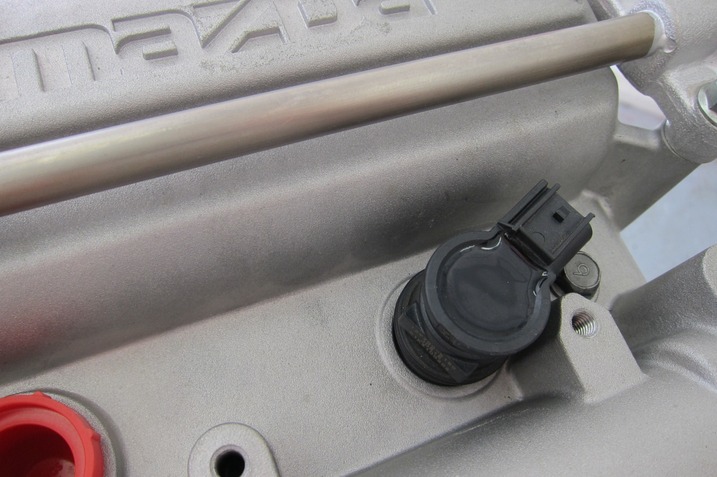

Here is a picture of someone who mounted these in the Miata already.

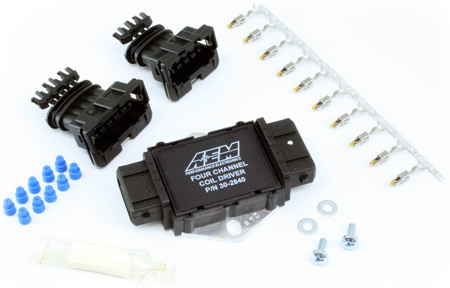

To make these ďDumbĒ or two wire coils fire so Iíll need a Coil Driver or an Ignition Module. AEMís 4 Channel Coil Driver is perfect for the job. PN: 30-2840

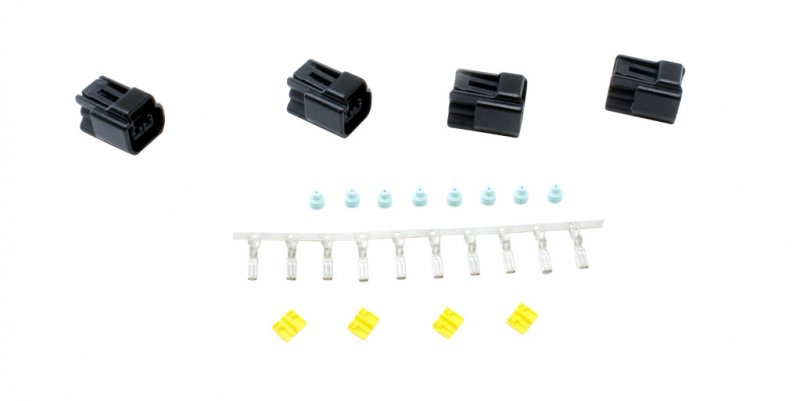

Luckily Ė AEM also sells the harness connectors that just so happen to fit the CBR 1000RR coil on plug setup so I ordered these up too.

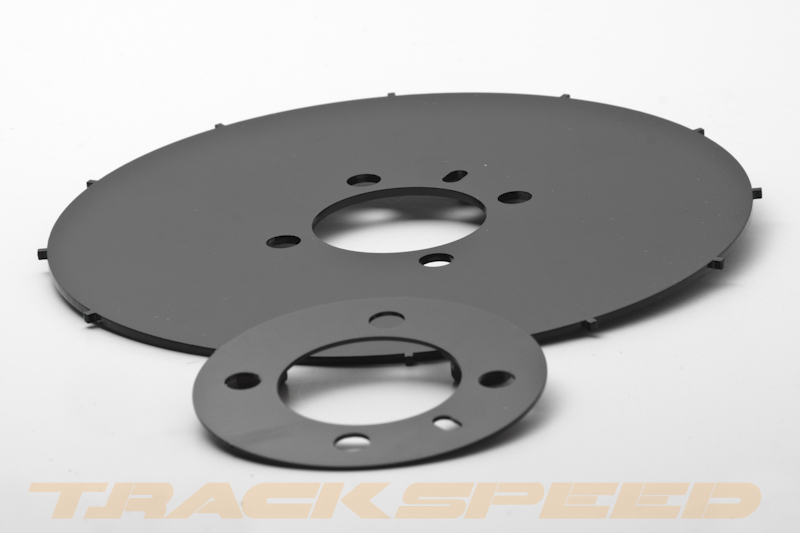

On top of this I just got in my new Trackspeed Engineering 12 tooth trigger wheel. Much faster ECU sync for quicker starts and higher resolution. It can only improve the new ignition setup.



Iíll wait for everything to come in and update you guys with the progressÖ
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-cbr1000rrcoils_zps3f8e3461.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-aempencil_coils_zps4ff2dca8.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-coilhole_zps9b339dbb.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-coilmounted_zps95805673.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-30-2840-kit_zpsb46860e7.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-coilleads_zps2b2e76dc.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-trackspeedwheel_zps966cafb4.jpg
miatauser123 is offline   Reply With Quote
Old 01-02-2013, 01:03 PM   #773
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Oh wow that's sweet. Haven't seen motorcycle coils on a miata before.
18psi is offline   Reply With Quote
Old 01-02-2013, 01:05 PM   #774
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

That looks like a VVT head that they're plugged into. Very interesting.
Leafy is offline   Reply With Quote
Old 01-02-2013, 01:13 PM   #775
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

External igniter module? No thanks.
Reverant is offline   Reply With Quote
Old 01-02-2013, 02:16 PM   #776
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Reverant View Post
External igniter module? No thanks.
From what I understand this is completely a matter of preference. Itís the distance between the Coil and the Plug that matters. Iíd love to hear the other side of the argument though. Iíve been unable to come up with the down side and Iíve got some rather serious performance connections that Iíve sourced before making this decision.

Upsides are Ė Cleaner looking Ė Cheaper to replace Coils Ė Moves one more electrical component away from the heat of the engine.
miatauser123 is offline   Reply With Quote
Old 01-02-2013, 02:28 PM   #777
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Bike coils are really not suited to automotive applications unless you use a CDI box. Dwell times are super low and they can't store significant spark energy, so without a CDI box they just overheat and make crappy spark.
vehicular is offline   Reply With Quote
Old 01-02-2013, 04:03 PM   #778
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by vehicular View Post
Bike coils are really not suited to automotive applications unless you use a CDI box. Dwell times are super low and they can't store significant spark energy, so without a CDI box they just overheat and make crappy spark.
Iíve actually heard quite the opposite. This setup is a pretty common for some high powered turbo builds (mainly Honda guys). 7-800 WHP setups. High spark energy with low dwell times for an engine that was designed to run at 11,000RPM. Iíve checked with some of the bigger guys in the industry (turbo honda guys) and they all swear by them.
miatauser123 is offline   Reply With Quote
Old 01-02-2013, 04:42 PM   #779
I'm Miserable!
iTrader: (13)

Join Date: Oct 2012
Posts: 255
Total Cats: 0
Default

Real sexy.
DoapParts is offline   Reply With Quote
Old 01-02-2013, 05:15 PM   #780
Senior Member
iTrader: (15)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Why not use the OEM 36 tooth trigger wheel? I think Soviet has also installed it in his build.

https://www.miataturbo.net/ecus-tuni...1-wheel-64544/
99mx5 is offline   Reply With Quote
