Old 08-15-2012, 02:49 PM   #641
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Wow man, you work quickly. I applaud you for getting that HG swapped out just days after being told you needed to do so. That's pure badassery.
Fireindc is offline   Reply With Quote
Old 08-15-2012, 04:29 PM   #642
Newb

Join Date: Sep 2009
Location: Netherlands
Posts: 23
Total Cats: 0
Default

I really like this thread, keep the info coming
henksmiata is offline   Reply With Quote
Old 08-15-2012, 10:22 PM   #643
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

Quote:
Originally Posted by Faeflora View Post
Take off the front neck and bolt the block off plate directly to the head.
+1. I hate how my water neck looks hanging off the front of the motor. Next time I pull my motor apart I'm definitely going to get rid of it. If you do need a water supply for the turbo I'm sure you could fab up something more attractive than the stock piece.
pdexta is offline   Reply With Quote
Old 08-16-2012, 05:57 AM   #644
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

Quote:
Originally Posted by pdexta View Post
+1. I hate how my water neck looks hanging off the front of the motor. Next time I pull my motor apart I'm definitely going to get rid of it. If you do need a water supply for the turbo I'm sure you could fab up something more attractive than the stock piece.
Would drilling and tapping the plate for a fitting supply enough water?
Erat is offline   Reply With Quote
Old 08-16-2012, 12:33 PM   #645
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Why wouldn't it?
vehicular is offline   Reply With Quote
Old 08-16-2012, 01:36 PM   #646
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by curly View Post
Ah, i thought you were referring to the merge angle of the wastegate. Hence the reason i posted a picture of my setup. Tone down the disrespect yo.
Quote:
Originally Posted by Erat View Post
Would drilling and tapping the plate for a fitting supply enough water?

Yes. But even better would be to put a splice in your heater hose instead of having a stupid water line coming out the front of your nice clean engine.

Bow down, for I am God.
Faeflora is offline   Reply With Quote
Old 08-16-2012, 01:49 PM   #647
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Faeflora View Post
Yes. But even better would be to put a splice in your heater hose instead of having a stupid water line coming out the front of your nice clean engine.

Bow down, for I am God.
Right, splice the hose and create multiple points of faelure. But hey, you're the one with the nice clean engine bay

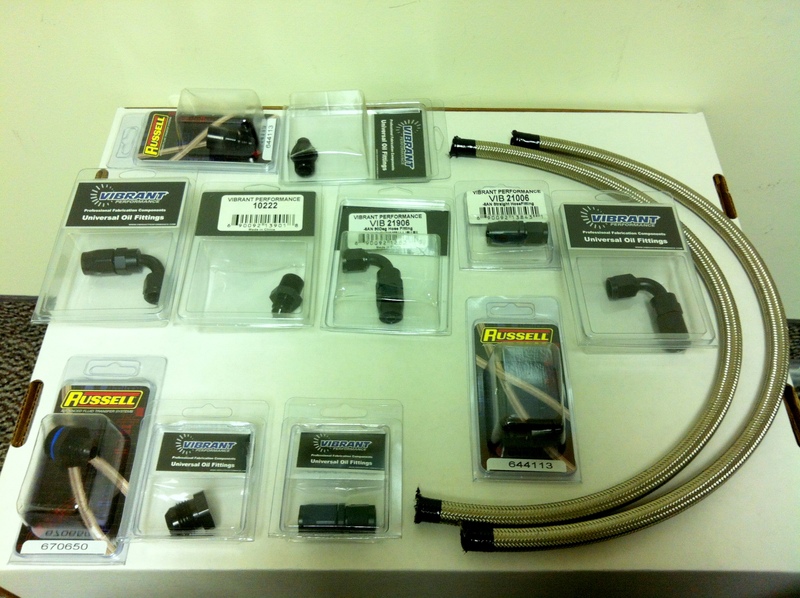

Some of my fuel components showed up today.. Just waiting on my Rail and Aeromotive Regulator.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1522wk.jpg
miatauser123 is offline   Reply With Quote
Old 08-20-2012, 11:38 AM   #648
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Well I spent the weekend in Texas for work. I managed to get in touch with Hustler..



The guy was nice enough to show me to a couple of beers and a really great meal just up the road from where he lives. Solid time.

When I got back on Sunday I was able to make some progress on my fuel system.. Nothing major but had to make sure everything worked for the conversion.

The components:

Vibrant - Braided Steel -6 AN line 2ft 11906 2
Vibrant - 6AN to 10AN Flare Adapter 10433 1
10AN Flare Plug 10444 1
Russell Line Adapter 5/16 to -6 AN CAP 644113 2
Vibrant - 90 Degree -6 hose end -6 21906 3
Vibrant - straight hose end -6 21006 2
Vibrant - Adapter Fitting -6AN x 3/8" 10222 2

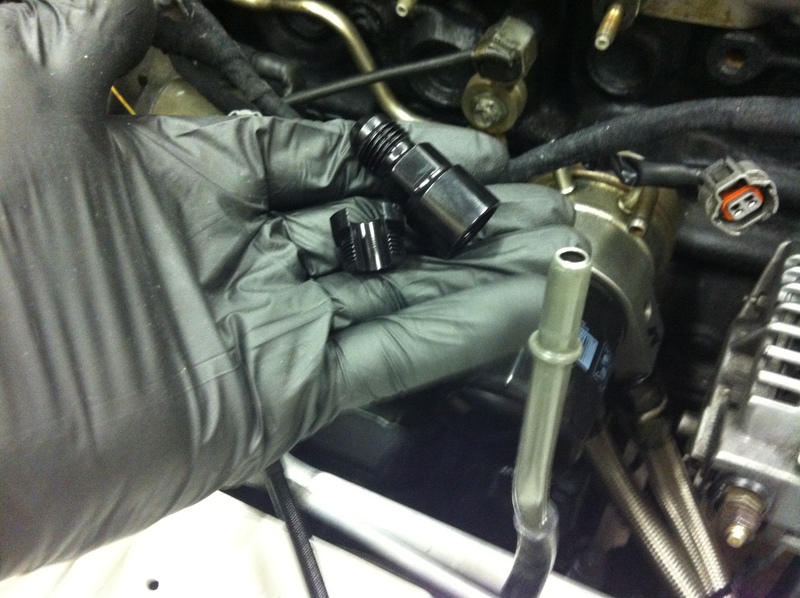

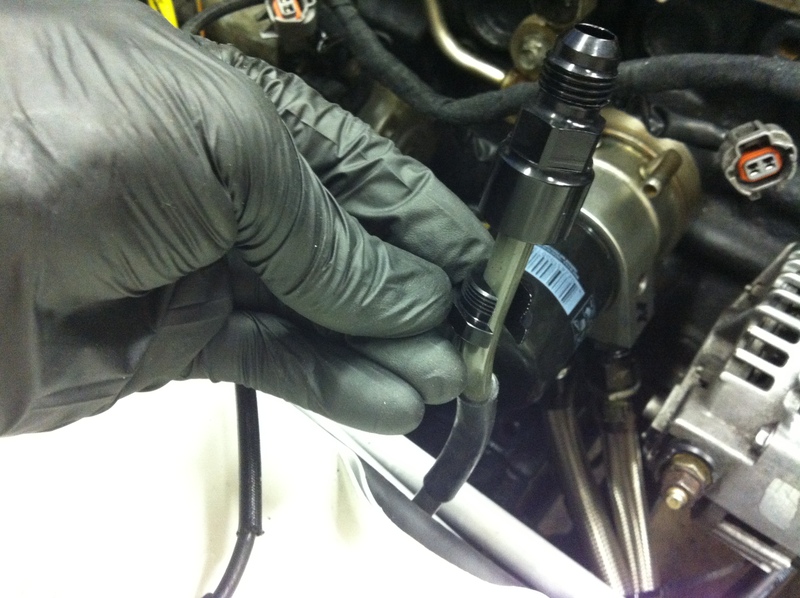

My biggest concern was converting the hard lines to AN so I tested that out with my Russel 5/16 to -6AN adapter. Worked like a charm on the supply line. These fittings are offered in the traditional clip on style and then like the ones I have, a threaded cap.





However the return line was not the same size! It looks like it will require the 1/4 size line adapter by Russell. Part number 641303.

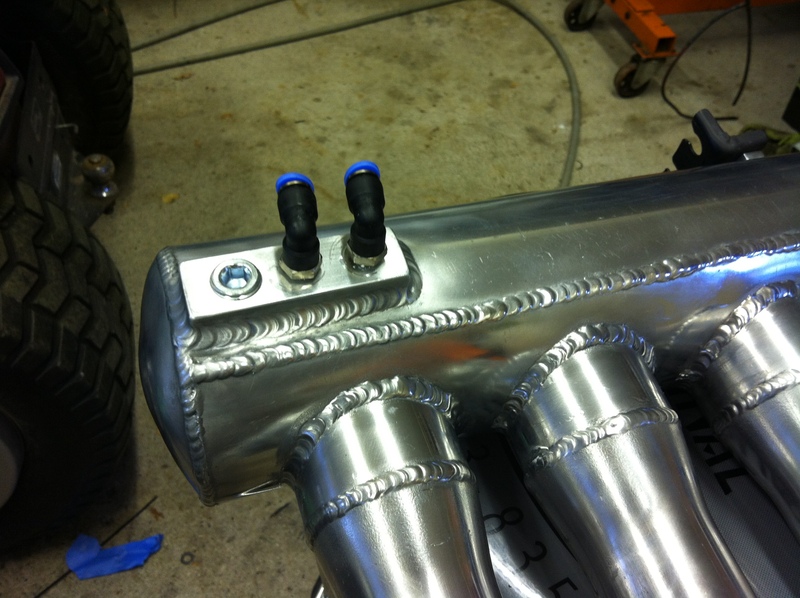

Also, started to route some of my vacuum components.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1602md.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1604u.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img1614ks.jpg
miatauser123 is offline   Reply With Quote
Old 08-20-2012, 11:44 AM   #649
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Quote:
Originally Posted by Dem768 View Post
I managed to get in touch with Hustler..



The guy was nice enough to show me to a couple of beers and a really great meal just up the road from where he lives. Solid time.


You forgot to mention how great of a lay he is
18psi is offline   Reply With Quote
Old 08-20-2012, 01:54 PM   #650
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Dem768 View Post
Right, splice the hose and create multiple points of faelure. But hey, you're the one with the nice clean engine bay
Actually, my bay is pretty damn clean. Yes I do have tentacle rape going on in there with a bazillion SS and meth hoses but it is clean.

And seriously, a rubber splice is not going to ruin your day.

BTW I don't recommend those push-lock little vaccum connectors. I have those for my meth lines and if you a) don't cut the hose super perfectly or b) the hose moves around much, or c) because random suck, it will leak.

I would redo my meth lines with SS or black aramid braid but it would cost a couple hundred dollars and I am hoping more E85 stations will open in my area making meth obsolete.
Faeflora is offline   Reply With Quote
Old 08-20-2012, 01:57 PM   #651
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

meth lines =/= vacuum lines.
18psi is offline   Reply With Quote
Old 08-20-2012, 03:53 PM   #652
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I've experienced the same with my meth lines from AEM. I've used this brand specifically in the past for high boost applications and it's been fine. Ever since Vibrant bought Synapse they've been quality.
miatauser123 is offline   Reply With Quote
Old 08-20-2012, 03:57 PM   #653
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

yeah I'm not a fan of push connectors. barbed connectors is where it's at. barbs and zip ties.
soviet is offline   Reply With Quote
Old 08-20-2012, 04:05 PM   #654
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by soviet View Post
yeah I'm not a fan of push connectors. barbed connectors is where it's at. barbs and zip ties.
I might end up this way. I've been running these on my wastegate, MAP sensor and BOV for quite awhile now. No problems.
miatauser123 is offline   Reply With Quote
Old 08-20-2012, 04:52 PM   #655
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 18psi View Post
meth lines =/= vacuum lines.
Give me a fuckying break. If the connector and line leaks, it will leaks regardless of what's in it. Yes meth line typically has 100+psi in it and vacuum doesn't. Still though, it's a leaking connector.

Stop trolling me before I rape you.


Quote:
Originally Posted by Dem768 View Post
I've experienced the same with my meth lines from AEM. I've used this brand specifically in the past for high boost applications and it's been fine. Ever since Vibrant bought Synapse they've been quality.
Quote:
Originally Posted by Dem768 View Post
I might end up this way. I've been running these on my wastegate, MAP sensor and BOV for quite awhile now. No problems.
Can you please link to the lines/connectors that work?
Faeflora is offline   Reply With Quote
Old 08-20-2012, 05:02 PM   #656
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Quote:
Originally Posted by Faeflora View Post
Yes meth line typically has 100+psi in it and vacuum doesn't. Still though, it's a leaking connector.

Stop trolling me before I rape you.
stop trolling yourself.
18psi is offline   Reply With Quote
Old 08-20-2012, 05:15 PM   #657
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by 18psi View Post
stop trolling yourself.
LOL, exactly what I was thinking. Small difference between 30 and 100+psi.
Fireindc is offline   Reply With Quote
Old 08-20-2012, 05:22 PM   #658
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Vibrant Performance ::.

This is a link to the product page, note these are specifically for AIR. The catalog specifies the following info:

PTFE Hose designed to withstand extreme tempatures Specs: -292F to 500F @ 100PSI withstands cryogenic to 700F+ Ideal for use on forced induction and naturally aspirated applications.

Pneumatic vacuum fittings are suitable for both ambient and pressurized air up to 150PSI.


I'm pretty sure these are not intended to be used with fluids of any type.
miatauser123 is offline   Reply With Quote
Old 08-20-2012, 05:40 PM   #659
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

Super clean build, engine compartment, car, everything. I have been wanting to go that route for some time now with the push lock style fittings. The only question I have is, are there fittings that thread into the Tial wastegate? Because I know those are not 1/8 npt threads and I dont want to screw the threads up in it. Is there a push lock fitting that is threaded to fit in that?
RyanRaduechel is offline   Reply With Quote
Old 08-20-2012, 06:01 PM   #660
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by RyanRaduechel View Post
Super clean build, engine compartment, car, everything. I have been wanting to go that route for some time now with the push lock style fittings. The only question I have is, are there fittings that thread into the Tial wastegate? Because I know those are not 1/8 npt threads and I dont want to screw the threads up in it. Is there a push lock fitting that is threaded to fit in that?
They aren't 1/8NPT, they are 1/8 straight through. I threaded one of these in by hand on my Tial and it seated just fine with teflon, a number of guys thread in 1/8NPT fittings with some teflon.
miatauser123 is offline   Reply With Quote
