Old 03-07-2013, 11:30 AM   #841
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

Huge difference, good job. Pictures look way better on the forum then they did on my phone last night

That's a really small cannister you're going with. Should make for some really straight path, but are you not concerned with loudness? (probably a redundant question lol)
18psi is offline   Reply With Quote
Old 03-07-2013, 11:51 AM   #842
Junior Member

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Duude, those tig skills are improving quickly! (It's Zander btw)
Keep it up, practice makes perfect.
Boost_addict is offline   Reply With Quote
Old 03-07-2013, 12:37 PM   #843
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Moved to this page Because I like to look at it.

Thanks guys! Zander - I basically owe you for the accellerated welding learning curve.

My exhaust system was due for an update since the turbo system went on. After the down pipe I basically had some busted ash exhaust shop tack in some crush bent piece of crap.

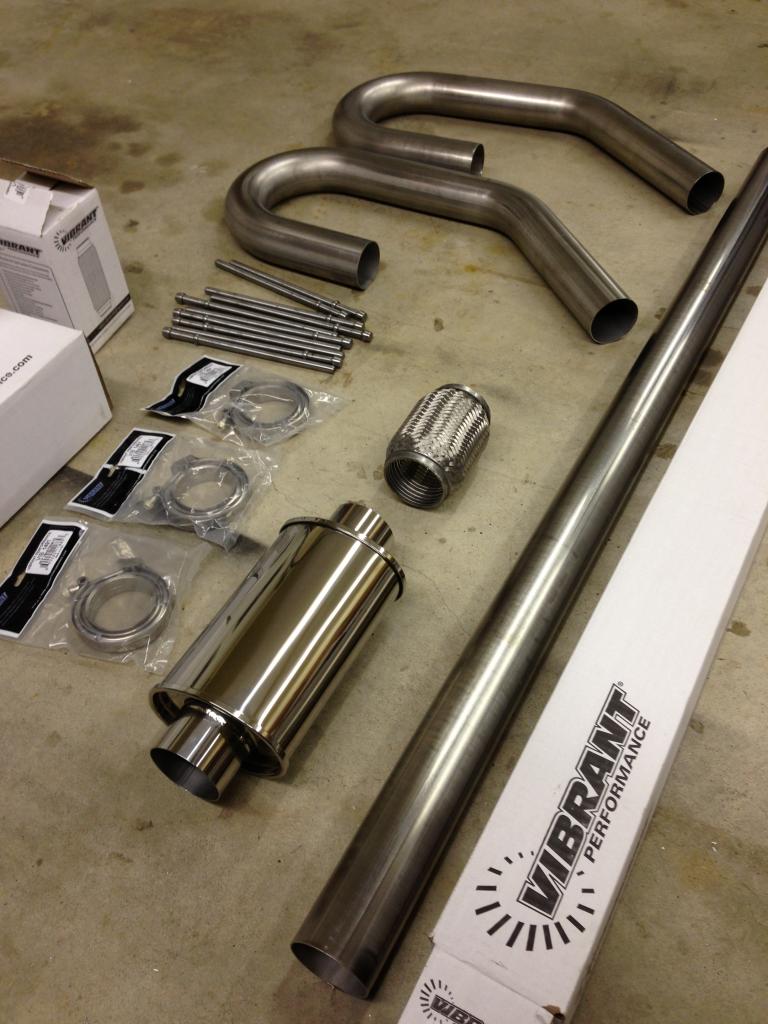

I picked up 3 inch stainless from Vibrant. The build list went a little something like this:

2X - VIBRANT – 3” MANDERAL BENT UNIVERSAL BEND
1X - VIBRANT – 3” 5 FOOT STRAIGHT TUBE
1X - VIBRANT – 3” ULTRA QUIET RESONATOR
1X - VIBRANT – EXHAUST HANGERS
3X - VIBRANT – V-BAND ASSEMBLIES
1X - VIBRANT – 3” TURBO FLEX PIPE

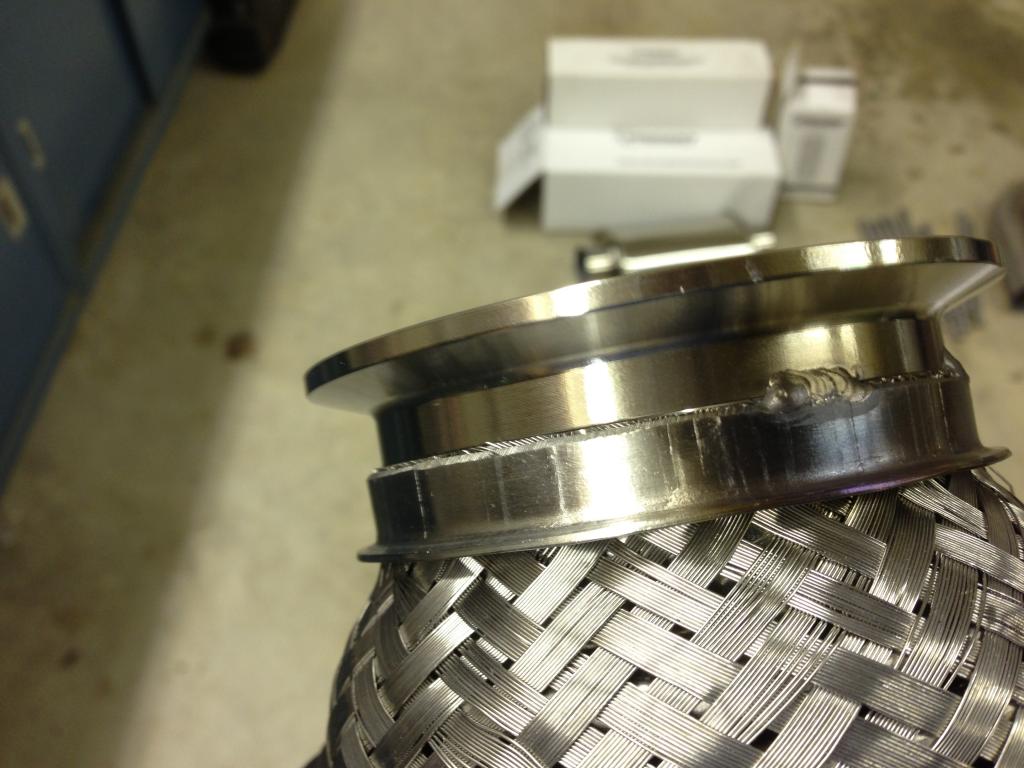

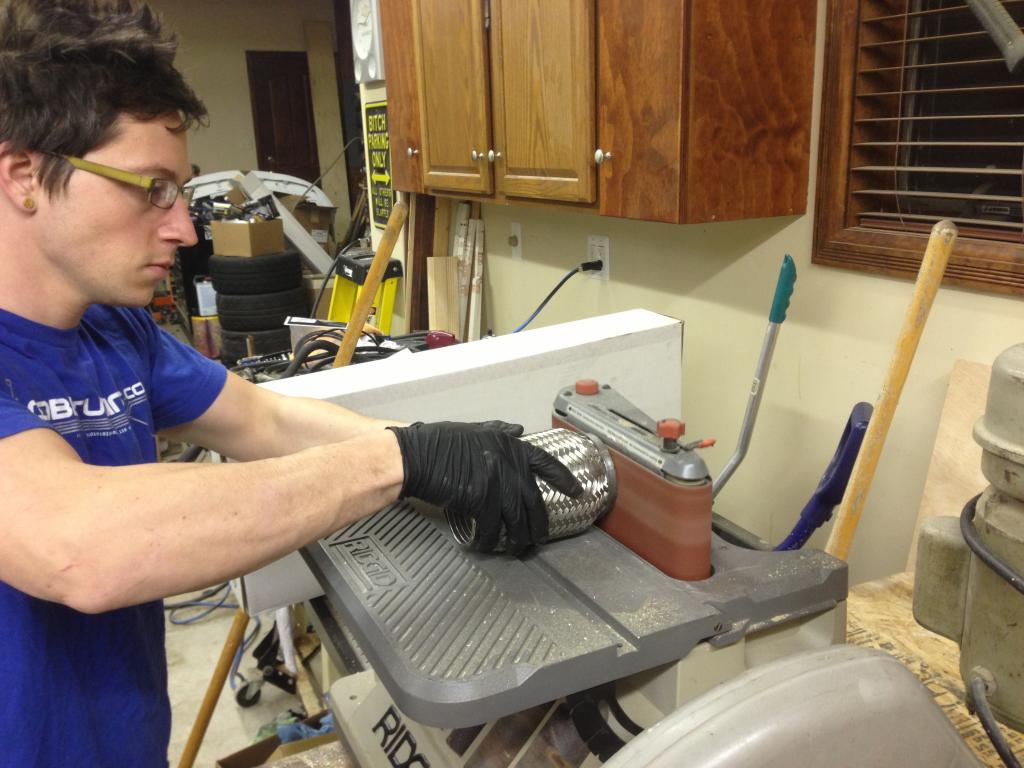

I started with the downpipe – Leaving my V-Band to turbo flange slightly loose to allow for some rotation while mocking up the rest of the system. I wanted to start out with the flex pipe to keep stress off of my manifold. I had to knock some of the stainless wire off of the end of the flex pipe and then I mated the V-Band flange to it for a couple of quick tacks.




I’m no professional welder by any means but I do know that you must tack v-band flanges in multiple areas before you make your pass or else you’ll end up with a warped flange that wont seat properly.

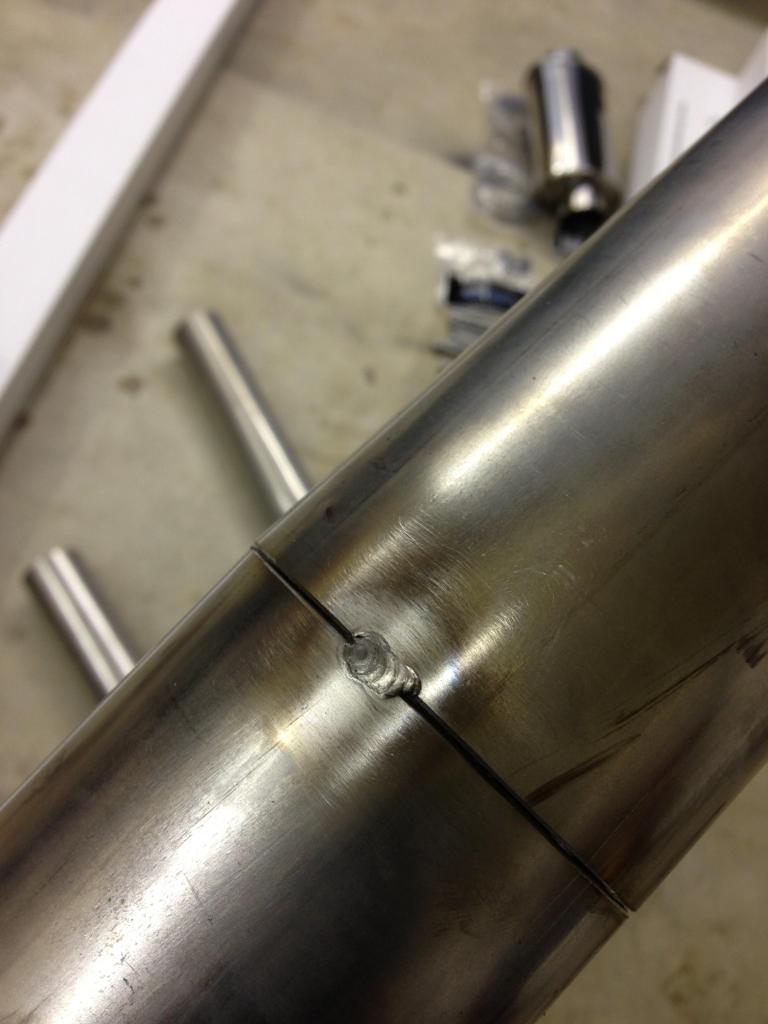

Then I slid under the car and started to mock up my slight bends before the differential. It always looks like one straight shot will work but it won’t, especially when using 3 inch pipe. After each piece was determined I tacked it together.



Chop chop:

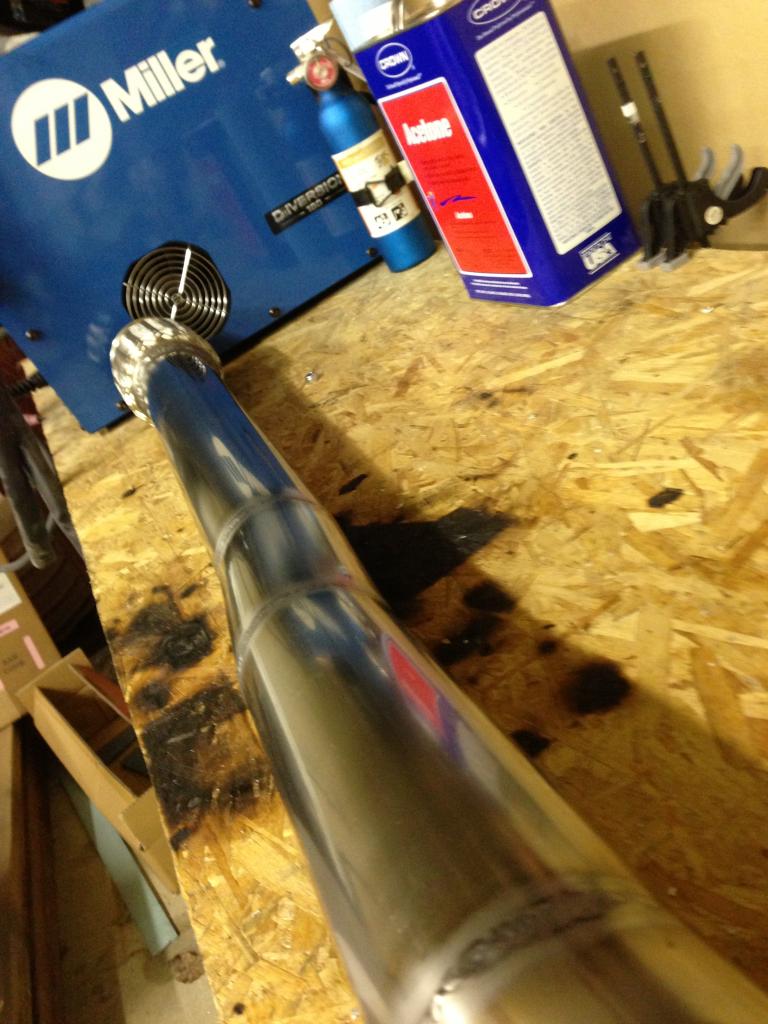

Tig tig:

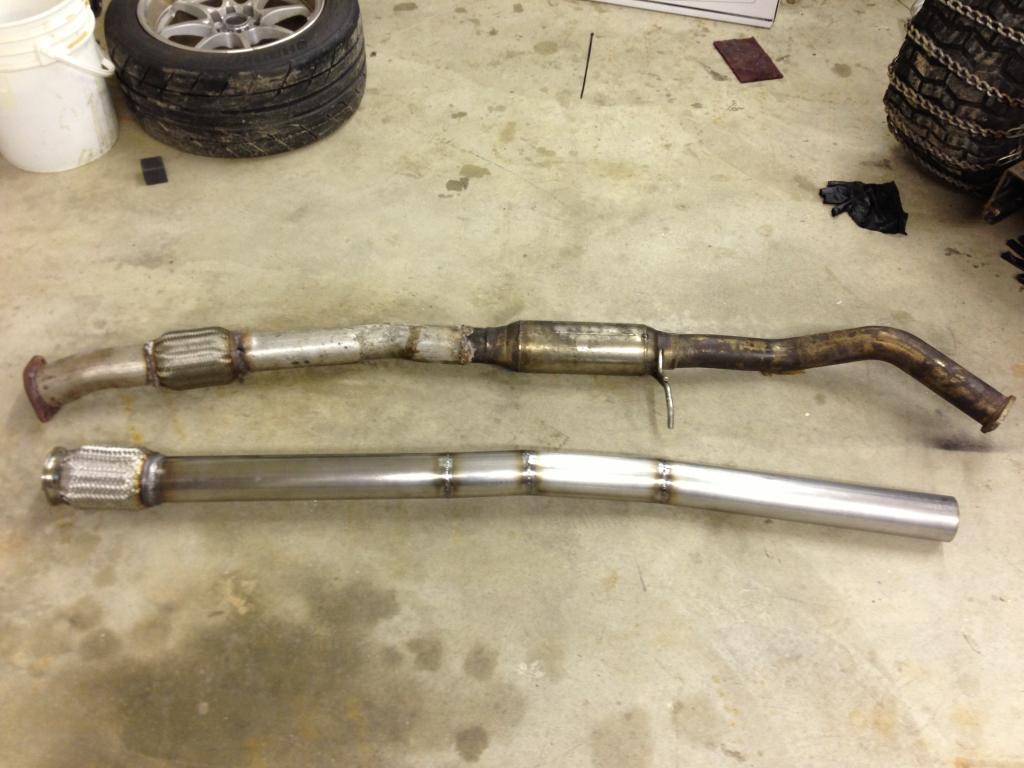

Old vs New – and I’m calling it a night.

miatauser123 is offline   Reply With Quote
Old 03-07-2013, 12:45 PM   #844
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Dem768 View Post
Do you have an NB with the canister? Even if so - The 350 core will clear that just fine! Direct bolt in.. Let me know.


Does it fit because its shorter and thus does not interfere with the canister thingus?

Why did I sub this build? Oh yeah, because its awesome. I'd say something like "keep up the good work" but its obvious you don't have any setting other than 11
EO2K is offline   Reply With Quote
Old 03-07-2013, 02:00 PM   #845
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

Hahaha, the wood is all black, get it a little warm??

Exhaust looks great, what are you doing with the FM muffler?
Erat is offline   Reply With Quote
Old 03-08-2013, 12:28 AM   #846
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Erat View Post
Hahaha, the wood is all black, get it a little warm??

Exhaust looks great, what are you doing with the FM muffler?
Selling my FM axle back. Anyone PM me with offers... it's in great shape.
miatauser123 is offline   Reply With Quote
Old 03-08-2013, 12:57 AM   #847
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Jelous. Really need to learn to weld and still trying to find a good deal that miller. Are you going to use a big muffler too? Did I miss it?
TorqueZombie is offline   Reply With Quote
Old 03-09-2013, 03:18 PM   #848
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

What is the model number of that welder? I want a TIG that size

Amazing thread.

Last edited by dgmorr; 03-09-2013 at 03:37 PM.
dgmorr is offline   Reply With Quote
Old 03-09-2013, 03:46 PM   #849
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by dgmorr View Post
What is the model number of that welder? I want a TIG that size

Amazing thread.
Looks like a miller Diversion 180. Its the same one I have. Its pretty damn nice, especially being able to use it on 110v when 220v isnt available.
Leafy is offline   Reply With Quote
Old 03-10-2013, 12:47 PM   #850
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by Leafy View Post
Looks like a miller Diversion 180. Its the same one I have. Its pretty damn nice, especially being able to use it on 110v when 220v isnt available.
Reading some material on that model, looks easy to operate. I'm on the hunt
dgmorr is offline   Reply With Quote
Old 03-11-2013, 11:18 AM   #851
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I’ve finished the exhaust up. Welded up the hangers and completed the axle back.

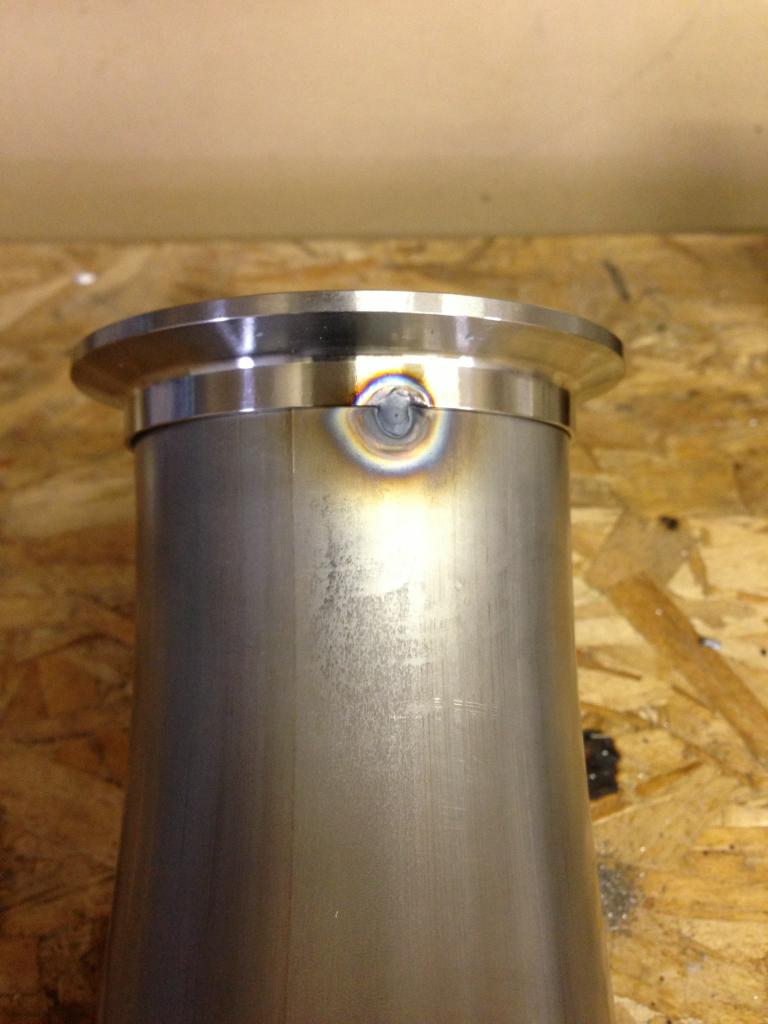

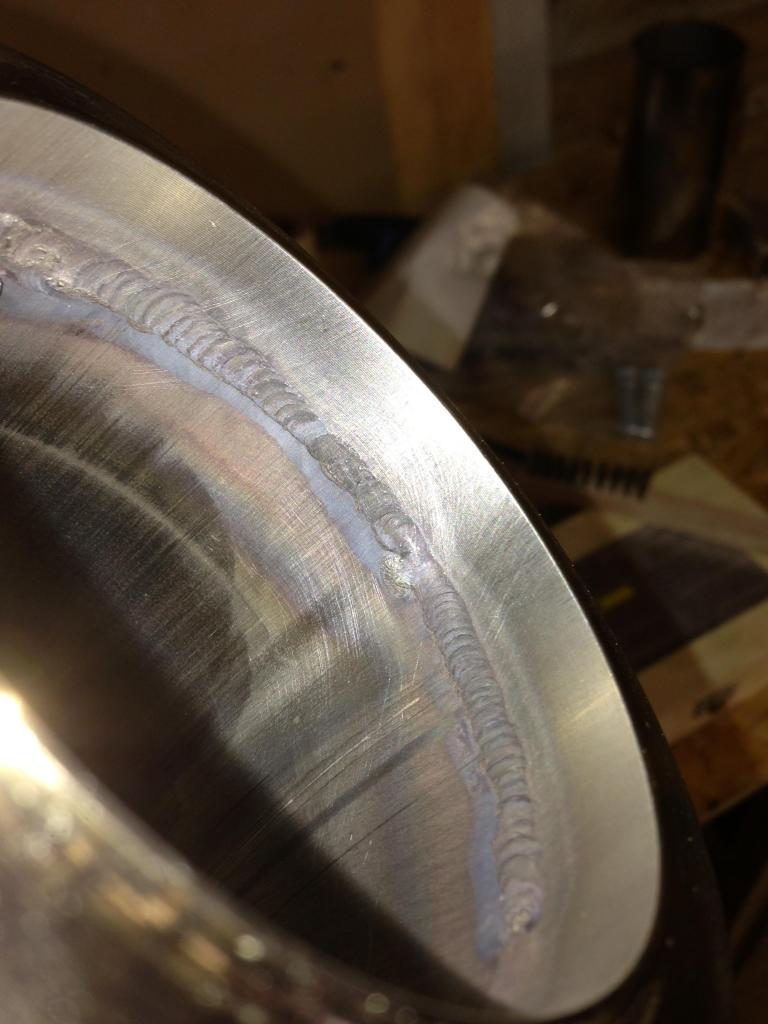

From what I’ve read – V-Band flanges should be tacked in multiple places before a good bead is applied to avoid warping. Makes sense to me.. So I tacked the outside of what will soon be my axle back in a few places.




Then I hit the inside, trying my best to be consistent.

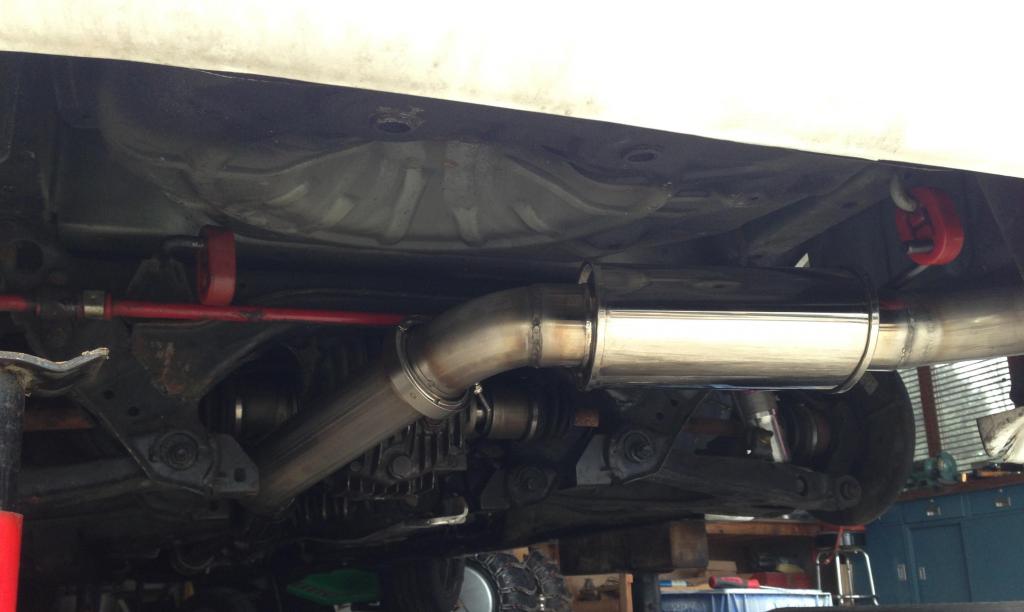

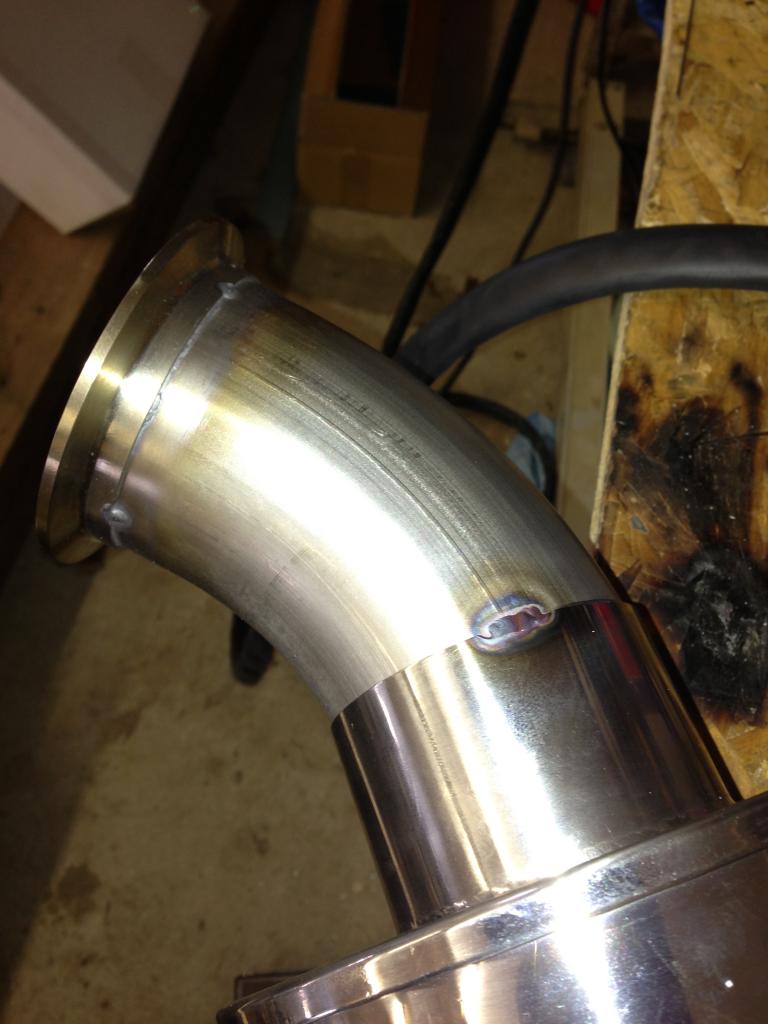

After it was in place I could now mock up the axle back section with my Vibrant ultra quiet resonator.



Shes on the car and looks really nice. I have not welded up the tip just yet. I think I might be trimming the bumper a little bit before it’s said and done. I don’t particularly like how low the 4 inch exhaust tip will be if I leave the bumper unmolested.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture038_zps3810d277.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture042_zpsdaf9cdbf.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture044_zpsb0ce4e35.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture038_zps3810d277.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture042_zpsdaf9cdbf.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture043_zps89922d40.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture044_zpsb0ce4e35.jpg
