Old 03-12-2012, 09:15 PM   #261
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

Quote:
Originally Posted by [email protected] View Post
Our clutch switch override will not fit over the ECU/cruise switch. It only fits over the starter interlock. Skidude, I think you're mixed up with what happened. The starter switch isn't involved in the cruise control. The diagrams don't lie!

I have seen a number of people try to build their own starter interlock by cutting the wires off the switch and splicing them together. This works perfectly - unless you cut the wires for the wrong switch. Then you end up with the cruise control not working properly and odd idle behavior.
Like I said, I haven't driven the car for a few months, I could have the behavior mixed up with my old '94. That car had some weird issues.
skidude is offline   Reply With Quote
Old 03-13-2012, 08:48 PM   #262
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by [email protected] View Post
unless you forget your car is in gear when you hit the key.
This comes in handy when your clutch hydraulics fail in rush hour traffic.
dgmorr is offline   Reply With Quote
Old 03-13-2012, 11:01 PM   #263
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Dem, how much material did you take off when you surfaced the flywheel? It doesn't look like you machined the step pads to match, so that likely has a lot to do with your disengagement issues. DSM's are notorious for this. BTW, check to make sure you're consistently uncovering the pressure bleed hole in the master on the upstroke of the clutch pedal, or else the system won't adjust itself for disc wear.
vehicular is offline   Reply With Quote
Old 03-14-2012, 02:29 AM   #264
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Hmm.. Not much. It's not having disengagement issues. It says in the manual that the master cylinder will likely need to be adjusted because it's a performance clutch. I wouldn't say anything is out of the ordinary at all.
miatauser123 is offline   Reply With Quote
Old 03-14-2012, 11:09 AM   #265
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Quote:
Originally Posted by Dem768 View Post
Hmm.. Not much. It's not having disengagement issues. It says in the manual that the master cylinder will likely need to be adjusted because it's a performance clutch. I wouldn't say anything is out of the ordinary at all.

It doesn't now, but it did, obviously.

If you think about the motion ratio of the clutch system, 6" of pedal throw is only ~.1" of movement at the pressure plate. .020" change in setup height becomes a little more significant in that light is all I'm saying. If it functions at the limit of the adjustment range then right on, just be careful that everything is actually working correctly. One of my buddies chased silly master adjustment issues for weeks after doing an S2000 master swap on his Civic, only to find out that it was simply out of the adjustment range and wasn't reliably uncovering the bleed back valve.
vehicular is offline   Reply With Quote
Old 03-14-2012, 11:42 AM   #266
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

The FM clutch has a lighter pedal than other performance clutches because we use more of the pedal throw. That's intentional. All FM clutches require adjustment of the pedal. It's a one-time thing at the time of installation.
Keith@FM is offline   Reply With Quote
Old 03-19-2012, 03:30 PM   #267
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

so did I miss something or what turbo are you getting now?
soviet is offline   Reply With Quote
Old 03-19-2012, 03:31 PM   #268
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

He wants 400+ like a boss
18psi is offline   Reply With Quote
Old 03-19-2012, 04:32 PM   #269
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

what turbo?
he's only selling the turbo so I assume he's getting something bigger yet fits his existing T25 setup...
soviet is offline   Reply With Quote
Old 03-20-2012, 05:56 PM   #270
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by soviet View Post
what turbo?
he's only selling the turbo so I assume he's getting something bigger yet fits his existing T25 setup...
Likely modifying my manifold to take a T3. I'm open to suggestions on the turbos...
  1. I'd like to keep the quick spool - Even if that means I dont break 400 whp.
  2. I'm open to running a T3 Flange - I'll modify the manifold to support
  3. If I need to get tricky and externally gate this thing - I'm open ot that too.

I'm currently looking at the GT3071R. At 20PSI I'll make some really good power.

As it sits - I'm probably going to have to:
- Upgrade my intercooler (I have the BEGI level 3 intercooler now)
- Modify my manifold for T3
- Upgrade my intake manifold - I'm looking to do the Honda manifold
- Possibly external gate - Most likely.
miatauser123 is offline   Reply With Quote
Old 03-20-2012, 05:58 PM   #271
Former Vendor
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

GT3251 would suit you very well, thats if you dont like the silver surfer.
Renown Performance is offline   Reply With Quote
Old 03-20-2012, 06:18 PM   #272
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Renown Performance View Post
GT3251 would suit you very well, thats if you dont like the silver surfer.
Thanks Brandon - I've been looking at the Silver Surfer more closely after we spoke. It sounds a bit too big.

I'd like to see a dyno of the GT3251?
miatauser123 is offline   Reply With Quote
Old 03-20-2012, 06:19 PM   #273
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

I disagree on the 3251
If his 1st priority is spool I think 2871 .86 will suit him well. Its a t2 so no flange modification necessary. EWG is definitely a good idea though, and I'm not sure how well that thin walled s4 mani will like being cut and welded.

Either way though, a 2871 will probably require the least amount of modification to the rest of the system and have best pool. Probably will have to be run full tilt to hit 400 though (or really put that water/meth to use)

If you're goint 30r and larger, IMO you'll probably have to pretty much scrap most of your current setup and start over instead of hacking everything up to fit an externally gated t3.

Just my .02
18psi is offline   Reply With Quote
Old 03-20-2012, 06:25 PM   #274
I'm Miserable!

Join Date: Dec 2011
Posts: 346
Total Cats: -223
Default

GTX2867.....most powerful/efficient t2 turbo out.
Boost Joose is offline   Reply With Quote
Old 03-20-2012, 06:55 PM   #275
Former Vendor
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

This is a STC gt3251 not a T2 we are talking about
When I ran my GT3251 on my B17 i made 323 on 9.5 psi
Renown Performance is offline   Reply With Quote
Old 03-20-2012, 06:57 PM   #276
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

Quote:
Originally Posted by Renown Performance View Post
This is a STC gt3251 not a T2 we are talking about
When I ran my GT3251 on my B17 i made 323 on 9.5 psi
B17 as in honda b17?

18psi is offline   Reply With Quote
Old 03-21-2012, 02:32 AM   #277
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,074
Total Cats: 253
Default

Quote:
Originally Posted by Boost Joose View Post
GTX2867.....most powerful/efficient t2 turbo out.
Wrong. EFR is trampling over the GTX. Do some goddamn research.


Quote:
Originally Posted by 18psi View Post
2871
I'd have to agree. If you want to keep it simple, the 2871 is probably your best option. At full tilt you can make 400whp (or damn close to it) and not compromise spool.

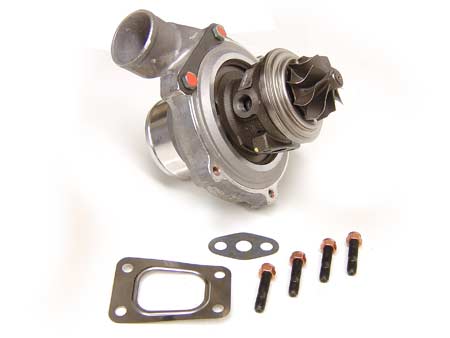

ATP sells just the CHRA and the comp. housing, so all you have to do is swap out the parts. You can even keep the turbine housing attached to the manifold and downpipe while you swap CHRA's.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-grt-tbo-023450.jpg
viperormiata is offline   Reply With Quote
Old 03-21-2012, 04:06 AM   #278
Former Vendor
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

What's wrong with my little Honda b17 haha.
Renown Performance is offline   Reply With Quote
Old 03-21-2012, 04:08 AM   #279
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

Nothing. Except the fact that comparing our engines/setups to honda engines/setups is about as useful as pissing in the wind.
Hondas are designed completely different. They flow a ton more air. They make a ton more peak power. etc etc.
18psi is offline   Reply With Quote
Old 03-21-2012, 04:34 AM   #280
Former Vendor
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Lol. OP asked for a dyno cart of the gt3251. I didn't have one so I gave him some numbers. I know he knows his Hondas if he didn't I wouldnt of bothered sharing. Wasnt trying to compare engines just give him a helpful idea to what the STC GT3251e is able to do. If he plans on modding his manifold to t3 and run an external wastegate the the stc Gt3251e is still in his budget. He could stay t2 internally gated but the cost to redesign and set up the cartage and housing would cost the same if not more. Another plus will be better boost control and less chance of creep. He may even see more power because of it. He also won't have the option to go BB.

If he wanted to save a little more and wasn't concerned about spool between shifts i say just run a water cooler journal bearing. Expecilly if it's just a street car.
Renown Performance is offline   Reply With Quote
