Old 03-28-2012, 11:44 AM   #301
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Makes the miata look like a toy car lol
18psi is offline   Reply With Quote
Old 03-28-2012, 12:18 PM   #302
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Did you leave your number so you can run him sometime?! ahahahha!!! From a roll it MAY be interesting for a few seconds (Im probably under-estimating the GT-R)...from a dig, though....He would probably embarrass you with his fancy automatic transmission and all-wheel drive lol
JoeTheZoe is offline   Reply With Quote
Old 03-28-2012, 12:29 PM   #303
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

yeah miata is seriously almost half the size.

gt-r sounds interesting but to me, a sports car should be small :b
Faeflora is offline   Reply With Quote
Old 03-29-2012, 11:51 AM   #304
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

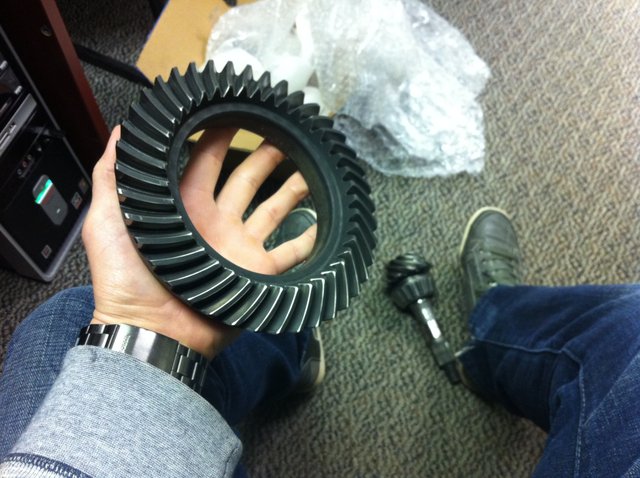

BAM.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-photo2kt.jpg
miatauser123 is offline   Reply With Quote
Old 03-29-2012, 11:55 AM   #305
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Aww snap, that was some fast shipping.
18psi is offline   Reply With Quote
Old 03-29-2012, 12:28 PM   #306
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

This baller seems to get everything shipped overnight. It's fantastic! I never have to wait long for an update after he says he's going to do something.
skidude is offline   Reply With Quote
Old 03-29-2012, 04:16 PM   #307
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

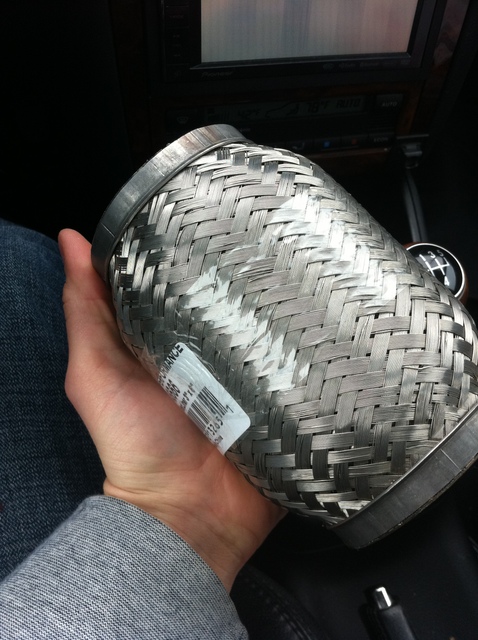

Flex pipe on my BEGi Downpipe also started to leak.. picked up this guy.

I'll likely end up snagging the FM downpipe brace because it's sexy. Anyone know if it works with the BEGI pipe?

miatauser123 is offline   Reply With Quote
Old 03-30-2012, 11:00 AM   #308
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

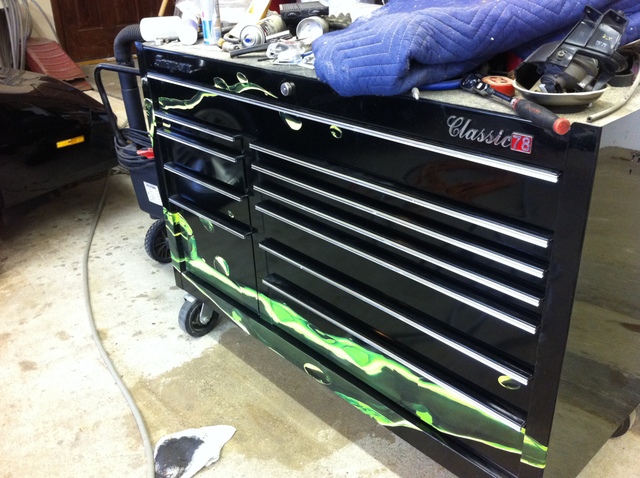

Needed to knock the dust off my old friend here.. Time to get some work done.

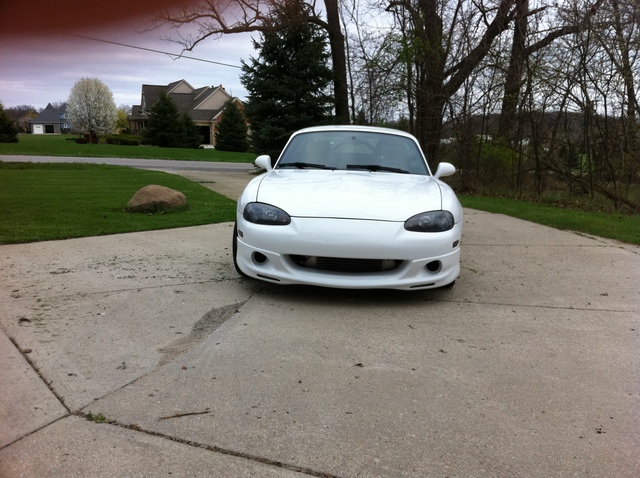

Car looked cute pre-surgery.

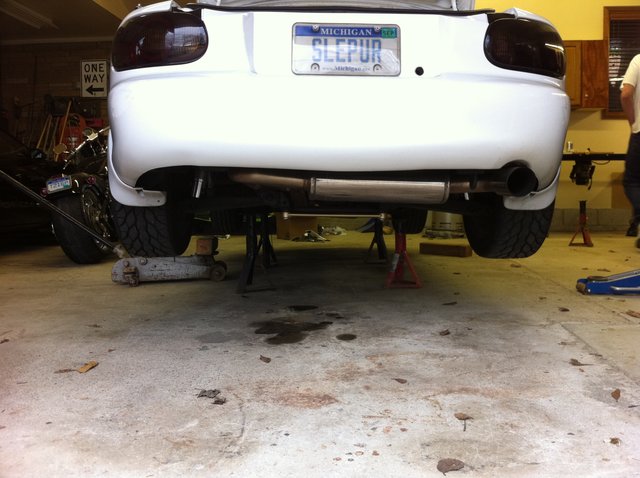

All out with the jack stands. Come on differential.. come here..
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-boxvcj.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3753z.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3755b.jpg
miatauser123 is offline   Reply With Quote
Old 03-30-2012, 01:01 PM   #309
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

do you currently have the 4.30 in there? its going to be a huge change if so.
18psi is offline   Reply With Quote
Old 03-30-2012, 05:41 PM   #310
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by 18psi View Post
do you currently have the 4.30 in there? its going to be a huge change if so.
Yeah I've got the 430 in it.

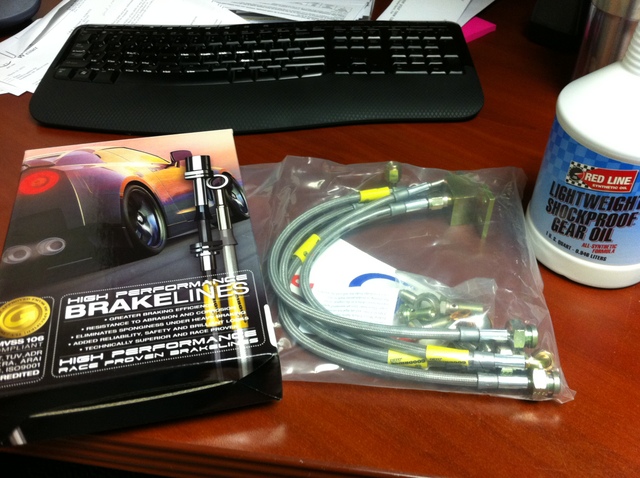

Picked up some Gear Oil and decided some braided lines wouldn't be a bad idea either.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-photofgz.jpg
miatauser123 is offline   Reply With Quote
Old 03-30-2012, 06:40 PM   #311
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

[QUOTE=Dem768;854911]Turbo plans are on hold.. Undecided as of now.

I did just purchase a 3.636 rear end though.


Bryan, do you happen to know what tire size the gear ratios were based on?
I just put mine in a few weeks ago. Do you know if the speedo gear can be changed or do you have to buy the Ausse speedo sender from MiataRoadster?
2manyhobyz is offline   Reply With Quote
Old 03-30-2012, 08:40 PM   #312
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I see your car and I want to light mine on fire.
buffon01 is offline   Reply With Quote
Old 04-02-2012, 12:05 PM   #313
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

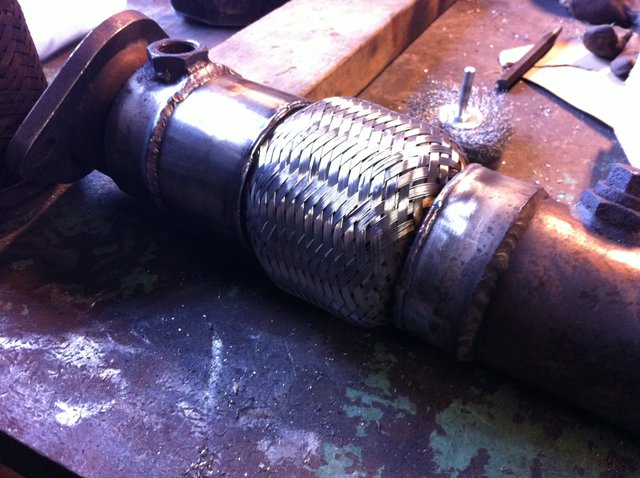

My BEGi downpipe was leaking beyond the point of me dealing with it. The flexpipe was blown out so I picked up a replacement piece from Vibrant. The job was a bit tedious with the position of everything and I was not 100% confident that I could pull it off in one go. Luckily I have a friend who is likely one of the best welders I'll ever meet.

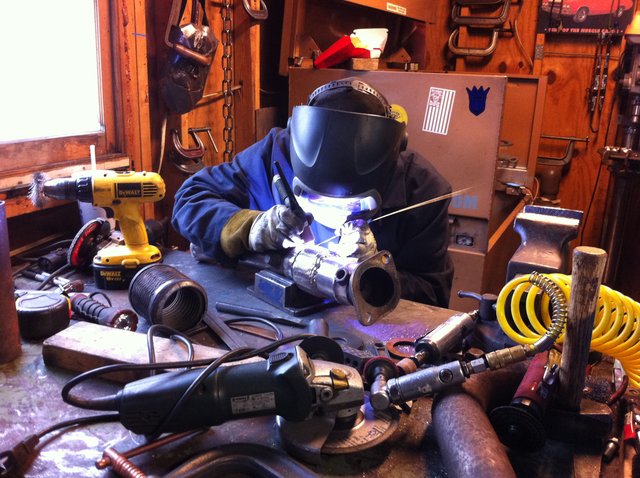

He was happy to help out.

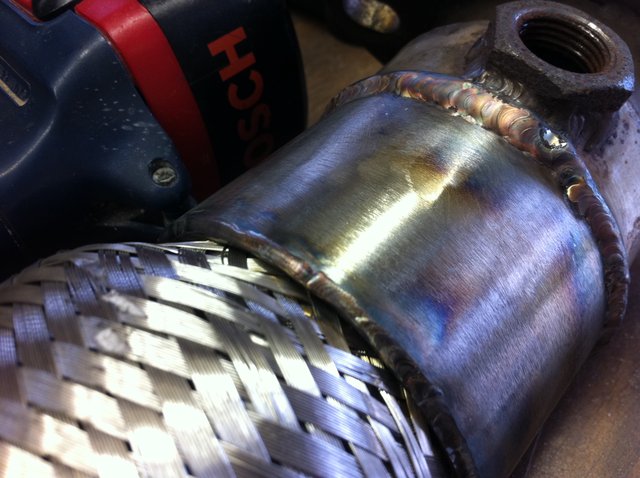

And as expected- it looks like jewelry. His welds are both the ones immediately next to the flex material and the one that meets my downpipe.

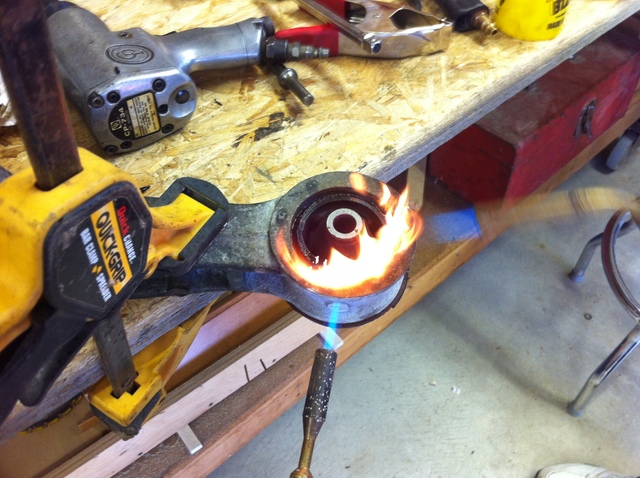

I pulled the diff and knew the bushings were bad so out they came. Heated it up and pounded it out with my bawse-***-air-hammer.

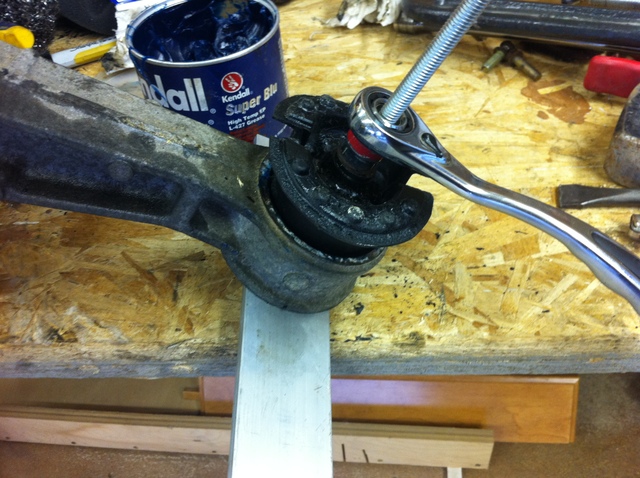

The new mounts obviously didn't want to slide in so I drilled a hole in a piece of aluminum and ran a bolt through it with my fancy ratchet.

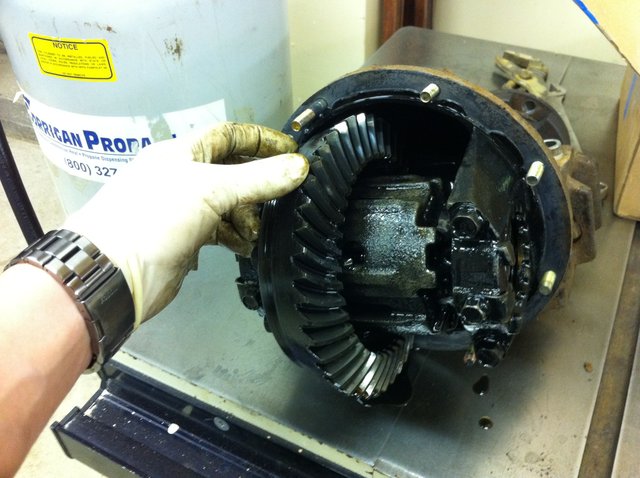

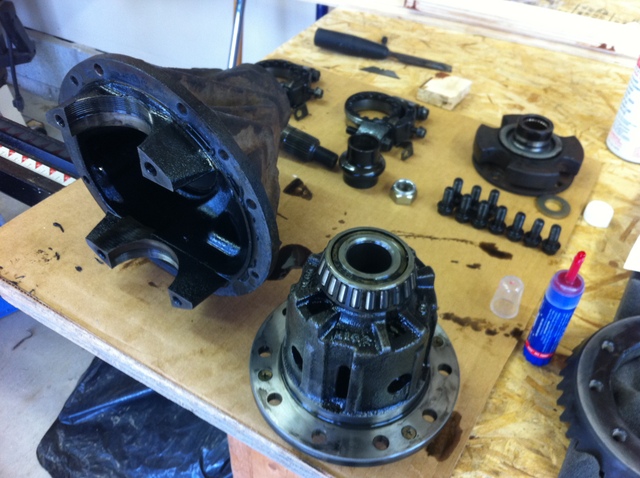

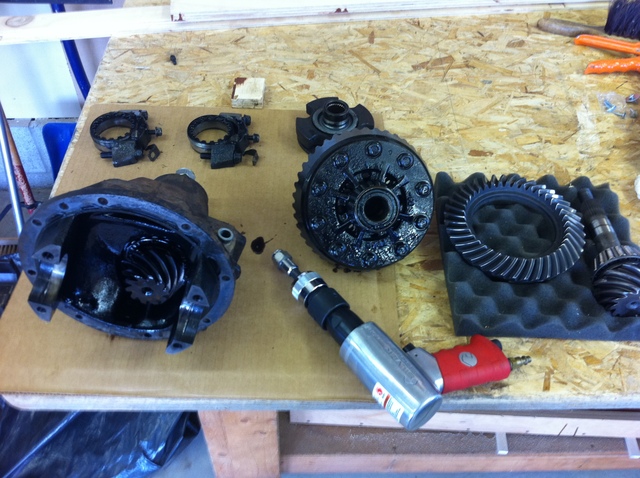

Now it was time to get to the fancy stuff. I pulled the diff apart and started to disassemble it. Everything looked pretty clean.






New gears and old gears. The new ring got the old better safe than sorry treatment with some loctite.

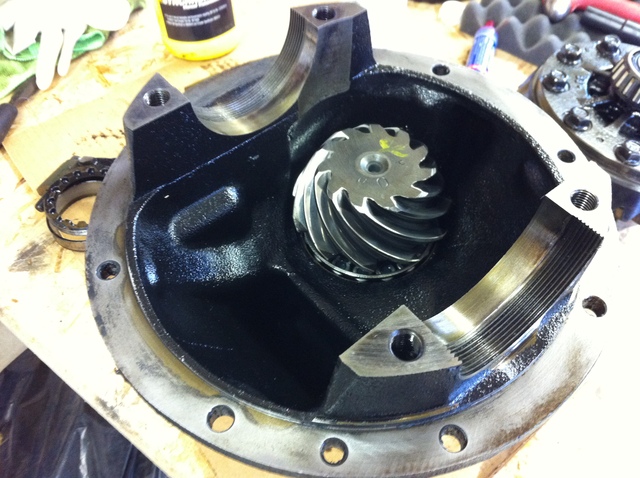

The new pinion installed. The old one was a bit of a tough one to get out. Required some rather serious pounding.

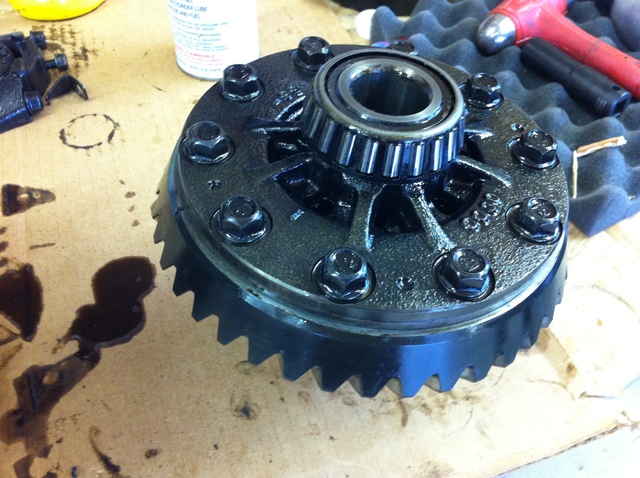

Ring gear torqued on. (51-61 ft-lb)

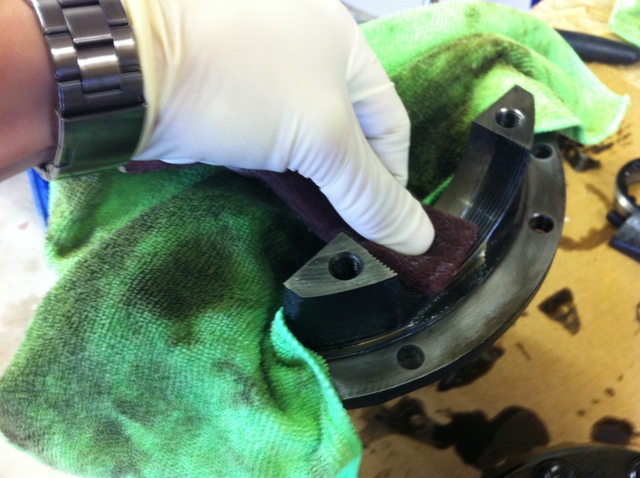

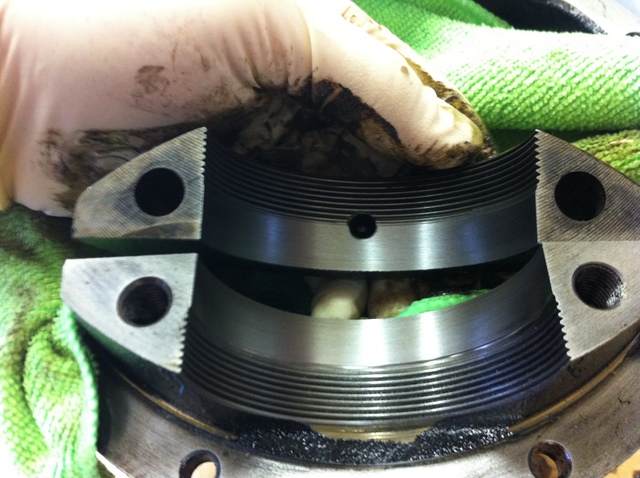

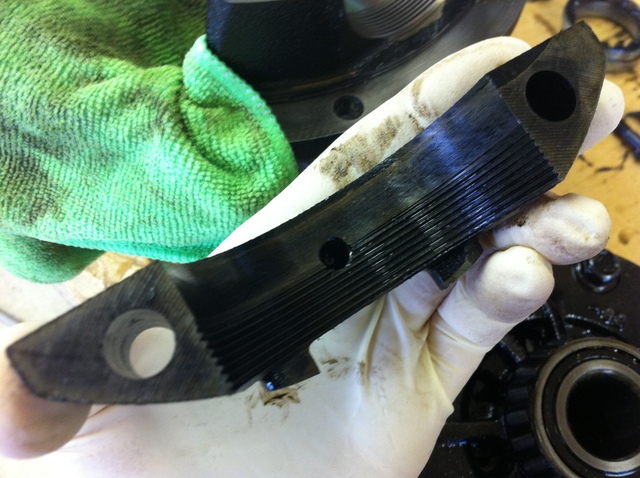

The bearing caps didn't look very clean so I got them back in shape with some light scuffing.

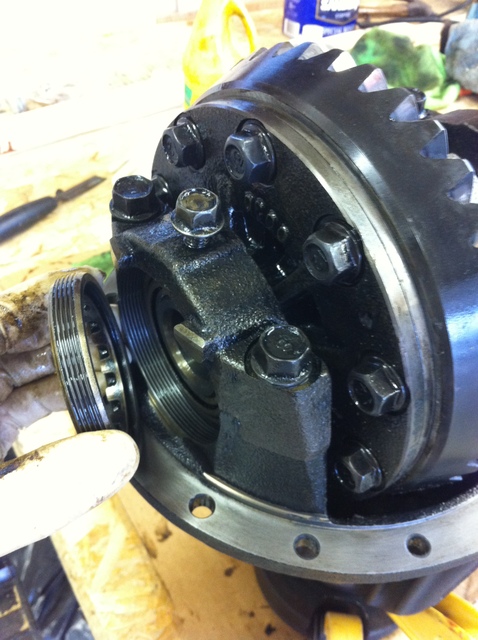

Dropped the caps on and installed the bearing adjusting rings. These are used when setting up the diff. They basically allow adjustment of preload and the position of the ring gear against the pinion for setting the proper backlash clearances.

To move the diff right- loosen the right ring and tighten the left ring... Simple.
To adjust preload- Tighten them both or loosen them both.

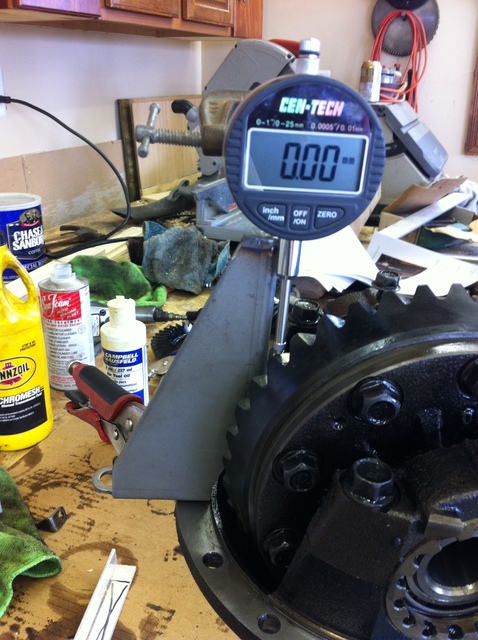

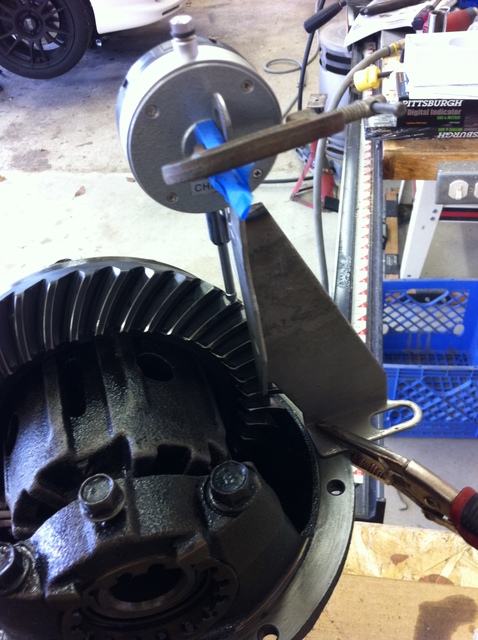

Next it was time to setup the dial indicator. I used a random transmission line hanger from a small block chevy to mount my Dial Indicator. I made some adjustments after this picture in order to make the measurement at the 90 degree marks but you can get the idea.




The ring gear backlash needed to fall between (0.0036-0.0043) so I set it to 0.0038 and checked the measurement at 4 points on the gear.

Then you must check the bearing preload. There are four points on the bearing caps and the preload is measured between these points. You measure the tabs diagonal from each other. The preload must be (7.3004-7.3031). I aimed for 7.3025.

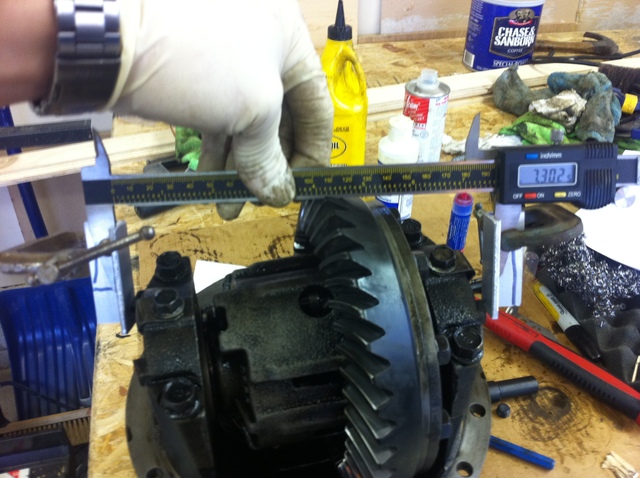

You can see that my digital micrometer didn't have big enough arms on it so I used some aluminum angle to extend the range. I was super careful and extremely precise with this.


Again these adjustments are done by rotating the bearing rings so you should try to move them both equally to not mess up your already set backlash. Once you are happy with the preload numbers, recheck the backlash and install your adjuster locks.

I cleaned up the gasket surface and applied RTV silicone. Then I dropped the assembly back into the casing. Installing the diff back in the car was a snap. Everything went together nicely.

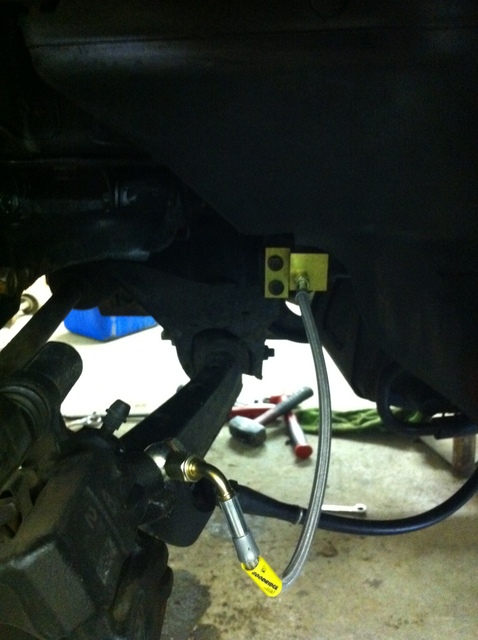

Then I moved on to the braided brake lines. These went as expected. The NB has a splitter block built into the passenger rear side from the factory and my Goodridge lines had a nice fancy replacement part. These lines look awesome.

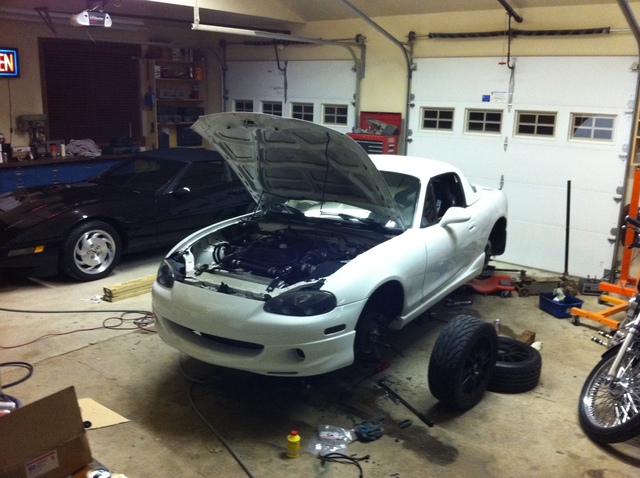

The night had turned into morning and I was out of brake fluid anyways. I'll finish her up tonight after work.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3797u.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3850il.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3799a.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3872gj.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3873n.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3778v.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3844r.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3846qn.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3847w.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3848v.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3849q.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3855se.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3852s.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3856zq.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3859cxh.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3862ts.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3861g.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3869zs.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3879d.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3880y.jpg

miatauser123 is offline   Reply With Quote
Old 04-02-2012, 12:28 PM   #314
Junior Member
iTrader: (4)

Join Date: Oct 2009
Location: College Station, TX
Posts: 281
Total Cats: 5
Default



Great write up as usual! Looks awesome. That rear end is going to take your car to a new level.
palmtree is offline   Reply With Quote
Old 04-02-2012, 01:29 PM   #315
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Quote:
Originally Posted by palmtree View Post
That rear end is going to take your car to a new level.
Ya, I was shocked to read you still had a 4.30 on a street car at your power levels + a 6-speed trans right? That amounts to fricken SHORT gears...I cant wait to see what high-performance cars you're stomping on now with some TALL gears
JoeTheZoe is offline   Reply With Quote
Old 04-02-2012, 01:33 PM   #316
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Badass. That 3.6 is going to be soooooo damn nice. In for videos of her new long legs.
Fireindc is offline   Reply With Quote
Old 04-02-2012, 09:00 PM   #317
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

In for 150mph vid
buffon01 is offline   Reply With Quote
Old 04-03-2012, 10:12 AM   #318
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by buffon01 View Post
In for 150mph vid
Shot taken in Mexico.

miatauser123 is offline   Reply With Quote
Old 04-03-2012, 10:22 AM   #319
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I hope you didn't take that picture yourself while driving through mexico at 150mph! I wouldn't be able to take my hand off the wheel long enough for that!
skidude is offline   Reply With Quote
Old 04-03-2012, 12:30 PM   #320
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

My car felt surprisingly civilized on stock suspension and 205/40/16 at 130. Probably coulda taken a hand off just fine; it went quickly across 3 lanes just fine...but in this beast, with the 3.6 and huge power, musta felt like a boring cruise. The only CARS I've ever done that speed in were a '90 300ZXtt (driving), Porsche 997 gt3rs, 997s, 997turbo (driving)...these cars are all on a very different level than a Miata, so this is an impressive feat. What speed did you actually reach? Beyond burying the needle, or just 150-ish for the sake of a pic?
JoeTheZoe is offline   Reply With Quote
