Old 07-10-2013, 05:19 PM   #561
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Twin charge or ban.


Srsly, I bet someone here has extra IC piping to donate meow!

How about in the name of MURICA!



Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-meanwhile-murica-_062f93860376eea9654d7c1a8db8eb13.jpg
Pen2_the_penguin is offline   Reply With Quote
Old 07-10-2013, 05:21 PM   #562
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 233
Default

Yep. I just think it would be interesting to have a very clear datapoint for the 'a SC car will be faster than the equivalent turbo car because throttle response' people (not that they will let facts get in their way anyway).
thenuge26 is offline   Reply With Quote
Old 07-10-2013, 05:24 PM   #563
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,349
Total Cats: 2,242
Default

lol honestly I think that argument might have some merit simply because the n00bs arguing it don't have enough experience to handle a turbo setup on track and spin out or crash or something.

But yeah I intend to datalog all this mumbo jumbo and post it up
18psi is offline   Reply With Quote
Old 07-10-2013, 05:24 PM   #564
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

I'm pretty sure it's more complicated than you guys are making out. You need some way of bypassing the charger at higher rpms' i.e. past peak torque, or t just becomes an epic restriction.

It's not as simple as plumbing the turbo into the charger.
richyvrlimited is offline   Reply With Quote
Old 07-10-2013, 05:27 PM   #565
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Quote:
Originally Posted by richyvrlimited View Post
I'm pretty sure it's more complicated than you guys are making out. You need some way of bypassing the charger at higher rpms' i.e. past peak torque, or t just becomes an epic restriction.

It's not as simple as plumbing the turbo into the charger.
actually, its as simple as getting an external wastegate to work as a boost controlled valve

Pen2_the_penguin is offline   Reply With Quote
Old 07-10-2013, 05:31 PM   #566
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,349
Total Cats: 2,242
Default

Bunch of geniuses in here

YO DAWG, ALL YOU GOTTA DO IS:

..
..
..
..
..
100001
..
..
..
..
PROFIT

Easy Peazy
18psi is offline   Reply With Quote
Old 07-10-2013, 05:32 PM   #567
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,088
Total Cats: 572
Default

Quote:
Originally Posted by richyvrlimited View Post
I'm pretty sure it's more complicated than you guys are making out. You need some way of bypassing the charger at higher rpms' i.e. past peak torque, or t just becomes an epic restriction.

It's not as simple as plumbing the turbo into the charger.
A twin screw super charger takes a fixed volume and gulps it into the engine. When the turbo pressurizes the air that air becomes more dense.. so now the SC takes a volume of pressurized air and gulps it into the engine.
triple88a is offline   Reply With Quote
Old 07-10-2013, 05:39 PM   #568
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Quote:
Originally Posted by triple88a View Post
A twin screw super charger takes a fixed volume and gulps it into the engine. When the turbo pressurizes the air that air becomes more dense.. so now the SC takes a volume of pressurized air and gulps it into the engine.
This would be an epic build, not going to lie. I'd attempt it myself if I had a twin screw just lying around. Ever since I saw that video of the Lotus Exige that was twin charged
Pen2_the_penguin is offline   Reply With Quote
Old 07-10-2013, 09:03 PM   #569
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,980
Total Cats: 234
Default

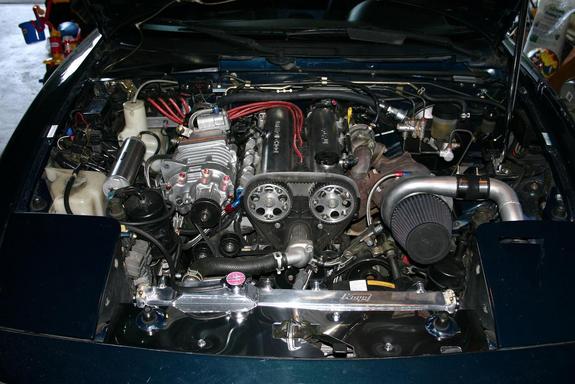

Two things I found on google when searching for "twincharged miata"


Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-3291570018_large.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-34750556.jpg
viperormiata is offline   Reply With Quote
Old 07-10-2013, 09:13 PM   #570
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,430
Total Cats: 135
Default

Quote:
Originally Posted by 18psi View Post
Bunch of geniuses in here

YO DAWG, ALL YOU GOTTA DO IS:

..
..
..
..
..
100001
..
..
..
..
PROFIT

Easy Peazy
Exactly!

Stop whining and do it. I am not asking you to fully optimize the system.
Ryan_G is offline   Reply With Quote
Old 07-11-2013, 04:10 AM   #571
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
actually, its as simple as getting an external wastegate to work as a boost controlled valve

Happy to be corrected, Done a bit of reading and it seems you can do either, with or without a bypass. Mind you look at the 2nd pic, look at the layout, TC>SC>IC

That'll be great fun to route. Read impossible with a FFS supercharger setup.

I've considered the setup myself seeing as I have a coldside supercharger, but I doubt I could afford the cost of a built engine.

Quote:
Other series configurations exist where no bypass system is employed and both compressors are in continuous duty. As a result, compounded boost is always produced as the pressure ratios of the two compressors are multiplied, not added. In other words, if a supercharger which produced 10 psi (0.7 bar) (pressure ratio = 1.7) alone blew into a turbocharger which also produced 10psi alone, the resultant manifold pressure would be 27 psi (1.9 bar) (PR=2.8) rather than 20 psi (1.4 bar) (PR=2.3). This form of series twincharging allows for the production of boost pressures that would otherwise be unachievable with other compressor arrangements and would be inefficient.
Heh, in for 40psi Vlad?
richyvrlimited is offline   Reply With Quote
Old 07-11-2013, 05:05 AM   #572
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

if we all twin charge what will this site be named?
Pen2_the_penguin is offline   Reply With Quote
Old 07-11-2013, 09:52 AM   #573
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

When I had my FFS I wondered a long time doing twincharger setup. Piping is hardest part and it’s not even that hard. Just one 180 turn before throttle body and then long pipe under the FFS intake. That’s all, rest is normal turbo IC routing. I found out that there’s no harm feeding positive pressure to the SC and you can always modify wastegate actuator to the MP62 bypass lever so that when turbo starts feeding, large part of the air bypass the SC rotors.

So do it !
muoto is offline   Reply With Quote
Old 07-11-2013, 10:08 AM   #574
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
if we all twin charge what will this site be named?
hermaphroditemiata.net
Fireindc is offline   Reply With Quote
Old 07-11-2013, 01:47 PM   #575
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

lol
Pen2_the_penguin is offline   Reply With Quote
Old 07-11-2013, 02:38 PM   #576
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,069
Total Cats: 121
Default

Quote:
Originally Posted by 18psi View Post
I don't guinea pig for overcomplicated retardation in the name of "science" lol.
Well, I don't know if I would be willing to be a "guinea pig" either for such a project, but I disagree about it being overcomplicated retardation. Given that you already have (or will have shortly) all the parts I have to say I wish you would reconsider. I mean, You have the parts, you have the knowledge, and damnit, people like you.

I'll still respect you if you stick to your guns, but I will be disappointed not to see that epic build thread.
Chiburbian is offline   Reply With Quote
Old 07-11-2013, 02:40 PM   #577
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,491
Total Cats: 1,562
Default

I sure with the 30 or so turbo kits he has at his disposal, he could cobble together something...
Braineack is offline   Reply With Quote
Old 07-11-2013, 02:42 PM   #578
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,088
Total Cats: 572
Default

I wonder if you can beat Faes 350hp dyno at 35 psi
triple88a is offline   Reply With Quote
Old 07-11-2013, 03:45 PM   #579
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 233
Default

It's definitely overcomplicated retardation. The turbo he eventually wants will make MORE LOWEND TORQUE than a roots blower.
thenuge26 is offline   Reply With Quote
Old 07-12-2013, 10:11 AM   #580
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,349
Total Cats: 2,242
Default

LOL I'm sticking to my guns, gayz.

I'll be done with the thupercharger by December and be installing the turbo goodies, so you are all more than welcome to buy it and run 100psi of compounded boost glory, faefae style

Anyways, some minor updates:

Scott contacted the developer(s) of MS and was informed that nitrous IN can't be used as an input for AC like he thought. or something to that effect. So it was set up wrong. So yesterday my friend came over and re-soldered a few pins on the DB37 like a boss and I sent my most current msq to Scott to re-do the software portion of it.

I am REALLY REALLY REALLY REALLY REALLY REALLY hoping that fixes the last of my issues and I can finally finish tuning this bad boy.

So far it feels just like stock, but with about 40 or so (butty dyno estimate) bump everywhere.

I fabricated a 3" midpipe and bolted it to the car. I think its overwhelming the stock muffler though cause from about 2k-3k it rattles like crazy. Pisses me off and sounds like some old ratty honda civic or something. Will have to figure out what I'm gonna do about that. Don't wanna go full exhaust yet because I want to keep it quiet. I dunno
18psi is offline   Reply With Quote
