Old 07-25-2013, 11:36 PM   #621
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,651
Total Cats: 62
Default

Definitely using that thread to help me with my harness clean up. Don't fell bad about time. Mines been going on a year now.
TorqueZombie is offline   Reply With Quote
Old 07-31-2013, 10:45 PM   #622
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

some progress today

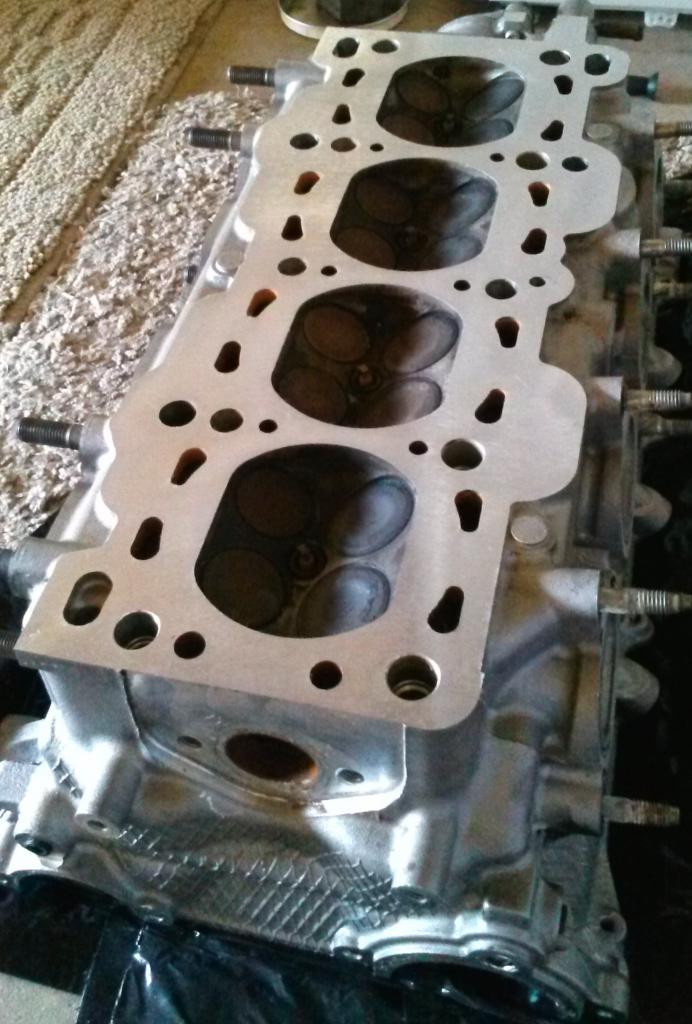

head surfaced

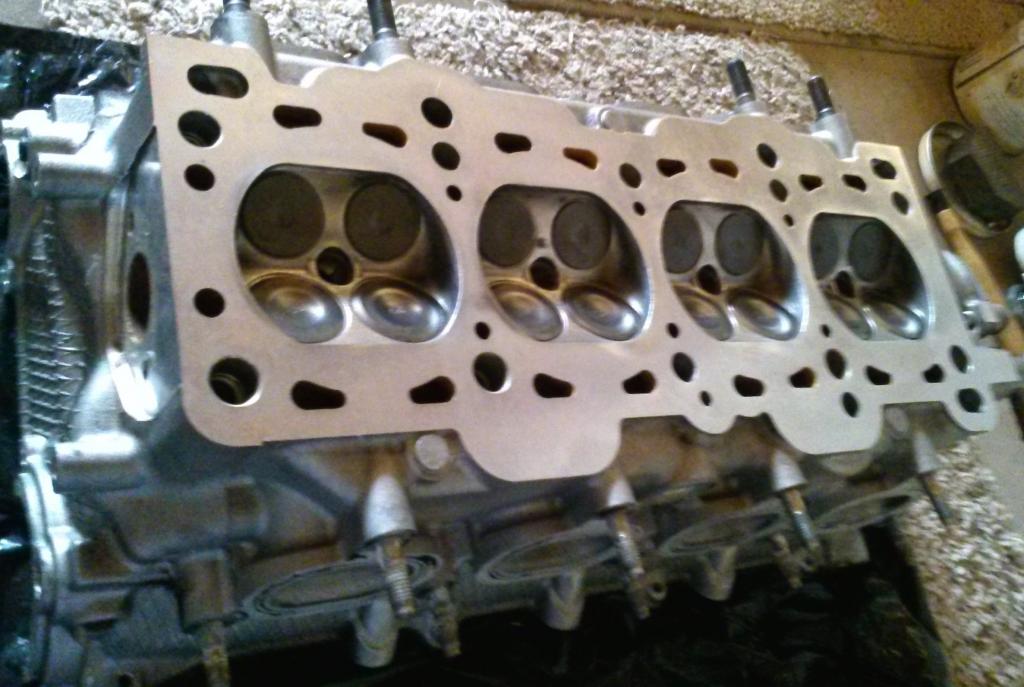

domes cleaned

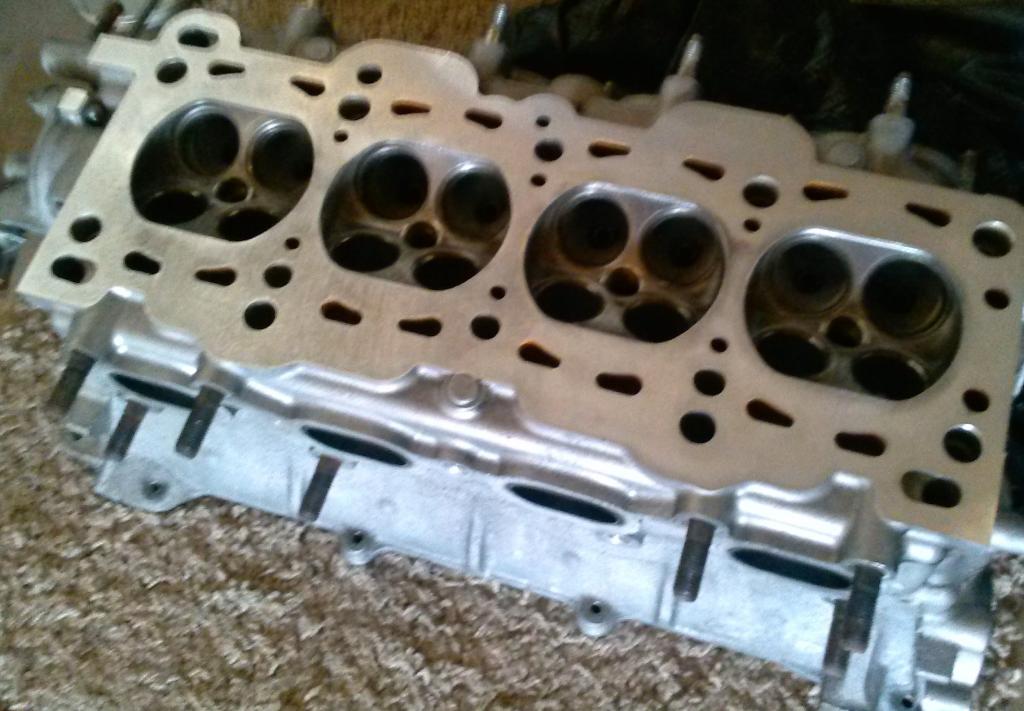

valves out and 8 of them about done

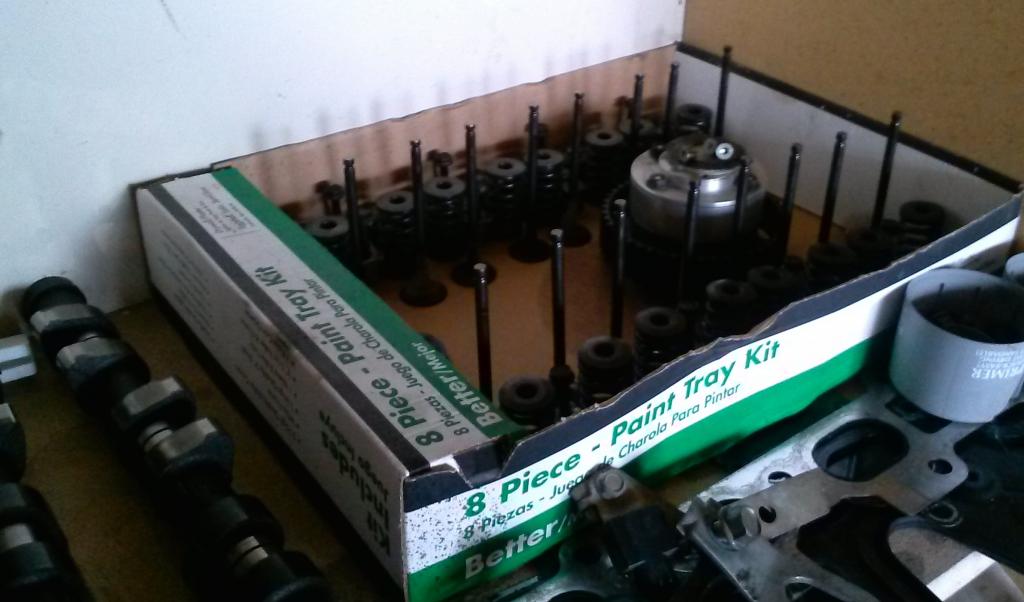

valvetrain chillin on the shelf. organized in order of course
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-surfaced.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cleaneddomes.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-lappingvalves.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-valvetrain.jpg
18psi is offline   Reply With Quote
Old 07-31-2013, 10:56 PM   #623
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

This is what you really need
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-null_zpsbdf1ccf7.jpg
RyanRaduechel is offline   Reply With Quote
Old 07-31-2013, 10:58 PM   #624
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Sexy tail light
FowlerMotorsports is offline   Reply With Quote
Old 07-31-2013, 11:01 PM   #625
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

WINNING


By the way, I spread that picture around when you text me, and now like 10-15 people want it haha..I'll be considering replicating it sometime
18psi is offline   Reply With Quote
Old 07-31-2013, 11:02 PM   #626
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Quote:
Originally Posted by FowlerMotorsports View Post
Sexy tail light
Haha, I wonder where I got that from don't forget that sexy finish panel too.
RyanRaduechel is offline   Reply With Quote
Old 07-31-2013, 11:04 PM   #627
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Quote:
Originally Posted by 18psi View Post
WINNING


By the way, I spread that picture around when you text me, and now like 10-15 people want it haha..I'll be considering replicating it sometime
Anytime dude, whatever size and color just let me know. I have two left of these gold chrome ones. I am rocking one on my front windshield under my RPM decal.
RyanRaduechel is offline   Reply With Quote
Old 08-01-2013, 01:49 PM   #628
Newb

Join Date: Sep 2009
Posts: 11
Total Cats: 1
Default

Looks good!

I dig the new stickers too, those will be floating all around sac soon I'm sure
Hump is offline   Reply With Quote
Old 08-01-2013, 02:07 PM   #629
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

Thanks Frank

We can start ordering parts for your build whenever you're ready btw
18psi is offline   Reply With Quote
Old 08-01-2013, 02:14 PM   #630
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

When I get my MS built for my supra, do I get a sticker if I pay you to tune it?
Pen2_the_penguin is offline   Reply With Quote
Old 08-01-2013, 02:22 PM   #631
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

You can haz one either way bby
18psi is offline   Reply With Quote
Old 08-01-2013, 02:33 PM   #632
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default



sweet <3
Pen2_the_penguin is offline   Reply With Quote
Old 08-06-2013, 07:21 PM   #633
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

welp all of the valves/seats are purrrdy now.

going to polish them up with the fine paste today and then start figuring out clearances for the lash
18psi is offline   Reply With Quote
Old 09-28-2013, 07:59 PM   #634
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

Attached Thumbnails

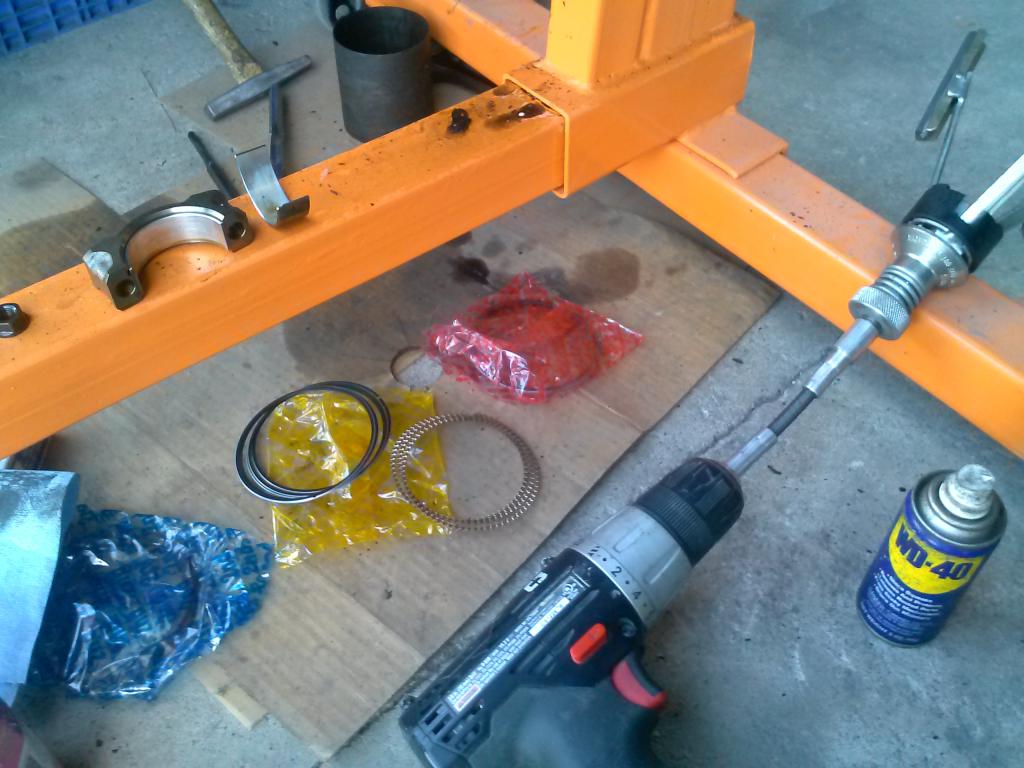

H3AVY to H3AVYER to...H3AV1EST P1G-cam00217.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00221.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00220.jpg
18psi is offline   Reply With Quote
Old 09-28-2013, 10:24 PM   #635
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default


Attached Thumbnails

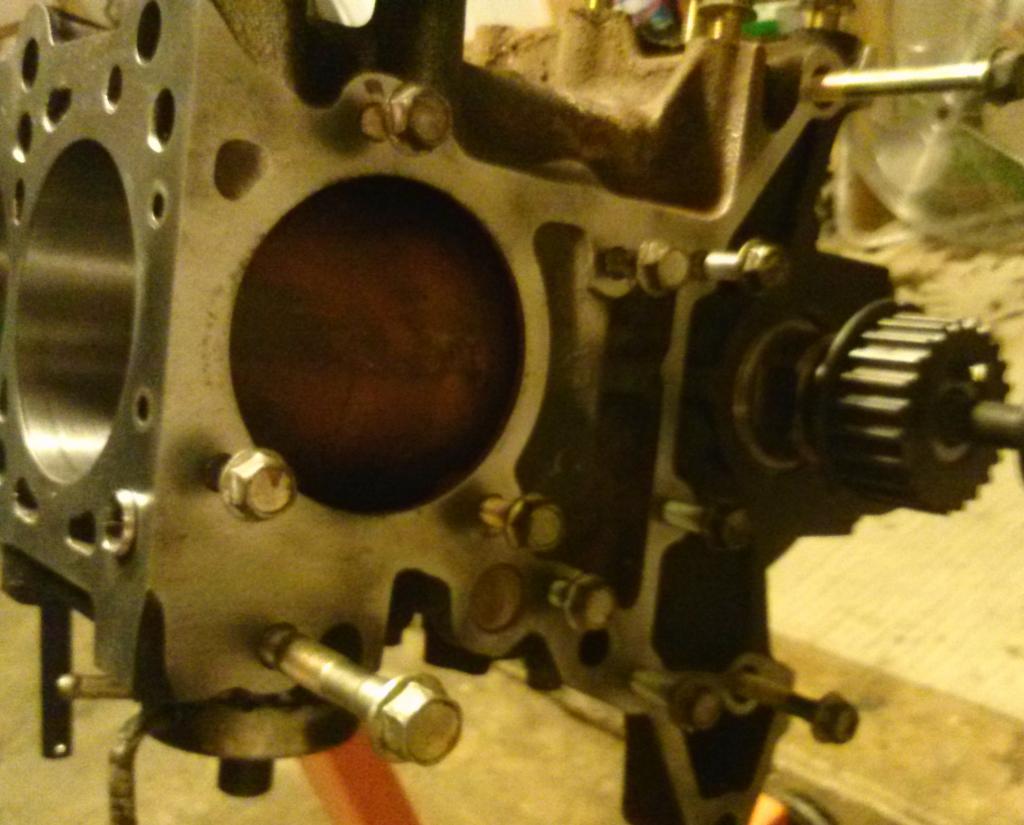

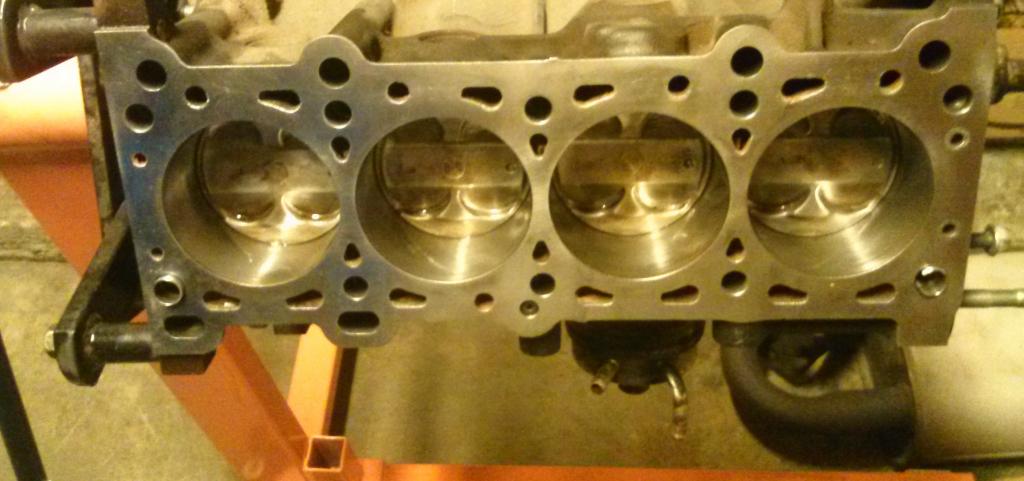

H3AVY to H3AVYER to...H3AV1EST P1G-cam00222.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00223.jpg
18psi is offline   Reply With Quote
Old 09-28-2013, 10:27 PM   #636
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,176
Total Cats: 27
Default

You've really honed your skills in the way you've hot rodded your motor.
Landrew is offline   Reply With Quote
Old 09-28-2013, 11:23 PM   #637
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,365
Total Cats: 2,243
Default

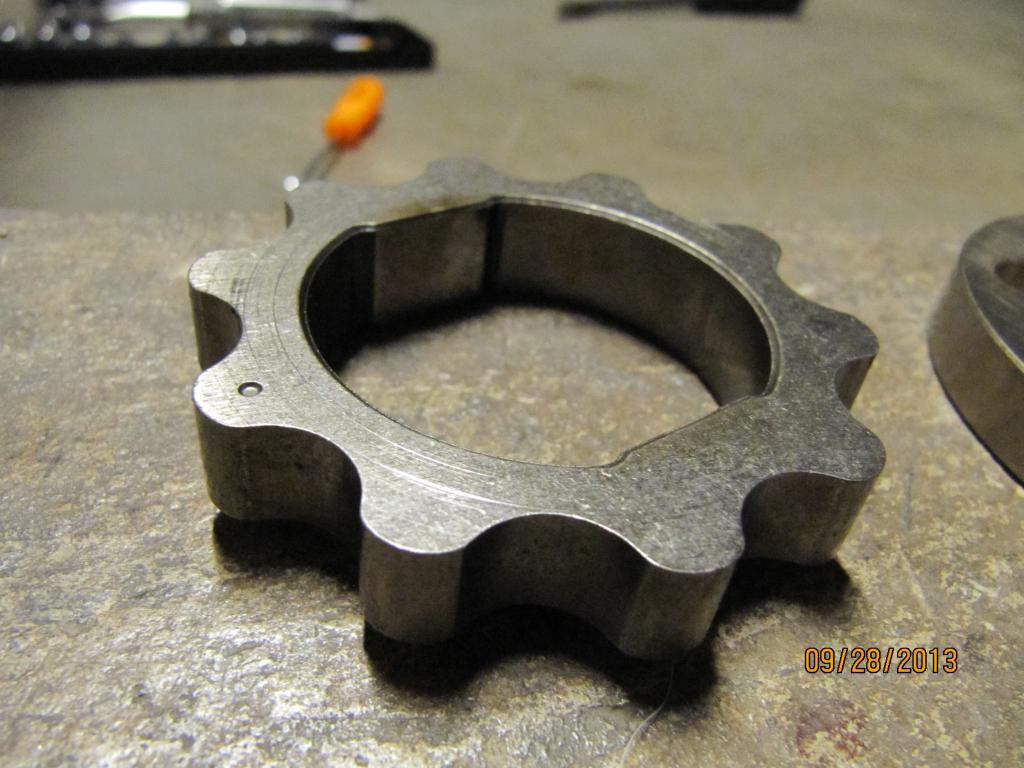

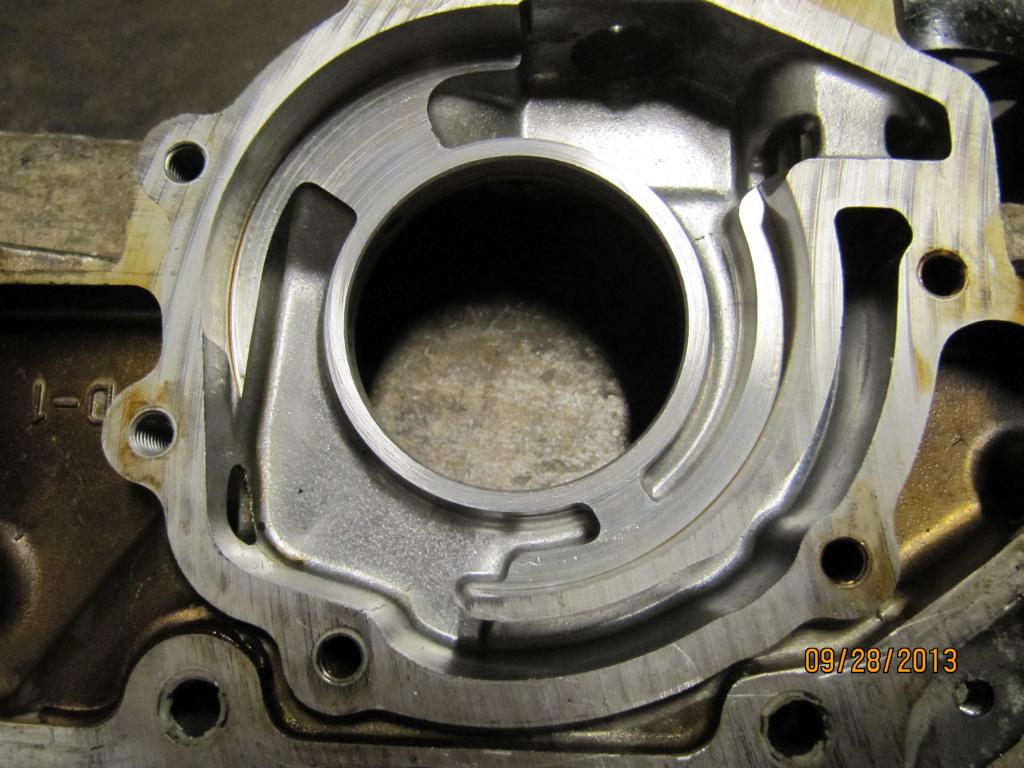

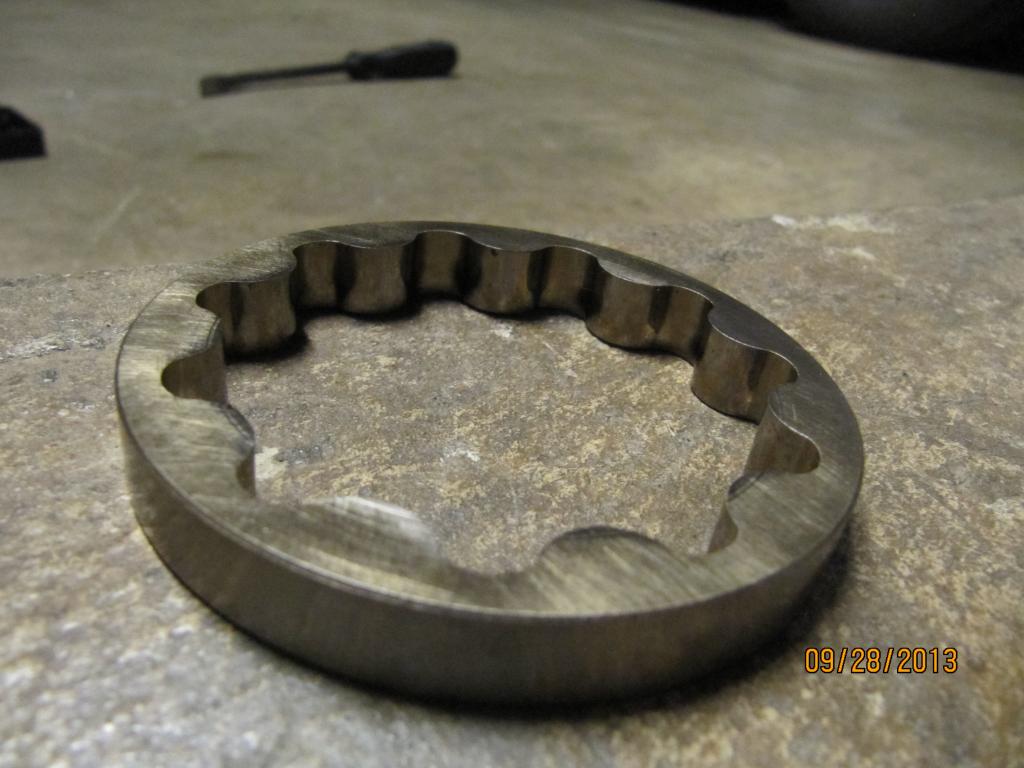

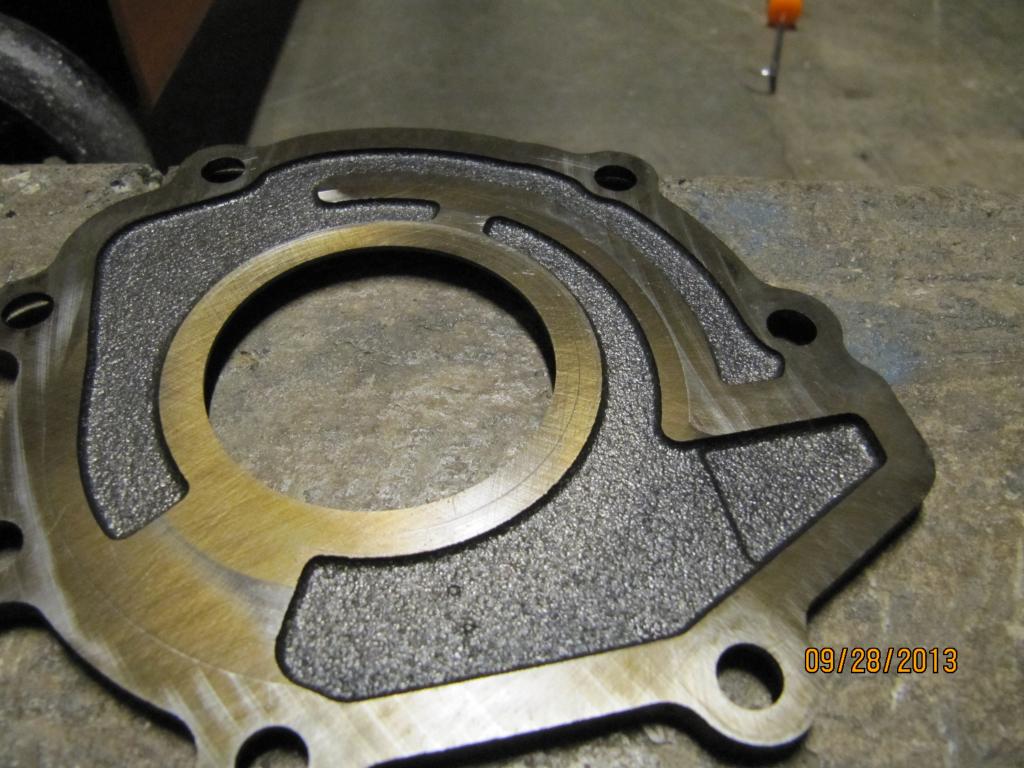

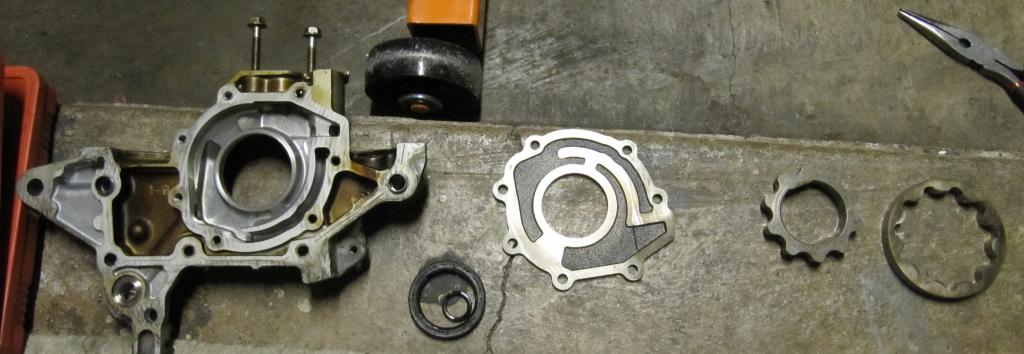

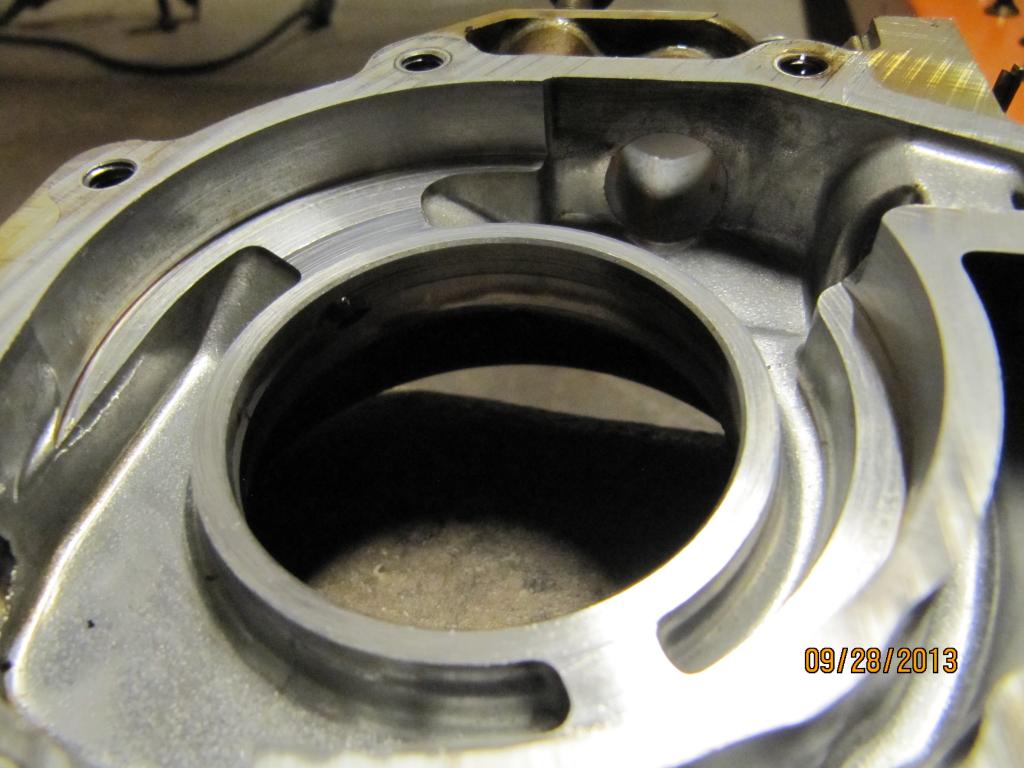

Inspecting the oil pump looks not bad, but I am a tiny bit concerned with a little wear on the housing, and a few tiny scuffs/scratches on the gears.

Not sure if that's totally fine or should replace. They're so minimal that even a fingernail won't catch on them, but I'm still concerned:




Thoughts?
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-img_3546.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-img_3552.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-img_3553.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-img_3549.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-img_3547.jpg

H3AVY to H3AVYER to...H3AV1EST P1G-img_3551.jpg
18psi is offline   Reply With Quote
Old 09-29-2013, 12:36 AM   #638
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,243
Total Cats: 861
Default

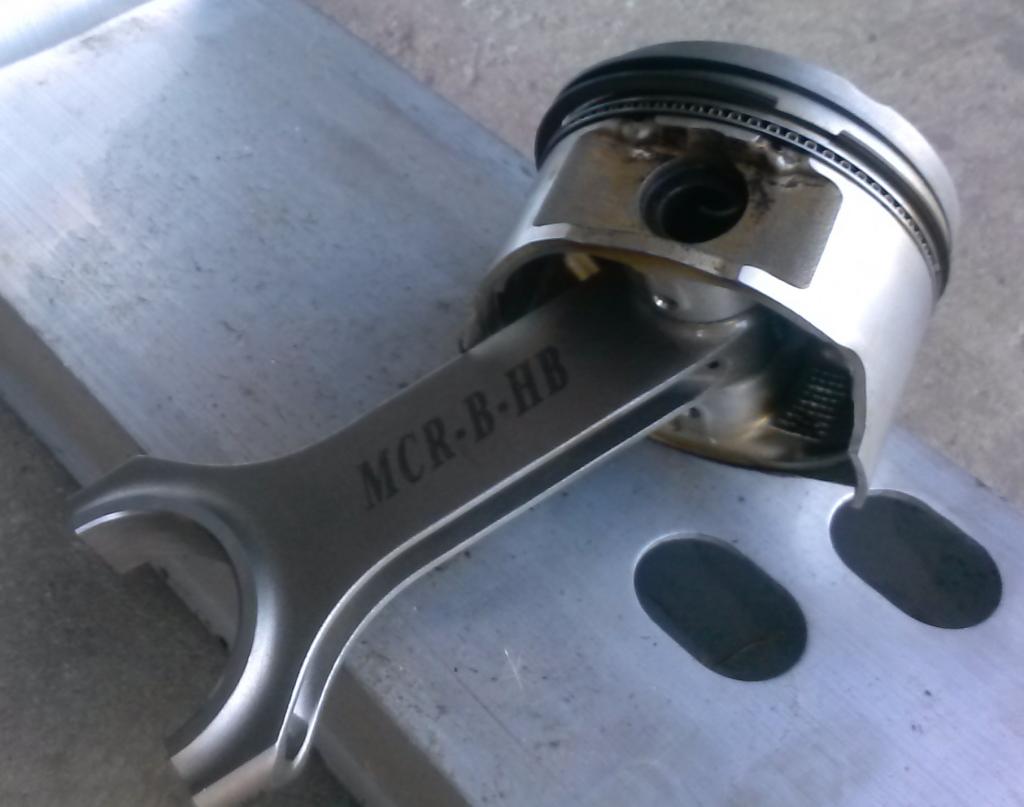

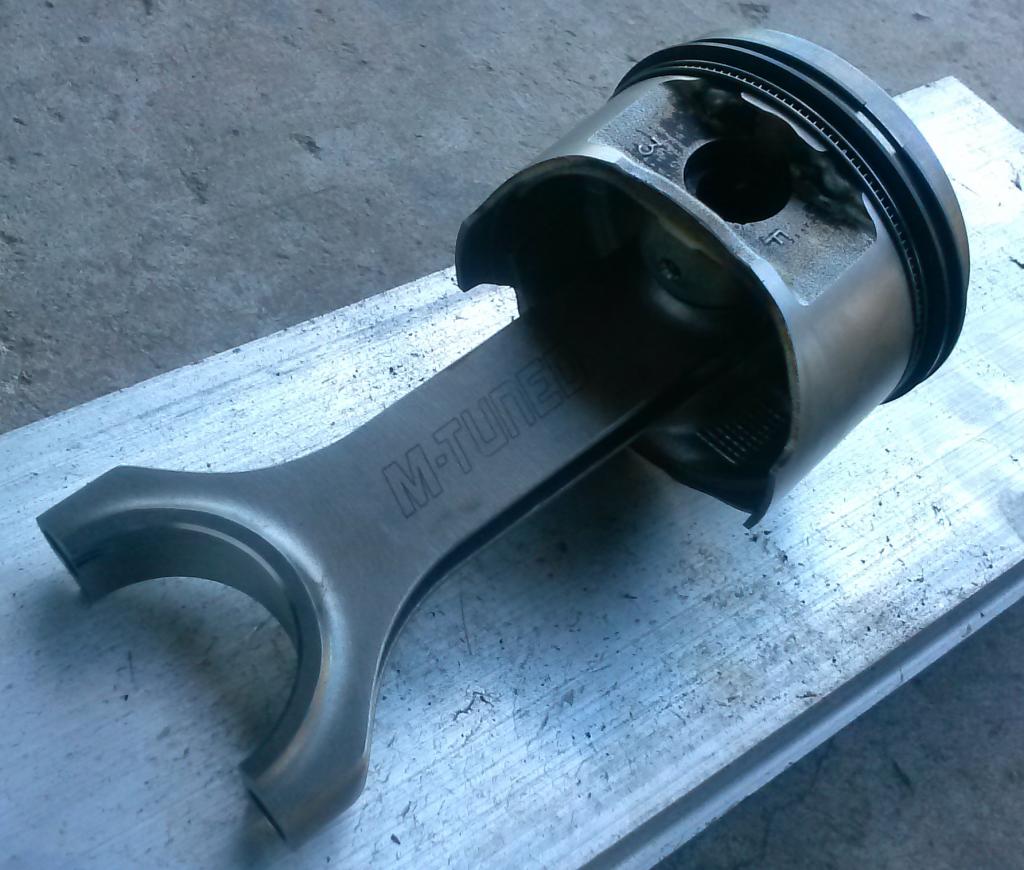

Pretty rods... stock pistons?

How close were the rods out of the box in terms of weight/end balance?

No technical help with the pump, except that: "When in doubt, throw it out." If you are worried about it at all, replace it. Cheaper and easier to do it now than have a problem later.
EO2K is offline   Reply With Quote
Old 09-29-2013, 01:45 AM   #639
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

I would replace the pumps, cheap insurance!
bcrx7 is offline   Reply With Quote
Old 09-29-2013, 01:47 AM   #640
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,888
Total Cats: 486
Default

Check the relief valve spring length then I'd probably run it. Rule of thumb is that if you can't catch a nail on it, it shouldn't affect much. Unless you're a rubber seal. That's usually with something like an accidental scratch during assembly. Obviously something caused this scratch and there's always that chance that it'll only get worse. I've personally never seen those kinds of scratches on the 1.6 and two 1.8 pumps I've disassembled.
curly is offline   Reply With Quote
