Old 09-29-2013, 04:56 AM   #641
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Ive seen scratches like that only in certain circumstances: Fresh assembly lubricant being too thin when it had it's first start.


But I cant say thats what it is in your case for sure.
Pen2_the_penguin is offline   Reply With Quote
Old 09-29-2013, 09:30 AM   #642
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,090
Total Cats: 573
Default

Check the depth of the scratches with a height indicator? My guess is they are less than half a thao deep which is nothing. The one that worries me more is the wear mark on the 4th pic since that one looks deep.

Last edited by triple88a; 09-29-2013 at 09:46 AM.
triple88a is offline   Reply With Quote
Old 09-29-2013, 11:29 AM   #643
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,430
Total Cats: 469
Default

Why not just throw a BE pump in it and be done with it?

Thanks for taking the time to build my car right! I sure look forward to owning it, after it has crossed the country twice and gone through a couple more owners
turbofan is offline   Reply With Quote
Old 09-29-2013, 02:40 PM   #644
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,418
Total Cats: 2,250
Default

Thanks guys.

G - yes oem pistons for the WIN. Two words: e85+street car. I'll have to find the rest of the info for you.

bc - yes, that would be the best solution. unfortunately I can't justify another $500 on this motor when it will never see past 7k, never be driven on track, or need any additional oil flow and/or pressure.

curly - will do, that's what I'm checking next. then cleaning everything up and possibly polishing out some of the scuffs? I dunno yet. They are so small I feel like if I take some 2000 grit and lightly go over the surfaces it will all come out.

Pen - yes, or low oil level for a little bit. My dad actually kinda said something similar. I will make sure to prime this baby up properly when starting for the 1st time to hopefully avoid any further wear.

Ed - LOL no. Just no.

Tripple - That 4th picture is actually very deceptive. I will see if I can snap a better one. none of these scuffs or scratches are deep enough to catch a nail or anything on. they're at most 1 micro-millimeter. basically almost un-feel-able (if that's a word lol)
18psi is offline   Reply With Quote
Old 09-29-2013, 04:20 PM   #645
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,259
Total Cats: 868
Default

Quote:
Originally Posted by 18psi View Post
Thanks guys.

G - yes oem pistons for the WIN. Two words: e85+street car. I'll have to find the rest of the info for you.
Awesome, ty!

I guess if you don't have taper and you are just honing and re-ringing, reusing the pistons makes sense. It's not like you are going out and buying new OEM +0.5mm pistons at that point. Out of curiosity, has the community ever actually come up with a consensus as to the limits of the stock pistons?

FWIW Arlington has new OEM BP6D oil pumps for $266. I'm sure with your connections you could get them cheaper, but I understand the desire to not dump a ton of money into an engine if you don't have to. Is there a fancy damper in your future?
EO2K is offline   Reply With Quote
Old 10-01-2013, 11:03 PM   #646
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,418
Total Cats: 2,250
Default


Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00226.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00225.jpg
18psi is offline   Reply With Quote
Old 10-01-2013, 11:40 PM   #647
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

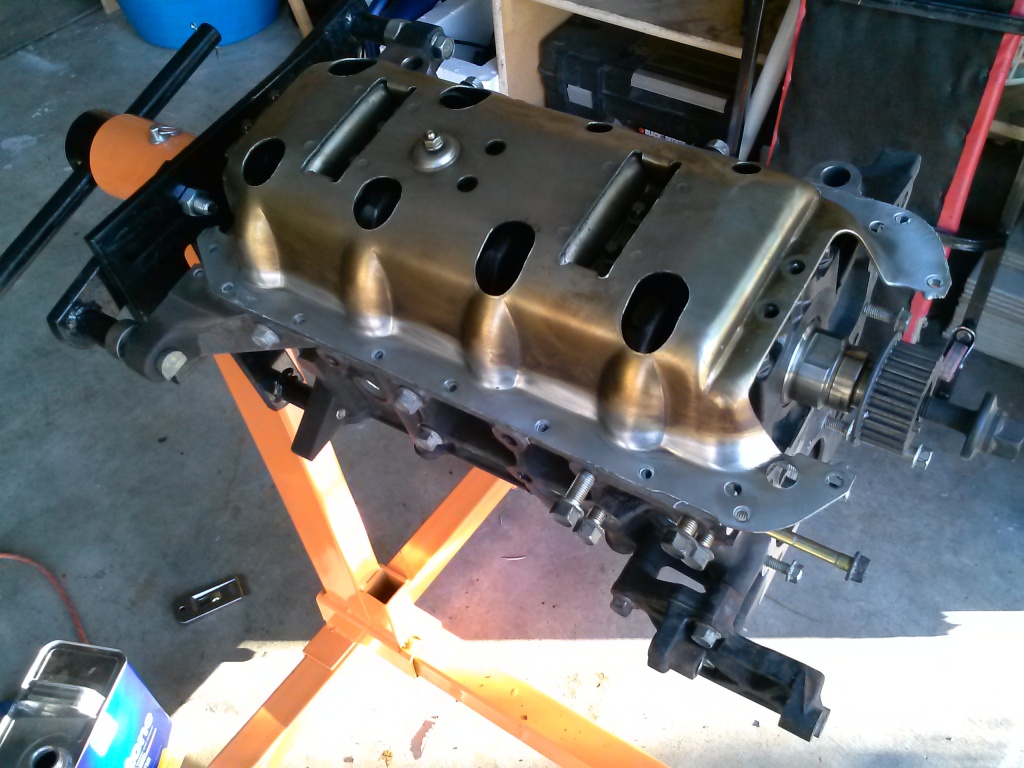

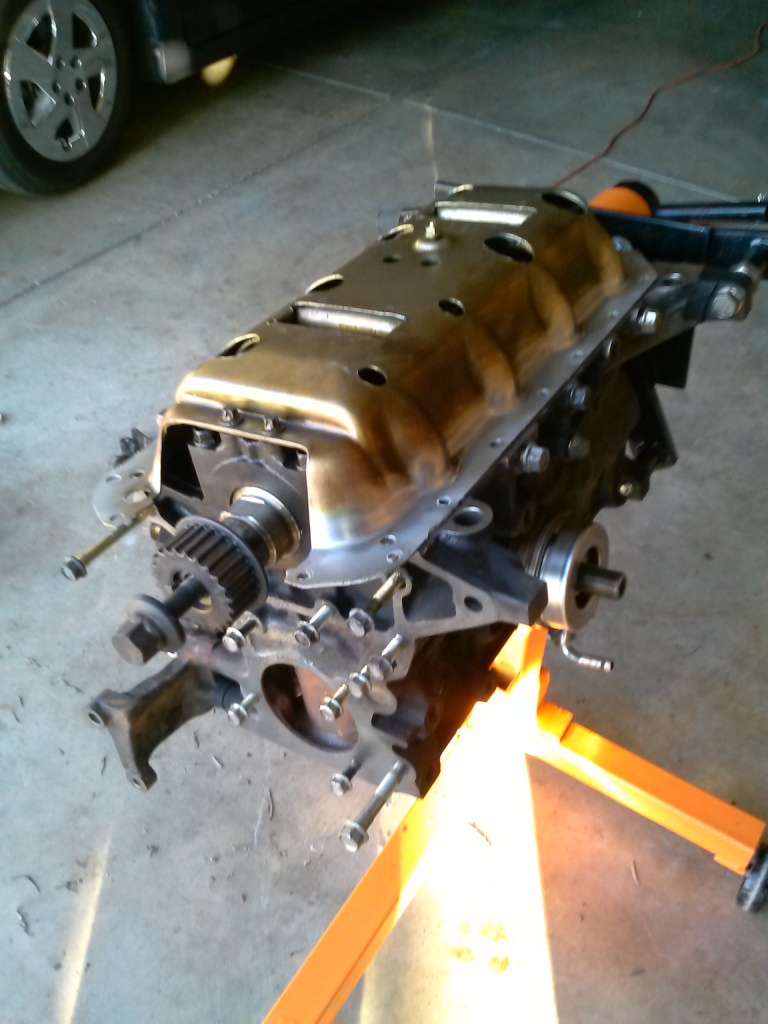

Is that a 01+ shortblock? The windage tray looks way different, and does that motor have the MBSP?
Fireindc is offline   Reply With Quote
Old 10-01-2013, 11:43 PM   #648
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,418
Total Cats: 2,250
Default

yes, and what you're lookin at is the mbsp
18psi is offline   Reply With Quote
Old 10-02-2013, 12:11 AM   #649
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

Quote:
Originally Posted by 18psi View Post
yes, and what you're lookin at is the mbsp
That was my hunch, but I didn't want to sound like a dumbass if I was wrong.

Your motor looks like it is coming together nicely. Did you plastigauge everything when you put it back together, or just go for it? Did you measure any of the cylinders fir taper or anything before re-ringing? I'm assuming new bearings and re-ring?

With the head, were you able to lap and re-seat the valves yourself?

Sorry for all the questions, I'm just about to do basically the same thing sometime this winter.
Fireindc is offline   Reply With Quote
Old 10-02-2013, 08:29 AM   #650
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,418
Total Cats: 2,250
Default

No worries. I'm actually trying to document this with more pics and info per your, and others, requests. So this is for you anyway

No plastigauge, just inspecting everything carefully as I go. Again, this is not a race car engine, so I'm really not going nuts with baller unobtanium parts and fancy machine work. Just taking my time and hopefully doing everything right.

Cylinders checked out per my inspection and measurement for ovaling and taper, but I'm no pro so who knows.

The head I had resurfaced on a mill, then lapped the valves myself. Nothing fancy, though I didn't lap by hand. I actually fitted the tool to my drill for the coarse paste round. They're nice and smooth and seat tight. For the fine paste I'm going to finish them off/polish them up by hand.

If I don't get too lazy I'm planning to do some very mild port work, but that's a big IF haha.

After I'm going to check lash, install new stem seals and gaskets, and its ready to go.
18psi is offline   Reply With Quote
Old 10-02-2013, 10:24 AM   #651
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,927
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
No worries. I'm actually trying to document this with more pics and info per your, and others, requests. So this is for you anyway


The head I had resurfaced on a mill, then lapped the valves myself. Nothing fancy, though I didn't lap by hand. I actually fitted the tool to my drill for the coarse paste round. They're nice and smooth and seat tight. For the fine paste I'm going to finish them off/polish them up by hand.
I'm also one of those people planning on doing this basic "rods-only" rebuild, and I'm curious about the valve lapping. Can you give an idiot engineer like myself more info on how you're doing it and with what tools.

Thanks Vlad
Efini~FC3S is offline   Reply With Quote
Old 10-02-2013, 12:45 PM   #652
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

You are my hero. Thanks for the details. I too am interested in the valve lapping procedure you are using, although I may just outsource that part of the build anyways.

Thanks again sexy.
Fireindc is offline   Reply With Quote
Old 10-02-2013, 12:55 PM   #653
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,259
Total Cats: 868
Default

I too am very interested as I've never done a motor before. I'm starting to think the "rods-only rebuild" is within my grasp. I have the tools and the basic knowledge, I'm just not familiar with the process that goes into it.

Thanks as always for posting up the details!
EO2K is offline   Reply With Quote
Old 10-02-2013, 10:44 PM   #654
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,303
Total Cats: 35
Default

+12589 On a "rods only" rebuild sticky!
Chilicharger665 is offline   Reply With Quote
Old 10-03-2013, 07:34 PM   #655
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,418
Total Cats: 2,250
Default

Alright will do when I have time.

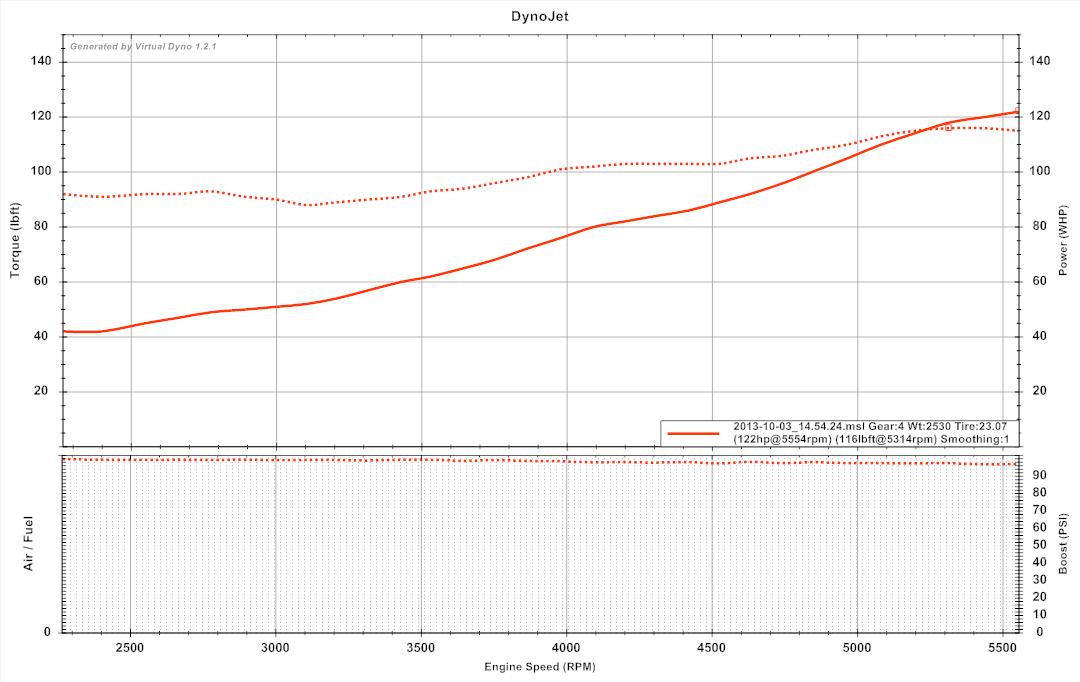

On another note, was doing some fine tuning and decided to do a quick VD pull.

it was super windy outside and I think I went over a bump because past 5600 it shot up to something like 200hp lol, but before that looks pretty decent.

This is basically stock with MS3x, ID1000's and DW200 pump running e85, and a 3" midpipe (mated back to the stock muffler FTL lol)

Don't know how spot on it is, but I'm going to consider my "baseline" dyno plot to compare to when its boosted.

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-01-miata-ms3x-id1000-e85-3midpipe.jpg
18psi is offline   Reply With Quote
Old 10-03-2013, 08:24 PM   #656
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

Awesome, love it! The numbers seem pretty damn close to what I'd of expected as well. I'm assuming this is done with the stock motor that was in the car, or did you get the new motor together? Not that it would make any power differences n/a.
Fireindc is offline   Reply With Quote
Old 10-07-2013, 06:43 PM   #657
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,418
Total Cats: 2,250
Default

Thanks. Yeah still the stock motor. I'm basically focusing on tuning all the little details lately. It idles great, runs great, and pretty much 90% as good as, if not better, than OEM which I'm really pleased with, but there are still some little issues that need addressing:
cold starts
tip in/accel enrichments at cold start and warmup
minor roughness between 2k-3k when cold/warming up

Other than that its great.

I did monitor this past tank: 22mpg all city on e85
Though I think its quite a bit low due to lots of WOT pulls that I did (tuning) and lots and lots of idling I did (again tuning) so I expect the next tank to be at least 25mpg.

Considering the properties of e85 vs pump gas, I'm actually fairly happy with it even as is - no detonation, ever, and is only 2.99/gal
18psi is offline   Reply With Quote
Old 10-08-2013, 07:44 PM   #658
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,418
Total Cats: 2,250
Default

Lars is awesome


Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00233.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00234.jpg
18psi is offline   Reply With Quote
Old 10-08-2013, 07:56 PM   #659
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,090
Total Cats: 573
Default

No pony no props.
Quote:
Originally Posted by 18psi View Post
Lars is awesome


triple88a is offline   Reply With Quote
Old 10-10-2013, 09:21 AM   #660
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,667
Total Cats: 67
Default

What piston rings did you use for your rebuild?
shlammed is offline   Reply With Quote
