Old 01-17-2014, 09:42 AM   #981
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

Ok serious question:

I'm ordering water lines and oil drain line, and have NO idea about -AN sizing. I've done some searching on this in the past, but can't seem to find the thread anymore.

For my water lines, I need 5/16" which is 8mm, which is -8AN right?
For my oil return line, I need 5/8, which is 16mm, which is -16AN?

Is this right or am I way off here?
Trying to order stainless braided lines asap.
18psi is offline   Reply With Quote
Old 01-17-2014, 09:46 AM   #982
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

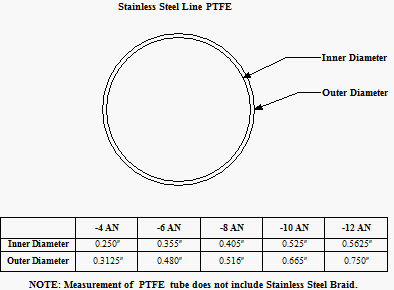

Found this chart on siliconeintakes which kinda contradicts my logic:

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-ptfe_specsheet.gif
18psi is offline   Reply With Quote
Old 01-17-2014, 10:11 AM   #983
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,709
Default

AN is pretty easy.

whatever the number is divide by 16 and that's your OD. welcome to not being a n00b.


that chart is BS. this wouldn't be a problem if people stopped using the same assindine measuement system ever developed in the history of anything.
Braineack is offline   Reply With Quote
Old 01-17-2014, 11:11 AM   #984
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

Ok, so for my:

Water lines which are 5/16, I need -6AN
Oil return which is 5/8, I need -10AN

Correcto?
18psi is offline   Reply With Quote
Old 01-17-2014, 11:19 AM   #985
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,709
Default



Quote:
12 inches per foot,
2 pints per quart,
why don't we make it easy?
the english system of measurement MUST be laid to history,
we can use units of 10 and convert with ease,
just like all the other countries,
i am in command yes i am taking a stand,
from this disease we must be free! (Good God!)

[CHORUS]
You are drunk with your tradition that has no validity,
while i'm intoxicated with smarts and metrics,
come drink a dekaliter with me.
we want metrics, we want them now! we know we can win!
i weigh 170 lbs. that's 90 kilograms,
see metrics can even make me thin

(yardsticks are pathetic)

all cool things are in metrics,
for example here's just one,
i got my "nine" well that's nine millimeters,
sounds cooler then my .3 something inches gun!
the powerful, if non-existent "they" will call me communist,
they'll call me scum, but it's worth it,
canadians will think we're smart or at least not as dumb,

[CHORUS]

the revolution's here,
we must overcome at last,
as we symbolically stick their 12 inch foot up their antiquate ***... guitar!

[CHORUS]
Braineack is offline   Reply With Quote
Old 01-17-2014, 11:54 AM   #986
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

Quote:
Originally Posted by 18psi View Post
Ok, so for my:

Water lines which are 5/16, I need -6AN
Oil return which is 5/8, I need -10AN

Correcto?
This is the standard size most people use, yes.


Though when I was talking to a turbo rebuilder when I was working on a customers car, the builder suggested that for garrett turbos that the ID of the oil drain in the smallest part (usually the elbow) should be a minimum of 1/2" ID.

Most -10an fittings are less than 1/2" ID FWIW... he said go to -12an fitting and never every worry about the drain. Finding a -12an fitting can prove to be difficult though.
shlammed is offline   Reply With Quote
Old 01-17-2014, 11:57 AM   #987
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

I see.
Well I don't need a fitting, I have two barbs pointing at each other, so the -10AN would be a completely straight short tube, and more than enough flow to not be a restriction.
18psi is offline   Reply With Quote
Old 01-17-2014, 12:29 PM   #988
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,594
Total Cats: 252
Default

Quote:
Originally Posted by Braineack View Post
AN is pretty easy.

whatever the number is divide by 16 and that's your OD.
True for steel (not flex) tubing.

Flex comes in various ID for the same -AN. The Earl's Speed-Flex Teflon / SST braid is 0.56" inside diameter (the hose, not the fittings).
DNMakinson is offline   Reply With Quote
Old 01-17-2014, 12:41 PM   #989
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

So are my sizes still off then?

Here is where I'm thinking of ordering from:

Braided Stainless Steel Lines

My water lines are sourced from the regular locations 1 on the mixing manifold 1 on the front water neck. Pretty sure they are both 5/16" OD fittings (so my ID on the hose needs to be somewhere around that size)

My oil return is 2 5/8" barbs (so my ID on the hose needs to be somewhere around that size).
18psi is offline   Reply With Quote
Old 01-17-2014, 01:38 PM   #990
Junior Member
iTrader: (1)

Meeners's Avatar

Join Date: Jul 2008
Posts: 189
Total Cats: -1
Default

I've always gone with 6an if it's flexible hose for turbo water lines. Are you running stainless flex braided for return too?

Summit racing has a hose calculator thing for ordering AN when you have regular hose diameter numbers... It's been a while though.

Last edited by Meeners; 01-17-2014 at 01:42 PM. Reason: Cause I'm a grown ass man
Meeners is offline   Reply With Quote
Old 01-17-2014, 01:52 PM   #991
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

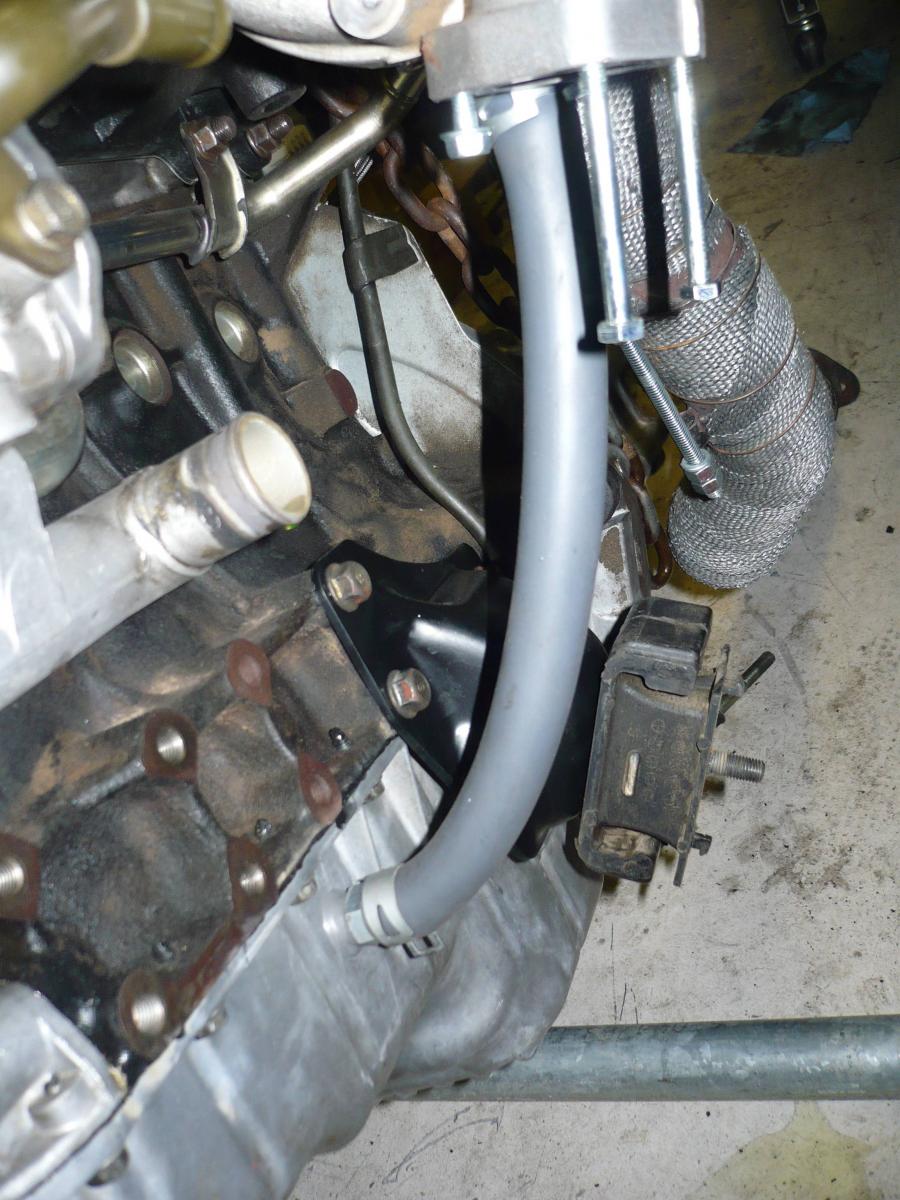

Are you looking for a braided hose? I went with silicone (5/8 size with barbs like yours) and it's been holding up great so far. No leaks, still soft and plyable, etc.

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-xlzsx6s.jpg
Fireindc is offline   Reply With Quote
Old 01-17-2014, 02:00 PM   #992
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

Quote:
Originally Posted by Meeners View Post
I've always gone with 6an if it's flexible hose for turbo water lines. Are you running stainless flex braided for return too?

Summit racing has a hose calculator thing for ordering AN when you have regular hose diameter numbers... It's been a while though.
Well if the price is almost the same, why not?
I'll check out summit racing, thanks.
Quote:
Originally Posted by Fireindc View Post
Are you looking for a braided hose? I went with silicone (5/8 size with barbs like yours) and it's been holding up great so far. No leaks, still soft and plyable, etc.

[IMG]https://www.miataturbo.net/attachment.php?attachmentid=100249&dateline=138998 4766[IMG]
Yeah I considered this too, but it seems like the price is almost the same. We'll see
18psi is offline   Reply With Quote
Old 01-17-2014, 02:18 PM   #993
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,883
Total Cats: 521
Default

Wish I could be of more help. Good luck. Stuff is CONFUSING.
turbofan is offline   Reply With Quote
Old 01-17-2014, 03:05 PM   #994
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,242
Total Cats: 744
Default

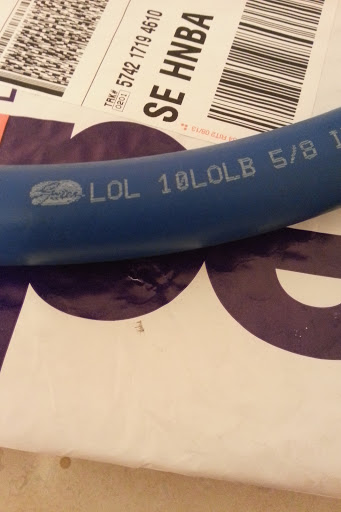

Needs more Gates LOL hose.

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-img_20131224_213634.jpg
concealer404 is offline   Reply With Quote
Old 01-17-2014, 05:18 PM   #995
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,595
Total Cats: 935
Default

That's friggin' hilarious. I just got 3' of that blue LOL hose in the mail from ATP yesterday and didn't even notice.

You also want this


http://www.summitracing.com/parts/sum-220073

and this

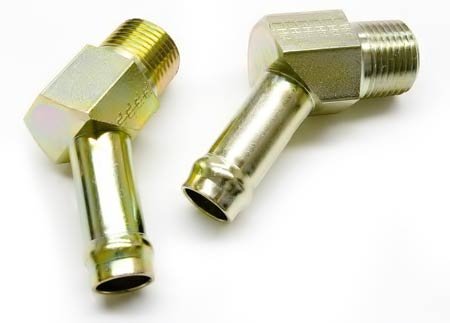

http://www.atpturbo.com/mm5/merchant...de=ATP-FTG-015

and this

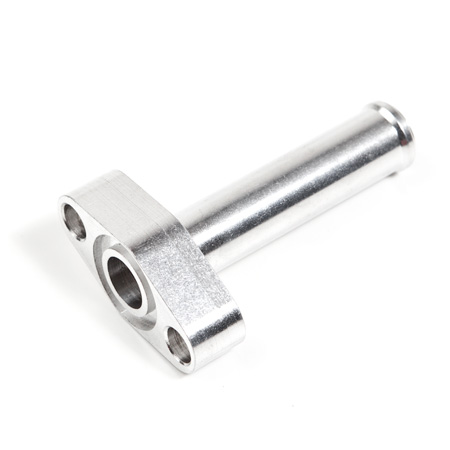

http://www.atpturbo.com/mm5/merchant...de=ATP-OIL-047

To go with your LOL hose

http://www.atpturbo.com/mm5/merchant...de=ATP-OIL-024

Except that stupid drain nipple thing no longer has the o-ring groove, so you have to order the gasket or just RTV it
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-sum-220072_w_ml.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-atp-ftg-015_450.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-atp-oil-047_450.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-oil024-01.jpg
EO2K is offline   Reply With Quote
Old 01-17-2014, 05:20 PM   #996
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,709
Default

hold out for the YOLO stuff.
Braineack is offline   Reply With Quote
Old 01-18-2014, 12:24 PM   #997
Junior Member
iTrader: (1)

Meeners's Avatar

Join Date: Jul 2008
Posts: 189
Total Cats: -1
Default

I know it sounds wack, but I've even had luck with that universal braided hose kit for an s13/4. Kinugawa has a decent one. I've done that on a nx2000 I built with a t28 so figured I'd try it on the miata and a 2560. Figured since it was a Garrett it would work and it did. Came with all the paper/metal gaskets as well. I've always just rocked silicone for the oil drain, if I did rubber I just make sure to use a paper drain gasket and a longer metal tube from the turbo to dissipate some of the exhaust heat. AN drain is kinda baller though.
Meeners is offline   Reply With Quote
Old 01-18-2014, 12:26 PM   #998
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,122
Total Cats: 591
Default

I believe this is for hard lines. The wall thickness seems way too thin for a hose/braided.

Quote:
Originally Posted by 18psi View Post
Found this chart on siliconeintakes which kinda contradicts my logic:

triple88a is offline   Reply With Quote
Old 01-18-2014, 03:38 PM   #999
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,493
Default

I already have the oil pan welded with a fitting and a brand new turbo fitting from kinugawa so that's all done. Just need the actual hoses for water lines and oil drain.

So -6AN for water and -10AN for oil return it is then.

Ordering
18psi is offline   Reply With Quote
Old 01-18-2014, 05:00 PM   #1000
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,122
Total Cats: 591
Default

Vlad, i think you should return your Begi manifold and get the tacotaco manifold.
triple88a is offline   Reply With Quote
