Old 11-08-2013, 05:32 PM   #781
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,372
Total Cats: 57
Default

Quote:
Originally Posted by 18psi View Post
hmm, got a link to that? sounds intriguing
First Google hit
Store - Fuel Pressure Regulator (99-05)
Spec miatters have been doing this since they allowed AFPRs.
NiklasFalk is offline   Reply With Quote
Old 11-09-2013, 01:49 PM   #782
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

Pretty cool. I'm trying to figure out why the heck its so expensive though? Because of the extra tiny bit of hardware? Or just because that company is greedy?

I mean brand name FPR's are only 150-200. I could probably put together something similar for 300 tops.

I actually will consider something like this if I run out of fuel or have FPR issues, thanks for the suggestion.

On another note, tried to smog it yesterday and the guy scanned it and said its not ready yet. Said EGR and EVAP wasn't ready yet.

I put like 50+ miles on it yesterday including 1 cold start/warmup. Kinda curious how many miles it takes. I'll have to try again on monday.
18psi is offline   Reply With Quote
Old 11-09-2013, 06:31 PM   #783
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Its expensive because SpecMiata. You are right though, that solves a bunch of problem in one shot.

I believe its something like 4-6 full warmup & cooldown cycles before all the counters are set, I had the same problem a couple years back. I just DD'd it for a week and it passed fine.
EO2K is offline   Reply With Quote
Old 11-12-2013, 06:00 PM   #784
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Flyin' Miata : Instructions : Misc

Look at the install instructions for the big fuel kit. I'm not sure if you can only use the AEM FPR or if all FPRs can be set up like that. If I was smart I would have stored all the part numbers I found to do it somewhere I could find but that appears to not be the case.

Another option is use the corvette filter/regulator. If I remember collectly that is a much cheaper way to go.
TurboRoach is offline   Reply With Quote
Old 11-12-2013, 06:55 PM   #785
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

Thanks for that info man. Definitely helpful. I think I definitely will take this route after the turbo setup is in and sorted. Pretty straightforward IMO
18psi is offline   Reply With Quote
Old 11-12-2013, 07:02 PM   #786
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,172
Total Cats: 13
Default

Quote:
Originally Posted by 18psi View Post

On another note, tried to smog it yesterday and the guy scanned it and said its not ready yet. Said EGR and EVAP wasn't ready yet.

I put like 50+ miles on it yesterday including 1 cold start/warmup. Kinda curious how many miles it takes. I'll have to try again on monday.


I typically quote people 100 miles. EGR typically runs at steady state cruising, EVAP typically runs..... whenever it damn well pleases, but usually it's the last monitor to run. Warmed up driving will make the last two run. Cold starts aren't doing anything for you, at this point. I found my 99 was most likely to run EGR at between 45-55 steady state, low load cruising.


FWIW: Most code-readers can check "I/M" status, and tell you which have run. Scan-tools, obviously, can do this as well. I doubt any NB computer would have the ability to "command" monitors to run, like the OBD2.5 cars. That would be super convenient though. As the smog tech said to the customer: Just drive it.
2ndGearRubber is offline   Reply With Quote
Old 11-12-2013, 08:02 PM   #787
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

Thanks. I passed smog without any issue yesterday
Basically drove it for 2 days and it was fine.
18psi is offline   Reply With Quote
Old 11-12-2013, 11:40 PM   #788
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

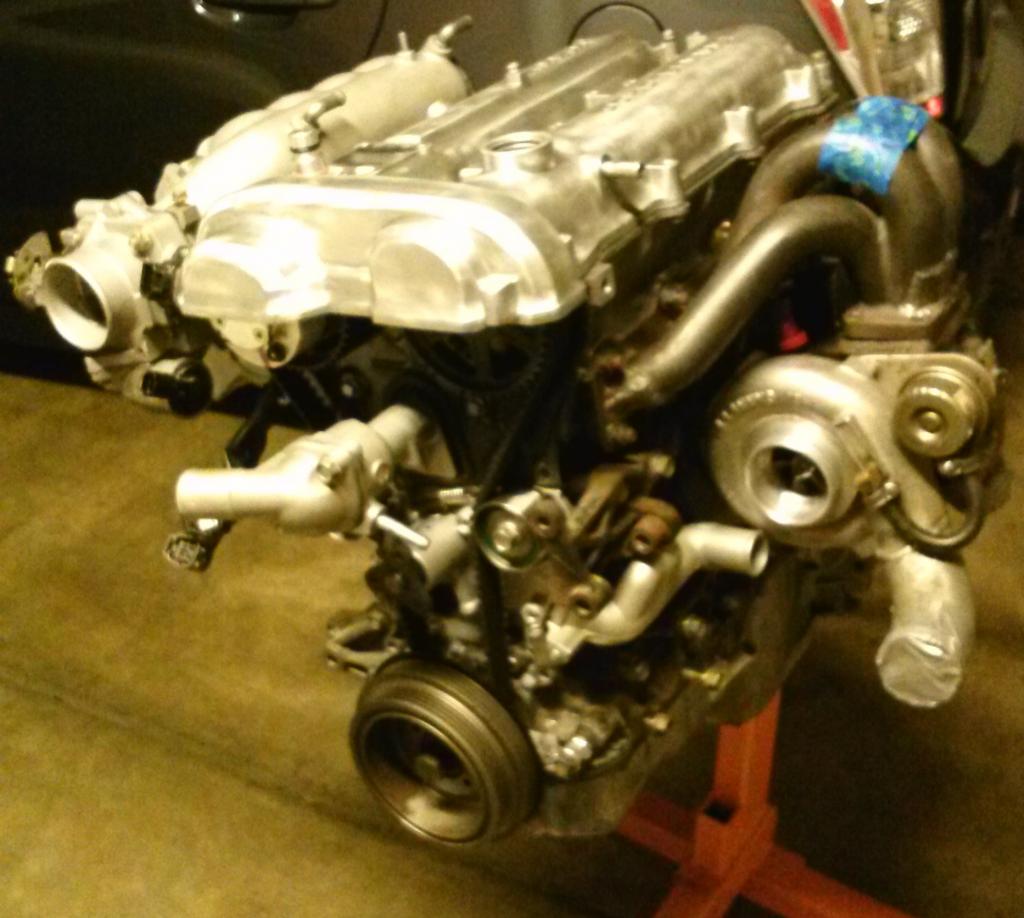

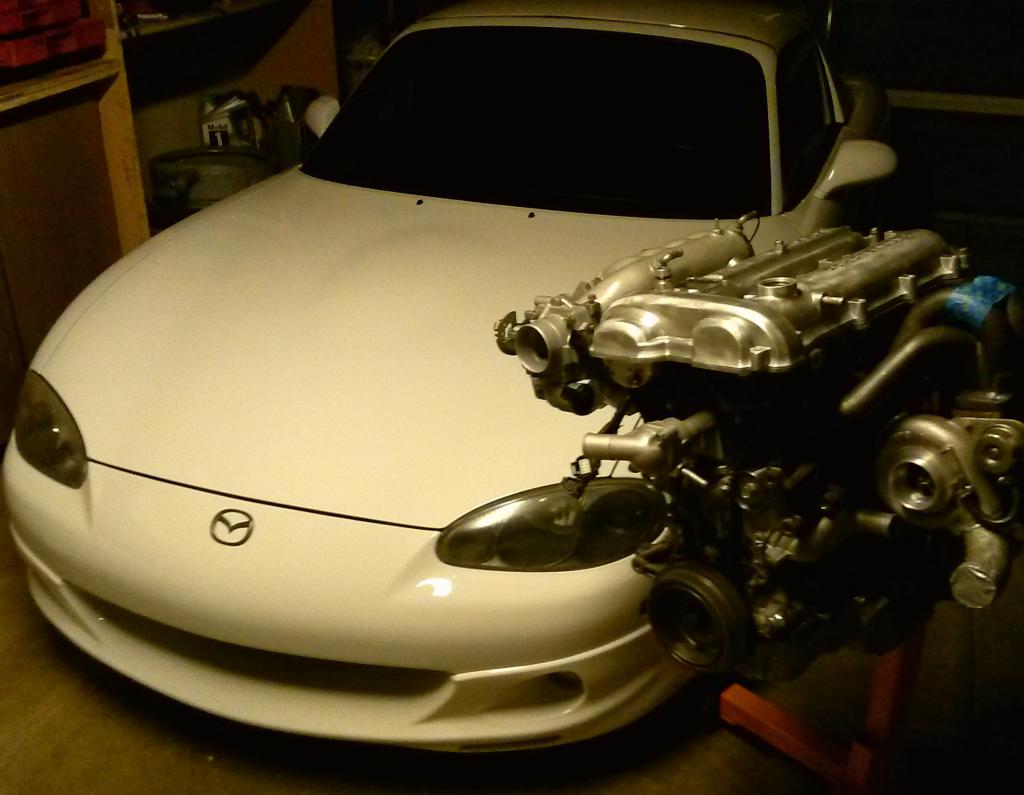

also



Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00292.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00293.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-swtor-soon.jpg
18psi is offline   Reply With Quote
Old 11-13-2013, 12:17 AM   #789
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Winning!

So, do you still have that spare potato sitting around?
EO2K is offline   Reply With Quote
Old 11-15-2013, 09:08 PM   #790
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

Sure dont.

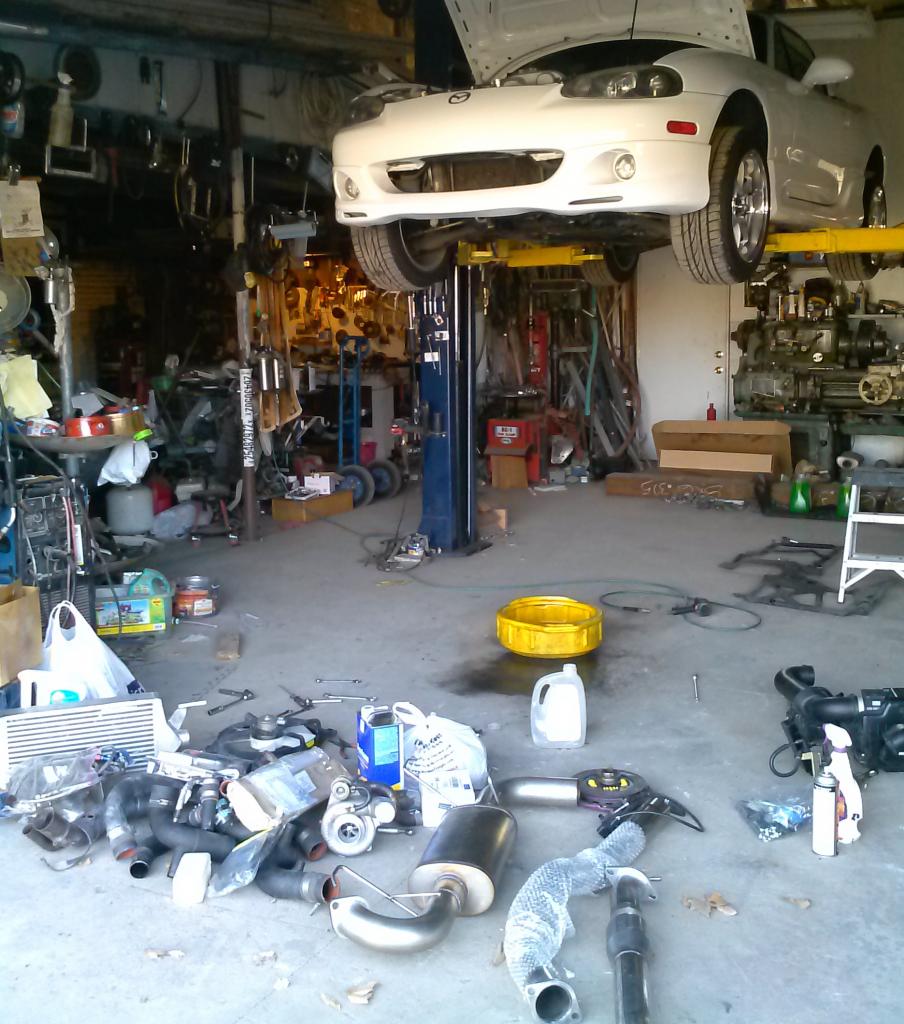

In other news
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00294.jpg
18psi is offline   Reply With Quote
Old 11-15-2013, 09:11 PM   #791
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,035
Total Cats: 247
Default

Maybe 19psi?
Erat is offline   Reply With Quote
Old 11-15-2013, 09:17 PM   #792
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

I have no real goals or projections at this point. The amount of boost or power I'll push it to will just be what feels good lol. It should be somewhere in the 300whp neighborhood though.

As of now the engine is completely disconnected and we'll pull it out tomorrow, and throw in the build one. Then start bolting together the positive pressure goodies.
18psi is offline   Reply With Quote
Old 11-15-2013, 10:51 PM   #793
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

I can feel it... deep down in my plums. STOKED to see this thing make some positive pressure. My prayers go out for you to the car gods.
Fireindc is offline   Reply With Quote
Old 11-16-2013, 01:26 AM   #794
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Above image appears to be the start of a glorious weekend.
EO2K is offline   Reply With Quote
Old 11-16-2013, 11:30 AM   #795
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,090
Total Cats: 576
Default

Quote:
Originally Posted by Fireindc View Post
I can feel it... deep down in my plums. STOKED to see this thing make some positive pressure. My prayers go out for you to the car gods.

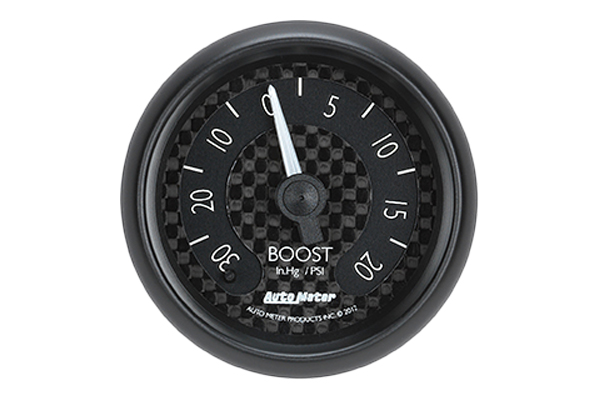

It will probably make 1 psi and it will be gauge error

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-8001.jpg
triple88a is offline   Reply With Quote
Old 11-16-2013, 05:49 PM   #796
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

18, any chance I could beg from you some pics of whatever you are doing for intercooler mounting? I'm sitting here staring at my car with the front end all ripped apart scratching my head this afternoon.
EO2K is offline   Reply With Quote
Old 11-16-2013, 07:53 PM   #797
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

Yes. Later when I'm not about to leave to a party.

Progress today:

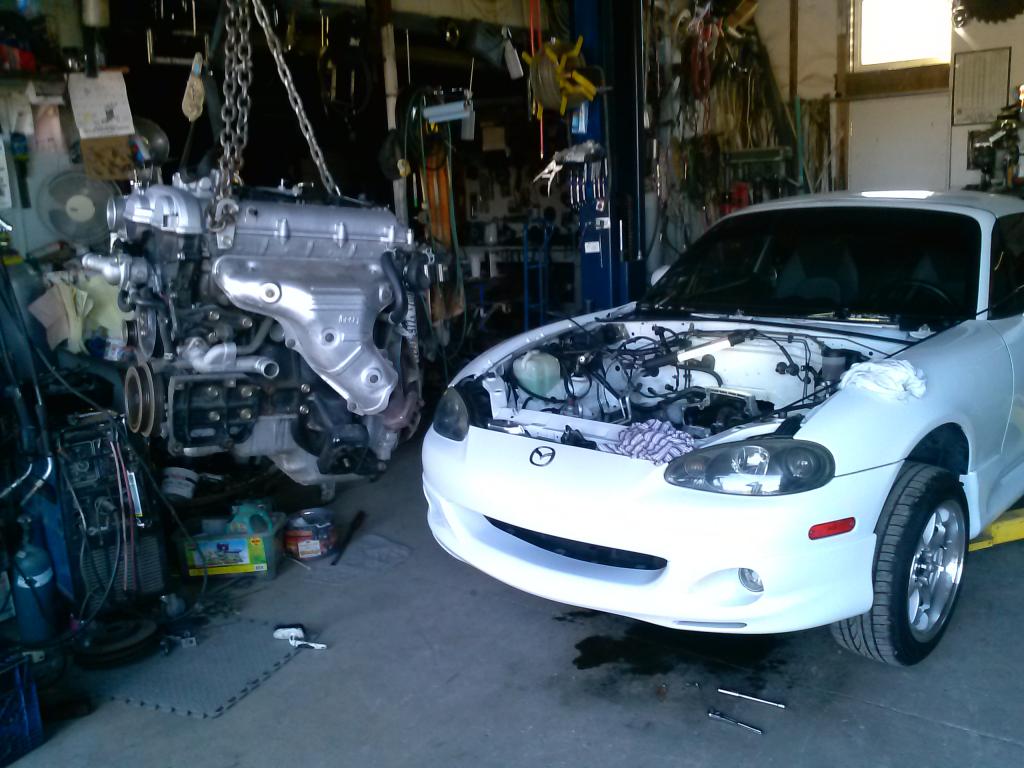

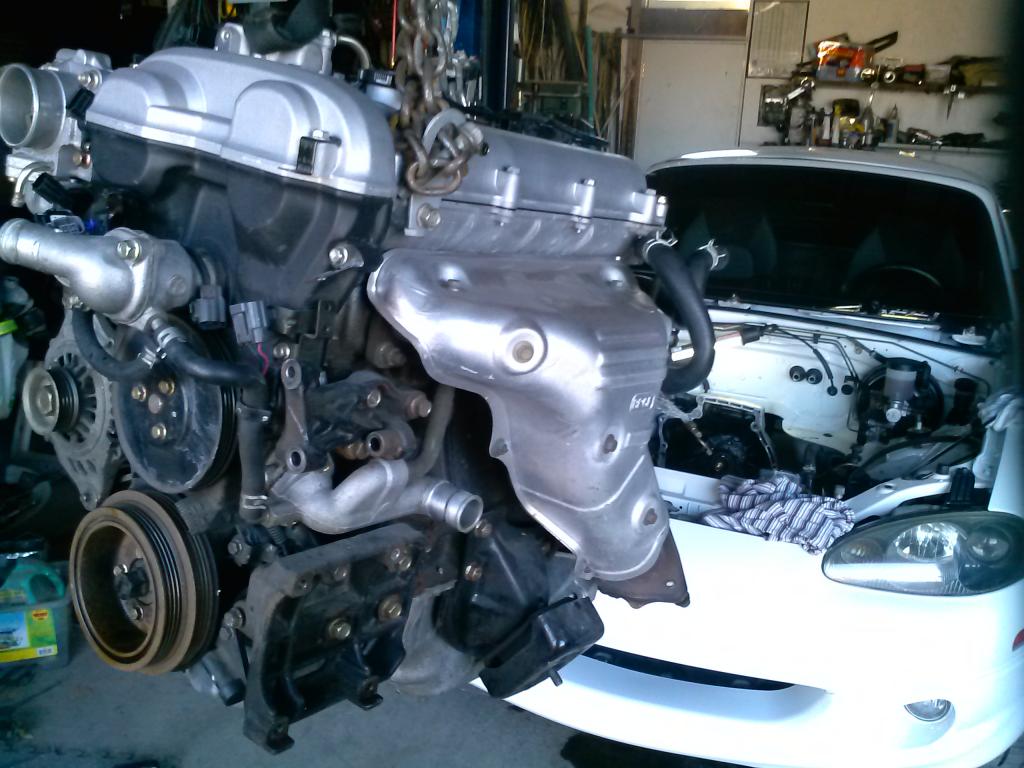

out with the old

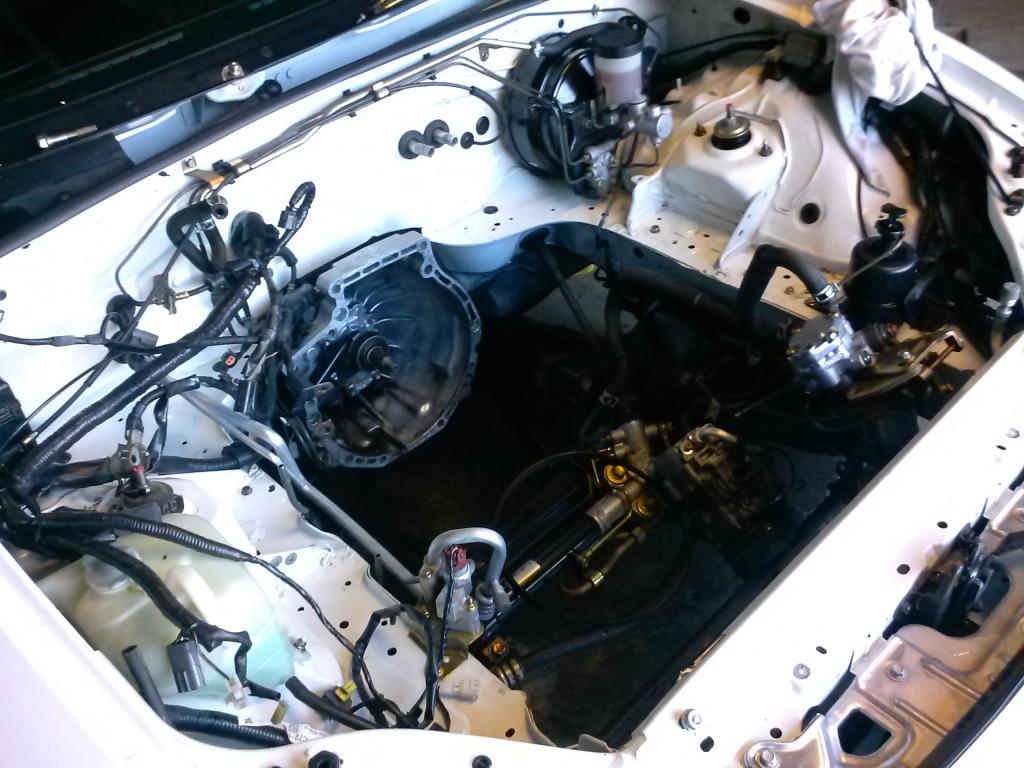

clean dat bay for dat bling status

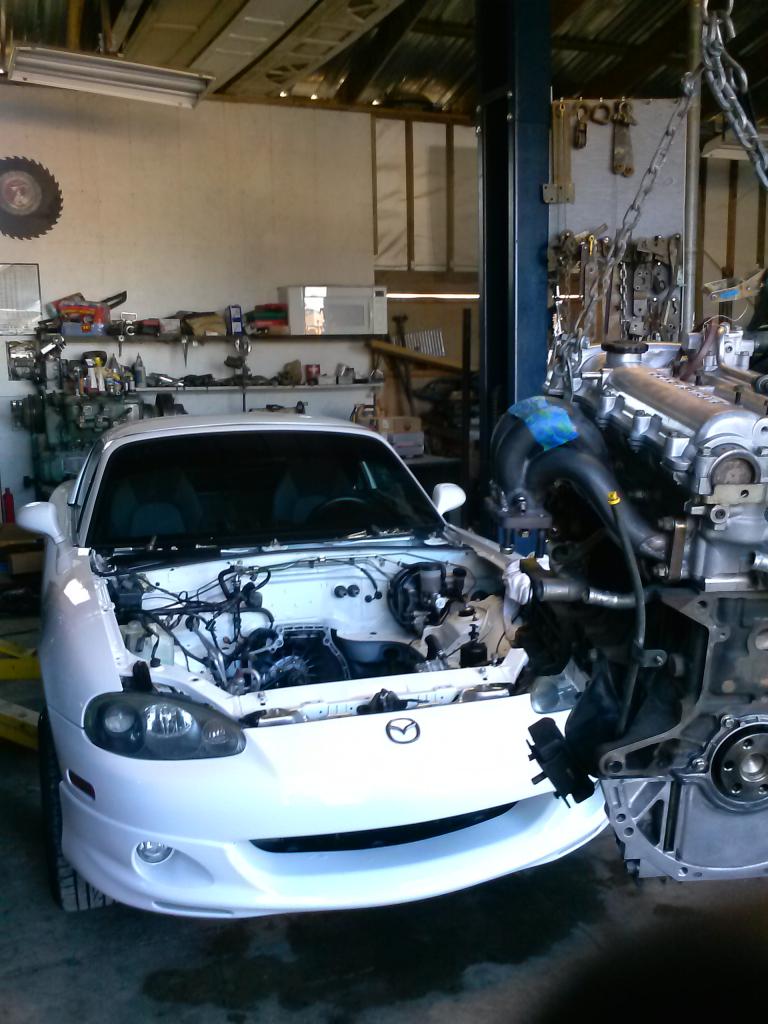

in with the new


Had to call it a day due to this party I'm going to. New engine is in and mated to transmission with FM2 clutch. More progress on monday.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00295.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00296.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00301.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00305.jpg
18psi is offline   Reply With Quote
Old 11-16-2013, 08:20 PM   #798
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,439
Total Cats: 471
Default

EO2K, would this help? Photos from Brian's for sale stuffs. pics of mounts.

https://www.miataturbo.net/miata-par...-setups-71067/
turbofan is offline   Reply With Quote
Old 11-16-2013, 09:23 PM   #799
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Winning! Thanks V

Ed: I've seen those and quite honestly, I almost bought one but I'm not sure I like how far forward it sits. I need to be a little more inconspicuous.

I removed my AC today, BECAUSECALIFORNIA and I'm trying to figure out how to mount a 6x2.5x20 (28 OAL) Godspeed M that I picked up quite some time ago. No TIG so tabs aren't really an option at the moment. I want it as far back toward the radiator as possible but I'm unsure how it needs to sit in there. Like if its supposed to be sandwiched directly up against the radiator, if it needs to be straight up and down or angled, how it needs to be supported, etc. I've never done this before so I'm trying to make sure don't need to redo all this crap again later.

Related: **** YOUUUUUU and your immaculately clean engine bay, I'm super jelly. I don't understand how a car that actually gets driven can stay that clean. Everything below the frame rails on mine looks like I've been driving it through a sludge pond.

Last edited by EO2K; 11-16-2013 at 09:49 PM.
EO2K is offline   Reply With Quote
Old 11-16-2013, 09:51 PM   #800
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,439
Total Cats: 471
Default

Ah. I thought perhaps it might help to see their mounting solution.

Can't help with the other stuff since I just buy stuff pre-built.
turbofan is offline   Reply With Quote
