Lars - that's an Absurd statement! lol
Reply
0
0
Thread Starter
Elite Member
iTrader: (14)
Joined: Sep 2009
Posts: 2,101
Total Cats: 180
From: Birmingham, AL
http://www.chinmotorsports.com/events/calendar2012.asp
David - yeah, we dodged them today. Just watch for the weepers on the track, those will hang around till about noon... where you drinking beer tomorrow night?
Reply
0
0
I'm glad there's more tracks becoming available in the Southeast. I need to get on the track this year!
Your build is looking great, as always. It'll interesting to see the results of the 1.8 VVT engine, think you'll hit the same "absurd" numbers?
Your build is looking great, as always. It'll interesting to see the results of the 1.8 VVT engine, think you'll hit the same "absurd" numbers?
Reply
0
0
If it happens, which they say it is, then Chin will be the first club on the course! I fully plan on gettgin some experience on that course so hopefully instruct with some other clubs - I'll be certified Nasa by then - so if you need someone to hold your hand your 'first time' at AMP, I won't blush
Reply
0
0
Thread Starter
Elite Member
iTrader: (14)
Joined: Sep 2009
Posts: 2,101
Total Cats: 180
From: Birmingham, AL
Just moving stuff I posted in RacePrep here... added a pic or 2...
Man - craziness at Road Atlanta this weekend. So how many of you where hoping to see a mangled miata in flames? Sorry to dissappoint - so far!
1st off, the low mileage 6spd I bought and installed failed to shift into 5th - period. So that was a rough start - I'm at that point where I 'feel' I need to double/triple check everything now less anything bad happens - which it did.

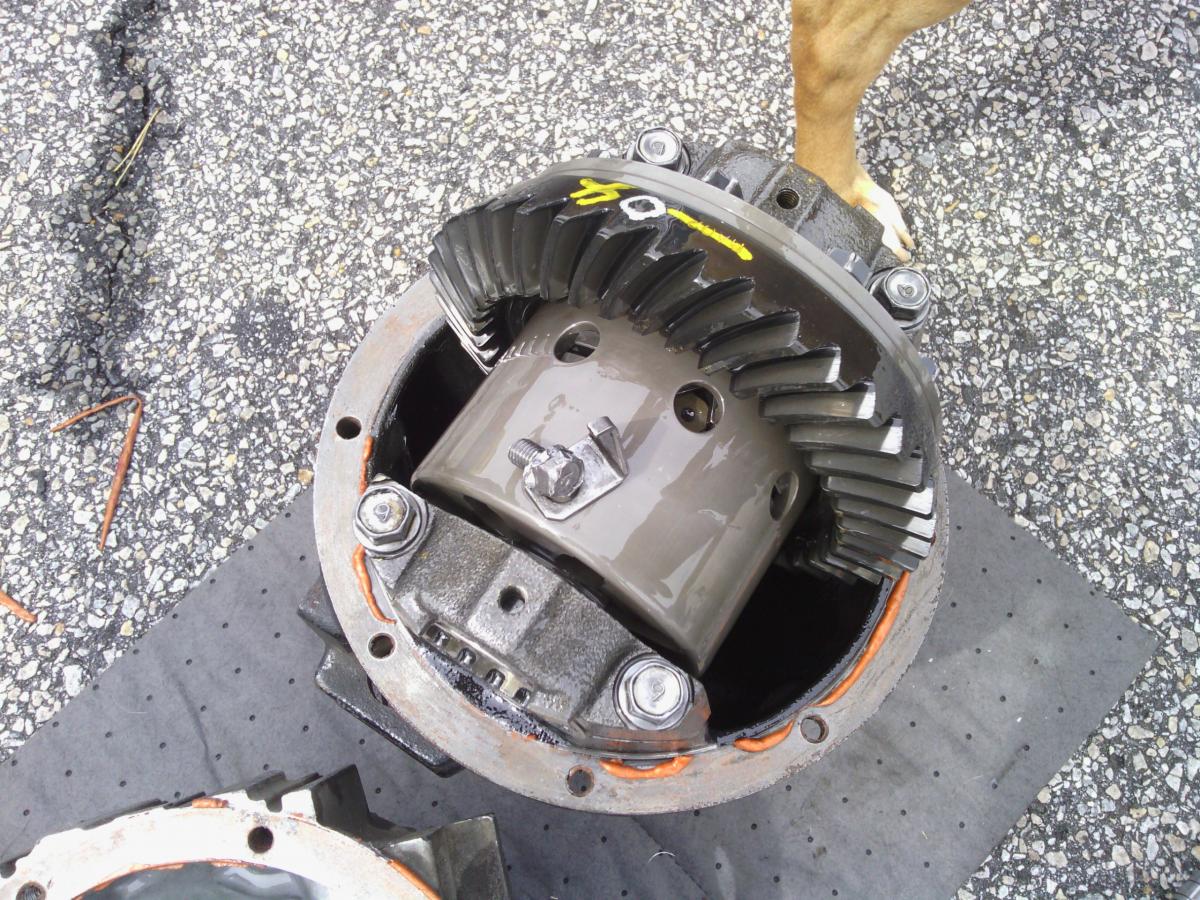

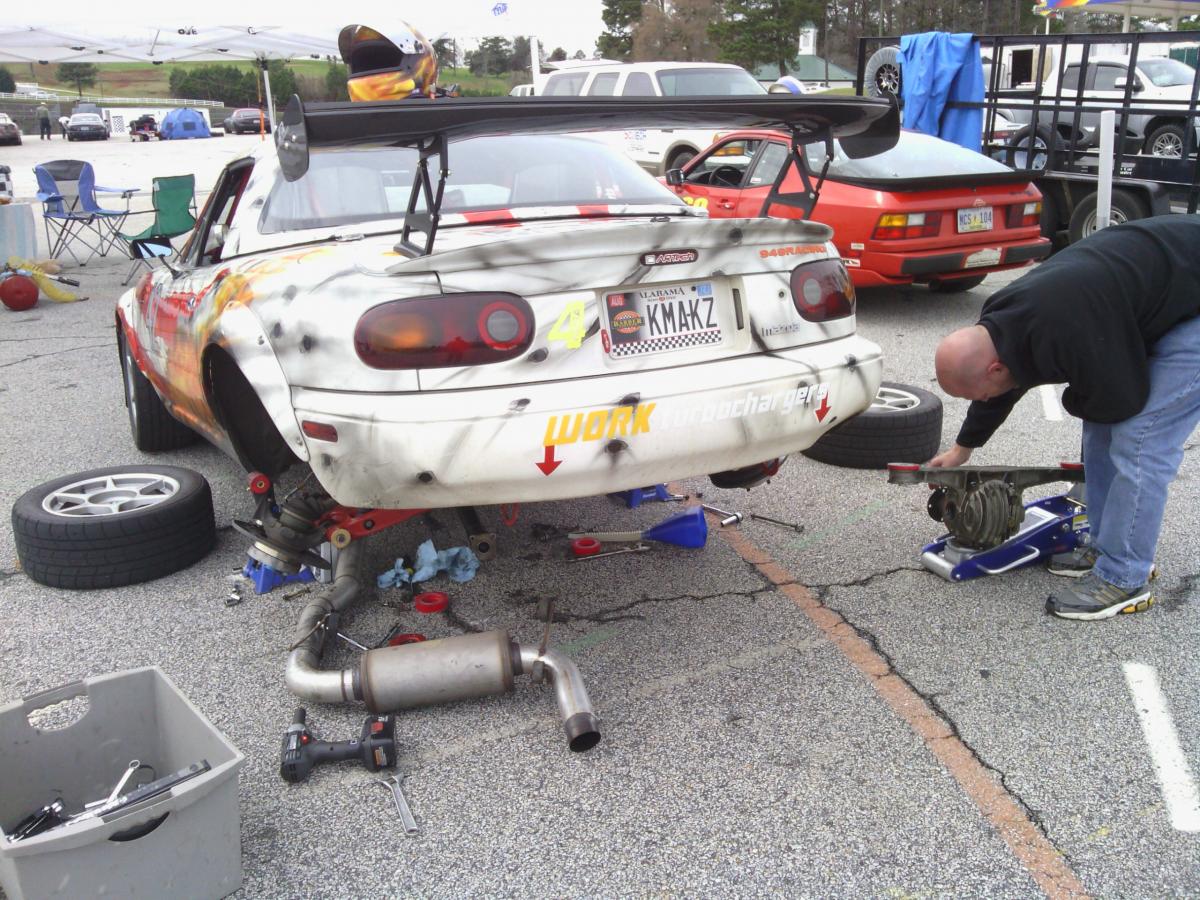

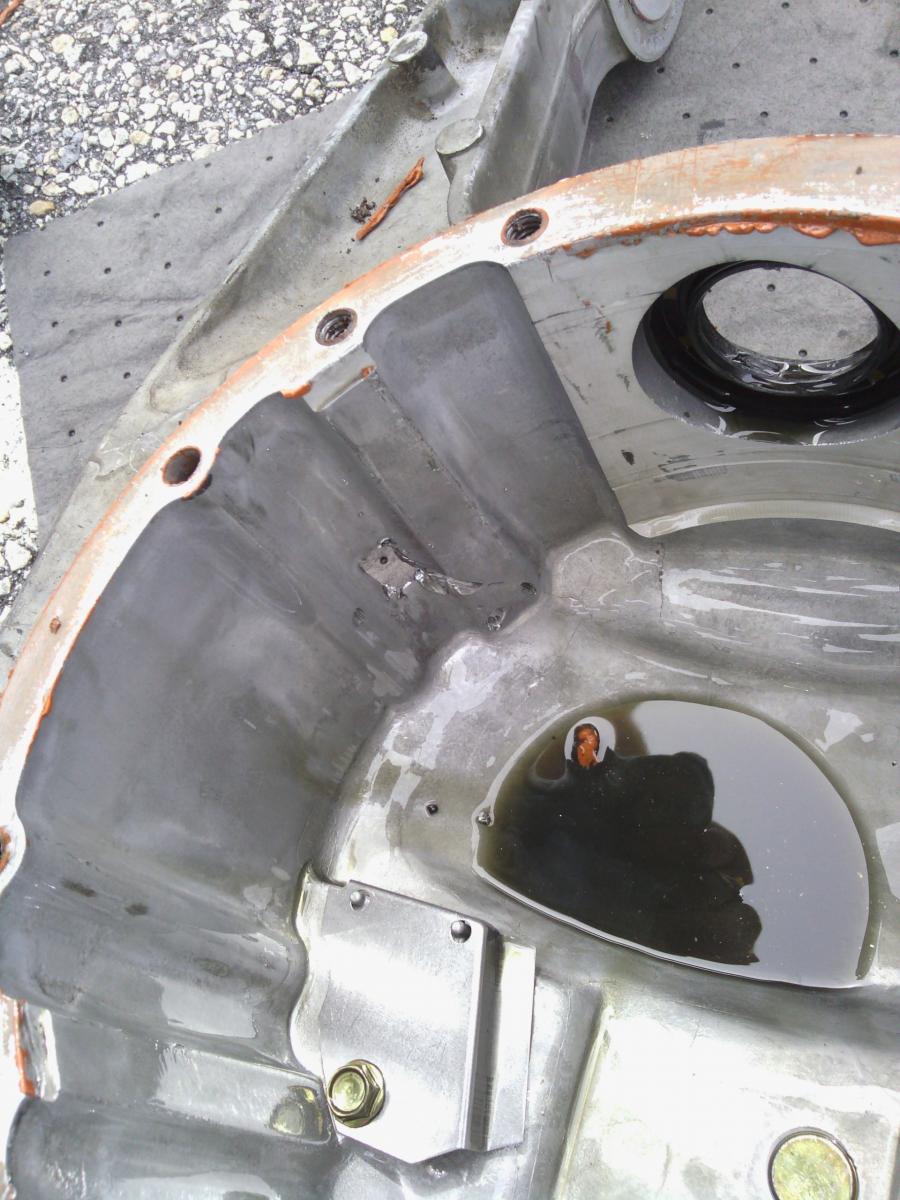

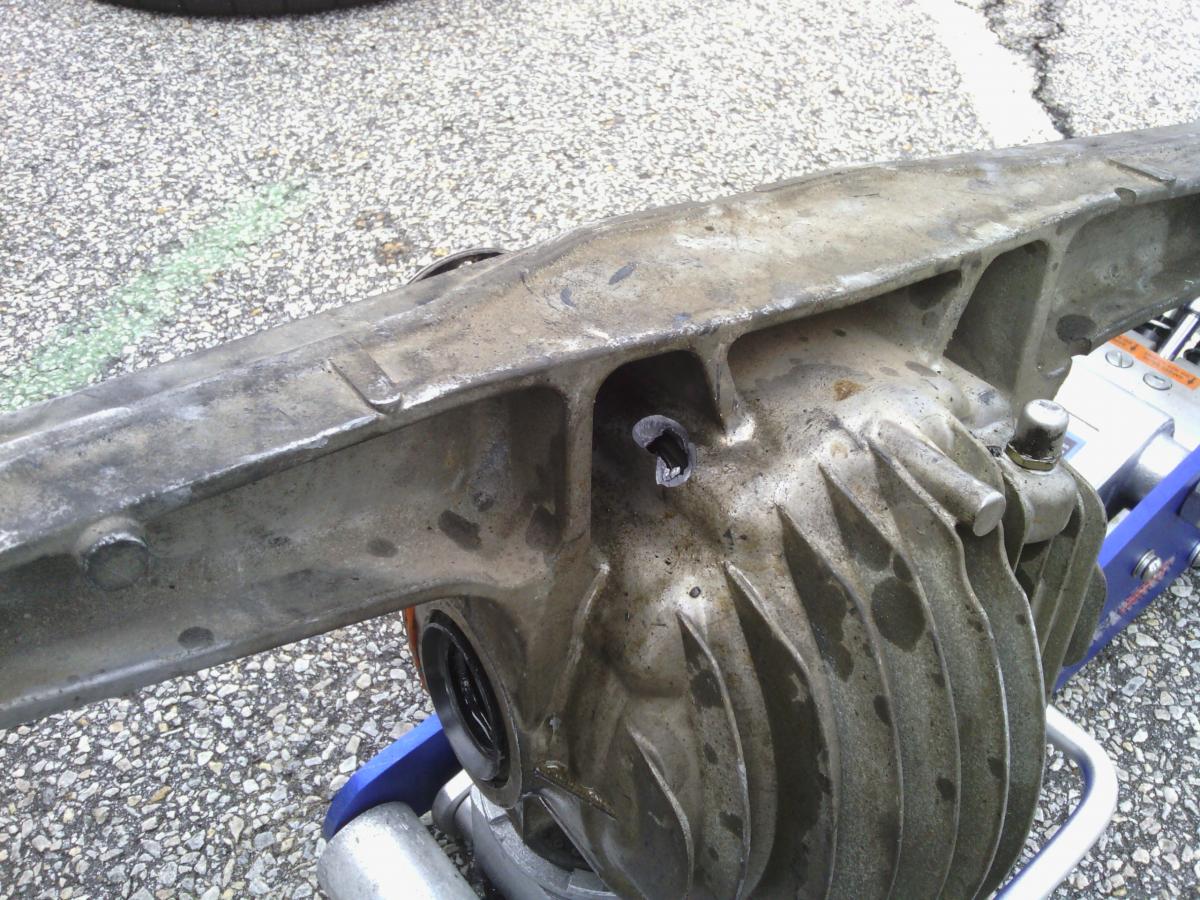

So here I was cruising down the back straight at RA at about 120 when I heard a pop - saw no smoke. I got into the brake zone and suddenly smelled diff fluid so I stayed off line and pitted in, but nothing was feeling different with the car, all felt normal other than hearing the pop - which really wasn't any louder than picking up a large marble and slinging it into the well. So I pulled into paddock, parked and looked under the at the diff and sure enough, fluid seemed to be dripping out the left seal. So I yanked the diff and low and behold - holy **** - I just destroyed my OSG and 3.6 R&P!! F*CK!!!
The ASE mech I used to install the R&P and set the lash forgot to do something very important - seems he didn't torque or threadlock one of the bolts holding a lash retaining clip. I used this guy the 1st time when I put in the OSG with no problems, so didn't have any reason for not guessing his work this time.
Honestly, I dodged a hell of a bullet. The bolt did not mangle the R&P, in fact you couldn't see ANY damage to the R&P at all, nor on the OSG - so thankful for soft bolts. Of all the possibilies that could have happened - destroying a $2G diff and spinning out at 120 being the worst, I was the luckiest SOB at the track this weekend.

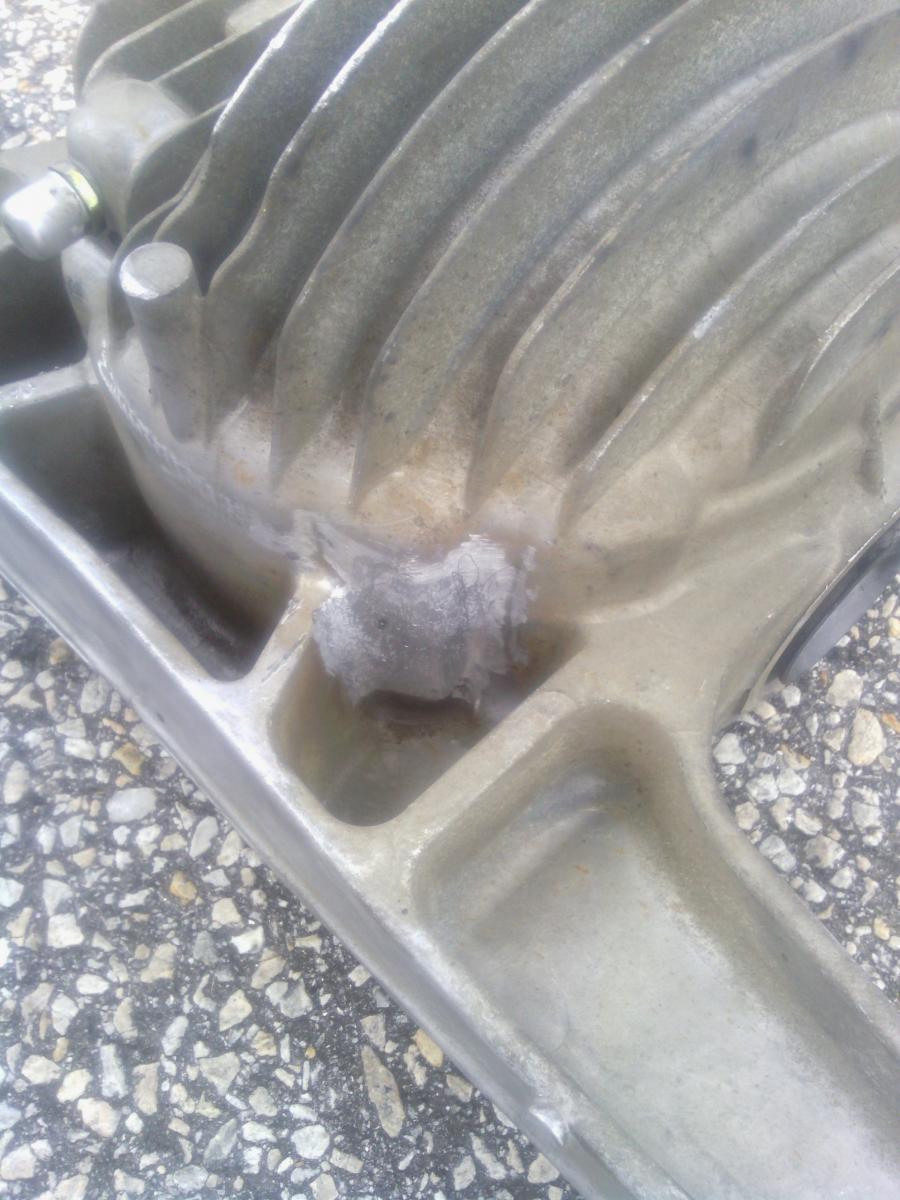

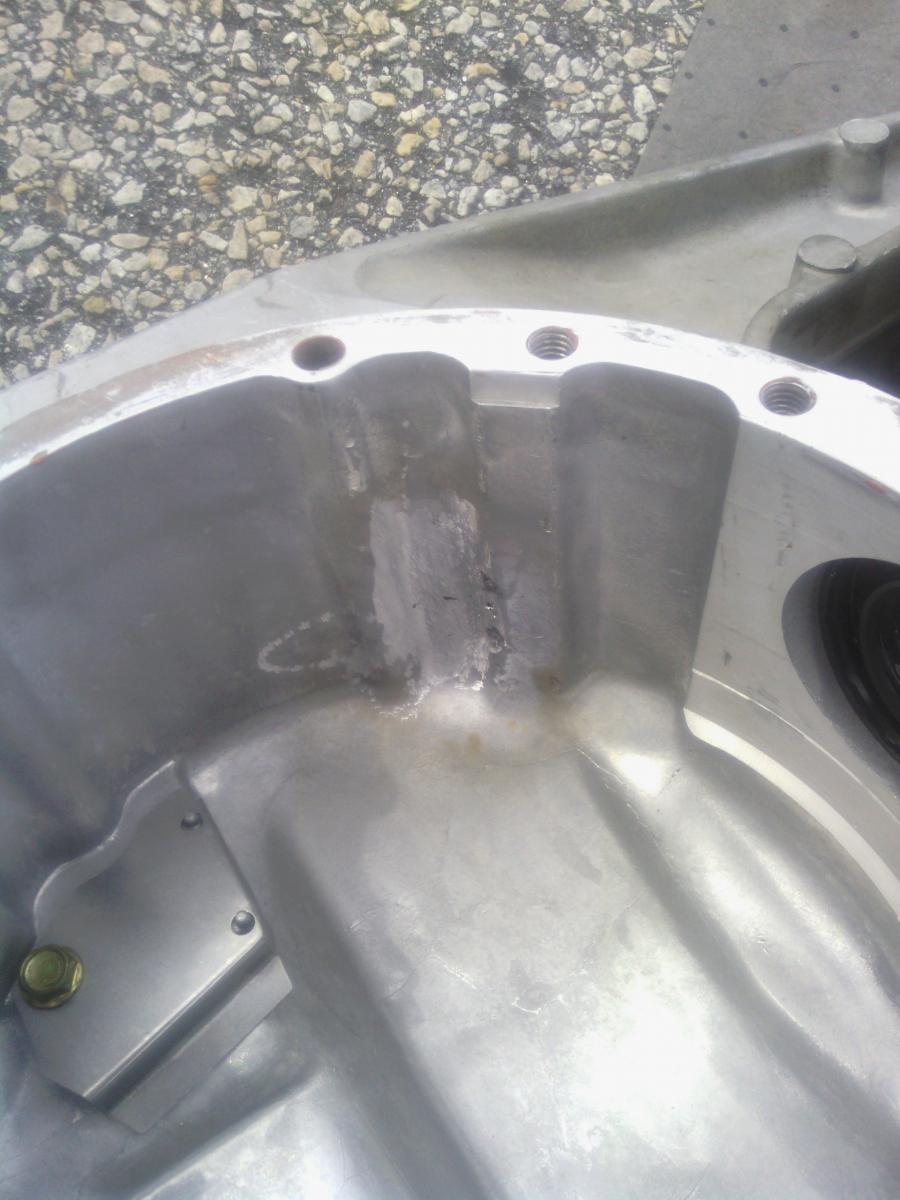

So, fix in effect - right across the paddock was a race shop, threw the shop guy $40 and he tigged up that hole in fine fashion. Threw the unit back together (after cleaning it well) and called Emilio for his expert advice on what fluid would work without effing up the clutch plates (since I didn't have that special OSG gear oil). Discovery Parts happened to have RedLine GL5 85-250 Shockproof gear oil - that pink looking stuff. Big thanks for the info Emilio!!
So this all happened on friday - ran saturday flawlessly, without 5th of course, which I really needed - that's like my 4th in a 5spd.

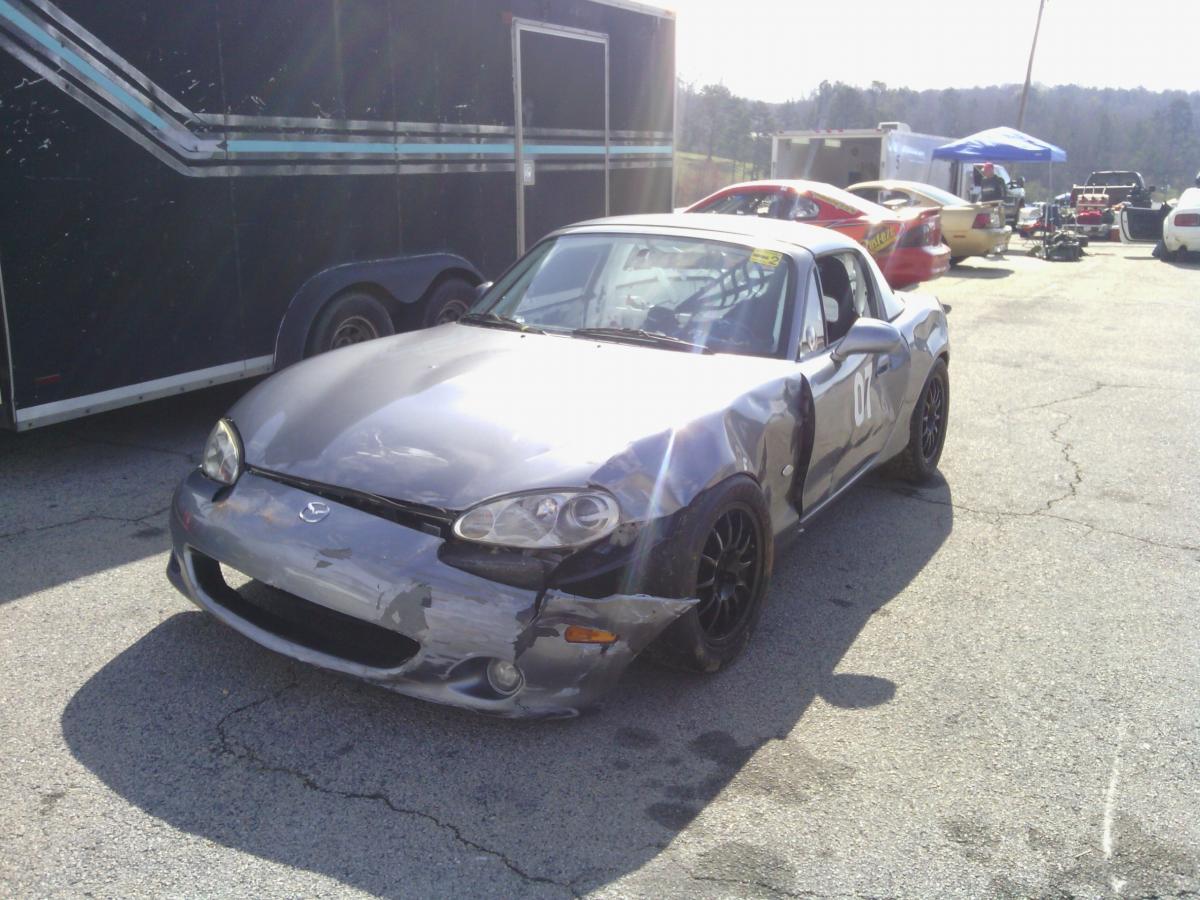

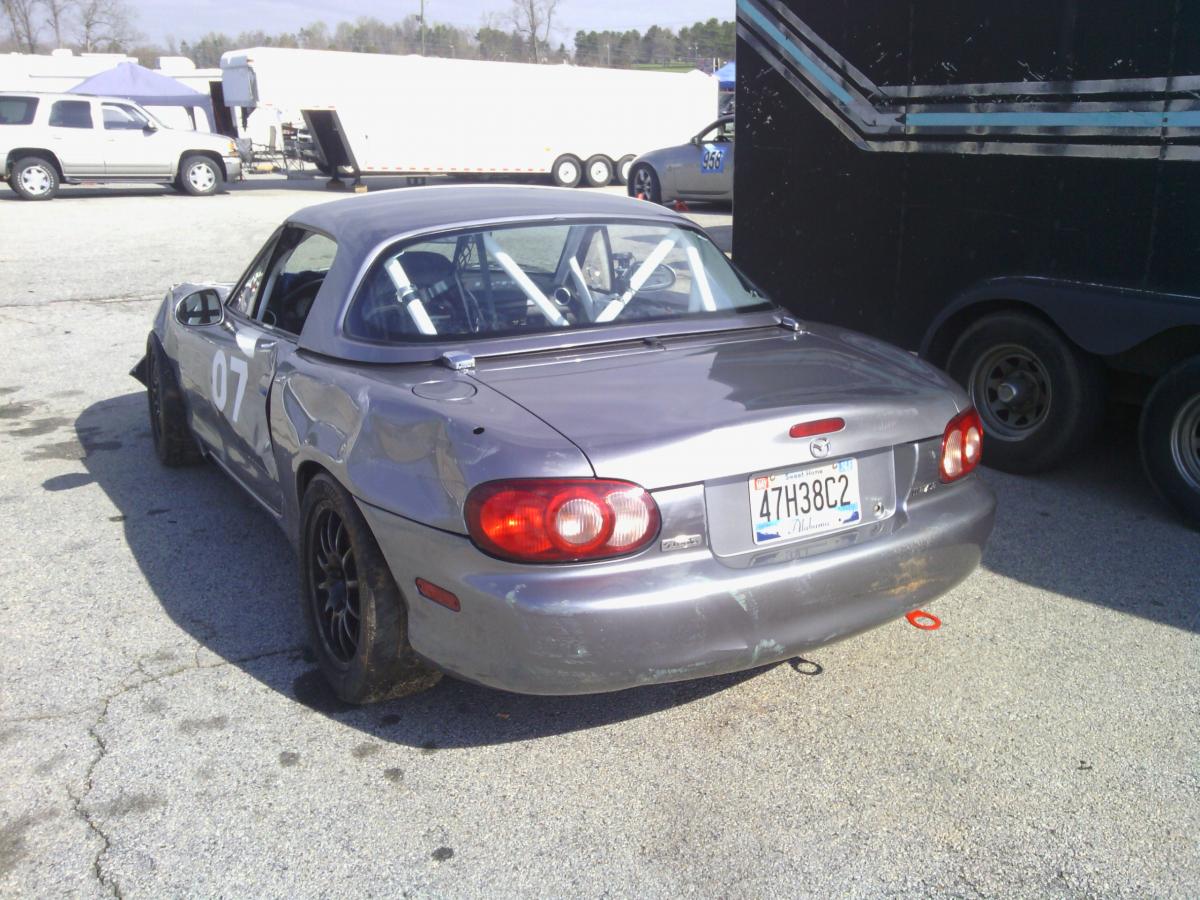

Then this poor soul had a date with the tirewall/concrete barrier out of T3...

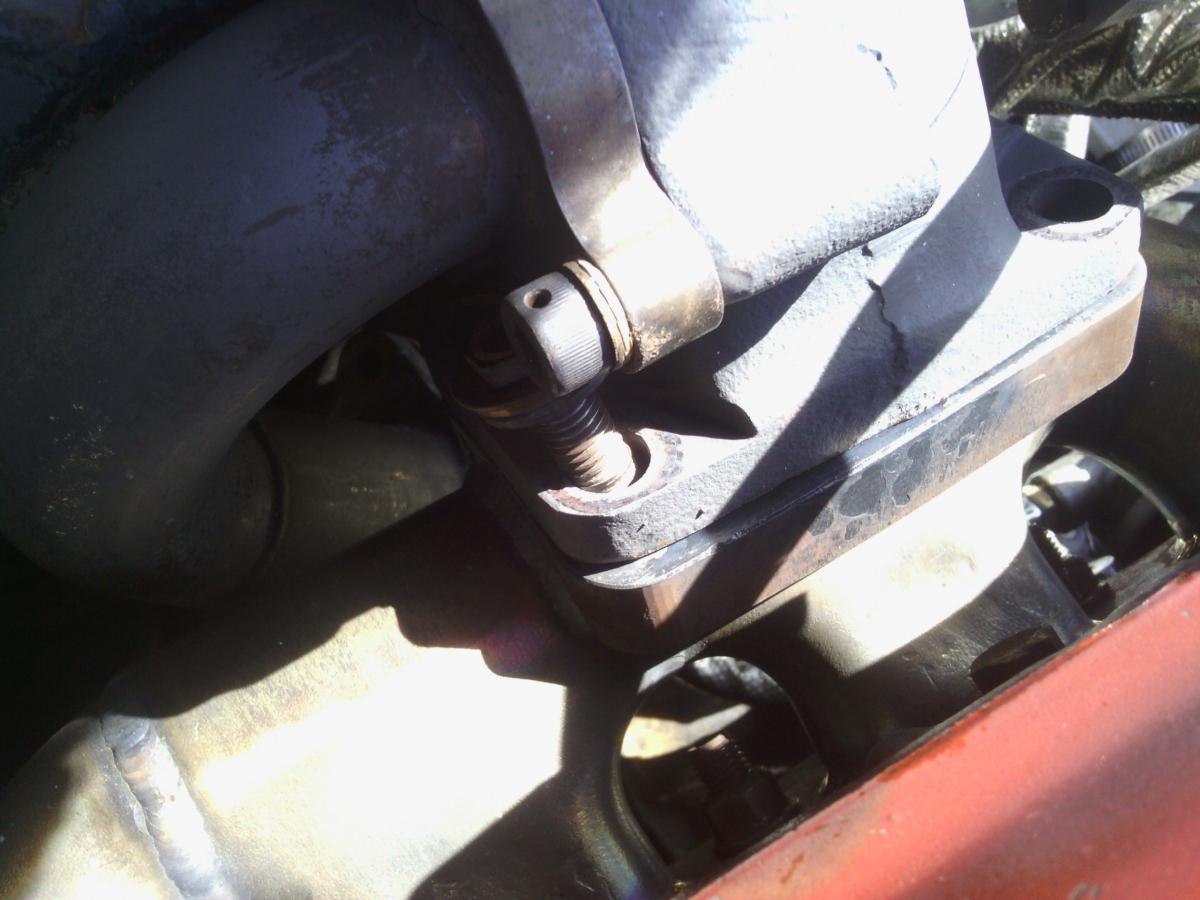

And then the second to last run of the day I noticed drastic boost drop - and as I know of, I'm the 1st and only one to expeirence TSE Inconel stud failure...
The only thing I can think of is that the resbond did not hold the stud in, so 3, yes, 3 of the studs backed out through the locking fasteners. 2 of them are gone, somewhere on track, the 3rd was kept from falling out by the DP flange. So, I may yank the manifold off and send to Andrew for measurements and see if it was a failure of the resbond, mounting depth of the studs, or wall clearance between the stud and the threaded manifold - all? At this point, I need to get the 1.8 complete and beg/plead for my vband.

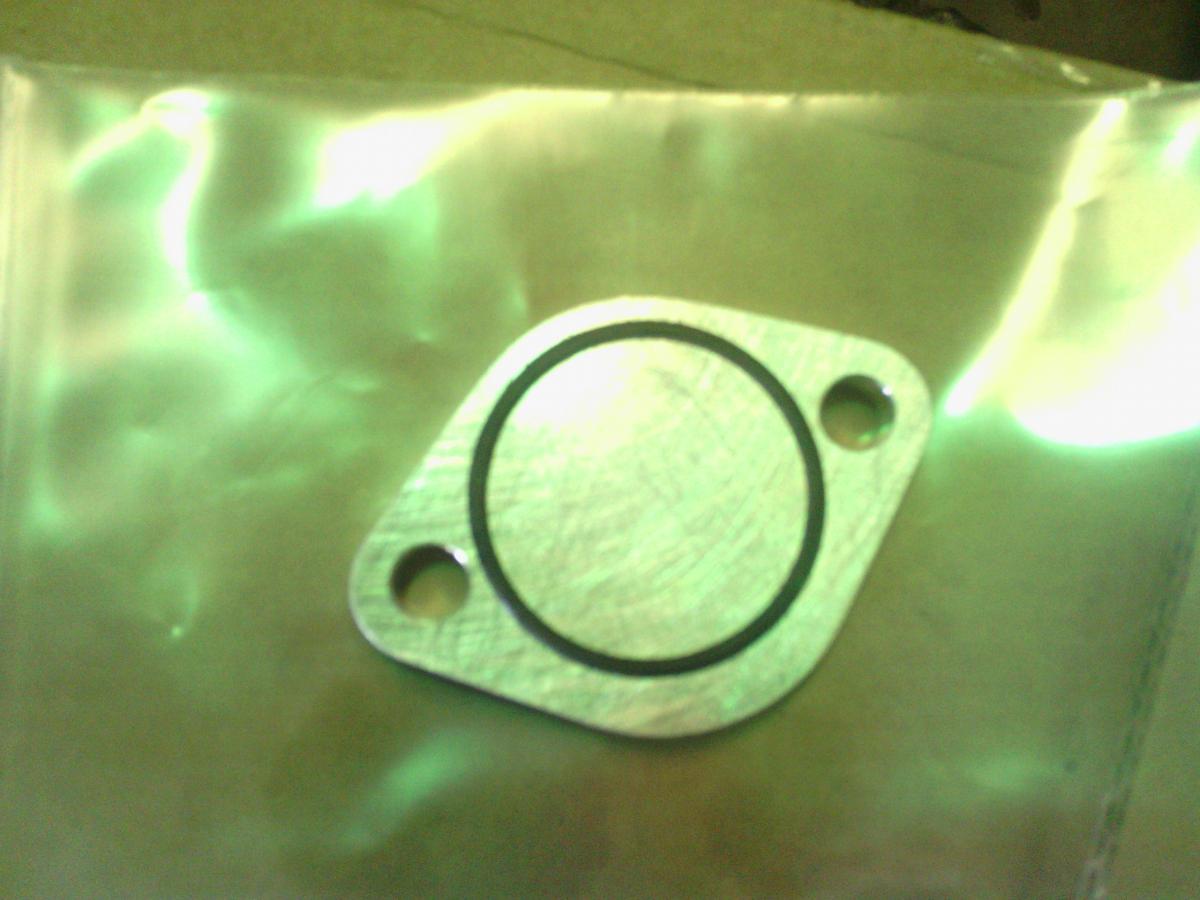

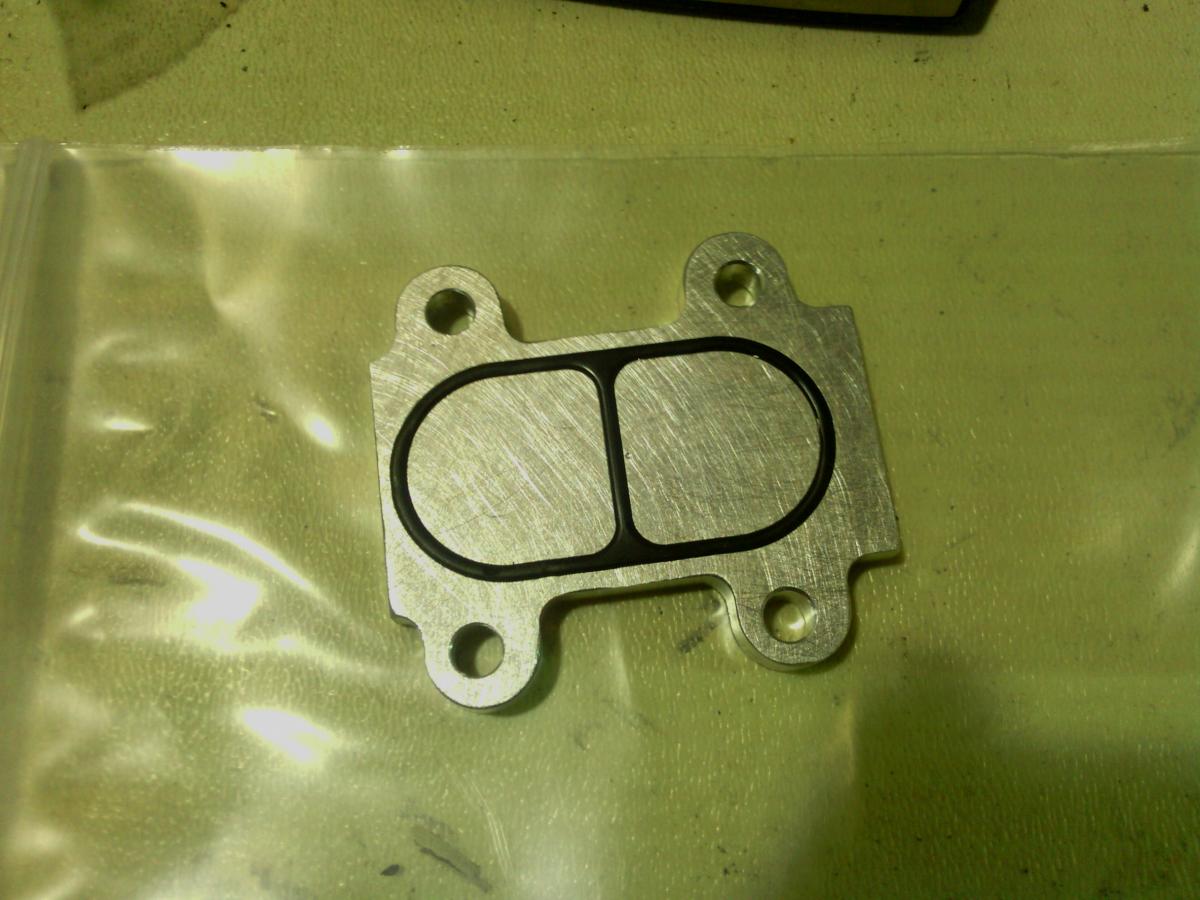

To add - here's the block-off plates my buddy made for me - one blocks off where the coolant neck came out of the head, other replaces where the coolant block cold idle thingy was on the side of the intake.
Man - craziness at Road Atlanta this weekend. So how many of you where hoping to see a mangled miata in flames? Sorry to dissappoint - so far!
1st off, the low mileage 6spd I bought and installed failed to shift into 5th - period. So that was a rough start - I'm at that point where I 'feel' I need to double/triple check everything now less anything bad happens - which it did.
So here I was cruising down the back straight at RA at about 120 when I heard a pop - saw no smoke. I got into the brake zone and suddenly smelled diff fluid so I stayed off line and pitted in, but nothing was feeling different with the car, all felt normal other than hearing the pop - which really wasn't any louder than picking up a large marble and slinging it into the well. So I pulled into paddock, parked and looked under the at the diff and sure enough, fluid seemed to be dripping out the left seal. So I yanked the diff and low and behold - holy **** - I just destroyed my OSG and 3.6 R&P!! F*CK!!!
The ASE mech I used to install the R&P and set the lash forgot to do something very important - seems he didn't torque or threadlock one of the bolts holding a lash retaining clip. I used this guy the 1st time when I put in the OSG with no problems, so didn't have any reason for not guessing his work this time.
Honestly, I dodged a hell of a bullet. The bolt did not mangle the R&P, in fact you couldn't see ANY damage to the R&P at all, nor on the OSG - so thankful for soft bolts. Of all the possibilies that could have happened - destroying a $2G diff and spinning out at 120 being the worst, I was the luckiest SOB at the track this weekend.
So, fix in effect - right across the paddock was a race shop, threw the shop guy $40 and he tigged up that hole in fine fashion. Threw the unit back together (after cleaning it well) and called Emilio for his expert advice on what fluid would work without effing up the clutch plates (since I didn't have that special OSG gear oil). Discovery Parts happened to have RedLine GL5 85-250 Shockproof gear oil - that pink looking stuff. Big thanks for the info Emilio!!
So this all happened on friday - ran saturday flawlessly, without 5th of course, which I really needed - that's like my 4th in a 5spd.
Then this poor soul had a date with the tirewall/concrete barrier out of T3...
And then the second to last run of the day I noticed drastic boost drop - and as I know of, I'm the 1st and only one to expeirence TSE Inconel stud failure...
The only thing I can think of is that the resbond did not hold the stud in, so 3, yes, 3 of the studs backed out through the locking fasteners. 2 of them are gone, somewhere on track, the 3rd was kept from falling out by the DP flange. So, I may yank the manifold off and send to Andrew for measurements and see if it was a failure of the resbond, mounting depth of the studs, or wall clearance between the stud and the threaded manifold - all? At this point, I need to get the 1.8 complete and beg/plead for my vband.
To add - here's the block-off plates my buddy made for me - one blocks off where the coolant neck came out of the head, other replaces where the coolant block cold idle thingy was on the side of the intake.
