Old 03-09-2013, 08:18 PM   #681
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

if you don't want to swap throttle body then get the bmw one.

part # part # 0-280-120-402 or part # 0-280-120-406
krissetsfire is offline   Reply With Quote
Old 03-09-2013, 08:23 PM   #682
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

I guess I jumped the gun. Do you not know what the current vtps setup is?
krissetsfire is offline   Reply With Quote
Old 03-09-2013, 08:31 PM   #683
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Hey Dann I put a MegaSquirt in my 1600 NA a few years ago and used a BMW/Bosch TPS (part number 0280120402). I pulled it out of a mid 90s 5 series 6 cyl auto BMW.

Pin 1 was +5V, pin 2 ground, pin 3 signal.

It is complete plug and play but you have to take off the throttle body or intake manifold or something, just so you have enough room to slide it between the throttle body and head.

I've heard Hyundai Excel ones fit too, but haven't seen it first hand.
timk is offline   Reply With Quote
Old 03-09-2013, 09:03 PM   #684
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

wells tps201.
Braineack is offline   Reply With Quote
Old 03-09-2013, 09:16 PM   #685
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Quote:
Originally Posted by Braineack View Post
wells tps201.
Unfortunately that would have to come from the US, so would end up being the most expensive TPS ever.
timk is offline   Reply With Quote
Old 03-09-2013, 09:53 PM   #686
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

ah. there's another that would with I'll have to find it... Greg g used it... but its a eu manufacturer.
Braineack is offline   Reply With Quote
Old 03-10-2013, 12:20 AM   #687
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

For starters Dan did you ensure the current TPS is configured properly?
triple88a is offline   Reply With Quote
Old 03-10-2013, 03:12 AM   #688
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Yeah I sent the TPS and ecu to gslender (creator of the firmware most people use) and he confirmed I had wired the board properly and set it up properly and that my board worked but the TPS had failed.

It's from a VL commodore, a car Americans would have loved but never got.

The BMW would be the go I think, much prefer to snag a new plug and play however.

Dann
nitrodann is online now   Reply With Quote
Old 03-10-2013, 09:55 AM   #689
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I still think your TPS is working via the log file you sent.
Braineack is offline   Reply With Quote
Old 03-10-2013, 10:16 AM   #690
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

yeah its doing something but it cannot be calibrated, something is wrong with it.

Its no way near linear, it does crazy things.

Dann
nitrodann is online now   Reply With Quote
Old 03-10-2013, 05:53 PM   #691
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

They did get the 2 door Commodore Pontiac GTO or something....
mx5-kiwi is offline   Reply With Quote
Old 03-10-2013, 06:57 PM   #692
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

They got the late mod monarch and the ve.

They didn't get the VL much less the VL BT1 (cop edition turbo VL with a 600whp capable stock bottom end). Yanks Google 'VL turbo' if you are interested.

Dann
nitrodann is online now   Reply With Quote
Old 03-10-2013, 07:36 PM   #693
I'm Miserable!

Join Date: Apr 2010
Location: Alberta, Canada
Posts: 135
Total Cats: -23
Default

Was the pontiac G8 based on the monarch? I know it was based on one of the australian models
jimj64 is offline   Reply With Quote
Old 03-10-2013, 10:17 PM   #694
I'm Miserable!

Join Date: Apr 2010
Location: Alberta, Canada
Posts: 135
Total Cats: -23
Default

Looked it up, the g8 was based on the commodore.
jimj64 is offline   Reply With Quote
Old 03-11-2013, 02:25 AM   #695
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Quote:
Originally Posted by jimj64 View Post
Was the pontiac G8 based on the monarch? I know it was based on one of the australian models
its suipposed to say monaro.

Stupid autocorrect.

the G8 is a commodore.

You didnt get these though.



Factory V8 rice just like the yanks love.

Dann
Attached Thumbnails
1.6L 2560r record attempt-holden_vl_commodore_ss_group_a_sv_3-568-426.jpg
nitrodann is online now   Reply With Quote
Old 03-11-2013, 04:18 AM   #696
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Sigh....such an AWESOME car in the day. I never did like the wheels though...thought they could have done something better than that.
mx5-kiwi is offline   Reply With Quote
Old 03-11-2013, 08:31 AM   #697
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Haha it has the mandatory (for a VL) Snap-on seat covers.
timk is offline   Reply With Quote
Old 03-11-2013, 09:19 AM   #698
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

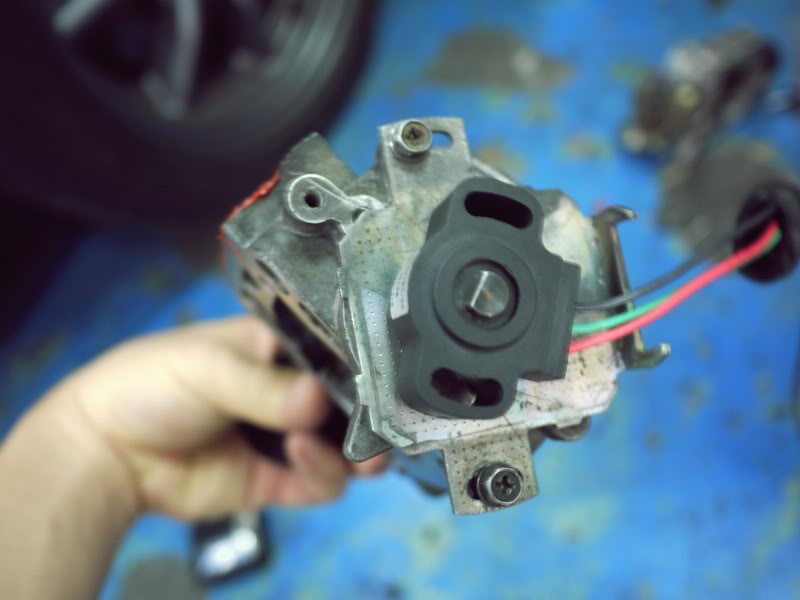

here's the one i was thinking of:

https://www.miataturbo.net/megasquir...45/#post738986




Spectrol Model 971
Attached Thumbnails
1.6L 2560r record attempt-p1130364.jpg
Braineack is offline   Reply With Quote
Old 03-11-2013, 05:08 PM   #699
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

I can buy that for 100 dollars locally plus shipping, Ill get that one, thanks mate, heaps.

Dann
nitrodann is online now   Reply With Quote
Old 03-12-2013, 09:25 AM   #700
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I hope $100AUS is like $15USD.
Braineack is offline   Reply With Quote
