Old 03-08-2015, 01:51 PM   #281
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

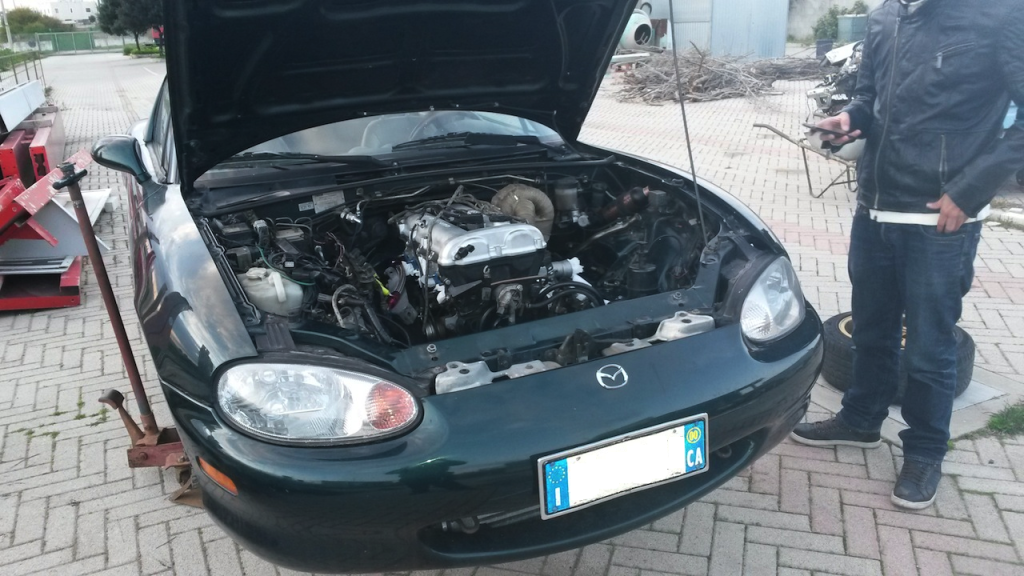

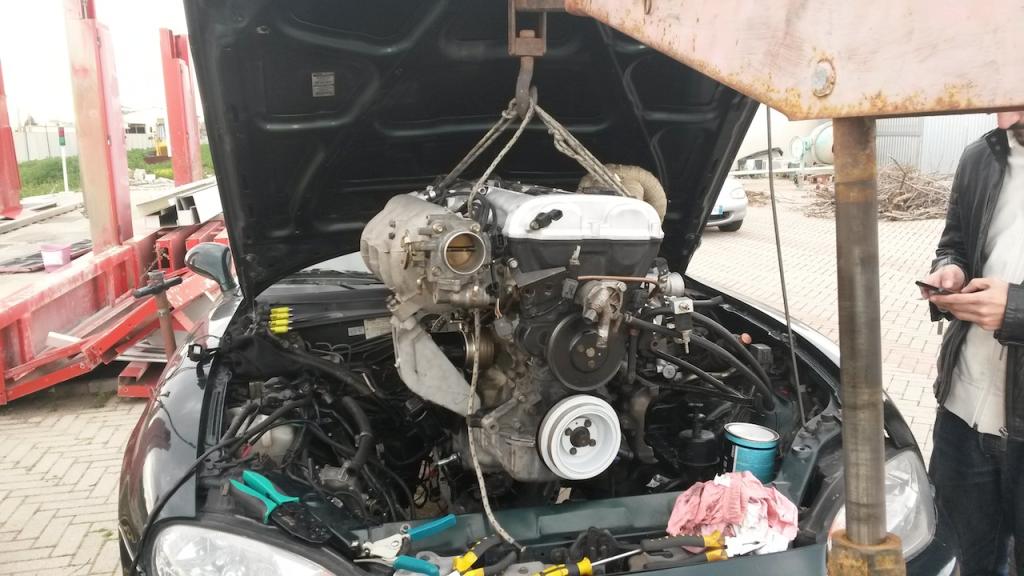

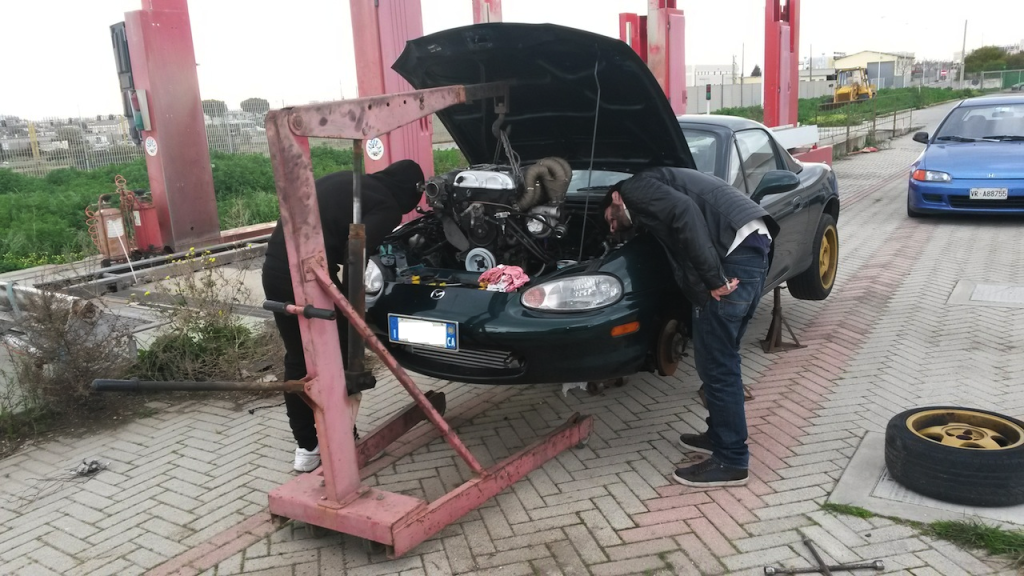

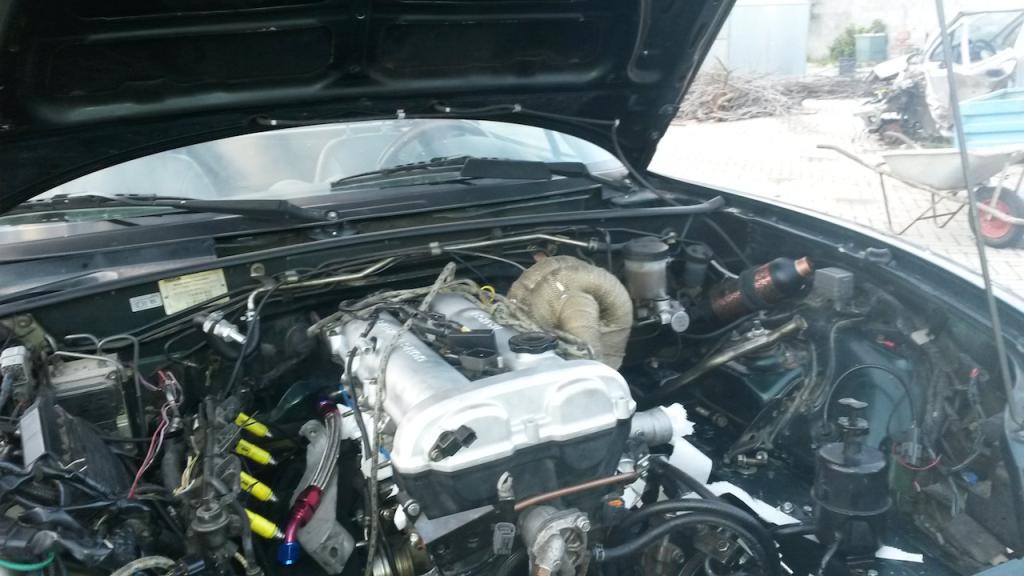

time to put the engine in the car







Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150308_163622_zpsskvhn7wq.jpg   diy "turbo no hit block" '00 BP miata-20150308_163734.jpg_zpsffqzzpyl.png   diy "turbo no hit block" '00 BP miata-20150308_180540.jpg_zpskfeslyn9.png   diy "turbo no hit block" '00 BP miata-20150308_180544_zpsxhq6lbmk.jpg
DNA54 is offline   Reply With Quote
Old 03-09-2015, 10:59 AM   #282
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-hqdefault.jpg
DNA54 is offline   Reply With Quote
Old 03-22-2015, 11:17 AM   #283
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

today I've done the first pulls after the breack-in (around 800 km) and also raised the rev limiter to 7200
6 psi: feels slow, slower than the stock engine at the same pressure.
I think I lost something in the mid range, expecially at 4000-5000 rpm

10 psi: that is about the same performance I had with stock bottom end

14 psi: wastegate solenoid at 76%, pretty much allofit. Begin to feel interesting

16 psi: allofit (wastegate shut closed) I feel that it's my goal: much scared during first pulls

afr's are temporary sub-10 with injectors 100% opened, I need to tune the car now.

God, this chrubo survived pretty well!

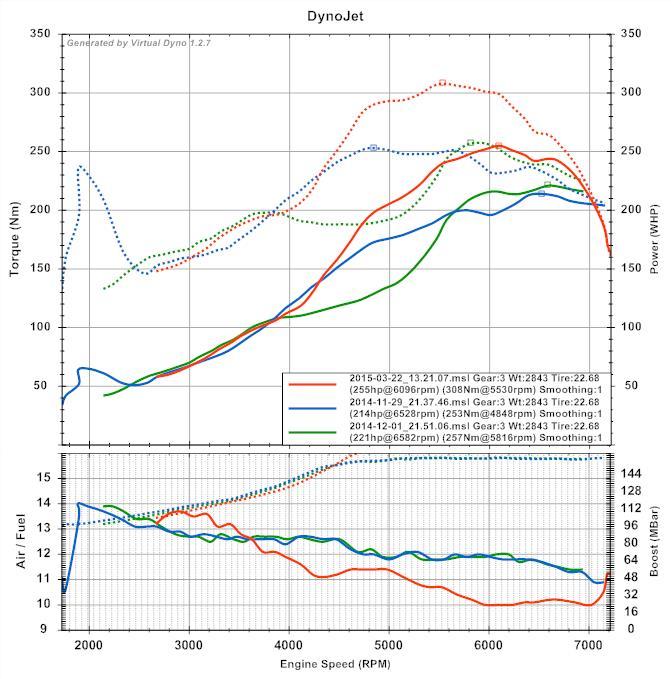

green and blue are 10 psi with stock internals, close to knock ignition timing and 12.5:1 afr all the way till the redline.

red one was without tune at all except 100% injectors opened and allofit
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-meh_zpsz9wvczr9.jpg
DNA54 is offline   Reply With Quote
Old 03-22-2015, 03:12 PM   #284
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,373
Total Cats: 2,246
Default

hahaha nice

300whp out of a chrubo is not bad at all, spool seems a bit late though
18psi is offline   Reply With Quote
Old 03-23-2015, 03:35 AM   #285
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by 18psi View Post
hahaha nice

300whp out of a chrubo is not bad at all, spool seems a bit late though
well, that was actually 300 Nm torque, but yes, a lot of the exhaust gases can excape from the turbine wheel's blades, this is why it spools late
I'm thinking to buy a real potato

after some tune, just to reach low 11's

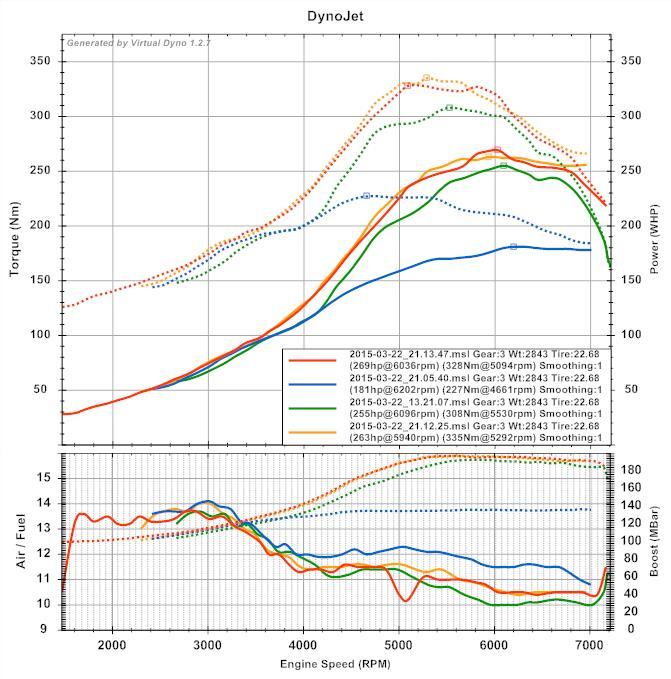

red and orange: after tune
green: the one I posted before ^^
blue: wastegate pressure

can't wait for the dyno!
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-meh2_zpsl2n50vvj.jpg
DNA54 is offline   Reply With Quote
Old 04-02-2015, 12:57 PM   #286
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Well, time to update


The exhaust side hydraulic lifter is noisy as hell, and I'm thinking to simply swap the camshafts and the lifters with the solid bp-4w ones (my old head)

Is it doable? Did anyone tried that swap?-
DNA54 is offline   Reply With Quote
Old 04-02-2015, 01:07 PM   #287
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,391
Total Cats: 1,252
Default

The lifters get quiet on their own in a few days. Noisy is common problem after it has been apart. It is ok to just drive it.
sixshooter is offline   Reply With Quote
Old 04-02-2015, 01:15 PM   #288
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Lifters were silent during the breack in
When I hitted 300 whp on virtualdyno the exhaust side started to click under load (even revving on neutral)
Seems like one empty lifter

Last edited by DNA54; 04-02-2015 at 03:39 PM.
DNA54 is offline   Reply With Quote
Old 04-02-2015, 06:26 PM   #289
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,373
Total Cats: 2,246
Default

maybe one collapsed?
18psi is offline   Reply With Quote
Old 04-03-2015, 02:46 PM   #290
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by 18psi View Post
maybe one collapsed?
that's an idea.. we'll see next week, if I have time to inspect

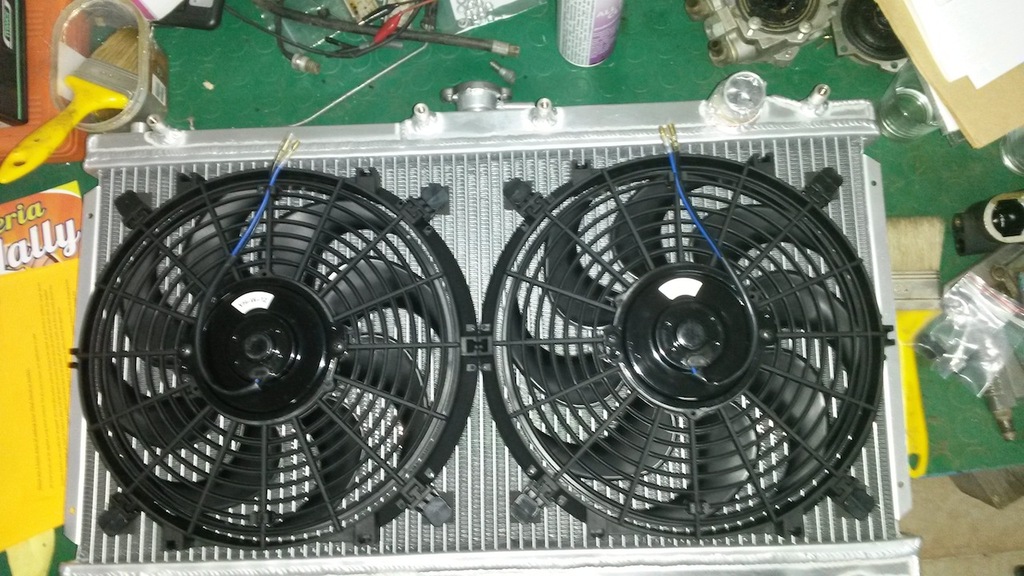

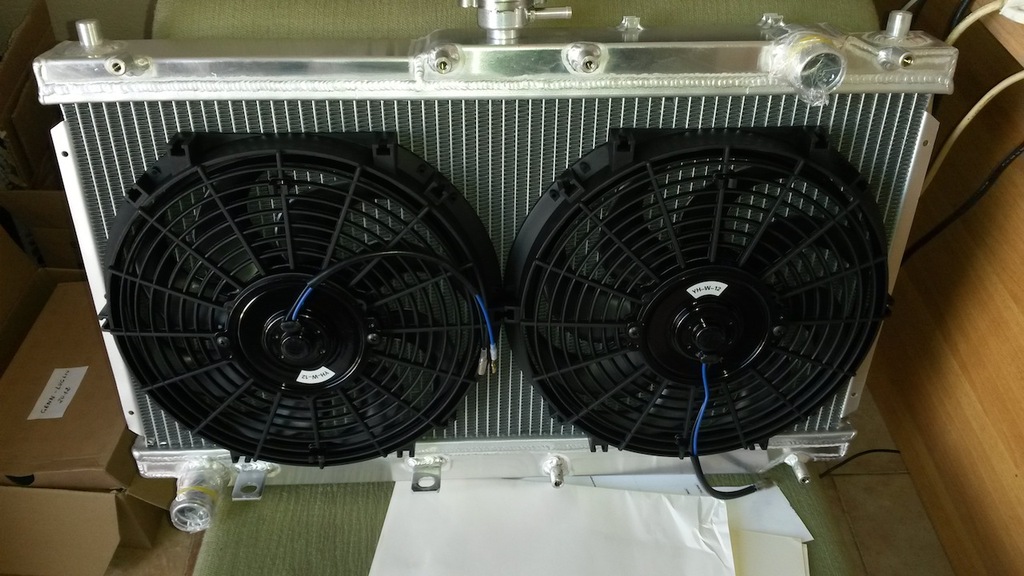

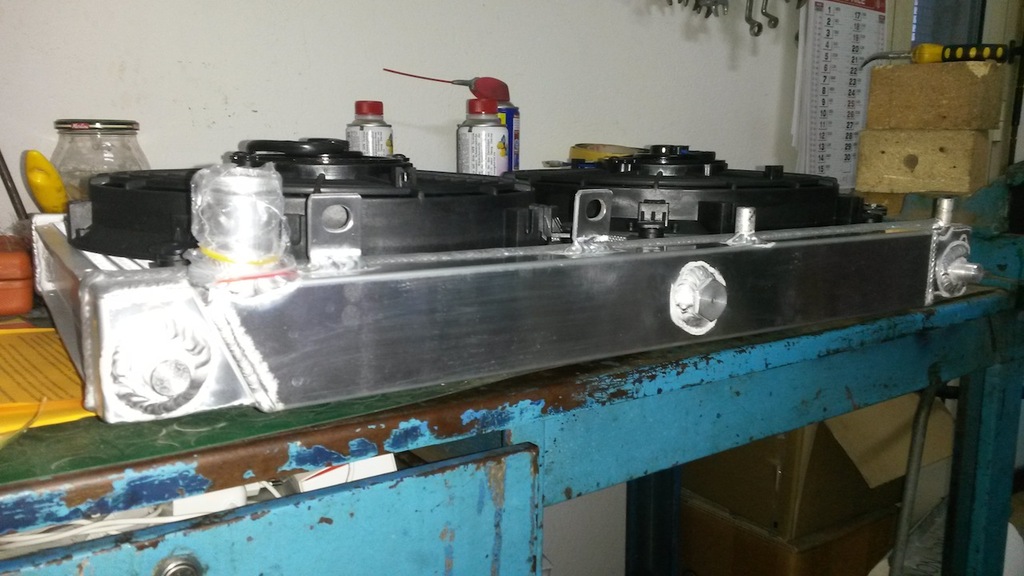

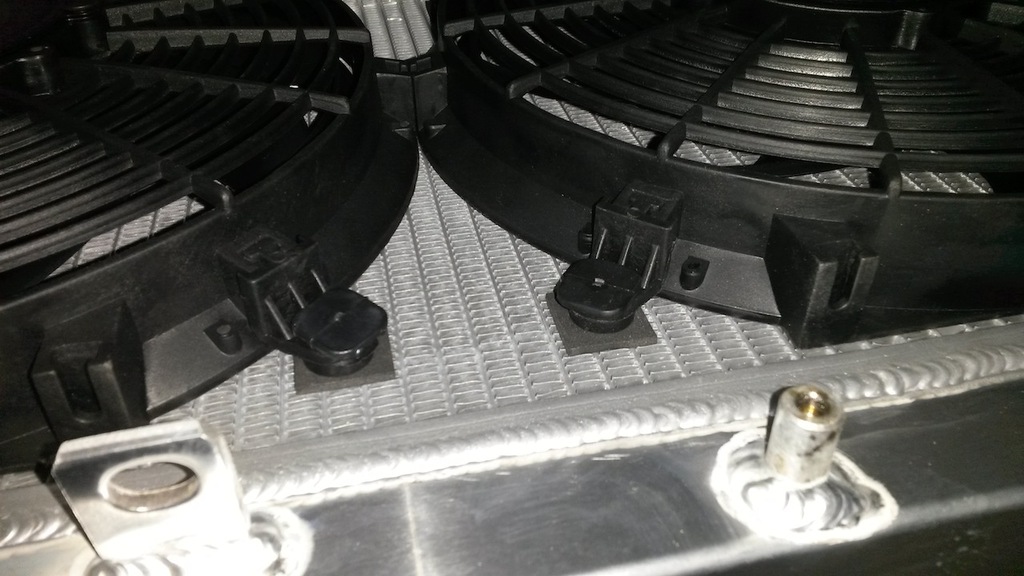

2" + slim fans + zip ties arrived











Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150403_134540_zpsohosvef2.jpg   diy "turbo no hit block" '00 BP miata-20150403_134547_zpspymwle3l.jpg   diy "turbo no hit block" '00 BP miata-20150403_195350_zpstmorzkr1.jpg   diy "turbo no hit block" '00 BP miata-20150403_195407_zpsh9sv2zbn.jpg   diy "turbo no hit block" '00 BP miata-20150403_195425_zpsmrgzr4zp.jpg

diy "turbo no hit block" '00 BP miata-20150403_195449_zpsadppbj8s.jpg
DNA54 is offline   Reply With Quote
Old 04-06-2015, 04:56 PM   #291
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Good news first: the wastegate actuator was unloaded, and at 14 psi it started to leak. It was impossible to raise the pressure. When I loaded the actuator I was able to reach 19 psi...

bad news: rx8 injectors can't flow enough. at 16 psi and injectors 100% opened afr's are over 12.0:1

I'm buying a walbro 255 lph, just to see if I reached the oem pump's limit, but I'm pretty sure that I need at least 750cc

13.5 psi launch (before I loaded the wastegate actuator):

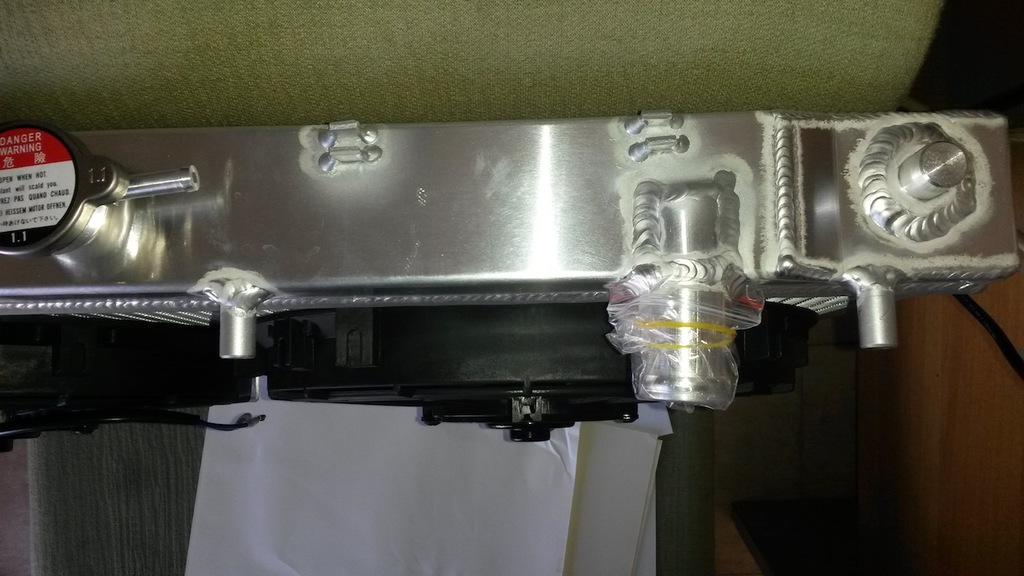

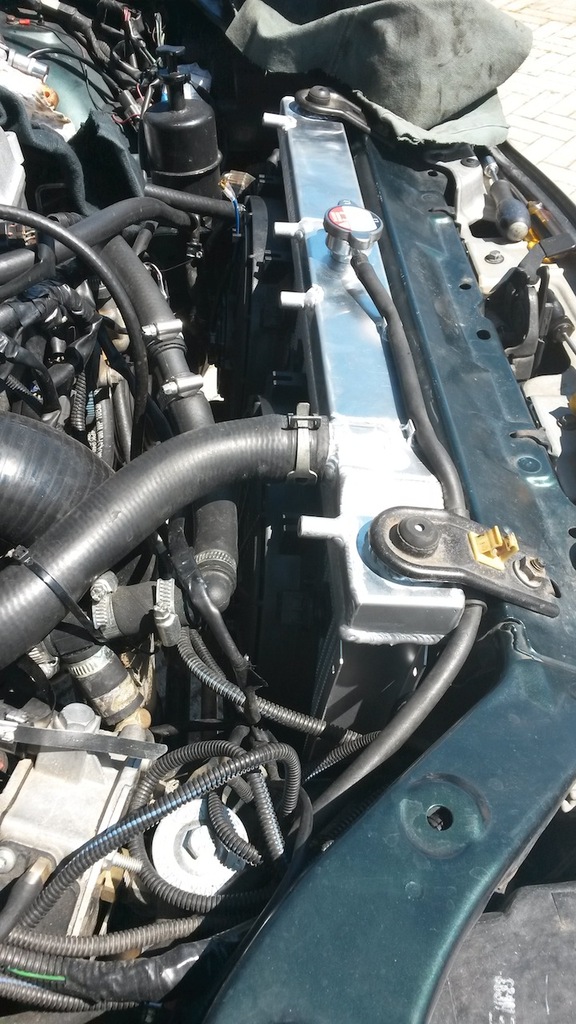

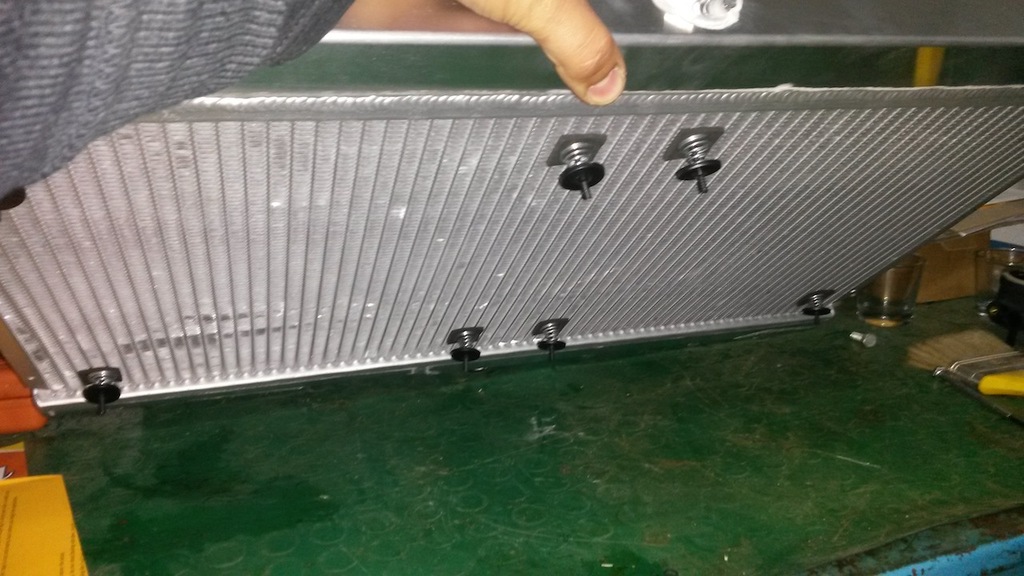

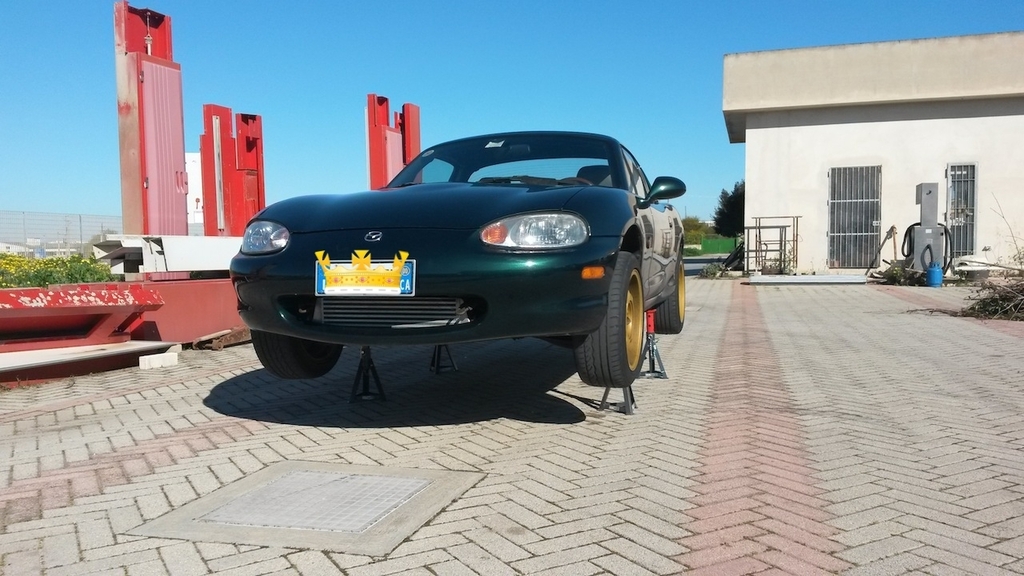

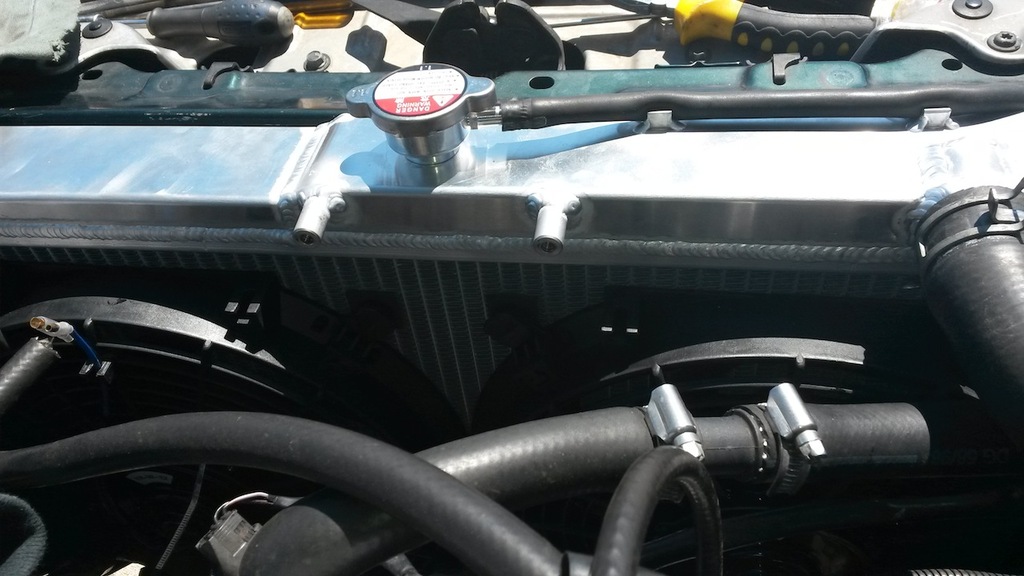

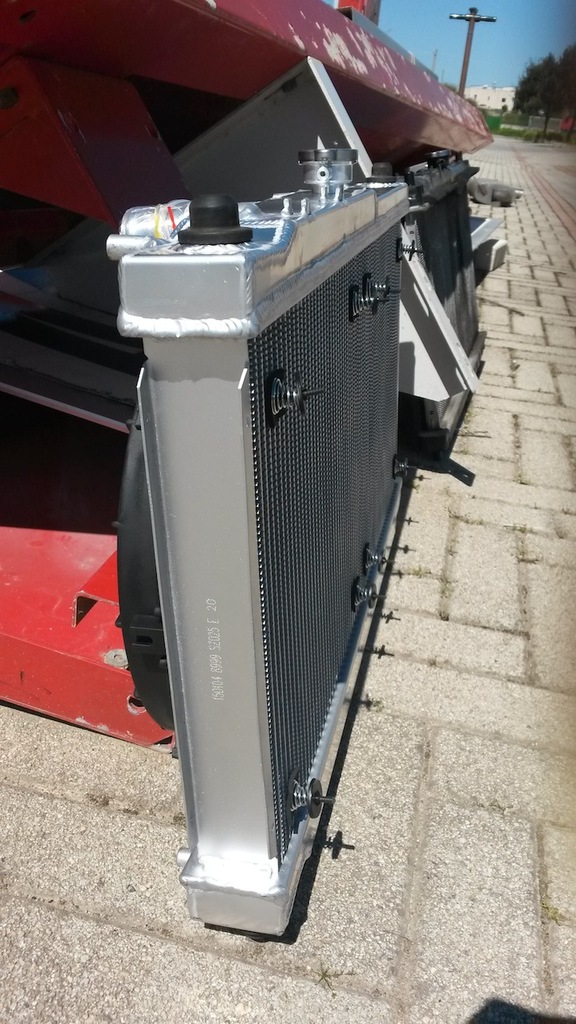

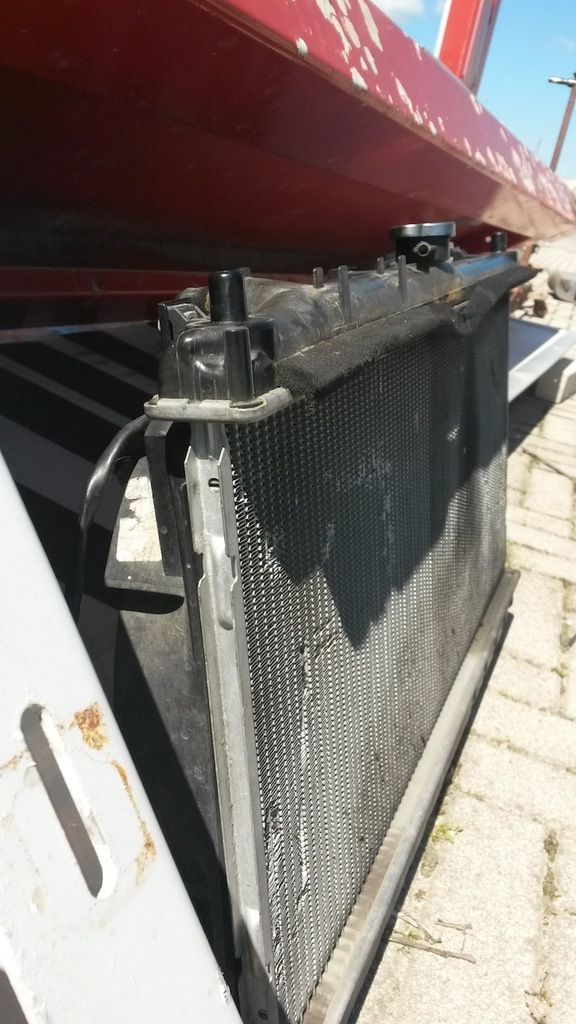

today I installed the radiator, and... yes: zip ties aren't the best solution. I will make some mounts next time







the massive difference






I checked for that clicking noise: at first I thought it was an empty exhaust lifter, but all the lifters are perfect



and then I found this

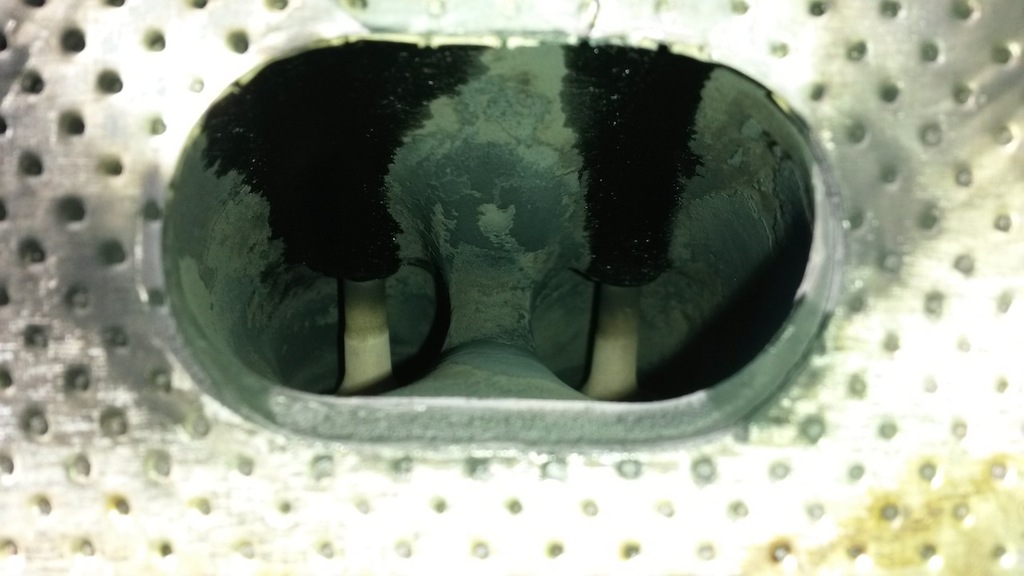

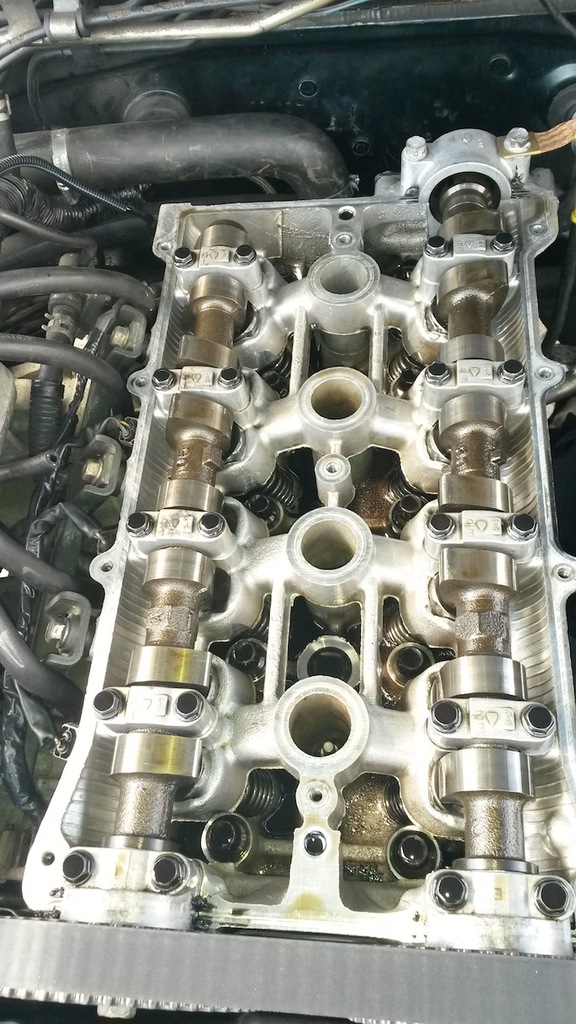

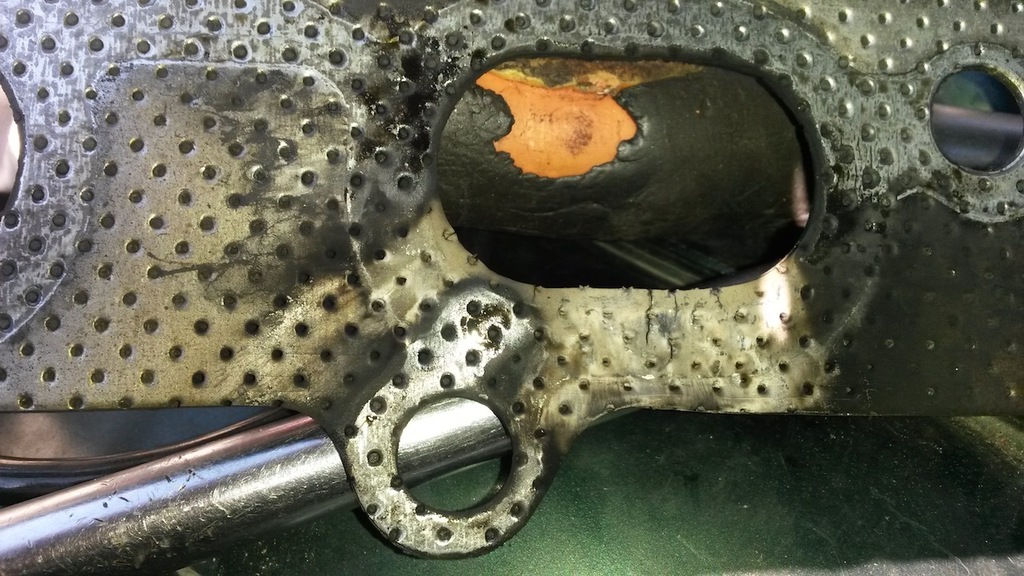

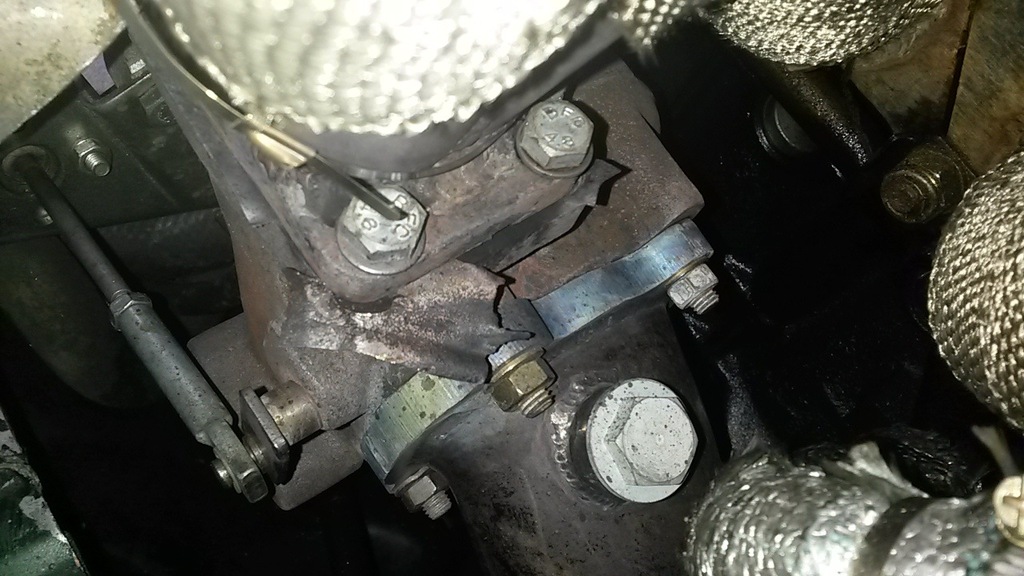

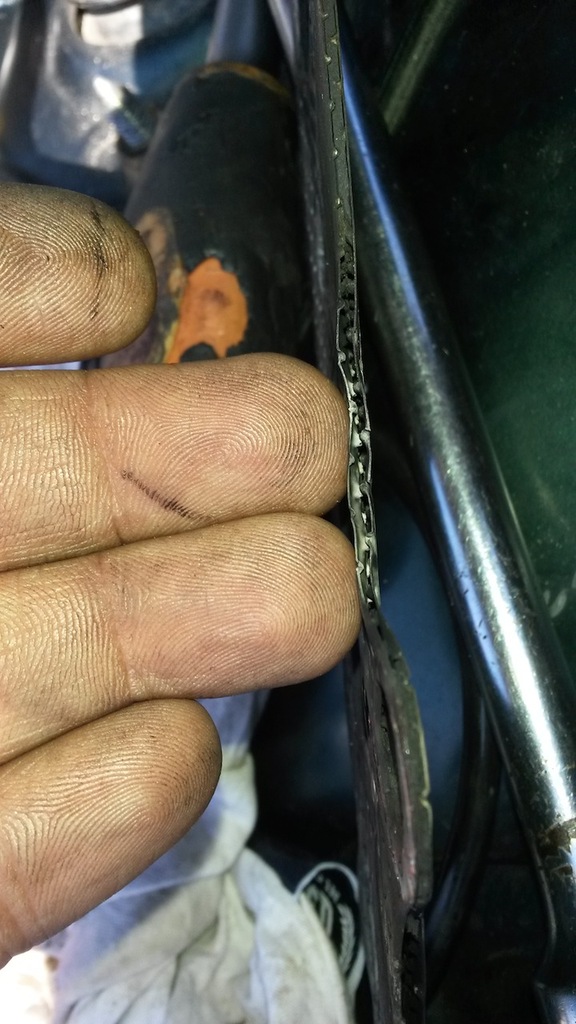

a massive exhaust leak from cyl. #2

It was the chinese gasket: a little bit of oil dropped from the valve cover probably burned the gasket. You can see the oil drop up to the valves



solution: stainless gasket, probably the oem one.

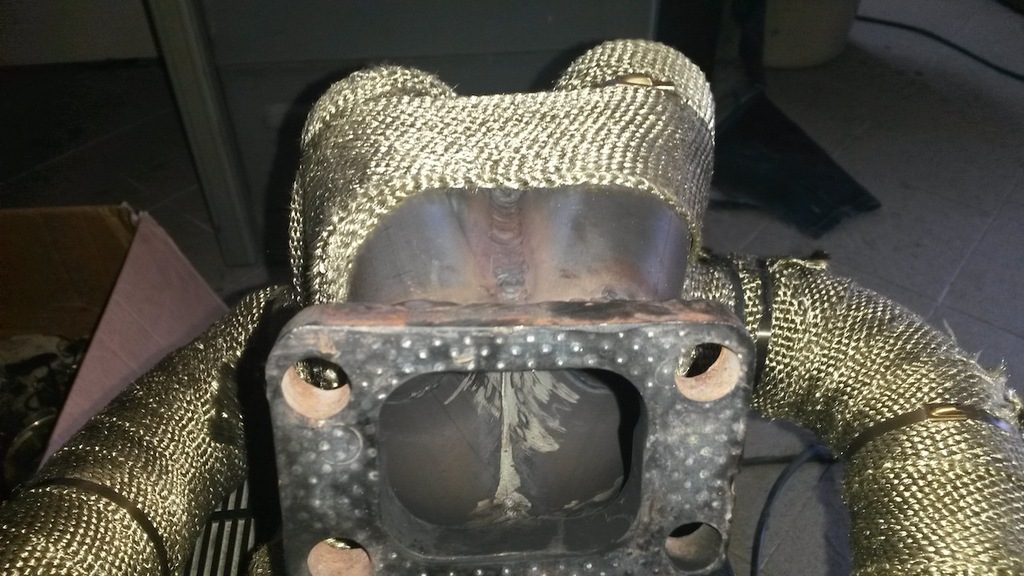

There was a little leak on the turbine side also, I will probably build a copper one (1mm thick)

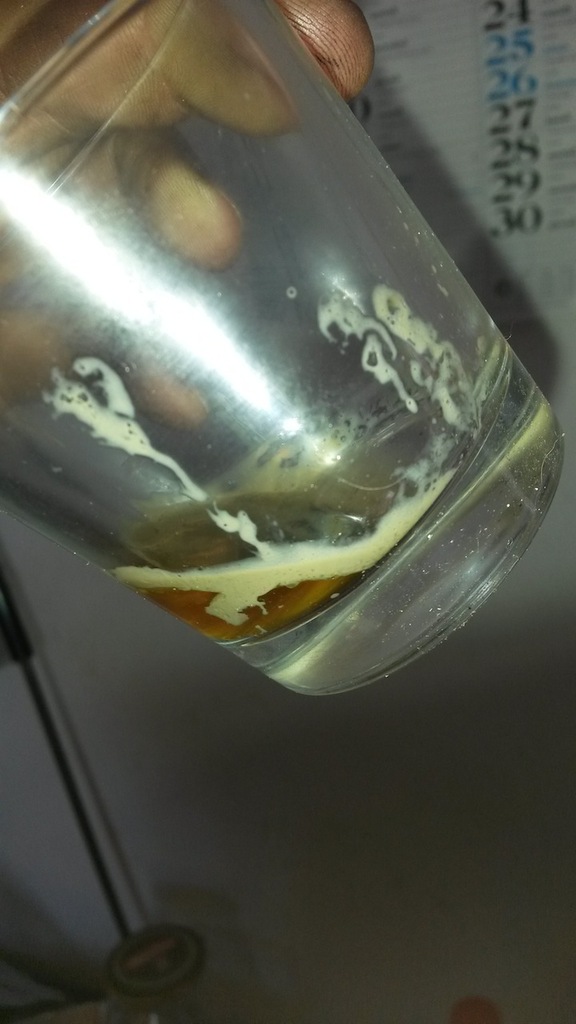

After 2000 km I found this in the oil catch can:



is it normal?
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150406_094058_zpsalbycito.jpg   diy "turbo no hit block" '00 BP miata-20150406_131059_zpsvypvg7lb.jpg   diy "turbo no hit block" '00 BP miata-20150406_131052_zpsnaoevguw.jpg   diy "turbo no hit block" '00 BP miata-20150406_124813_zpslyzhuer0.jpg   diy "turbo no hit block" '00 BP miata-20150406_124807_zpsdeacepxw.jpg

diy "turbo no hit block" '00 BP miata-img-20150406-wa0016_zpswlssr1vo.jpeg   diy "turbo no hit block" '00 BP miata-20150406_111440_zps1rccf8sq.jpg   diy "turbo no hit block" '00 BP miata-20150406_111522_zpshbx44vmo.jpg   diy "turbo no hit block" '00 BP miata-20150406_111201_zpsumjpj1nw.jpg   diy "turbo no hit block" '00 BP miata-20150406_135759_zpscyjxz1rq.jpg

diy "turbo no hit block" '00 BP miata-20150406_112156_zpshppicucp.jpg

Last edited by DNA54; 04-06-2015 at 05:07 PM.
DNA54 is offline   Reply With Quote
Old 04-06-2015, 04:56 PM   #292
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

double post...

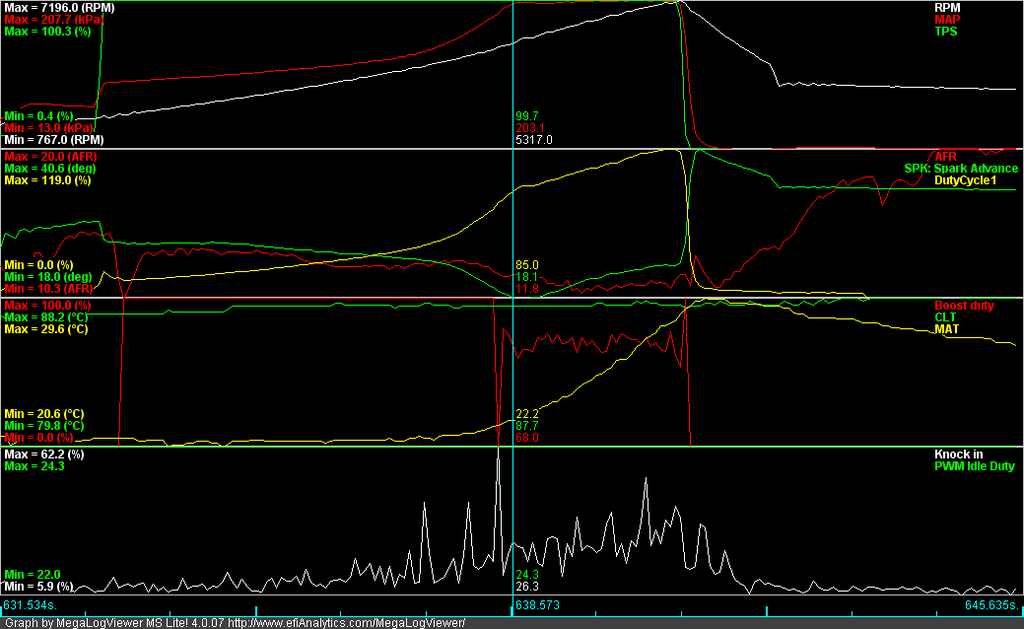

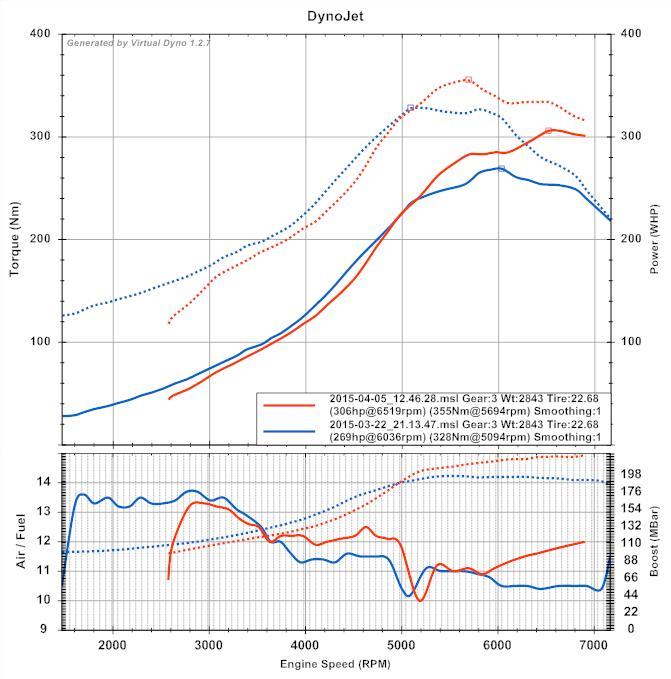

here you can see how afr's are rising with rpm (I stopped when I saw 12:1)



blue one: the last log at 13.5 psi. around 10C (night)
red one: when I could raise the pressure: 19 psi before I lift off the throttle. 26C (day)

both with the massive exhaust leak
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-urc_zpsfy2d96k4.jpg

Last edited by DNA54; 04-06-2015 at 05:13 PM.
DNA54 is offline   Reply With Quote
Old 04-07-2015, 06:44 AM   #293
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,391
Total Cats: 1,252
Default

AFRs can be effected by an exhaust leak.

Yes, the catch can oil and condensed water vapor is normal.
sixshooter is offline   Reply With Quote
Old 04-11-2015, 12:43 PM   #294
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by sixshooter View Post
AFRs can be effected by an exhaust leak.

Yes, the catch can oil and condensed water vapor is normal.
glad to hear that
Next week I will dyno on the mustang, hoping to hit 250hp

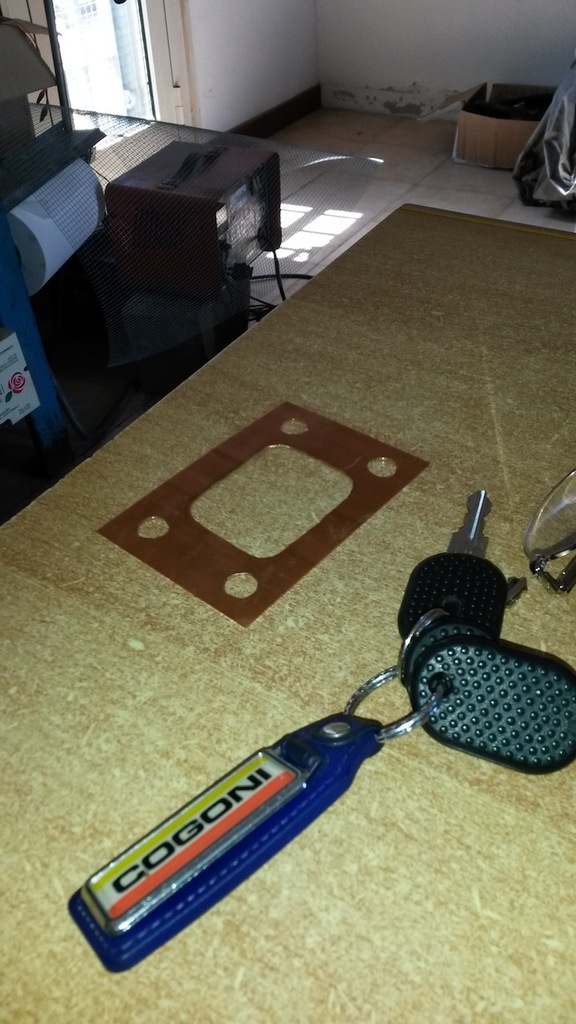

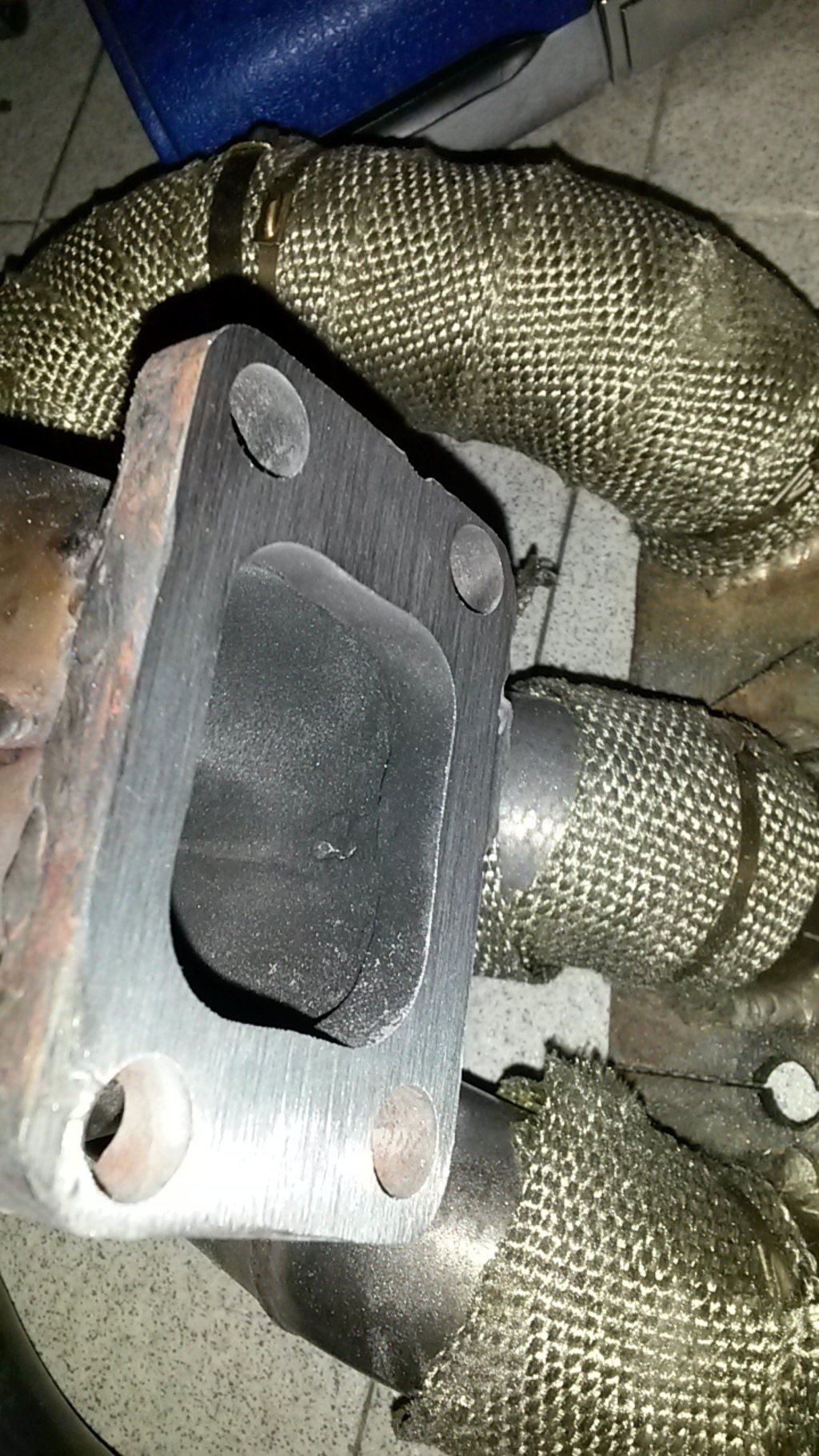

new copper gasket (0.6mm thick)



the manifold to turbo flange is not perfectly flat: this gasket lasted 1 day of rape.

bardahl full synt 10W40 and k&n oil filter

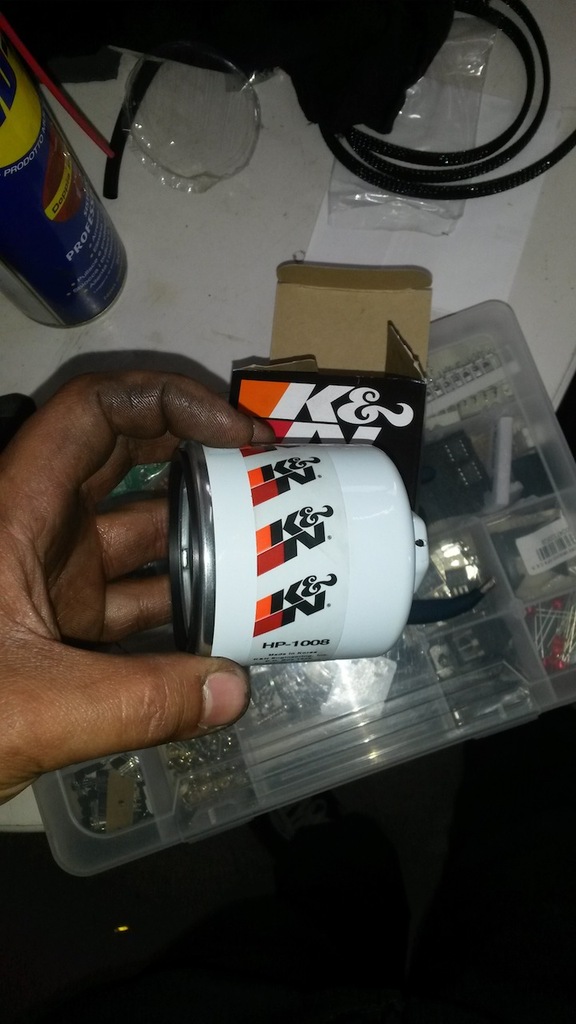

I finally tuned closed loop ebc, but with the exhaust leak the boost is a little bit late



target: 210 kPa

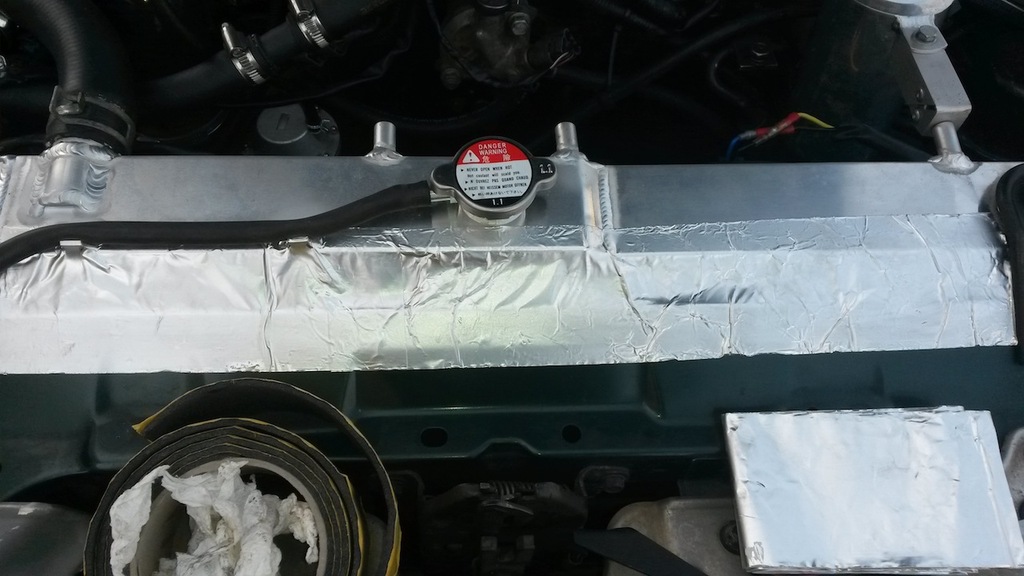

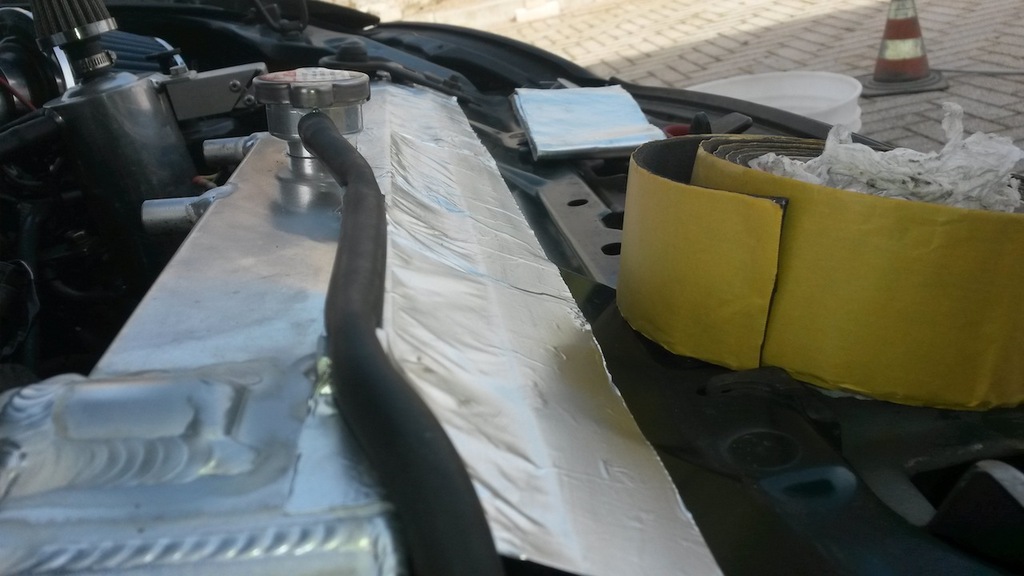

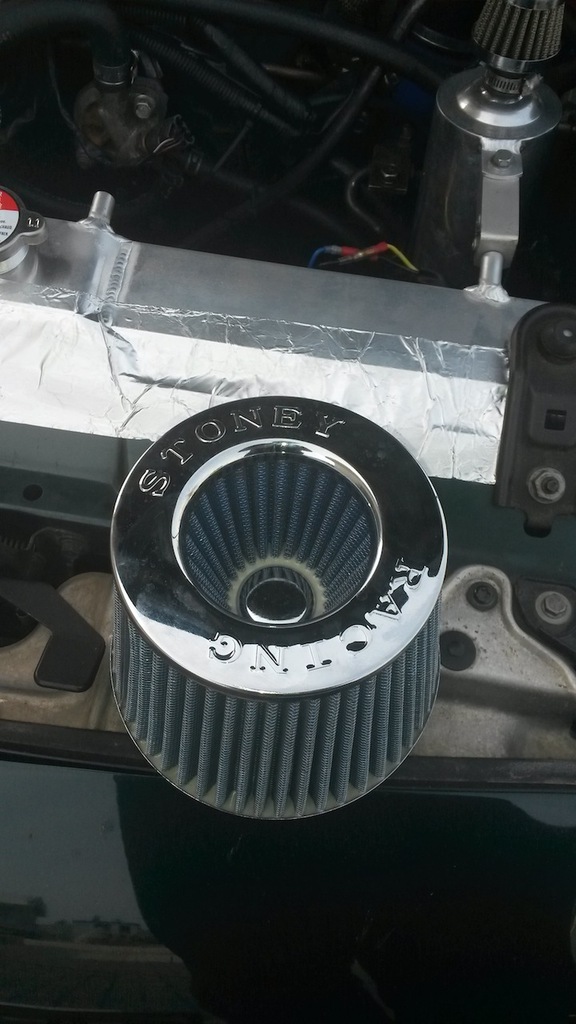

alluminum foil

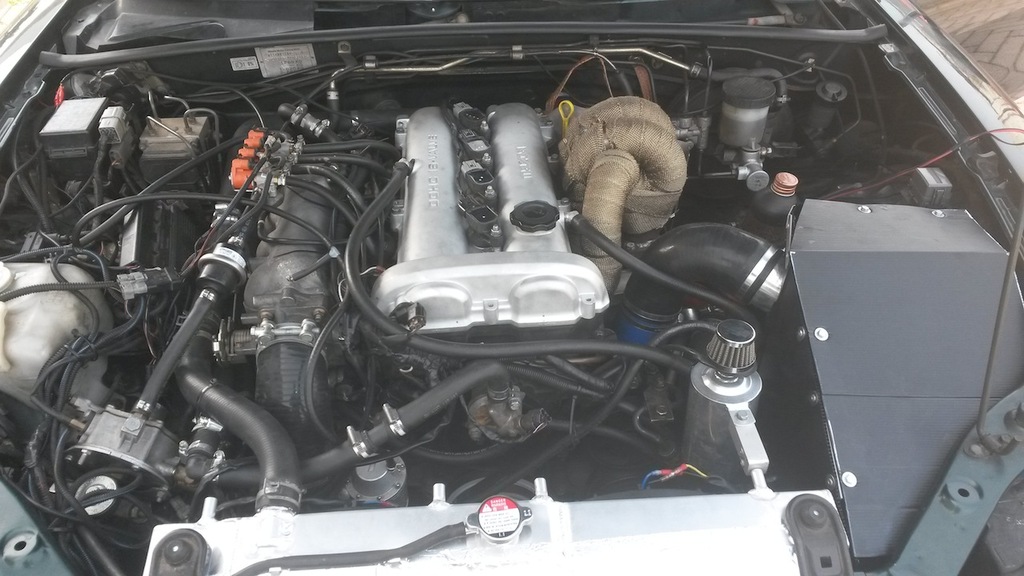

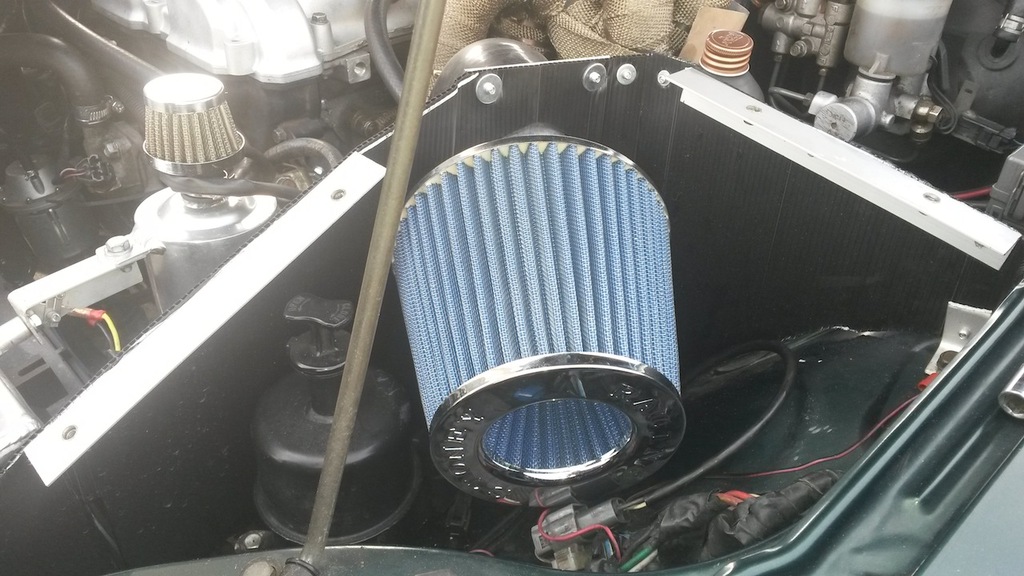

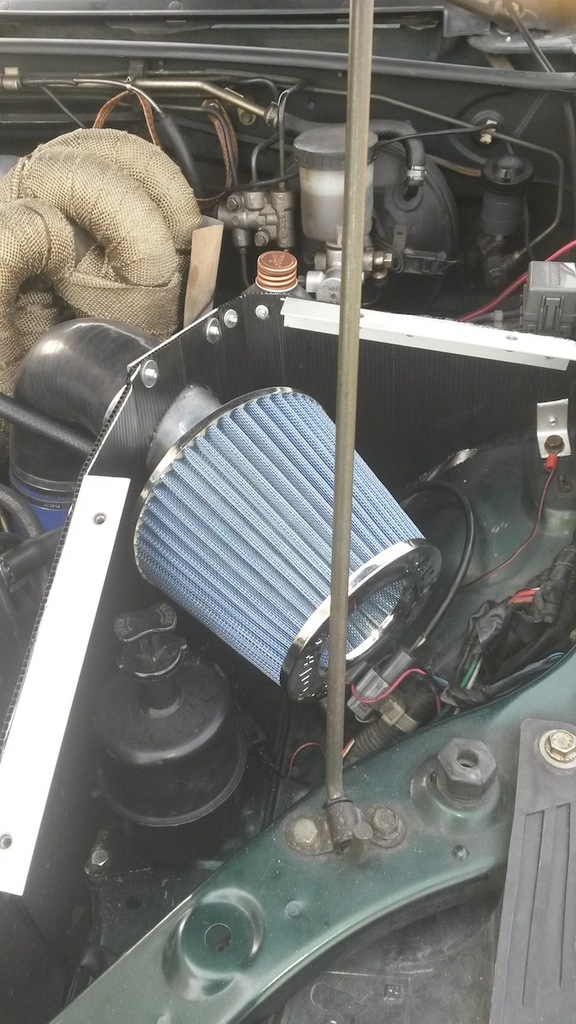

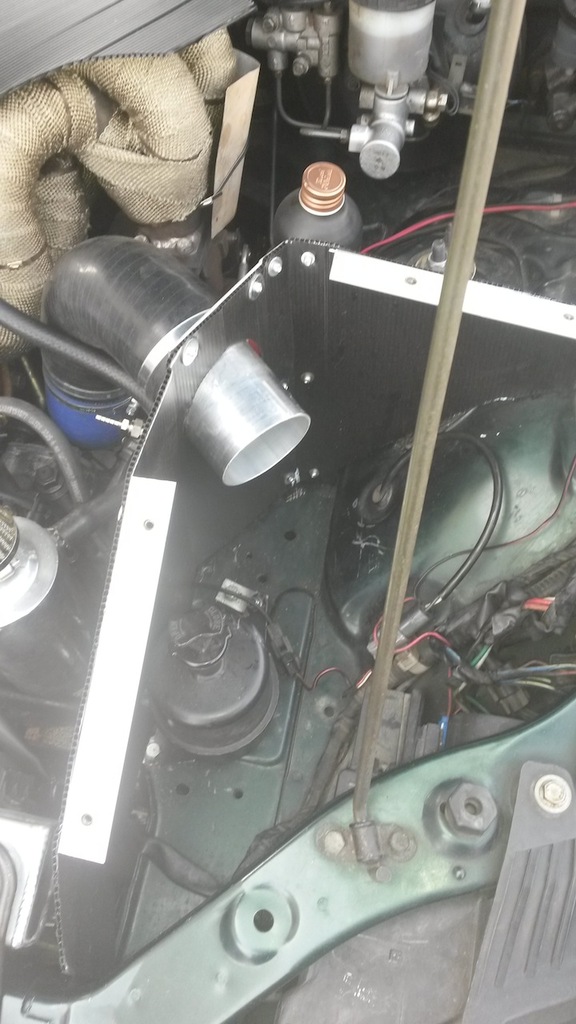

and... the airbox. Again.











I also removed the dwell reducer and wired the cops in full sequential. Much smoother
I've got some issues dwell-related, but I think I figured out.
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150410_120140_zpsdc6iiuro.jpg   diy "turbo no hit block" '00 BP miata-20150410_190110_zpsiqtx1vlo.jpg   diy "turbo no hit block" '00 BP miata-chrubos_zpskfyngw0k.png   diy "turbo no hit block" '00 BP miata-20150411_160901_zpszde6swqs.jpg   diy "turbo no hit block" '00 BP miata-20150411_160916_zpsvtaqufrh.jpg

diy "turbo no hit block" '00 BP miata-20150411_164356_zpsnkdcssjp.jpg   diy "turbo no hit block" '00 BP miata-20150411_164403_zpsczmkbe9f.jpg   diy "turbo no hit block" '00 BP miata-20150411_165333_zpso4qslejd.jpg   diy "turbo no hit block" '00 BP miata-20150411_165341_zpskjsh5mtj.jpg   diy "turbo no hit block" '00 BP miata-20150411_165239_zps7qf4u9bk.jpg

DNA54 is offline   Reply With Quote
Old 04-13-2015, 12:12 PM   #295
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,391
Total Cats: 1,252
Default

That plastic box might melt.
sixshooter is offline   Reply With Quote
Old 04-17-2015, 02:53 AM   #296
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by sixshooter View Post
That plastic box might melt.
Well, it didn't!
I'm gonna rebuild it with aluminium foil anyways: that was a test
DNA54 is offline   Reply With Quote
Old 05-02-2015, 02:21 PM   #297
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

a little bit of updates:

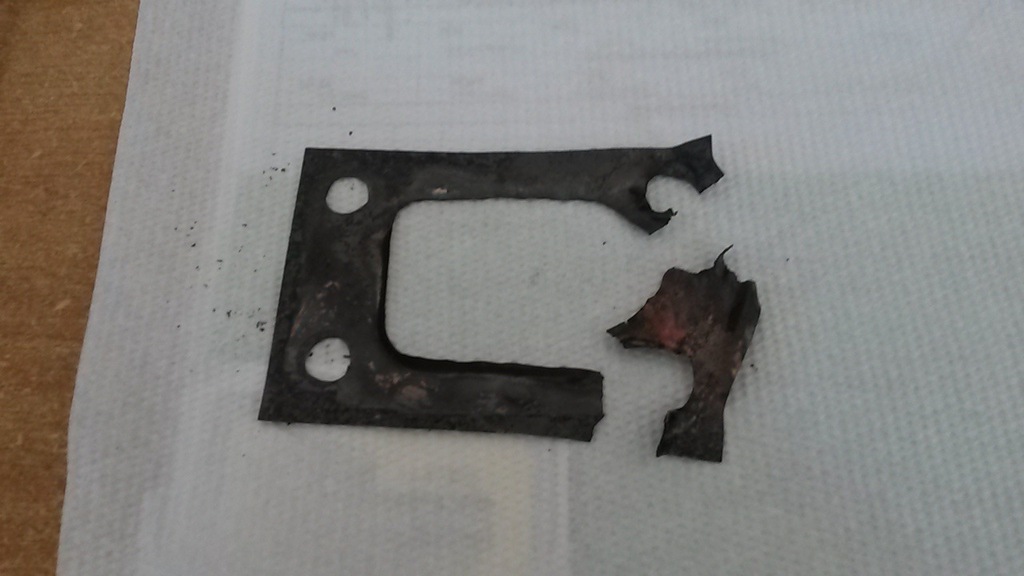

an hydraulic lifter finally collapsed (#3 of exhaust side)




I ordered two of them, just to be safe (2 weeks for the shipment!)

As I have to stop the car for two weeks, I done something good

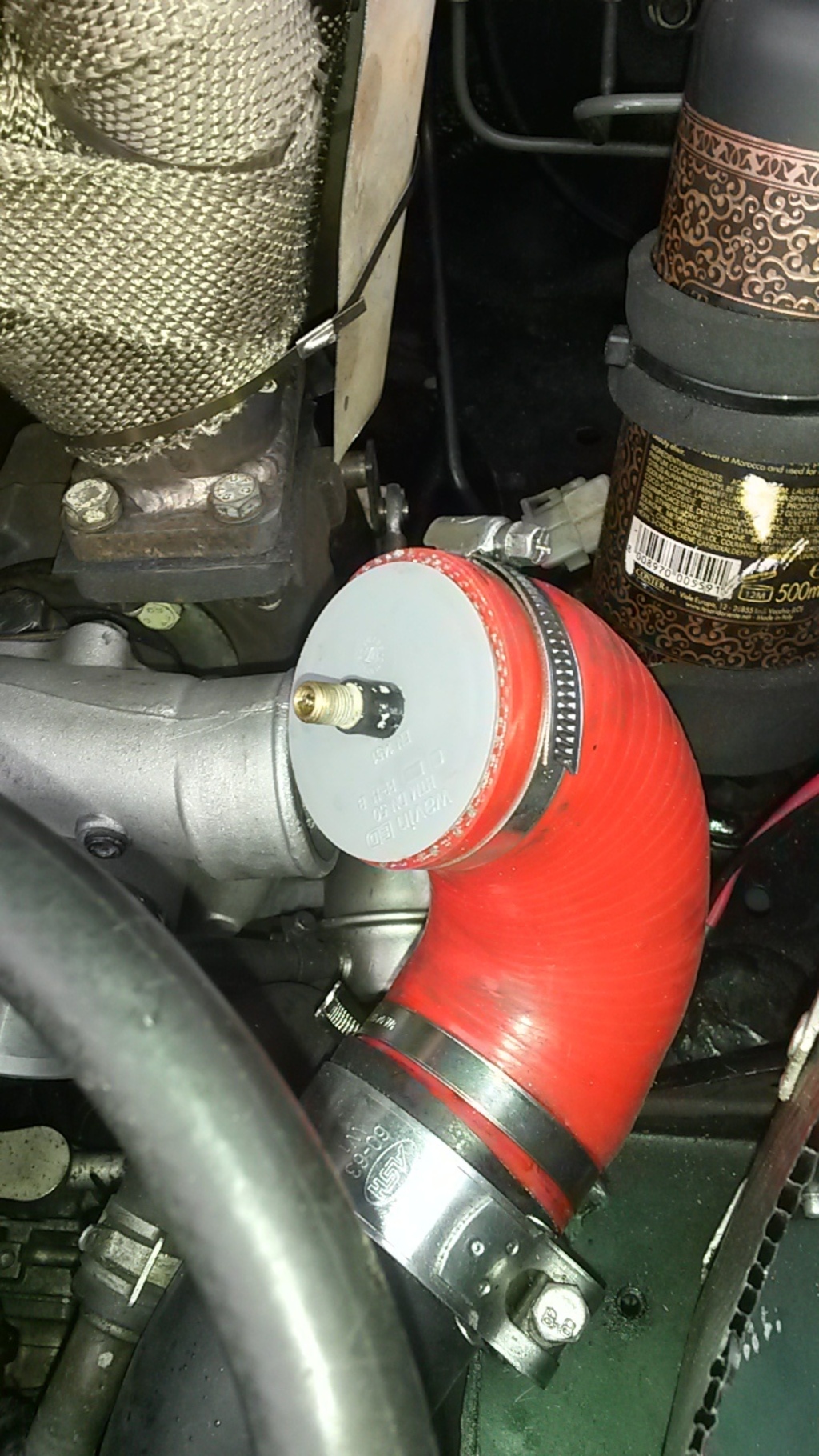

Test the circuit for leaks at 2 bar (29 psi)



there was a little leak on the ebc solenoid, everything else was fine

as I said, the copper gasket lasted just one day

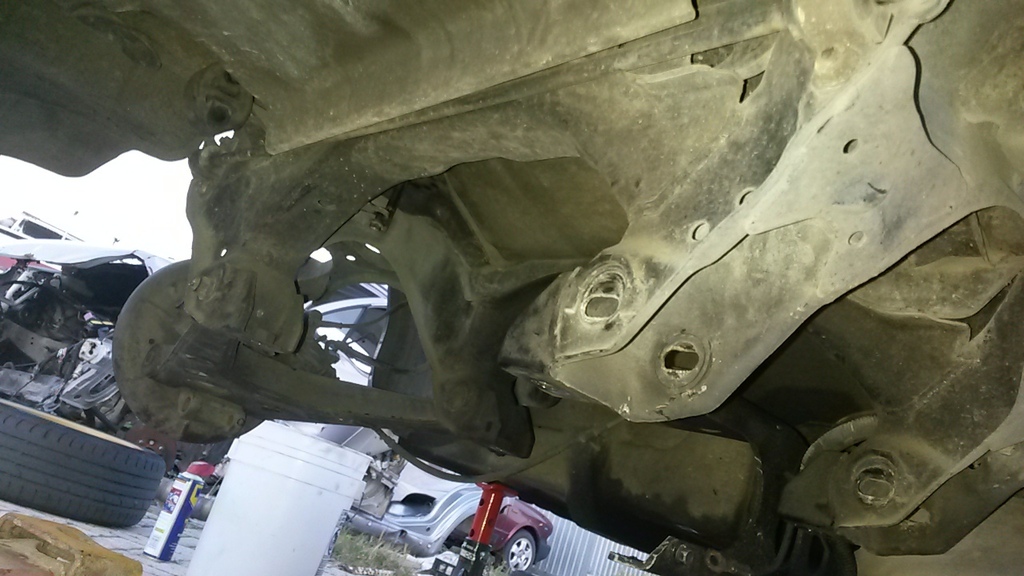

Shaved

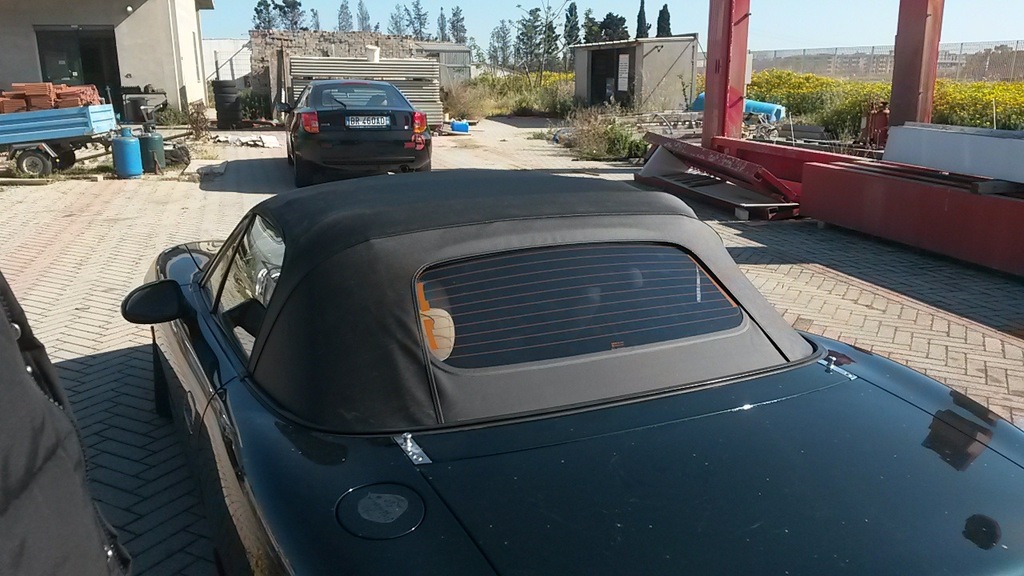

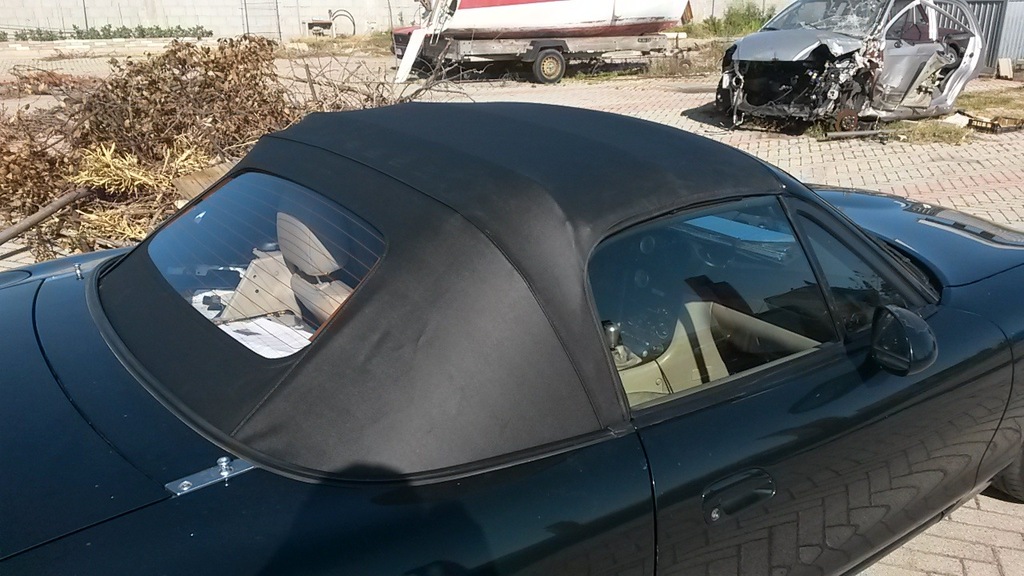

New soft top

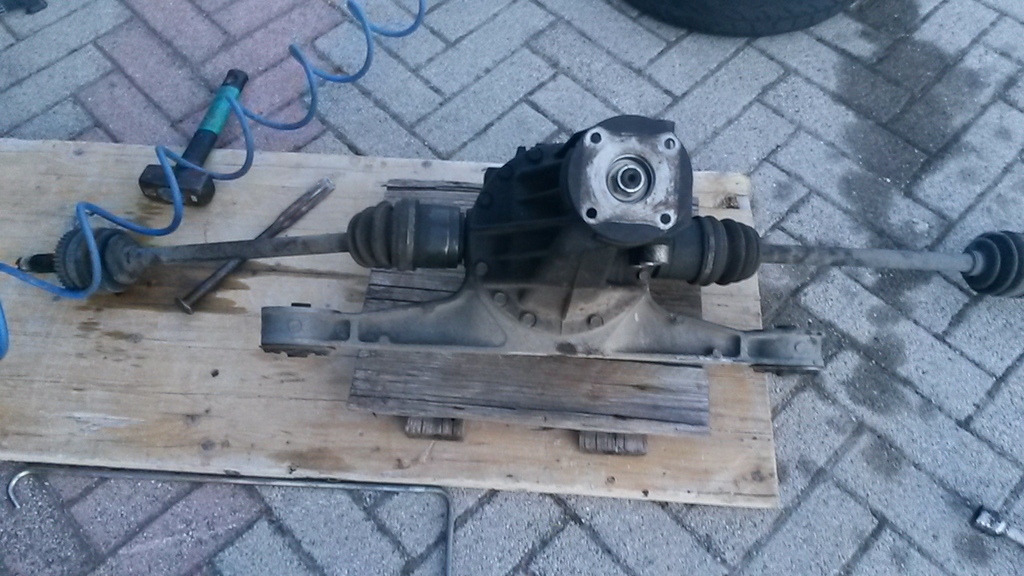

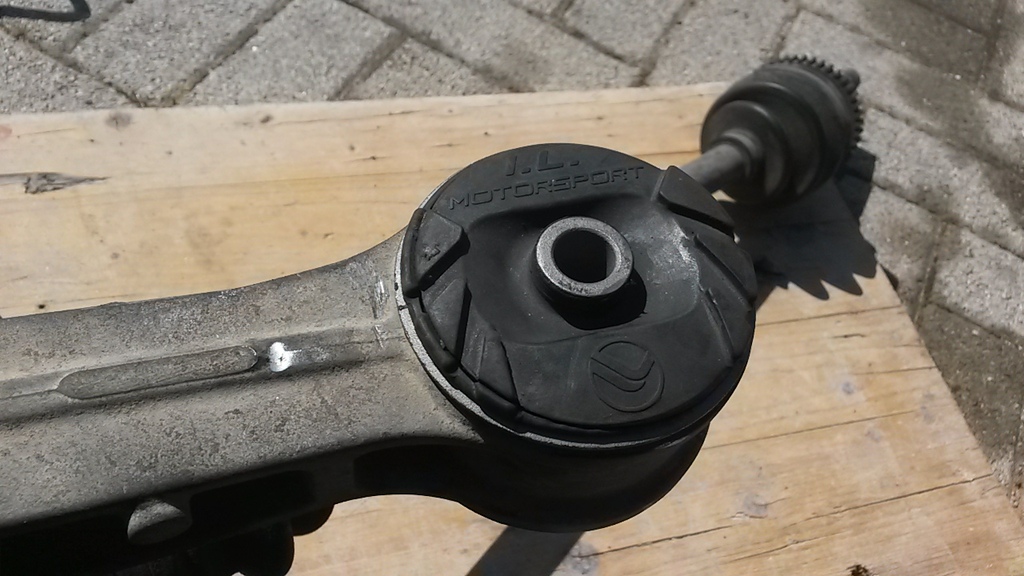

il motorsport differential mounts







and now I am waiting for the hla's... until 5th
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150423_193716_zpsyltnkmmo.jpg   diy "turbo no hit block" '00 BP miata-20150424_130432_zpsugst2ufg.jpg   diy "turbo no hit block" '00 BP miata-20150421_165637_zpsznm6g9u9.jpg   diy "turbo no hit block" '00 BP miata-20150421_165646_zpsn7vb3xd8.jpg   diy "turbo no hit block" '00 BP miata-20150428_201028_zpsdd15cuqa.jpg

diy "turbo no hit block" '00 BP miata-20150428_201759_zpshweezvks.jpg   diy "turbo no hit block" '00 BP miata-20150430_104600_zpspa30gazz.jpg
DNA54 is offline   Reply With Quote
Old 05-09-2015, 05:35 AM   #298
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

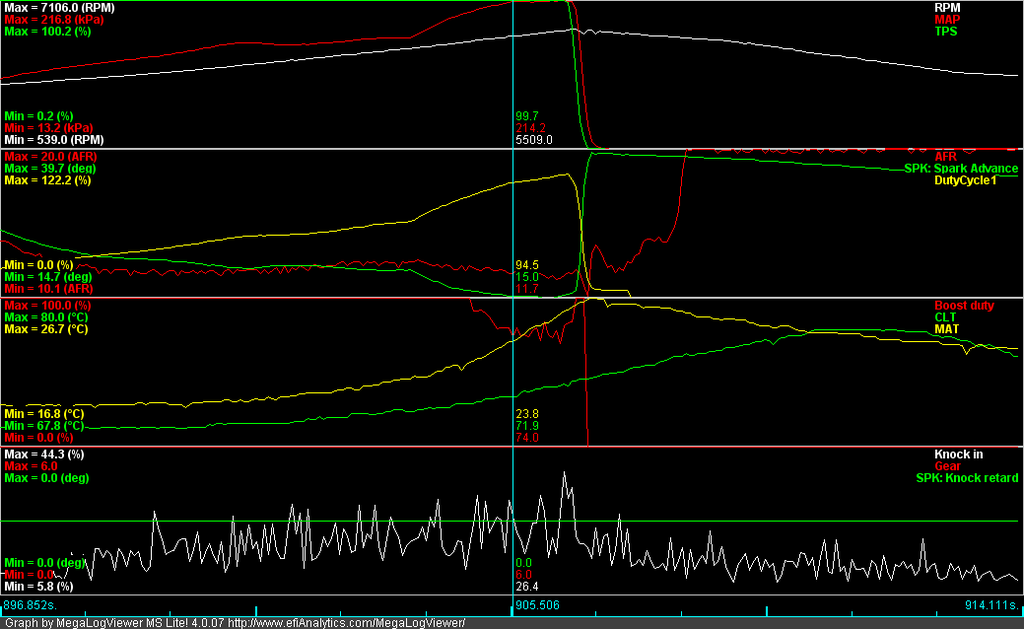

I officially run allofit from 5600 rpm (injectors 100% opened)



I'm thinking to buy some bigger injectors and a 190 lph pump
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-baaad_zpsd7ug5rnt.png
DNA54 is offline   Reply With Quote
Old 05-18-2015, 05:49 AM   #299
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

the boost was everiday a little bit less

I'm using the same chrubo that eated #3 piston pieces

epic shaft play (no side-to-side) I can make the compressor wheel touch the housing

dynoed the car on the hottest day ever come this year

on the dyno spooled at 5k
no moar power over 5k
200 whp from 5k to 7k rpm
boost was allofit: 0.8 bar / 11.6 psi at 5k and decreased to 0.6 bar / 8.7 psi at 7k
mat temp peak was at 88*C / 190F
never saw anything over 40C / 104F on the road, even during six gear pulls

this chrubo is finally gone.
now I'm taking a silvia replacement chrubo, and taking money apart for a 2560R.
Anyone had experiencies with the long-tube manifold+2560 combo?

Last edited by DNA54; 05-18-2015 at 04:13 PM.
DNA54 is offline   Reply With Quote
Old 05-18-2015, 09:21 AM   #300
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,373
Total Cats: 2,246
Default

when you say silvia replacement you mean t25g?
and when you say 2560r you mean Garrett gt2560r?

Because there's many variations of each.

But otherwise yes, lots of long tube gt25r setups over the years and all of them made good torque.

But since you're built why not go bigger? Price difference between 2560r and 2871r is not big
18psi is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
TunerStudio timining issue - 90 Miata 1.6 Turbo spec1sef MEGAsquirt 28 05-09-2017 07:03 AM
Project DDoS: '99 "Budget" boost build ProjectDDoS Build Threads 1 09-09-2015 01:52 PM
New here, saying hi, here's what I'm workin with. SuperSneakySecretSquirrel Meet and Greet 5 09-06-2015 08:30 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 02:13 AM.
