Old 06-18-2015, 06:26 AM   #321
Newb

Join Date: May 2014
Location: Appeltern, the Netherlands
Posts: 32
Total Cats: 2
Default

Before you fit it tweak your wastegate, you'll have lot less boostcreep
tjeerd is offline   Reply With Quote
Old 06-18-2015, 06:28 AM   #322
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

are you meaning porting it?
DNA54 is offline   Reply With Quote
Old 06-18-2015, 06:35 AM   #323
Newb

Join Date: May 2014
Location: Appeltern, the Netherlands
Posts: 32
Total Cats: 2
Default

Quote:
Originally Posted by DNA54 View Post
are you meaning porting it?
Yep, sorry...not a native speaker....
tjeerd is offline   Reply With Quote
Old 06-18-2015, 07:20 AM   #324
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,214
Total Cats: 1,473
Default

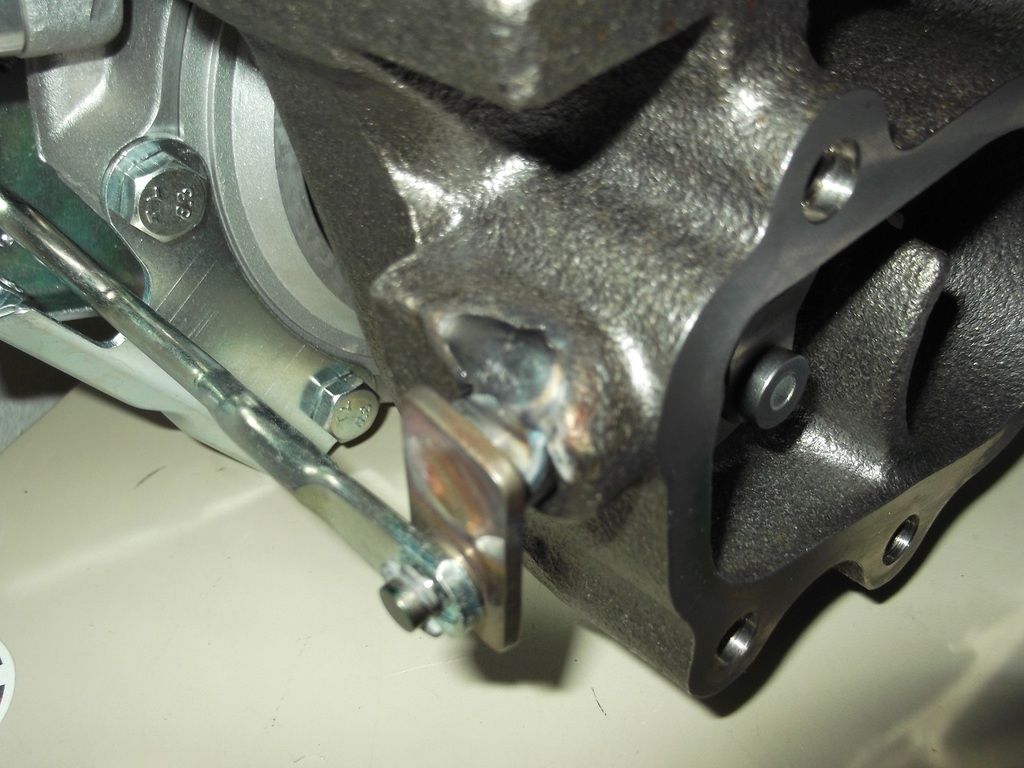

Is the wastegate arm welded in this pic?

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-80-141975_diy_turbo_no_hit_block_00_bp_miata_dscf3313_zps50menxpb_8fac196e9db60de46cc275c5c9609a.jpg
sixshooter is online now   Reply With Quote
Old 06-18-2015, 07:39 AM   #325
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Not the arm itself, but the bush.
The wastegate is free to rotate

Is it strange? It's an original garrett
DNA54 is offline   Reply With Quote
Old 06-18-2015, 08:16 AM   #326
Newb

Join Date: May 2014
Location: Appeltern, the Netherlands
Posts: 32
Total Cats: 2
Default

looks badly casted....possible failing point I presume
tjeerd is offline   Reply With Quote
Old 06-19-2015, 03:59 AM   #327
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Yesterday I clocked the turbo and checked the actuator: feels like a 7 psi unit.

I also began to weld a new manifold to head flange because mine is warped, and there's a little leak even whith a new oem gasket..

The only issue: oil line.
I need to connect somehow an 8mm copper pipe to the restrictor.

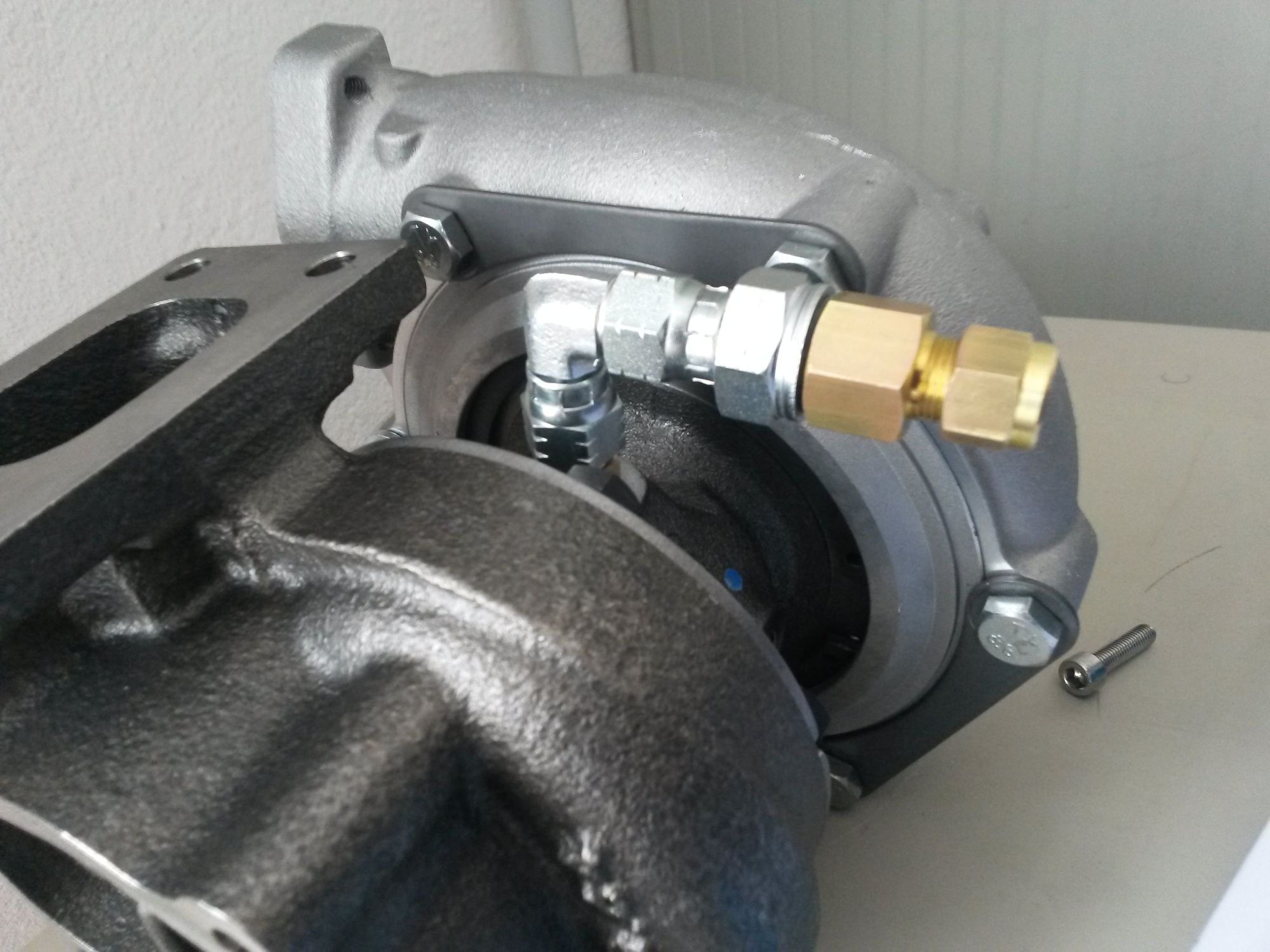

This is what I could find



Terrible, isn't it?
And heavy as hell.
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-80-20150618_171446_0f2b696cad019c6887d5bc88d76a231bf5e63be6.jpg
DNA54 is offline   Reply With Quote
Old 06-19-2015, 07:49 AM   #328
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,214
Total Cats: 1,473
Default diy "turbo no hit block" '00 BP miata

Brass is not as strong as steel and it is better to use less adapters when possible. Each is a possible point of failure.
sixshooter is online now   Reply With Quote
Old 06-19-2015, 09:30 AM   #329
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,164
Total Cats: 1,874
Default

Quote:
Originally Posted by DNA54 View Post
The only issue: oil line.
I need to connect somehow an 8mm copper pipe to the restrictor.
You are planning to use copper pipe to supply oil to the turbo?
Joe Perez is offline   Reply With Quote
Old 06-19-2015, 09:43 AM   #330
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by Joe Perez View Post
You are planning to use copper pipe to supply oil to the turbo?
Yes, if you watch the first two pages of this topic, you can see my feed line.

Sixshooter: I know that... the restrictor itself is brass.
I'm finding a different solution, but it's difficult to find npt stuff in Italy
DNA54 is offline   Reply With Quote
Old 06-19-2015, 09:46 AM   #331
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by tjeerd View Post
Yep, sorry...not a native speaker....

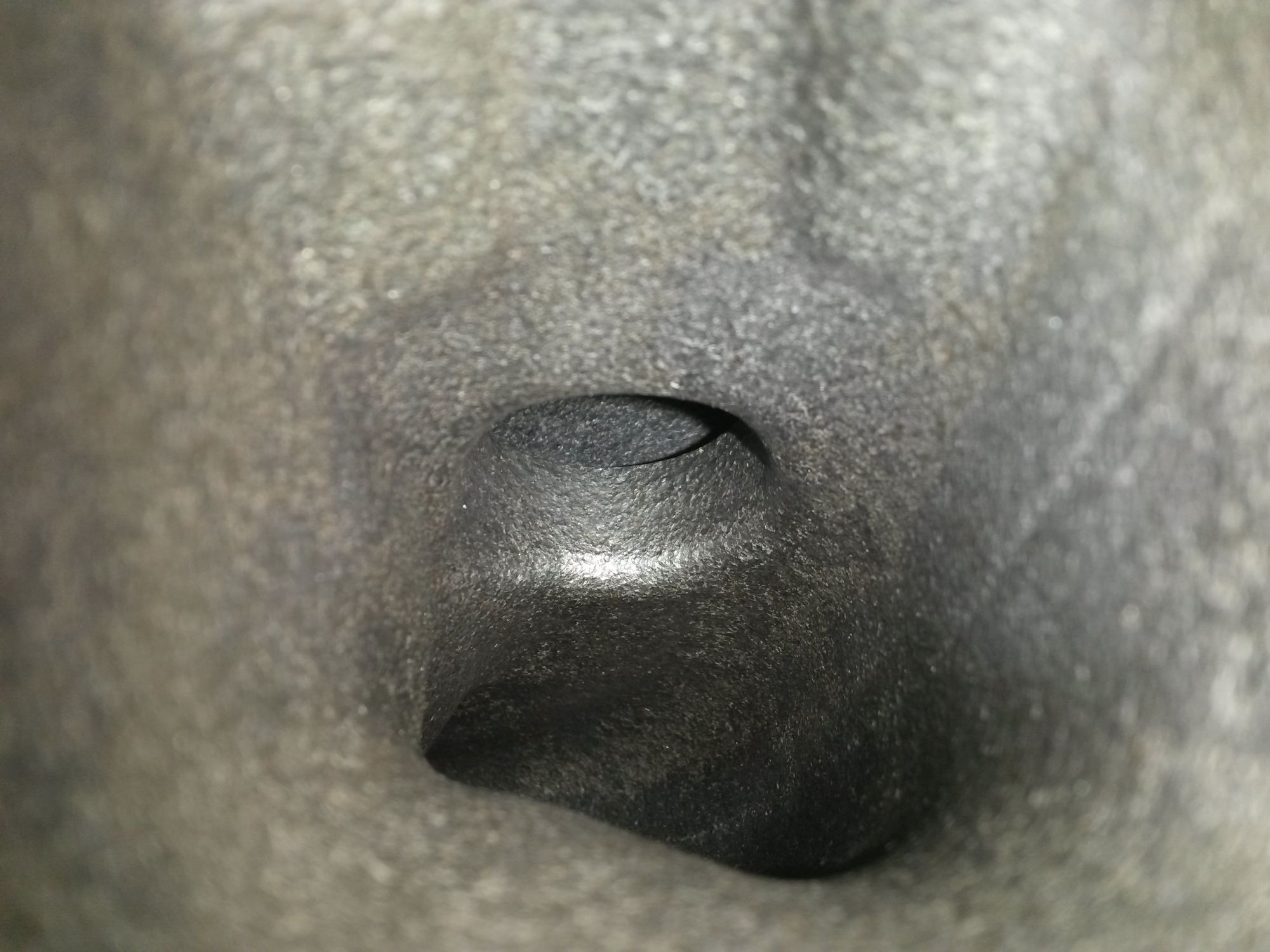

The wastegate port cast is not bad at all, I think to leave it as-is for the moment. If a creep problem appears, I will port it.
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-80-20150618_172105_a9af69b43dc7ab10a22ed9091db9950c3bcceb9b.jpg
DNA54 is offline   Reply With Quote
Old 06-20-2015, 07:55 PM   #332
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Today I began to work

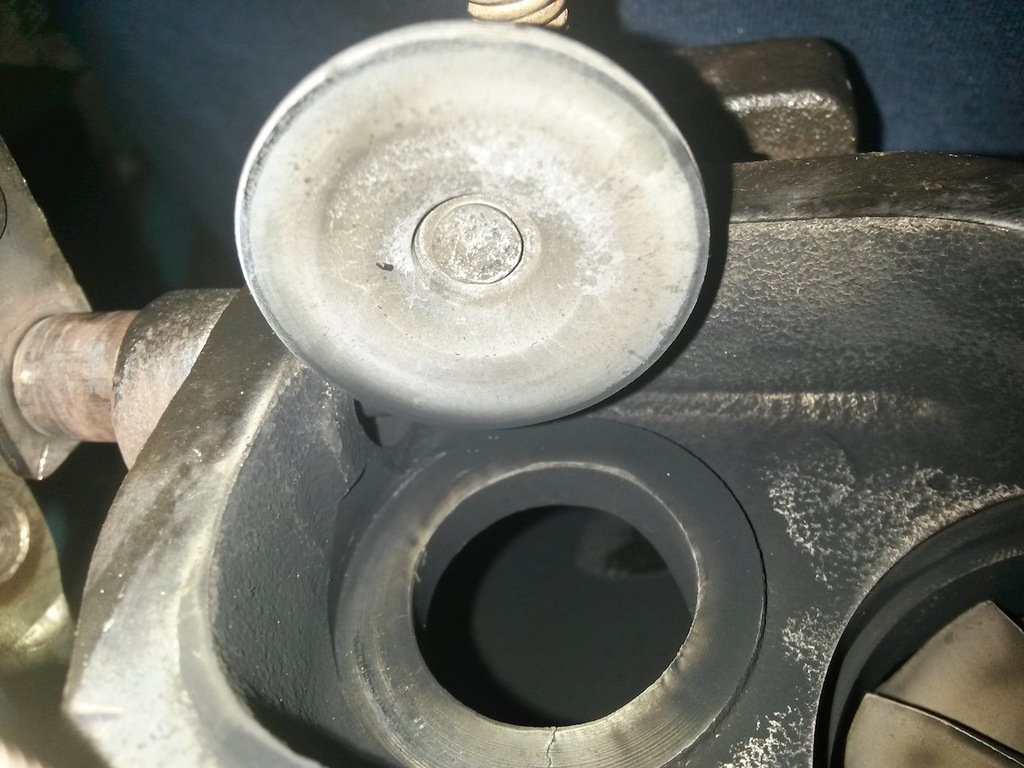

I found why everyday the boost was a little bit less: the wastegate couldn't close completely.

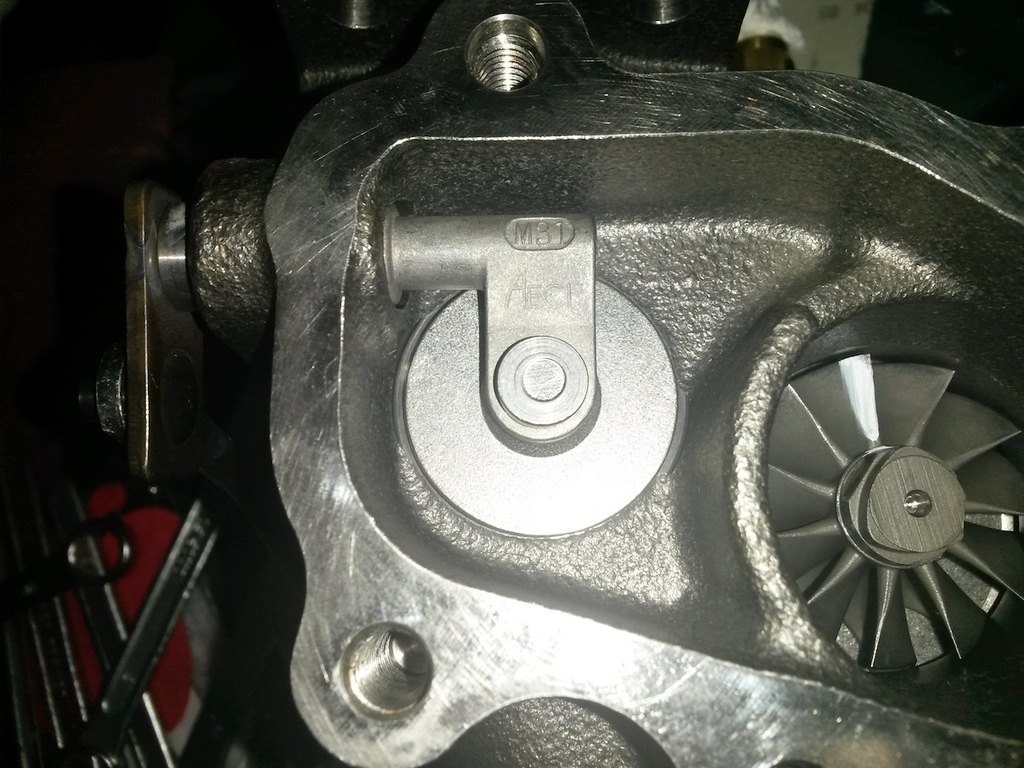

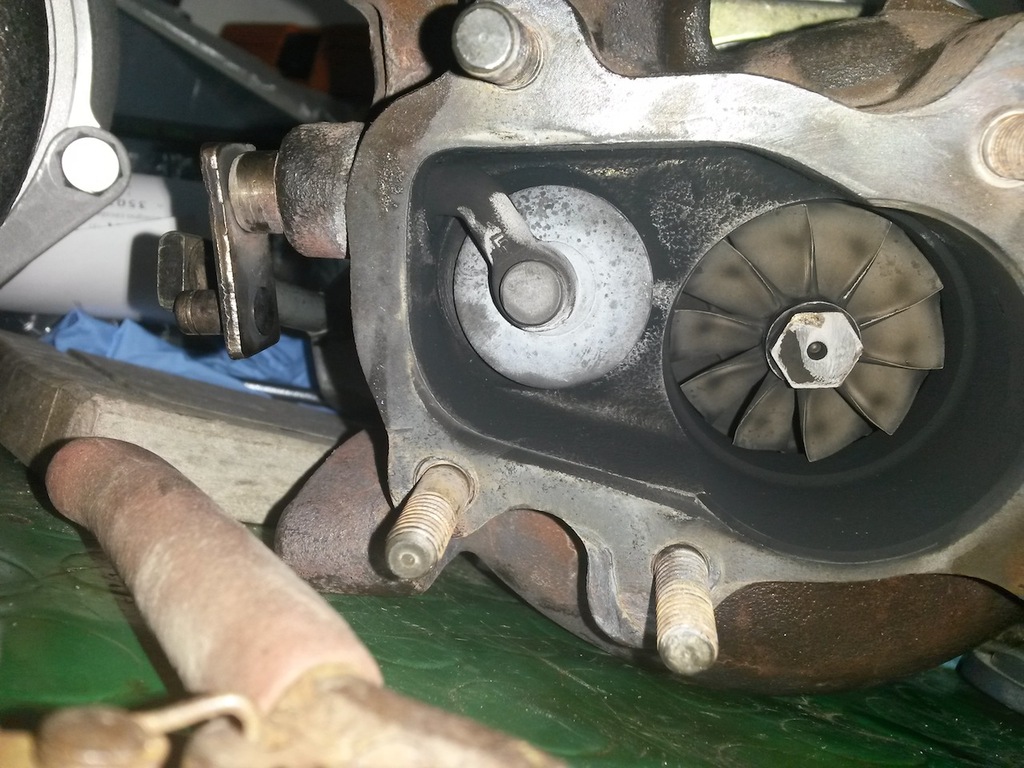

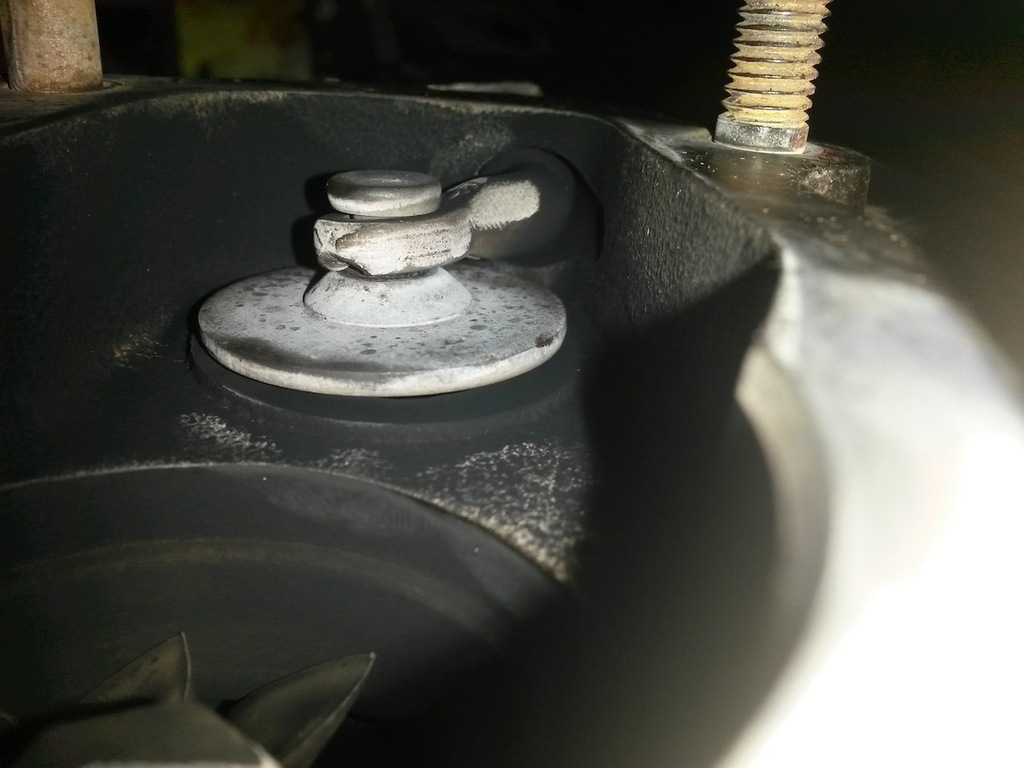

The flapper was slightly bent:










properly made shaft:

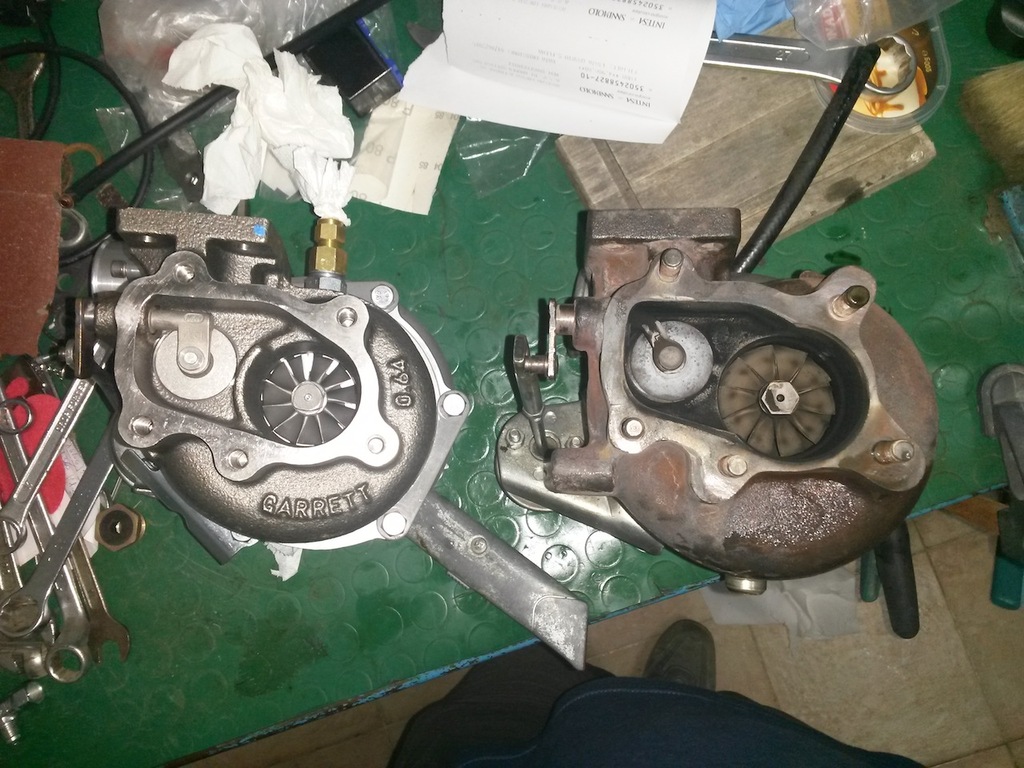

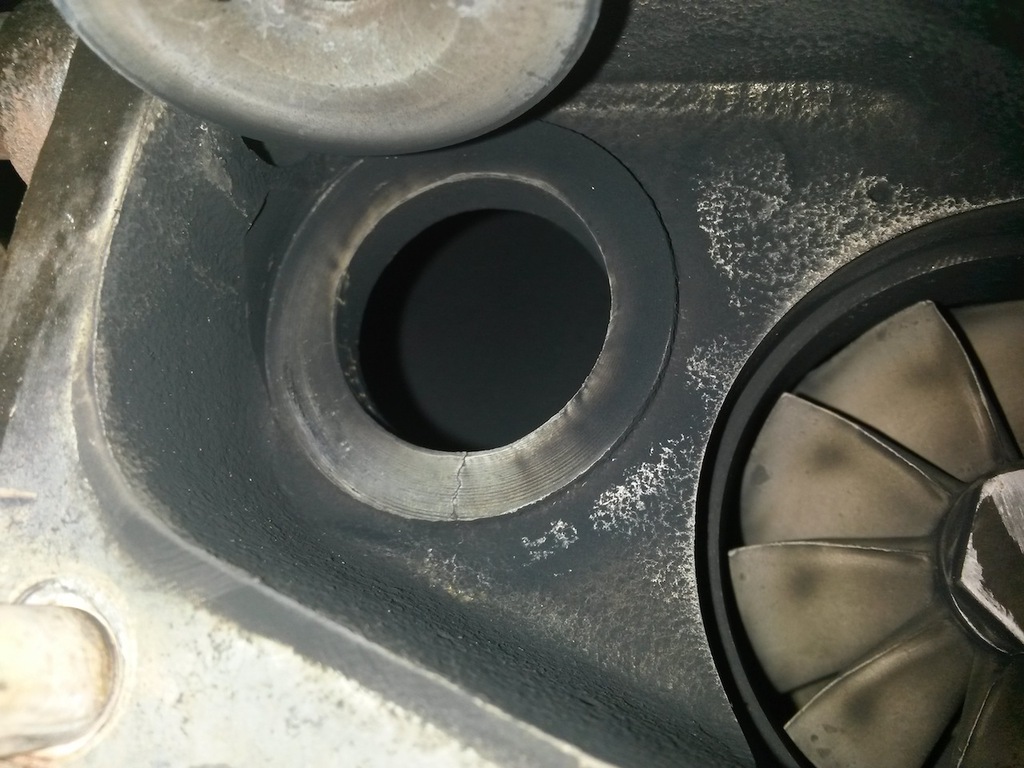

turbine housing differences:

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150620_212647_zpsnmi1cfyc.jpg   diy "turbo no hit block" '00 BP miata-20150620_212743_zpsjn78azbh.jpg   diy "turbo no hit block" '00 BP miata-20150620_212750_zpstupa2fke.jpg   diy "turbo no hit block" '00 BP miata-20150620_213838_zpsgvn6upni.jpg   diy "turbo no hit block" '00 BP miata-20150620_215554_zpsy3yrmrsi.jpg

diy "turbo no hit block" '00 BP miata-20150620_215544_zpsy55gqzro.jpg
DNA54 is offline   Reply With Quote
Old 06-22-2015, 10:45 AM   #333
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

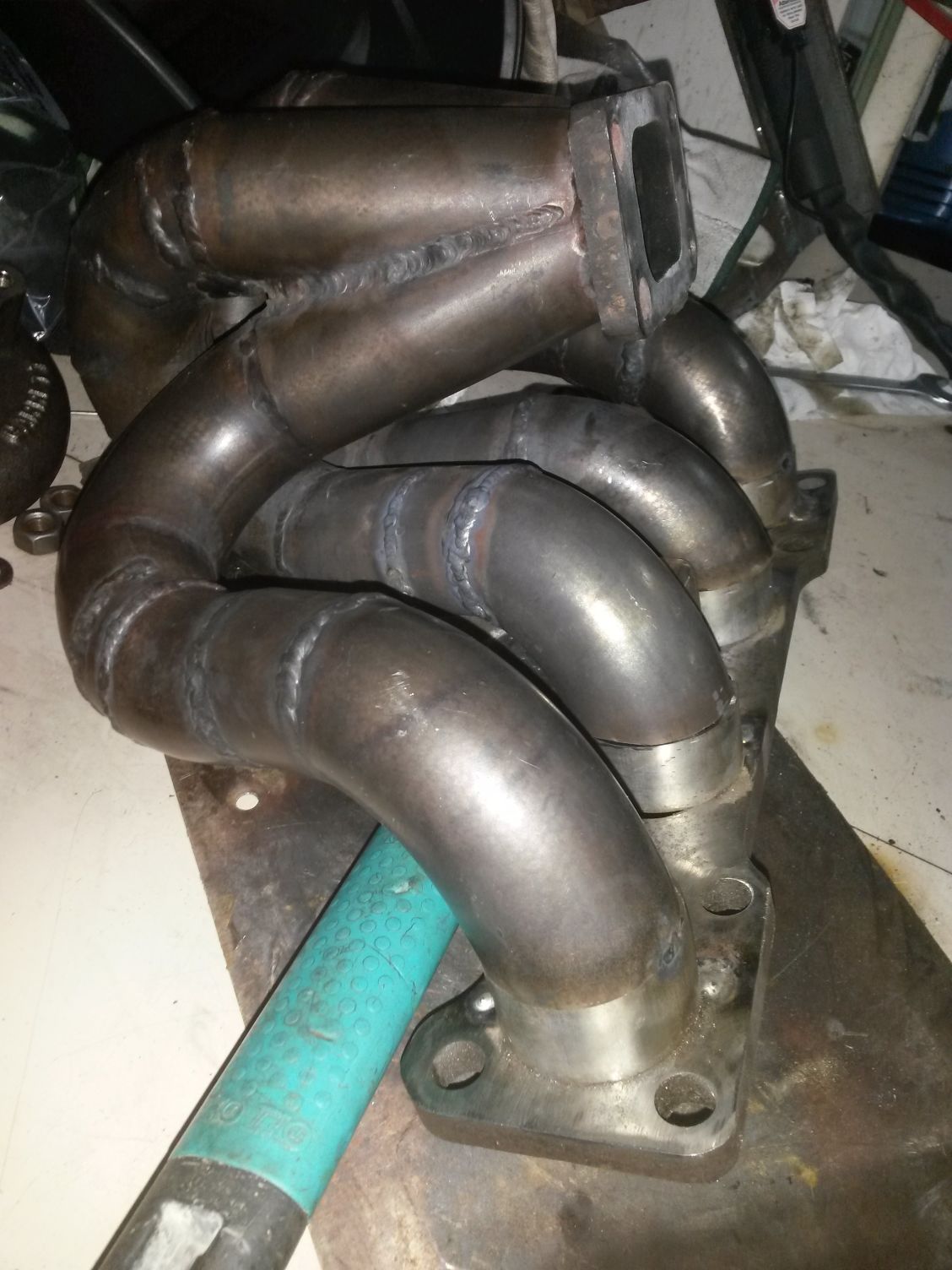

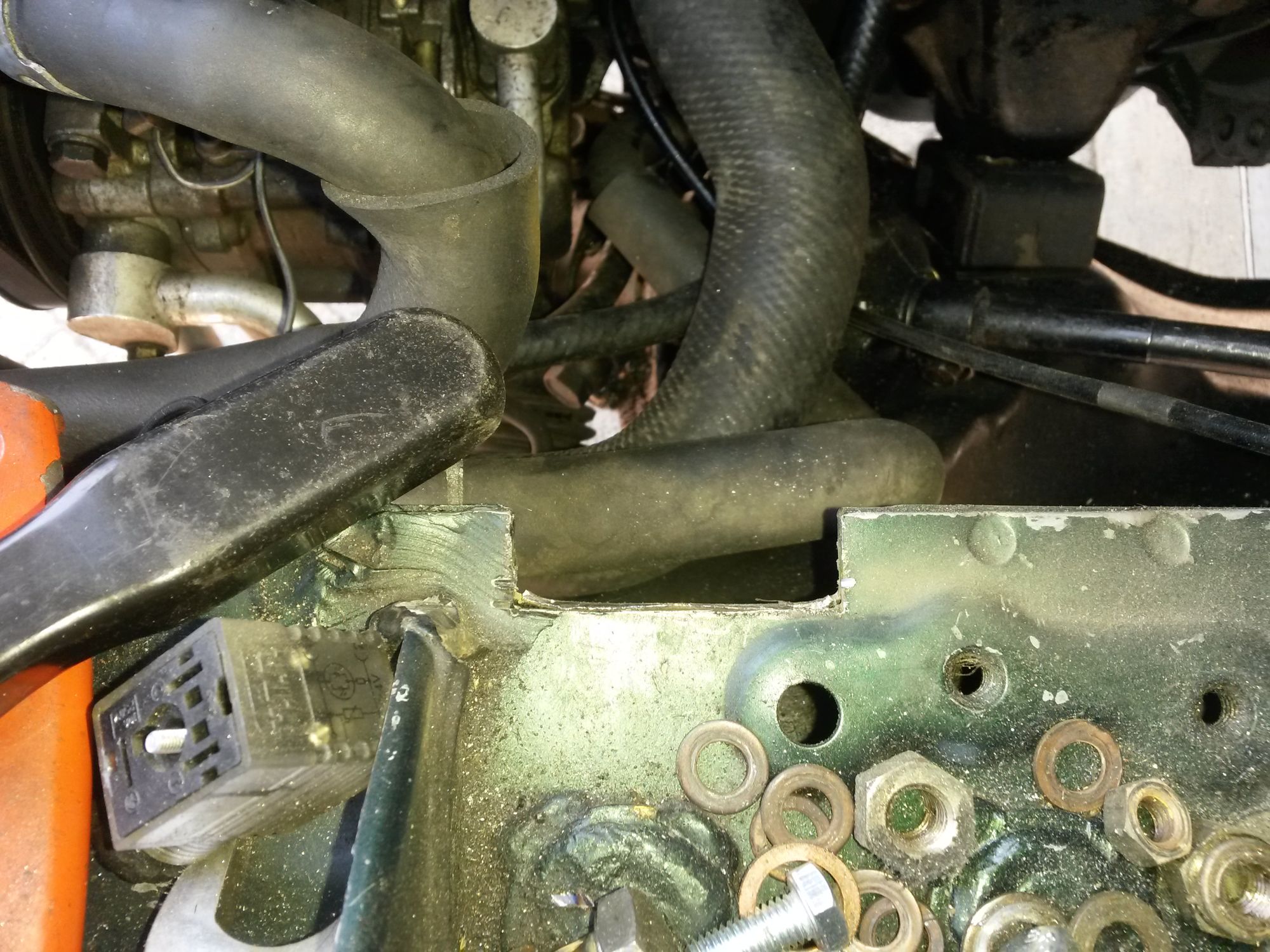

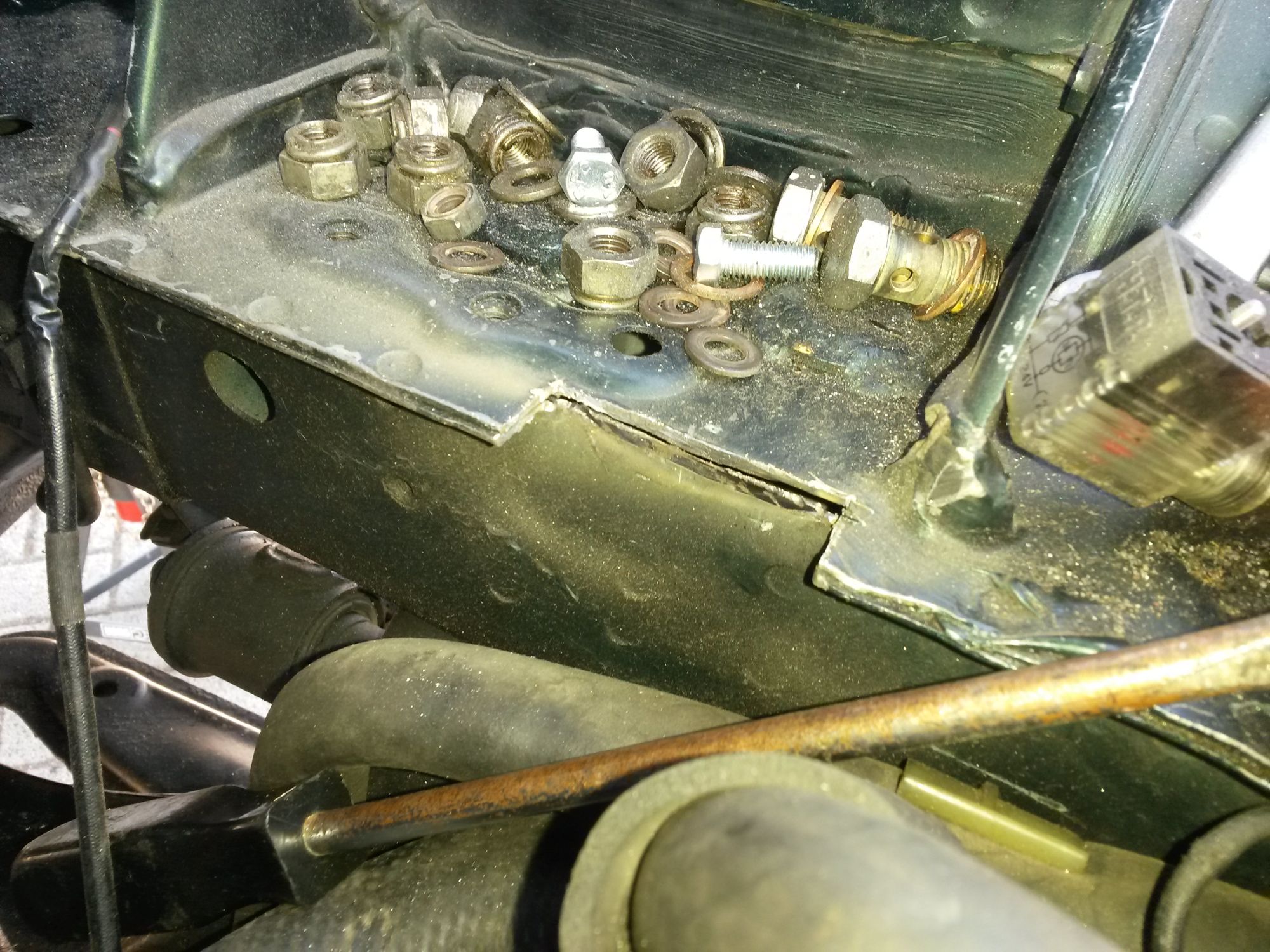

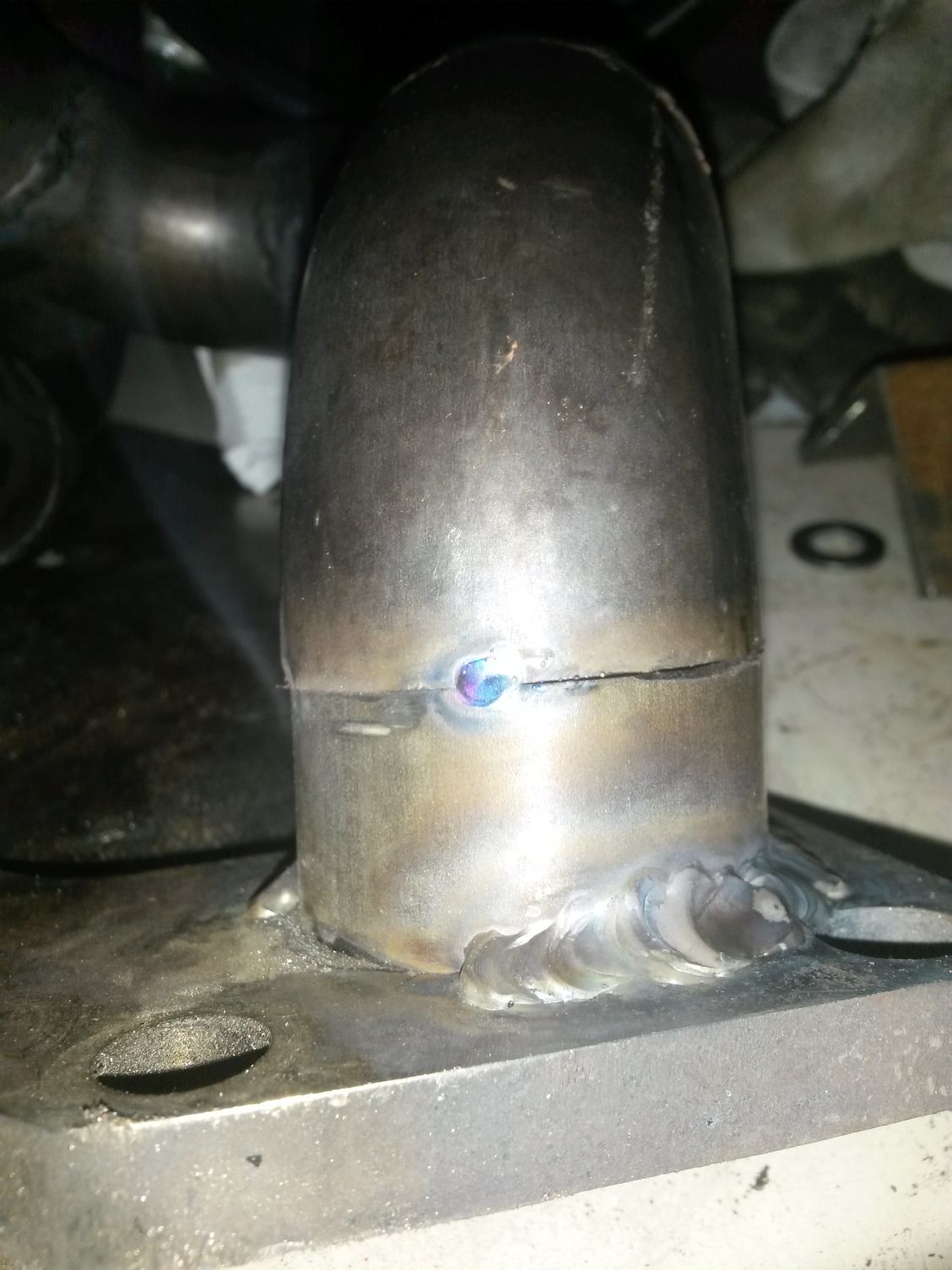

Progress
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-80-20150622_153452_77716032f816510c91280b09aa9ca28344ecc9b3.jpg   diy "turbo no hit block" '00 BP miata-80-20150622_153452_e72fd373f0e157877e996bfc5dad0d1441310062.jpg   diy "turbo no hit block" '00 BP miata-80-20150621_205657_12a4100ca8b7eb143de885c98f47fc843cbf9e5d.jpg   diy "turbo no hit block" '00 BP miata-80-20150621_205706_a33e41951effc3d2ea06e7fb8cecdb3feddf5d90.jpg   diy "turbo no hit block" '00 BP miata-80-20150622_153502_8c3e183796df046d14ae09cba6537409cfb3b069.jpg

DNA54 is offline   Reply With Quote
Old 06-25-2015, 12:05 PM   #334
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

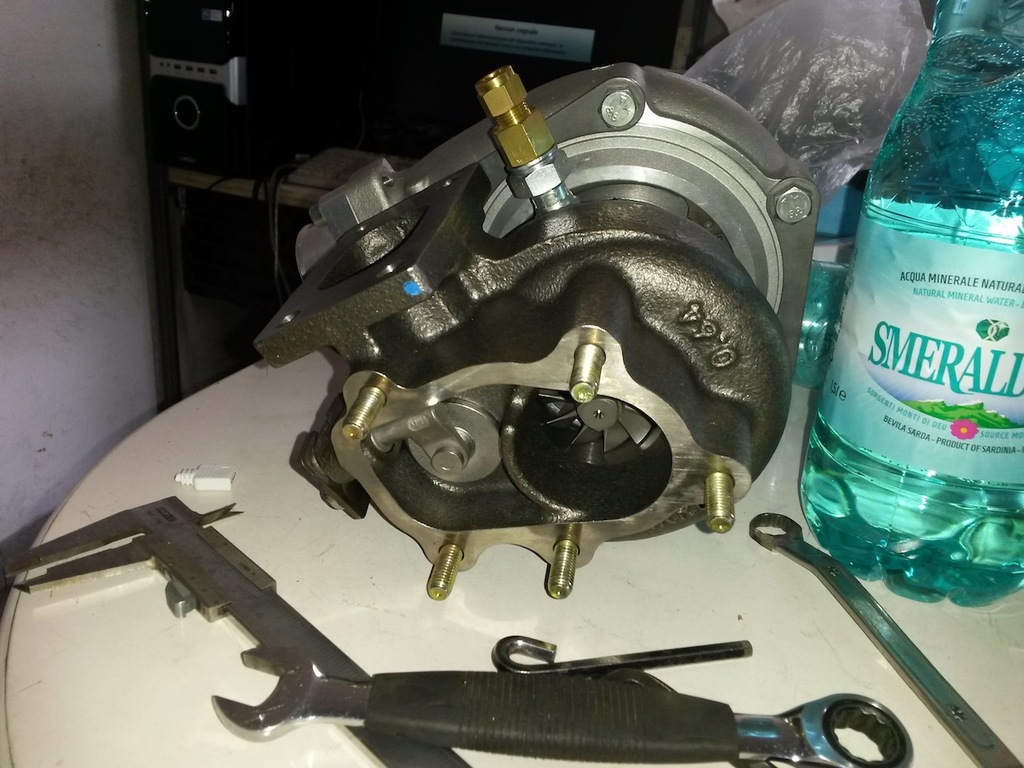

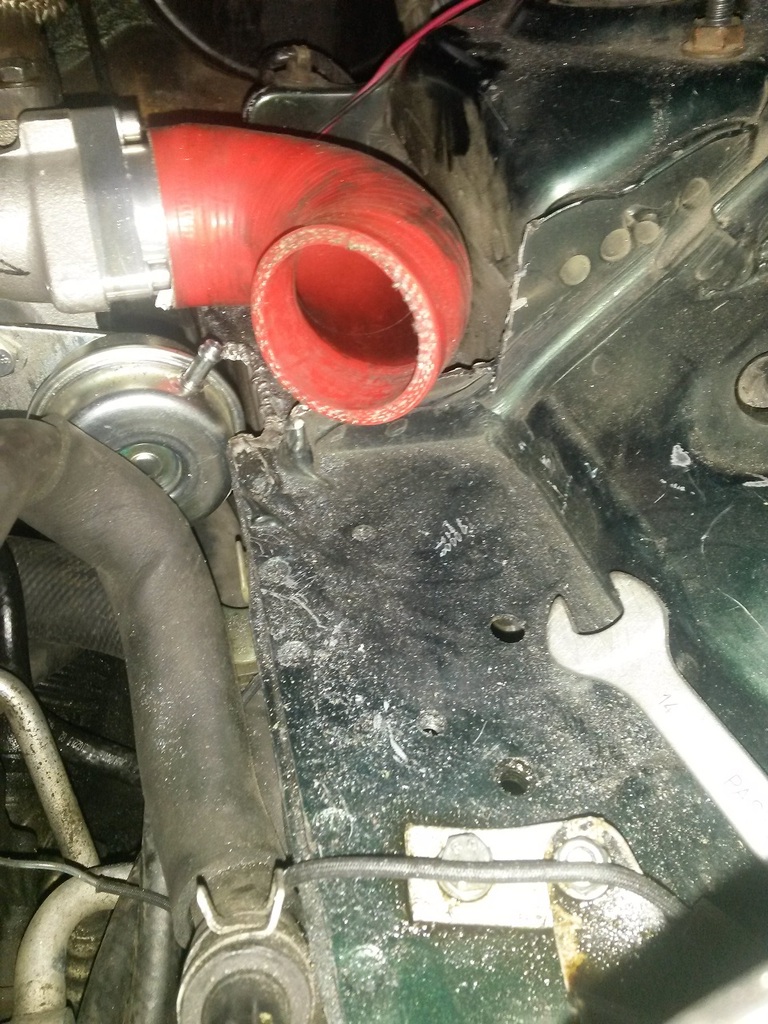

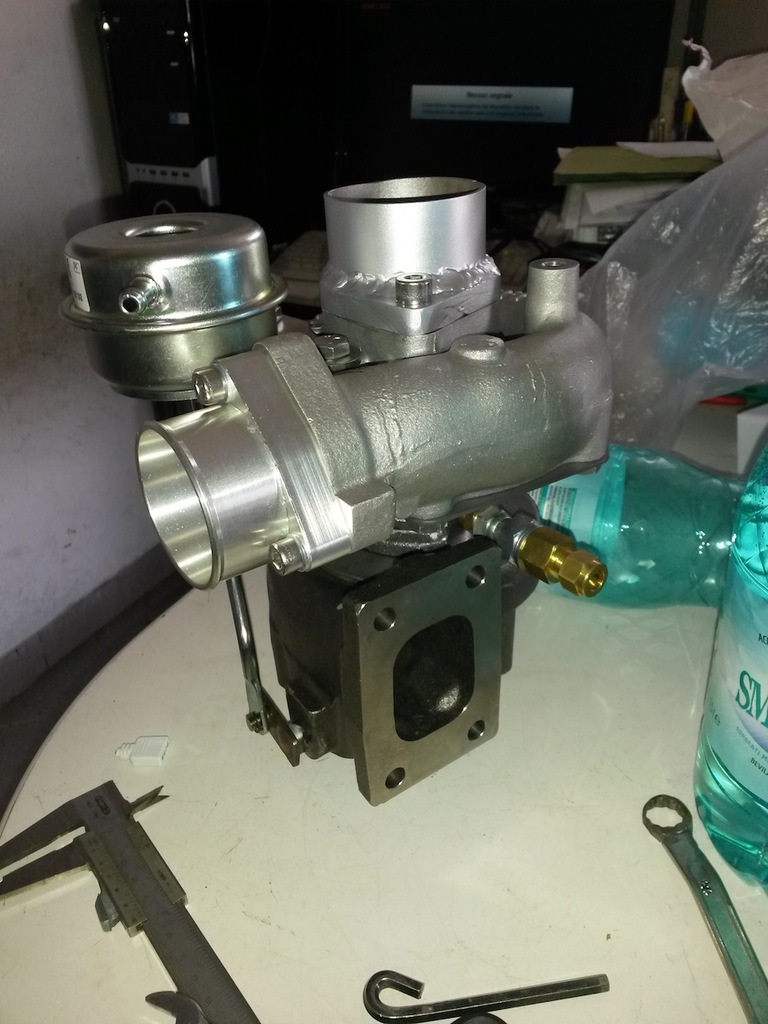

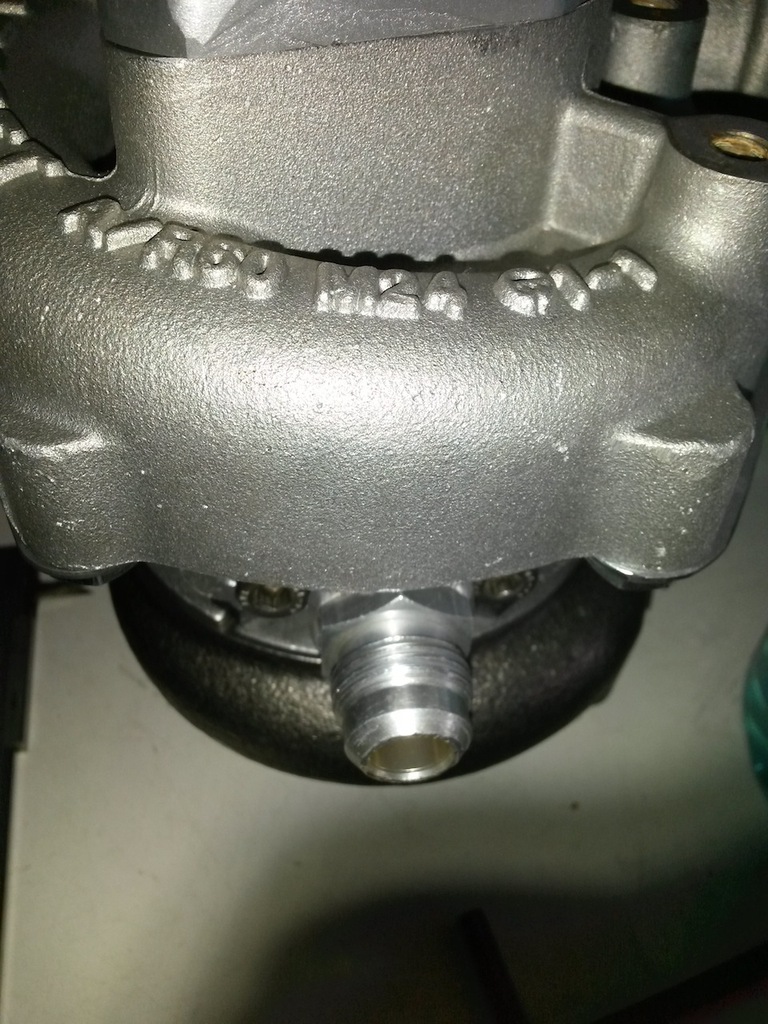

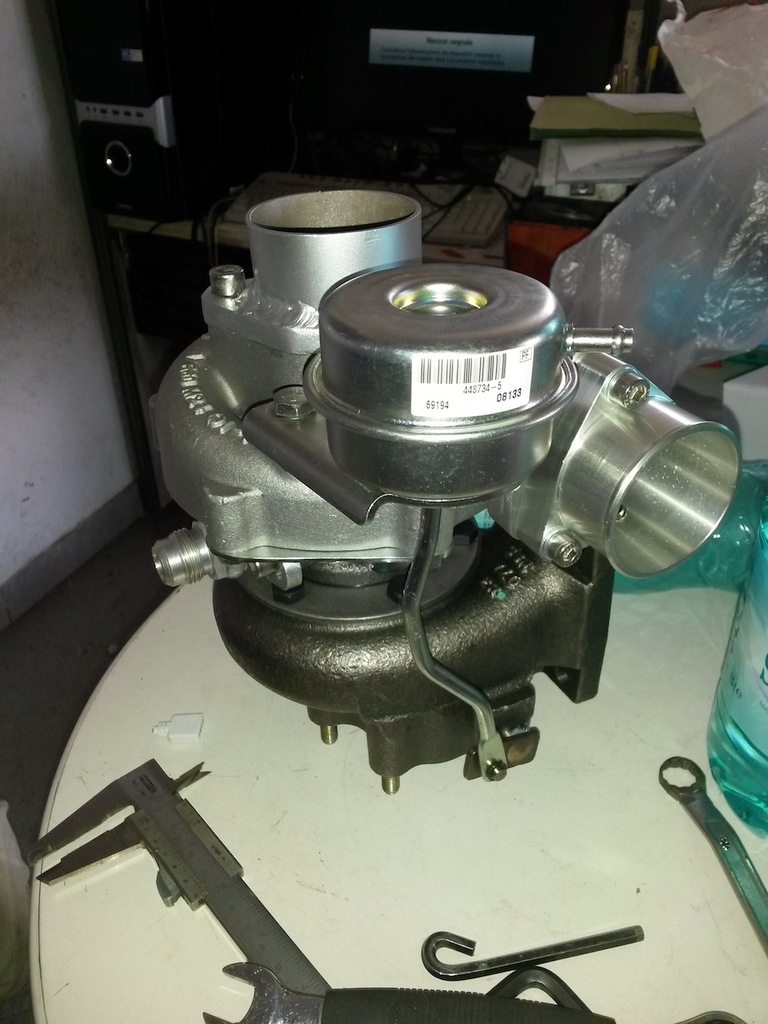

Today I clocked the turbo, made an inlet flange and other misc

:







Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150625_170651_zpsknji9int.jpg   diy "turbo no hit block" '00 BP miata-20150625_171054_zpsctrbmwnm.jpg   diy "turbo no hit block" '00 BP miata-20150625_171100_zpsxnrds5fn.jpg   diy "turbo no hit block" '00 BP miata-20150625_171109_zpsyofs6qpt.jpg
DNA54 is offline   Reply With Quote
Old 06-27-2015, 02:52 PM   #335
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

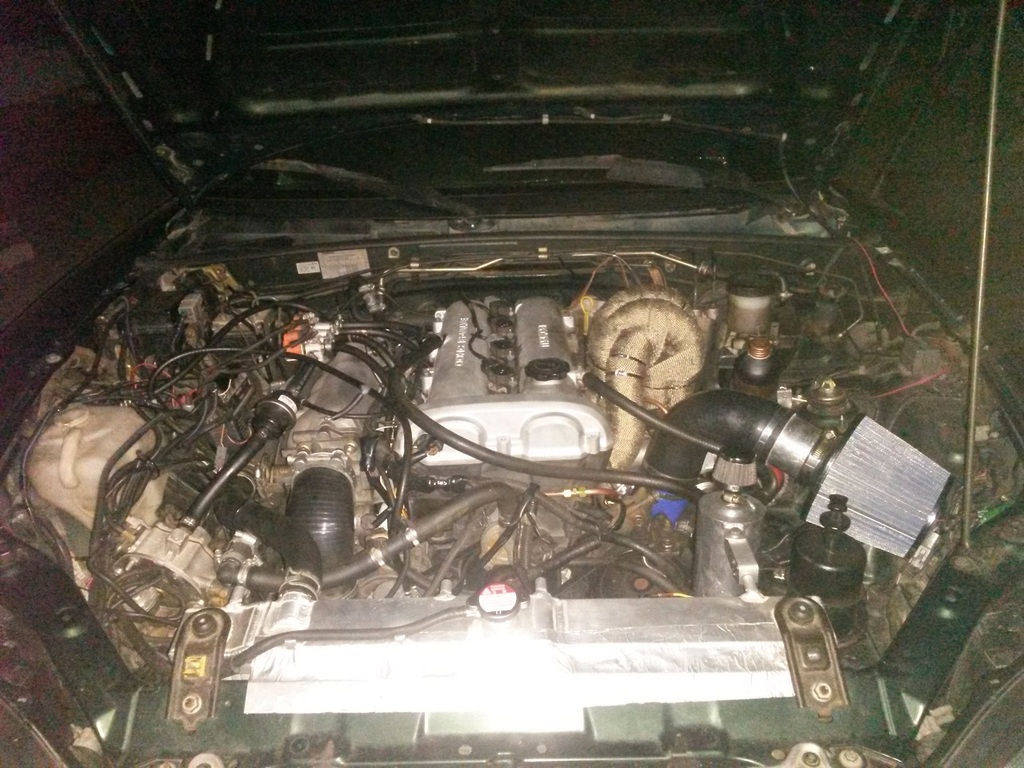

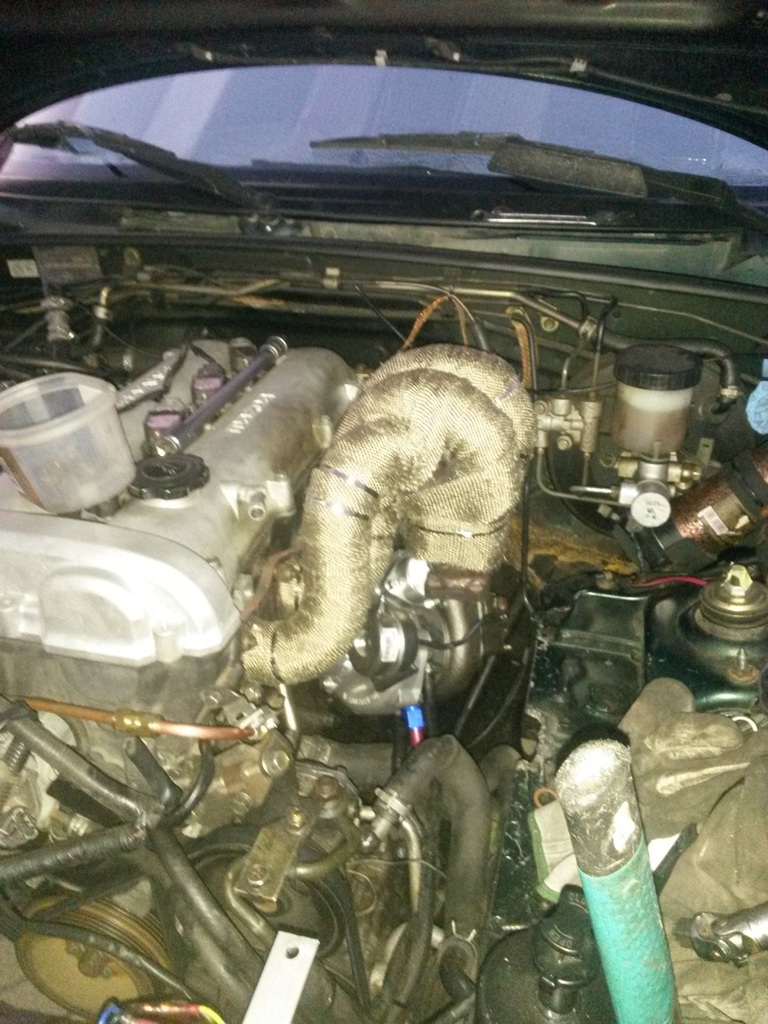

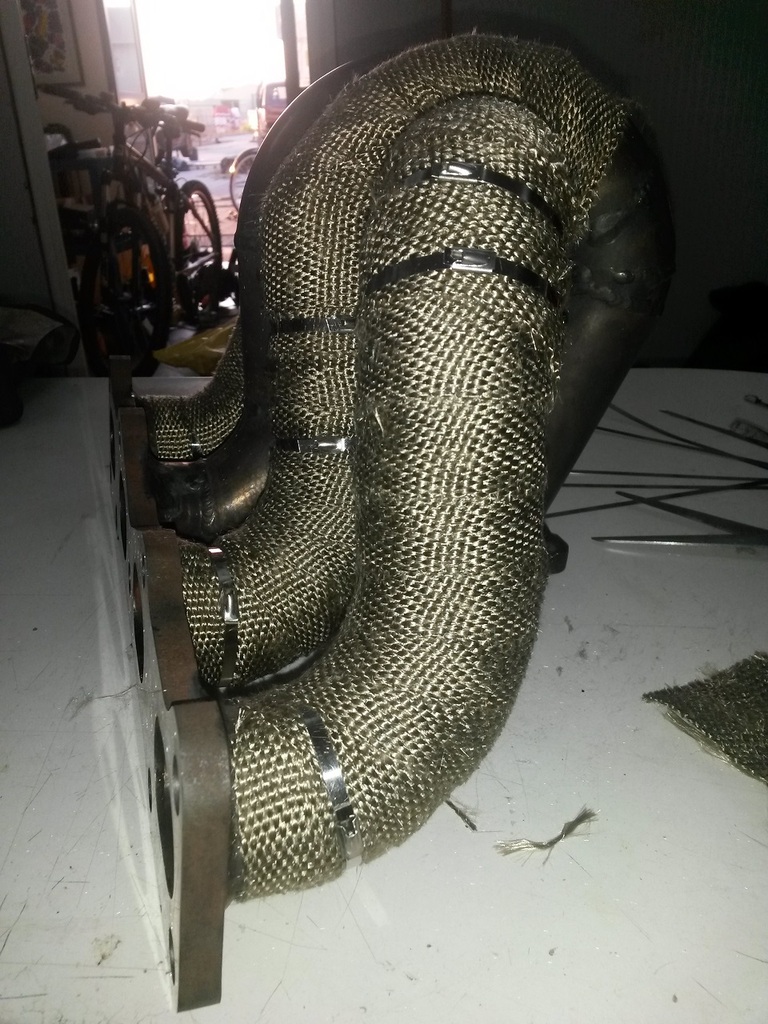

More progress:











Now, first impressions: it feels slower over 5500-6000 rpm at the same pressure of the chrubo potato, but well.. it's very very funny to drive!
first two gears are just a spin button, the third gear spin the tire a little bit, but enough to false the virtualdyno log (around 270hp at 210kPa)

Now, time to tune this... thing.

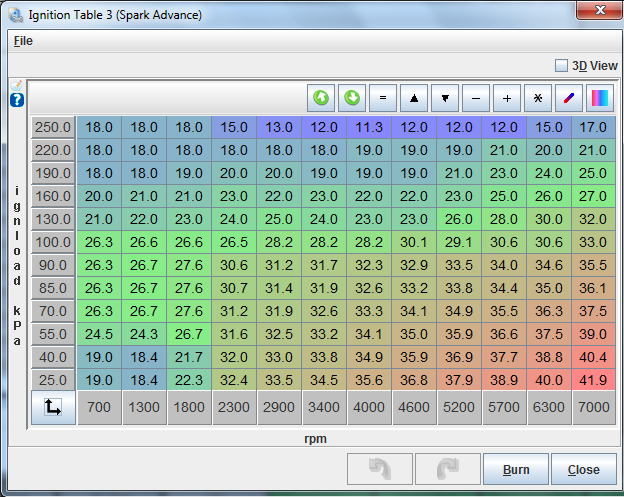

I'm in doubt about the advance table: I've modified (internet inspirated) my table this way



What does it seems??
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150626_201936_zps6qgtm874.jpg   diy "turbo no hit block" '00 BP miata-20150626_204911_zpsjizfuvbz.jpg   diy "turbo no hit block" '00 BP miata-20150626_211125_zpsvvvo8qbd.jpg   diy "turbo no hit block" '00 BP miata-20150626_224947_zpsdh3js4r8.jpg   diy "turbo no hit block" '00 BP miata-20150626_233738_zpscfsp7ggw.jpg

diy "turbo no hit block" '00 BP miata-well.._zpspxogtspp.png
DNA54 is offline   Reply With Quote
Old 06-29-2015, 12:54 PM   #336
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 315
Total Cats: -22
Default

Holy header wrap, Batman! What kind of wrap, and what are those metal ties you used to clamp the ends tight?
huesmann is offline   Reply With Quote
Old 06-29-2015, 01:16 PM   #337
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by huesmann View Post
Holy header wrap, Batman! What kind of wrap, and what are those metal ties you used to clamp the ends tight?

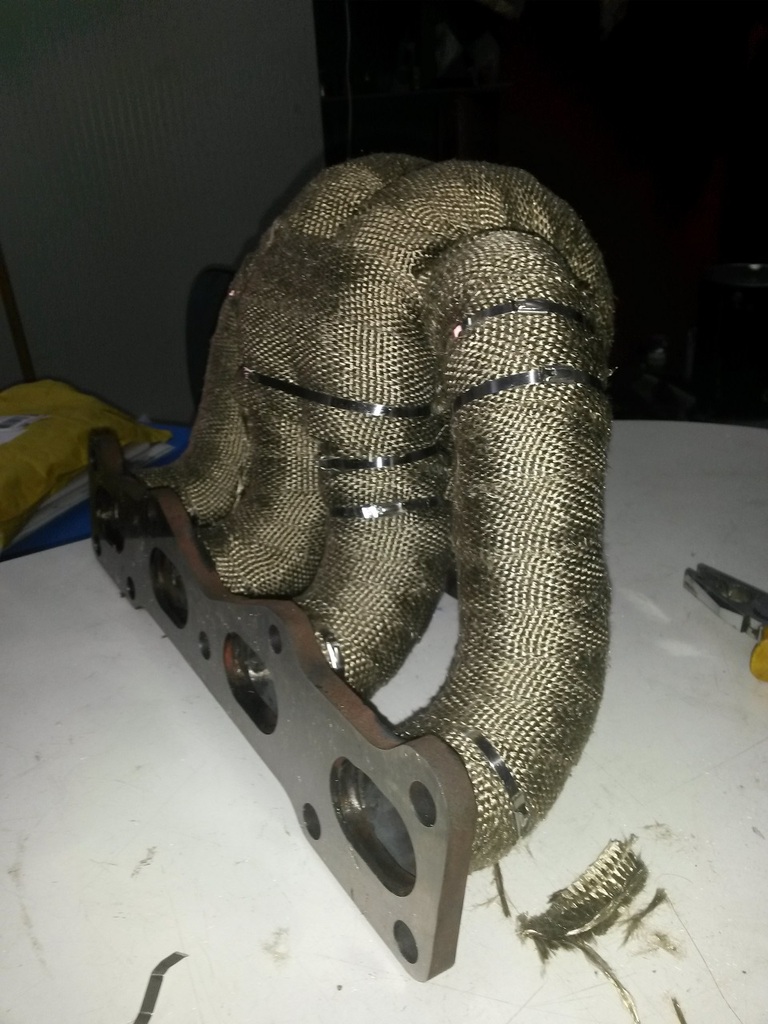

It's the titanium heat wrap (15 meters are just enough for this manifold)
The ties... they comes with the wrap

News: I tried the new advance table for like one gear, and it knocked... back to the previous one for now.

I also destroyed the compressor wheel, now the turbo is at the rebuild shop
DNA54 is offline   Reply With Quote
Old 06-29-2015, 01:36 PM   #338
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

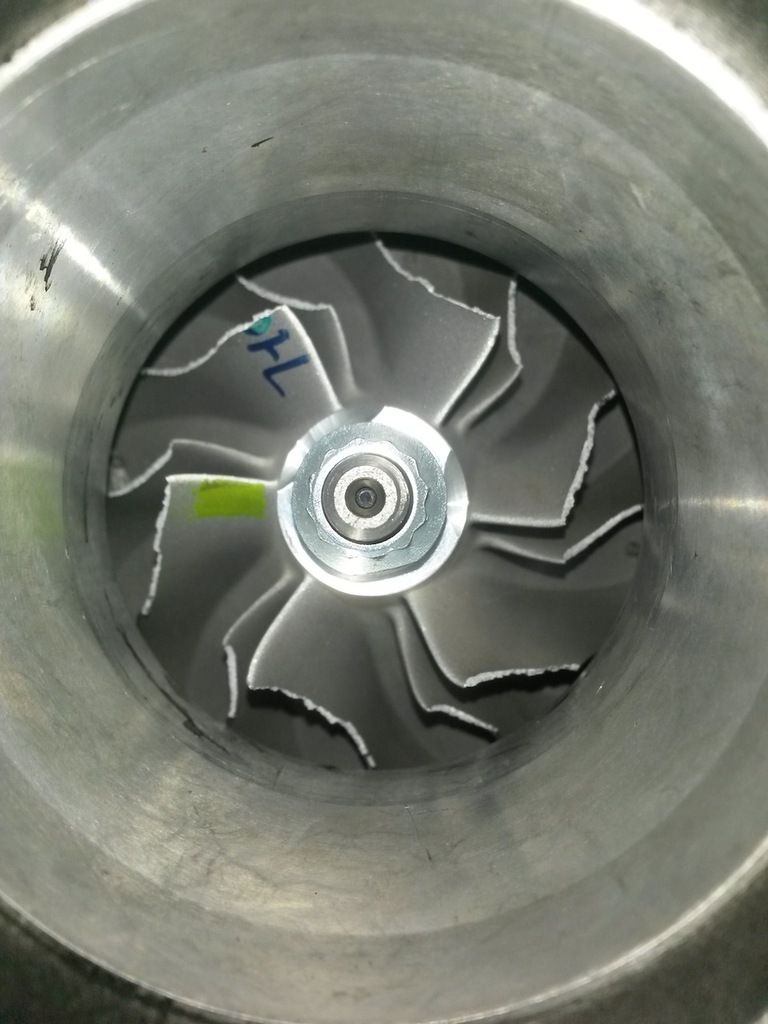

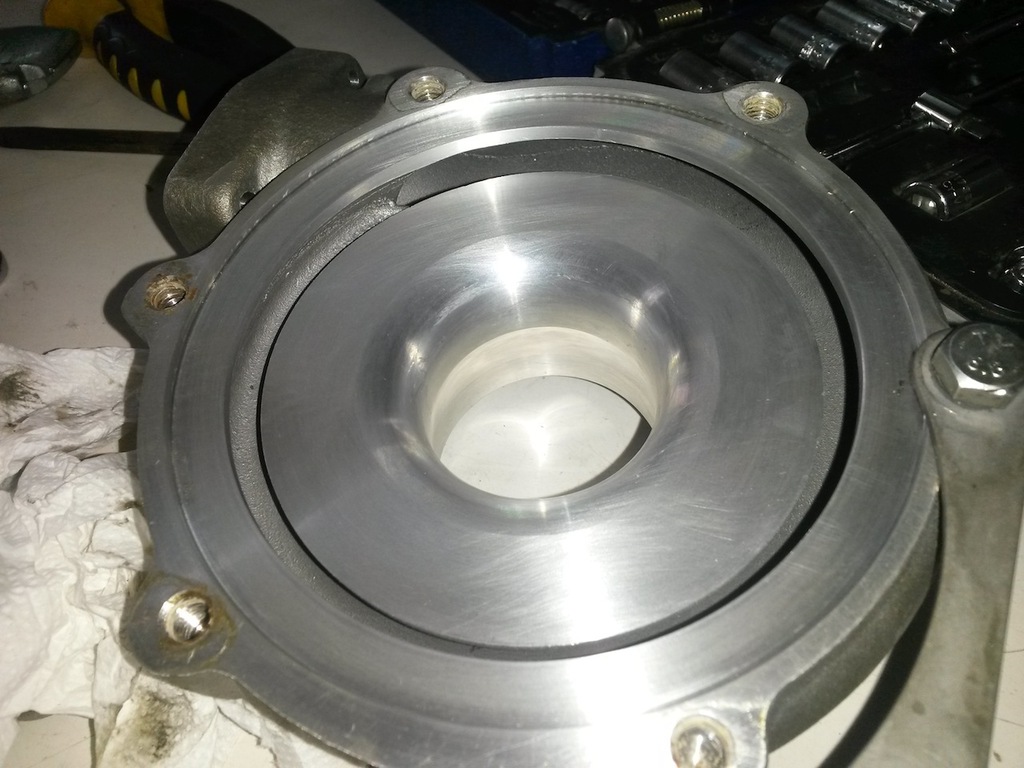

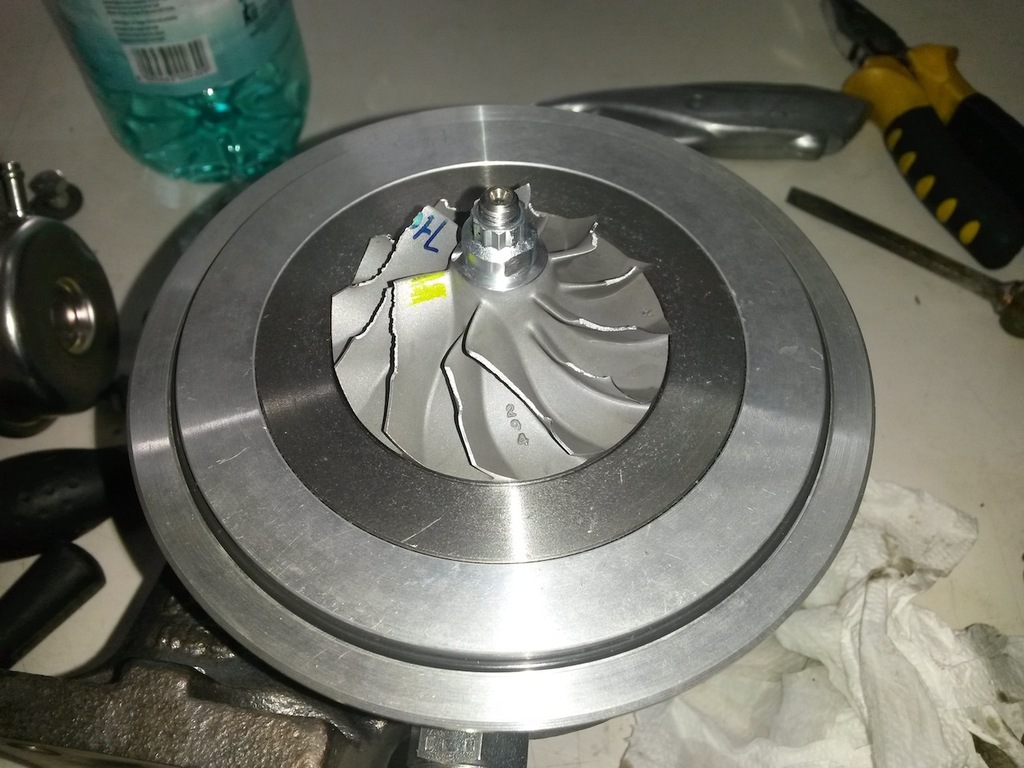

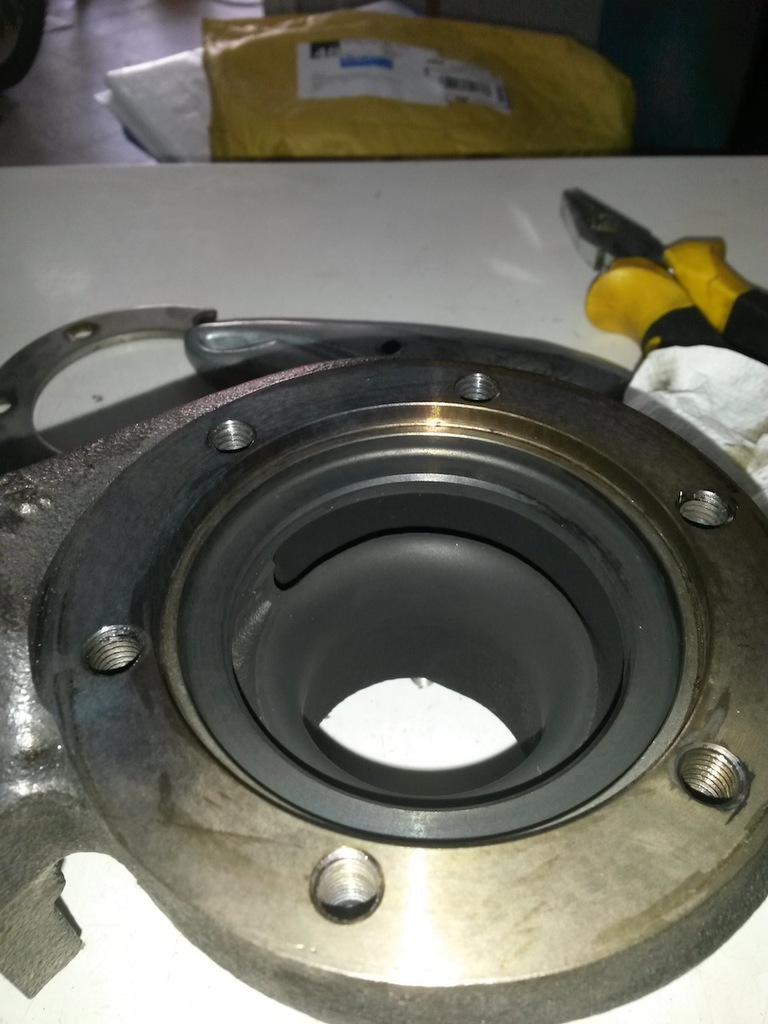

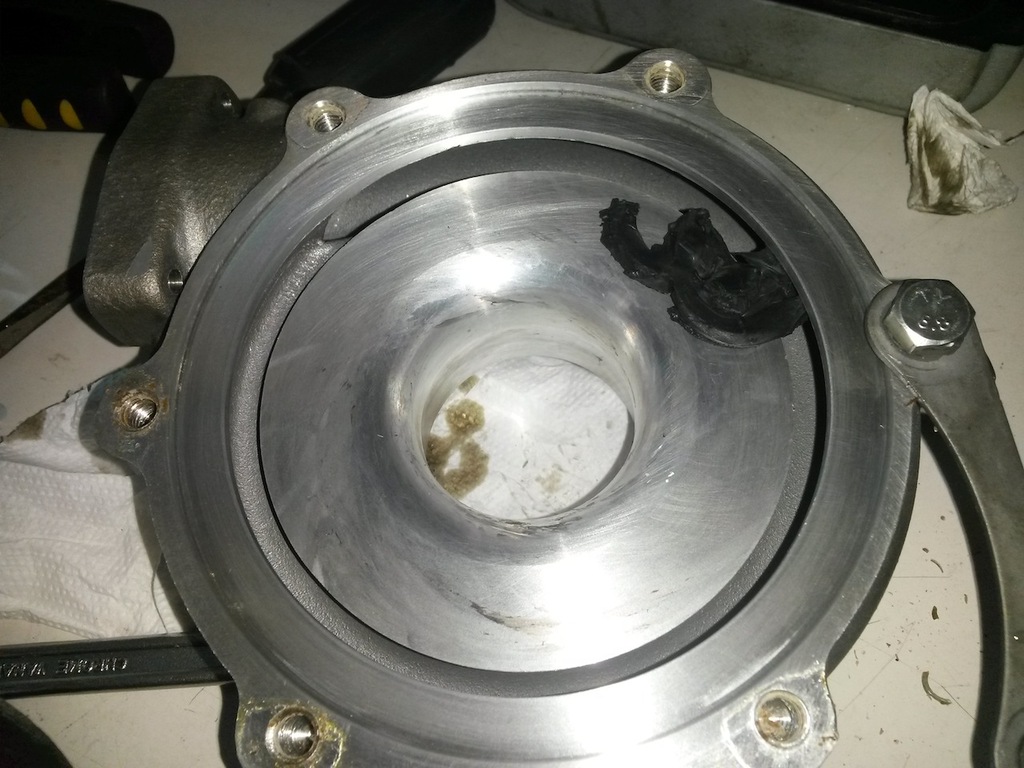

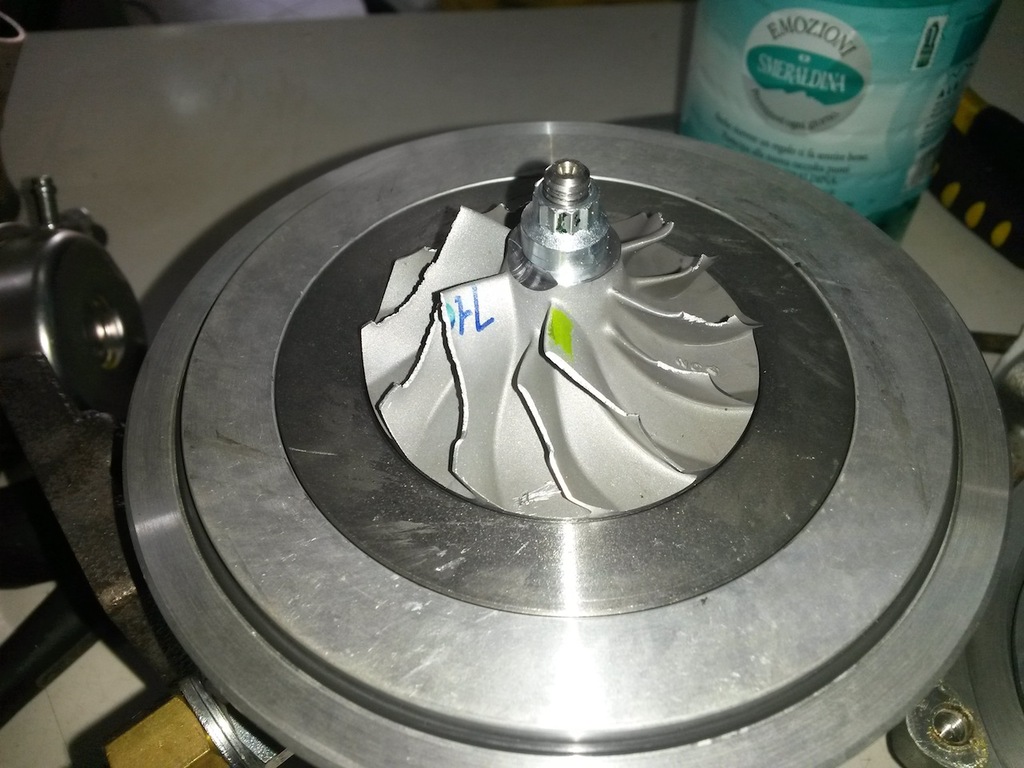

Carnage pics:











Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150628_190225_zpsgl4b97vl.jpg   diy "turbo no hit block" '00 BP miata-20150628_195935_zpse9mu2wb5.jpg   diy "turbo no hit block" '00 BP miata-20150628_200239_zps9ax1eep0.jpg   diy "turbo no hit block" '00 BP miata-20150628_195931_zpsvso1pv7f.jpg   diy "turbo no hit block" '00 BP miata-20150628_202000_zpslindmobx.jpg

diy "turbo no hit block" '00 BP miata-20150628_200243_zpsecbapzsk.jpg
DNA54 is offline   Reply With Quote
Old 06-29-2015, 02:04 PM   #339
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,164
Total Cats: 1,874
Default

Quote:
Originally Posted by DNA54 View Post
Dafuq you do?
Joe Perez is offline   Reply With Quote
Old 06-29-2015, 02:51 PM   #340
Newb

Join Date: May 2014
Location: Appeltern, the Netherlands
Posts: 32
Total Cats: 2
Default

oh man.......
tjeerd is offline   Reply With Quote
