Old 03-06-2012, 12:45 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

lololololololololololololololo.
Braineack is offline   Reply With Quote
Old 03-08-2012, 02:23 PM   #22
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

I tried it out today!

http://youtu.be/jX5hhP_ncvs

Last edited by sturovo; 03-08-2012 at 02:37 PM.
sturovo is offline   Reply With Quote
Old 03-08-2012, 02:35 PM   #23
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

That o2 sensor won't have a very long lifespan, that's for sure.
blaen99 is offline   Reply With Quote
Old 03-08-2012, 02:42 PM   #24
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

I love this ghetto-fabrication stuff.
soviet is offline   Reply With Quote
Old 03-08-2012, 03:52 PM   #25
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by soviet View Post
I love this ghetto-fabrication stuff.
We moved from the ghetto, we now have a double wide
sturovo is offline   Reply With Quote
Old 03-08-2012, 04:10 PM   #26
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by blaen99 View Post
That o2 sensor won't have a very long lifespan, that's for sure.
Thanks for the info. I'm taking it that it should be installed further from the turbo? I have a second bung on the down-pipe about 36 inches away. Would that be OK?
sturovo is offline   Reply With Quote
Old 03-08-2012, 04:57 PM   #27
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I believe that's the "perfect" distance, that or 18 inches, I forget which.

*insert ***** joke here*
curly is offline   Reply With Quote
Old 03-08-2012, 05:06 PM   #28
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by curly View Post
I believe that's the "perfect" distance, that or 18 inches, I forget which.

*insert ***** joke here*
Something like that, but definitely further than the 3" it is now.
blaen99 is offline   Reply With Quote
Old 03-11-2012, 06:45 AM   #29
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

I have a question regarding my OEM Lancer recirculating blow off valve.
I searched regarding recirculating BOVs and I guess it is normal that they open during throttle blips / high vacuum conditions?
My question is that it it shouldn't automatically mean that a stronger spring is needed? I will be running low boost as I have 315cc injectors/stock clutch/and paralyzed by fear even at 6psi
sturovo is offline   Reply With Quote
Old 04-23-2012, 11:02 PM   #30
Newb

Join Date: Oct 2010
Posts: 17
Total Cats: 0
Default

Any updates on how this is running? I'm looking to do a similar setup on my Miata, since I just got a 16g for my Subie and my TD04 will be a swap candidate.
MWatson17 is offline   Reply With Quote
Old 04-24-2012, 12:59 AM   #31
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

on the down pipe in your pic. What pattern is that and what is it used on. I have a china turbo i bought thinking it was t25 in and out but the down pipe flange is a wierd 5 bolt flange looks like your. I am trying to figure it out so i can sell it with correct info.

Thanks. Nice build
90 Turbo is offline   Reply With Quote
Old 04-24-2012, 03:48 AM   #32
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by MWatson17 View Post
Any updates on how this is running? I'm looking to do a similar setup on my Miata, since I just got a 16g for my Subie and my TD04 will be a swap candidate.
It runs well so far. No leaks or cracks but as for the long term who knows.

I made it this way as I had an existing t25/t28 manifold and downpipe on the car.
If I was starting from scratch I would use the TD04 13t but probably not the same piping route.

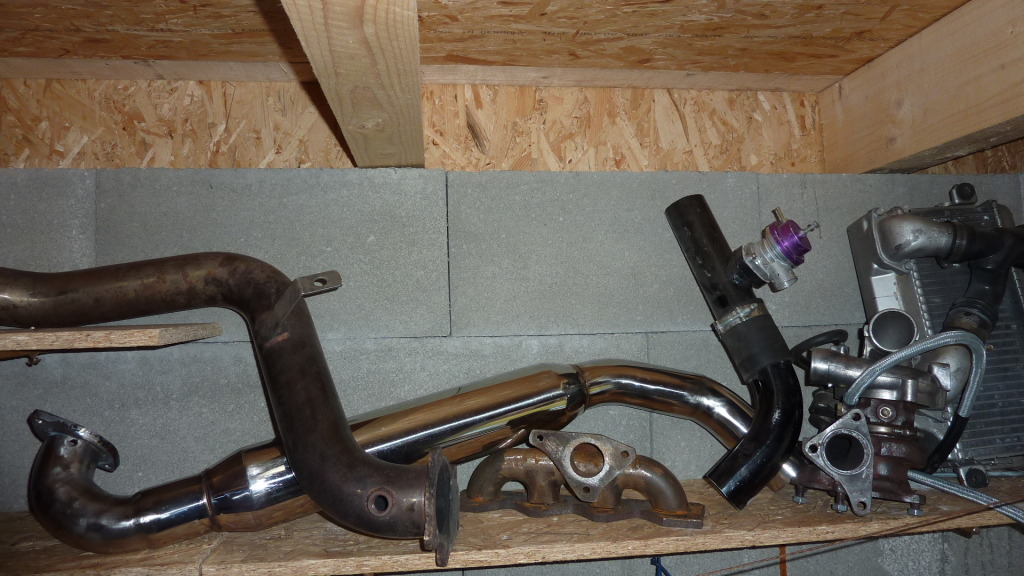

Unless you want built motor power then I think a mild steel log manifold would be OK.
This one I made for a friends car which we will fit soon.
(Recycled flange from old manifold, a few tees and elbows and some welding.)


The turbo fits without clocking and the Subaru decat downpipe bolts up with a little flange rework.
Setups like this can be cobbled together for 100$.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1020782.jpg
sturovo is offline   Reply With Quote
Old 04-24-2012, 03:56 AM   #33
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 90 Turbo View Post
on the down pipe in your pic. What pattern is that and what is it used on. I have a china turbo i bought thinking it was t25 in and out but the down pipe flange is a wierd 5 bolt flange looks like your. I am trying to figure it out so i can sell it with correct info.

Thanks. Nice build
The larger 5 bolt exhaust pattern is one used by Subaru for decades afaik.
This pattern is found turbos from IHI and Mitsubishi for Subaru's, Impreza, Forrester, Legacy etc. so probably a good way to describe it would be a Subaru 5 bolt downpipe flange.
sturovo is offline   Reply With Quote
Old 01-15-2013, 06:37 PM   #34
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Ha ha ha ha, just read this thread again. Obviously I was running full retard when I hacked this together

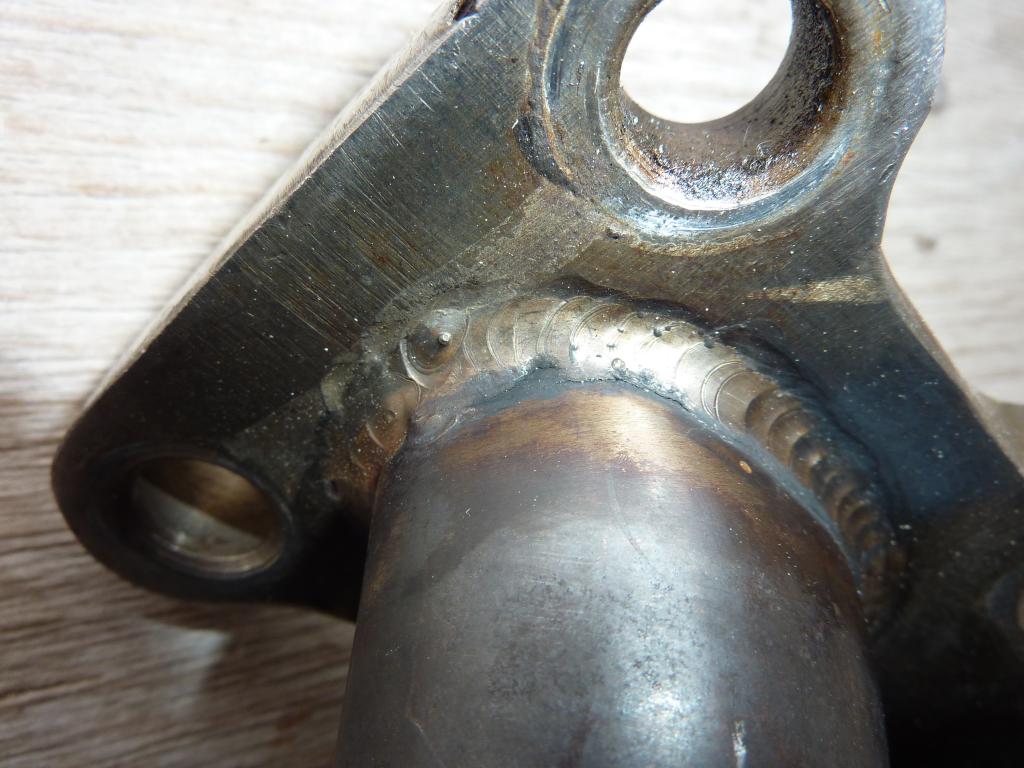

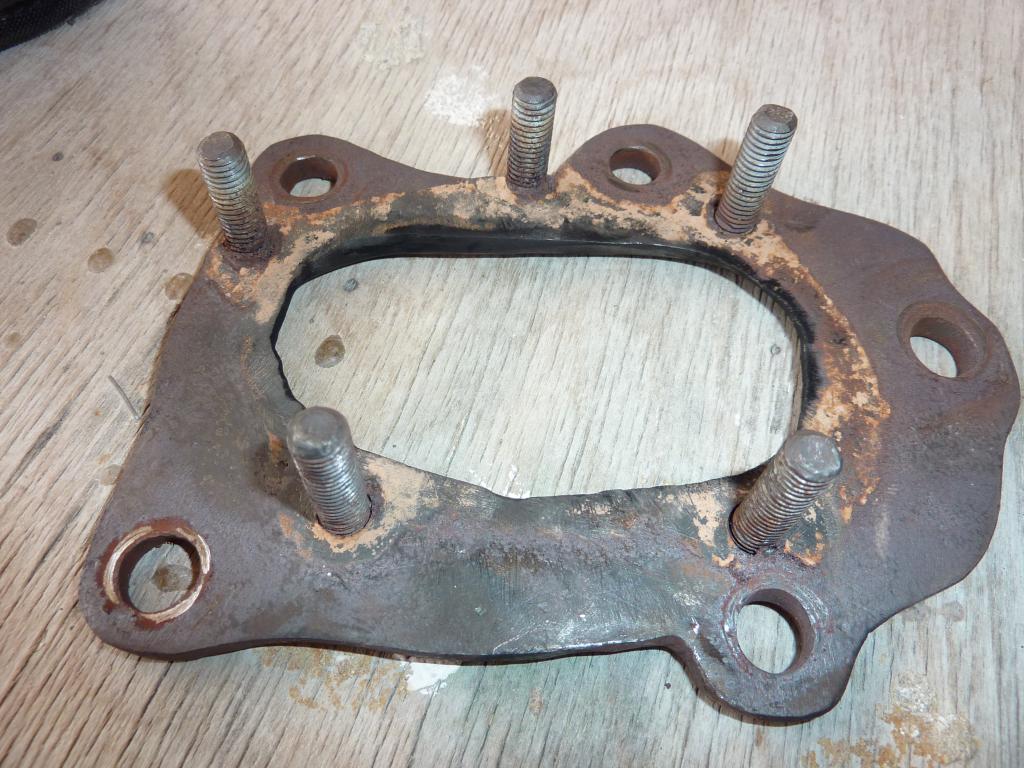

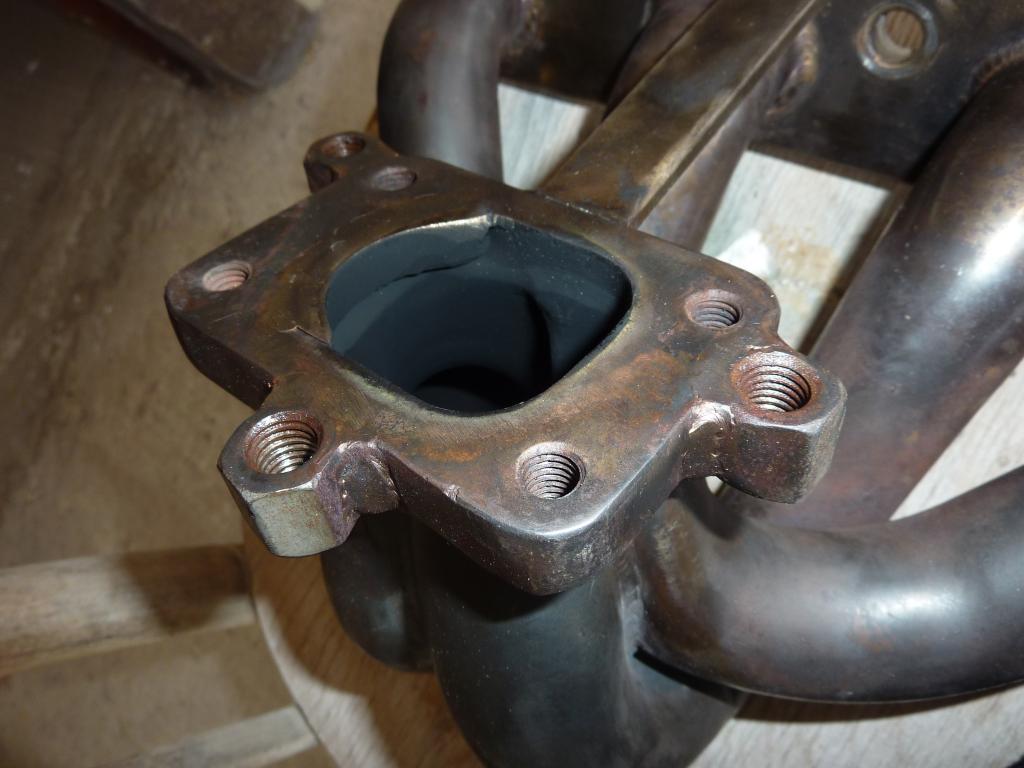

I pulled it apart today as the #4 manifold runner started cracking.


A year of abuse has taken its toll on some previously shiny bits.


But it somehow held together.


Time to butcher up something new!
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1030175_zpsaaf9a477.jpg   TD04/TD05 fitted in place of T25/T28-p1030178_zps5805af1b.jpg   TD04/TD05 fitted in place of T25/T28-p1030177_zpsbdf24405.jpg
sturovo is offline   Reply With Quote
Old 01-17-2013, 01:13 AM   #35
Asx
Junior Member
iTrader: (1)

Join Date: Nov 2007
Location: Huntsville, AL
Posts: 78
Total Cats: 3
Default

For what it's worth, you could have used the turbine housing from a greddy td04 turbo (like the miata greddy kit, or maybe the D-series honda?). It's a direct fit to the MHI TD04 CHRA and makes it a t25 inlet/outlet flange.
Asx is offline   Reply With Quote
Old 01-17-2013, 12:35 PM   #36
Junior Member

Join Date: Mar 2011
Location: Louisville ky
Posts: 479
Total Cats: -110
Default

cool tip
atli126 is offline   Reply With Quote
Old 01-18-2013, 02:57 PM   #37
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Asx View Post
For what it's worth, you could have used the turbine housing from a greddy td04 turbo (like the miata greddy kit, or maybe the D-series honda?). It's a direct fit to the MHI TD04 CHRA and makes it a t25 inlet/outlet flange.
Good info Asx! That would have been an easier option but Greddy/civic parts are hard to source around here.

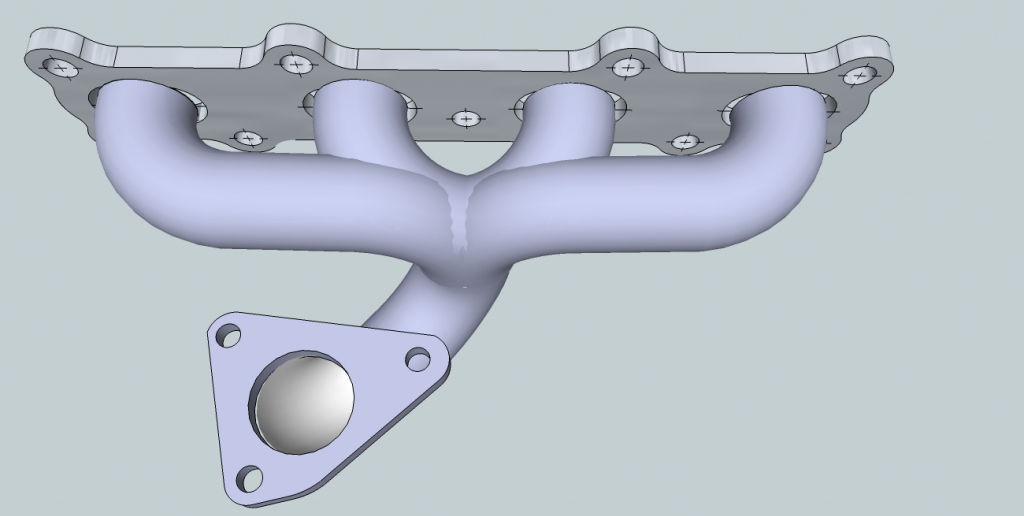

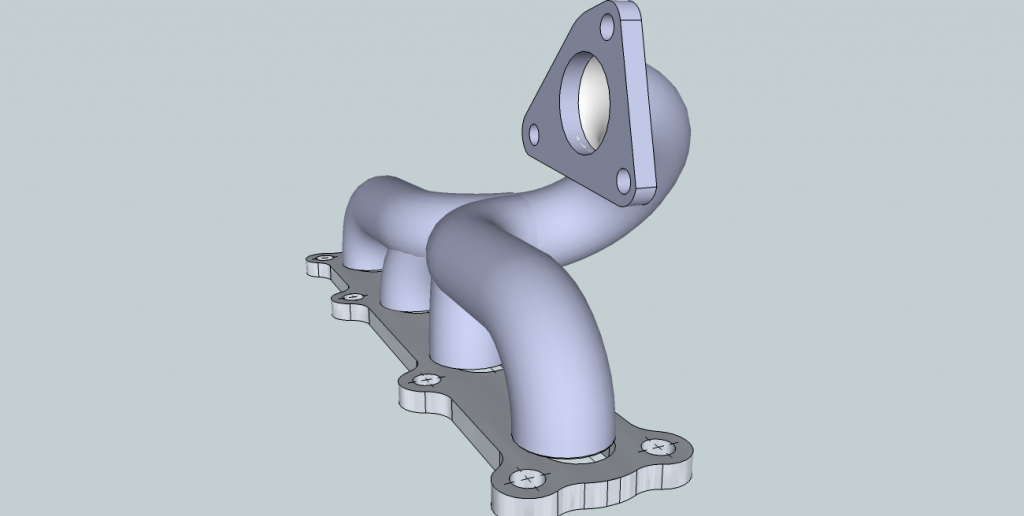

I will probably make a new manifold that suits the Subaru turbo.
(I sketched a rough set up.)

Name:  manifold1_zpsa45f9cf4.png
Views: 196
Size:  275.9 KB
Name:  manifold3_zpsc0feec95.png
Views: 174
Size:  218.9 KB

I would like the turbo to sit forwards and low. I haven't seen manifolds like this so there must be reasons why not to do this?
sturovo is offline   Reply With Quote
Old 01-18-2013, 04:08 PM   #38
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Heavy turbo sitting out on a lever like that, I imagine it would cause alot of stress on the weld at the collector.
hochkis is offline   Reply With Quote
Old 01-18-2013, 04:57 PM   #39
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

I wouldnt set it like that at all, even though the td04 is tiny and doesnt weigh much. Not only is it likely going to break at the collector you're going to choke up flow with that extension tube. Make the collector just before the turbo.
Leafy is offline   Reply With Quote
Old 01-18-2013, 09:18 PM   #40
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

For something like that you'd usually see longer runners meeting at the turbo flange. We've made them, search "ramhorn" manifolds, although they generally hold the turbo upside down.
curly is offline   Reply With Quote
