two different cars.

one is a 99 the other a 97 with a 99 head and MSM intake cam.

both running 14psi, the 97 (blue line) dropped to 12psi; id expect the 97 to hit 300hp if it held that 2psi.


i was just showing the results are easily repeatable.
Braineack is offline   Reply With Quote
Old 01-31-2013, 01:51 PM   #582
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,457
Total Cats: 244
Default

Yeah I always wondered that too. Slightly different exhaust manifolds. Pauls was symmetric, Eds was not.

And Ed mentioned the head had some work done to it, maybe a different cam, i forget.

EDIT: AHH I didn't see Scotts post, he explains it.
TurboTim is offline   Reply With Quote
Old 01-31-2013, 01:53 PM   #583
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,707
Default

IIRC it was a worked head too, like larger intake valves, maybe ported. i dont quite remember.
Braineack is offline   Reply With Quote
Old 02-06-2013, 04:37 AM   #584
Newb

Join Date: Sep 2011
Posts: 14
Total Cats: 0
Default

Just read all 30 pages of this thread.

I'd really like to see someone use the stock GSR manifold. If you took advantage of the IAB system inherent in that manifold, then all of this talk about short runners versus long runners is then a moot point. You'd have BOTH!
Quote:
Originally Posted by Full_Tilt_Boogie View Post
I think this would be cool, and give a little something to play with on the dyno:
Acura Integra GSR (B18C1) Intake manifold

Attached Thumbnails
Honda intake manifold-p72.im_1.jpg
mondojackal is offline   Reply With Quote
Old 02-06-2013, 10:00 PM   #585
Junior Member

Join Date: May 2007
Location: Toronto Area, Ontario
Posts: 129
Total Cats: 25
Default

Yes, I thought about the GSR manifold too. I picked one up on Kijiji, and it turns out this manifold is too wide. You would need to hack the runners down significantly. The manifold is very heavy too. IIRC the throttle body would end up too low as well. So basically, it won't fit easily.....

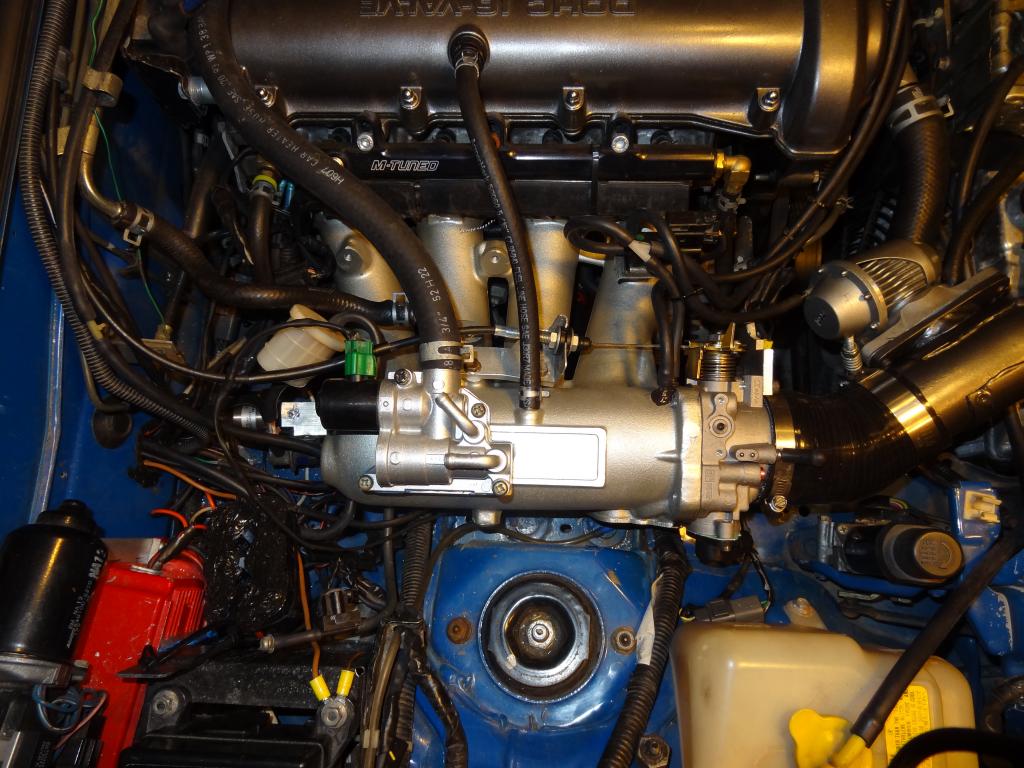

I recently removed my stock throttle body and installed a cheap 70mm blox unit. I then added a 94-97 IAC right on the manifold. Not real pretty, but it works...

Attached Thumbnails
Honda intake manifold-002_zpsefd80f2c.jpg
oreo is offline   Reply With Quote
Old 02-07-2013, 06:06 PM   #586
Newb

Join Date: Sep 2011
Posts: 14
Total Cats: 0
Default

Quote:
Originally Posted by oreo View Post
Yes, I thought about the GSR manifold too. I picked one up on Kijiji, and it turns out this manifold is too wide. You would need to hack the runners down significantly. The manifold is very heavy too. IIRC the throttle body would end up too low as well. So basically, it won't fit easily.....

I recently removed my stock throttle body and installed a cheap 70mm blox unit. I then added a 94-97 IAC right on the manifold. Not real pretty, but it works...
Too wide in that it won't fit between the head and the strut tower? Or too wide in relation to the taper of the runners to port spacing?
mondojackal is offline   Reply With Quote
Old 02-08-2013, 05:00 PM   #587
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,293
Total Cats: 22
Default

Probably the latter, look at the spacing VS what is shown in his other image. How's the power curve look on that oreo? You should put your setup in your sig.
Der_Idiot is offline   Reply With Quote
Old 02-08-2013, 05:32 PM   #588
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,678
Total Cats: 212
Default

The GSR manifold has the exact same port spacing as found on the other B series, The flange is just a bit different.

Back when I still had a miata, I was planning on putting a regular old LS (b18b) manifold join my car. Its not as blood as an ITR, but its probably a lot better than what we have, and the runners are long, so it would most likely not give up as much in the midrange.

LS manifold and ITR manifold (The Skunk2/Blox manifold is modeled after the ITR):

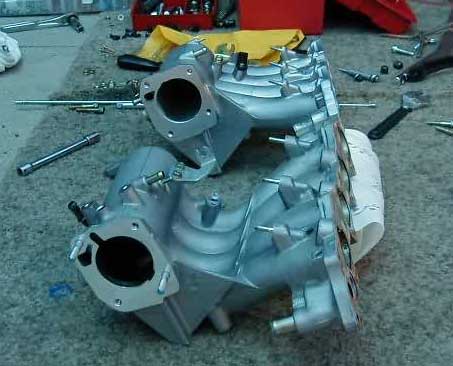

LS flange, ITR/B16 flange, GSR flange from top to bottom:
Attached Thumbnails
Honda intake manifold-imls-itrmanifold2.jpg

Last edited by Full_Tilt_Boogie; 02-08-2013 at 05:53 PM.
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-10-2013, 10:52 PM   #589
Junior Member

Join Date: May 2007
Location: Toronto Area, Ontario
Posts: 129
Total Cats: 25
Default

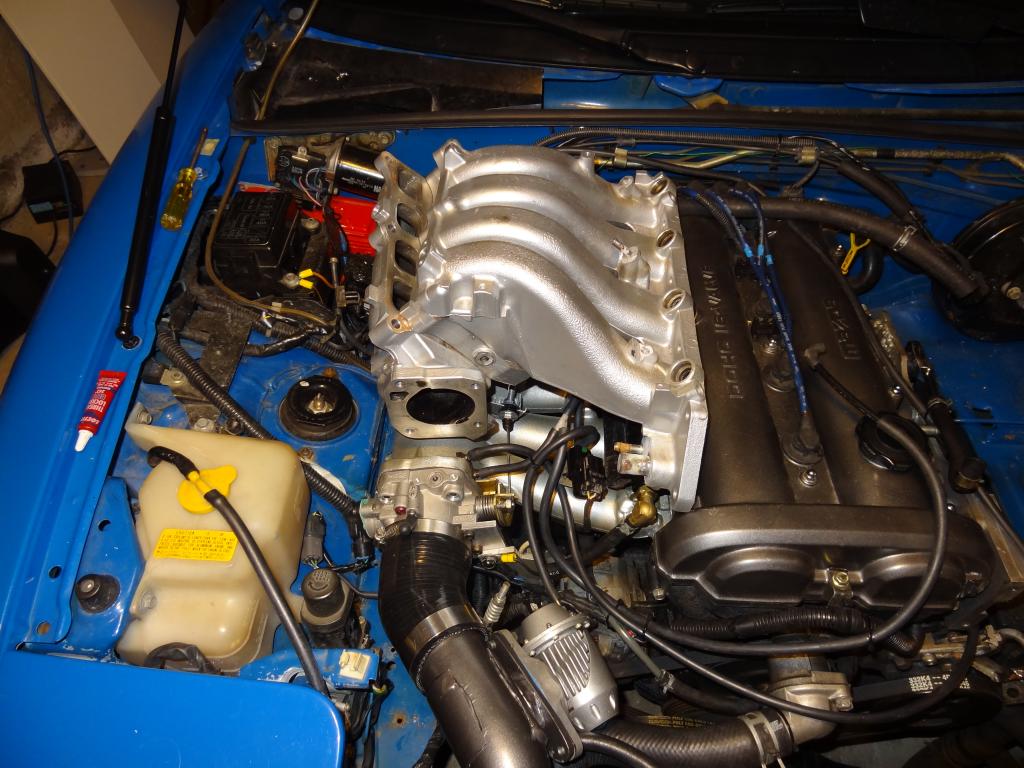

If you cut the runners, so that the manifold does not hit the strut tower, then the port spacing will be off quite a bit. Also, since the throttle body inlet is under the manifold, if you have the runners parallel to the intake ports, the manifold will hit the frame rail.

Maybe not the best picture...
Attached Thumbnails
Honda intake manifold-002_zpsa1161c02.jpg
oreo is offline   Reply With Quote
Old 02-24-2013, 03:26 PM   #590
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Has anybody who's done this actually used the Performer X intake as a basis? All I see is Blox and Skunk. Wondering if the Performer might actually be longer, and maybe "plenum hit shock" or something. I see the angled throttle body flange, as if it's trying to point the T/B into the same place as all the other manis that have straight flanges.
SolarYellow510 is offline   Reply With Quote
Old 03-01-2013, 09:33 AM   #591
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 716
Total Cats: 132
Default

Quote:
Originally Posted by SolarYellow510 View Post
Has anybody who's done this actually used the Performer X intake as a basis? All I see is Blox and Skunk. Wondering if the Performer might actually be longer, and maybe "plenum hit shock" or something. I see the angled throttle body flange, as if it's trying to point the T/B into the same place as all the other manis that have straight flanges.
I pretty much maxed out the room available on my skunk manifold. I had to pull the MMR motor mounts out and put in a pair of mazdacomps with the stock steel cups to raise the engine back up that 1/4" so the manifold would clear the shock tower. I also had to cut some of the diagonal bracing that runs between the shock tower and framerail for the plenum to fit.

I think anything longer and you'd have to engineer some angle or rise into the flange or into the seam between the two chopped runners, depending on which fabrication method you take. The only direction to go is to raise the plenum vertically.
doward is online now   Reply With Quote
Old 03-01-2013, 11:17 AM   #592
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,349
Total Cats: 65
Default

RyanRaduechel is offline   Reply With Quote
Old 03-01-2013, 11:28 AM   #593
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,756
Total Cats: 2,493
Default

yuppers
18psi is offline   Reply With Quote
Old 03-01-2013, 01:57 PM   #594
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,349
Total Cats: 65
Default

Excellent, seems cheap enough to try it. Especially since I have an extra manifold sitting around I can hack up. Thank you sir.
RyanRaduechel is offline   Reply With Quote
Old 03-02-2013, 04:05 PM   #595
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,027
Total Cats: 153
Default

Good chance my Honda Manifold will be going up for sale soon.
TNTUBA is offline   Reply With Quote
Old 03-02-2013, 05:11 PM   #596
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,349
Total Cats: 65
Default

Quote:
Originally Posted by tntuba View Post
good chance my honda manifold will be going up for sale soon.
1.6?
RyanRaduechel is offline   Reply With Quote
Old 03-02-2013, 05:22 PM   #597
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,756
Total Cats: 2,493
Default

pretty sure he has a 1.8
18psi is offline   Reply With Quote
Old 03-02-2013, 06:24 PM   #598
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Quote:
Originally Posted by TNTUBA View Post
Good chance my Honda Manifold will be going up for sale soon.
Finally decided to take another 10 pounds out of the nose of the car I see.
Leafy is offline   Reply With Quote
Old 03-02-2013, 08:03 PM   #599
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,027
Total Cats: 153
Default

Quote:
Originally Posted by Leafy View Post
Finally decided to take another 10 pounds out of the nose of the car I see.
Not sure what the total weight change will end up being.
TNTUBA is offline   Reply With Quote
Old 03-10-2013, 04:07 PM   #600
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,349
Total Cats: 65
Default

I hate to ask, but what throttle body can I use that has vtps when I do this mod?
RyanRaduechel is offline   Reply With Quote
