Old 03-25-2013, 09:54 PM   #621
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,370
Total Cats: 2,245
Default

Right?

That's what I was thinking, that CL would be littered with these things. Maybe I'll just keep waiting/looking. I asked a few friends to spread the word so maybe something will turn up.

I don't want to dump 85 on a stock B series when I can haz the junk2 or blox for like 100.

and I'm tending to agree with you that I don't need over 65mm
18psi is offline   Reply With Quote
Old 03-25-2013, 09:57 PM   #622
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,667
Total Cats: 210
Default

60-62 is awesome, even for pretty serious power.

Im pretty sure the LSs and B20 are 60mm, so theyve got to be like a dime a dozen.
Theyre probably so worthless that people arent even putting them on CL.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-25-2013, 10:18 PM   #623
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 38
Default

I have a stock B series TB. I bought a cheap used one on egay for the TPS sensor, and bought a blox TB to actually use on the mani. I could give you this TB if plan to use one
aaronc7 is offline   Reply With Quote
Old 04-15-2013, 07:09 AM   #624
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

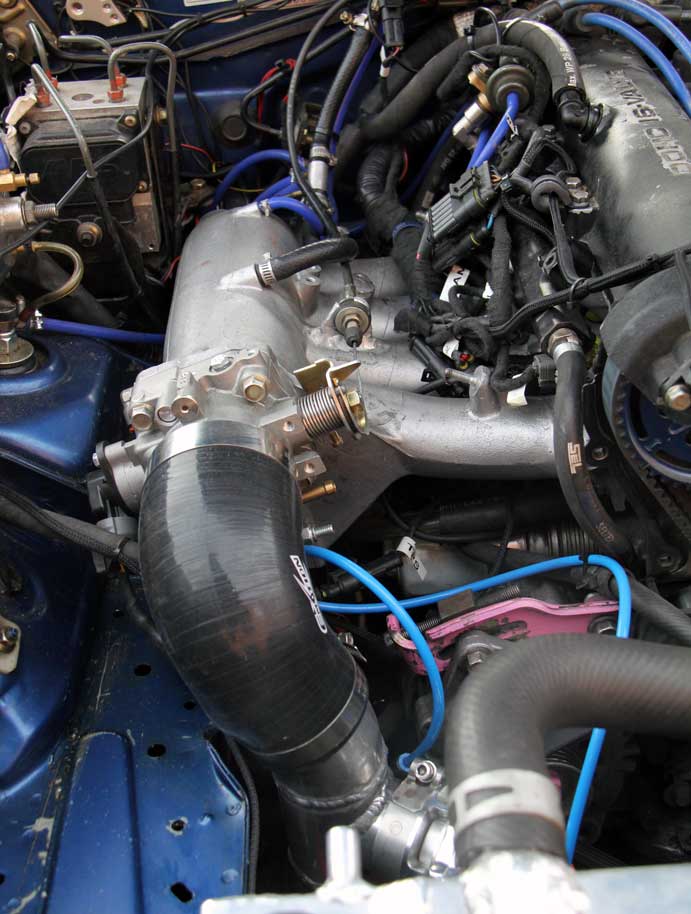

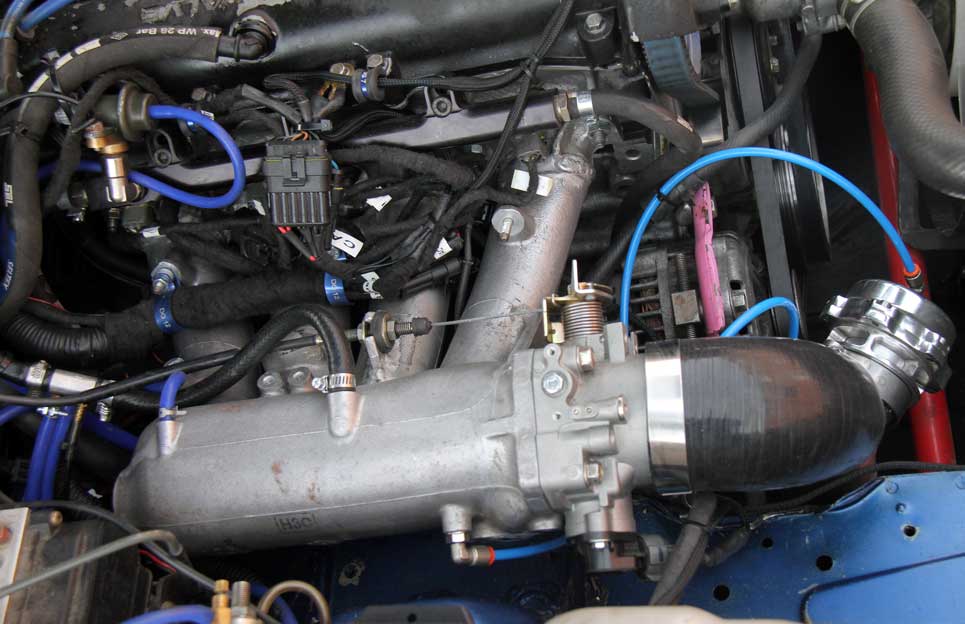

**** yes. Even though it’s long it haven’t hit anything.

(more pics can be found in my build thread)
Attached Thumbnails
Honda intake manifold-img_6217.jpg   Honda intake manifold-img_6213.jpg
muoto is offline   Reply With Quote
Old 04-15-2013, 08:32 AM   #625
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

if for some reason someone wanted to jump into another project while doing the honda intake manifold/ TB.. i came across this looking for some info on another project. seems interesting, not sure if we can actually use it in our case.

http://www.----------------------/fo....php?topic=649
zipstrips is offline   Reply With Quote
Old 04-15-2013, 08:35 AM   #626
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,917
Total Cats: 93
Default

Quote:
Originally Posted by zipstrips View Post
if for some reason someone wanted to jump into another project while doing the honda intake manifold/ TB.. i came across this looking for some info on another project. seems interesting, not sure if we can actually use it in our case.

http://www.----------------------/fo....php?topic=649
Is that website blacklisted?
Leafy is offline   Reply With Quote
Old 04-15-2013, 08:36 AM   #627
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

Link doesn't work.....
Amellrotts is offline   Reply With Quote
Old 04-16-2013, 09:44 PM   #628
Junior Member

Join Date: May 2007
Location: Toronto Area, Ontario
Posts: 117
Total Cats: 15
Default

Honda Throttle Body Sizing Chart

Inside Diameters (in mm)
• b16a SiR - 58
• b16a Sir2 - 60
• b16a2 - 60
• b16a3 - 60
• b18a - 58
• b18a - 58
• b18b - 60
• b18c1 - 60
• b18c5 - 62
• b20b - 60
• b20z – 60
• d15b7 - 56
• d16a6 - 55
• d16y7 - 56
• d16y8 - 56
• d16z6 - 56
• d16a1 - 55
• d16a8 – 55
• f20c - 62
• f22 - 60
• f23 - 60
• h22a - 60
• h23a - 60
oreo is offline   Reply With Quote
Old 04-17-2013, 03:36 AM   #629
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 22
Default

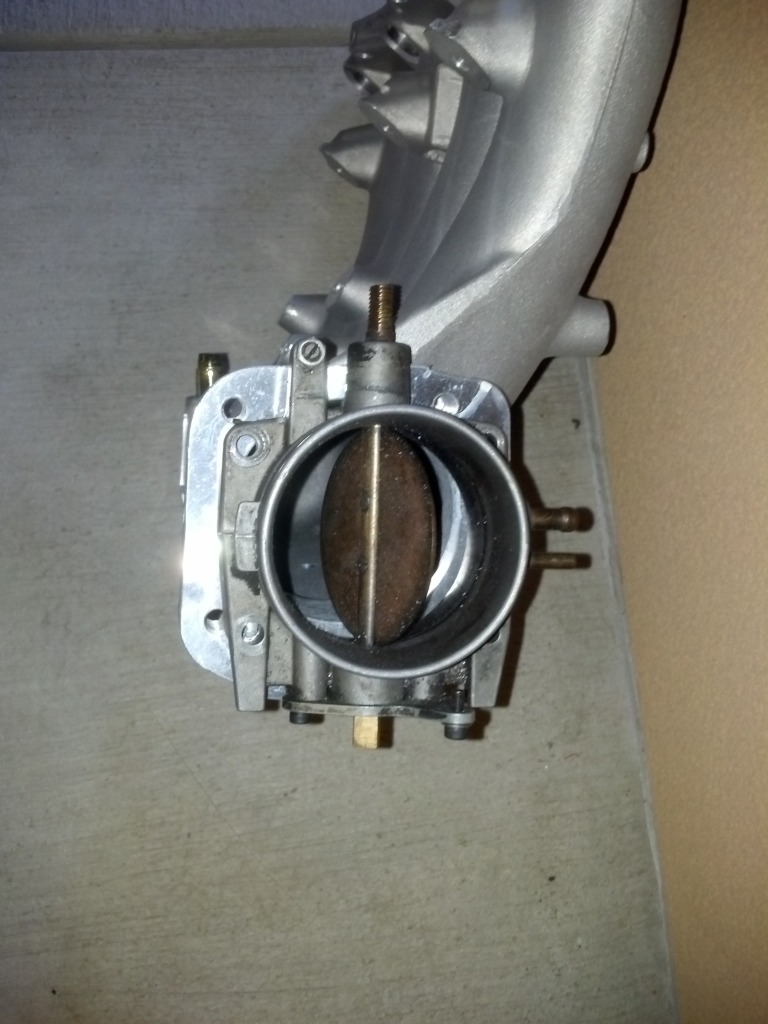

On the topic of throttle bodies on mine I plan to use the 64mm throttle body off of a Volvo 960. Why? Because I had one laying around from my volvo project. They accept the miata throttle spool and can be modded to use the miata return spring.

Attached Thumbnails
Honda intake manifold-img_20130410_173732_569_zpse25a561e.jpg
cjsafski is offline   Reply With Quote
Old 04-17-2013, 04:01 AM   #630
Newb

Join Date: Jan 2013
Posts: 23
Total Cats: -83
Default

Funny you guys can't find any Honda tb's. Guess it's true, one man's trash is another's treasure. I've thrown multiple away within the past 2 years. Might still have one from an ls if your still looking??
Tork is offline   Reply With Quote
Old 04-17-2013, 04:15 AM   #631
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Tork View Post
Funny you guys can't find any Honda tb's. Guess it's true, one man's trash is another's treasure. I've thrown multiple away within the past 2 years. Might still have one from an ls if your still looking??
I didn’t have any problems finding new 70mm Honda TB for $70
muoto is offline   Reply With Quote
Old 04-17-2013, 04:22 AM   #632
Newb

Join Date: Jan 2013
Posts: 23
Total Cats: -83
Default

Quote:
Originally Posted by muoto View Post
I didn’t have any problems finding new 70mm Honda TB for $70
My bad i was talking about stock tb not aftermarket. Literally people throw away d series tb's and b series it's 50/50 whether they get thrown away our thrown in a box way in the corner.
Tork is offline   Reply With Quote
Old 04-17-2013, 07:27 AM   #633
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

I am interested in a stock TB! PM me what you want for it.....
Amellrotts is offline   Reply With Quote
Old 04-22-2013, 05:42 AM   #634
Newb

Join Date: Apr 2013
Location: Levittown, PA
Posts: 11
Total Cats: 0
Default

https://www.facebook.com/photo.php?v=152901464867246
Running Honda Intake and GT35-R, Built block stock valve train. This thing is a BEAST!!!!
JonnyMX5 is offline   Reply With Quote
Old 04-22-2013, 08:06 AM   #635
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,338
Total Cats: 229
Default

Music makes that video stupid.
TurboTim is offline   Reply With Quote
Old 04-22-2013, 12:31 PM   #636
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,667
Total Cats: 210
Default

Needs to be making another 100hp
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-24-2013, 01:47 AM   #637
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

I know all you guys are liking the blox and all but when asking one of my buddies who's a honda guy said I should check out this first. http://cms.skunk2.com/id/467/Pro-Ser...d-Clone-Alert/
Yeah I know it may be some marketing bullshit. But ya never know it may be worth looking into seeing if that extra cash is worth it for the real skunk2's.

Also: No he's not a ricer ***, I autox with him and his s2000 (yeah I know it's not as good as a miata but ya know, Not everyone realizes the true greatness early).


Another also:
These have to be for the B18B B18A? I don't know honda motors. I can't handle the vtecs.
I'm planning on running one with a 70mm TB.
Or just weld up a box with w/e size TB I can get... I like the R and D on these though.

Last edited by Impuls; 04-24-2013 at 02:06 AM.
Impuls is offline   Reply With Quote
Old 04-24-2013, 06:56 AM   #638
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

There are some good points made by them at to why we should buy their product.....but I think even the "fake" they show is 100% better than ours. Also, I got a "fake" of the "fake" that was a clone. Mine, iirc, looks as good or better than the "real" Skunks so after seeing their ad I feel even better about my $109 ebay "fake"......

I will post pics of mine when I get home, currently out of town.
Amellrotts is offline   Reply With Quote
Old 04-24-2013, 10:03 AM   #639
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,370
Total Cats: 2,245
Default

Quote:
Originally Posted by Impuls View Post
I know all you guys are liking the blox and all but when asking one of my buddies who's a honda guy said I should check out this first. Pro Series Intake Manifold Clone Alert - Skunk2 Racing
Yeah I know it may be some marketing bullshit. But ya never know it may be worth looking into seeing if that extra cash is worth it for the real skunk2's.

Also: No he's not a ricer ***, I autox with him and his s2000 (yeah I know it's not as good as a miata but ya know, Not everyone realizes the true greatness early).


Another also:
These have to be for the B18B B18A? I don't know honda motors. I can't handle the vtecs.
I'm planning on running one with a 70mm TB.
Or just weld up a box with w/e size TB I can get... I like the R and D on these though.
HAHHAHAHA

If you know anything about Junk2, you'll know how pathetically terrible their marketing/advertising is, and how mind numbingly arrogant and scumbaggy the owner of the company is. This link is no exception. Its funny cause they copied the Type-R manifold, made some tiny differences, and are now crying that others are copying their copies.

You forgot your cap, scumbag steve.

They make their crap in the same places the knock offs are made, just with better QA and prettier castings. All the marginal/trivial crap they mentioned is NOT EVEN CLOSE to worth the nearly $200 markup they charge for their parts vs the knockoffs. I was particularly amused when they had that whole scandal with putting a bounty on 2 random forum guys that "outed" their practice of branding china-made parts and marking up the price claiming it was all developed and made in house in CA or something equally retarded (I forget the details of the story)

The bottom line is exactly what Amellrotts said:
Even the fakes are a giant improvement over our stock stuff, and the minute differences are nowhere near worth the premium, so who cares.
18psi is offline   Reply With Quote
Old 04-24-2013, 10:11 AM   #640
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,511
Total Cats: 1,565
Default

The fake looks better than the skunk2. but the Blox isn't trying to be the skunk2. AND both are just a copy of the OEM ITR IM.

the only thing they claim to be worse is the 66mm vs 75mm inlet...so bore it out to match your TB and save a bunch of change. I quite honestly dont believe that claim, because to me the bore sizes look indentical when you factor in the distances from the mounting holes.
Braineack is offline   Reply With Quote
